2023 HYUNDAI I20 Owners Manual

07

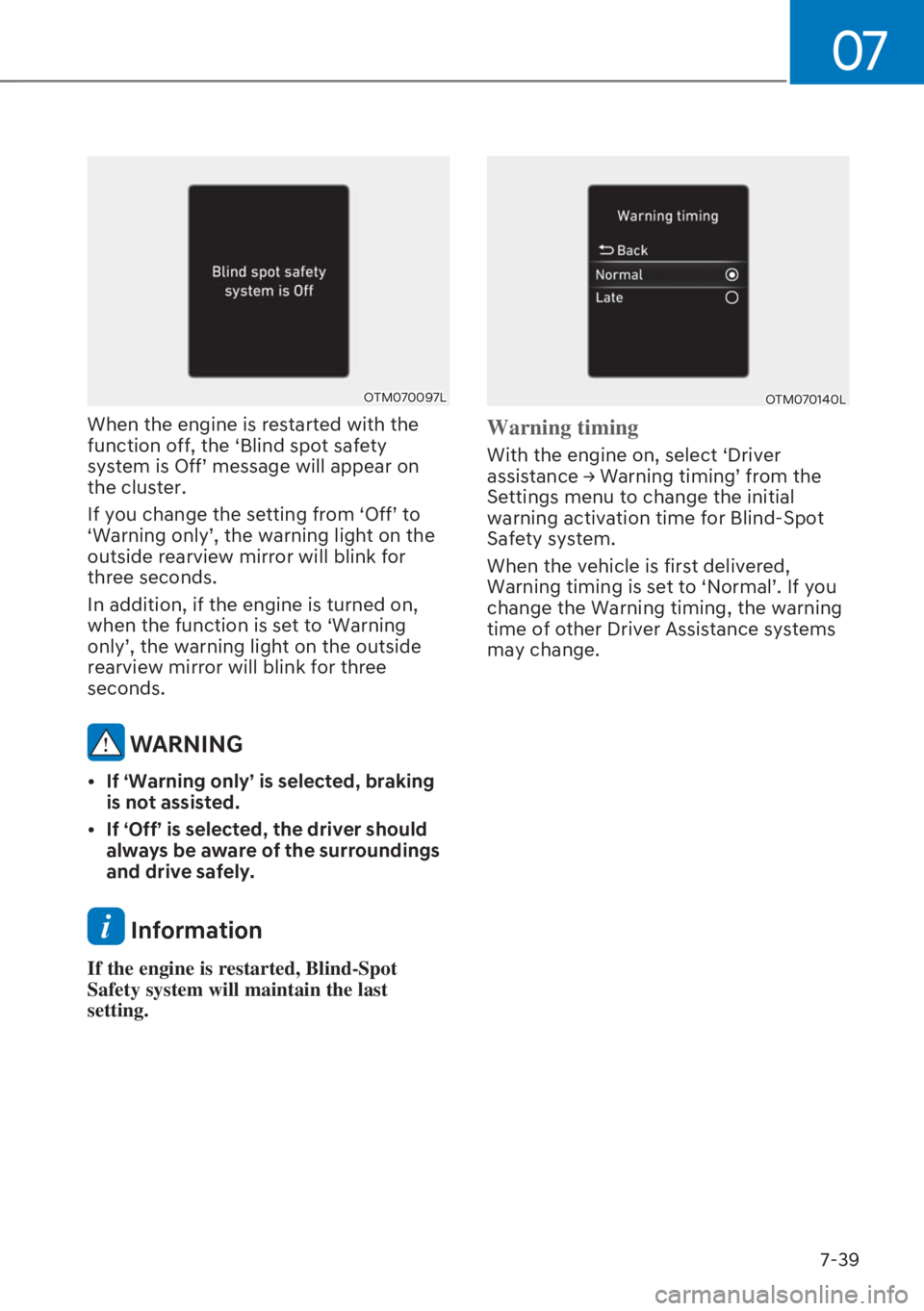

7-39
OTM070097L
When the engine is restarted with the
function off, the ‘Blind spot safety
V\VWHPLV2II
TPHVVDJHZLOODSSHDURQ
the cluster.
,I\RXFKDQJHWKHVHWWLQJIURP
S2II
TWR

S:DUQLQJRQO\
TWKHZDUQLQJOLJKWRQWKH
outside rearview mirror will blink for
three seconds.
In addition, if the engine is turned on,
when the function is set to ‘Warning
RQO\
TWKHZDUQLQJOLJKWRQWKHRXWVLGH
rearview mirror will blink for three
seconds.
WARNING

[If ‘Warning only’ is selected, braking
is not assisted.

[If ‘Off’ is selected, the driver should
always be aware of the surroundings
and drive safely.
Information
If the engine is restarted, Blind-Spot
Safety system will maintain the last
setting.
OTM070140L
Warning timing
With the engine on, select ‘Driver
DVVLVWDQFH

Driver assistance system

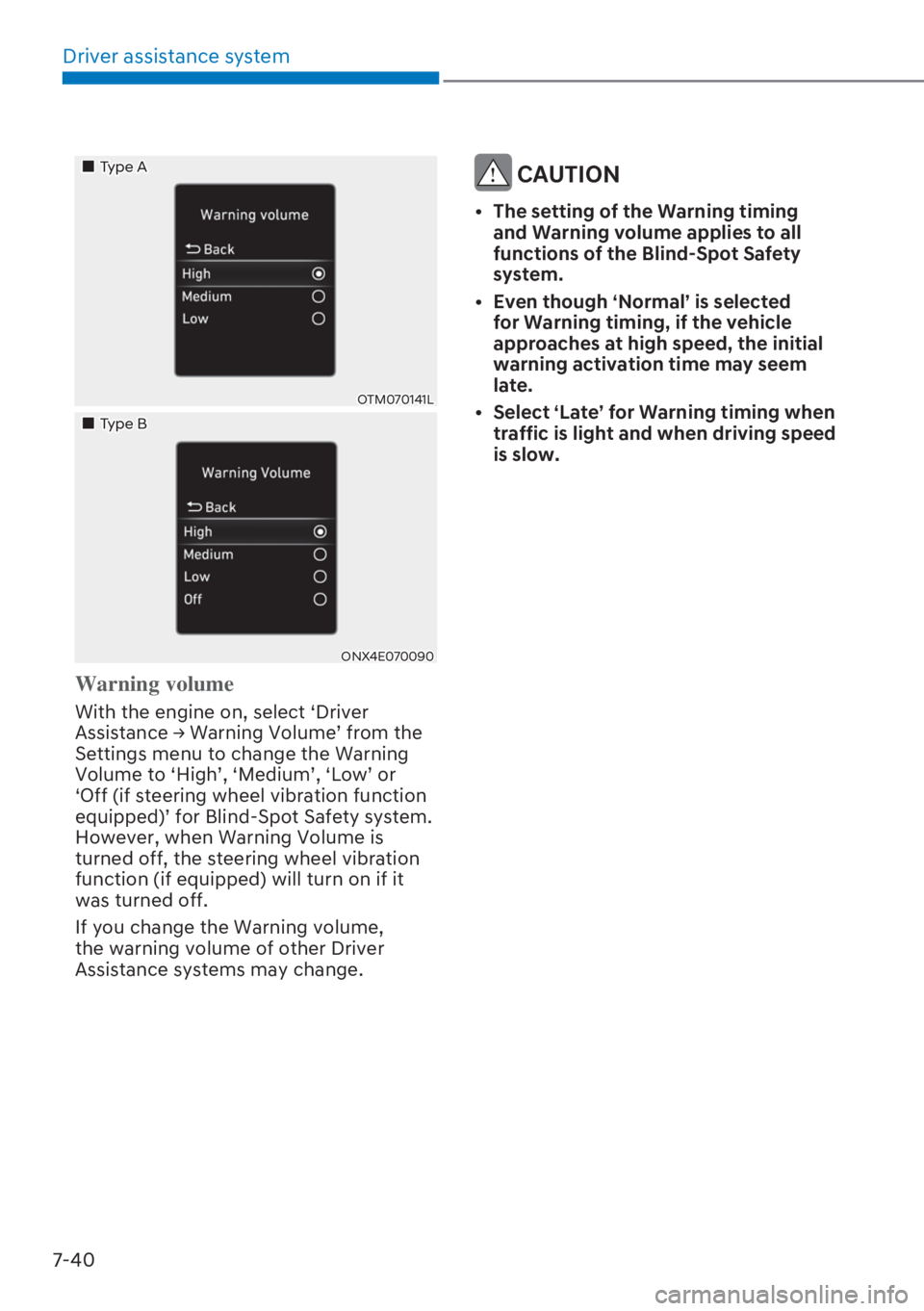

7-40
„Type A
OTM070141L
„Type B
ONX4E070090
Warning volume
With the engine on, select ‘Driver
$VVLVWDQFH

07
7-41
Blind-Spot Collision Warning
operation
Blind-Spot Collision Warning
warning
ORG3070025
Vehicle detection

[To warn the driver, a vehicle is
detected, the warning light on the
outside rearview mirror will illuminate.

[The function will operate when your
vehicle speed is above 12 mph (20
km/h) and the speed of the vehicle in
the blind spot area is above 7 mph (10
km/h).
Collision warning

[Collision warning will operate when
the turn signal is turned on in the
direction of the detected vehicle.

[To warn the driver of a collision, the
warning light on the outside rearview
mirror will blink. At the same time,
an audible warning will sound and
the steering wheel will vibrate (if
equipped).

[When the turn signal is turned off or
you move away from the lane, the
collision warning will be canceled
and the function will return to vehicle
detection state.
WARNING

[The detecting range of the rear
corner radar is determined by the
standard road width, therefore, on
a narrow road, the function may
detect other vehicles in the next lane
and warn you. In contrast, on a wide
road, the function may not be able to
detect a vehicle driving in the next
lane and may not warn you.

[When the hazard warning light is
on, the collision warning by the turn
signal will not operate.
Information
If the driver's seat is on the left side, the
collision warning may occur when you
turn left. Maintain a proper distance with
the vehicles in the left lane. If the driver's
seat is on the right side, the collision
warning may occur when you turn right.
Maintain a proper distance with the
vehicles in the right lane.

Driver assistance system

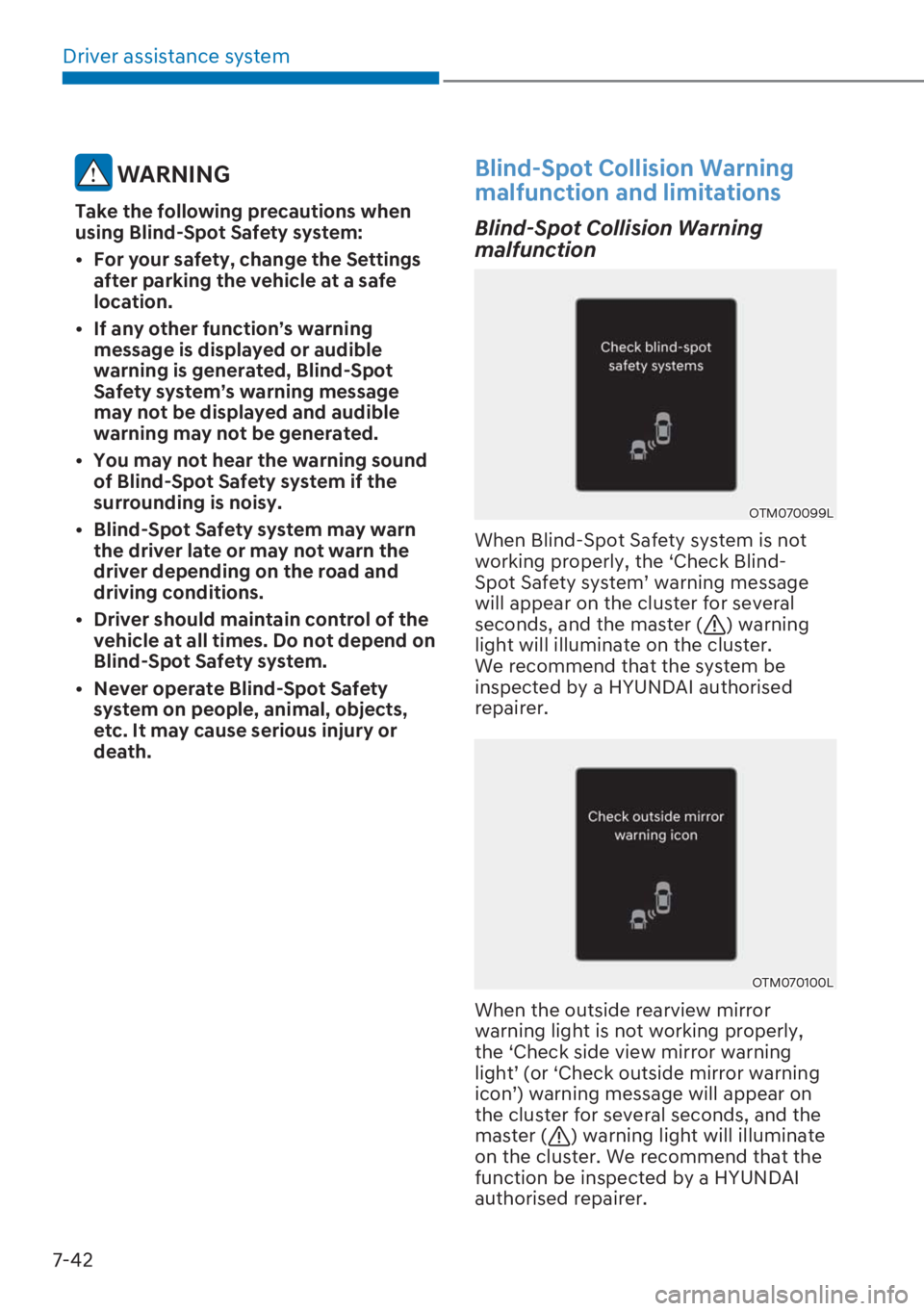

7-42
WARNING
Take the following precautions when
using Blind-Spot Safety system:

[For your safety, change the Settings
after parking the vehicle at a safe
location.

[If any other function’s warning
message is displayed or audible
warning is generated, Blind-Spot
Safety system’s warning message
may not be displayed and audible
warning may not be generated.

[You may not hear the warning sound
of Blind-Spot Safety system if the
surrounding is noisy.

[Blind-Spot Safety system may warn
the driver late or may not warn the
driver depending on the road and
driving conditions.

[Driver should maintain control of the
vehicle at all times. Do not depend on
Blind-Spot Safety system.

[Never operate Blind-Spot Safety
system on people, animal, objects,
etc. It may cause serious injury or
death.
Blind-Spot Collision Warning
malfunction and limitations
Blind-Spot Collision Warning
malfunction
OTM070099L
When Blind-Spot Safety system is not
working properly, the ‘Check Blind-
6SRW6DIHW\V\VWHP
TZDUQLQJPHVVDJH
will appear on the cluster for several
seconds, and the master (
) warning
light will illuminate on the cluster.
We recommend that the system be
inspected by a HYUNDAI authorised
repairer.
OTM070100L
When the outside rearview mirror
warning light is not working properly,
the ‘Check side view mirror warning
OLJKW
TRU
S&KHFNRXWVLGHPLUURUZDUQLQJ
LFRQ
TZDUQLQJPHVVDJHZLOODSSHDURQ
the cluster for several seconds, and the
master (
) warning light will illuminate
on the cluster. We recommend that the
function be inspected by a HYUNDAI
authorised repairer.

07
7-43
Blind-Spot Collision Warning
disabled
OTM070098L
When the rear bumper around the rear
corner radar or sensor is covered with
foreign material, such as snow or rain,
or installing a trailer or carrier, it can
reduce the detecting performance and
temporarily limit or disable Blind-Spot
Safety system.
If this occurs, the ‘Blind-spot safety
IXQFWLRQGLVDEOHG5DGDUEORFNHG
T
warning message will appear on the
cluster.
The function will operate normally
when such foreign material or trailer,
etc. is removed, and then the engine is
restarted.
If the function does not operate normally
after it is removed, we recommend that
the function be inspected by a HYUNDAI
authorised repairer.
WARNING

[Even though the warning message
does not appear on the cluster, Blind-
Spot Safety system may not properly
operate.

[Blind-Spot Safety system may not
properly operate in an area (e.g. open
terrain), where any substance are
not detected right after the engine
is turned on, or when the detecting
sensor is blocked with foreign
material right after the engine is
turned on.
CAUTION
Turn off Blind-Spot Safety system to
install a trailer, carrier, etc., or remove
the trailer, carrier, etc. to use Blind-
Spot Safety system.
Limitations of Blind-Spot Collision
Warning
Blind-Spot Safety system may not
operate normally, or the function
may operate unexpectedly under the
following circumstances:

[There is inclement weather such as
heavy snow, heavy rain, etc.

[The rear corner radar is covered with
snow, rain, dirt, etc.

[The temperature around the rear
corner radar is high or low

[Driving on a highway (or motorway)
ramp

[ The road pavement (or the peripheral
ground) abnormally contains metallic
components (i.e. possibly due to
subway construction)

Driver assistance system

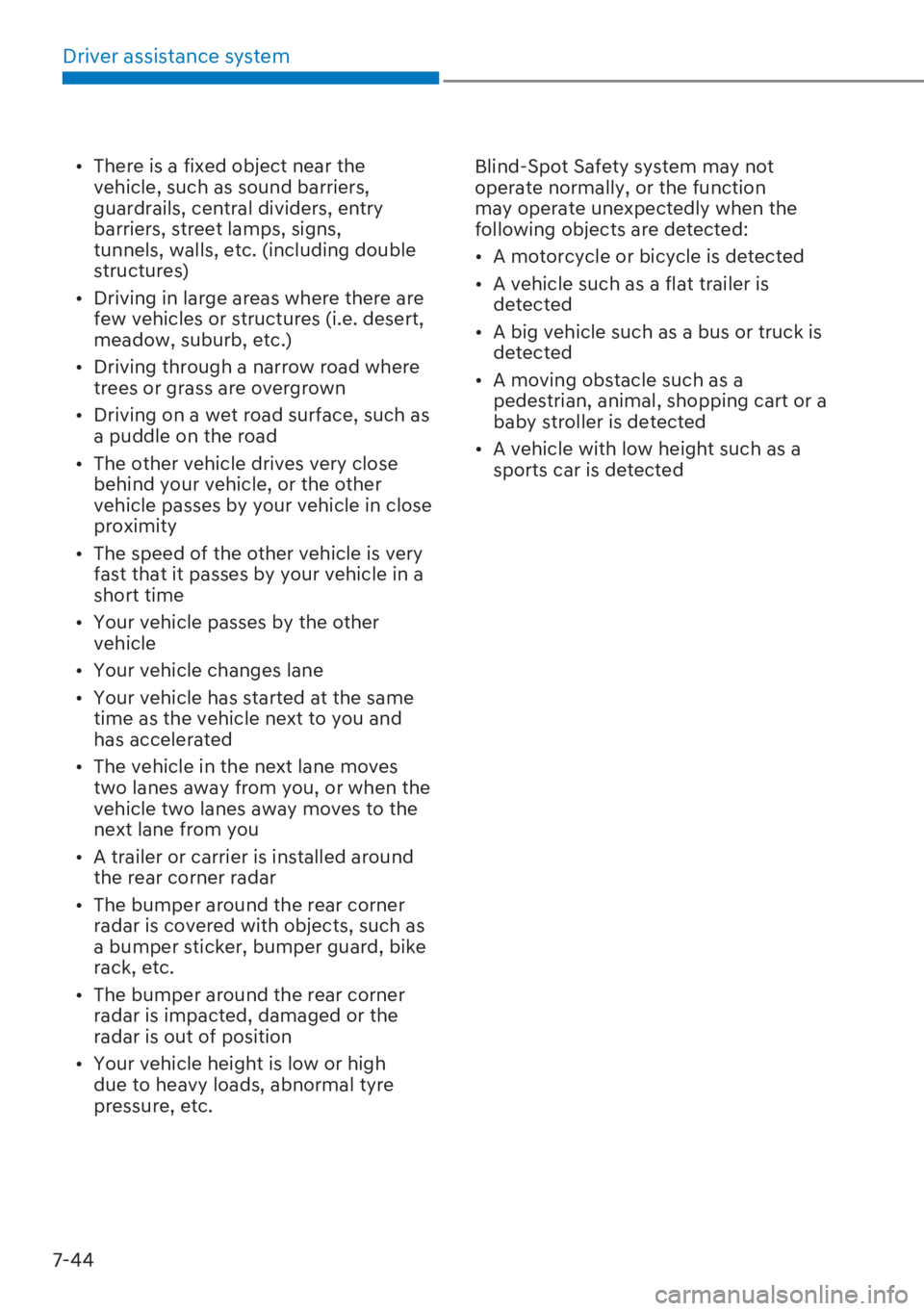

7-44

[There is a fixed object near the
vehicle, such as sound barriers,
guardrails, central dividers, entry
barriers, street lamps, signs,
tunnels, walls, etc. (including double
structures)

[Driving in large areas where there are
few vehicles or structures (i.e. desert,
meadow, suburb, etc.)

[Driving through a narrow road where
trees or grass are overgrown

[Driving on a wet road surface, such as
a puddle on the road

[The other vehicle drives very close
behind your vehicle, or the other
vehicle passes by your vehicle in close
proximity

[The speed of the other vehicle is very
fast that it passes by your vehicle in a
short time

[Your vehicle passes by the other
vehicle

[Your vehicle changes lane

[Your vehicle has started at the same
time as the vehicle next to you and
has accelerated

[The vehicle in the next lane moves
two lanes away from you, or when the
vehicle two lanes away moves to the
next lane from you

[A trailer or carrier is installed around
the rear corner radar

[The bumper around the rear corner
radar is covered with objects, such as
a bumper sticker, bumper guard, bike
rack, etc.

[The bumper around the rear corner
radar is impacted, damaged or the
radar is out of position

[Your vehicle height is low or high
due to heavy loads, abnormal tyre
pressure, etc.Blind-Spot Safety system may not
operate normally, or the function
may operate unexpectedly when the
following objects are detected:

[A motorcycle or bicycle is detected

[A vehicle such as a flat trailer is
detected

[A big vehicle such as a bus or truck is
detected

[A moving obstacle such as a
pedestrian, animal, shopping cart or a
baby stroller is detected

[A vehicle with low height such as a
sports car is detected

07

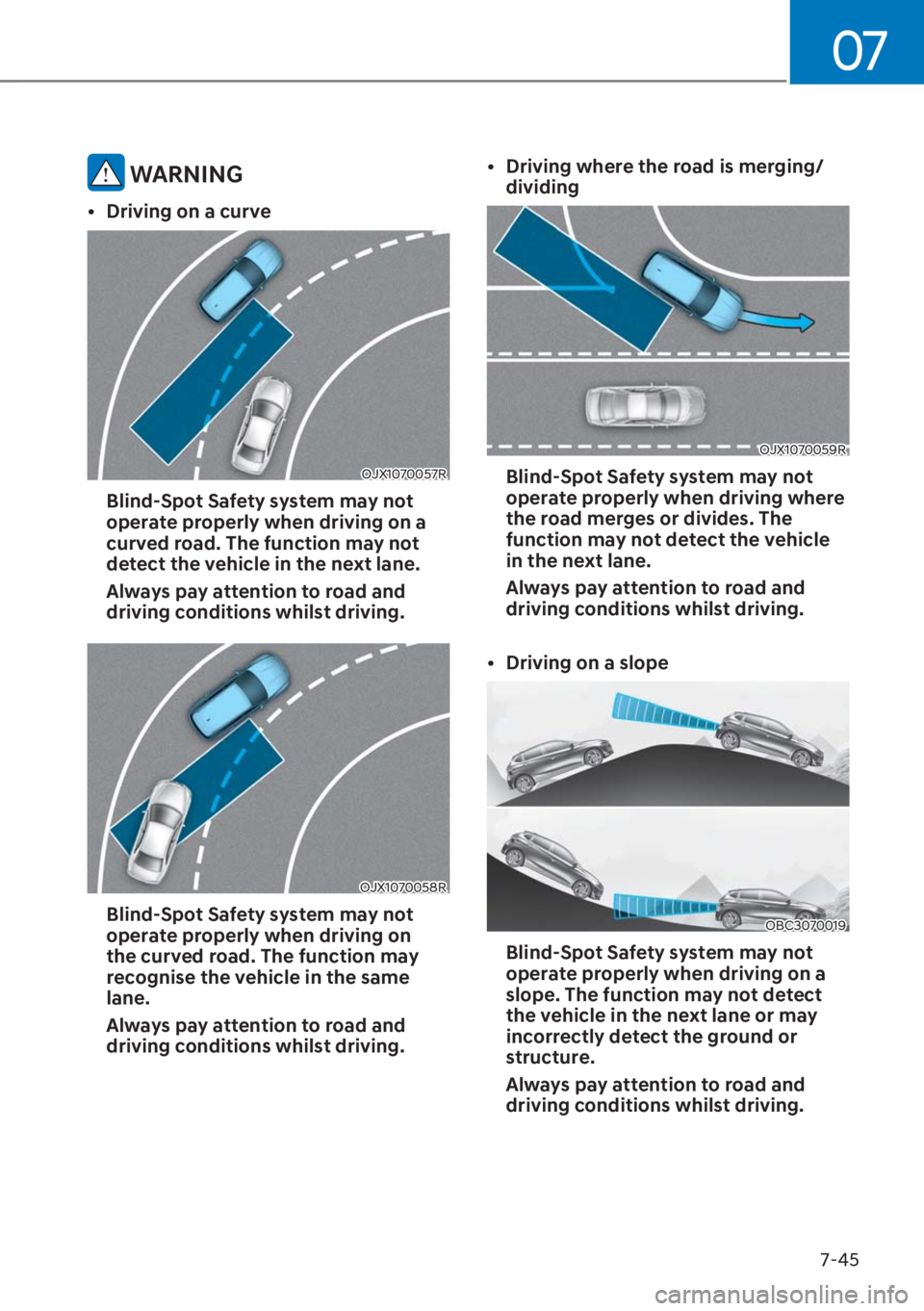

7-45
WARNING

[Driving on a curve
OJX1070057R
Blind-Spot Safety system may not
operate properly when driving on a
curved road. The function may not
detect the vehicle in the next lane.
Always pay attention to road and
driving conditions whilst driving.
OJX1070058R
Blind-Spot Safety system may not
operate properly when driving on
the curved road. The function may
recognise the vehicle in the same
lane.
Always pay attention to road and
driving conditions whilst driving.
[Driving where the road is merging/
dividing
OJX1070059R
Blind-Spot Safety system may not
operate properly when driving where
the road merges or divides. The
function may not detect the vehicle
in the next lane.
Always pay attention to road and
driving conditions whilst driving.

[Driving on a slope
OBC3070019
Blind-Spot Safety system may not
operate properly when driving on a
slope. The function may not detect
the vehicle in the next lane or may
incorrectly detect the ground or
structure.
Always pay attention to road and
driving conditions whilst driving.

Driver assistance system

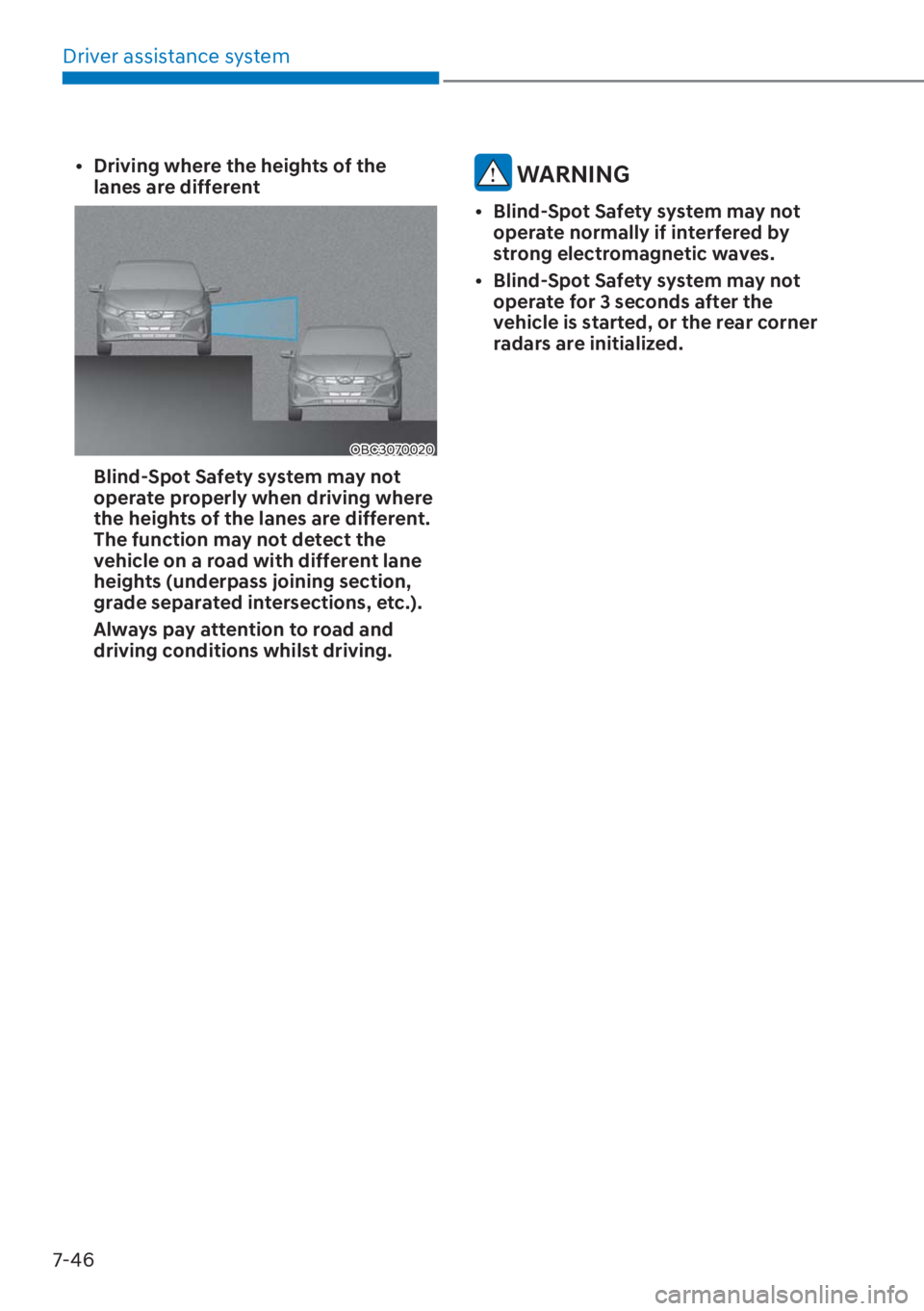

7-46

[Driving where the heights of the
lanes are different
OBC3070020
Blind-Spot Safety system may not
operate properly when driving where
the heights of the lanes are different.
The function may not detect the
vehicle on a road with different lane
heights (underpass joining section,
grade separated intersections, etc.).
Always pay attention to road and
driving conditions whilst driving.
WARNING

[Blind-Spot Safety system may not
operate normally if interfered by
strong electromagnetic waves.

[Blind-Spot Safety system may not
operate for 3 seconds after the
vehicle is started, or the rear corner
radars are initialized.
