2023 HYUNDAI I20 Owners Manual

9-58
Maintenance
3HWURO
Fuse Name Symbol (A) Circuit Protected
ABS 140A ESP Control Module
BLOWER
40A E/R Junction Block (RLY.13)
PTC
HEATER
50A E/R Junction Block (RLY.14)
ABS 2
30A ESP Control Module
POWER
OUTLET
40A ICU Junction Block (Power Outlet Relay)
WIPER 2
10A E/R Junction Block (RLY. 4), Front Wiper Motor, IBU
INJECTOR
15A E/R Junction Block (RLY. 5), Injector #1/#2/#3/#4
WIPER 1
25AE/R Junction Block (RLY. 4), Front Wiper Motor,
Ignition Switch

9-59
09
We recommend that you consult with a
HYUNDAI authorised repairer to replace
most vehicle light bulbs. It is difficult
to replace vehicle light bulbs because
other parts of the vehicle must be
removed before you can get to the bulb.
This is especially true for removing the
headlight assembly to get to the bulb(s).
Removing/installing the headlight
assembly can result in damage to the
vehicle.
WARNING
Prior to replacing a light, depress the
foot brake, move the shift lever into the
N (Neutral, for automatic transmission
vehicle) or neutral (for manual
transmission vehicle), apply the parking
brake, place the ignition switch in the
LOCK/OFF position, and take the key
with you when leaving the vehicle to
avoid sudden movement of the vehicle
and to prevent possible electric shock.
%HDZDUHWKHEXOEVPD\EHKRWDQGPD\
burn your fingers.
NOTICE
%HVXUHWRUHSODFHWKHEXUQHGRXWEXOE
with one of the same wattage rating.
Otherwise, it may cause damage to the
fuse or electric wiring system.
i Information
7KHKHDGOLJKWDQGWDLOODPSOHQVHVFRXOG
DSSHDUIURVW\LIWKHYHKLFOHLVZDVKHGDIWHU
GULYLQJRUWKHYHKLFOHLVGULYHQDWQLJKW
LQZHWZHDWKHU7KLVFRQGLWLRQLVFDXVHG
E\WHPSHUDWXUHGLIIHUHQFHEHWZHHQWKH
ODPSLQVLGHDQGRXWVLGHDQGLWGRHVQRW
LQGLFDWHDSUREOHPZLWK\RXUYHKLFOH
:KHQPRLVWXUHFRQGHQVHVLQWKHODPS
LWZLOOEHUHPRYHGDIWHUGULYLQJZLWKWKH
KHDGOLJKWRQ7KHUHPRYDEOHOHYHOPD\
GLIIHUGHSHQGLQJRQODPSVL]HODPS
SRVLWLRQDQGHQYLURQPHQWDOFRQGLWLRQ
+RZHYHULIPRLVWXUHLVQRWUHPRYHGZH
UHFRPPHQGWKDW\RXUYHKLFOHLVLQVSHFWHG
E\D+<81'$,DXWKRULVHGUHSDLUHU
i Information (For Europe)
7UDIILF&KDQJH
7KHORZEHDPOLJKWGLVWULEXWLRQLV
DV\PPHWULF,I\RXJRDEURDGWRDFRXQWU\
ZLWKRSSRVLWHWUDIILFGLUHFWLRQWKLV
DV\PPHWULFSDUWZLOOGD]]OHRQFRPLQJFDU
GULYHU7RSUHYHQWGD]]OH(&(UHJXODWLRQ
GHPDQGVVHYHUDOWHFKQLFDOVROXWLRQVH[
DXWRPDWLFFKDQJHV\VWHPDGKHVLYHVKHHW
GRZQDLPLQJ7KHVHKHDGOLJKWVDUH
GHVLJQHGQRWWRGD]]OHRSSRVLWHGULYHUV
6R\RXQHHGQRWFKDQJH\RXUKHDGOLJKWV
LQDFRXQWU\ZLWKWKHRSSRVLWHWUDIILF
GLUHFWLRQ
LIGHT BULBS

9-60
Maintenance
Headlight, Position Light,
Turn signal Light bulb
replacement
Type A
OBC3N090030
(1) Headlight (Low/High)
(2) Turn signal light
(3) Position light (if equipped)
(4) Daytime running light/
D.R.L & Position
Type B -N line
OBC3TN091003
(1) Headlight (Low/High)
(2) Turn signal light
(3) Daytime running light & Position light
Type C - CUV
OBC3V091001
(1) Headlight(Low/High)
(2) Turn signal light
(3) Daytime running light & Position light
*1 : MFR (Multi Focus Reflector) Headlight

9-61
09
OLMB073042L
WARNING

[Handle halogen bulbs with care.
Halogen bulbs contain pressurized
gas that will produce flying pieces
of glass that could cause injuries if
broken.

[Wear eye protection when changing
a bulb. Allow the bulb to cool down
before handling it.

[Always handle them carefully, and
avoid scratches and abrasions. If
the bulbs are lit, avoid contact with
liquids.

[Never touch the glass with bare
hands. Residual oil may cause the bulb
to overheat and burst when lit.

[A bulb should be operated only when
installed in a headlight.

[If a bulb becomes damaged or
cracked, replace it immediately and
carefully dispose of it.
i Information
:HUHFRPPHQGWKDWWKHKHDGOLJKWDLPLQJ
EHDGMXVWHGDIWHUDQDFFLGHQWRUDIWHUWKH
KHDGOLJKWDVVHPEO\LVUHLQVWDOOHG
❈7UDIILF&KDQJH)RU(XURSH
The low beam light distribution is
asymmetric. If you go abroad to a
country with opposite traffic direction,
this asymmetric part will dazzle
oncoming car driver. To prevent dazzle,
ECE regulation demands several
technical solutions (ex. automatic
change system, adhesive sheet, down
aiming). This headlamps are designed
not to dazzle opposite drivers.
So, you need not change your
headlamps in a country with the
opposite traffic direction.

9-62
Maintenance
+HDGOLJKW/RZ+LJK
1. Turn the front wheel at inwards.
OAC3089042TU
OAC3089043TU
OBC3090055
2. Remove the Wheel guard clips (B),
bumper cover bolt (A) and bumper
upper cover blots (C).
3. Push the wheel guard aside and
remove the headlight bulb cover by
turning it counterclockwise from bulb
assembly.
OBC3090038
OBC3TN091005
„CUV
4. Disconnect the headlight bulb socket-
connector.
5. Unsnap the headlight bulb retaining
wire by depressing the end and
pushing it upward.
6. Remove the bulb from the headlight
assembly.
7. Install a new headlight bulb and snap
the headlight bulb retaining wire into
position by aligning the wire with the
groove on the bulb.
8. Connect the headlight bulb socket
connector.
9. Install the headlight bulb cover by
turning it clockwise.
10. Install the wheel guard in the reverse
order.

9-63
09

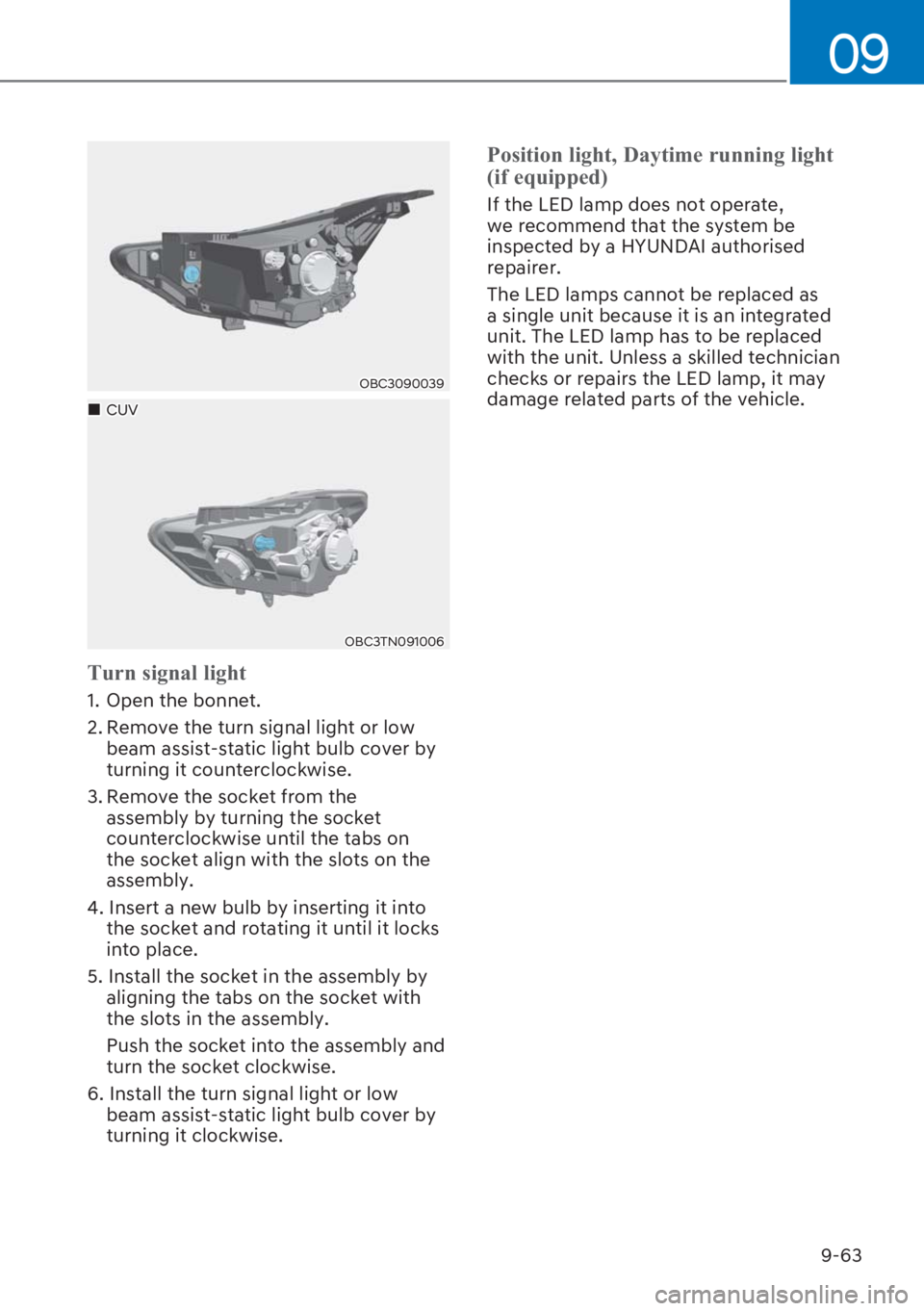

OBC3090039
OBC3TN091006
„CUV
7XUQVLJQDOOLJKW
1. Open the bonnet.
2. Remove the turn signal light or low
beam assist-static light bulb cover by
turning it counterclockwise.
3. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on the
assembly.
4. Insert a new bulb by inserting it into
the socket and rotating it until it locks
into place.
5. Install the socket in the assembly by
aligning the tabs on the socket with
the slots in the assembly.
Push the socket into the assembly and
turn the socket clockwise.
6. Install the turn signal light or low
beam assist-static light bulb cover by
turning it clockwise.
3RVLWLRQOLJKW'D\WLPHUXQQLQJOLJKW
LIHTXLSSHG
If the LED lamp does not operate,
we recommend that the system be
inspected by a HYUNDAI authorised
repairer.
The LED lamps cannot be replaced as
a single unit because it is an integrated
unit. The LED lamp has to be replaced
with the unit. Unless a skilled technician
checks or repairs the LED lamp, it may
damage related parts of the vehicle.

9-64
Maintenance

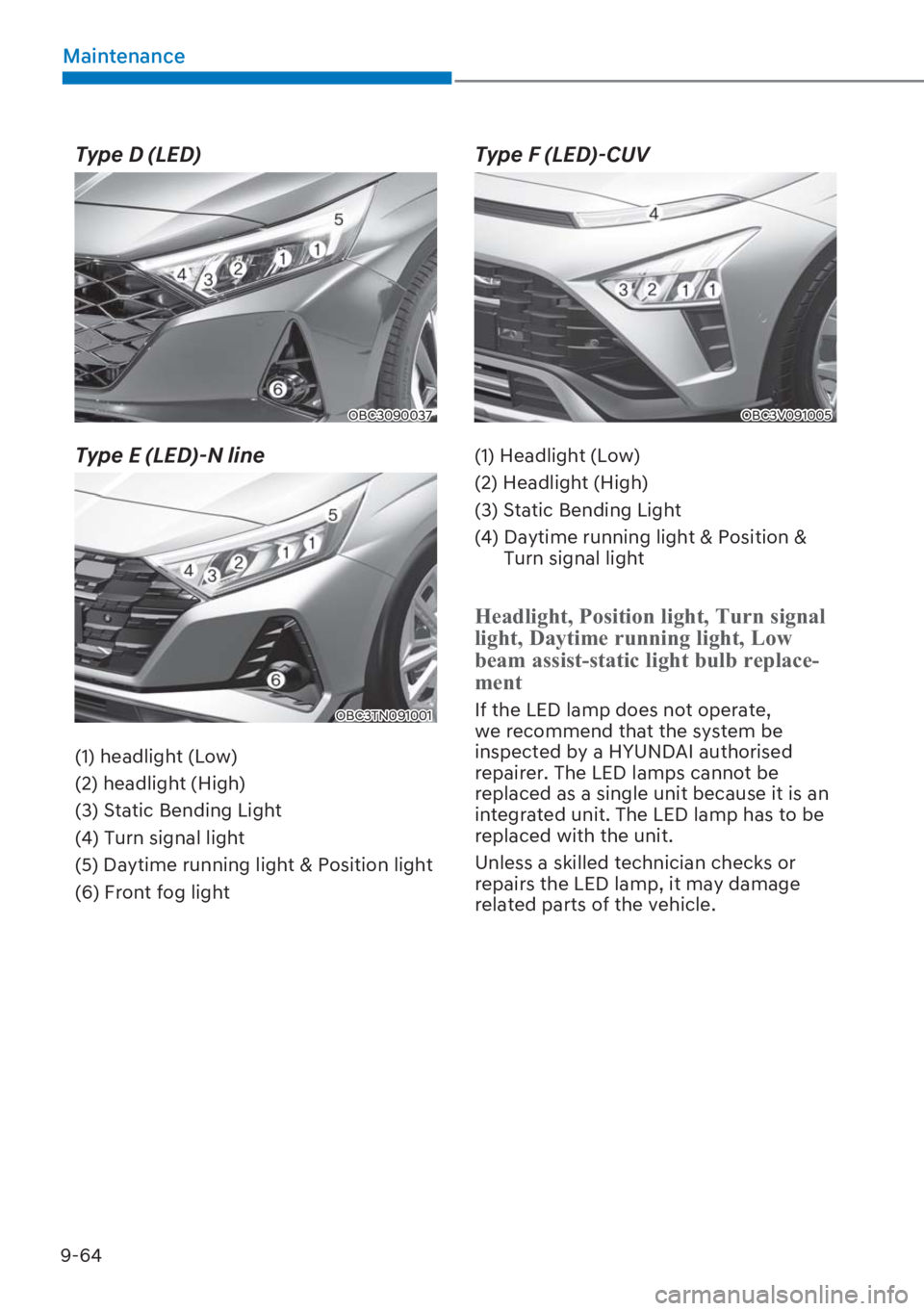

Type D (LED)
OBC3090037
Type E (LED)-N line
OBC3TN091001
(1) headlight (Low)
(2) headlight (High)
(3) Static Bending Light
(4) Turn signal light
(5) Daytime running light & Position light
(6) Front fog light
Type F (LED)-CUV
OBC3V091005
(1) Headlight (Low)
(2) Headlight (High)
(3) Static Bending Light
(4) Daytime running light & Position &
Turn signal light
+HDGOLJKW3RVLWLRQOLJKW7XUQVLJQDO
OLJKW'D\WLPHUXQQLQJOLJKW/RZ
EHDPDVVLVWVWDWLFOLJKWEXOEUHSODFH
PHQW
If the LED lamp does not operate,
we recommend that the system be
inspected by a HYUNDAI authorised
repairer. The LED lamps cannot be
replaced as a single unit because it is an
integrated unit. The LED lamp has to be
replaced with the unit.
Unless a skilled technician checks or
repairs the LED lamp, it may damage
related parts of the vehicle.

9-65
09
„Front Fog light
OBC3090040
)RJOLJKWLIHTXLSSHG
1. Remove the under cover by rotating
the screws and bolts.
2. Reach your hand into the back of the
front bumper.
3. Disconnect the power connector from
the socket.
4. Remove the bulb-socket from
the housing by turning the socket
counterclockwise until the tabs on
the socket align with the slots on the
housing.
5. Install the new bulb-socket into the
housing by aligning the tabs on the
socket with the slots in the housing.
Push the socket into the housing and
turn the socket clockwise.
6. Connect the power connector to the
socket.
7. Reinstall the front bumper under
cover.
Headlight and front fog light
aiming (For Europe, if equipped)
Headlight aiming
„Type A
OBC3090041
„Type B
OBC3090057
„Type C
OBC3TN091004
1. Inflate the tyres to the specified
pressure and remove any loads from
the vehicle except the driver, spare
tyre, and tools.
2. The vehicle should be placed on a flat
floor.
