2023 HYUNDAI I20 Owners Manual

5-36
Convenient features
Bonnet
Opening the bonnet
OBC3N051010AU
1. Park the vehicle and set the parking
brake.
2. Pull the release lever to unlatch the
bonnet. The bonnet should pop up
slightly.
OBC3050023
3. Go to the front of the vehicle, raise the
bonnet slightly, push the secondary
latch up (1) inside of the bonnet centre
and lift the bonnet (2).
OBC3N050012
4. Pull out the support rod from the
bonnet.
5. Hold the bonnet opened with the
support rod.
WARNING
Support rod

[After driving, the engine
compartment and support rod will be
hot. Grasp the support rod in the area
wrapped in plastic to prevent burns.

[The support rod must be inserted
completely into the hole provided
whenever you inspect the engine
compartment. This will prevent the
bonnet from falling and possibly
injuring you.
BONNET

5-37
05
Closing the bonnet
1. Before closing the bonnet, check the
following:

[$OOILOOHUFDSVLQHQJLQHFRPSDUWPHQW
must be correctly installed.

[*ORYHVUDJVRUDQ\RWKHU
combustible materials must
be removed from the engine
compartment.
2. Return the support rod to its clip
location for preventing it from rattling.
3. Lower the bonnet halfway (lifted
approximately 30cm from the closed
position) and push down to securely
lock in place. Then double check to be
sure the bonnet is secure.
If the bonnet can be raised slightly, it
is not securely locked. Open it again
and close it with more force.
WARNING

[Before closing the bonnet, ensure
all obstructions are removed from
around the bonnet opening.

[Always double check to be sure
that the bonnet is firmly latched
before driving away. Check there
is no bonnet open warning light or
message displayed on the instrument
cluster. Driving with the bonnet
opened may cause a total loss of
visibility, which might result in an
accident.

[Do not move the vehicle with the
bonnet in the raised position, as
vision is obstructed, which might
result in an accident, and the bonnet
could fall or be damaged.
Tailgate
Opening the tailgate
OBC3050025

[ 7KHWDLOJDWHLVORFNHGRUXQORFNHG
when all doors are locked or unlocked
with the remote key, smart key or
central door lock/unlock switch.

[ ,IXQORFNHGWKHWDLOJDWHFDQEH
opened by pulling up the tailgate
outside handle.
i Information
,QFROGDQGZHWFOLPDWHVGRRUORFNDQG
door mechanisms may not work properly
GXHWRIUHH]LQJFRQGLWLRQV
WARNING
The tailgate swings upward. Make
sure no objects or people are near the
rear of the vehicle when opening the
tailgate.

5-38
Convenient features
NOTICE
Make certain that you close the tailgate
EHIRUHGULYLQJ\RXUYHKLFOH3RVVLEOH
damage may occur to the tailgate lift
cylinders and attaching hardware if the
tailgate is not closed prior to driving.
Closing the tailgate
To close the tailgate, lower and push
down the tailgate firmly. Make sure that
the tailgate is securely latched.
WARNINGMake sure your hands, feet and other
parts of your body are safely out of the
way before closing the tailgate.
CAUTION
Make sure nothing is near the tailgate
latch and striker whilst closing the
tailgate. It may damage the tailgate's
latch.
WARNING
Exhaust fumes
If you drive with the tailgate opened,
you will draw dangerous exhaust
fumes into your vehicle which can
cause serious injury or death to vehicle
occupants.
If you must drive with the tailgate
opened, keep the air vents and all
windows open so that additional
outside air comes into the vehicle.
WARNING
Always keep the tailgate lid completely
closed whilst the vehicle is in motion. If
it is left open or ajar, poisonous exhaust
gases containing carbon monoxide
(CO) may enter the vehicle and serious
illness or death may result.
WARNING
Rear cargo area
Occupants should never ride in the
rear cargo area where no restraints are
available. To avoid injury in the event of
an accident or sudden stops, occupants
should always be properly restrained.
WARNING
OBC3050026
Do not hold the part (gas lifter) that
supports the tailgate. Be aware that
the deformation of the part may cause
vehicle damage and a risk of safety
accident.

5-39
05
Emergency tailgate safety
release
OIB047188
Your vehicle is equipped with the
emergency tailgate safety release lever
located on the bottom of the tailgate.
When someone is inadvertently locked
in the luggage compartment, the tailgate
can be opened by doing as follows:
1. Input the mechanical key into the hole.
2. Push the mechanical key to the right.
3. Push up the tailgate.
WARNING

[ )RUHPHUJHQFLHVEHIXOO\DZDUH
of the location of the emergency
tailgate safety release lever in the
vehicle and how to open the tailgate
if you are accidentally locked in the
luggage compartment.

[No one should be allowed to occupy
the luggage compartment of the
vehicle at any time. The luggage
compartment is a very dangerous
location in the event of a crash.

[Use the release lever for emergencies
only. Use with extreme caution,
especially while the vehicle is in
motion.
)XHOILOOHUGRRU
Opening the fuel filler door
OBC3050027
1. Turn the engine off.
(QVXUHWKHGULYHU
TVGRRULVXQORFNHG
3. Push the fuel filler door near the 3
o‘clock position.

5-40
Convenient features
OBC3N050015
3. Pull the fuel filler door out (1) to fully
open.
4. To remove the fuel tank cap (2), turn
it counterclockwise. You may hear a
hissing noise as the pressure inside
the tank equalizes.
5. Place the cap on the fuel filler door
(3).
i Information
,IWKHIXHOILOOHUGRRUGRHVQRWRSHQ
because ice has formed around it, tap
lightly or push on the door to break the
LFHDQGUHOHDVHWKHGRRU'RQRWSU\RQWKH
GRRU,IQHFHVVDU\VSUD\DURXQGWKHGRRU
with an approved de-icer fluid (do not use
UDGLDWRUDQWLIUHH]HRUPRYHWKHYHKLFOH
to a warm place and allow the ice to melt.
Closing the fuel filler door
1. To install the fuel tank cap, turn it
clockwise until it “Clicks”.
2. Close the fuel filler door until it is
latched securely.
WARNING
3HWUROLVKLJKO\IODPPDEOHDQG
H[SORVLYH)DLOXUHWRIROORZWKHVH
guidelines may result in SERIOUS
INJURY or DEATH:

[Read and follow all warnings posted
at the gas station.

[Before refuelling, note the location
RIWKH(PHUJHQF\3HWURO6KXW2IILI
available, at the gas station.

[Before touching the fuel nozzle, you
should eliminate the potential build-
up of static electricity by touching
a metal part of the vehicle, a safe
distance away from the fuel filler
neck, nozzle, or other gas source,
with your bare hand.

[Do not use mobile phones whilst
refuelling. Electric current and/or
electronic interference from mobile
phones can potentially ignite fuel
vapours and cause a fire.

5-41
05

[Do not get back into a vehicle
once you have begun refuelling.
You can generate a build-up of
static electricity by touching,
rubbing or sliding against any item
or fabric capable of producing
static electricity. Static electricity
discharge can ignite fuel vapours
causing a fire. If you must re-enter
the vehicle, you should once again
eliminate potentially dangerous
static electricity discharge by
touching a metal part of the vehicle,
away from the fuel filler neck, nozzle
or other petrol source, with your bare
hand.

[When refuelling, always move the
shift lever to the N (Neutral, for
Automatic transmission/Dual clutch
transmission) or the first gear or R
(Reverse, for Manual transmission)
position, set the parking brake,
and place the ignition switch to the
/2&.2))SRVLWLRQ6SDUNVSURGXFHG
by electrical components related to
the engine can ignite fuel vapours
causing a fire.

[When using an approved portable
fuel container, be sure to place
the container on the ground prior
to refuelling. Static electricity
discharge from the container can
ignite fuel vapours causing a fire.
Once refuelling has begun, contact
between your bare hand and the
vehicle should be maintained until
the filling is complete.

[Use only approved portable plastic
fuel containers designed to carry and
store petrol.
[Do not use matches or a lighter and
do not smoke or leave a lit cigarette
in your vehicle whilst at a gas station,
especially during refuelling.

[Do not over-fill or top-off your
vehicle tank, which can cause petrol
spillage.

[If a fire breaks out during refuelling,
leave the vicinity of the vehicle, and
immediately contact the manager
of the gas station and then contact
WKHORFDOILUHGHSDUWPHQW)ROORZDQ\
safety instructions they provide.

[If pressurized fuel sprays out, it can
cover your clothes or skin and thus
subject you to the risk of fire and
burns. Always remove the fuel cap
carefully and slowly. If the cap is
venting fuel or if you hear a hissing
sound, wait until the condition stops
before completely removing the cap.

[Always check that the fuel cap is
installed securely to prevent fuel
spillage in the event of an accident.
i Information
0DNHVXUHWRUHIXHO\RXUYHKLFOH
DFFRUGLQJWRWKH

5-42
Convenient features
Lighting control
OPDE046065
To operate the lights, turn the knob at
the end of the control lever to one of the
following positions:
(1) OFF (O) position
(2) AUTO light position (if equipped)
(3) Position light position
(4) Headlight position
OBC3050029
$872OLJKWSRVLWLRQLIHTXLSSHG
When the light switch is in the AUTO
position, the position light and headlight
will be turned ON or OFF automatically
depending on the amount of light
outside the vehicle.
Even with the AUTO light feature
in operation, it is recommended to
manually turn ON the lights when driving
at night or in a fog, or when you enter
dark areas, such as tunnels and parking
facilities.
NOTICE

[ 'RQRWFRYHURUVSLOODQ\WKLQJRQWKH
sensor (1) located on the instrument
panel.

[ 'RQRWFOHDQWKHVHQVRUXVLQJ
a window cleaner, the cleanser
may leave a light film which could
interfere with sensor operation.

[ ,I\RXUYHKLFOHKDVZLQGRZWLQWRU
other types of metallic coating on
the front windscreen, the AUTO light
system may not work properly.
EXTERIOR LIGHTS

5-43
05

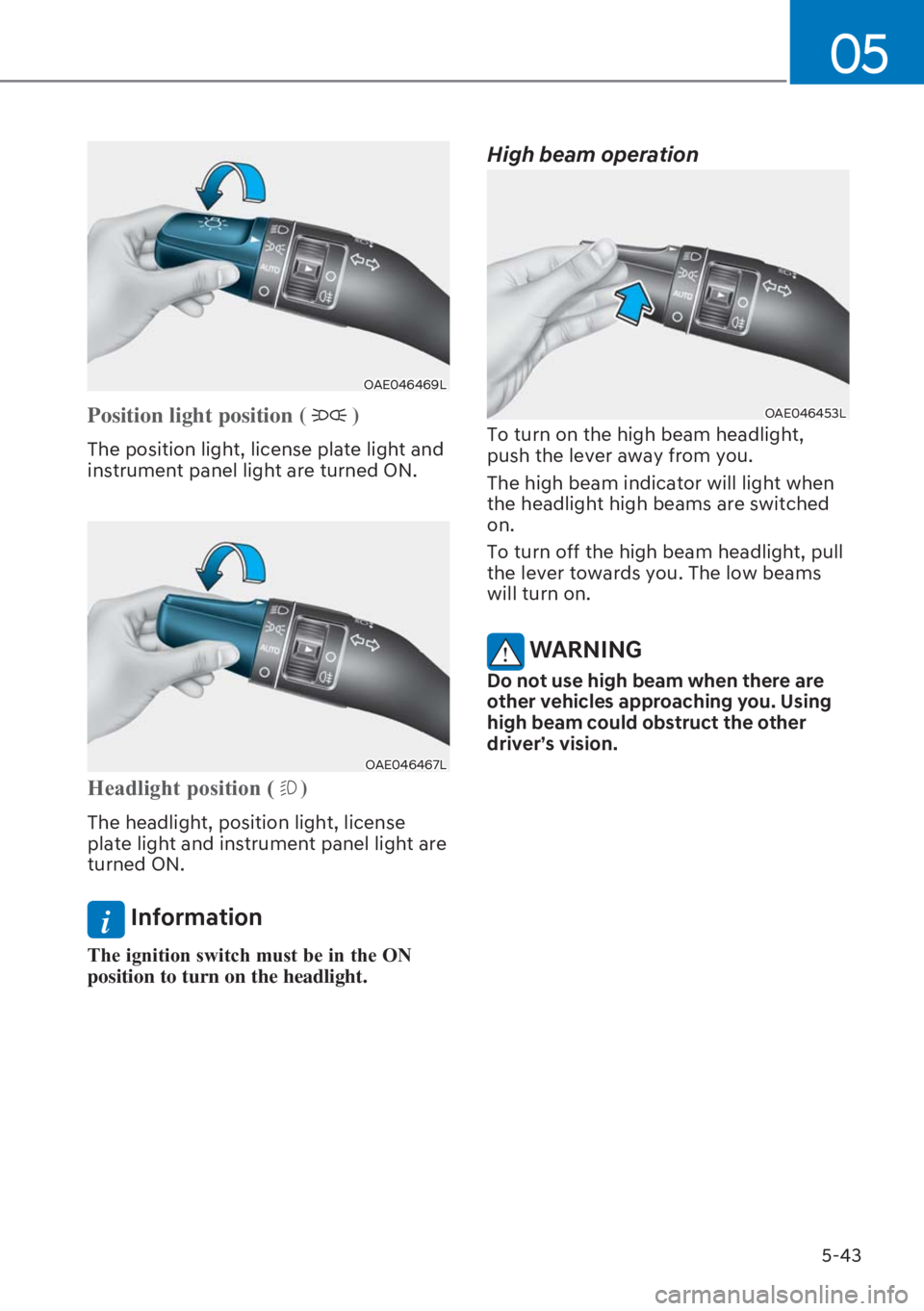

OAE046469L
Position light position ()
The position light, license plate light and
instrument panel light are turned ON.
OAE046467L
+HDGOLJKWSRVLWLRQ)
The headlight, position light, license
plate light and instrument panel light are
turned ON.
i Information
7KHLJQLWLRQVZLWFKPXVWEHLQWKH21
position to turn on the headlight.
High beam operation
OAE046453L
To turn on the high beam headlight,
push the lever away from you.
The high beam indicator will light when
the headlight high beams are switched
on.
To turn off the high beam headlight, pull
the lever towards you. The low beams
will turn on.
WARNING
Do not use high beam when there are
other vehicles approaching you. Using
high beam could obstruct the other
driver’s vision.
