2023 HYUNDAI I20 Owners Manual

07
7-63
Safe Exit Warning operation
Safe Exit Warning warning
OBC3070007
Collision warning when exiting vehi-
cle

[When an approaching vehicle from the
rear is detected at the moment a door
LVRSHQHGWKH
S:DWFKRXWIRUWUDIILF
T
warning message will appear on the
cluster, and an audible warning will
sound.

[Safe Exit Warning will warn the driver
when your vehicle speed is below 2
mph (3 km/h), and the speed of the
approaching vehicle from the rear is
above 3 mph (6 km/h).
WARNING
Take the following precautions when
using Safe Exit Warning:

[For your safety, change the Settings
after parking the vehicle at a safe
location.

[If any other function’s warning
message is displayed or audible
warning is generated, Safe Exit
Warning warning message may not
be displayed and audible warning
may not be generated.

[You may not hear the warning
sound of Safe Exit Warning if the
surrounding is noisy.
[Safe Exit Warning does not operate
in all situations or cannot prevent all
collisions.

[Safe Exit Warning may warn the
driver late or may not warn the driver
depending on the road and driving
conditions. Always check vehicle
surroundings.

[The driver and passengers are
responsible for accidents that occurs
whilst exiting the vehicle. Always
check the surroundings before you
exit the vehicle.

[Never deliberately operate Safe
Exit Warning. Doing so may lead to
serious injury or death.

[Safe Exit Warning does not operate
if there is a problem with Blind-Spot
Safety system. The warning message
of Blind-Spot Safety system will
appear when:
- Blind-Spot Safety system sensor or
the sensor surrounding is polluted
or covered
- Blind-Spot Safety system fails to
warn passengers or falsely warn
passengers
Information
After the engine is turned off, Safe Exit
Warning operates approximately for 3
minutes, but turns off immediately if the
doors are locked.

Driver assistance system
7-64
Safe Exit Warning malfunction
and limitations
Safe Exit Warning malfunction
OCN7070039L
When Safe Exit Assist is not working
properly, the ‘Check Blind-Spot Safety
V\VWHP
TZDUQLQJPHVVDJHZLOODSSHDURQ
the cluster for several seconds, and the
master (
) warning light will illuminate
on the cluster. If the master warning
light illuminates, we recommend that
the vehicle be inspected by a HYUNDAI
authorised repairer.
Safe Exit Warning disabled
OCN7070041L
When the rear bumper around the rear
corner radar or sensor is covered with
foreign material, such as snow or rain,
or installing a trailer or carrier, it can
reduce the detecting performance and
temporarily limit or disable Safe Exit
Warning.
If this occurs, the ‘Blind-Spot Safety
IXQFWLRQGLVDEOHG5DGDUEORFNHG
T
warning message will appear on the
cluster.
The function will operate normally
when such foreign material or trailer,
etc. is removed, and then the engine is
restarted.
If the function does not operate normally
after it is removed, we recommend that
the function be inspected by a HYUNDAI
authorised repairer.

07
7-65
WARNING

[Even though the warning message
does not appear on the cluster,
Safe Exit Warning may not properly
operate.

[Safe Exit Warning may not properly
operate in an area (e.g. open
terrain) where any substance are
not detected right after the engine
is turned on, or when the detecting
sensor is blocked with foreign
material right after the engine is
turned on.
CAUTION
Turn off Safe Exit Warning to install
a trailer, carrier, etc., or remove the
trailer, carrier, etc. to use Safe Exit
Warning.
Limitations of Safe Exit Warning
Safe Exit Warning may not operate
normally, or the function may operate
unexpectedly under the following
circumstances:

[Getting off the vehicle where trees or
grass are overgrown

[Getting off the vehicle where the road
is wet

[The approaching vehicle is very fast or
very slow
WARNING

[Safe Exit Warning may not operate
normally if interfered by strong
electromagnetic waves.

[Safe Exit Warning may not operate
for 3 seconds after the vehicle is
started, or rear corner radars are
initialized.

Driver assistance system
7-66
OTM070111E

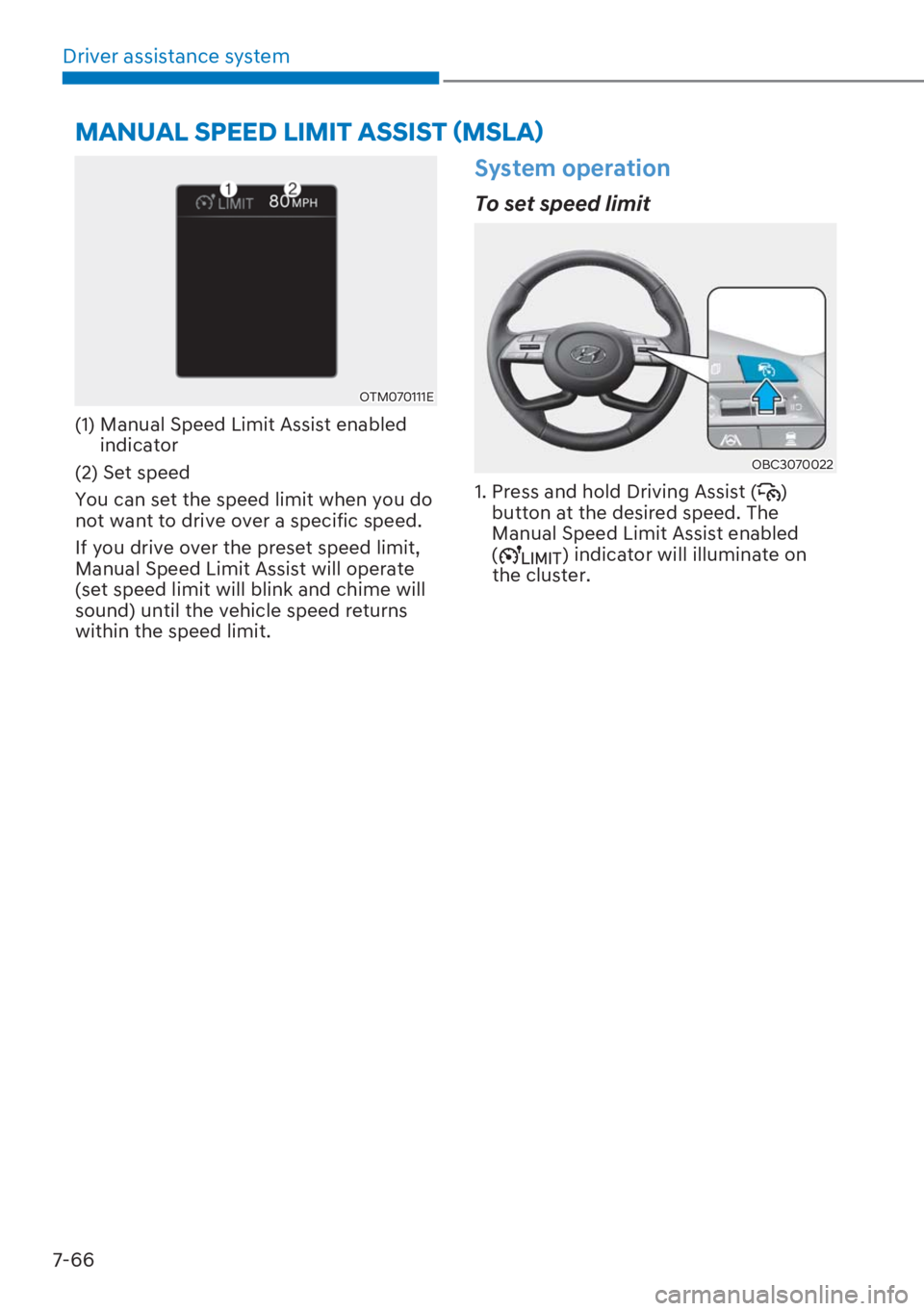

(1) Manual Speed Limit Assist enabled
indicator
(2) Set speed
You can set the speed limit when you do
not want to drive over a specific speed.
If you drive over the preset speed limit,
Manual Speed Limit Assist will operate
(set speed limit will blink and chime will
sound) until the vehicle speed returns
within the speed limit.
System operation
To set speed limit
OBC3070022
1. Press and hold Driving Assist ()
button at the desired speed. The
Manual Speed Limit Assist enabled
(
) indicator will illuminate on
the cluster.
0$18$/63(('/,0,7$66,67

07
7-67
OCN7060143
OCN7060144

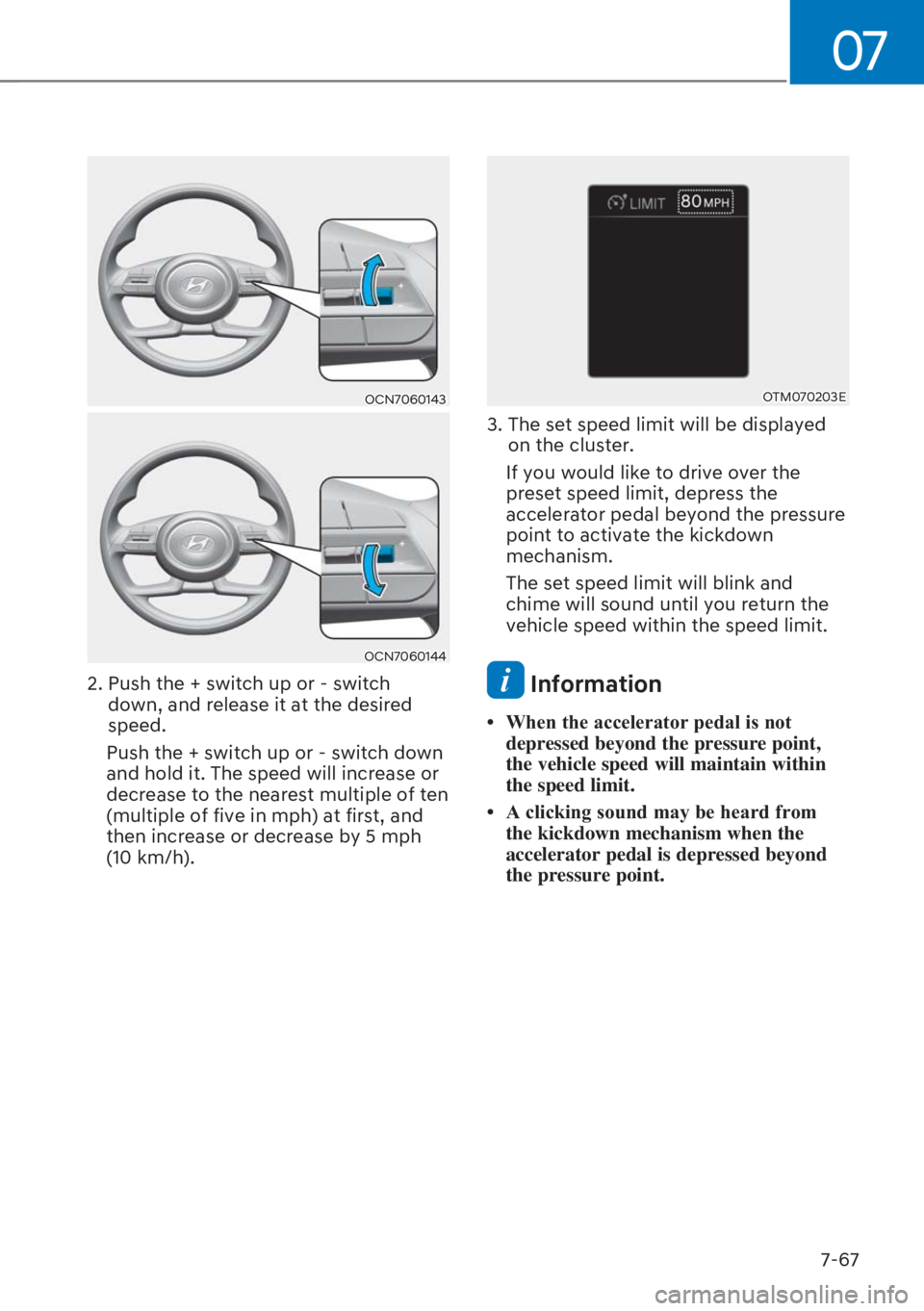

2. Push the + switch up or - switch
down, and release it at the desired
speed.
Push the + switch up or - switch down
and hold it. The speed will increase or
decrease to the nearest multiple of ten
(multiple of five in mph) at first, and
then increase or decrease by 5 mph
(10 km/h).
OTM070203E
3. The set speed limit will be displayed
on the cluster.
If you would like to drive over the
preset speed limit, depress the
accelerator pedal beyond the pressure
point to activate the kickdown
mechanism.
The set speed limit will blink and
chime will sound until you return the
vehicle speed within the speed limit.
Information

Driver assistance system
7-68

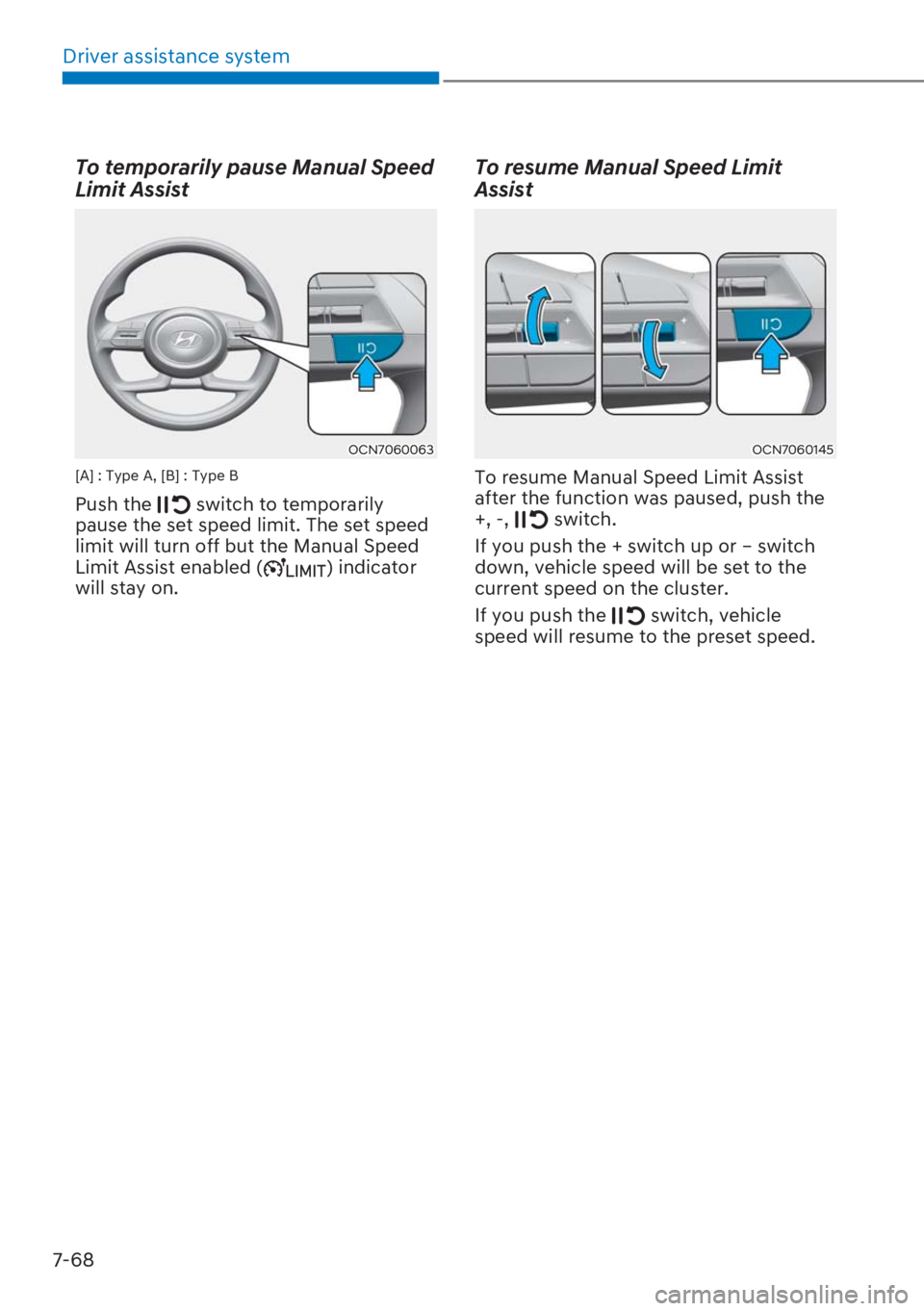

To temporarily pause Manual Speed
Limit Assist
OCN7060063
[A] : Type A, [B] : Type B
Push the switch to temporarily
pause the set speed limit. The set speed
limit will turn off but the Manual Speed
Limit Assist enabled (
) indicator
will stay on.
To resume Manual Speed Limit
Assist
OCN7060145
To resume Manual Speed Limit Assist
after the function was paused, push the
+, -,
switch.
If you push the + switch up or – switch
down, vehicle speed will be set to the
current speed on the cluster.
If you push the
switch, vehicle
speed will resume to the preset speed.

07
7-69
To turn off Manual Speed Limit
Assist
OBC3070022
Press the Driving Assist () button to
turn Manual Speed Limit Assist off. The
Manual Speed Limit Assist enabled
(
) indicator will go off.
Always press the Driving Assist (
)
button to turn Manual Speed Limit Assist
off when not in use.
WARNING
Take the following precautions when
using Manual Speed Limit Assist:

[Always set the vehicle speed to the
speed limit in your country.

[Keep Manual Speed Limit Assist off
when the function is not in use, to
avoid inadvertently setting a speed.
Check that the Manual Speed Limit
Assist enabled (
) indicator is
off.

[Manual Speed Limit Assist does
not substitute for proper and safe
driving. It is the responsibility of
the driver to always drive safely
and should always be aware of
unexpected and sudden situations
from occurring. Pay attention to the
road conditions at all times.

Driver assistance system
7-70
Intelligent Speed Limit Assist uses
information from the detected road sign
and navigation system to inform the
driver of the speed limit and additional
information of the current road. Also,
the function helps the driver to maintain
within the speed limit of the road.
CAUTION
Intelligent Speed Limit Assist may not
operate properly if the function is used
in other countries.
Detecting sensor
OBC3070001
[1] : Front view camera
Refer to the picture above for the
detailed location of the detecting sensor.
CAUTION
For more details on the precautions
of the front view camera, refer to
“Forward Collision-Avoidance Assist
(FCA)” section in chapter 7.
Information
If the navigation system is available, the
information from the navigation system is
used along with the road sign information
detected by the front view camera.
Intelligent Speed Limit Assist
settings
Setting features
OBC3070114TU
Speed limit
With the engine on, select or deselect

S'ULYHUDVVLVWDQFH
