3. Draw vertical lines (Vertical lines
passing through respective head
light centres) and a horizontal line
(Horizontal line passing through
centre of head lamps) on the screen.
4. With the headlight and battery in
normal condition, aim the headlights
so the brightest portion falls on the
horizontal and vertical lines.
5. To aim the low beam left or
right, turn the driver clockwise or
counterclockwise. To aim the low
beam up or down, turn the driver
clockwise or counterclockwise.
To aim the high beam up or
down, turn the driver clockwise or
counterclockwise.Front fog light aiming (if equipped)
OBC3090042
The front fog light can be aimed as the
same manner of the head lights aiming.
With the front fog lights and battery
normal condition, aim the front fog
lights. To aim the front fog light up
or down, turn the driver clockwise or
counterclockwise.

9-67
09
Aiming point
OBC3090043

H1 : Lighting centre Ground clearance of Headlight Low & High BeamH3 : Lighting centre Ground clearance of Front fog lightW1 : Lighting centre Distance between Headlight Low & High BeamW3 : Lighting centre Distance between Front fog light
1. Headlamp (LOW - H1, W1 / HIGH BEAM - H2, W2) mm(in.)
Vehicle condition “H1” “H2” “W1” “W2”
Without driver (HAL 2 MFR) 654.9 (25.8) 654.9 (25.8) 1320 (52.0) 1320 (52.0)
Without driver (LED 4 MFR) 670.4 (26.4) 622.3 (24.5) 1396.8 (55.0) 1233.6 (48.57)
With driver (HAL 2 MFR) 646.9 (25.5) 646.9 (25.5) 1320 (52.0) 1320 (52.0)
With driver (LED 4 MFR) 662.4 (26.1) 614.3 (24.2) 1396.8 (55.0) 1233.6 (48.57)
2. Fog lamp (H3, W3)
Vehicle condition “H3” “W3”
Without driver 352 (13.9) 1434.4 (56.5)
With driver 344 (13.6) 1434.4 (56.5)

9-68
Maintenance

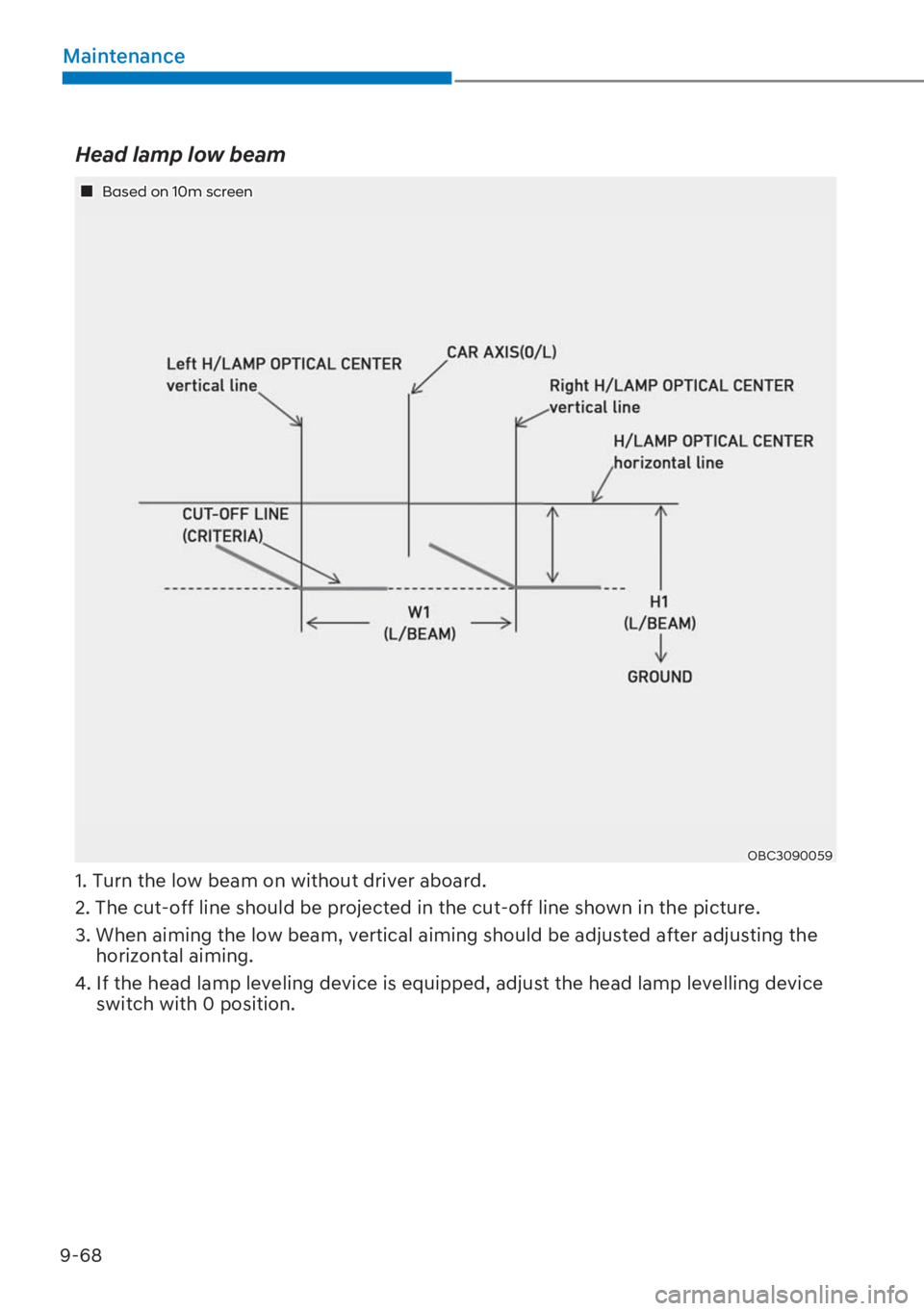

Head lamp low beam
OBC3090059
„ Based on 10m screen
1. Turn the low beam on without driver aboard.
2. The cut-off line should be projected in the cut-off line shown in the picture.
3. When aiming the low beam, vertical aiming should be adjusted after adjusting the
horizontal aiming.
4. If the head lamp leveling device is equipped, adjust the head lamp levelling device
switch with 0 position.

9-69
09

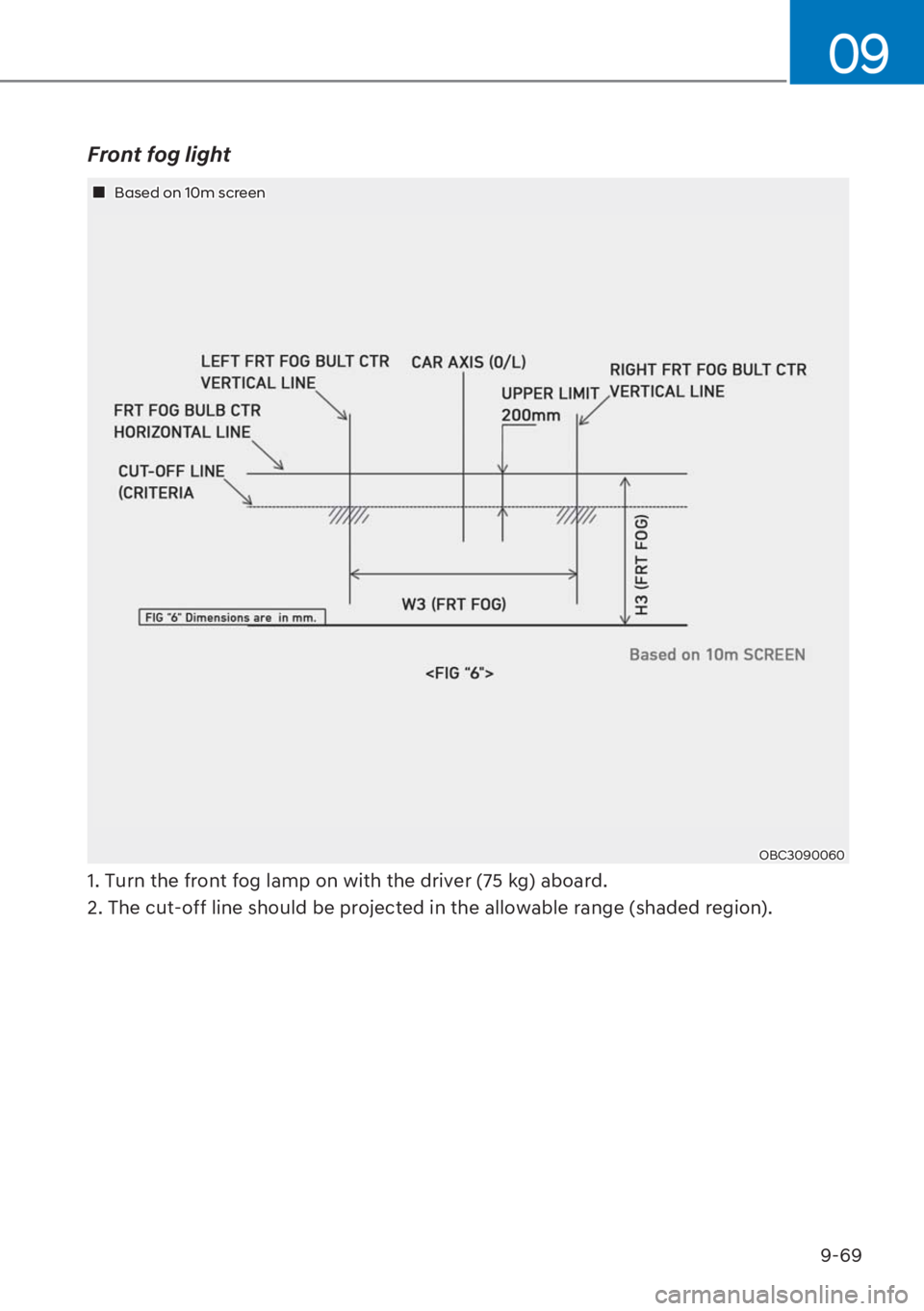

Front fog light
OBC3090060
„ Based on 10m screen
1. Turn the front fog lamp on with the driver (75 kg) aboard.
2. The cut-off line should be projected in the allowable range (shaded region).

9-70
Maintenance
Side repeater light replacement
Type A
OBC3090044
If the LED lamp does not operate, we
recommend you to have the vehicle
checked by a HYUNDAI authorised
repairer.
Type B
OAC3089047TU
1. Remove the lamp assembly from the
vehicle by prying the lens and pulling
the assembly out.
2. Disconnect the bulb electrical
connector.
3. Separate the socket and the
lens parts by turning the socket
counterclockwise until the tabs on the
socket align with the slots on the lens
part.
4. Remove the bulb by pulling it straight
out.
5. Insert a new bulb in the socket.
6. Reassemble the socket and the lens
part.
7. Connect the bulb electrical connector.
8. Reinstall the lamp assembly to the
body of the vehicle.

9-71
09

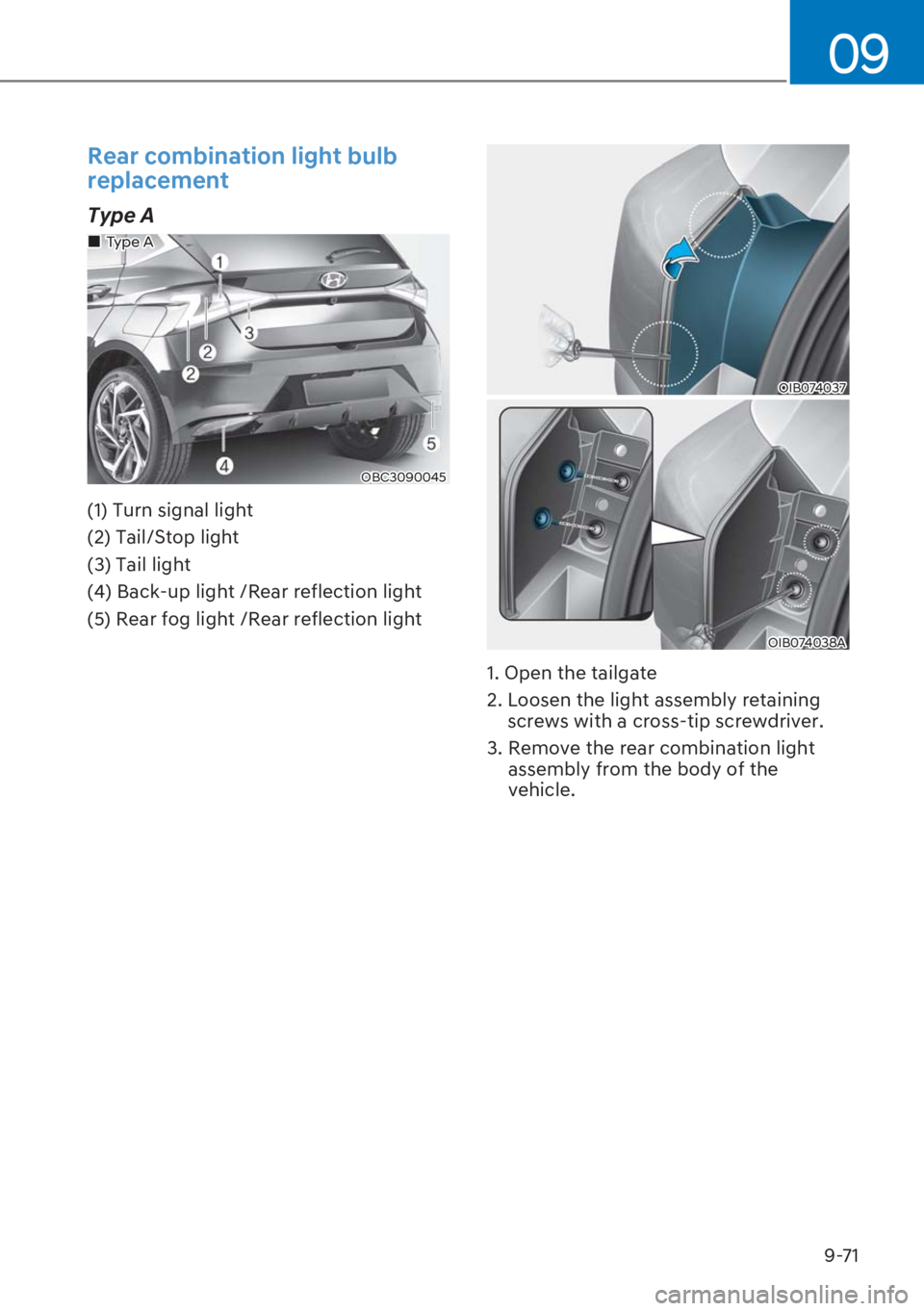

Rear combination light bulb
replacement
Type A
OBC3090045
„Type A
(1) Turn signal light
(2) Tail/Stop light
(3) Tail light
(4) Back-up light /Rear reflection light
(5) Rear fog light /Rear reflection light
OIB074037
OIB074038A
1. Open the tailgate
2. Loosen the light assembly retaining
screws with a cross-tip screwdriver.
3. Remove the rear combination light
assembly from the body of the
vehicle.

9-72
Maintenance
OBC3090047
[1] : Turn Signal Light, [2] : Tail/Stop Light,
[3] : Tail light
7XUQVLJQDOOLJKW7DLOVWRSOLJKW
4. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on the
assembly.
5. Remove the bulb from the socket
by pressing it in and rotating it
counterclockwise until the tabs on the
bulb align with the slots in the socket.
Pull the bulb out of the socket.
6. Insert a new bulb by inserting it into
the socket and rotating it until it locks
into place.
7. Install the socket in the assembly by
aligning the tabs on the socket with
the slots in the assembly. Push the
socket into the assembly and turn the
socket clockwise.
8. Reinstall the light assembly to the
body of the vehicle.
7DLOOLJKW
1. Open the tailgate and remove the
tailgate trim.
2. Loosen the retaining screw of the
tailgate lid cover and then remove the
cover.
3. Disconnect the connector and then
remove the nuts by turning the nuts
counter clockwise.
4. Take the light assembly out.
OBC3090049R
[1] : Rear Fog Light, [2] : Back-up Light
5HDUIRJOLJKW%DFNXS/LJKW
1. Remove the rear tire and wheel cover.
2. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on the
assembly.
3. Remove the bulb from the socket
by pressing it in and rotating it
counterclockwise until the tabs on the
bulb align with the slots in the socket.
Pull the bulb out of the socket.
4. Insert a new bulb in the socket.
5. Reinstall the light assembly to the
body of the vehicle.

9-73
09

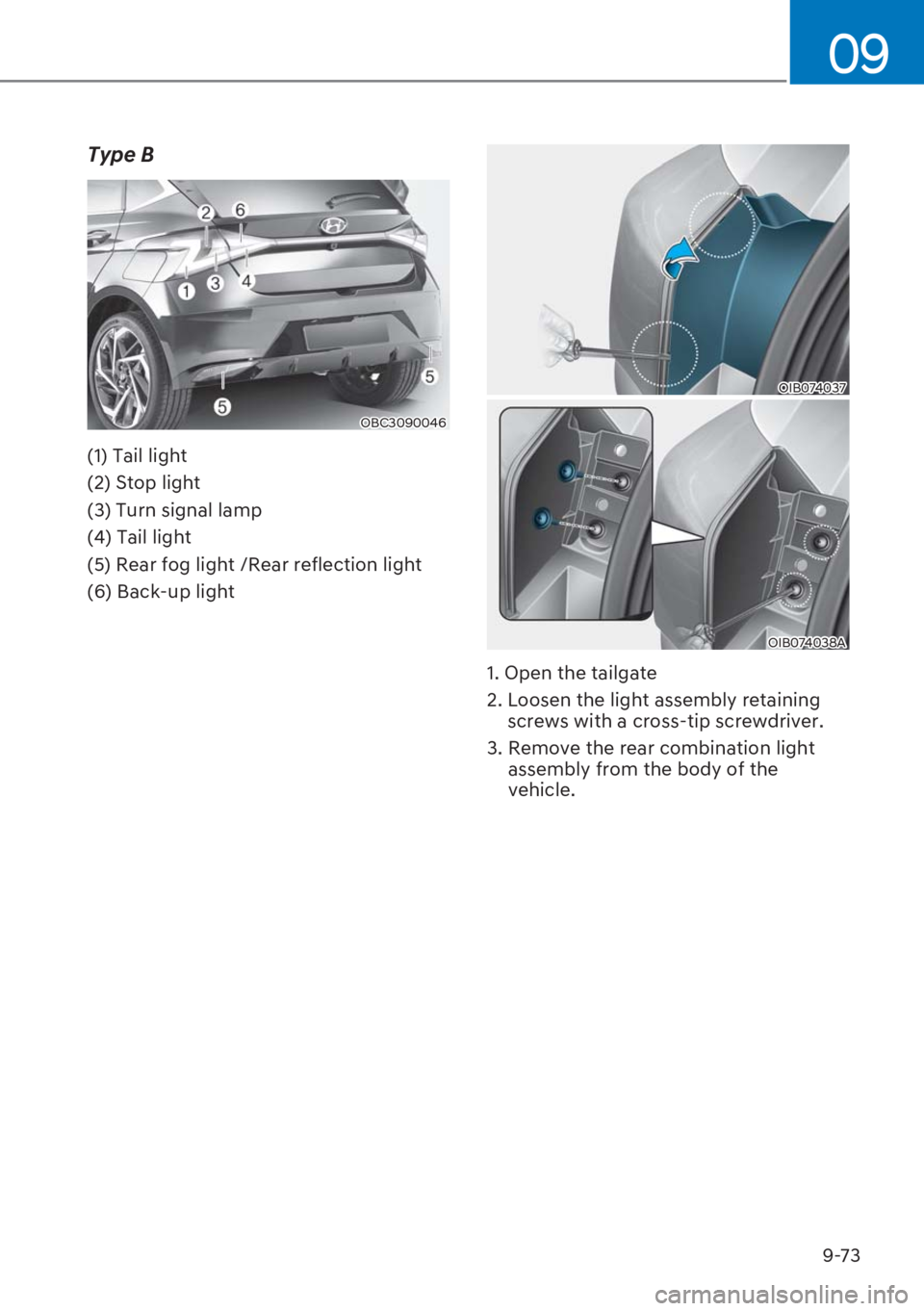

Type B
OBC3090046
(1) Tail light
(2) Stop light
(3) Turn signal lamp
(4) Tail light
(5) Rear fog light /Rear reflection light
(6) Back-up light
OIB074037
OIB074038A
1. Open the tailgate
2. Loosen the light assembly retaining
screws with a cross-tip screwdriver.
3. Remove the rear combination light
assembly from the body of the
vehicle.
