AIR CONDITIONING SYSTEM
TYRE LOAD AND SPEED CAPACITY
ItemWeight of volume Classification
Refrigerant
g (oz.)470 ± 25 g (15.17 ± 0.8) R-1234yf
500 ± 25 g (16.07 ± 0.8) R-134a
Compressor lubricant
g (oz.)100 (3.52) PAG
Contact a HYUNDAI authorised repairer for more details.
ItemTyre size Wheel sizeLoad capacity Speed capacity
LI *1kg SS *2mph
(km/h)
Full size tyre185/65R15
(5DR/CUV)6.0J X 15 88 560 H 130 (210)
195/55R16
(5DR/CUV)6.0J X 16 87 545 H 130 (210)
215/45R17
(5DR/N-line)7.0J X 17 91 615V 149 (240)
Y 186 (300)
205/55R17
(CUV)6.5Jx17 91 615 V 240
Temporary tyreT125/80D15 3.5J X 15 90 690 M 80 (130)
T125/80D16
(CUV)4.0T X 16 97 730 M 130
*1 LI : LOAD INDEX
*2 SS : SPEED SYMBOL
Page 47 of 649
3-10
Safety system
Rear seats (if equipped)
The rear seatbacks can be folded to
facilitate carrying long items or to
increase the luggage capacity of the
vehicle.
WARNING
[ Never allow passengers to sit on top
of the folded down seatback whilst
the vehicle is moving. This is not a
proper seating position and no seat
belts are available for use. This could
result in serious injury or death in
case of an accident or sudden stop.
[ Objects carried on the folded down
seatback should not extend higher
than the top of the front seatbacks.
This could allow cargo to slide
forward and cause injury or damage
during sudden stops.
1. Set the front seatback to the upright
position and if necessary, slide the
front seat forward.
2. Lower the rear head restraints to the
lowest position (if equipped with
adjustable head restraints).
OAI3039010
3. Insert the rear lap/shoulder belt plate
into the holder on the side trim. It will
prevent the lap/shoulder belt from
interfering with the seatback when
folding.
OAC3039006TU
OAC3039007TU
4. Pull up the seatback lever and fold
the seatback toward the front of the
vehicle.
To use the rear seat, lift and push up the
seatback backward. Push the seatback
firmly until it clicks into place. Make sure
the seatback is locked in place.
When returning the rear seatbacks to
the upright position, remember to return
the rear shoulder belts to their proper
position.
Page 227 of 649
5-86
Convenient features
3 R Z H U R X W O H W L I H T X L S S H G
OBC3N050026

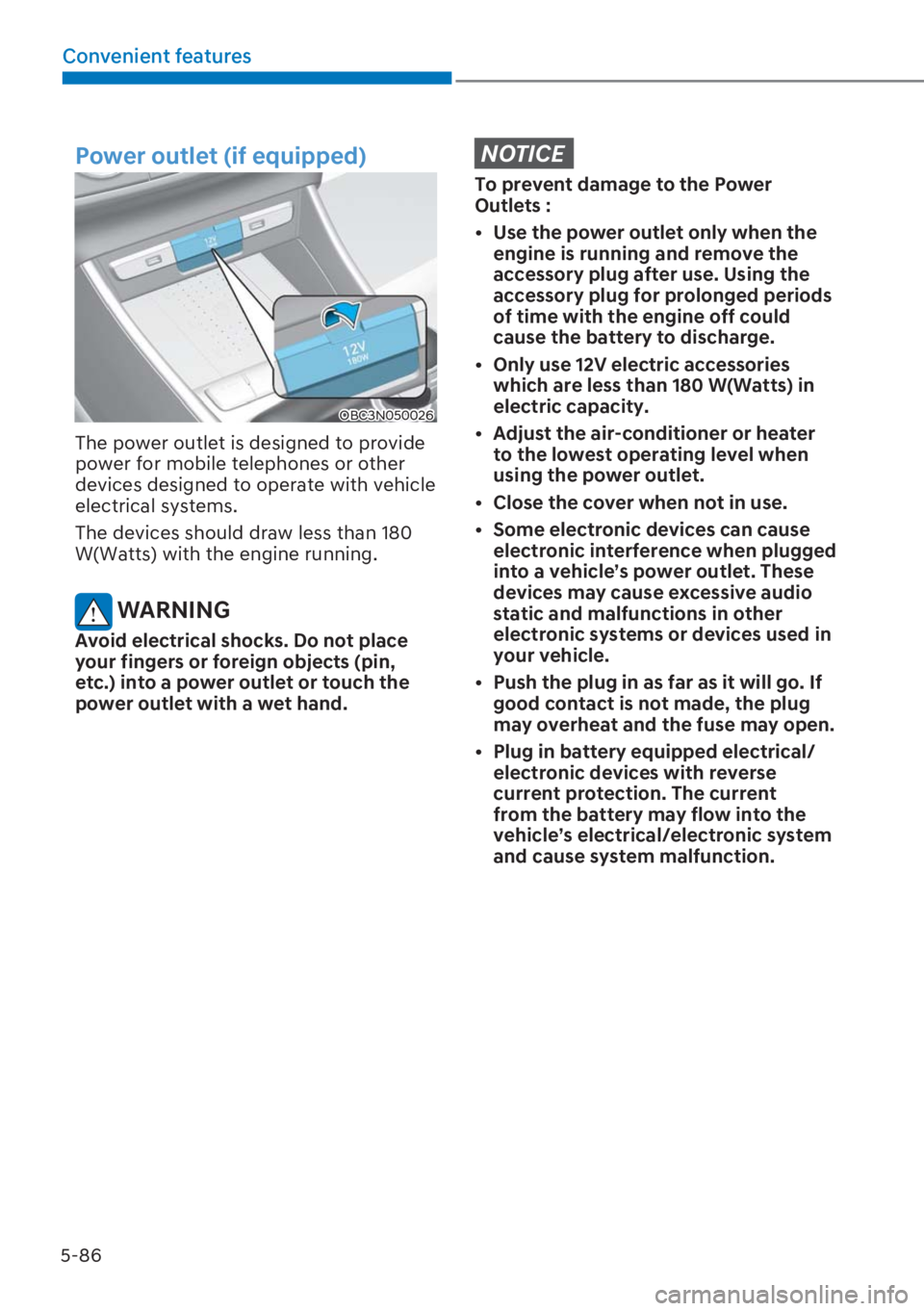

The power outlet is designed to provide
power for mobile telephones or other
devices designed to operate with vehicle
electrical systems.
The devices should draw less than 180
W(Watts) with the engine running.
WARNING
Avoid electrical shocks. Do not place
your fingers or foreign objects (pin,
etc.) into a power outlet or touch the
power outlet with a wet hand.
NOTICE
7 R S U H Y H Q W G D P D J H W R W K H 3 R Z H U
Outlets :
[ 8 V H W K H S R Z H U R X W O H W R Q O \ Z K H Q W K H
engine is running and remove the
accessory plug after use. Using the
accessory plug for prolonged periods
of time with the engine off could
cause the battery to discharge.
[ 2 Q O \ X V H 9 H O H F W U L F D F F H V V R U L H V
which are less than 180 W(Watts) in
electric capacity.
[ $ G M X V W W K H D L U F R Q G L W L R Q H U R U K H D W H U
to the lowest operating level when
using the power outlet.
[ & O R V H W K H F R Y H U Z K H Q Q R W L Q X V H
[ 6 R P H H O H F W U R Q L F G H Y L F H V F D Q F D X V H
electronic interference when plugged
into a vehicle’s power outlet. These
devices may cause excessive audio
static and malfunctions in other
electronic systems or devices used in
your vehicle.
[ 3 X V K W K H S O X J L Q D V I D U D V L W Z L O O J R , I
good contact is not made, the plug
may overheat and the fuse may open.
[ 3 O X J L Q E D W W H U \ H T X L S S H G H O H F W U L F D O
electronic devices with reverse
current protection. The current
from the battery may flow into the
vehicle’s electrical/electronic system
and cause system malfunction.
Page 534 of 649
8-19
08
If you have a tyre gauge, check the tyre
pressure (see “Tyres and Wheels” in
chapter 2 for tyre pressure instructions.).
If the pressure is lower or higher than
recommended, drive slowly to the
nearest service station and adjust it to
the recommended pressure. Always
reinstall the valve cap after checking
or adjusting tyre pressure. If the cap
is not replaced, air may leak from the
tyre. If you lose a valve cap, buy another
and install it as soon as possible. After
changing tyres, secure the flat tyre and
return the jack and tools to their proper
storage locations.
NOTICE
[ & K H F N W K H W \ U H S U H V V X U H D V V R R Q
as possible after installing a spare
tyre. Adjust it to the recommended
pressure.
[ & K H F N D Q G W L J K W H Q W K H Z K H H O O X J Q X W V
after driving over 50 km if tyres are
replaced. Re-check the tyre wheel
lug nuts after driving over 1,000 km.
CAUTION
Your vehicle has metric threads on
the studs and lug nuts. Make certain
during tyre changing that the same
nuts that were removed are reinstalled.
If you have to replace your lug nuts
make sure they have metric threads to
avoid damaging the studs and ensure
the wheel is properly secured to the
hub. We recommend that you consult
a HYUNDAI authorised repairer for
assistance.
If any of the equipment such as the jack,
lug nuts, studs, or other equipment is
damaged or in poor condition, do not
attempt to change the tyre and call for
assistance.
Use of compact spare tyres
(if equipped)
Compact spare tyres are designed for
emergency use only. Drive carefully
on the compact spare tyre and always
follow the safety precautions.
WARNING
To prevent compact spare tyre failure
and loss of control possibly resulting in
an accident:
[ 8 V H W K H F R P S D F W V S D U H W \ U H R Q O \ L Q D Q
emergency.
[ 1 ( 9 ( 5 R S H U D W H \ R X U Y H K L F O H R Y H U
mph (80 km/h).
[ ' R Q R W H [ F H H G W K H Y H K L F O HT V
maximum load rating or the load
carrying capacity shown on the
sidewall of the compact spare tyre.
[ ' R Q R W X V H W K H F R P S D F W V S D U H W \ U H
continuously. Repair or replace the
original tyre as soon as possible to
avoid failure of the compact spare
tyre.
Page 561 of 649
9
Battery ........................................................................................................... 9-29For best battery service .......................................................................................... 9-30
Battery capacity label .............................................................................................. 9-31
Battery recharging ................................................................................................... 9-31
Reset items .............................................................................................................. 9-32
Tyres and wheels ........................................................................................... 9-33Tyre care ................................................................................................................... 9-33
Recommended cold tyre inflation pressures ........................................................ 9-34
Check tyre inflation pressure ................................................................................. 9-34
Tyre rotation ............................................................................................................. 9-35
Wheel alignment and tyre balance ........................................................................ 9-36
Tyre replacement..................................................................................................... 9-36
Wheel replacement ................................................................................................. 9-38
Tyre traction ............................................................................................................. 9-38
Tyre maintenance .................................................................................................... 9-38
Tyre sidewall labelling ............................................................................................. 9-38
Low aspect ratio tyres ..............................................................................................9-41
Fuses .............................................................................................................. 9-42Instrument panel fuse replacement ...................................................................... 9-43
Engine compartment panel fuse replacement ..................................................... 9-44
Fuse/relay panel description .................................................................................. 9-45
Light bulbs .....................................................................................................9-59Headlight, Position Light, Turn signal Light bulb replacement ............................9-60
Headlight and front fog light aiming (For Europe) ................................................ 9-65
Side repeater light replacement ............................................................................ 9-70
Rear combination light bulb replacement ............................................................. 9-71
High mounted stop light replacement .................................................................. 9-78
License plate light bulb replacement .................................................................... 9-78
Interior light bulb replacement .............................................................................. 9-79
Appearance care .......................................................................................... 9-80Exterior care ............................................................................................................9-80
Interior care ............................................................................................................. 9-85
Emission control system.............................................................................. 9-88Crankcase emission control system ......................................................................9-88
Evaporative emission control system ....................................................................9-88
Exhaust emission control system ...........................................................................9-89
Page 590 of 649
9-31
09
% D W W H U \ F D S D F L W \ O D E H O
OBC3090062
„ Example
❈ The actual battery label in the vehicle
may differ from the illustration.
1. AGM50L-DIN : The HYUNDAI model
name of battery
2. 12V : The nominal voltage
3. 50Ah (20HR) : The nominal capacity
(in Ampere hours)
4. RC 80 : The nominal reserve capacity
(in min.)
5. CCA 560A : Cold-test current in
amperes by SAE/EN
% D W W H U \ U H F K D U J L Q J
Your vehicle has a maintenance-free,
calcium-based battery.
[ , I W K H E D W W H U \ E H F R P H V G L V F K D U J H G
over a short time (for example, the
headlights or interior lights were on
whilst the vehicle was not in use),
recharge it by slow charging (trickle)
for 10 hours.
[ , I W K H E D W W H U \ J U D G X D O O \ G L V F K D U J H V
because of high electrical load whilst
the vehicle is being used, recharge it
at 20-30A for two hours.
WARNING
When recharging the battery, observe
the following precautions:
[ % H I R U H S H U I R U P L Q J P D L Q W H Q D Q F H R U
recharging the battery, turn off all
accessories and stop the engine.
[ Do not allow cigarettes, sparks, or
flame near the battery.
[ Wear eye protection when checking
the battery during charging.
[ The battery must be removed from
the vehicle and placed in an area with
good ventilation.
[ Watch the battery during charging,
and stop or reduce the charging
rate if the battery cells begin
gassing (boiling) violently or if the
temperature of the electrolyte of any
cell exceeds 49°C (120°F).
[ The negative battery cable must be
removed first and installed last when
the battery is disconnected.
[ Disconnect the battery charger in the
following order.
1. Turn off the main battery charger
switch.
2. Unhook the negative clamp from
the negative battery terminal.
3. Unhook the positive clamp from
the positive battery terminal.
Page 601 of 649
9-42
Maintenance
OTA070039
„ Blade type
NormalBlown
„ Cartridge type
„ Multi fuse
NormalBlown
NormalBlown
A vehicle’s electrical system is protected
from electrical overload damage by
fuses.
This vehicle has 2 (or 3) fuse panels, one
located in the driver’s side panel bolster,
the other in the engine compartment.
If any of your vehicle’s lights,
accessories, or controls do not work,
check the appropriate circuit fuse. If a
fuse has blown, the element inside the
fuse will be melted or broken.
If the electrical system does not work,
first check the driver’s side fuse panel.
Before replacing a blown fuse, turn the
engine and all switches off, and then
disconnect the negative battery cable.
Always replace a blown fuse with one of
the same rating.
If the replacement fuse blows, this
indicates an electrical problem. Avoid
using the system involved and we
recommend that all inspect a HYUNDAI
authorised repairer.
i Information
7 K U H H N L Q G V R I I X V H V D U H X V H G E O D G H W \ S H
I R U O R Z H U D P S H U D J H U D W L Q J V F D U W U L G J H
W \ S H D Q G P X O W L I X V H I R U K L J K H U D P S H U D J H
U D W L Q J V
WARNING
NEVER replace a fuse with anything but
another fuse of the same rating.
[ A higher capacity fuse could cause
damage and possibly cause a fire.
[ Do not install a wire or aluminium
foil instead of the proper fuse -
even as a temporary repair. It may
cause extensive wiring damage and
possibly a fire.
NOTICE
Do not use a screwdriver or any other
metal object to remove fuses because
it may cause a short circuit and damage
the system.
FUSES
