Page 1873 of 2321

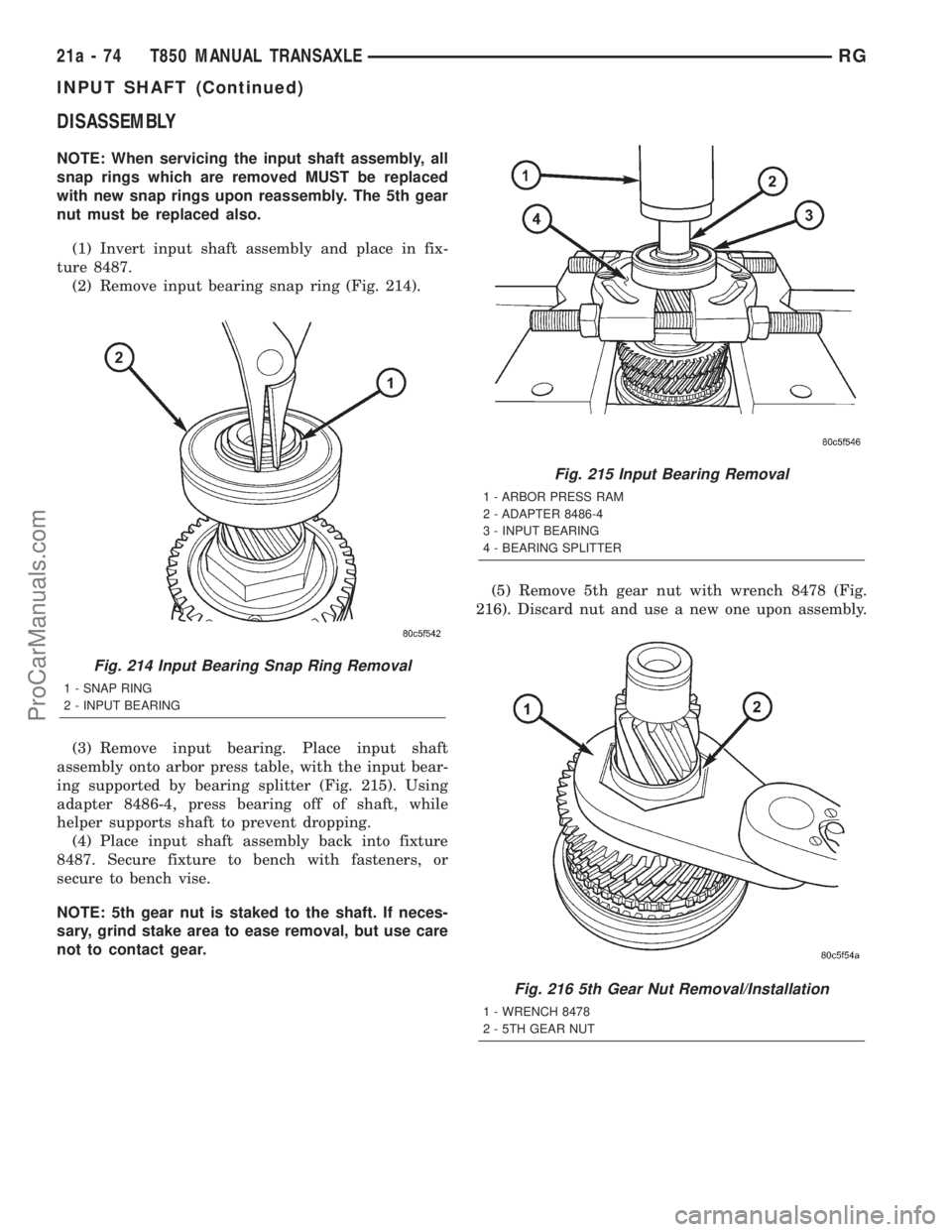

DODGE TOWN AND COUNTRY 2001 Service Manual DISASSEMBLY NOTE: When servicing the input shaft assembly, all snap rings which are removed MUST be replaced with new snap rings upon reassembly. The 5th gear nut must be replaced also. (1) Invert inp

Page 1874 of 2321

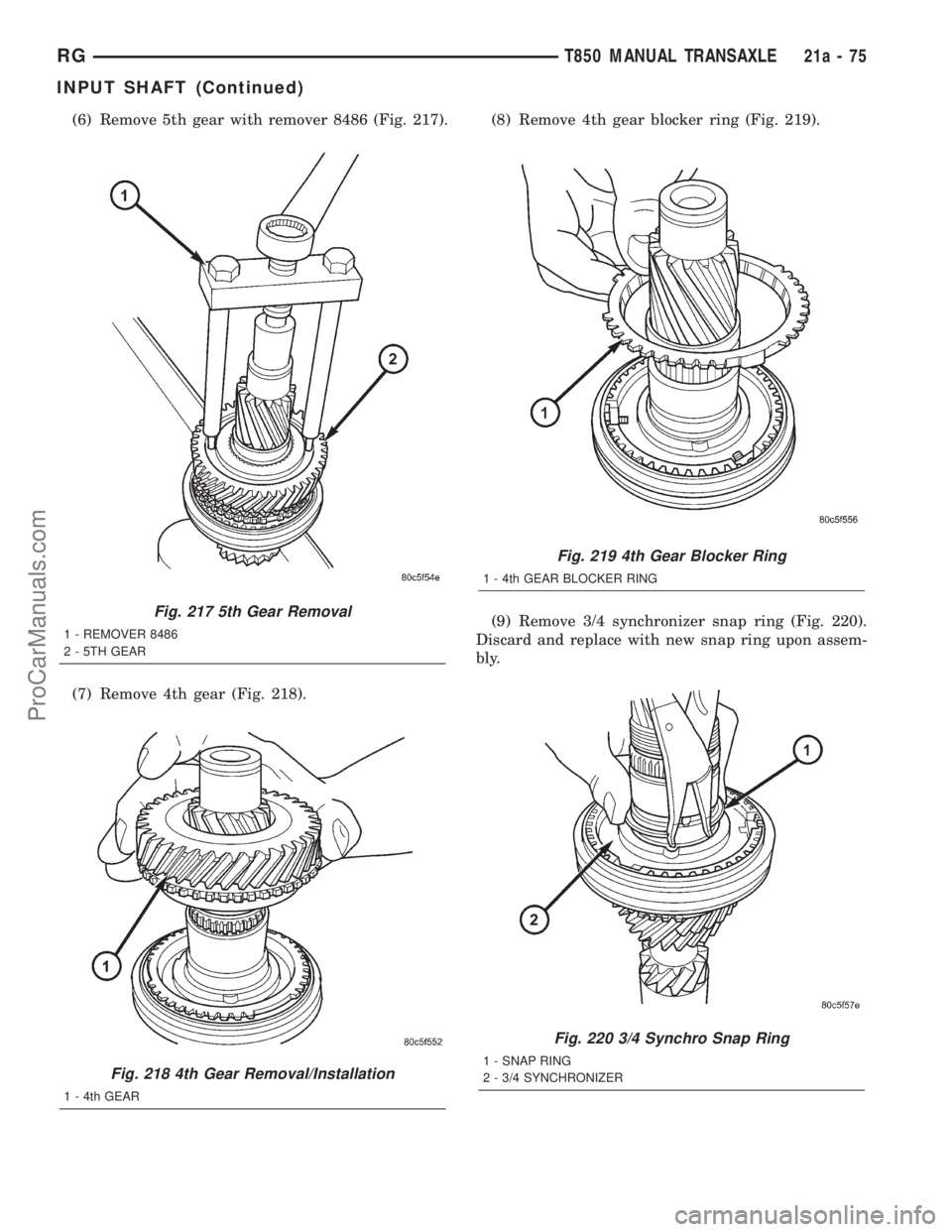

DODGE TOWN AND COUNTRY 2001 Service Manual (6) Remove 5th gear with remover 8486 (Fig. 217). (7) Remove 4th gear (Fig. 218).(8) Remove 4th gear blocker ring (Fig. 219). (9) Remove 3/4 synchronizer snap ring (Fig. 220). Discard and replace with

Page 1875 of 2321

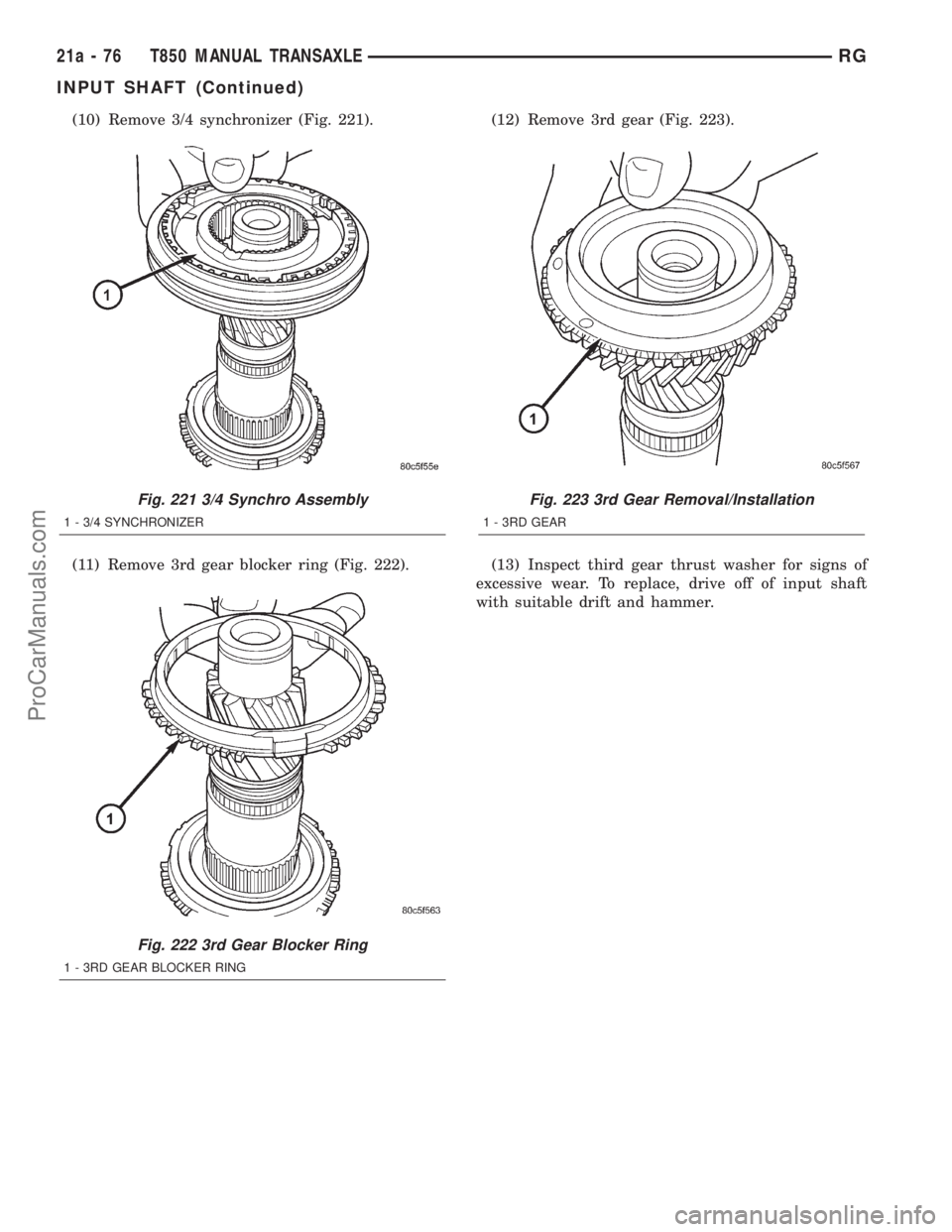

DODGE TOWN AND COUNTRY 2001 Service Manual (10) Remove 3/4 synchronizer (Fig. 221). (11) Remove 3rd gear blocker ring (Fig. 222).(12) Remove 3rd gear (Fig. 223). (13) Inspect third gear thrust washer for signs of excessive wear. To replace, dr

Page 1876 of 2321

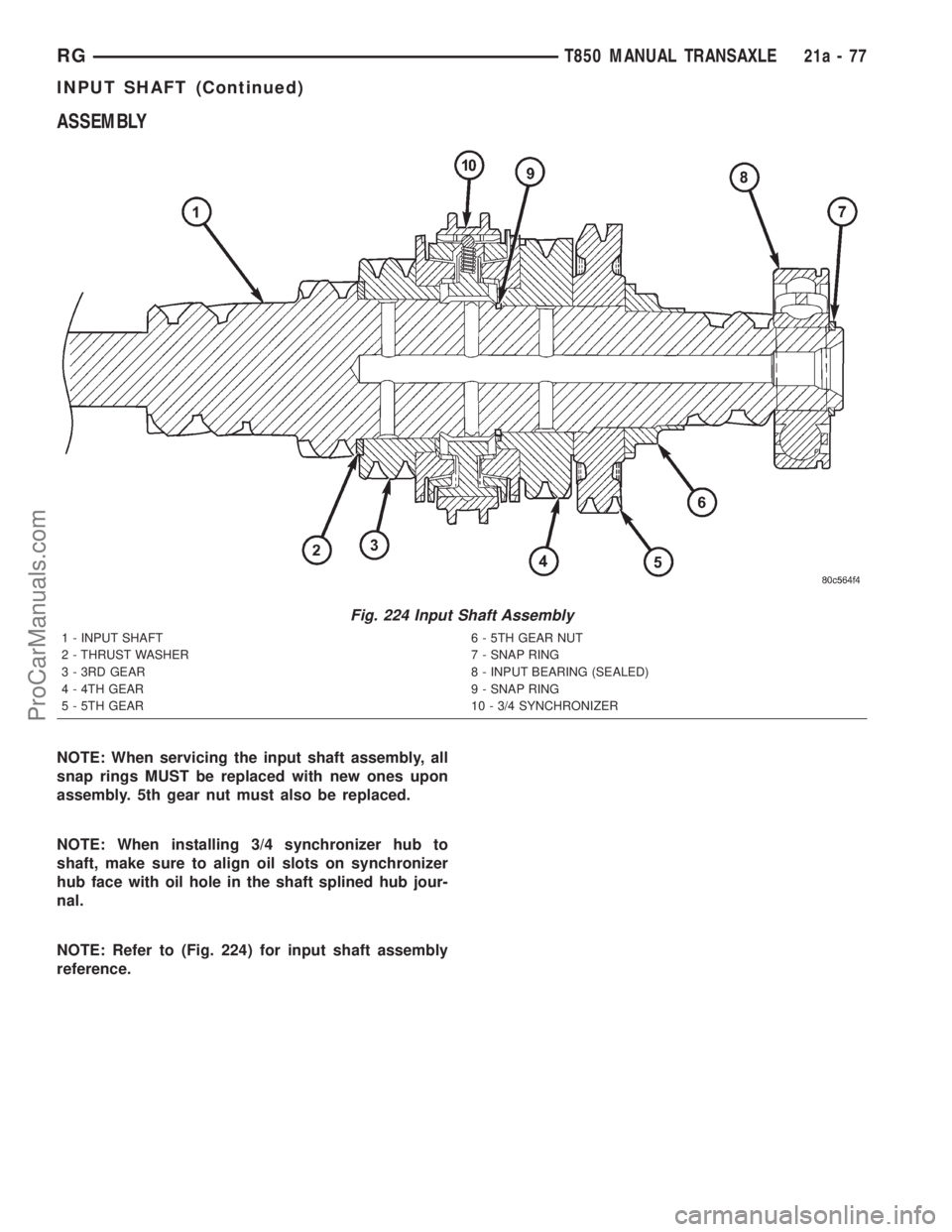

DODGE TOWN AND COUNTRY 2001 Service Manual ASSEMBLY NOTE: When servicing the input shaft assembly, all snap rings MUST be replaced with new ones upon assembly. 5th gear nut must also be replaced. NOTE: When installing 3/4 synchronizer hub to s

Page 1877 of 2321

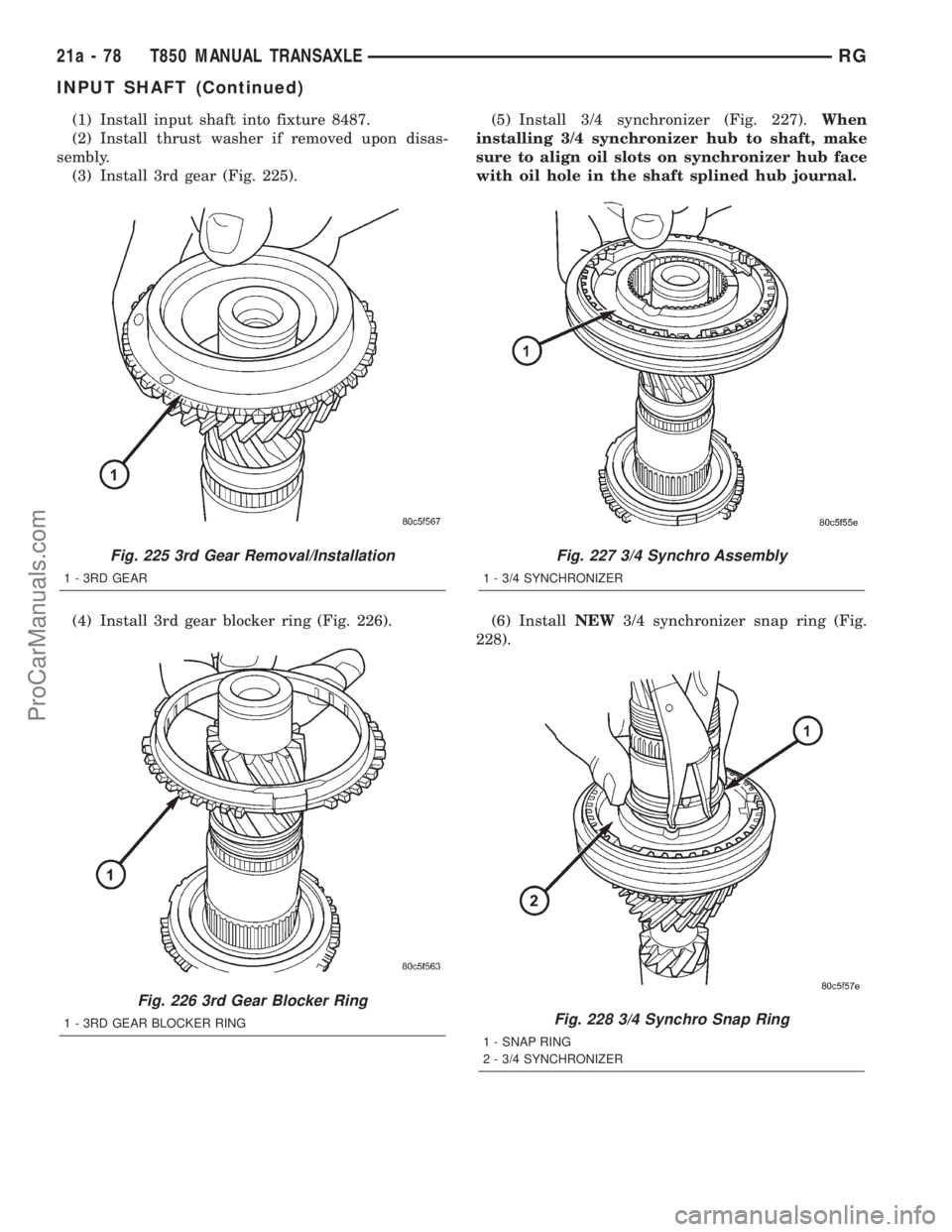

DODGE TOWN AND COUNTRY 2001 Service Manual (1) Install input shaft into fixture 8487. (2) Install thrust washer if removed upon disas- sembly. (3) Install 3rd gear (Fig. 225). (4) Install 3rd gear blocker ring (Fig. 226).(5) Install 3/4 synchr

Page 1878 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual (7) Install 4th gear blocker ring (Fig. 229). (8) Install 4th gear (Fig. 230). (9) Install 5th gear and press into position using installer 8481 (Fig. 231). (10) InstallNEW5th gear nut and torque to 2

Page 1879 of 2321

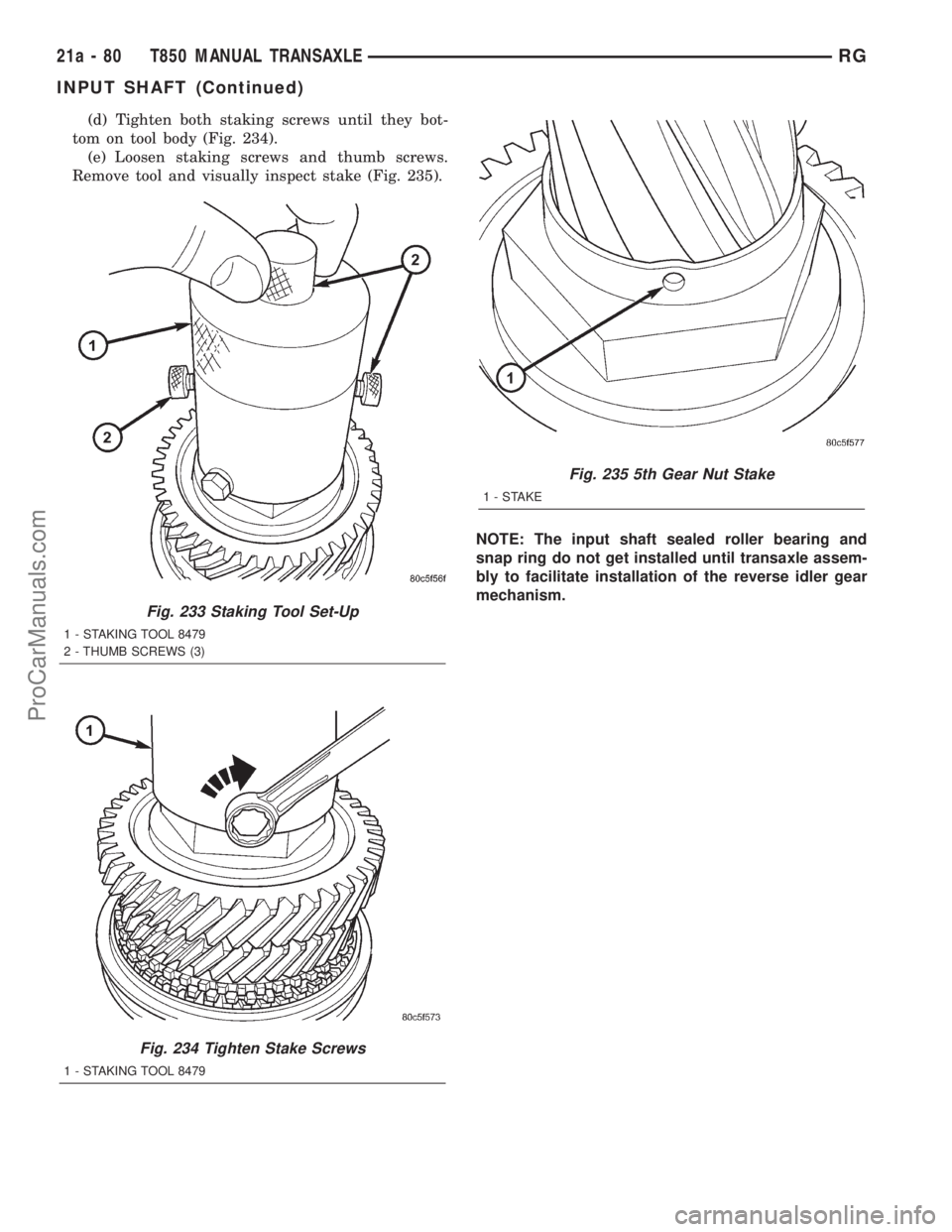

DODGE TOWN AND COUNTRY 2001 Service Manual (d) Tighten both staking screws until they bot- tom on tool body (Fig. 234). (e) Loosen staking screws and thumb screws. Remove tool and visually inspect stake (Fig. 235). NOTE: The input shaft sealed

Page 1880 of 2321

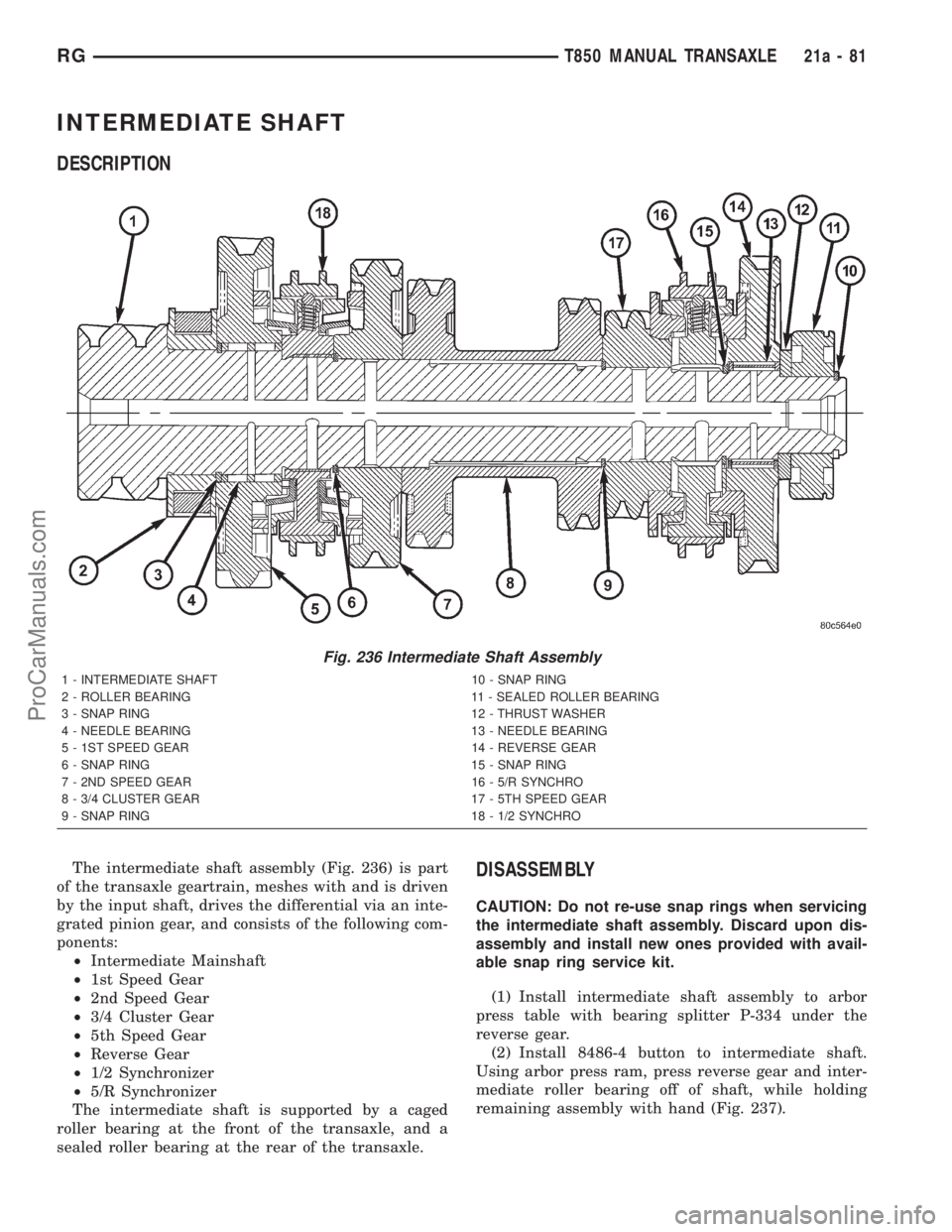

DODGE TOWN AND COUNTRY 2001 Service Manual INTERMEDIATE SHAFT DESCRIPTION The intermediate shaft assembly (Fig. 236) is part of the transaxle geartrain, meshes with and is driven by the input shaft, drives the differential via an inte- grated
