Page 1041 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual INTELLIGENT POWER MODULE C2 - GREEN/BLUE 10 WAY CAV CIRCUIT FUNCTION 1 N173 16DB/VT (BUILT-UP-EXPORT/ GAS)RADIATOR FAN RELAY CONTROL 1 N173 18DB/VT (EXCEPT BUILT-UP- EXPORT/GAS)RADIATOR FAN RELAY CONT

Page 1042 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual INTELLIGENT POWER MODULE C3 (GAS) - NATURAL/RED 20 WAY CAV CIRCUIT FUNCTION 1 Z115 20BK/OR (EATX) (3.3L/3.8L) GROUND 1 Z115 18BK/OR (EATX) (2.4L) GROUND 2 F1 18PK/WT (EATX) FCM OUTPUT (UNLOCK-RUN-STAR

Page 1043 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual INTELLIGENT POWER MODULE C6 - NATURAL 10 WAY CAV CIRCUIT FUNCTION 1 A101 12VT/RD FUSED B(+) 2 Z117 16BK/WT GROUND 3 Z118 16BK/YL GROUND 4 A110 12OR/RD (POWER SEAT) FUSED B(+) 5- - 6- - 7 C7 12DB FUSED

Page 1044 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual INTELLIGENT POWER MODULE C8 - ORANGE 10 WAY CAV CIRCUIT FUNCTION 1 W3 12BR/WT FRONT WIPER HIGH/LOW RELAY LOW SPEED OUT- PUT 2 N1 16DB/OR (DIESEL) FUEL HEATER RELAY OUTPUT 2 N1 16DB/OR (GAS) FUEL PUMP

Page 1045 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual LEAK DETECTION PUMP (EXCEPT BUILT-UP-EXPORT) - LT. GRAY 4 WAY CAV CIRCUIT FUNCTION 1 K107 18VT/WT LEAK DETECTION PUMP SWITCH SENSE 2 K106 18VT/LB LEAK DETECTION PUMP SOLENOID CONTROL 3 F202 18PK/GY IG

Page 1046 of 2321

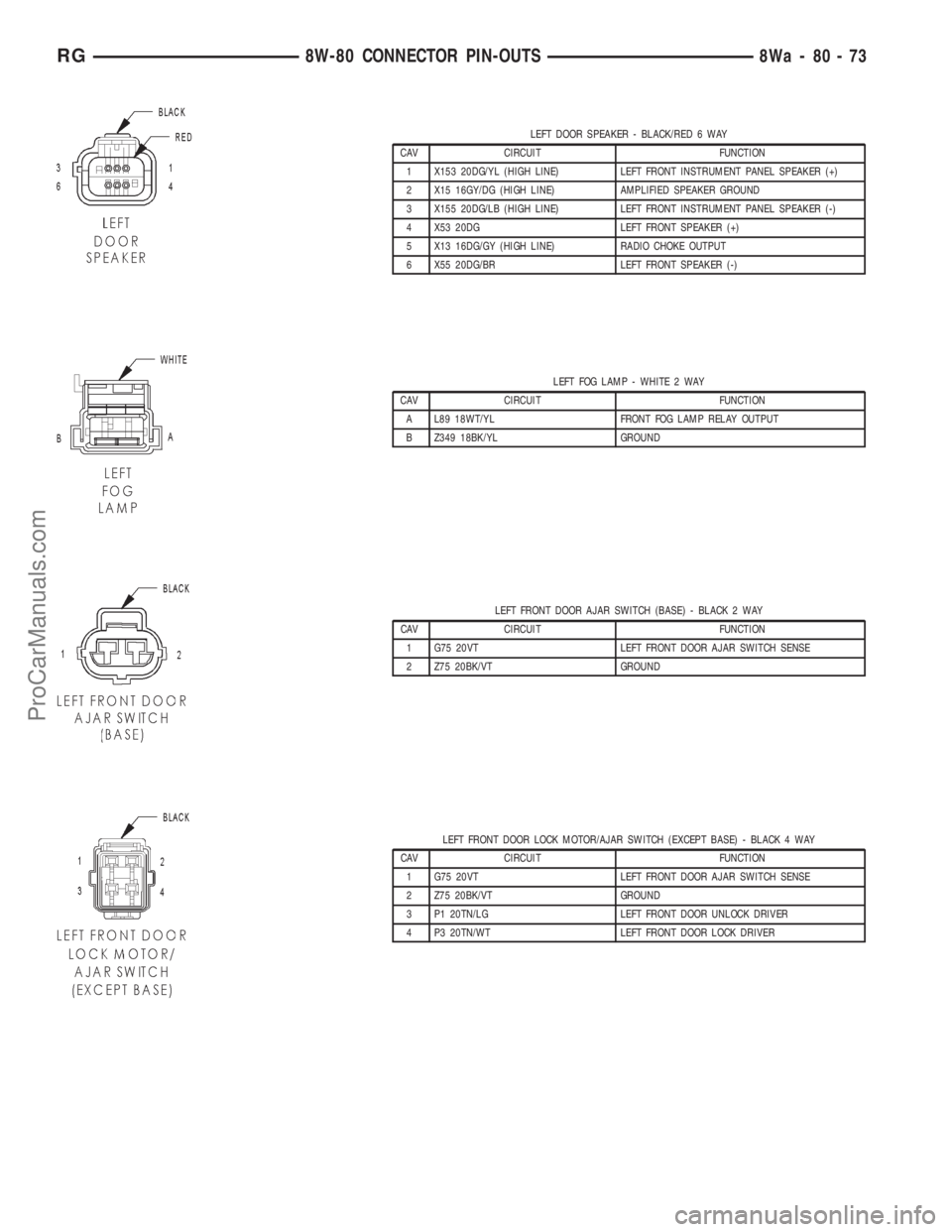

DODGE TOWN AND COUNTRY 2001 Service Manual LEFT DOOR SPEAKER - BLACK/RED 6 WAY CAV CIRCUIT FUNCTION 1 X153 20DG/YL (HIGH LINE) LEFT FRONT INSTRUMENT PANEL SPEAKER (+) 2 X15 16GY/DG (HIGH LINE) AMPLIFIED SPEAKER GROUND 3 X155 20DG/LB (HIGH LINE

Page 1047 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual LEFT FRONT PARK/TURN SIGNAL LAMP (EXCEPT BUILT-UP-EXPORT) - BLACK 3 WAY CAV CIRCUIT FUNCTION 1 L61 18WT/LG LEFT FRONT TURN SIGNAL DRIVER 2 L77 18WT/BR FUSED PARK LAMP RELAY OUTPUT (LEFT) 3 Z377 18BK/B

Page 1048 of 2321

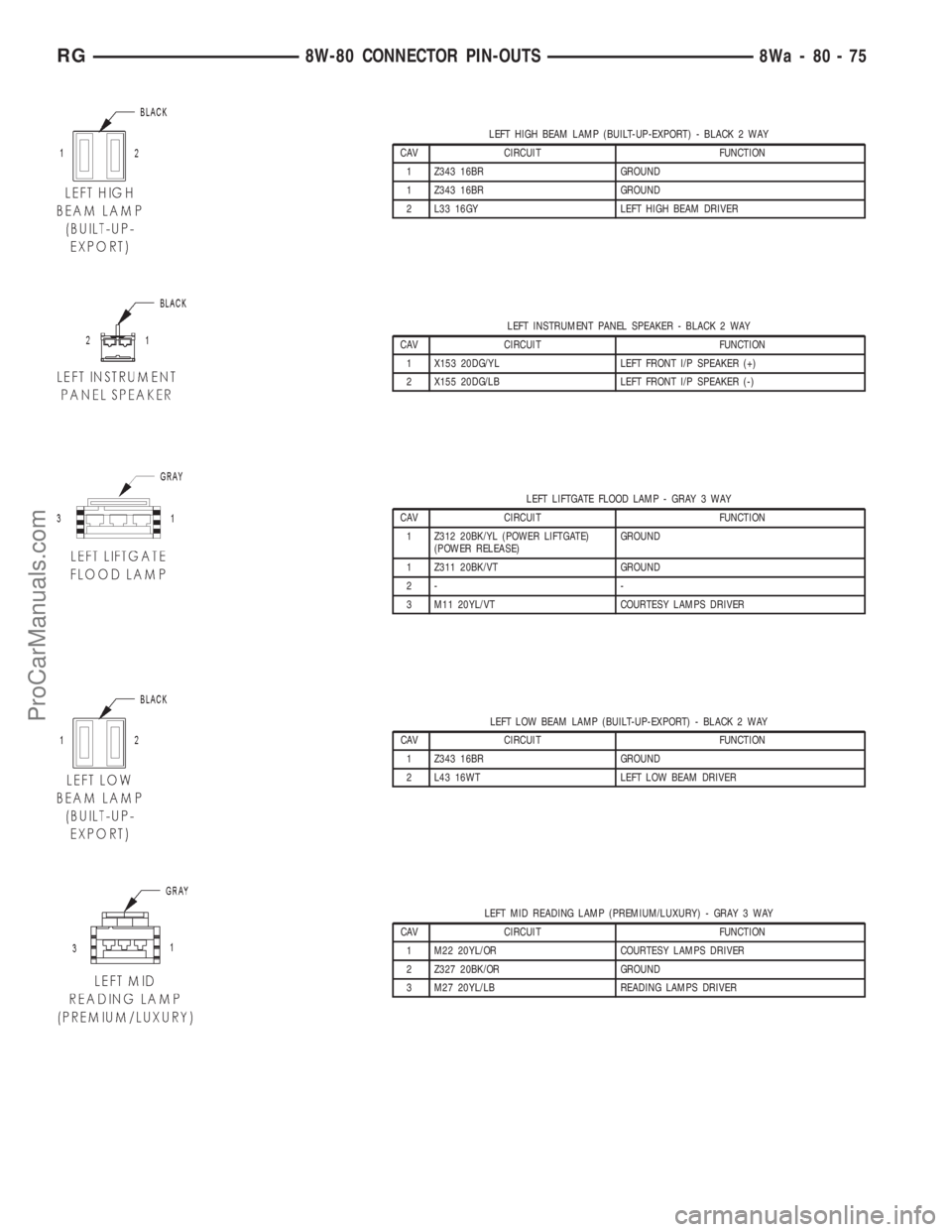

DODGE TOWN AND COUNTRY 2001 Service Manual LEFT HIGH BEAM LAMP (BUILT-UP-EXPORT) - BLACK 2 WAY CAV CIRCUIT FUNCTION 1 Z343 16BR GROUND 1 Z343 16BR GROUND 2 L33 16GY LEFT HIGH BEAM DRIVER LEFT INSTRUMENT PANEL SPEAKER - BLACK 2 WAY CAV CIRCUIT
