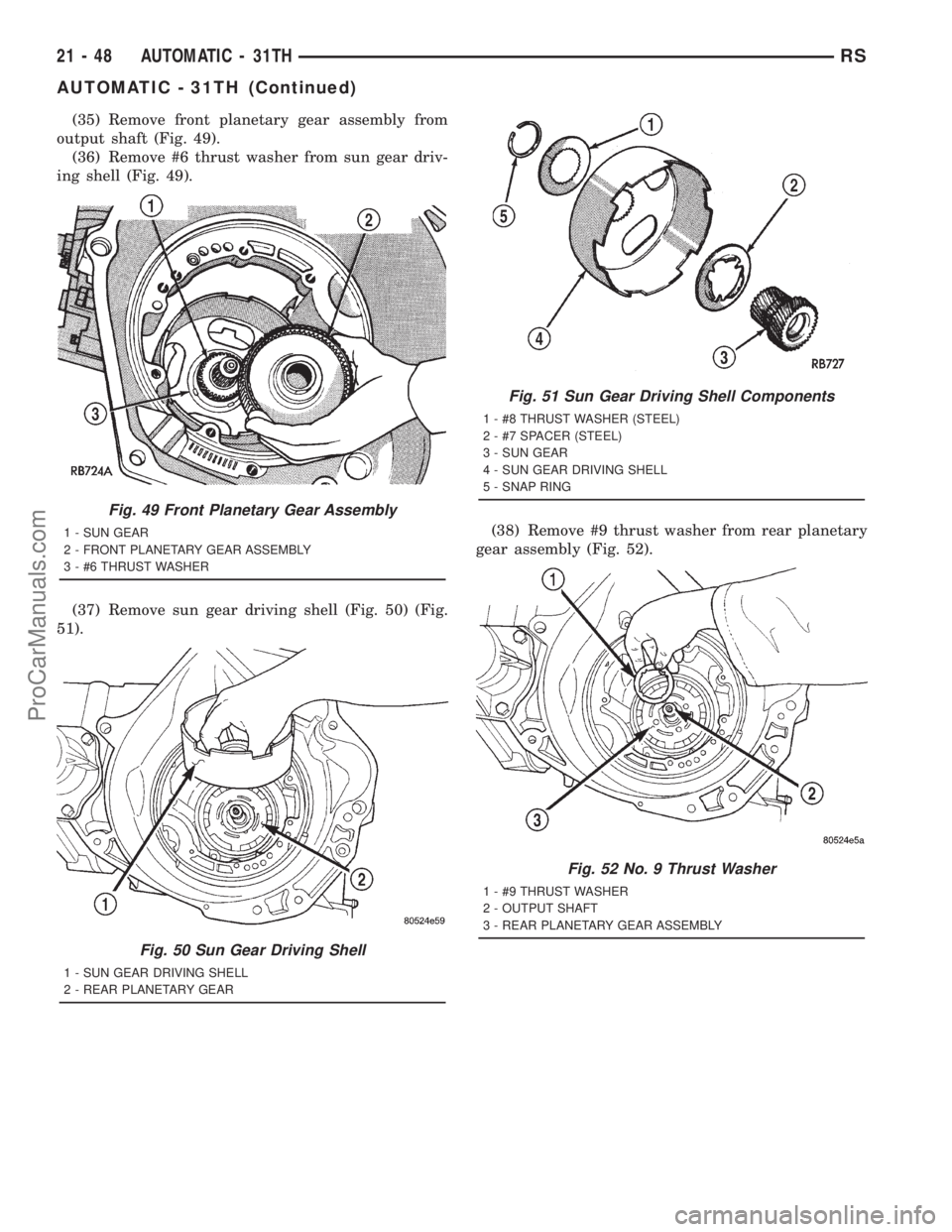

Page 1545 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual (35) Remove front planetary gear assembly from output shaft (Fig. 49). (36) Remove #6 thrust washer from sun gear driv- ing shell (Fig. 49). (37) Remove sun gear driving shell (Fig. 50) (Fig. 51).(38)

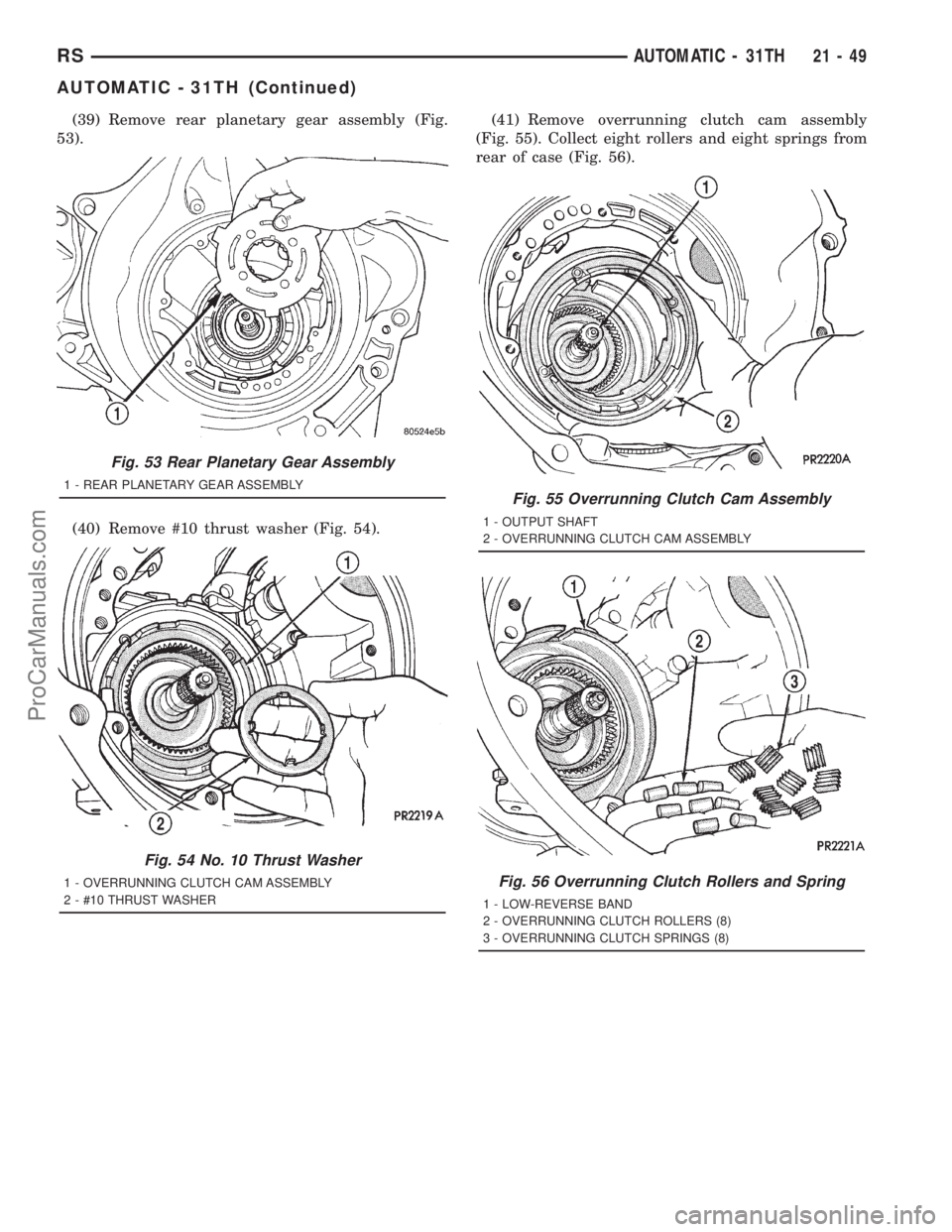

Page 1546 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual (39) Remove rear planetary gear assembly (Fig. 53). (40) Remove #10 thrust washer (Fig. 54).(41) Remove overrunning clutch cam assembly (Fig. 55). Collect eight rollers and eight springs from rear of

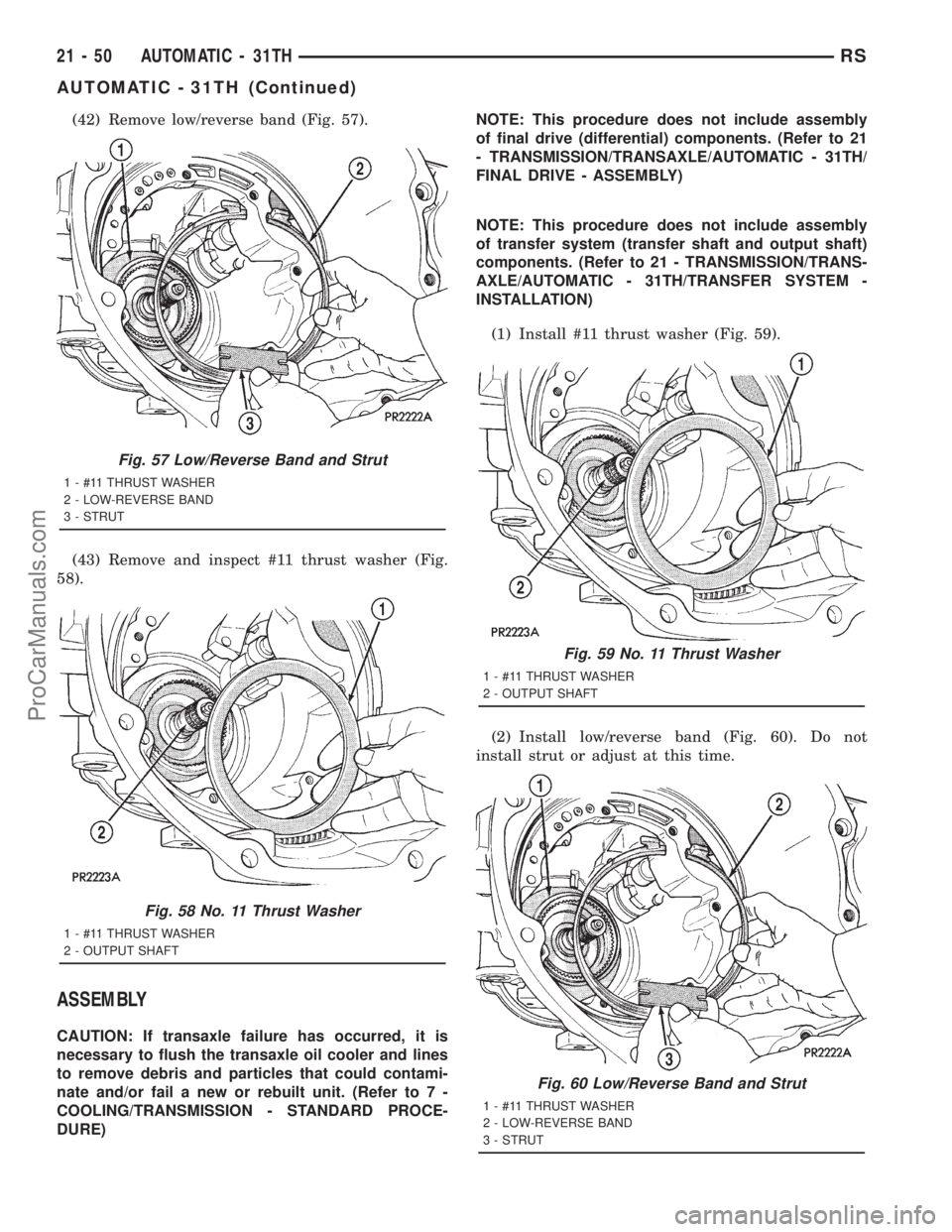

Page 1547 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual (42) Remove low/reverse band (Fig. 57). (43) Remove and inspect #11 thrust washer (Fig. 58). ASSEMBLY CAUTION: If transaxle failure has occurred, it is necessary to flush the transaxle oil cooler and

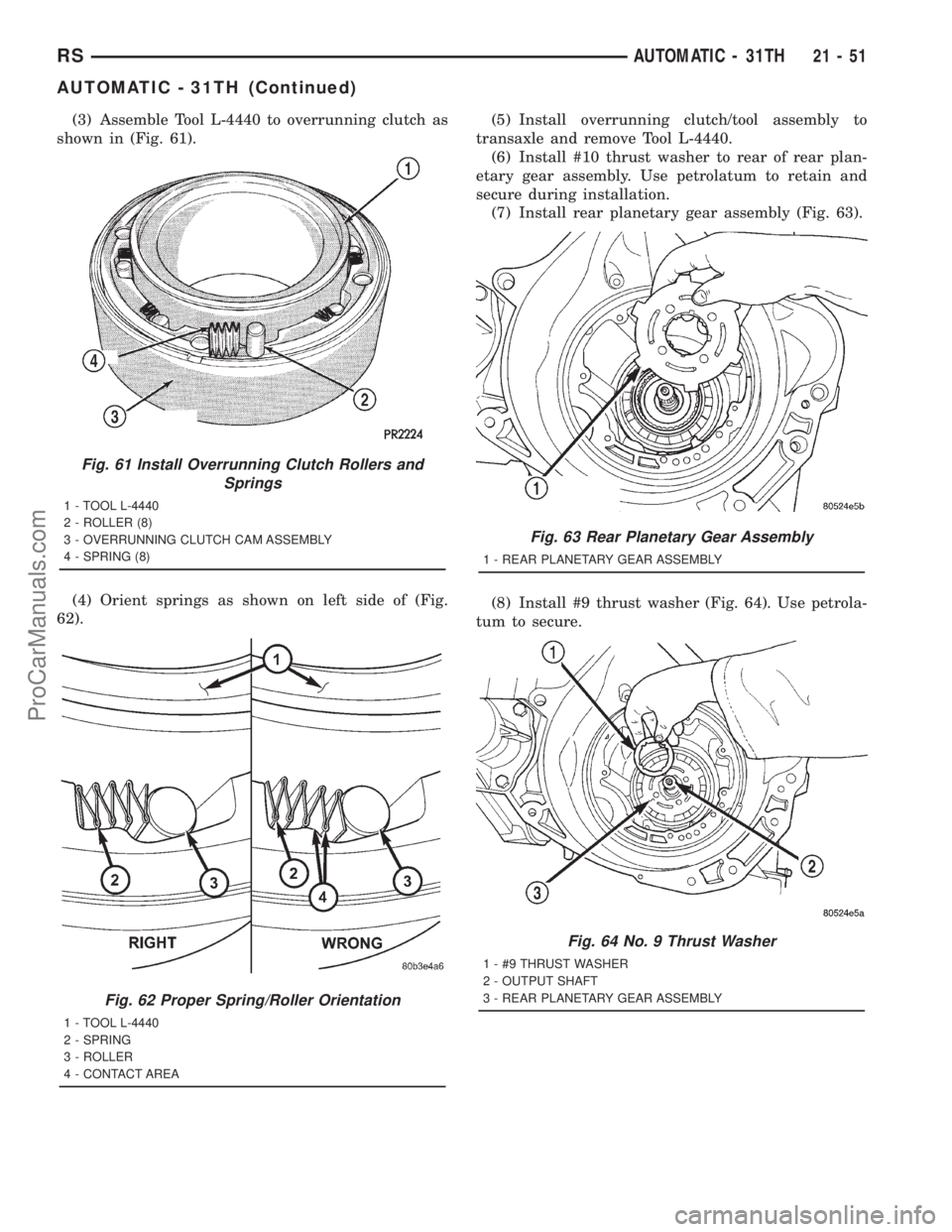

Page 1548 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual (3) Assemble Tool L-4440 to overrunning clutch as shown in (Fig. 61). (4) Orient springs as shown on left side of (Fig. 62).(5) Install overrunning clutch/tool assembly to transaxle and remove Tool L-

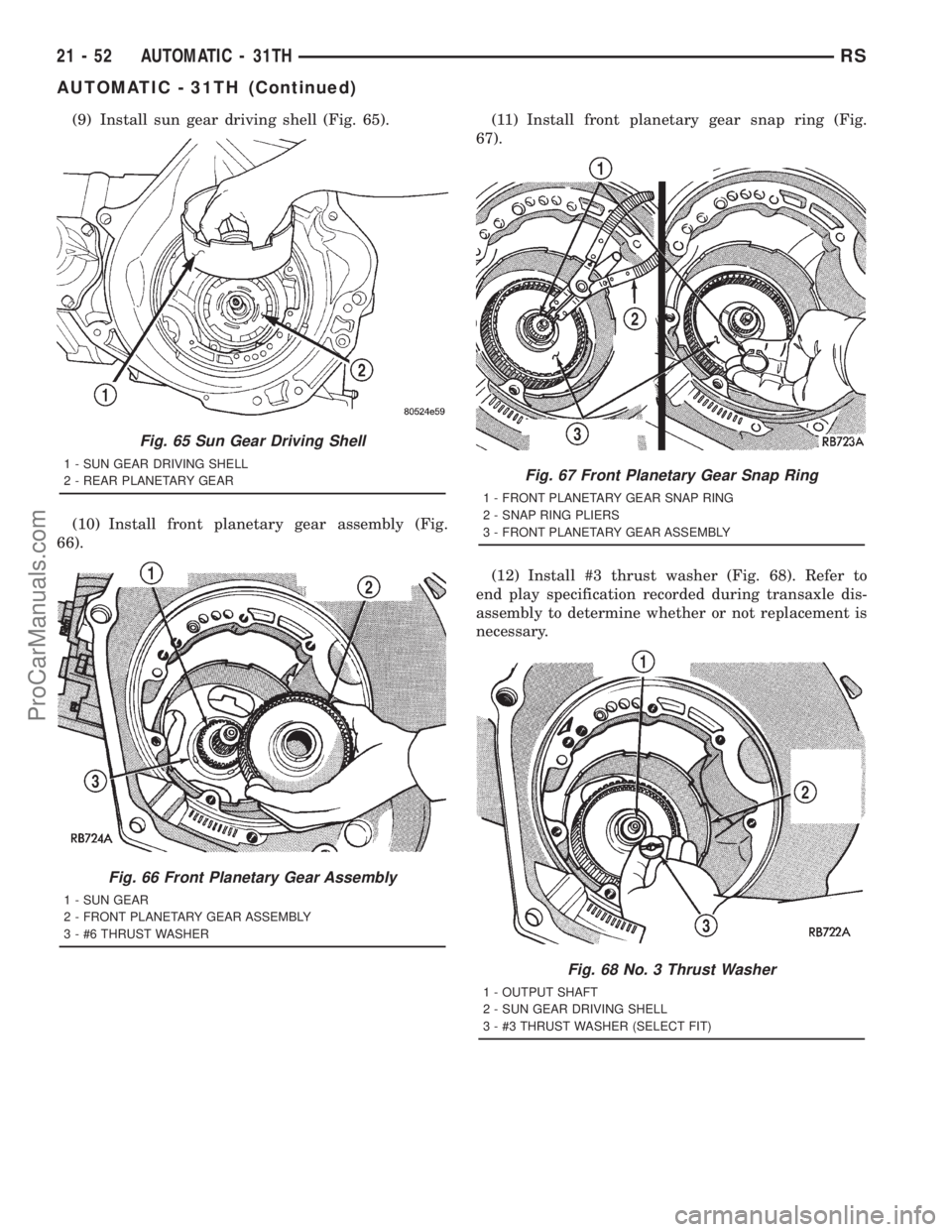

Page 1549 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual (9) Install sun gear driving shell (Fig. 65). (10) Install front planetary gear assembly (Fig. 66).(11) Install front planetary gear snap ring (Fig. 67). (12) Install #3 thrust washer (Fig. 68). Refer

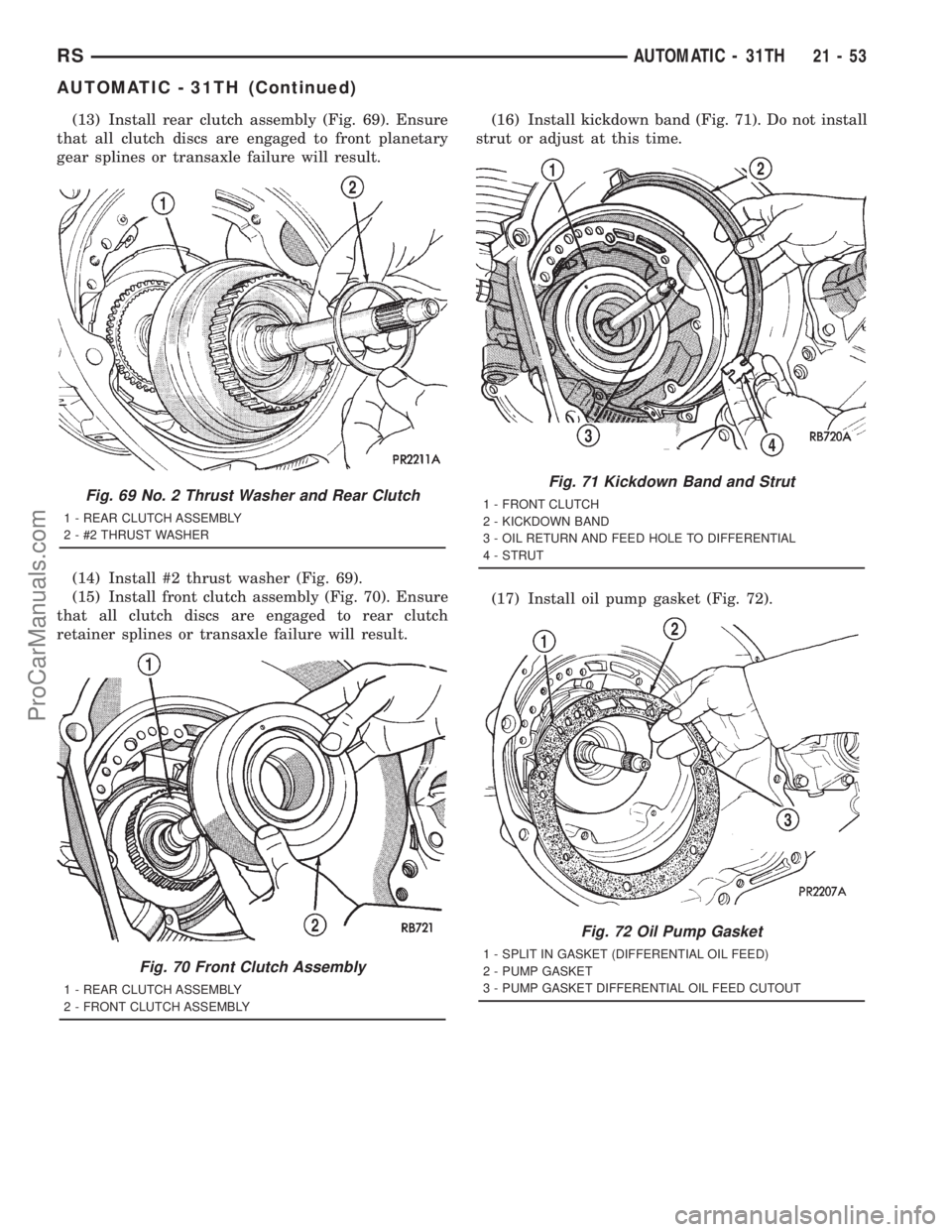

Page 1550 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual (13) Install rear clutch assembly (Fig. 69). Ensure that all clutch discs are engaged to front planetary gear splines or transaxle failure will result. (14) Install #2 thrust washer (Fig. 69). (15) In

Page 1551 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual (18) Inspect #1 thrust washer (on reaction support) and replace as necessary. (19) Install oil pump to transaxle (Fig. 73). Torque bolts to 31 N´m (275 in. lbs.). (20) Set up tools as shown in (Fig.

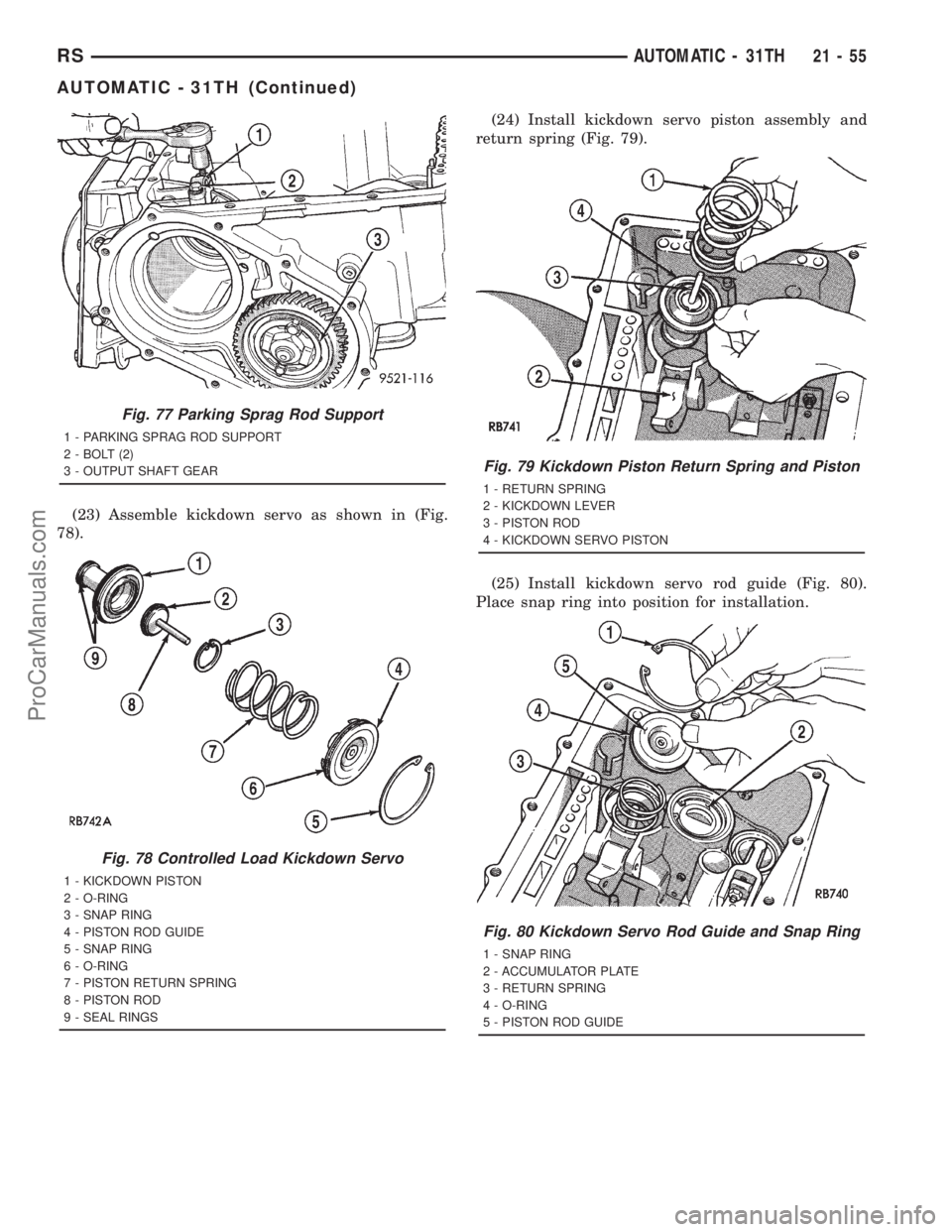

Page 1552 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual (23) Assemble kickdown servo as shown in (Fig. 78).(24) Install kickdown servo piston assembly and return spring (Fig. 79). (25) Install kickdown servo rod guide (Fig. 80). Place snap ring into positi
