Page 1505 of 2321

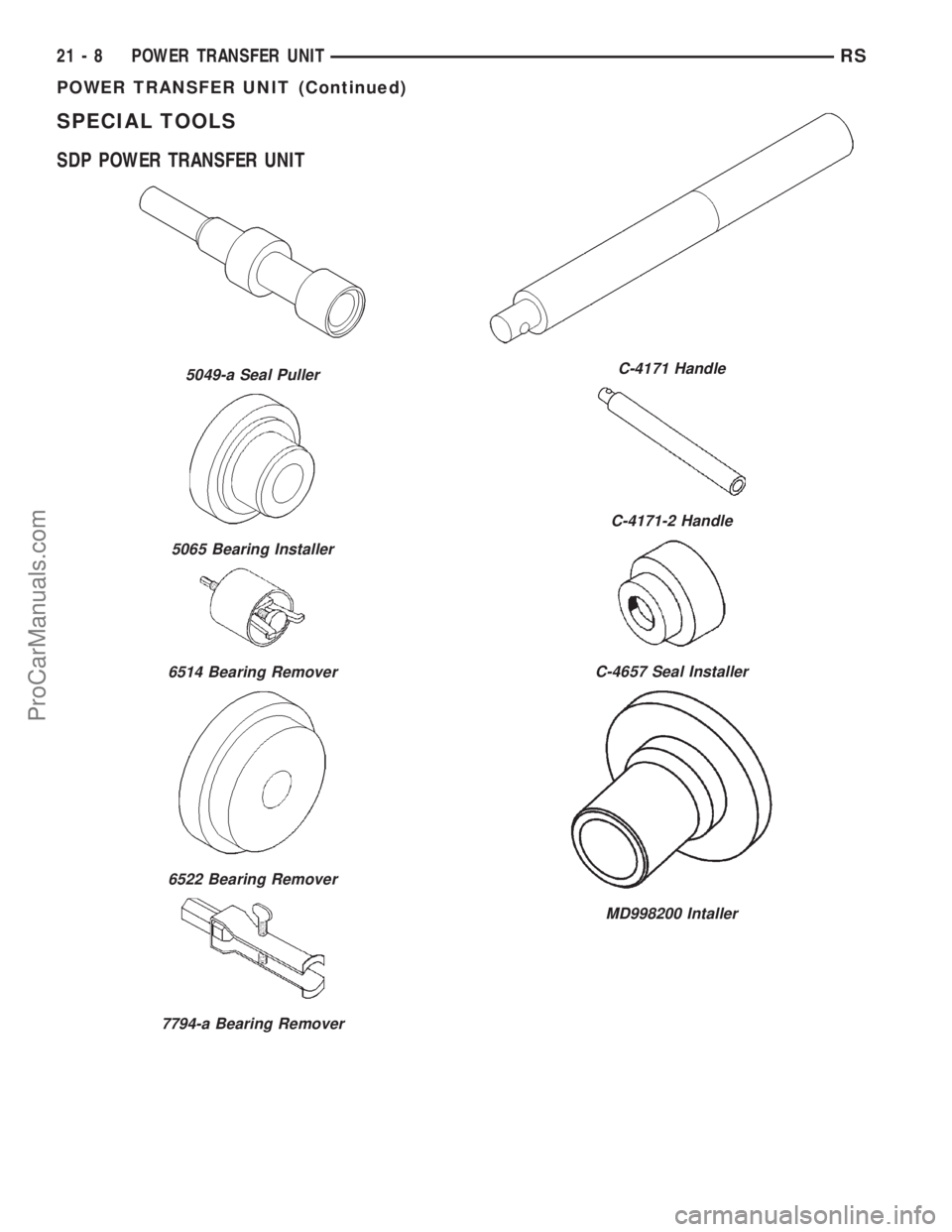

DODGE TOWN AND COUNTRY 2001 Service Manual SPECIAL TOOLS SDP POWER TRANSFER UNIT 5049-a Seal Puller 5065 Bearing Installer 6514 Bearing Remover 6522 Bearing Remover 7794-a Bearing Remover C-4171 Handle C-4171-2 Handle C-4657 Seal Installer MD9

Page 1506 of 2321

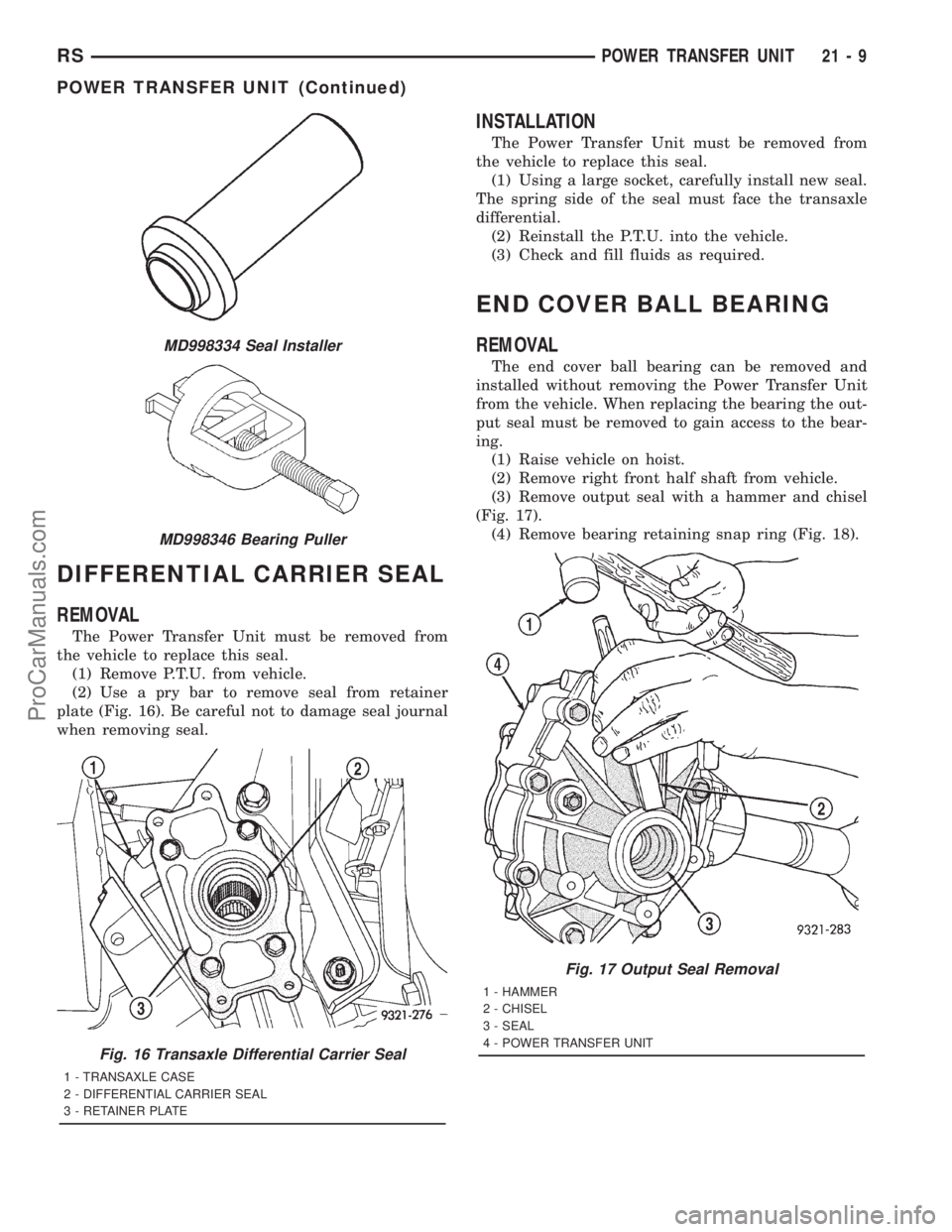

DODGE TOWN AND COUNTRY 2001 Service Manual DIFFERENTIAL CARRIER SEAL REMOVAL The Power Transfer Unit must be removed from the vehicle to replace this seal. (1) Remove P.T.U. from vehicle. (2) Use a pry bar to remove seal from retainer plate (F

Page 1507 of 2321

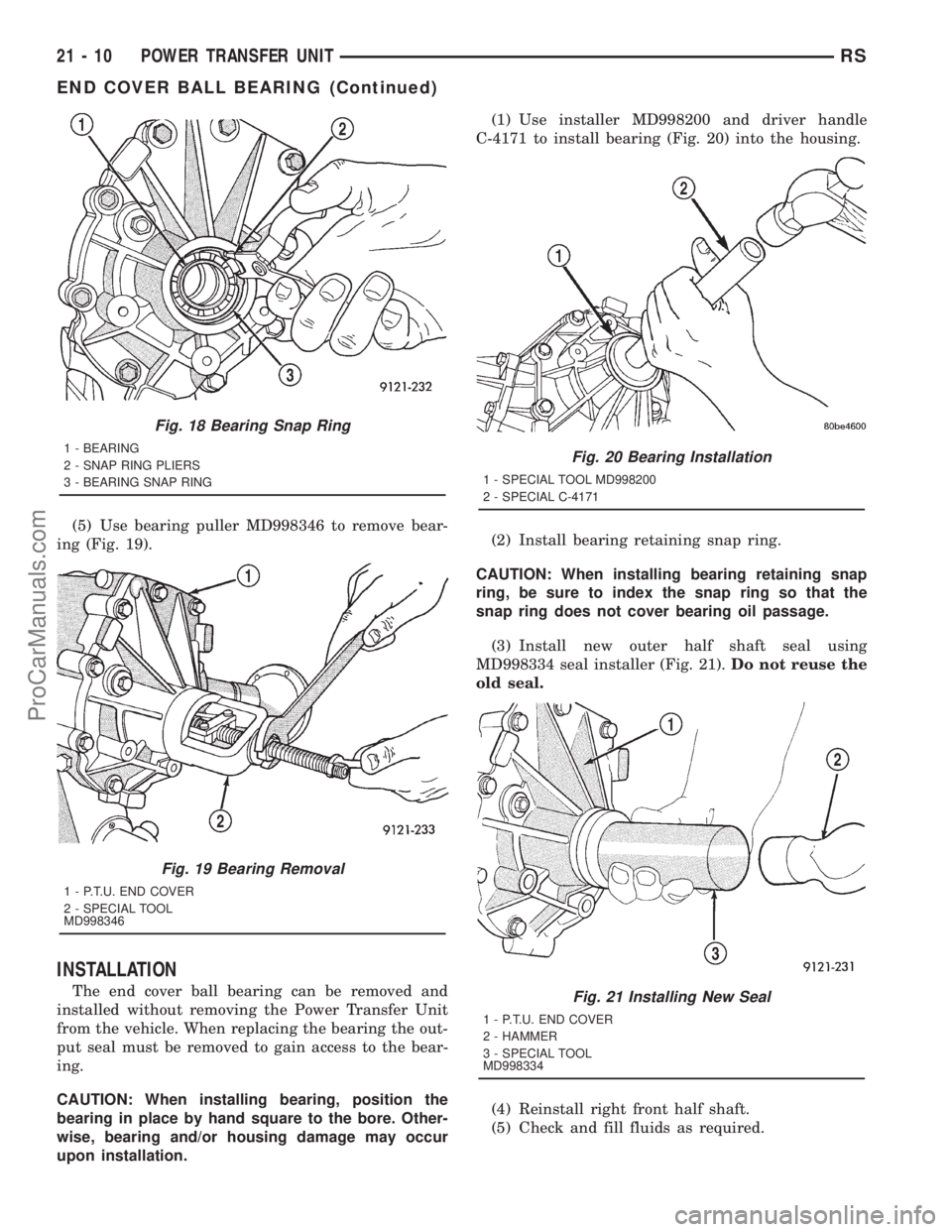

DODGE TOWN AND COUNTRY 2001 Service Manual (5) Use bearing puller MD998346 to remove bear- ing (Fig. 19). INSTALLATION The end cover ball bearing can be removed and installed without removing the Power Transfer Unit from the vehicle. When repl

Page 1508 of 2321

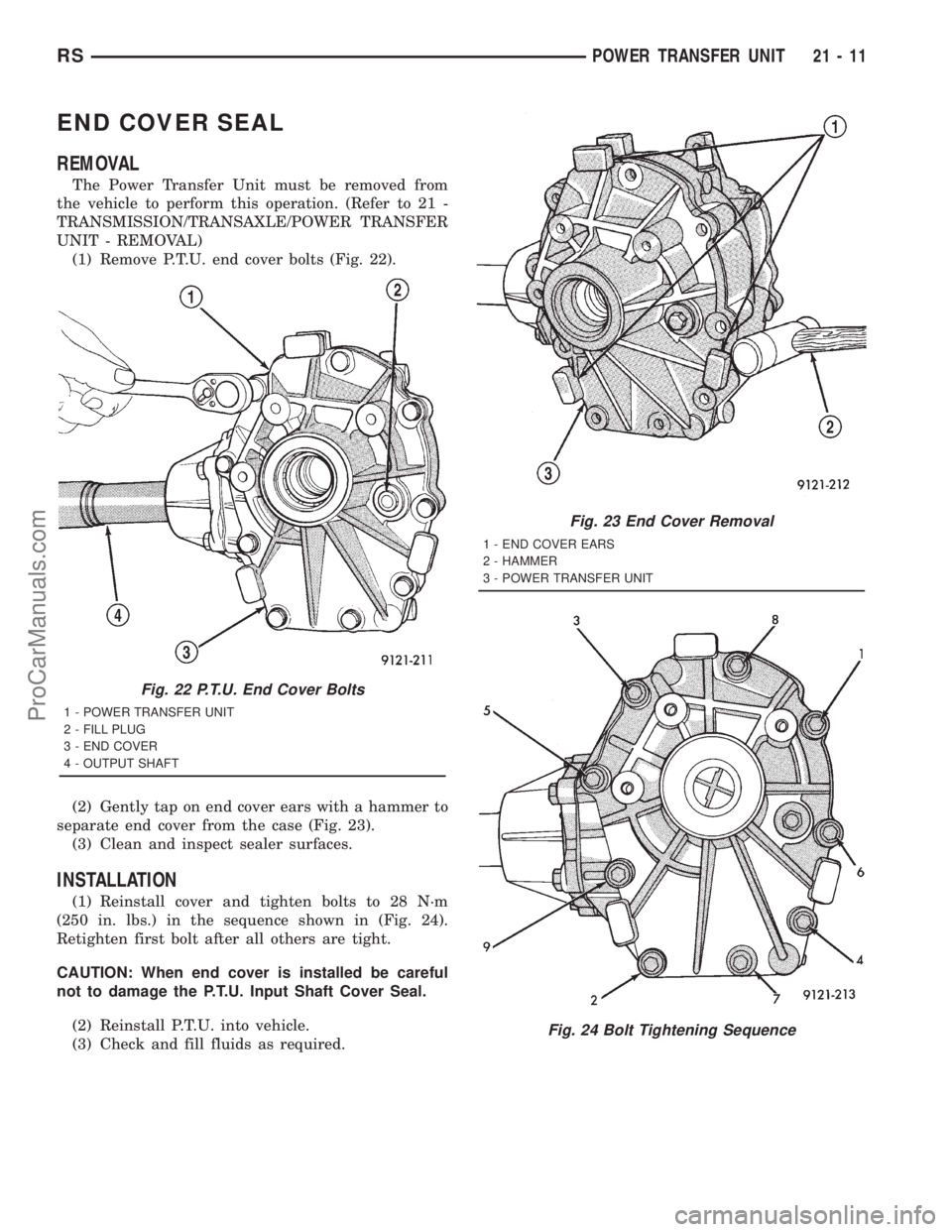

DODGE TOWN AND COUNTRY 2001 Service Manual END COVER SEAL REMOVAL The Power Transfer Unit must be removed from the vehicle to perform this operation. (Refer to 21 - TRANSMISSION/TRANSAXLE/POWER TRANSFER UNIT - REMOVAL) (1) Remove P.T.U. end co

Page 1509 of 2321

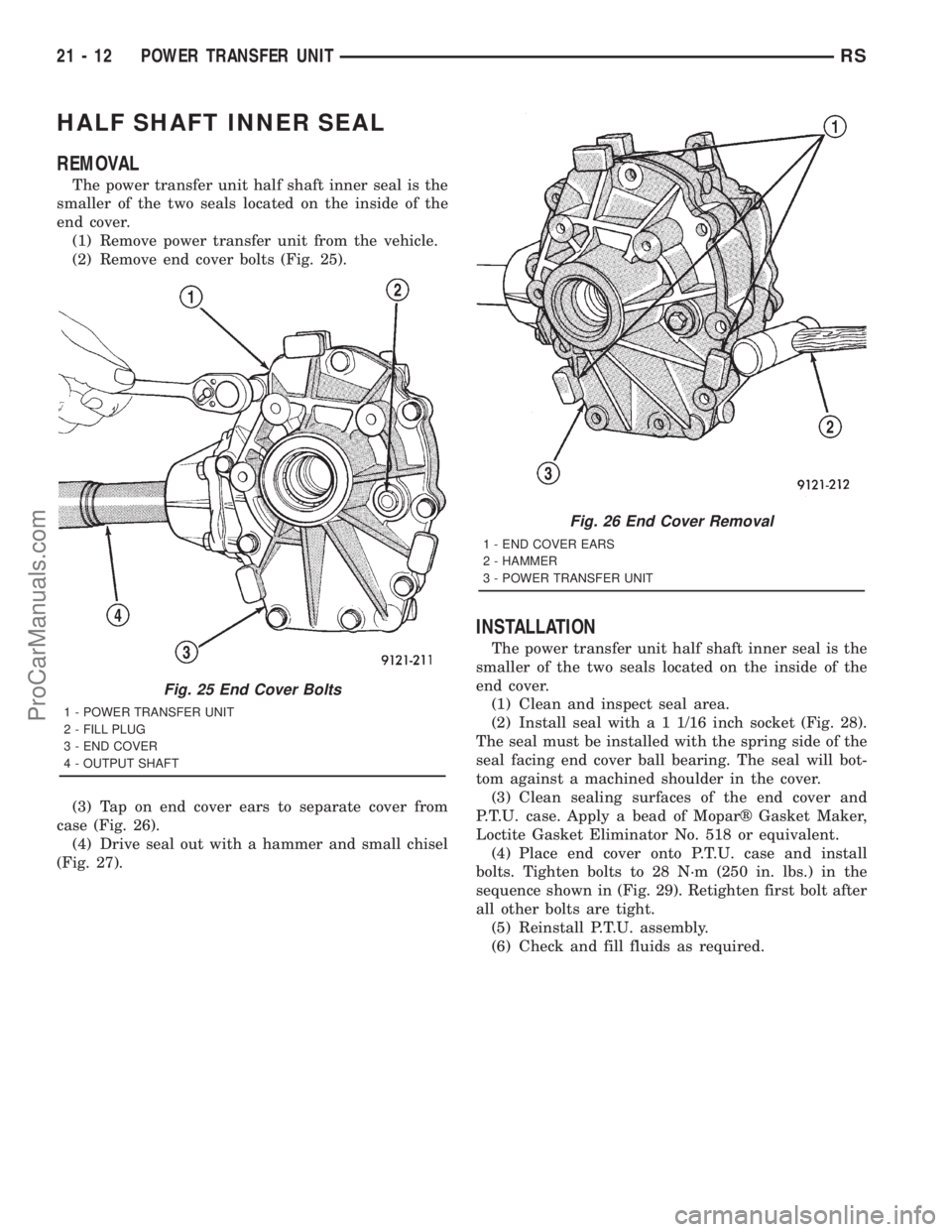

DODGE TOWN AND COUNTRY 2001 Service Manual HALF SHAFT INNER SEAL REMOVAL The power transfer unit half shaft inner seal is the smaller of the two seals located on the inside of the end cover. (1) Remove power transfer unit from the vehicle. (2)

Page 1510 of 2321

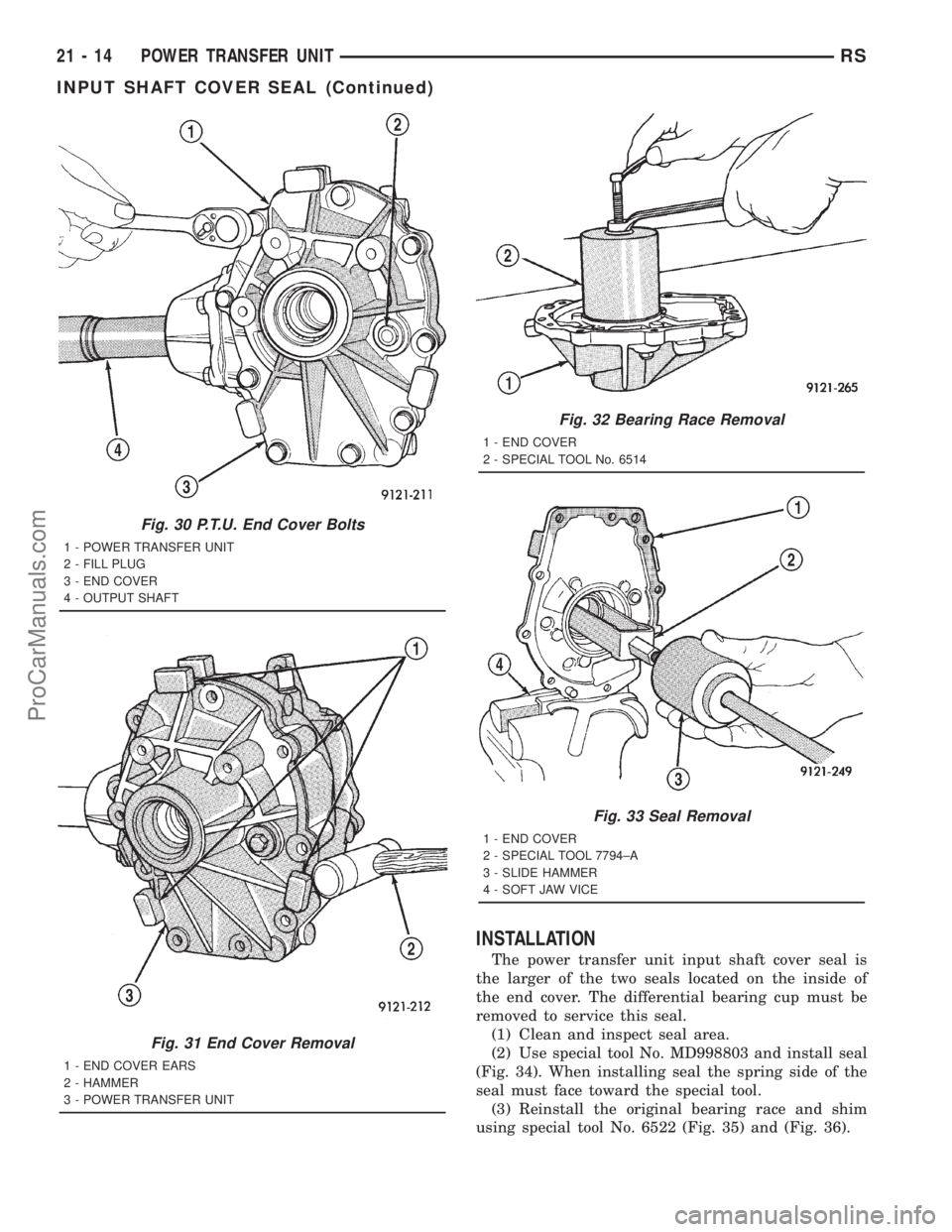

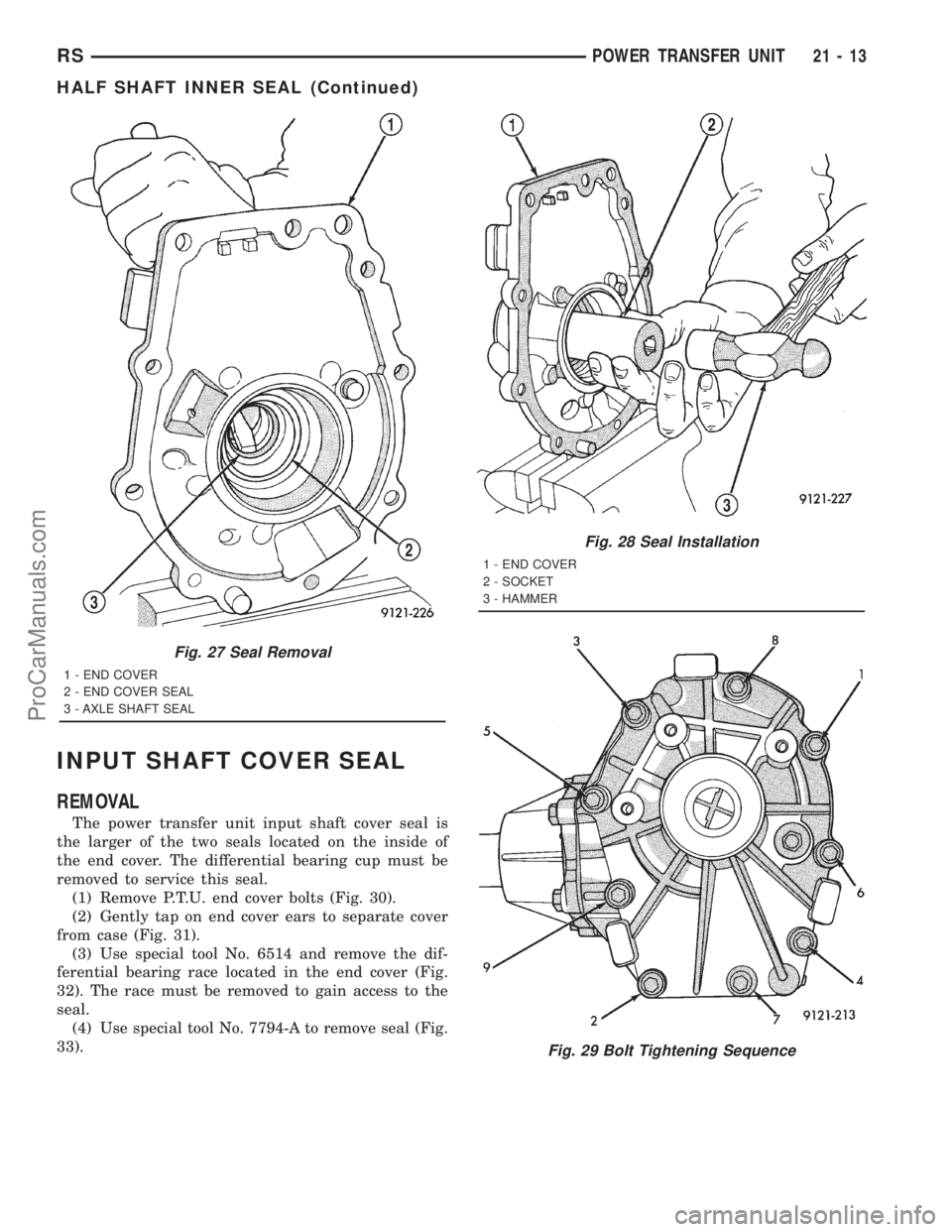

DODGE TOWN AND COUNTRY 2001 Service Manual INPUT SHAFT COVER SEAL REMOVAL The power transfer unit input shaft cover seal is the larger of the two seals located on the inside of the end cover. The differential bearing cup must be removed to ser

Page 1511 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual INSTALLATION The power transfer unit input shaft cover seal is the larger of the two seals located on the inside of the end cover. The differential bearing cup must be removed to service this seal. (1

Page 1512 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual CAUTION: The original shim must be installed behind the bearing cup to maintain proper bearing preload. (4) Apply Moparž Gasket Maker, Loctite Gasket Eliminator No. 518 or equivalent to sealing surfa
