DODGE TOWN AND COUNTRY 2001 Service Manual WINDOW REGULATOR
REMOVAL
(1) Remove the watershield. (Refer to 23 - BODY/
DOOR - FRONT/WATERSHIELD - REMOVAL)
(2) Remove door glass retaining clips and secure
the window in the up position using maski

Page 2074 of 2321

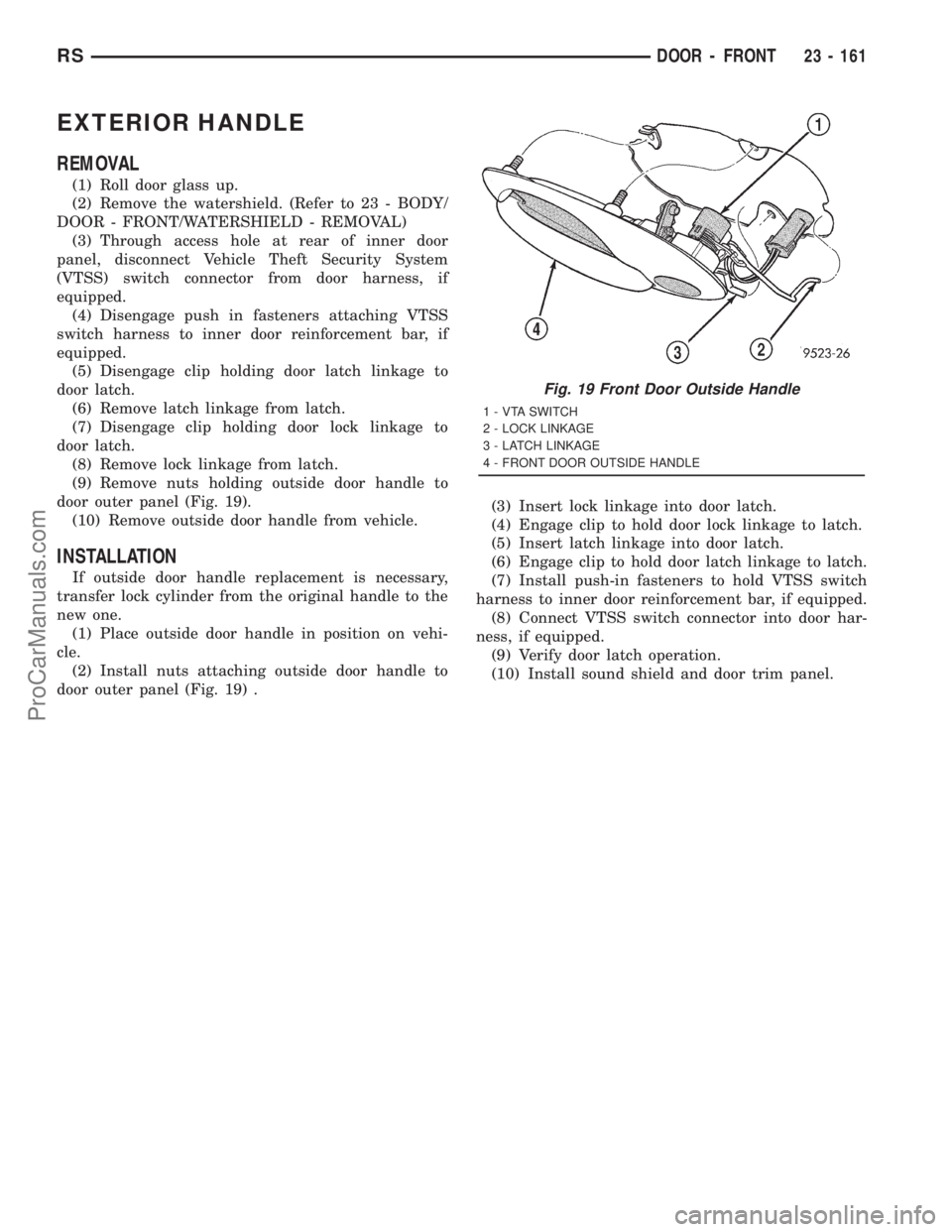

DODGE TOWN AND COUNTRY 2001 Service Manual EXTERIOR HANDLE
REMOVAL
(1) Roll door glass up.
(2) Remove the watershield. (Refer to 23 - BODY/
DOOR - FRONT/WATERSHIELD - REMOVAL)
(3) Through access hole at rear of inner door
panel, disconnect Veh

Page 2075 of 2321

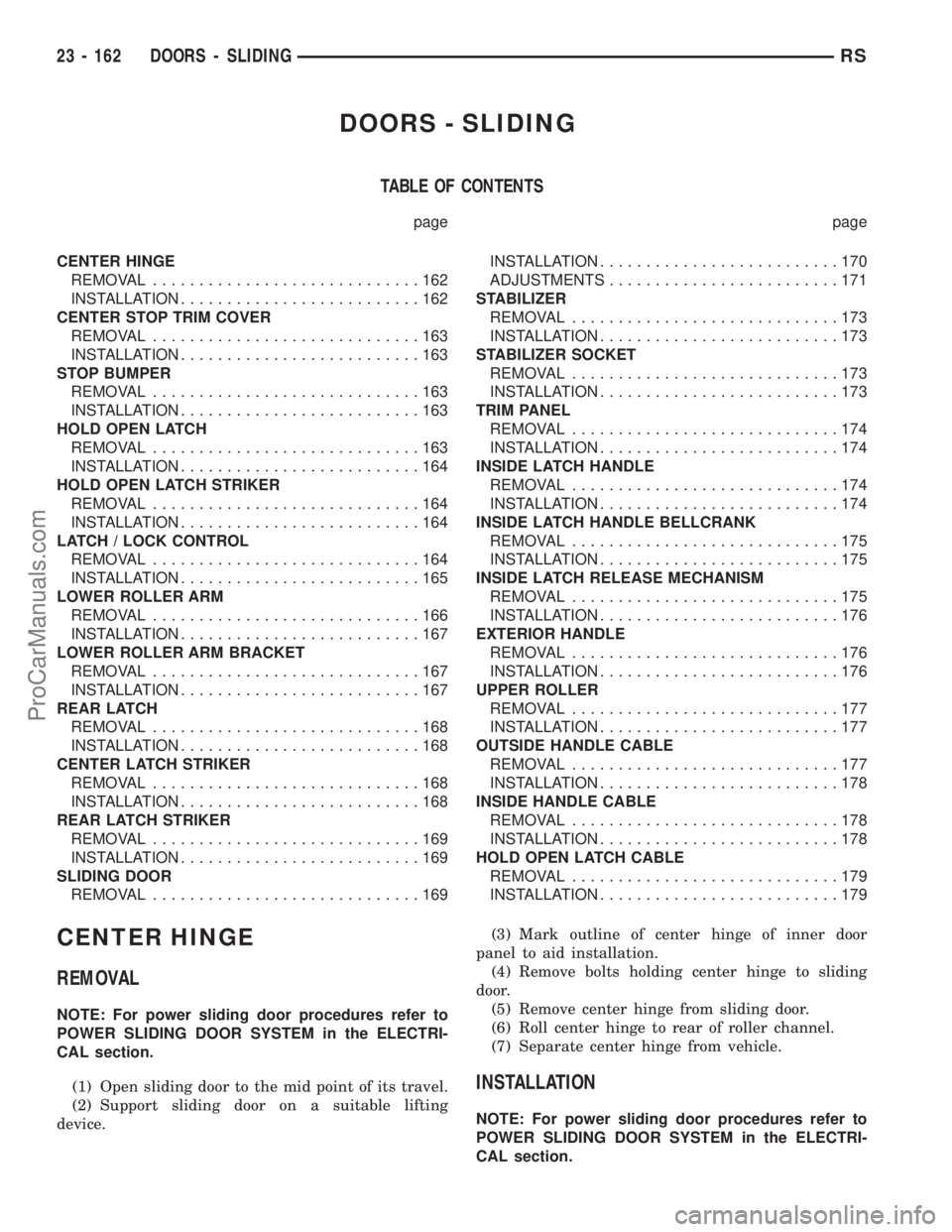

DODGE TOWN AND COUNTRY 2001 Service Manual DOORS - SLIDING
TABLE OF CONTENTS
page page
CENTER HINGE
REMOVAL.............................162
INSTALLATION..........................162
CENTER STOP TRIM COVER
REMOVAL.............................16

DOORS - SLIDING
TABLE OF CONTENTS
page page
CENTER HINGE
REMOVAL.............................162
INSTALLATION..........................162
CENTER STOP TRIM COVER
REMOVAL.............................163
INSTALLATION..........................163
STOP BUMPER
REMOVAL.............................163
INSTALLATION..........................163
HOLD OPEN LATCH
REMOVAL.............................163
INSTALLATION..........................164
HOLD OPEN LATCH STRIKER
REMOVAL.............................164
INSTALLATION..........................164
LATCH / LOCK CONTROL
REMOVAL.............................164
INSTALLATION..........................165
LOWER ROLLER ARM
REMOVAL.............................166
INSTALLATION..........................167
LOWER ROLLER ARM BRACKET
REMOVAL.............................167
INSTALLATION..........................167
REAR LATCH
REMOVAL.............................168
INSTALLATION..........................168
CENTER LATCH STRIKER
REMOVAL.............................168
INSTALLATION..........................168
REAR LATCH STRIKER
REMOVAL.............................169
INSTALLATION..........................169
SLIDING DOOR
REMOVAL.............................169INSTALLATION..........................170
ADJUSTMENTS.........................171
STABILIZER
REMOVAL.............................173
INSTALLATION..........................173
STABILIZER SOCKET
REMOVAL.............................173
INSTALLATION..........................173
TRIM PANEL
REMOVAL.............................174
INSTALLATION..........................174
INSIDE LATCH HANDLE
REMOVAL.............................174
INSTALLATION..........................174
INSIDE LATCH HANDLE BELLCRANK
REMOVAL.............................175
INSTALLATION..........................175
INSIDE LATCH RELEASE MECHANISM
REMOVAL.............................175
INSTALLATION..........................176
EXTERIOR HANDLE
REMOVAL.............................176
INSTALLATION..........................176
UPPER ROLLER
REMOVAL.............................177
INSTALLATION..........................177
OUTSIDE HANDLE CABLE
REMOVAL.............................177
INSTALLATION..........................178
INSIDE HANDLE CABLE
REMOVAL.............................178
INSTALLATION..........................178
HOLD OPEN LATCH CABLE
REMOVAL.............................179
INSTALLATION..........................179
CENTER HINGE
REMOVAL
NOTE: For power sliding door procedures refer to
POWER SLIDING DOOR SYSTEM in the ELECTRI-
CAL section.
(1) Open sliding door to the mid point of its travel.
(2) Support sliding door on a suitable lifting
device.(3) Mark outline of center hinge of inner door
panel to aid installation.
(4) Remove bolts holding center hinge to sliding
door.
(5) Remove center hinge from sliding door.
(6) Roll center hinge to rear of roller channel.
(7) Separate center hinge from vehicle.
INSTALLATION
NOTE: For power sliding door procedures refer to
POWER SLIDING DOOR SYSTEM in the ELECTRI-
CAL section.
23 - 162 DOORS - SLIDINGRS
ProCarManuals.com

Page 2076 of 2321

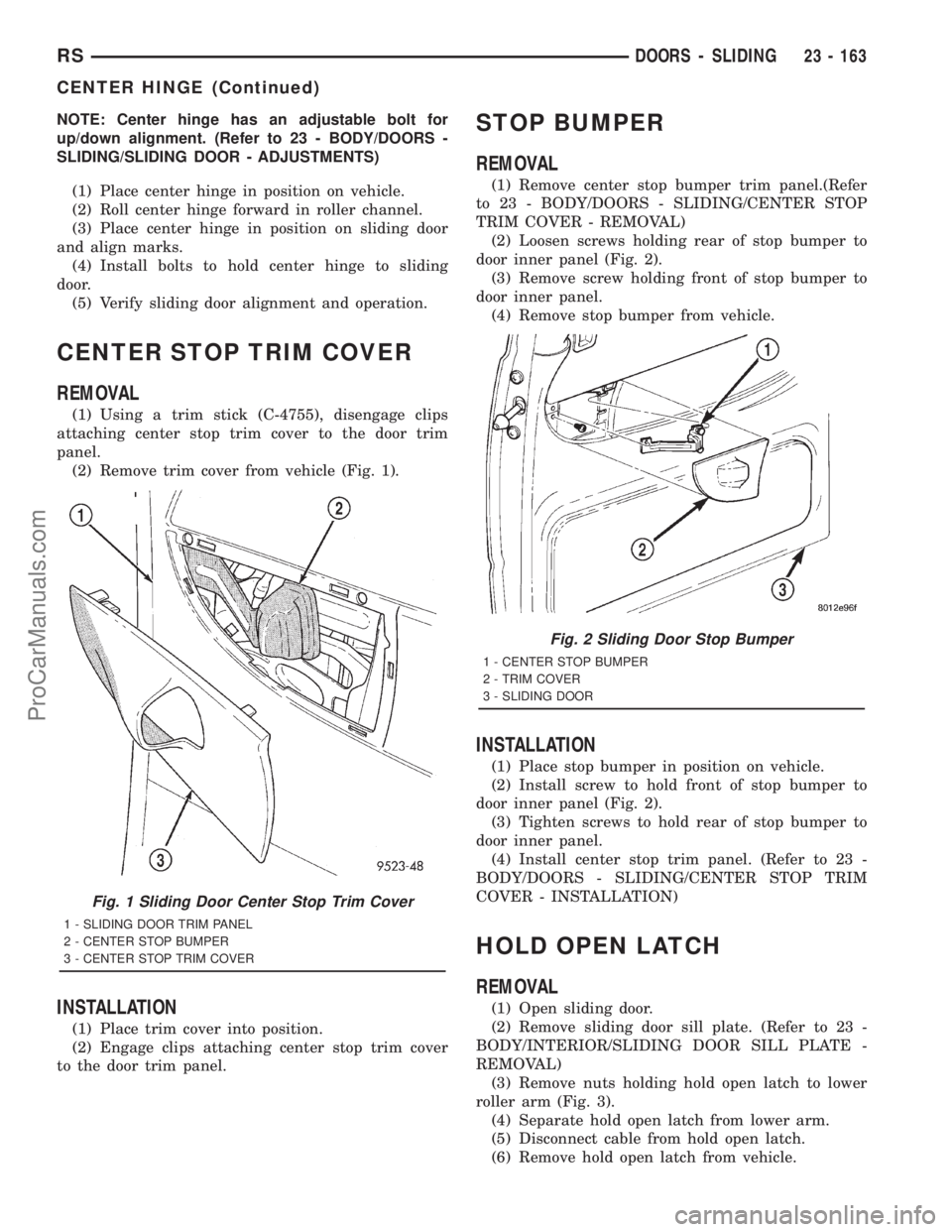

DODGE TOWN AND COUNTRY 2001 Service Manual NOTE: Center hinge has an adjustable bolt for
up/down alignment. (Refer to 23 - BODY/DOORS -
SLIDING/SLIDING DOOR - ADJUSTMENTS)
(1) Place center hinge in position on vehicle.
(2) Roll center hinge fo

Page 2077 of 2321

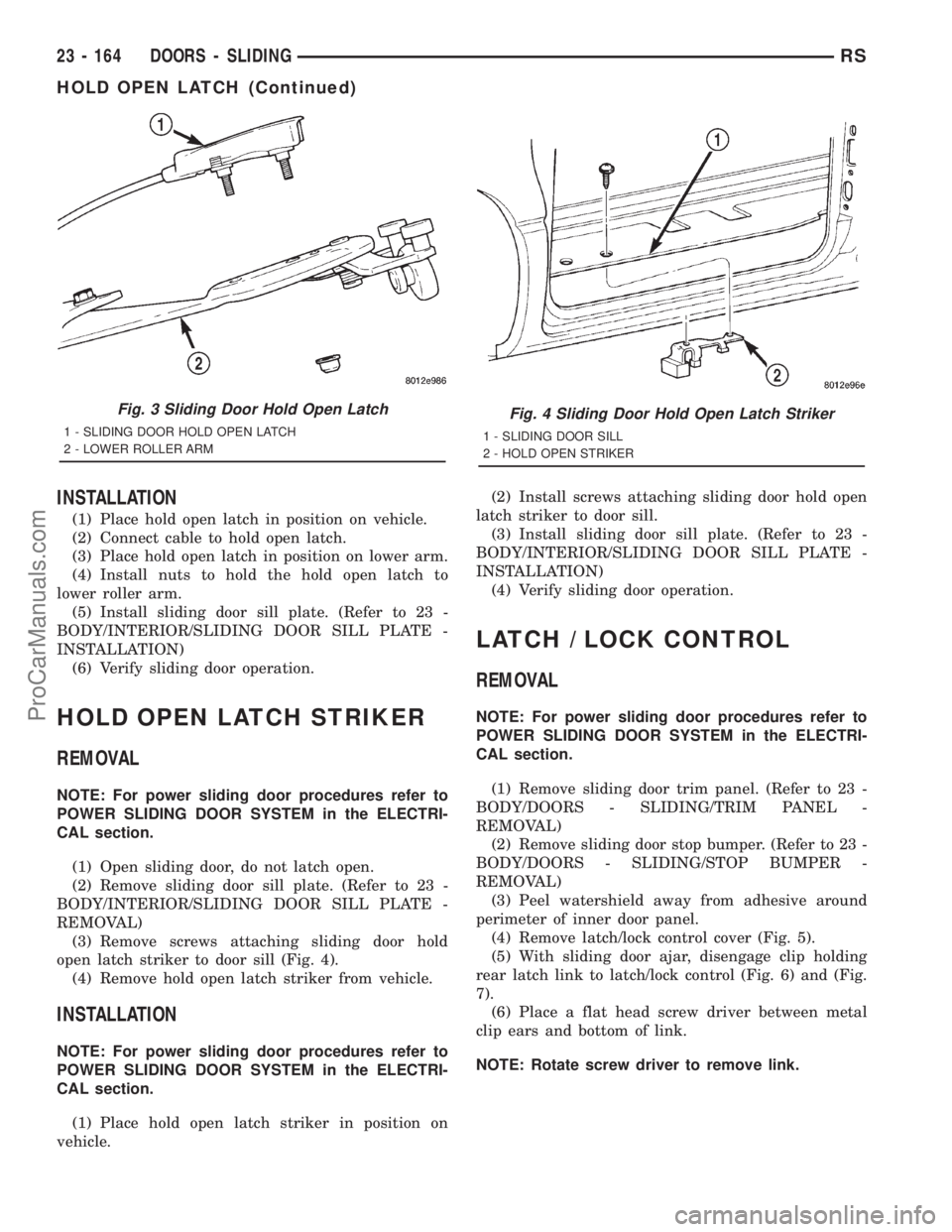

DODGE TOWN AND COUNTRY 2001 Service Manual INSTALLATION
(1) Place hold open latch in position on vehicle.
(2) Connect cable to hold open latch.
(3) Place hold open latch in position on lower arm.
(4) Install nuts to hold the hold open latch to

INSTALLATION
(1) Place hold open latch in position on vehicle.
(2) Connect cable to hold open latch.
(3) Place hold open latch in position on lower arm.
(4) Install nuts to hold the hold open latch to
lower roller arm.
(5) Install sliding door sill plate. (Refer to 23 -
BODY/INTERIOR/SLIDING DOOR SILL PLATE -
INSTALLATION)
(6) Verify sliding door operation.
HOLD OPEN LATCH STRIKER
REMOVAL
NOTE: For power sliding door procedures refer to
POWER SLIDING DOOR SYSTEM in the ELECTRI-
CAL section.
(1) Open sliding door, do not latch open.
(2) Remove sliding door sill plate. (Refer to 23 -
BODY/INTERIOR/SLIDING DOOR SILL PLATE -
REMOVAL)
(3) Remove screws attaching sliding door hold
open latch striker to door sill (Fig. 4).
(4) Remove hold open latch striker from vehicle.
INSTALLATION
NOTE: For power sliding door procedures refer to
POWER SLIDING DOOR SYSTEM in the ELECTRI-
CAL section.
(1) Place hold open latch striker in position on
vehicle.(2) Install screws attaching sliding door hold open
latch striker to door sill.
(3) Install sliding door sill plate. (Refer to 23 -
BODY/INTERIOR/SLIDING DOOR SILL PLATE -
INSTALLATION)
(4) Verify sliding door operation.
LATCH / LOCK CONTROL
REMOVAL
NOTE: For power sliding door procedures refer to
POWER SLIDING DOOR SYSTEM in the ELECTRI-
CAL section.
(1) Remove sliding door trim panel. (Refer to 23 -
BODY/DOORS - SLIDING/TRIM PANEL -
REMOVAL)
(2) Remove sliding door stop bumper. (Refer to 23 -
BODY/DOORS - SLIDING/STOP BUMPER -
REMOVAL)
(3) Peel watershield away from adhesive around
perimeter of inner door panel.
(4) Remove latch/lock control cover (Fig. 5).
(5) With sliding door ajar, disengage clip holding
rear latch link to latch/lock control (Fig. 6) and (Fig.
7).
(6) Place a flat head screw driver between metal
clip ears and bottom of link.
NOTE: Rotate screw driver to remove link.
Fig. 3 Sliding Door Hold Open Latch
1 - SLIDING DOOR HOLD OPEN LATCH
2 - LOWER ROLLER ARM
Fig. 4 Sliding Door Hold Open Latch Striker
1 - SLIDING DOOR SILL
2 - HOLD OPEN STRIKER
23 - 164 DOORS - SLIDINGRS
HOLD OPEN LATCH (Continued)
ProCarManuals.com

Page 2078 of 2321

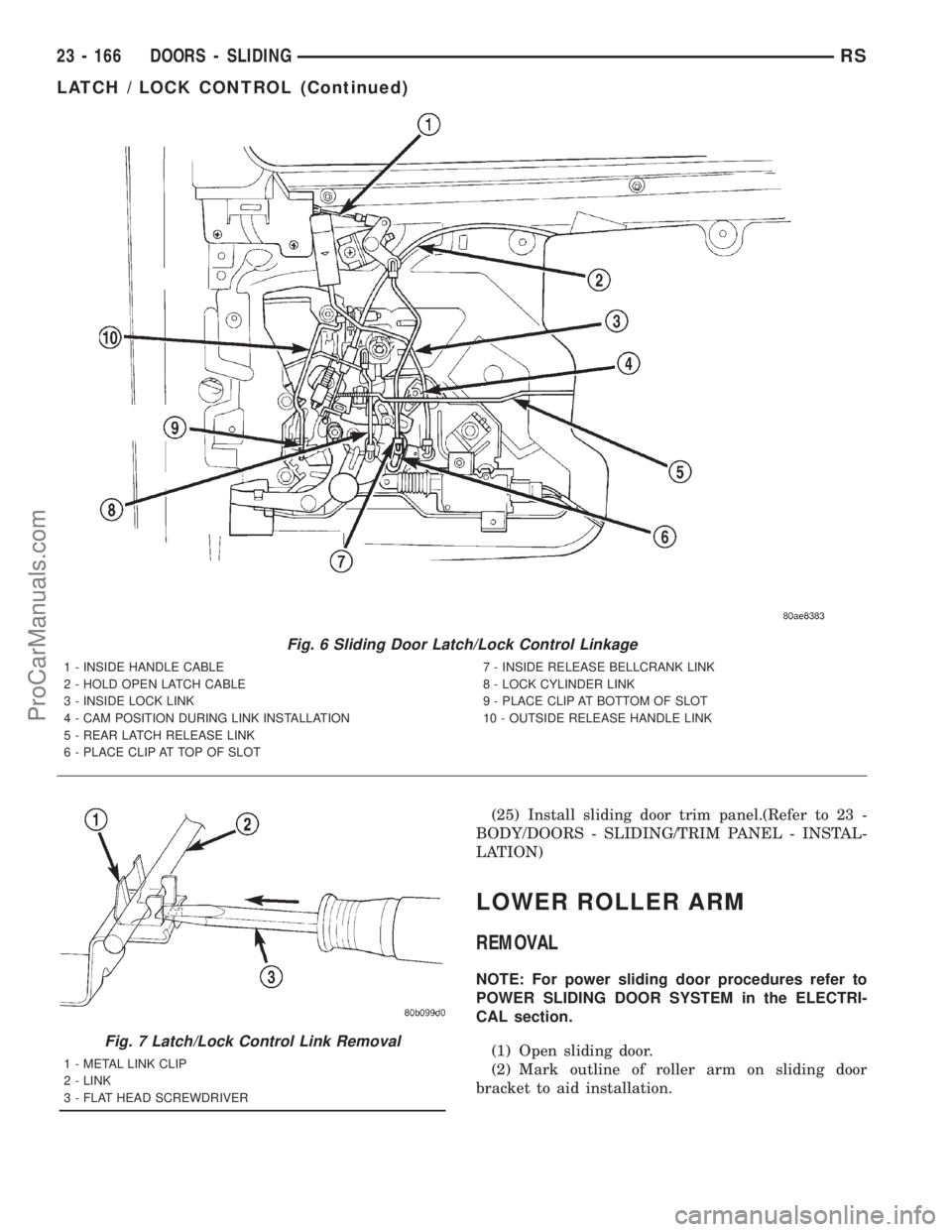

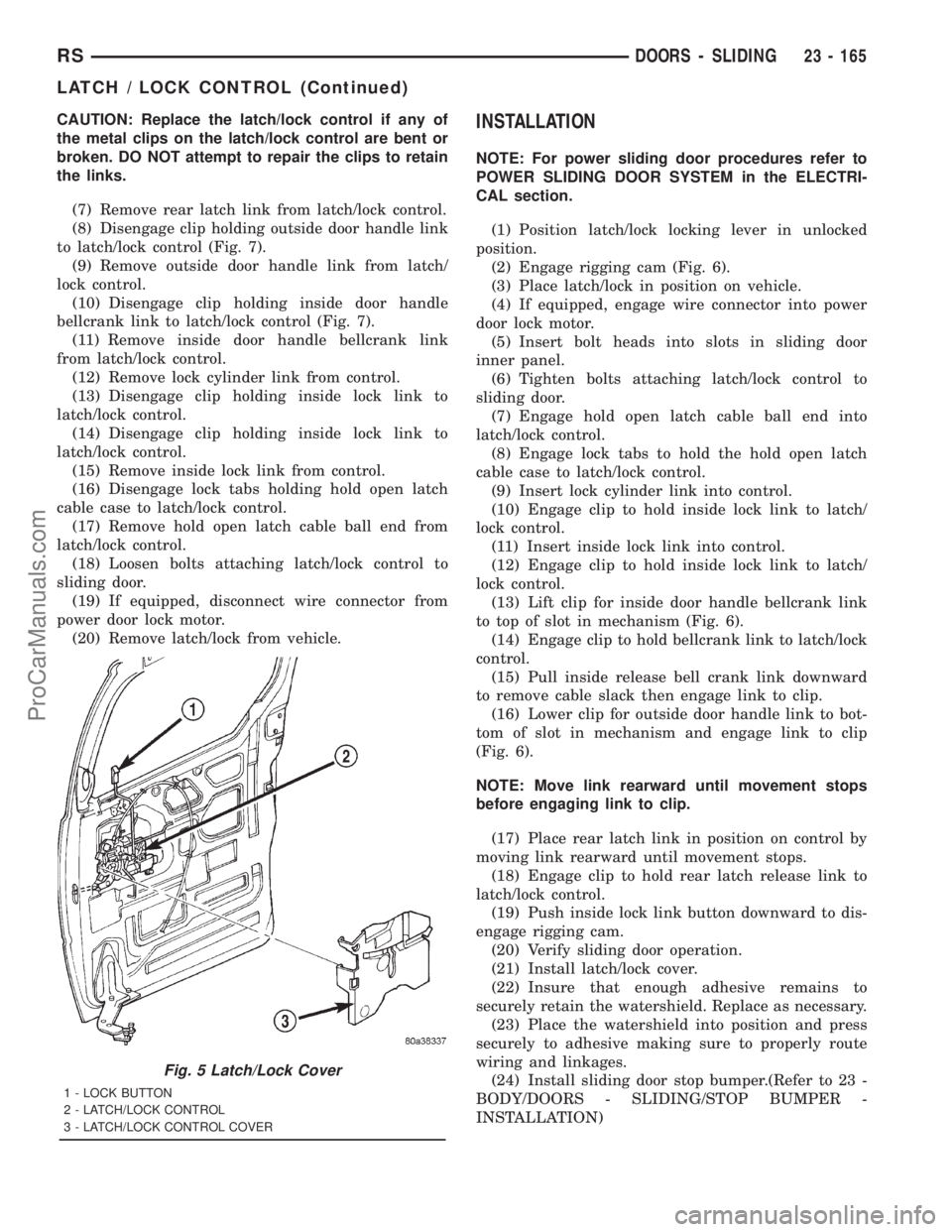

DODGE TOWN AND COUNTRY 2001 Service Manual CAUTION: Replace the latch/lock control if any of
the metal clips on the latch/lock control are bent or
broken. DO NOT attempt to repair the clips to retain
the links.
(7) Remove rear latch link from

CAUTION: Replace the latch/lock control if any of
the metal clips on the latch/lock control are bent or
broken. DO NOT attempt to repair the clips to retain
the links.
(7) Remove rear latch link from latch/lock control.
(8) Disengage clip holding outside door handle link
to latch/lock control (Fig. 7).
(9) Remove outside door handle link from latch/
lock control.
(10) Disengage clip holding inside door handle
bellcrank link to latch/lock control (Fig. 7).
(11) Remove inside door handle bellcrank link
from latch/lock control.
(12) Remove lock cylinder link from control.
(13) Disengage clip holding inside lock link to
latch/lock control.
(14) Disengage clip holding inside lock link to
latch/lock control.
(15) Remove inside lock link from control.
(16) Disengage lock tabs holding hold open latch
cable case to latch/lock control.
(17) Remove hold open latch cable ball end from
latch/lock control.
(18) Loosen bolts attaching latch/lock control to
sliding door.
(19) If equipped, disconnect wire connector from
power door lock motor.
(20) Remove latch/lock from vehicle.INSTALLATION
NOTE: For power sliding door procedures refer to
POWER SLIDING DOOR SYSTEM in the ELECTRI-
CAL section.
(1) Position latch/lock locking lever in unlocked
position.
(2) Engage rigging cam (Fig. 6).
(3) Place latch/lock in position on vehicle.
(4) If equipped, engage wire connector into power
door lock motor.
(5) Insert bolt heads into slots in sliding door
inner panel.
(6) Tighten bolts attaching latch/lock control to
sliding door.
(7) Engage hold open latch cable ball end into
latch/lock control.
(8) Engage lock tabs to hold the hold open latch
cable case to latch/lock control.
(9) Insert lock cylinder link into control.
(10) Engage clip to hold inside lock link to latch/
lock control.
(11) Insert inside lock link into control.
(12) Engage clip to hold inside lock link to latch/
lock control.
(13) Lift clip for inside door handle bellcrank link
to top of slot in mechanism (Fig. 6).
(14) Engage clip to hold bellcrank link to latch/lock
control.
(15) Pull inside release bell crank link downward
to remove cable slack then engage link to clip.
(16) Lower clip for outside door handle link to bot-
tom of slot in mechanism and engage link to clip
(Fig. 6).
NOTE: Move link rearward until movement stops
before engaging link to clip.
(17) Place rear latch link in position on control by
moving link rearward until movement stops.
(18) Engage clip to hold rear latch release link to
latch/lock control.
(19) Push inside lock link button downward to dis-
engage rigging cam.
(20) Verify sliding door operation.
(21) Install latch/lock cover.
(22) Insure that enough adhesive remains to
securely retain the watershield. Replace as necessary.
(23) Place the watershield into position and press
securely to adhesive making sure to properly route
wiring and linkages.
(24) Install sliding door stop bumper.(Refer to 23 -
BODY/DOORS - SLIDING/STOP BUMPER -
INSTALLATION)
Fig. 5 Latch/Lock Cover
1 - LOCK BUTTON
2 - LATCH/LOCK CONTROL
3 - LATCH/LOCK CONTROL COVER
RSDOORS - SLIDING23 - 165
LATCH / LOCK CONTROL (Continued)
ProCarManuals.com

Page 2079 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual (25) Install sliding door trim panel.(Refer to 23 -
BODY/DOORS - SLIDING/TRIM PANEL - INSTAL-
LATION)

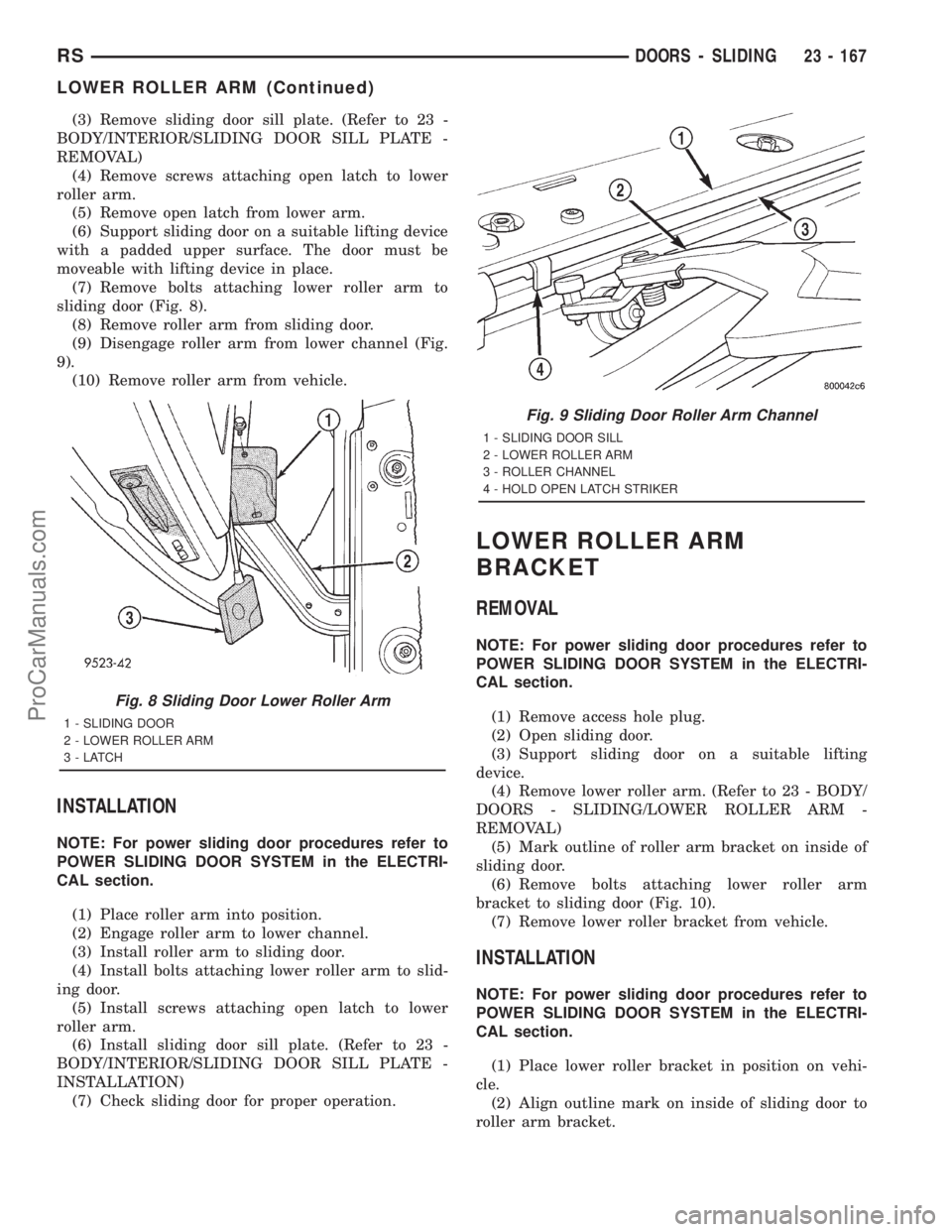

LOWER ROLLER ARM
REMOVAL
NOTE: For power sliding door procedures refer to
POWER SLIDING DOOR SYSTE

Page 2080 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual (3) Remove sliding door sill plate. (Refer to 23 -
BODY/INTERIOR/SLIDING DOOR SILL PLATE -
REMOVAL)
(4) Remove screws attaching open latch to lower
roller arm.
(5) Remove open latch from lower arm.
(6

(3) Remove sliding door sill plate. (Refer to 23 -
BODY/INTERIOR/SLIDING DOOR SILL PLATE -
REMOVAL)
(4) Remove screws attaching open latch to lower
roller arm.
(5) Remove open latch from lower arm.
(6) Support sliding door on a suitable lifting device
with a padded upper surface. The door must be
moveable with lifting device in place.
(7) Remove bolts attaching lower roller arm to
sliding door (Fig. 8).
(8) Remove roller arm from sliding door.
(9) Disengage roller arm from lower channel (Fig.
9).
(10) Remove roller arm from vehicle.
INSTALLATION
NOTE: For power sliding door procedures refer to
POWER SLIDING DOOR SYSTEM in the ELECTRI-
CAL section.
(1) Place roller arm into position.
(2) Engage roller arm to lower channel.
(3) Install roller arm to sliding door.
(4) Install bolts attaching lower roller arm to slid-
ing door.
(5) Install screws attaching open latch to lower
roller arm.
(6) Install sliding door sill plate. (Refer to 23 -
BODY/INTERIOR/SLIDING DOOR SILL PLATE -
INSTALLATION)
(7) Check sliding door for proper operation.
LOWER ROLLER ARM
BRACKET
REMOVAL
NOTE: For power sliding door procedures refer to
POWER SLIDING DOOR SYSTEM in the ELECTRI-
CAL section.
(1) Remove access hole plug.
(2) Open sliding door.
(3) Support sliding door on a suitable lifting
device.
(4) Remove lower roller arm. (Refer to 23 - BODY/
DOORS - SLIDING/LOWER ROLLER ARM -
REMOVAL)
(5) Mark outline of roller arm bracket on inside of
sliding door.
(6) Remove bolts attaching lower roller arm
bracket to sliding door (Fig. 10).
(7) Remove lower roller bracket from vehicle.
INSTALLATION
NOTE: For power sliding door procedures refer to
POWER SLIDING DOOR SYSTEM in the ELECTRI-
CAL section.
(1) Place lower roller bracket in position on vehi-
cle.
(2) Align outline mark on inside of sliding door to
roller arm bracket.
Fig. 8 Sliding Door Lower Roller Arm
1 - SLIDING DOOR
2 - LOWER ROLLER ARM
3-LATCH
Fig. 9 Sliding Door Roller Arm Channel
1 - SLIDING DOOR SILL
2 - LOWER ROLLER ARM
3 - ROLLER CHANNEL
4 - HOLD OPEN LATCH STRIKER
RSDOORS - SLIDING23 - 167
LOWER ROLLER ARM (Continued)
ProCarManuals.com

Load next 8 pages

Page: < prev 1-10 ... 2041-2048 2049-2056 2057-2064 2065-2072 2073-2080 2081-2088 2089-2096 2097-2104 2105-2112 ... 2328 next >

fuel reserve sensor tire pressure fuse box radiator cap homelink
