Page 1753 of 2321

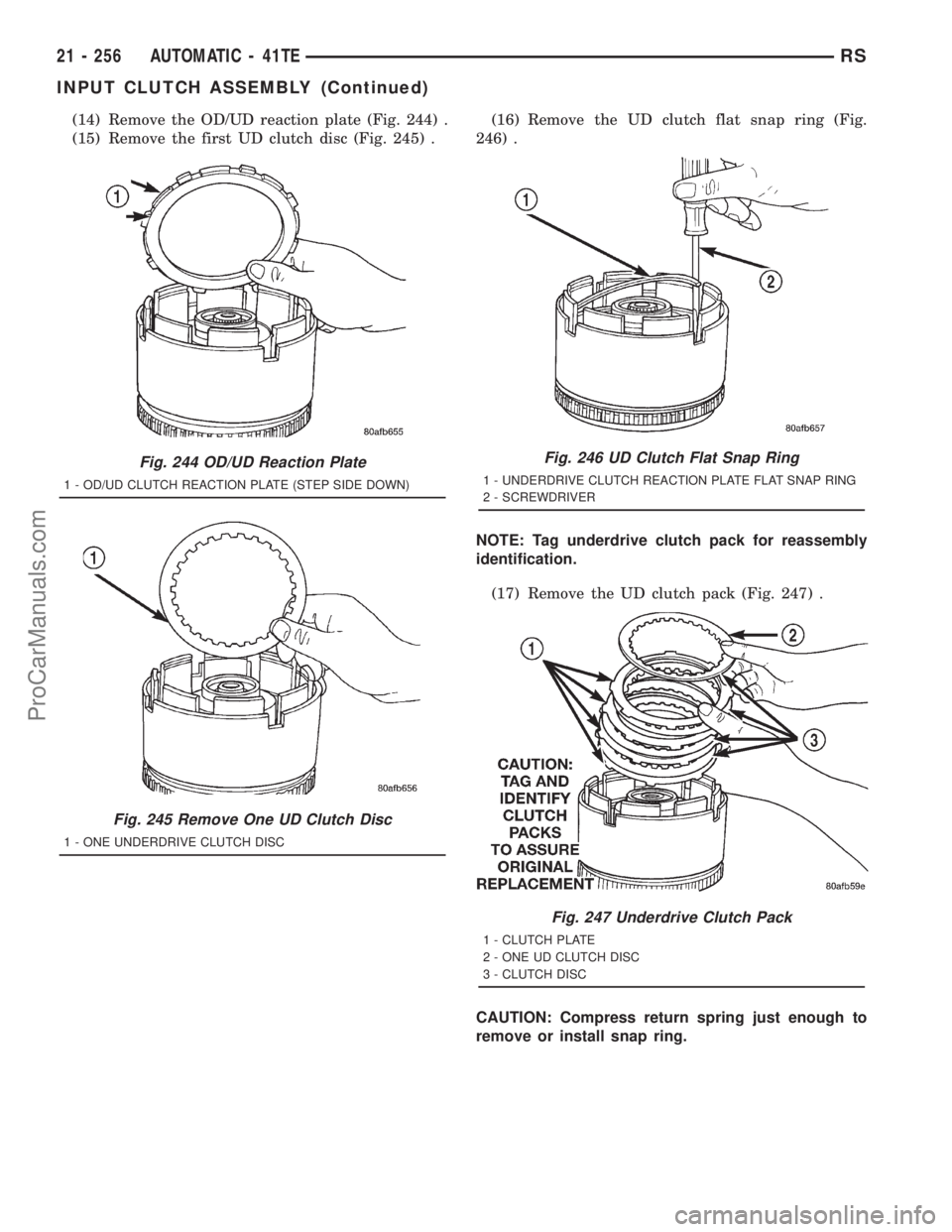

DODGE TOWN AND COUNTRY 2001 Service Manual (14) Remove the OD/UD reaction plate (Fig. 244) . (15) Remove the first UD clutch disc (Fig. 245) .(16) Remove the UD clutch flat snap ring (Fig. 246) . NOTE: Tag underdrive clutch pack for reassembly

Page 1754 of 2321

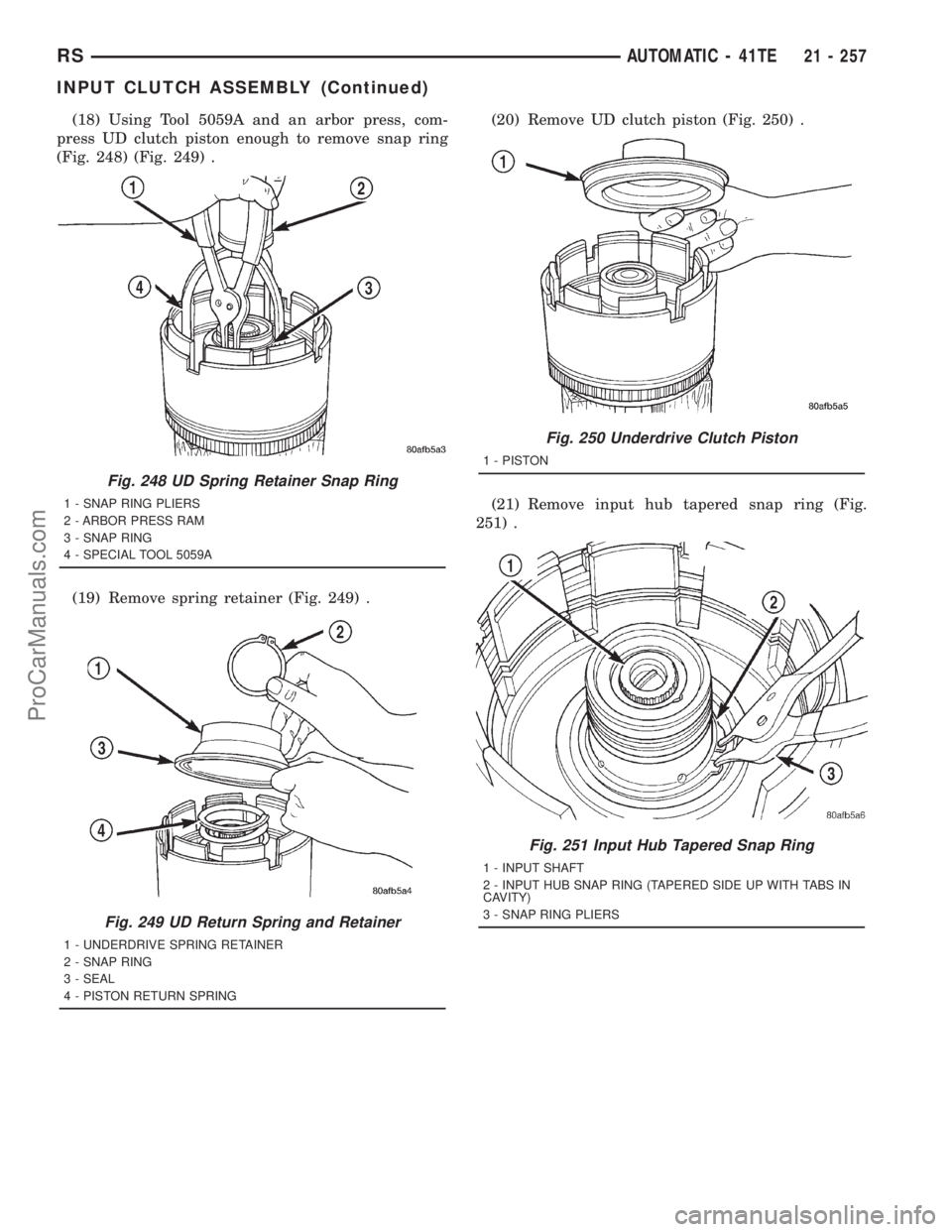

DODGE TOWN AND COUNTRY 2001 Service Manual (18) Using Tool 5059A and an arbor press, com- press UD clutch piston enough to remove snap ring (Fig. 248) (Fig. 249) . (19) Remove spring retainer (Fig. 249) .(20) Remove UD clutch piston (Fig. 250)

Page 1755 of 2321

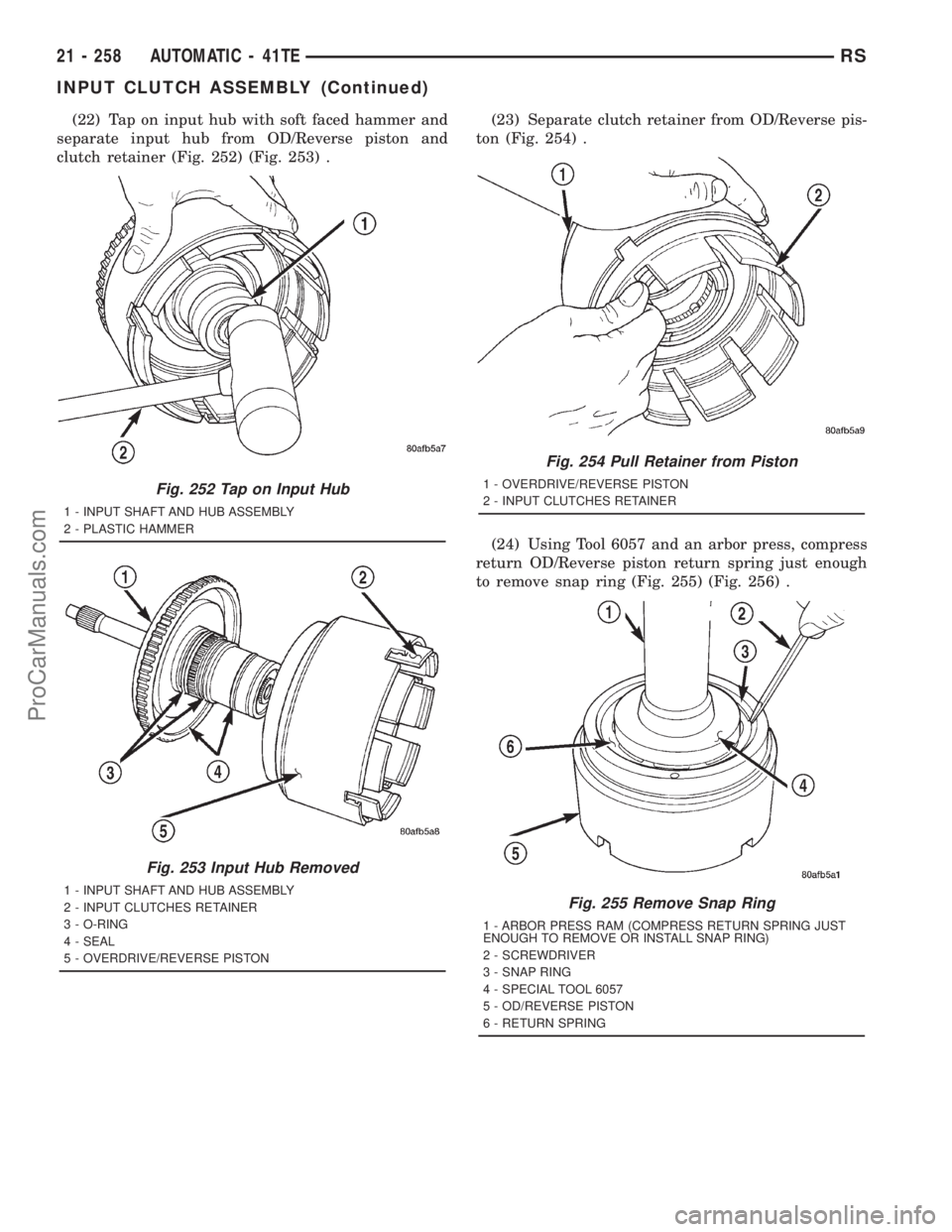

DODGE TOWN AND COUNTRY 2001 Service Manual (22) Tap on input hub with soft faced hammer and separate input hub from OD/Reverse piston and clutch retainer (Fig. 252) (Fig. 253) .(23) Separate clutch retainer from OD/Reverse pis- ton (Fig. 254)

Page 1756 of 2321

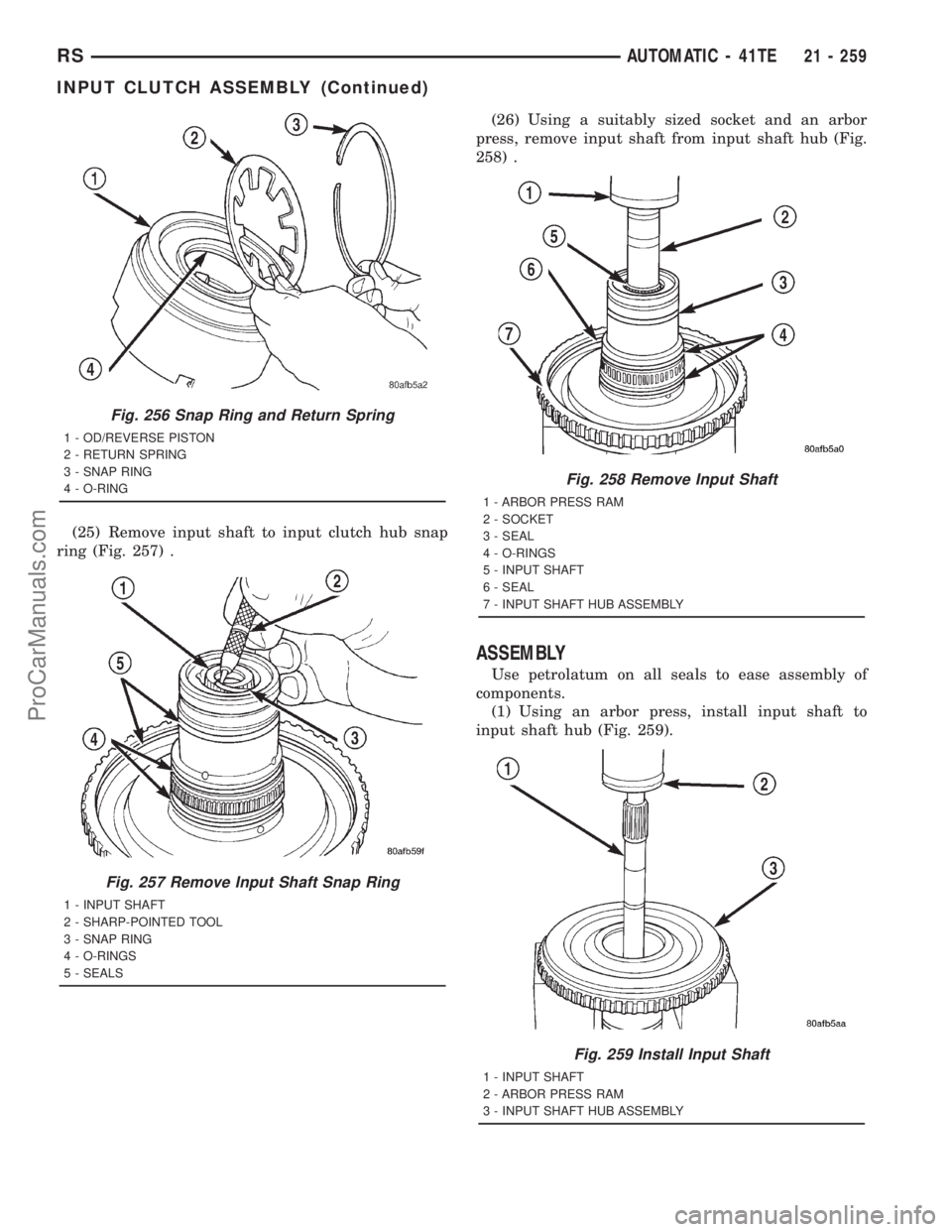

DODGE TOWN AND COUNTRY 2001 Service Manual (25) Remove input shaft to input clutch hub snap ring (Fig. 257) .(26) Using a suitably sized socket and an arbor press, remove input shaft from input shaft hub (Fig. 258) . ASSEMBLY Use petrolatum on

Page 1757 of 2321

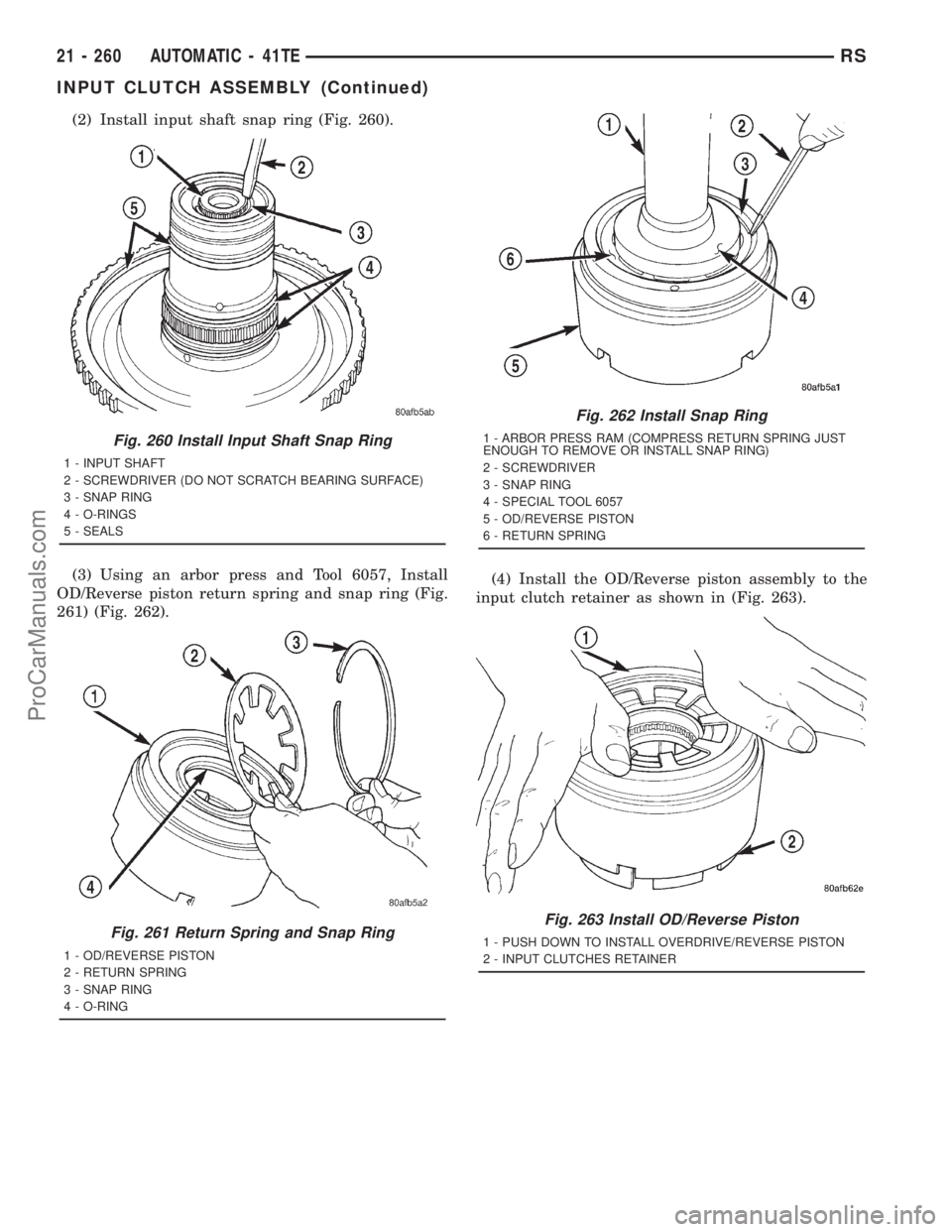

DODGE TOWN AND COUNTRY 2001 Service Manual (2) Install input shaft snap ring (Fig. 260). (3) Using an arbor press and Tool 6057, Install OD/Reverse piston return spring and snap ring (Fig. 261) (Fig. 262).(4) Install the OD/Reverse piston asse

Page 1758 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual (5) Install the input hub/shaft assy. to the OD/Re- verse piston/clutch retainer assy. (Fig. 264). (6) Install input hub tapered snap ring (Fig. 265).(7) Install UD clutch piston (Fig. 266). (8) Insta

Page 1759 of 2321

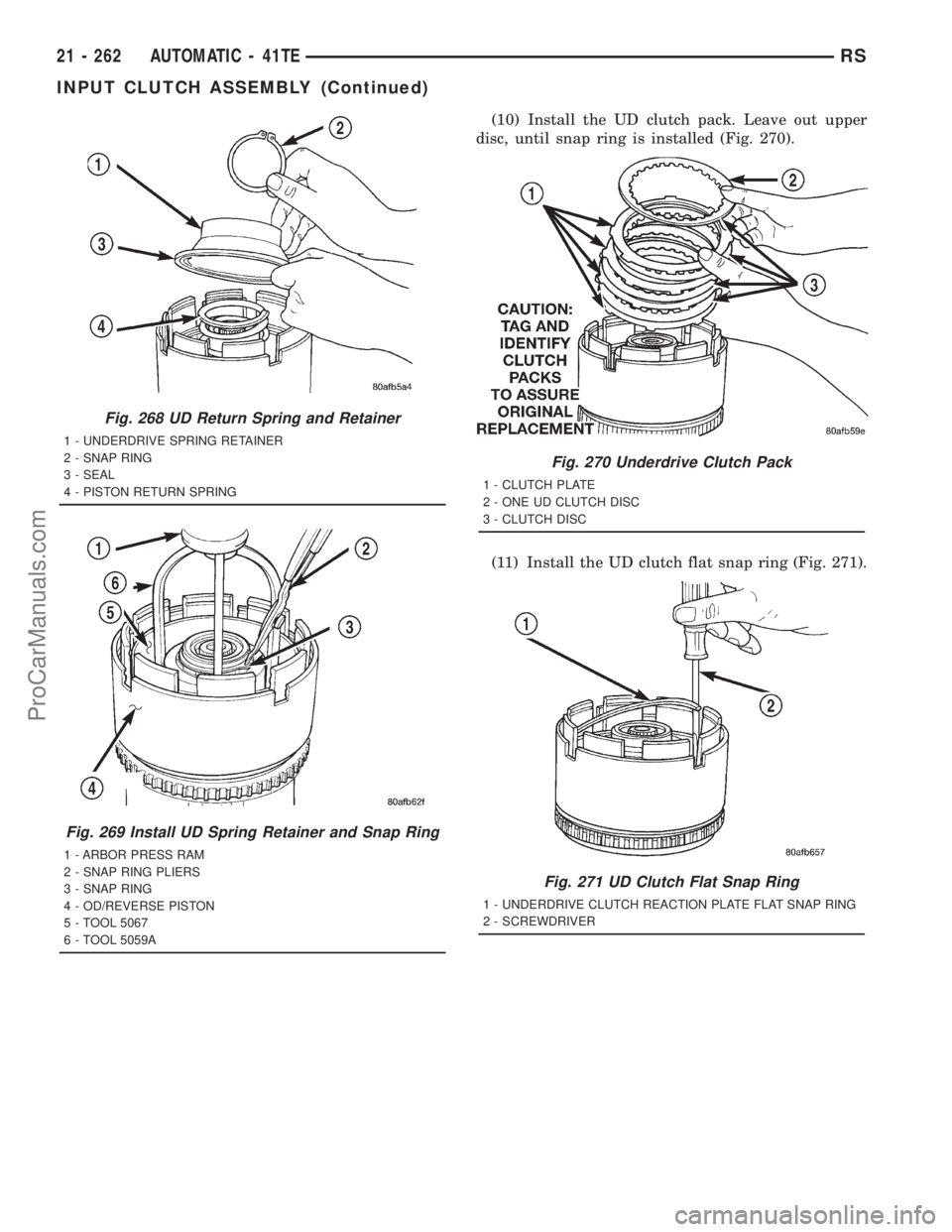

DODGE TOWN AND COUNTRY 2001 Service Manual (10) Install the UD clutch pack. Leave out upper disc, until snap ring is installed (Fig. 270). (11) Install the UD clutch flat snap ring (Fig. 271). Fig. 268 UD Return Spring and Retainer 1 - UNDERDR

Page 1760 of 2321

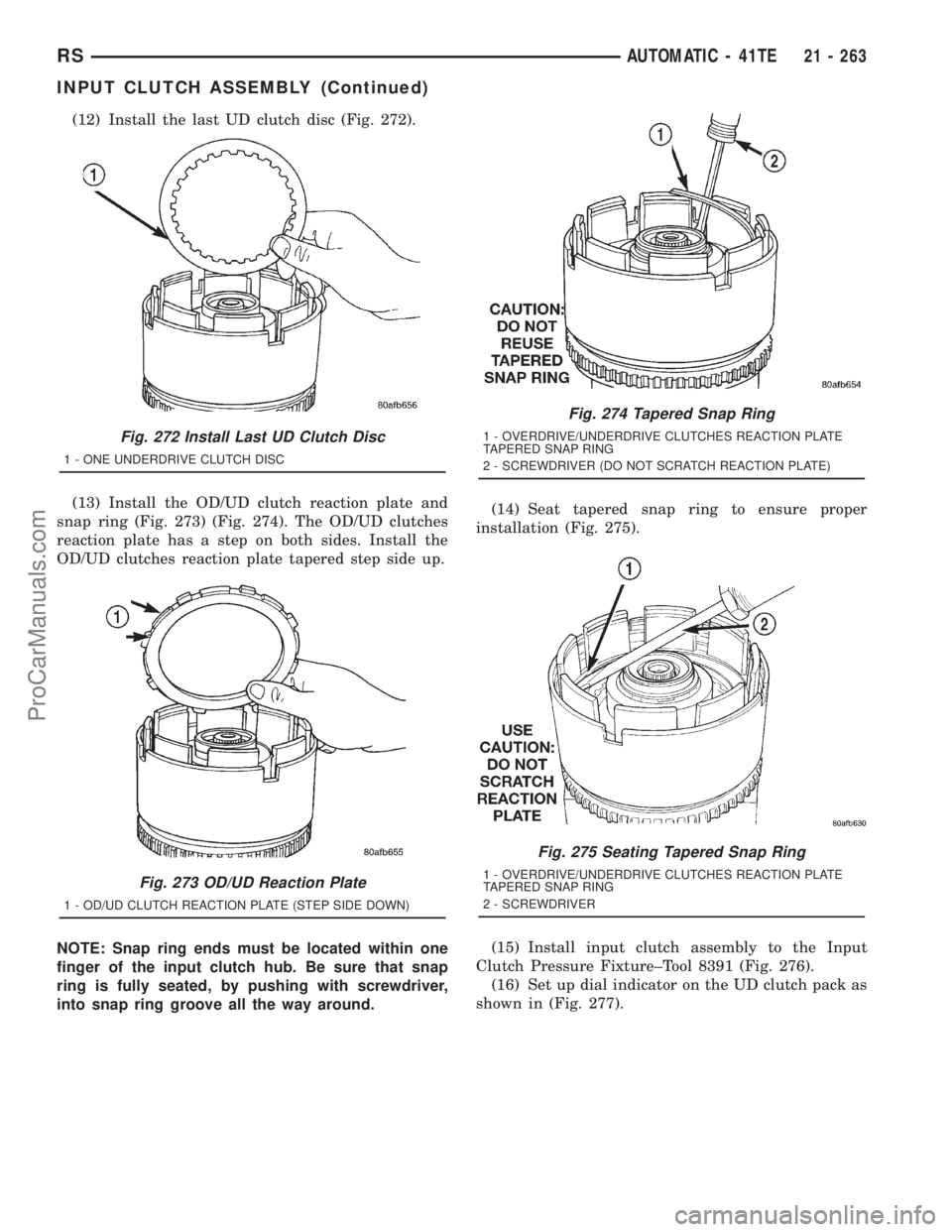

DODGE TOWN AND COUNTRY 2001 Service Manual (12) Install the last UD clutch disc (Fig. 272). (13) Install the OD/UD clutch reaction plate and snap ring (Fig. 273) (Fig. 274). The OD/UD clutches reaction plate has a step on both sides. Install t
