Page 1865 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual (10) Install selector cable to gearshift mechanism (Fig. 185). Install retainer clip (Fig. 186).(11) Install center console support bracket (Fig. 187). Torque support bracket-to-gearshift mechanism sc

Page 1866 of 2321

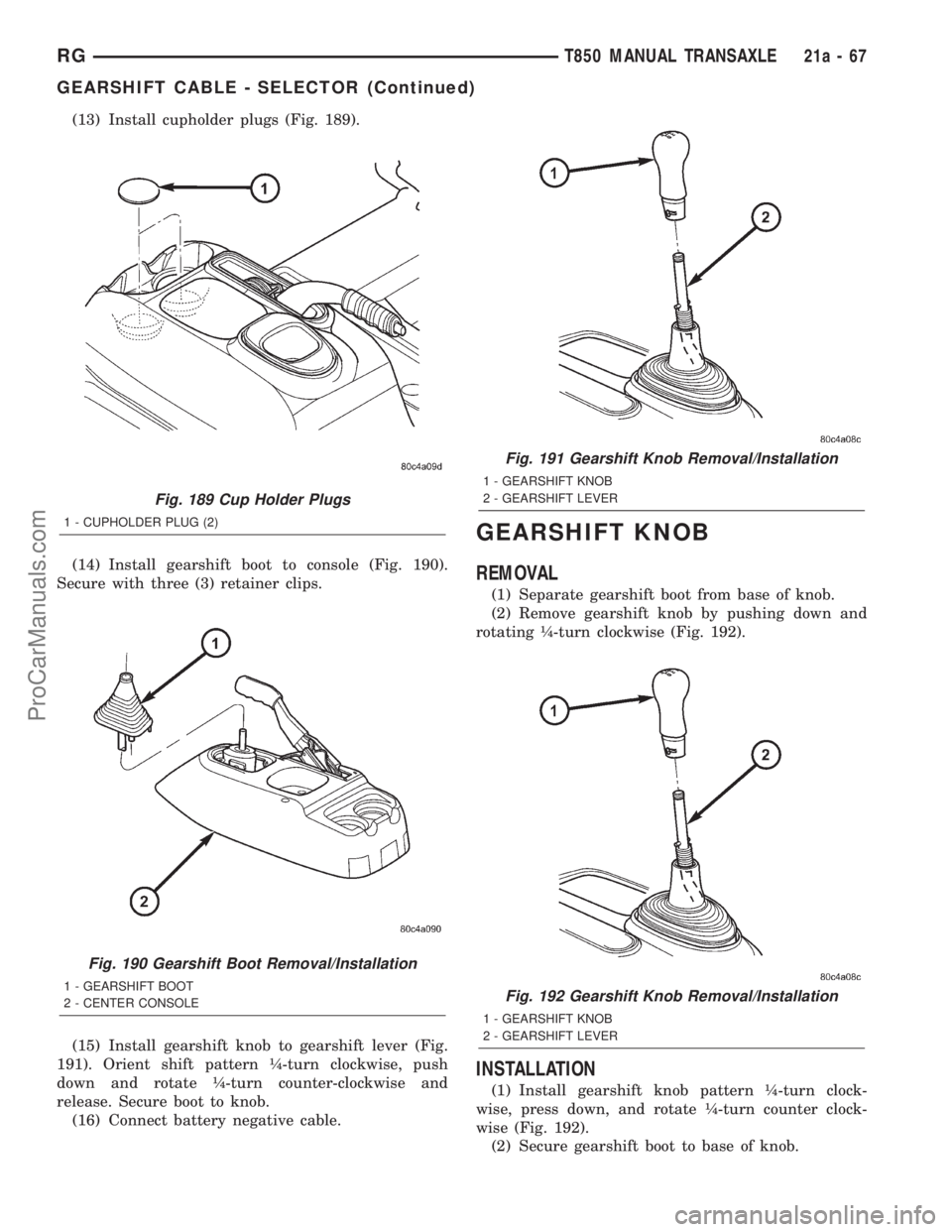

DODGE TOWN AND COUNTRY 2001 Service Manual (13) Install cupholder plugs (Fig. 189). (14) Install gearshift boot to console (Fig. 190). Secure with three (3) retainer clips. (15) Install gearshift knob to gearshift lever (Fig. 191). Orient shif

Page 1867 of 2321

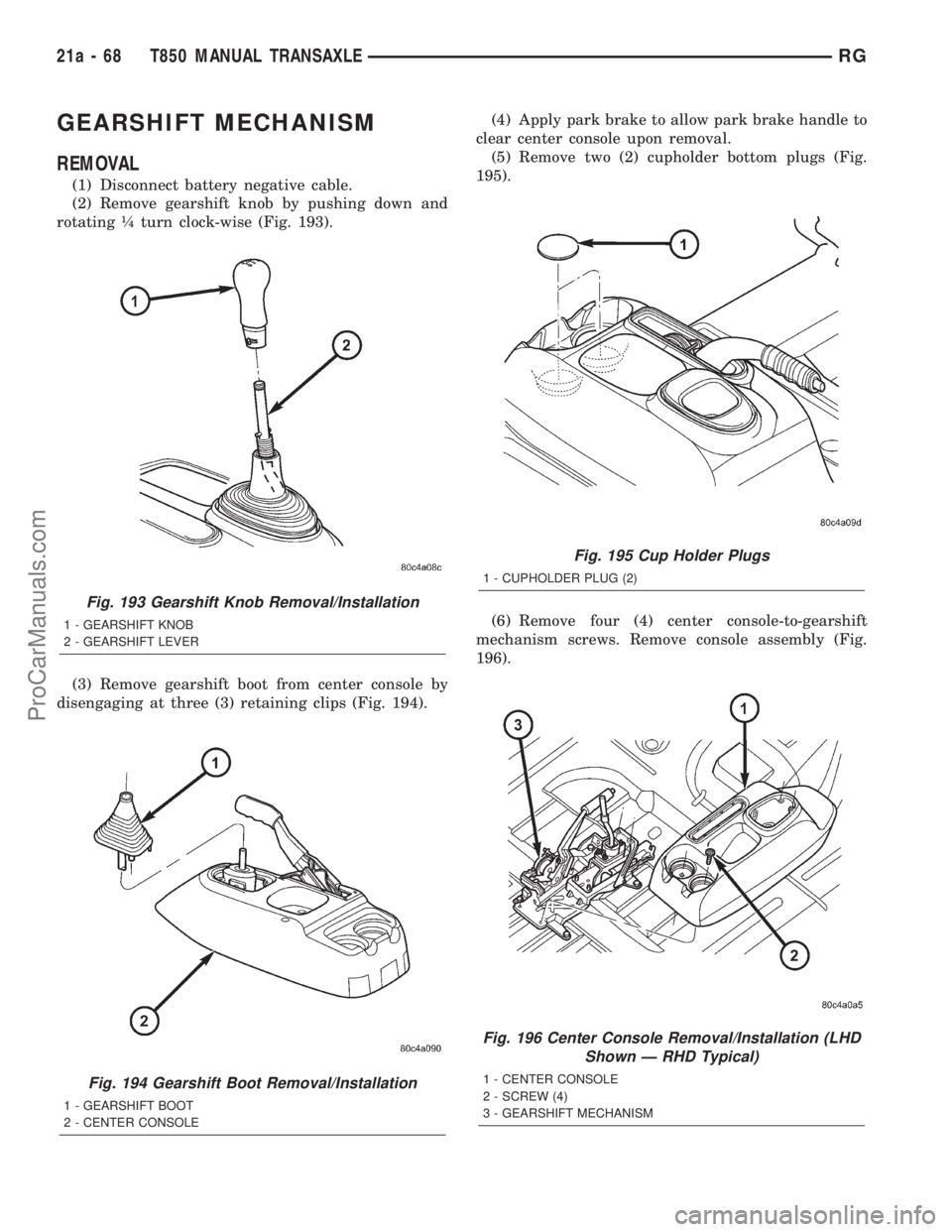

DODGE TOWN AND COUNTRY 2001 Service Manual GEARSHIFT MECHANISM REMOVAL (1) Disconnect battery negative cable. (2) Remove gearshift knob by pushing down and rotating ò turn clock-wise (Fig. 193). (3) Remove gearshift boot from center console b

Page 1868 of 2321

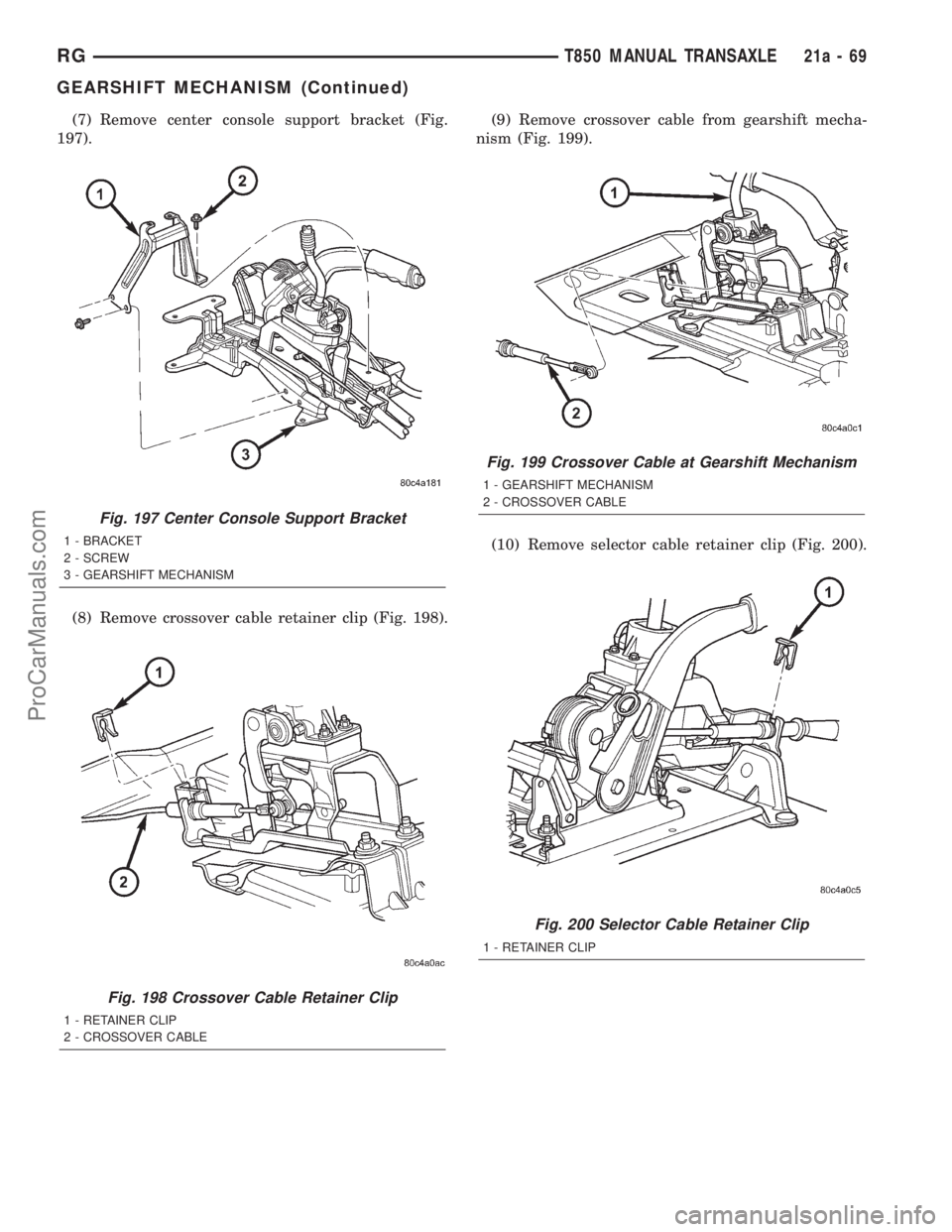

DODGE TOWN AND COUNTRY 2001 Service Manual (7) Remove center console support bracket (Fig. 197). (8) Remove crossover cable retainer clip (Fig. 198).(9) Remove crossover cable from gearshift mecha- nism (Fig. 199). (10) Remove selector cable r

Page 1869 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual (11) Remove selector cable from gearshift mecha- nism (Fig. 201). (12) Remove four (4) gearshift mechanism-to-park brake bracket nuts. Remove gearshift mechanism from bracket (Fig. 202).INSTALLATION (

Page 1870 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual (3) Install crossover cable to gearshift mechanism (Fig. 206). Install retainer clip (Fig. 207).(4) Adjust crossover cable. (5) Install center console support bracket (Fig. 208). Torque support bracke

Page 1871 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual (6) Install center console assembly (Fig. 209). Install and torque center console-to-gearshift mecha- nism screws to 5 N´m (45 in. lbs.). (7) Install cupholder plugs (Fig. 210).(8) Install gearshift

Page 1872 of 2321

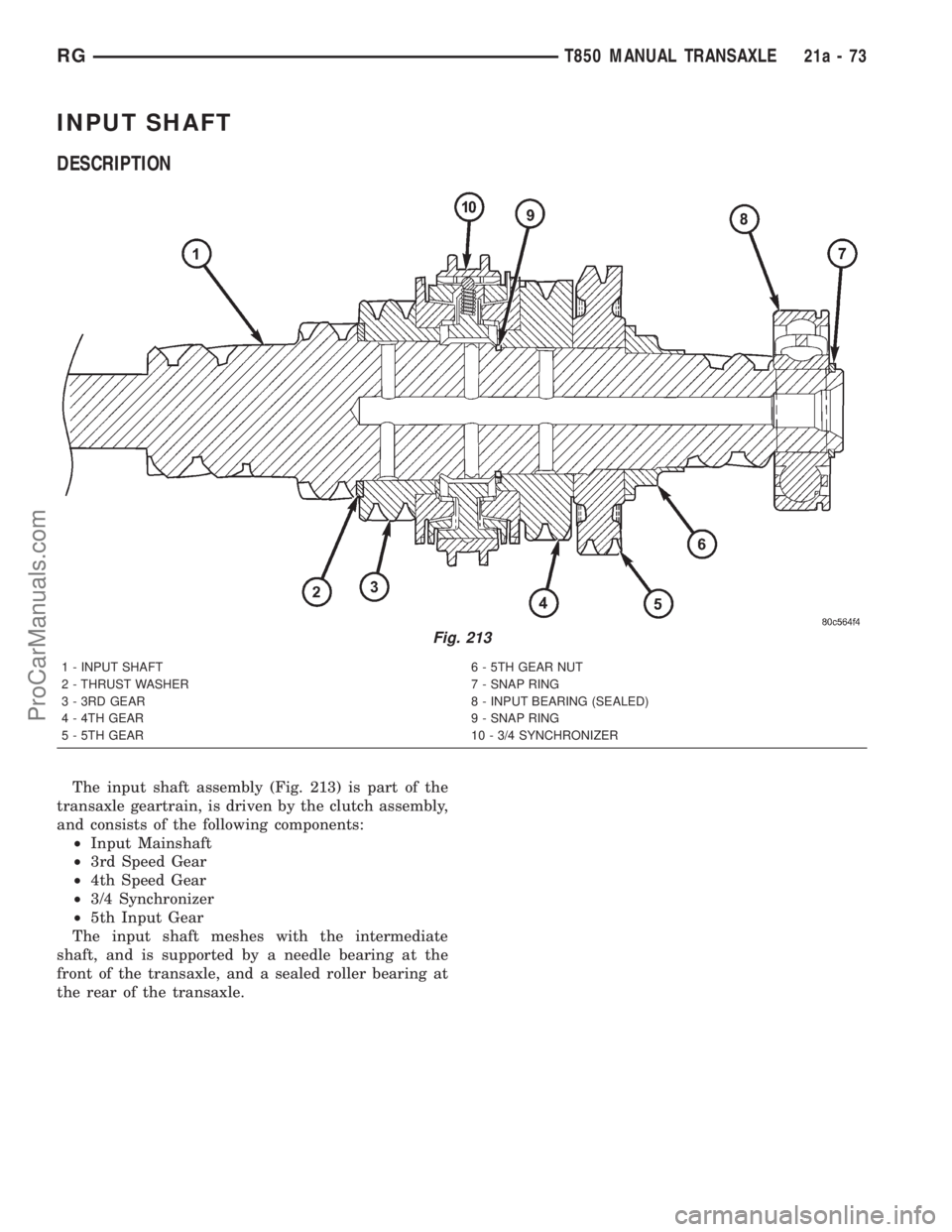

DODGE TOWN AND COUNTRY 2001 Service Manual INPUT SHAFT DESCRIPTION The input shaft assembly (Fig. 213) is part of the transaxle geartrain, is driven by the clutch assembly, and consists of the following components: ²Input Mainshaft ²3rd Spee
