Page 1105 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual Component/Ground Color Location Fig. Right Door Speaker BK/RD At Speaker N/S Right Fog Lamp WT At Lamp 4 Right Front Door Ajar Switch BK At B Pillar N/S Right Front Door Lock Motor/Ajar SwitchRight Fr

Page 1106 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual Component/Ground Color Location Fig. Sentry Key Immobilizer Module BK At Steering Column 16, 17, 18, 26 Siren (United Kingdom) BK Left Front Body N/S Solenoid/Pressure Switch Assembly (EATX)BK Side of

Page 1107 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual Fig. 1 HEADLAMP CONNECTORS 8Wa - 90 - 12 8W-90 CONNECTOR/GROUND LOCATIONS BUXRG CONNECTOR/GROUND LOCATIONS BUX (Continued) ProCarManuals.com

Page 1108 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual Fig. 2 LAVALIER MODULE RG8W-90 CONNECTOR/GROUND LOCATIONS BUX8Wa-90-13 CONNECTOR/GROUND LOCATIONS BUX (Continued) ProCarManuals.com

Page 1109 of 2321

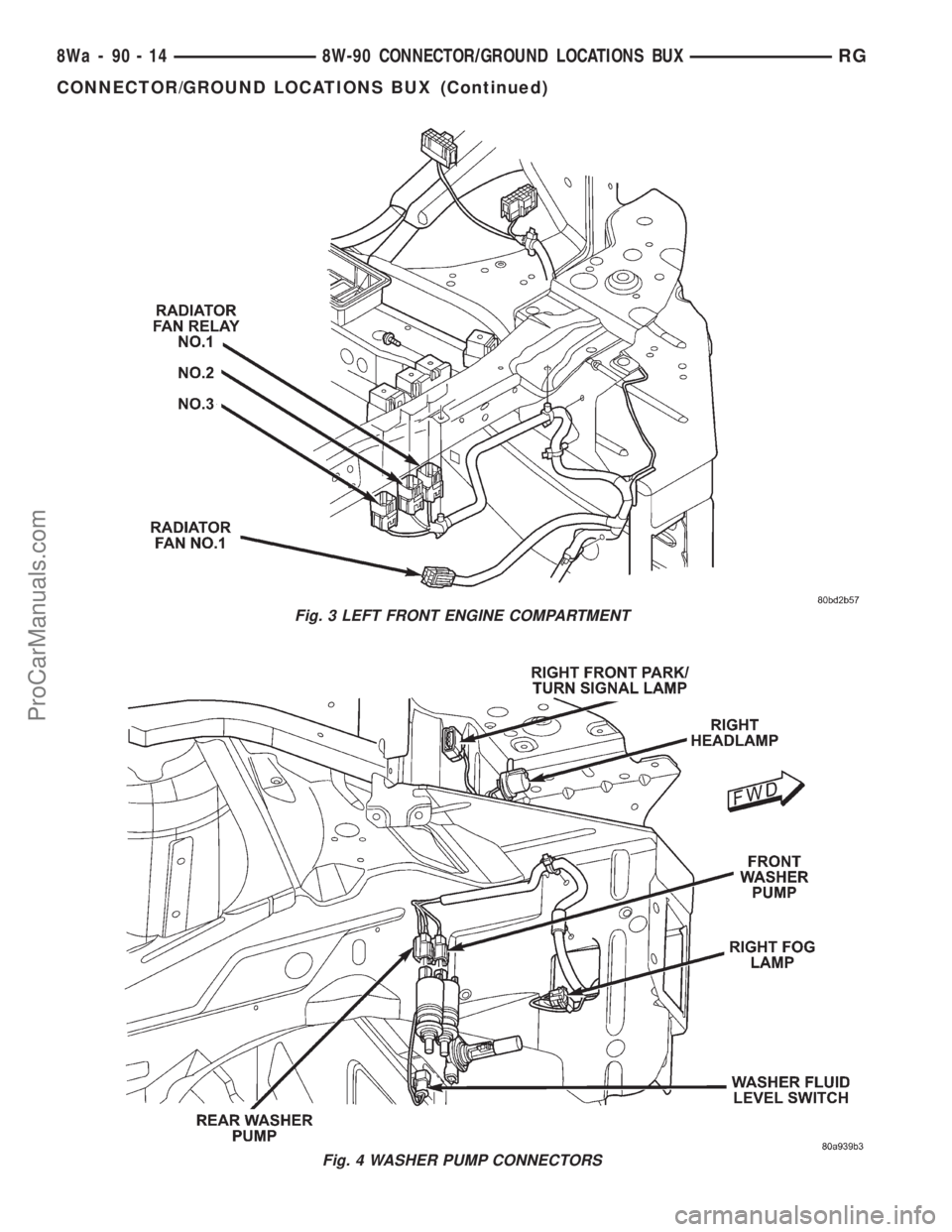

DODGE TOWN AND COUNTRY 2001 Service Manual Fig. 3 LEFT FRONT ENGINE COMPARTMENT Fig. 4 WASHER PUMP CONNECTORS 8Wa - 90 - 14 8W-90 CONNECTOR/GROUND LOCATIONS BUXRG CONNECTOR/GROUND LOCATIONS BUX (Continued) ProCarManuals.com

Page 1110 of 2321

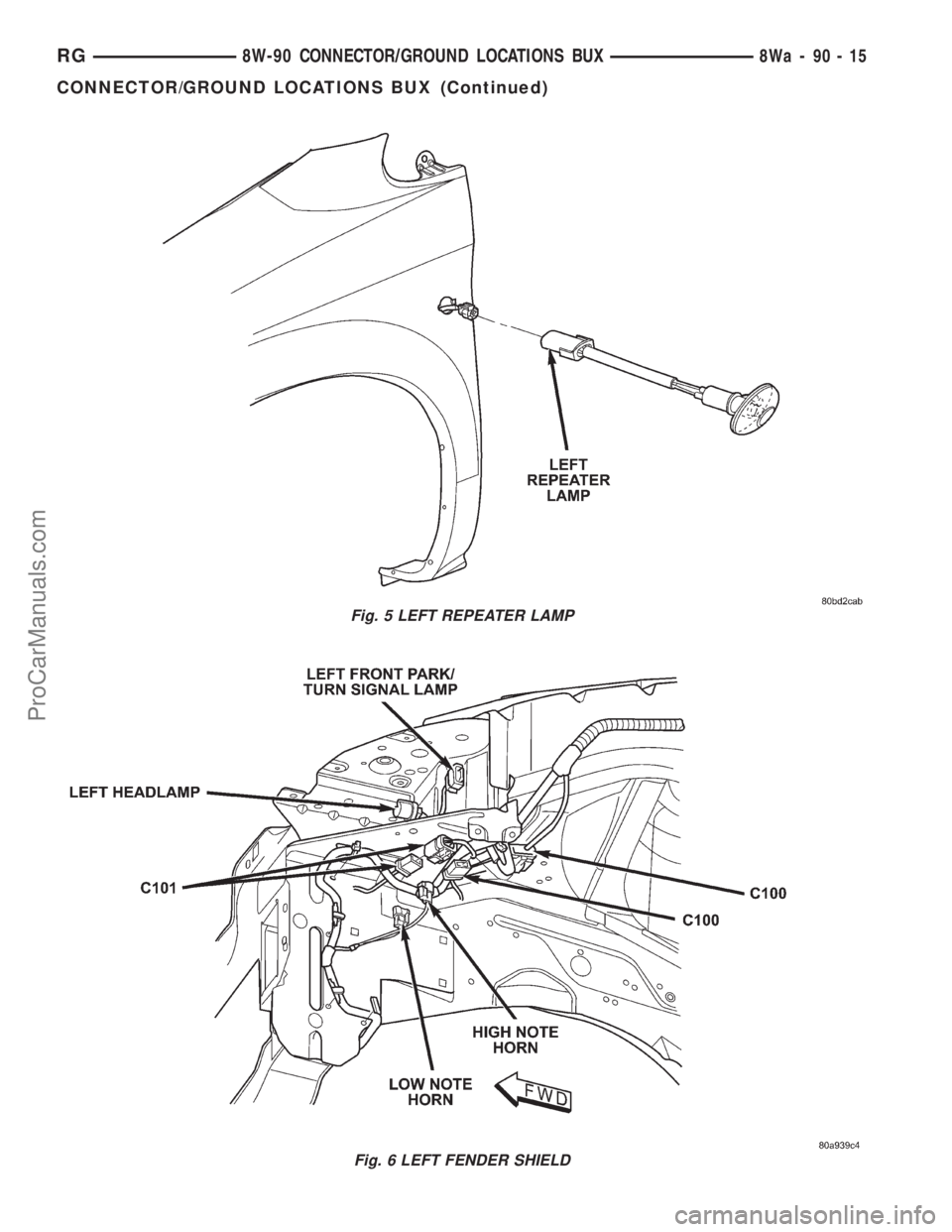

DODGE TOWN AND COUNTRY 2001 Service Manual Fig. 5 LEFT REPEATER LAMP Fig. 6 LEFT FENDER SHIELD RG8W-90 CONNECTOR/GROUND LOCATIONS BUX8Wa-90-15 CONNECTOR/GROUND LOCATIONS BUX (Continued) ProCarManuals.com

Page 1111 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual Fig. 7 LEFT SIDE ENGINE COMPARTMENT 8Wa - 90 - 16 8W-90 CONNECTOR/GROUND LOCATIONS BUXRG CONNECTOR/GROUND LOCATIONS BUX (Continued) ProCarManuals.com

Page 1112 of 2321

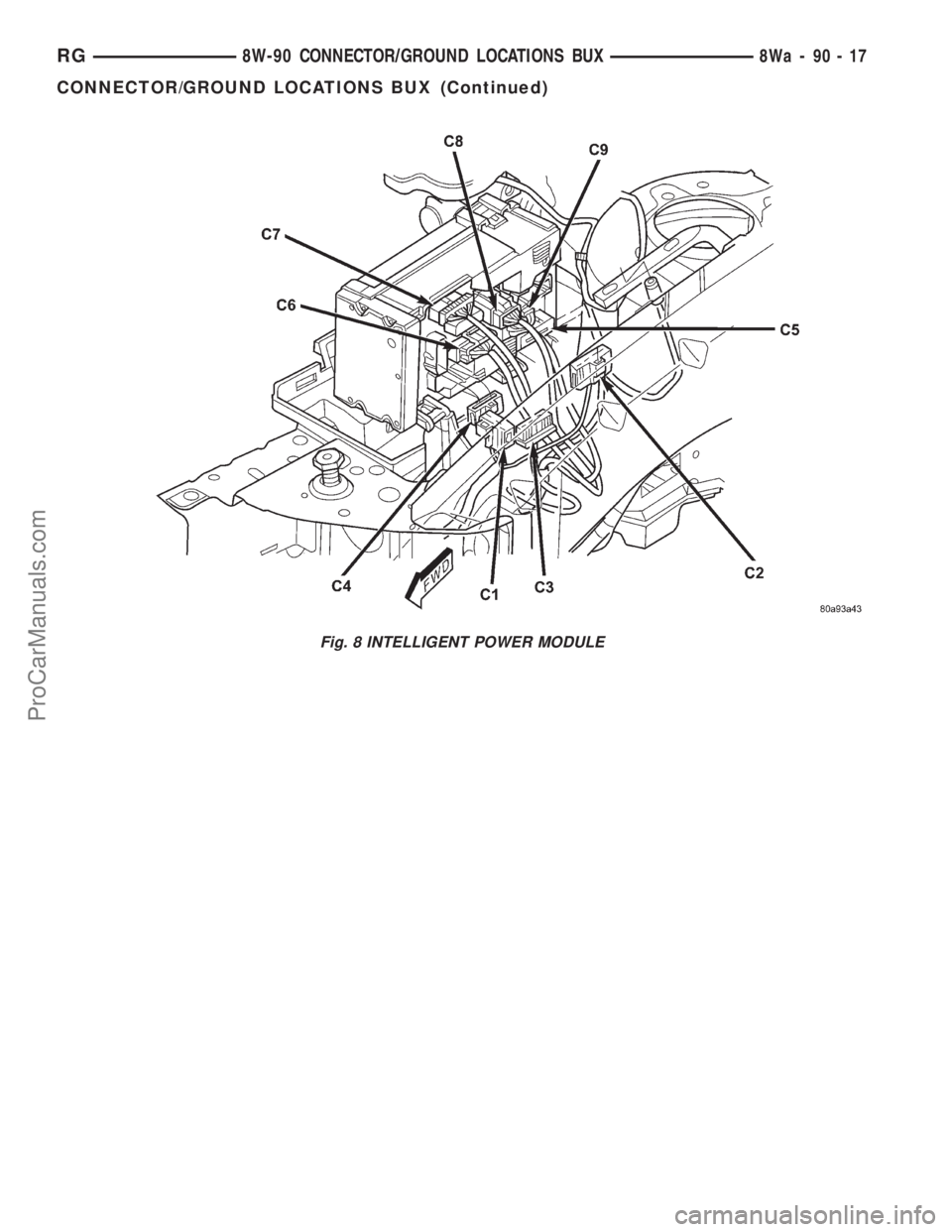

DODGE TOWN AND COUNTRY 2001 Service Manual Fig. 8 INTELLIGENT POWER MODULE RG8W-90 CONNECTOR/GROUND LOCATIONS BUX8Wa-90-17 CONNECTOR/GROUND LOCATIONS BUX (Continued) ProCarManuals.com
