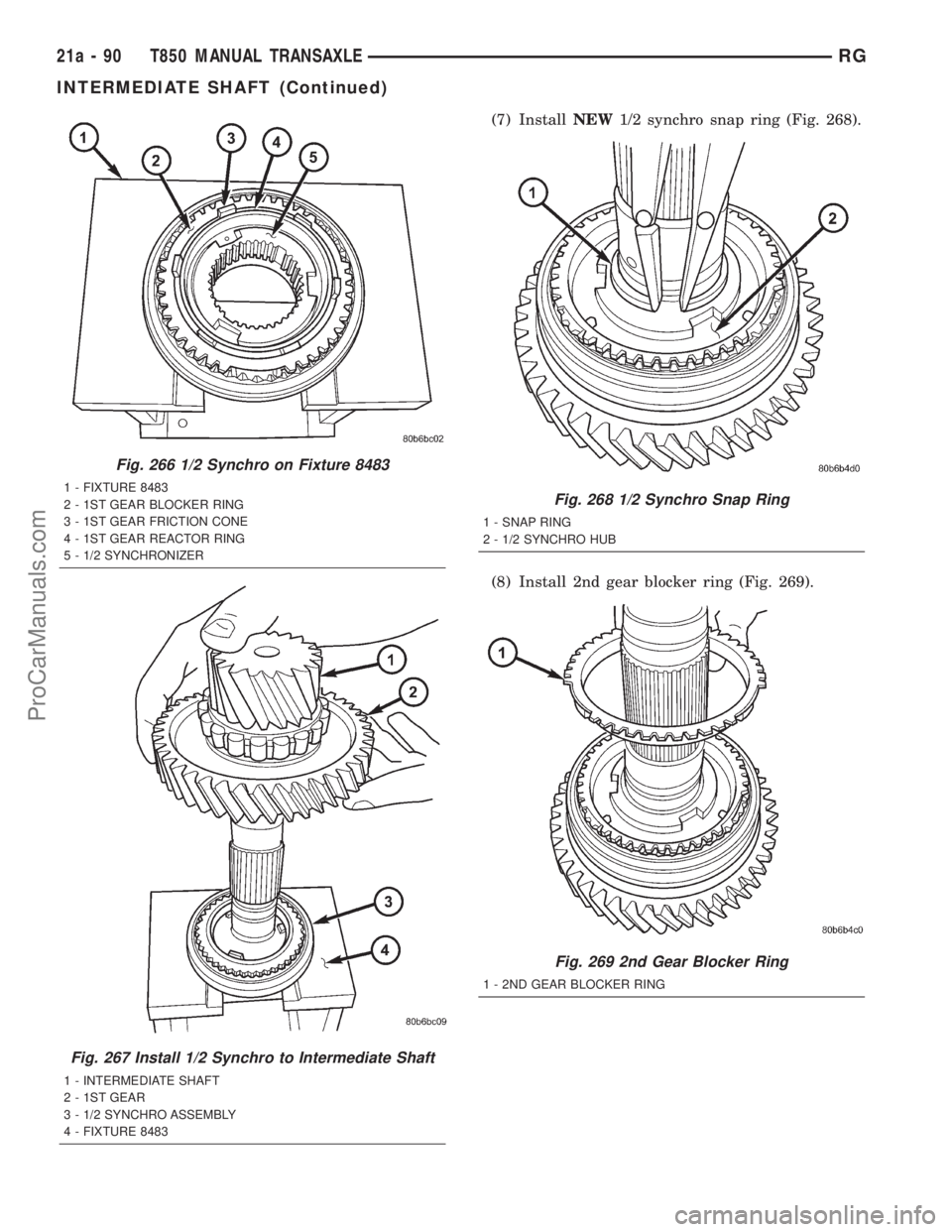

DODGE TOWN AND COUNTRY 2001 Service Manual (7) InstallNEW1/2 synchro snap ring (Fig. 268).
(8) Install 2nd gear blocker ring (Fig. 269).
Fig. 266 1/2 Synchro on Fixture 8483
1 - FIXTURE 8483
2 - 1ST GEAR BLOCKER RING
3 - 1ST GEAR FRICTION CONE

Page 1890 of 2321

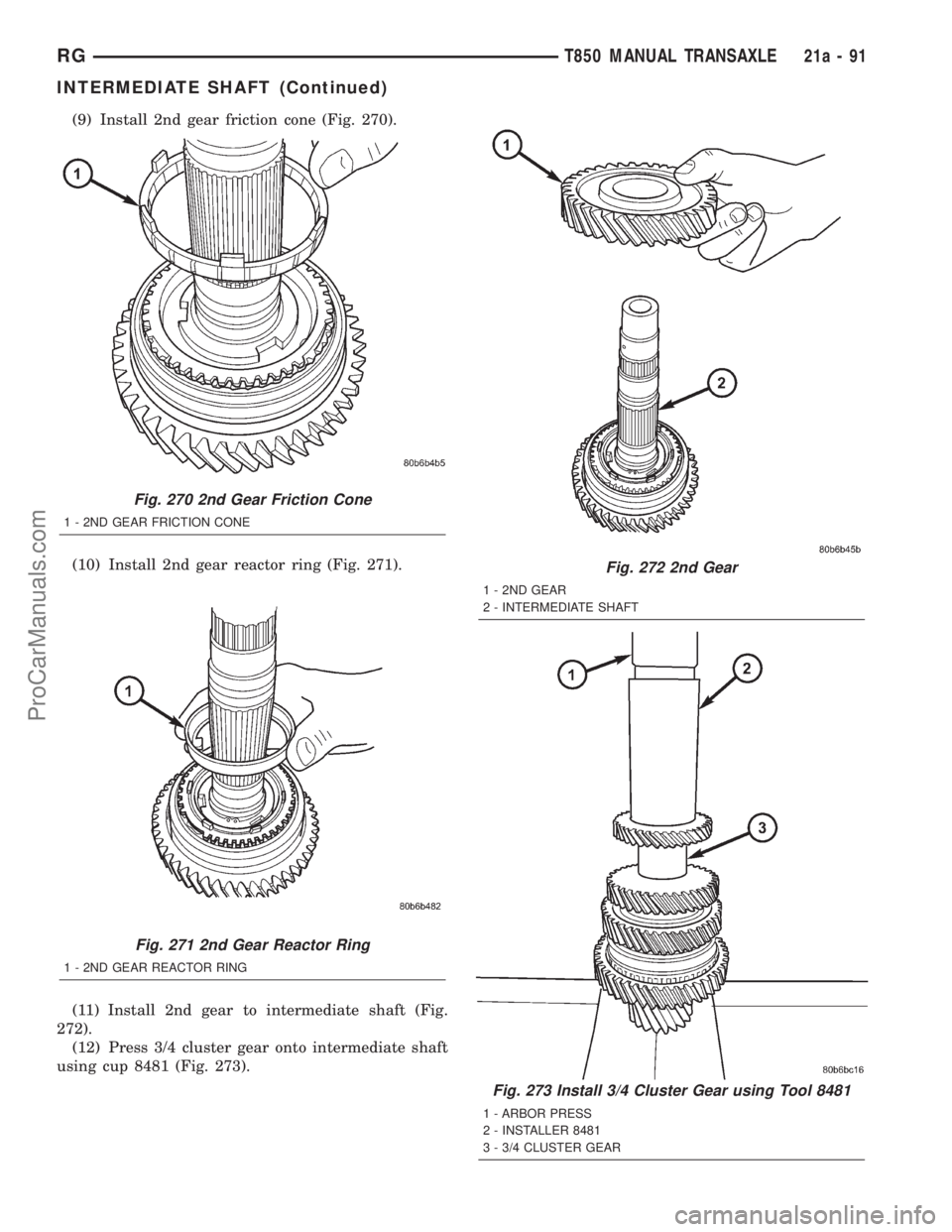

DODGE TOWN AND COUNTRY 2001 Service Manual (9) Install 2nd gear friction cone (Fig. 270).
(10) Install 2nd gear reactor ring (Fig. 271).
(11) Install 2nd gear to intermediate shaft (Fig.
272).
(12) Press 3/4 cluster gear onto intermediate shaf

Page 1891 of 2321

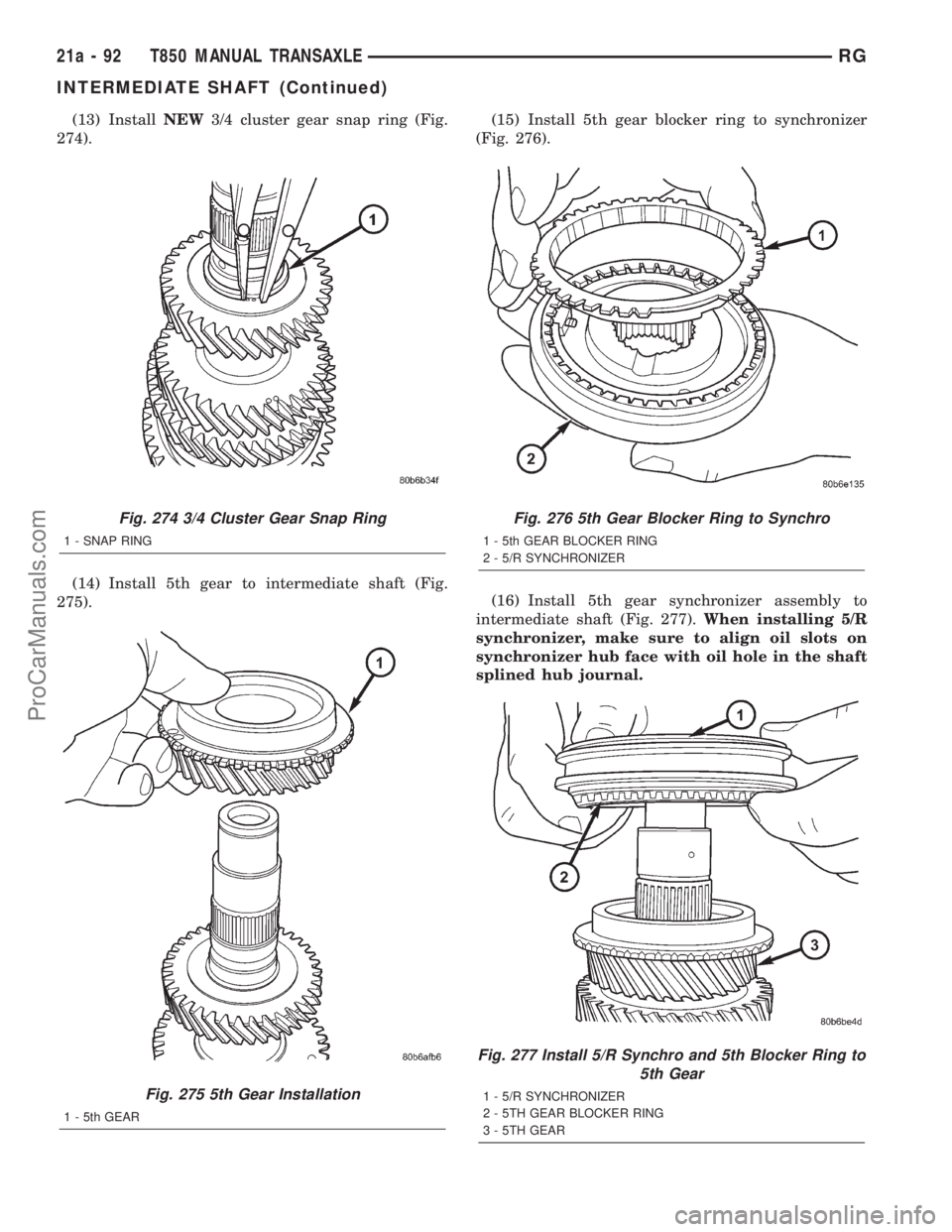

DODGE TOWN AND COUNTRY 2001 Service Manual (13) InstallNEW3/4 cluster gear snap ring (Fig.
274).
(14) Install 5th gear to intermediate shaft (Fig.
275).(15) Install 5th gear blocker ring to synchronizer
(Fig. 276).
(16) Install 5th gear synchr

Page 1892 of 2321

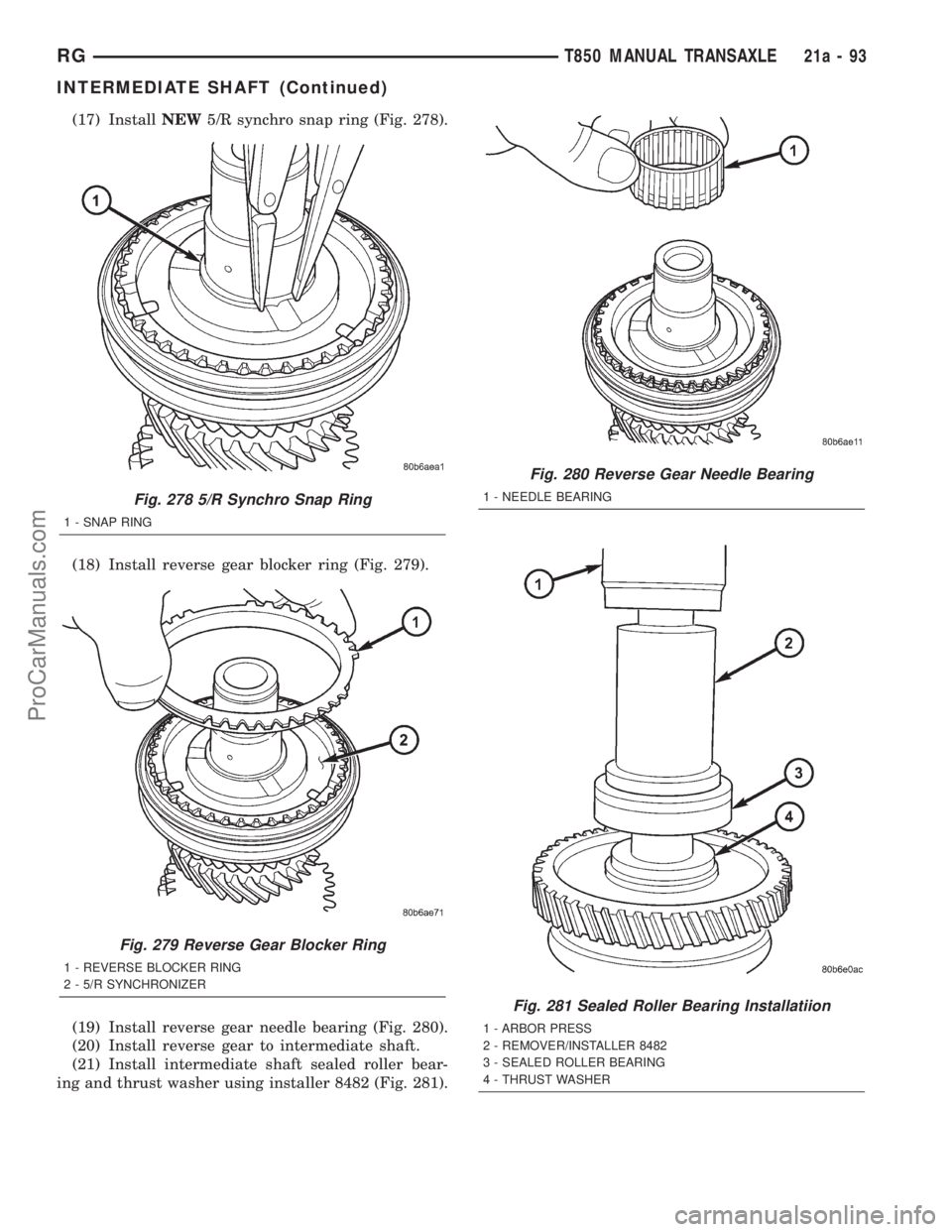

DODGE TOWN AND COUNTRY 2001 Service Manual (17) InstallNEW5/R synchro snap ring (Fig. 278).
(18) Install reverse gear blocker ring (Fig. 279).
(19) Install reverse gear needle bearing (Fig. 280).
(20) Install reverse gear to intermediate shaft

Page 1893 of 2321

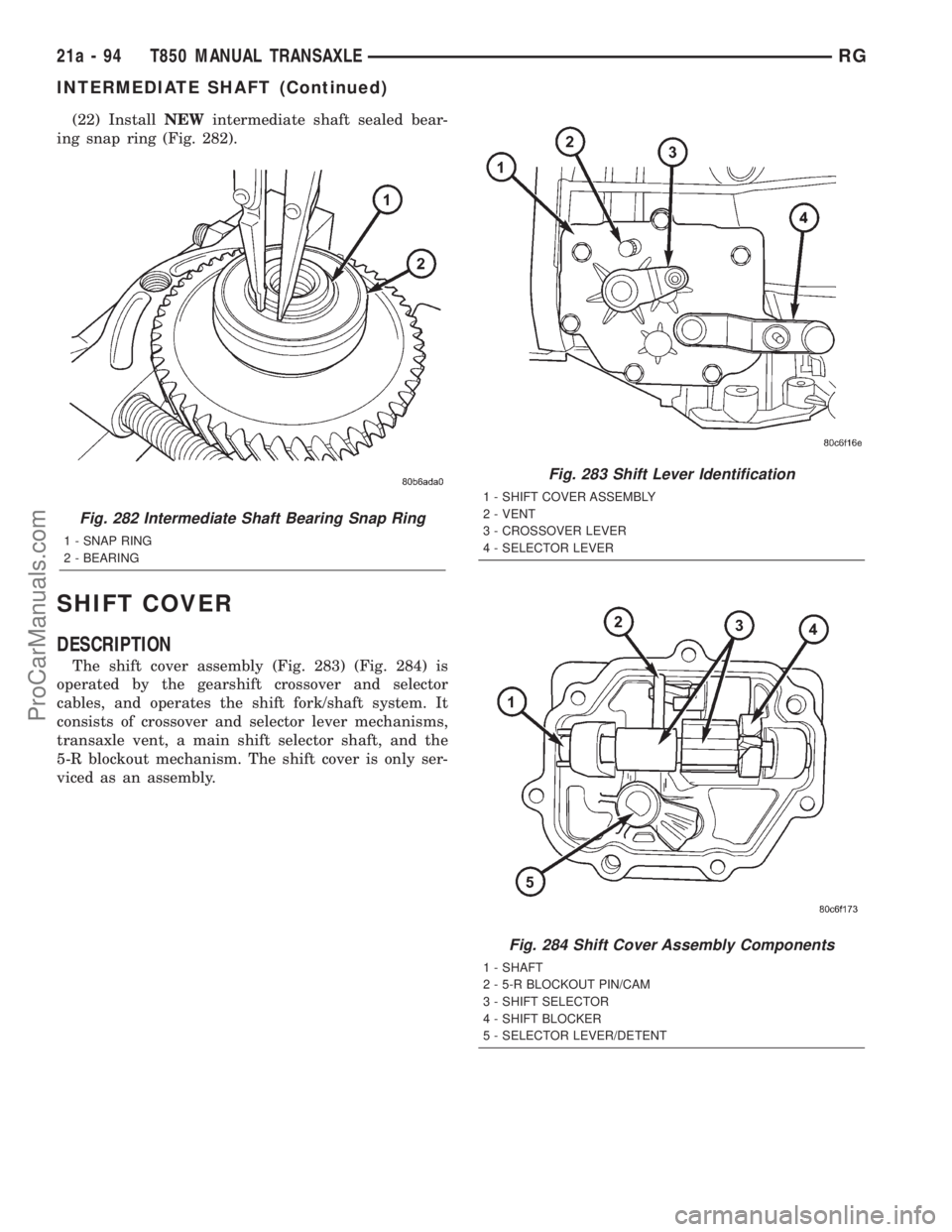

DODGE TOWN AND COUNTRY 2001 Service Manual (22) InstallNEWintermediate shaft sealed bear-
ing snap ring (Fig. 282).
SHIFT COVER
DESCRIPTION
The shift cover assembly (Fig. 283) (Fig. 284) is
operated by the gearshift crossover and selector
cabl

Page 1894 of 2321

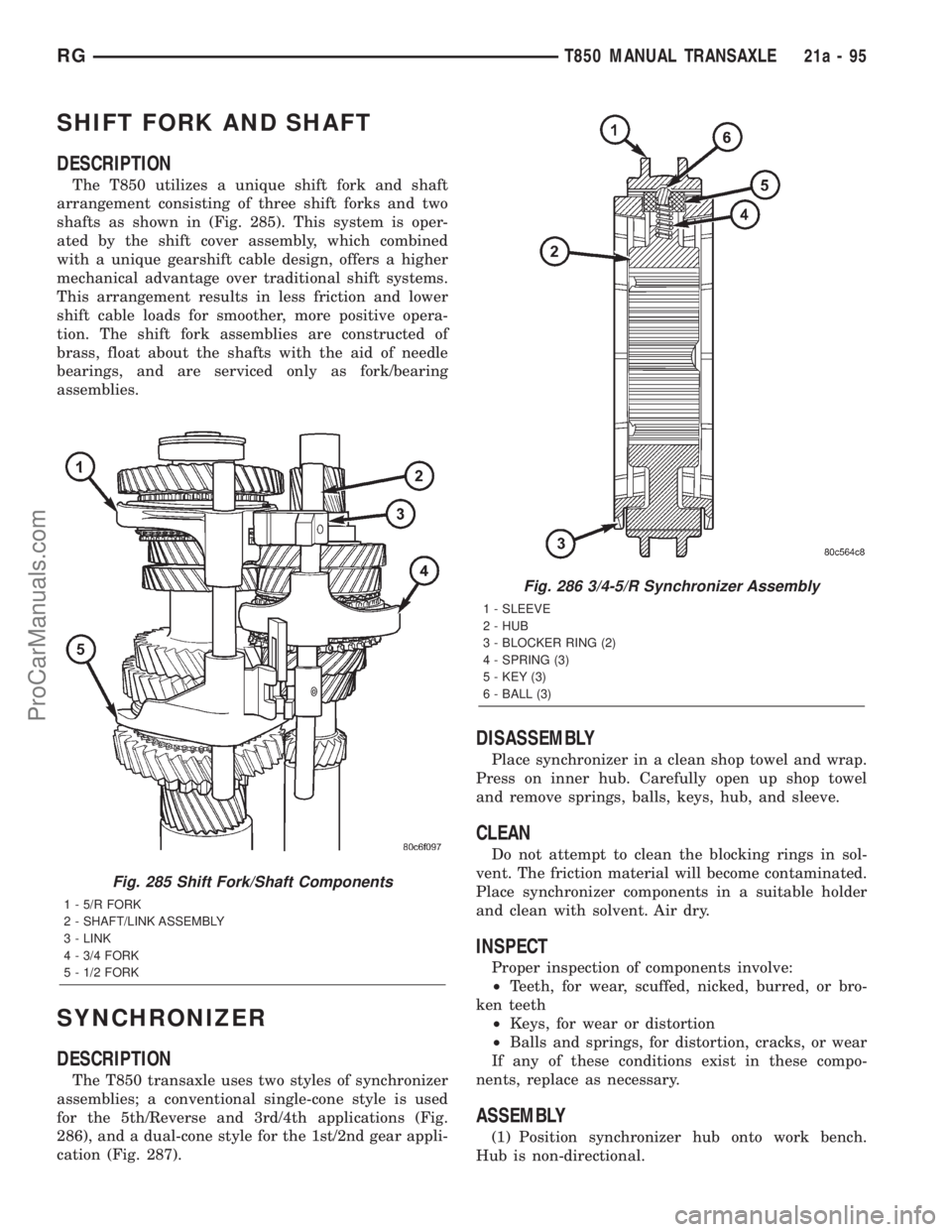

DODGE TOWN AND COUNTRY 2001 Service Manual SHIFT FORK AND SHAFT
DESCRIPTION
The T850 utilizes a unique shift fork and shaft
arrangement consisting of three shift forks and two
shafts as shown in (Fig. 285). This system is oper-
ated by the shi

Page 1895 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual (2) Install springs into hub slot.
(3) Insert key into hub and spring.
(4) Apply petroleum jelly to the hole in the key.
Insert balls into each key.
(5) Slide sleeve over the hub and depress balls as

Page 1896 of 2321

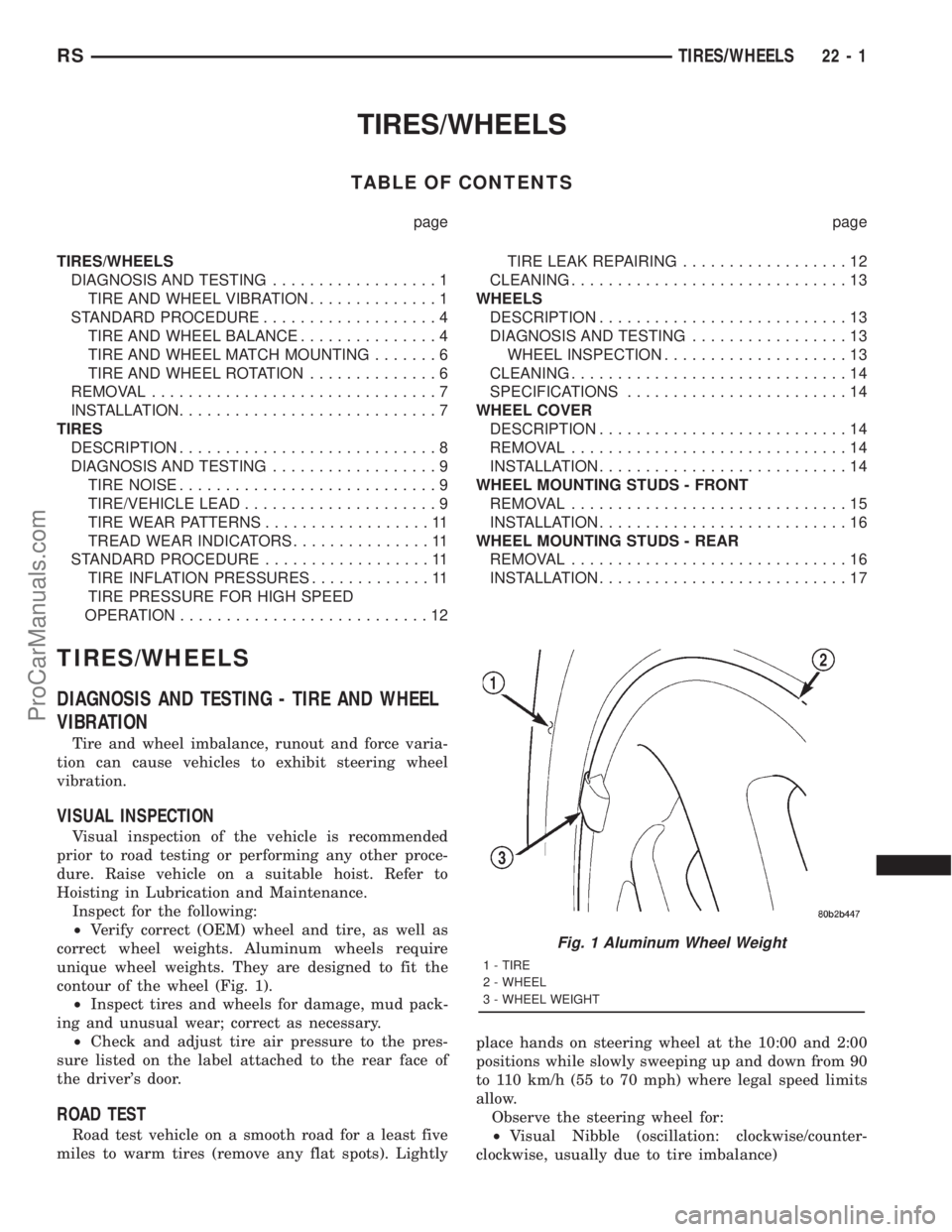

DODGE TOWN AND COUNTRY 2001 Service Manual TIRES/WHEELS
TABLE OF CONTENTS
page page
TIRES/WHEELS
DIAGNOSIS AND TESTING..................1
TIRE AND WHEEL VIBRATION..............1
STANDARD PROCEDURE...................4
TIRE AND WHEEL BALANCE....

TIRES/WHEELS
TABLE OF CONTENTS
page page
TIRES/WHEELS
DIAGNOSIS AND TESTING..................1
TIRE AND WHEEL VIBRATION..............1
STANDARD PROCEDURE...................4
TIRE AND WHEEL BALANCE...............4
TIRE AND WHEEL MATCH MOUNTING.......6
TIRE AND WHEEL ROTATION..............6
REMOVAL...............................7
INSTALLATION............................7
TIRES
DESCRIPTION............................8
DIAGNOSIS AND TESTING..................9
TIRE NOISE............................9
TIRE/VEHICLE LEAD.....................9
TIRE WEAR PATTERNS..................11
TREAD WEAR INDICATORS...............11
STANDARD PROCEDURE..................11
TIRE INFLATION PRESSURES.............11
TIRE PRESSURE FOR HIGH SPEED
OPERATION...........................12TIRE LEAK REPAIRING..................12
CLEANING..............................13
WHEELS
DESCRIPTION...........................13
DIAGNOSIS AND TESTING.................13
WHEEL INSPECTION....................13
CLEANING..............................14
SPECIFICATIONS........................14
WHEEL COVER
DESCRIPTION...........................14
REMOVAL..............................14
INSTALLATION...........................14
WHEEL MOUNTING STUDS - FRONT
REMOVAL..............................15
INSTALLATION...........................16
WHEEL MOUNTING STUDS - REAR
REMOVAL..............................16
INSTALLATION...........................17
TIRES/WHEELS
DIAGNOSIS AND TESTING - TIRE AND WHEEL
VIBRATION
Tire and wheel imbalance, runout and force varia-
tion can cause vehicles to exhibit steering wheel
vibration.
VISUAL INSPECTION
Visual inspection of the vehicle is recommended
prior to road testing or performing any other proce-
dure. Raise vehicle on a suitable hoist. Refer to
Hoisting in Lubrication and Maintenance.
Inspect for the following:
²Verify correct (OEM) wheel and tire, as well as
correct wheel weights. Aluminum wheels require
unique wheel weights. They are designed to fit the
contour of the wheel (Fig. 1).
²Inspect tires and wheels for damage, mud pack-
ing and unusual wear; correct as necessary.
²Check and adjust tire air pressure to the pres-
sure listed on the label attached to the rear face of
the driver's door.
ROAD TEST
Road test vehicle on a smooth road for a least five
miles to warm tires (remove any flat spots). Lightlyplace hands on steering wheel at the 10:00 and 2:00
positions while slowly sweeping up and down from 90
to 110 km/h (55 to 70 mph) where legal speed limits
allow.
Observe the steering wheel for:
²Visual Nibble (oscillation: clockwise/counter-
clockwise, usually due to tire imbalance)
Fig. 1 Aluminum Wheel Weight
1 - TIRE
2 - WHEEL
3 - WHEEL WEIGHT
RSTIRES/WHEELS22-1
