DODGE TOWN AND COUNTRY 2001  Service Manual (5) Pour four quarts of Moparž ATF+4 (Automatic
Transmission Fluid) Type 9602 through the dipstick
opening.
(6) Start engine and allow to idle for at least one
minute. Then, with parking and service

Page 1746 of 2321

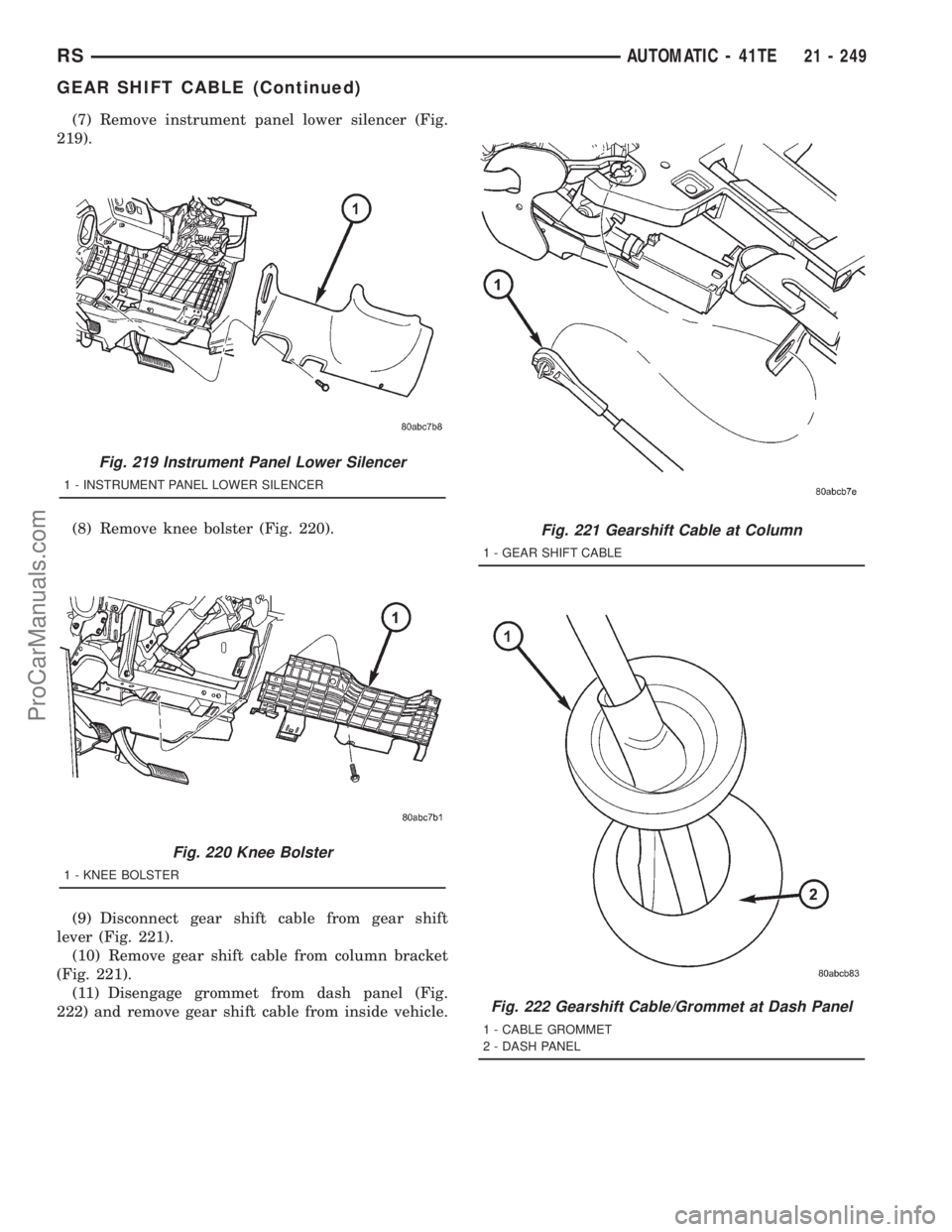

DODGE TOWN AND COUNTRY 2001  Service Manual (7) Remove instrument panel lower silencer (Fig.
219).
(8) Remove knee bolster (Fig. 220).
(9) Disconnect gear shift cable from gear shift
lever (Fig. 221).
(10) Remove gear shift cable from column br

Page 1747 of 2321

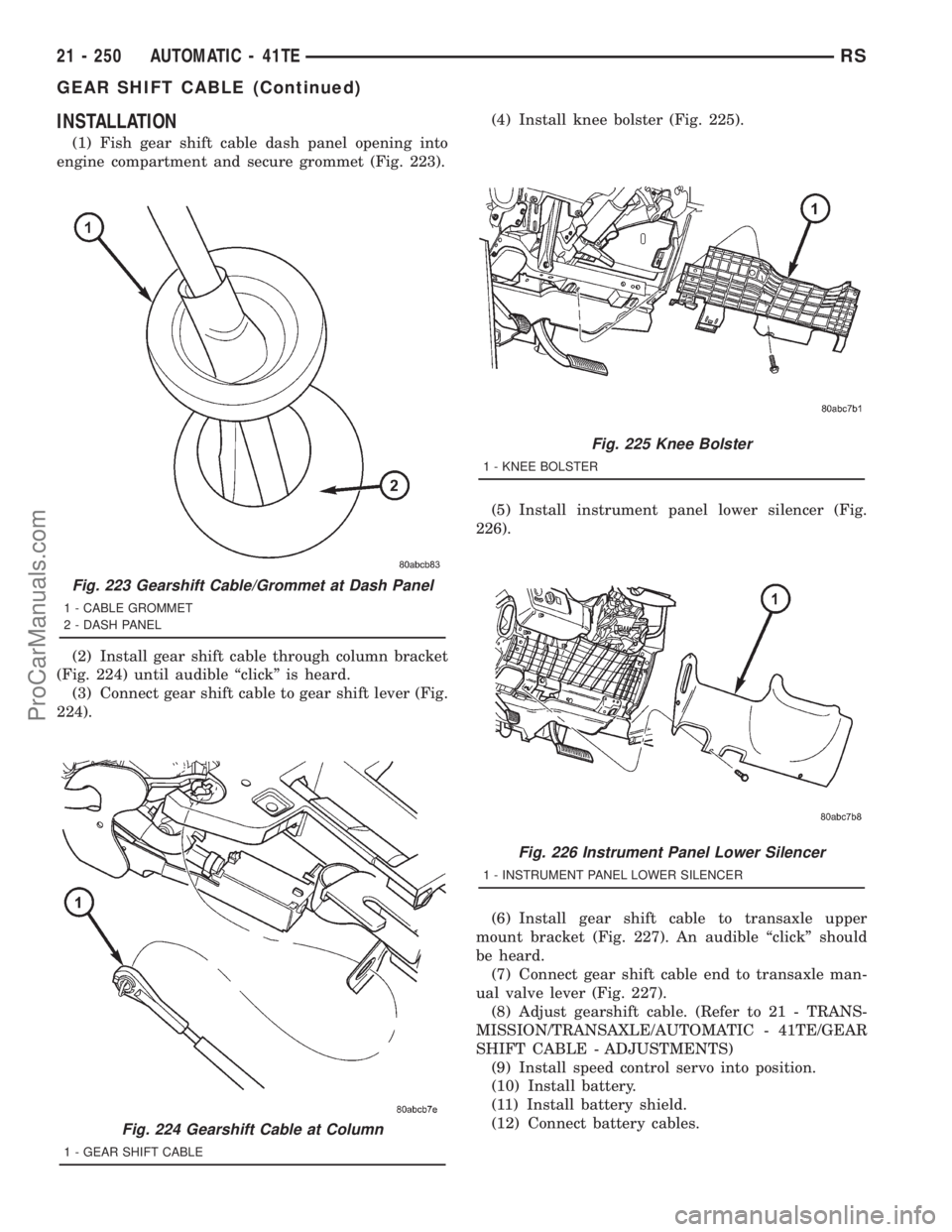

DODGE TOWN AND COUNTRY 2001  Service Manual INSTALLATION
(1) Fish gear shift cable dash panel opening into
engine compartment and secure grommet (Fig. 223).
(2) Install gear shift cable through column bracket
(Fig. 224) until audible ªclickº

Page 1748 of 2321

DODGE TOWN AND COUNTRY 2001  Service Manual GEARSHIFT CABLE ADJUSTMENT
VERIFICATION
(1) Place gearshift lever in gated park (P).
(2) Attempt to move vehicle by rocking back and
forth on level ground. If vehicle does not move,
attempt to start e

Page 1749 of 2321

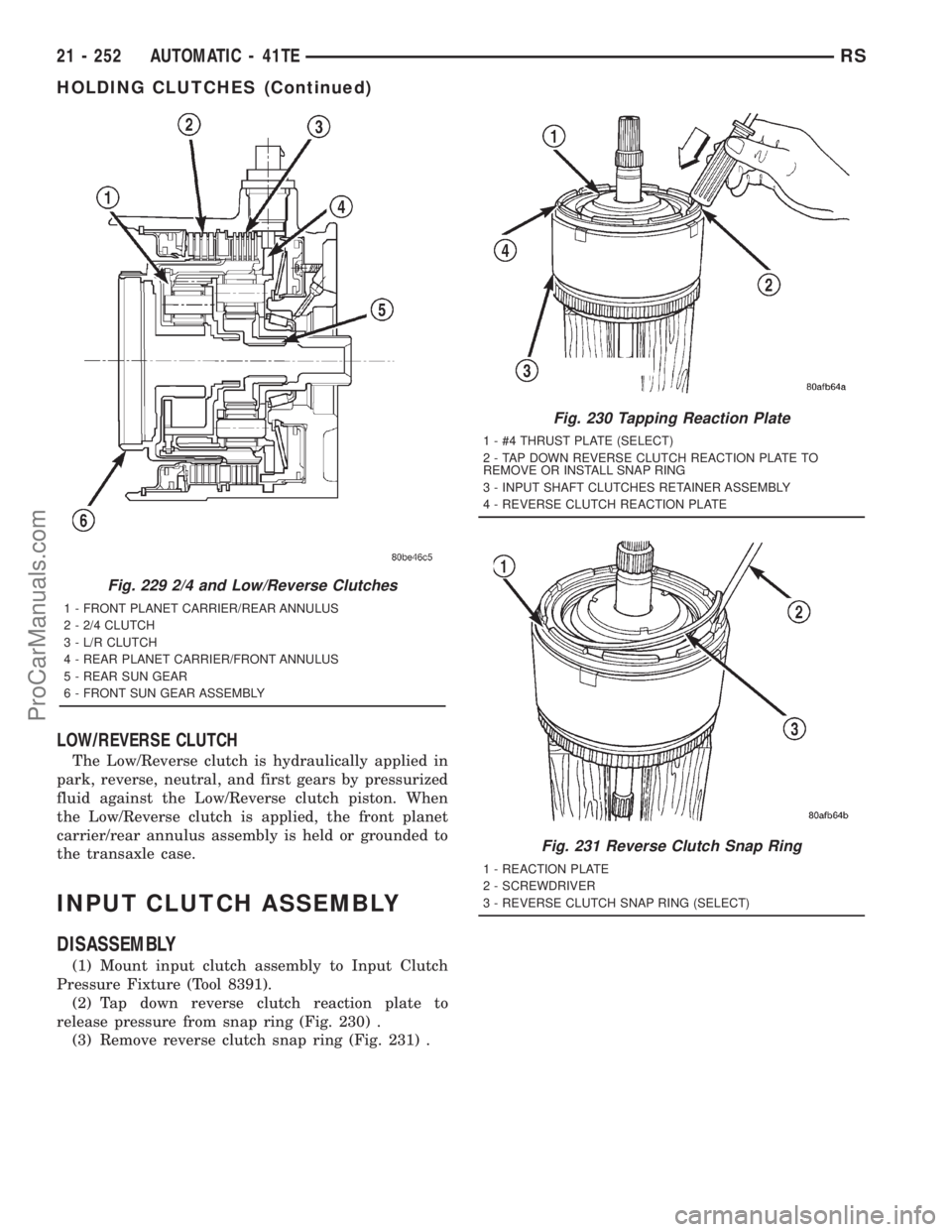

DODGE TOWN AND COUNTRY 2001  Service Manual LOW/REVERSE CLUTCH
The Low/Reverse clutch is hydraulically applied in
park, reverse, neutral, and first gears by pressurized
fluid against the Low/Reverse clutch piston. When
the Low/Reverse clutch is

Page 1750 of 2321

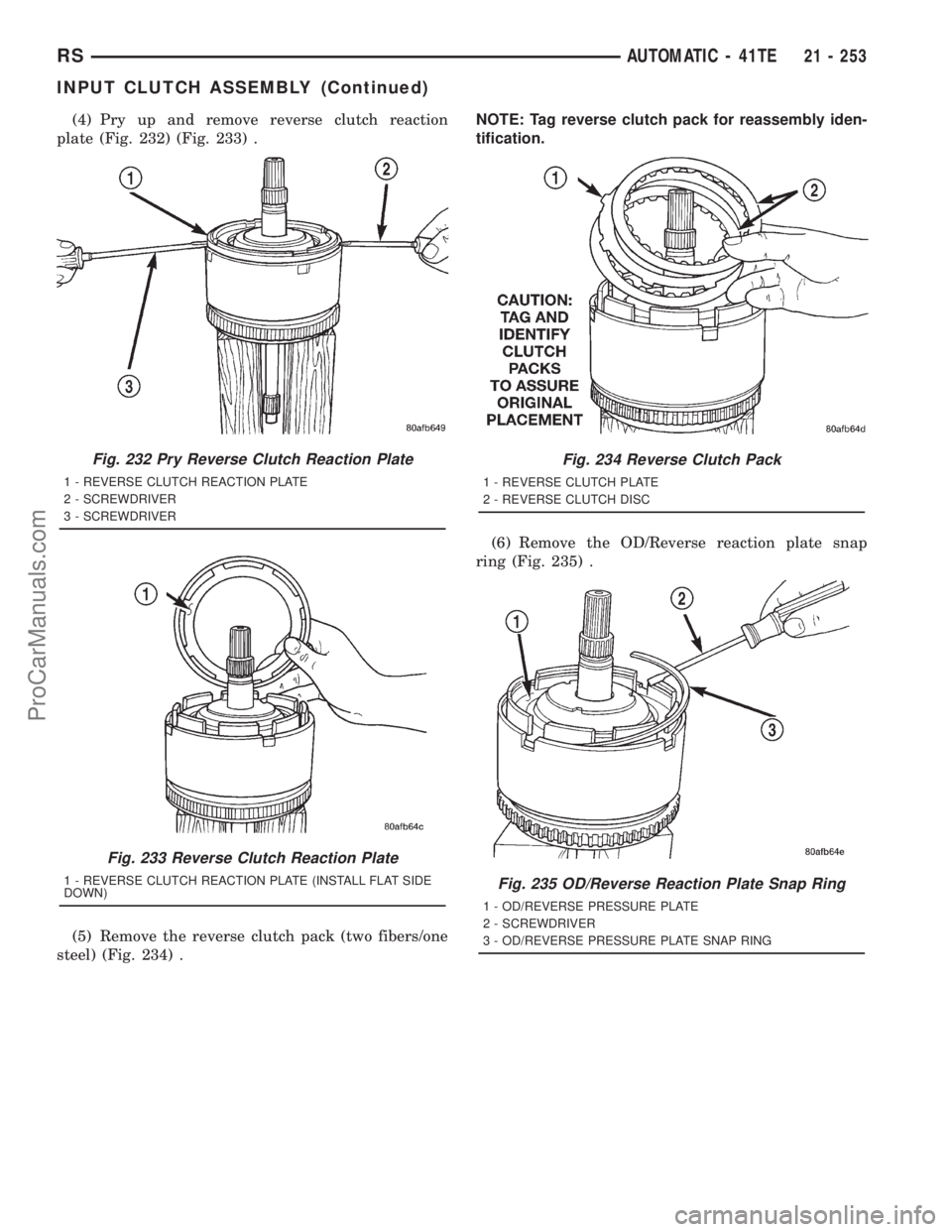

DODGE TOWN AND COUNTRY 2001  Service Manual (4) Pry up and remove reverse clutch reaction
plate (Fig. 232) (Fig. 233) .
(5) Remove the reverse clutch pack (two fibers/one
steel) (Fig. 234) .NOTE: Tag reverse clutch pack for reassembly iden-
tif

Page 1751 of 2321

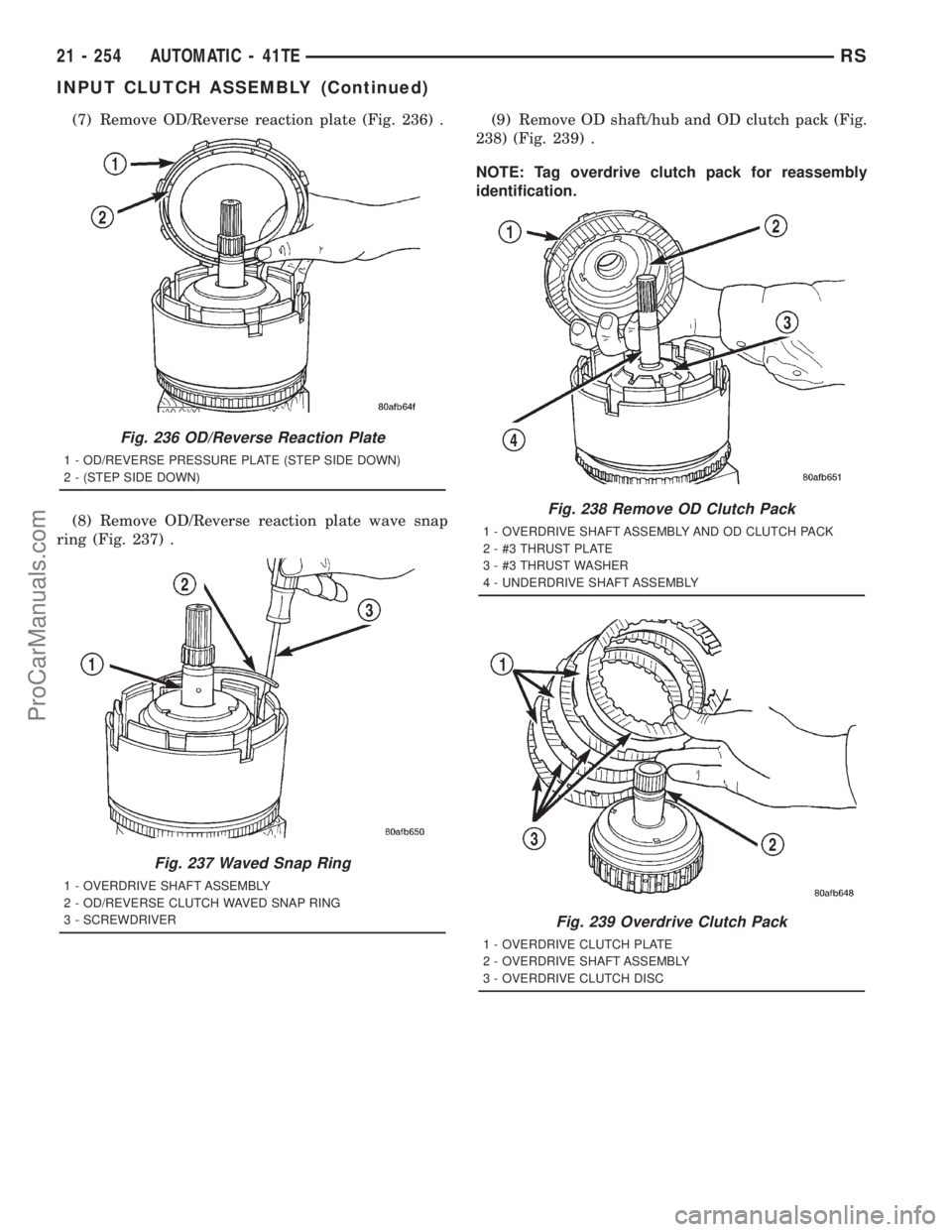

DODGE TOWN AND COUNTRY 2001  Service Manual (7) Remove OD/Reverse reaction plate (Fig. 236) .
(8) Remove OD/Reverse reaction plate wave snap
ring (Fig. 237) .(9) Remove OD shaft/hub and OD clutch pack (Fig.
238) (Fig. 239) .
NOTE: Tag overdrive

Page 1752 of 2321

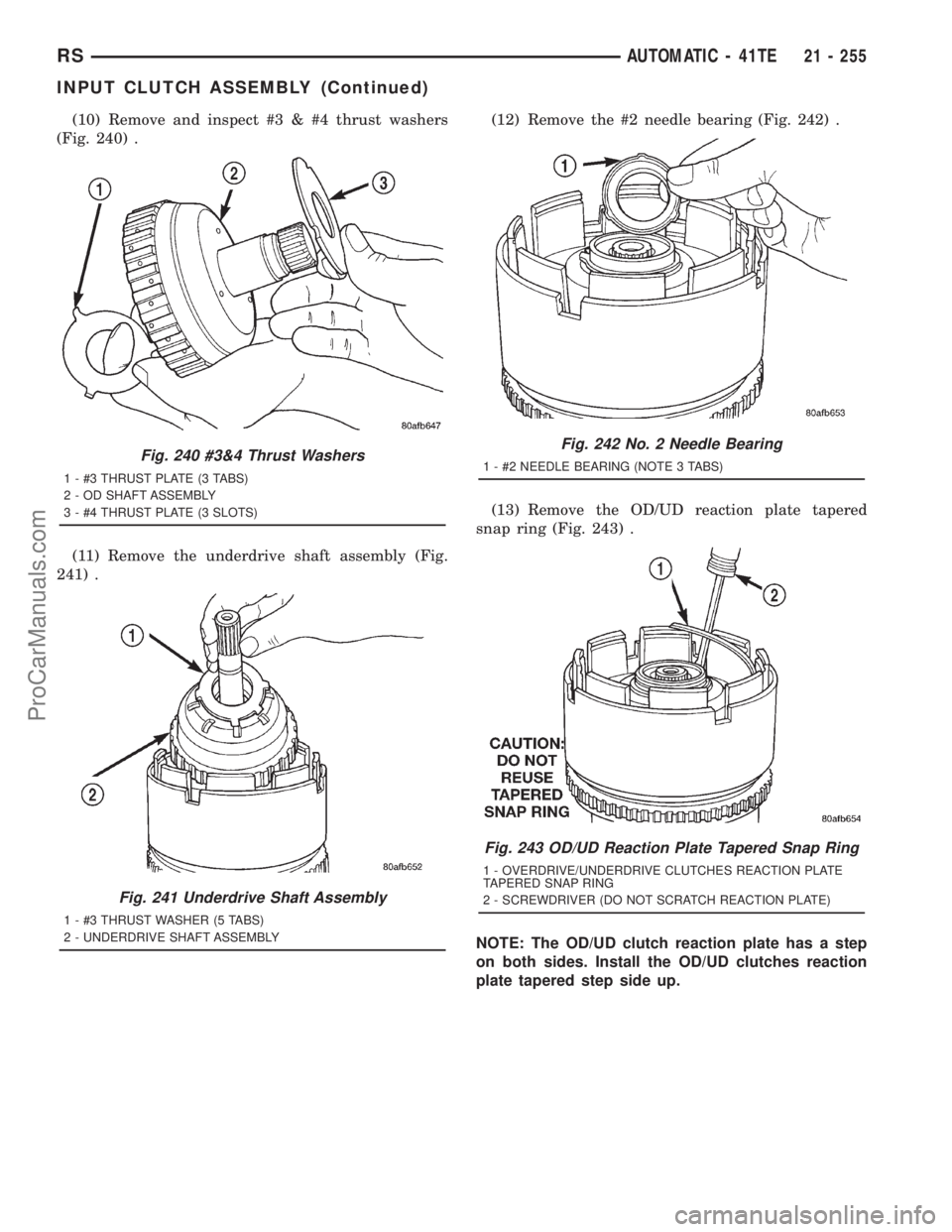

DODGE TOWN AND COUNTRY 2001  Service Manual (10) Remove and inspect #3 & #4 thrust washers
(Fig. 240) .
(11) Remove the underdrive shaft assembly (Fig.
241) .(12) Remove the #2 needle bearing (Fig. 242) .
(13) Remove the OD/UD reaction plate ta
