Page 2081 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual (3) Install bolts attaching lower roller arm bracket
to sliding door. Tighten bolts to 12 N´m (105 in. lbs.)
torque.
(4) Install lower roller arm. (Refer to 23 - BODY/
DOORS - SLIDING/LOWER ROLLER AR

(3) Install bolts attaching lower roller arm bracket
to sliding door. Tighten bolts to 12 N´m (105 in. lbs.)
torque.
(4) Install lower roller arm. (Refer to 23 - BODY/
DOORS - SLIDING/LOWER ROLLER ARM -
INSTALLATION)
(5) Remove lifting device.
(6) Verify sliding door operation.
(7) Install access hole plug.
REAR LATCH
REMOVAL
NOTE: For power sliding door procedures refer to
POWER SLIDING DOOR SYSTEM in the ELECTRI-
CAL section.
(1) Remove sliding door trim panel. (Refer to 23 -
BODY/DOORS - SLIDING/TRIM PANEL -
REMOVAL)
(2) Peel watershield away from adhesive around
perimeter of inner door panel.
(3) Open sliding door to the ajar position.
(4) Disengage clip attaching linkage to rear latch.
(5) Remove screws attaching rear latch to sliding
door end frame (Fig. 11).
(6) Remove sliding door rear latch from door
through rear access hole.
INSTALLATION
NOTE: For power sliding door procedures refer to
POWER SLIDING DOOR SYSTEM in the ELECTRI-
CAL section.NOTE: The screws attaching the rear latch to slid-
ing door end frame have locking patch on the
threads. Screws must be replaced during installa-
tion.
(1) Position sliding door rear latch on door through
rear access hole.
(2) Install screws attaching rear latch to sliding
door end frame. Tighten screws to 10 N´m (90 in.
lbs.) torque.
(3) Engage clip attaching linkage to rear latch.
(4) Verify sliding door operation. Adjust as neces-
sary.
(5) Place the watershield into position and press
securely to adhesive making sure to properly route
wiring and linkages.
(6) Install sliding door trim panel. (Refer to 23 -
BODY/DOORS - SLIDING/TRIM PANEL - INSTAL-
LATION)
CENTER LATCH STRIKER
REMOVAL
(1) Remove sliding door trim panel. (Refer to 23 -
BODY/DOORS - SLIDING/TRIM PANEL -
REMOVAL)
(2) Remove screws attaching center striker assem-
bly to door end frame (Fig. 12).
(3) Remove center striker assembly from door
through access hole.
INSTALLATION
(1) Place center striker in position on door through
access hole.
Fig. 10 Sliding Door Lower Roller Arm Bracket
1 - LOWER ROLLER ARM BRACKET
2 - SLIDING DOOR
Fig. 11 Sliding Door
1 - REAR LATCH
2 - SLIDING DOOR
23 - 168 DOORS - SLIDINGRS
LOWER ROLLER ARM BRACKET (Continued)
ProCarManuals.com

Page 2082 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual (2) Install screws to attach center striker to door
end frame.
(3) Install sliding door trim panel. (Refer to 23 -
BODY/DOORS - SLIDING/TRIM PANEL - INSTAL-
LATION)
REAR LATCH STRIKER
REMOVAL
(1) Open

Page 2083 of 2321

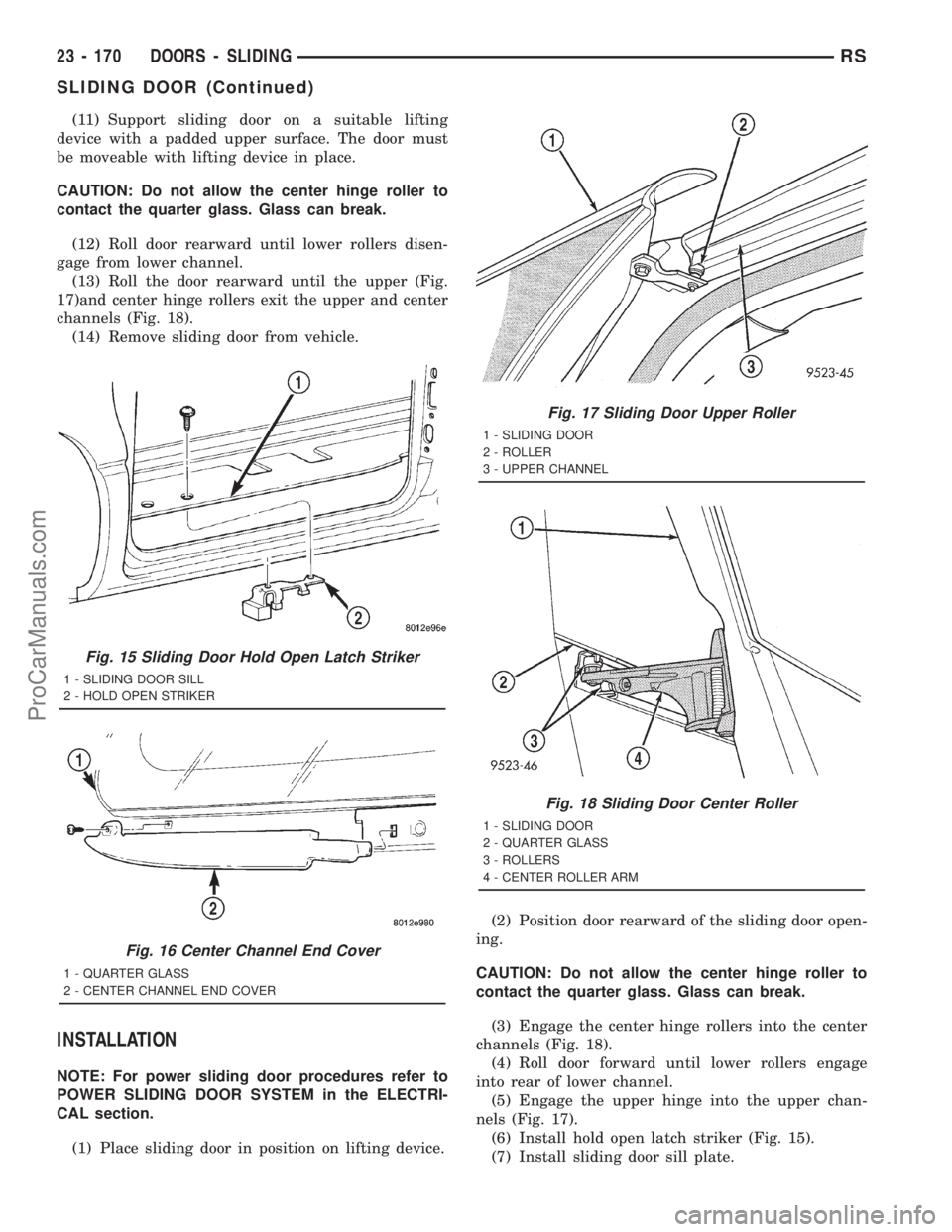

DODGE TOWN AND COUNTRY 2001 Service Manual (11) Support sliding door on a suitable lifting
device with a padded upper surface. The door must
be moveable with lifting device in place.
CAUTION: Do not allow the center hinge roller to
contact the

Page 2084 of 2321

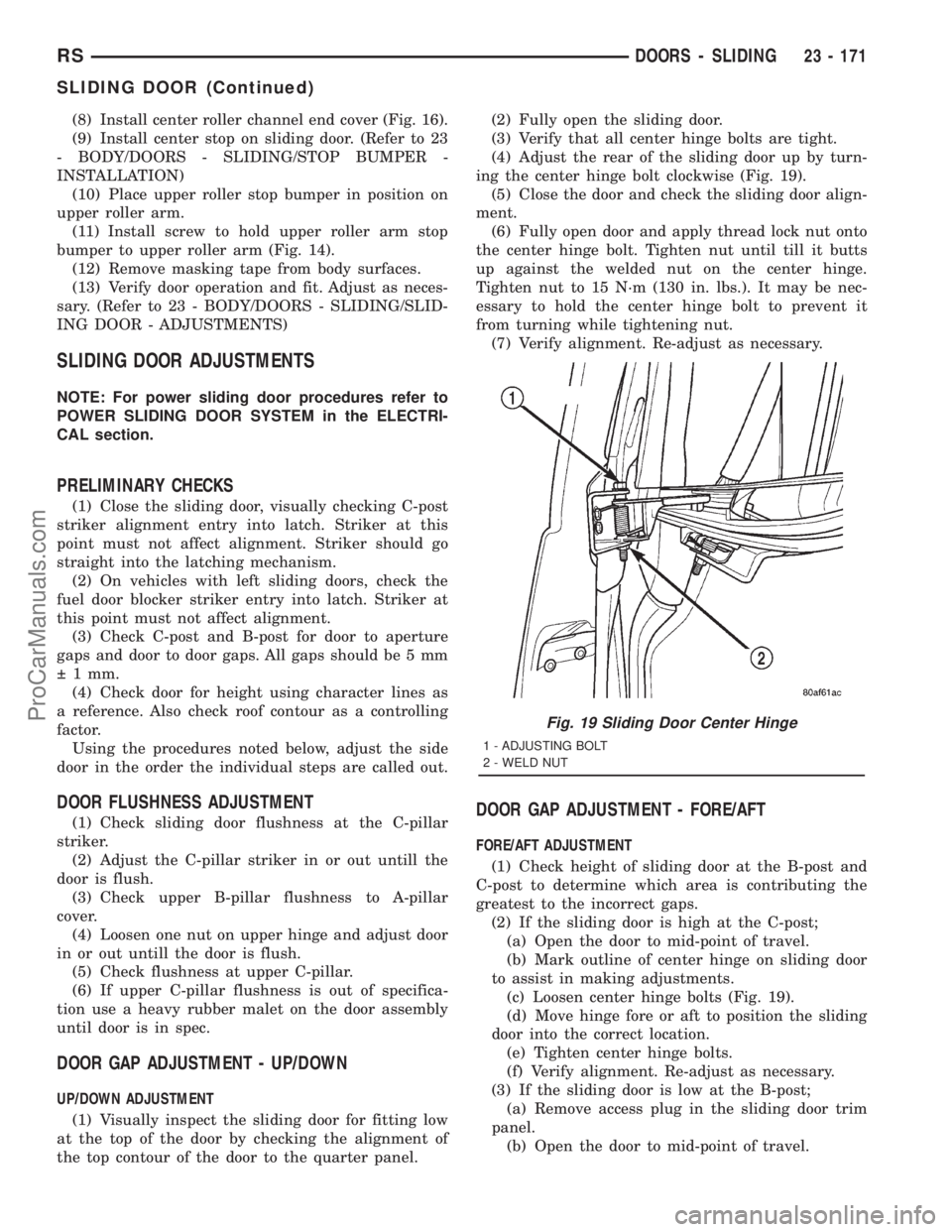

DODGE TOWN AND COUNTRY 2001 Service Manual (8) Install center roller channel end cover (Fig. 16).
(9) Install center stop on sliding door. (Refer to 23
- BODY/DOORS - SLIDING/STOP BUMPER -
INSTALLATION)
(10) Place upper roller stop bumper in p

(8) Install center roller channel end cover (Fig. 16).
(9) Install center stop on sliding door. (Refer to 23
- BODY/DOORS - SLIDING/STOP BUMPER -
INSTALLATION)
(10) Place upper roller stop bumper in position on
upper roller arm.
(11) Install screw to hold upper roller arm stop
bumper to upper roller arm (Fig. 14).
(12) Remove masking tape from body surfaces.
(13) Verify door operation and fit. Adjust as neces-
sary. (Refer to 23 - BODY/DOORS - SLIDING/SLID-
ING DOOR - ADJUSTMENTS)
SLIDING DOOR ADJUSTMENTS
NOTE: For power sliding door procedures refer to
POWER SLIDING DOOR SYSTEM in the ELECTRI-
CAL section.
PRELIMINARY CHECKS
(1) Close the sliding door, visually checking C-post
striker alignment entry into latch. Striker at this
point must not affect alignment. Striker should go
straight into the latching mechanism.
(2) On vehicles with left sliding doors, check the
fuel door blocker striker entry into latch. Striker at
this point must not affect alignment.
(3) Check C-post and B-post for door to aperture
gaps and door to door gaps. All gaps should be 5 mm
1 mm.
(4) Check door for height using character lines as
a reference. Also check roof contour as a controlling
factor.
Using the procedures noted below, adjust the side
door in the order the individual steps are called out.
DOOR FLUSHNESS ADJUSTMENT
(1) Check sliding door flushness at the C-pillar
striker.
(2) Adjust the C-pillar striker in or out untill the
door is flush.
(3) Check upper B-pillar flushness to A-pillar
cover.
(4) Loosen one nut on upper hinge and adjust door
in or out untill the door is flush.
(5) Check flushness at upper C-pillar.
(6) If upper C-pillar flushness is out of specifica-
tion use a heavy rubber malet on the door assembly
until door is in spec.
DOOR GAP ADJUSTMENT - UP/DOWN
UP/DOWN ADJUSTMENT
(1) Visually inspect the sliding door for fitting low
at the top of the door by checking the alignment of
the top contour of the door to the quarter panel.(2) Fully open the sliding door.
(3) Verify that all center hinge bolts are tight.
(4) Adjust the rear of the sliding door up by turn-
ing the center hinge bolt clockwise (Fig. 19).
(5) Close the door and check the sliding door align-
ment.
(6) Fully open door and apply thread lock nut onto
the center hinge bolt. Tighten nut until till it butts
up against the welded nut on the center hinge.
Tighten nut to 15 N´m (130 in. lbs.). It may be nec-
essary to hold the center hinge bolt to prevent it
from turning while tightening nut.
(7) Verify alignment. Re-adjust as necessary.
DOOR GAP ADJUSTMENT - FORE/AFT
FORE/AFT ADJUSTMENT
(1) Check height of sliding door at the B-post and
C-post to determine which area is contributing the
greatest to the incorrect gaps.
(2) If the sliding door is high at the C-post;
(a) Open the door to mid-point of travel.
(b) Mark outline of center hinge on sliding door
to assist in making adjustments.
(c) Loosen center hinge bolts (Fig. 19).
(d) Move hinge fore or aft to position the sliding
door into the correct location.
(e) Tighten center hinge bolts.
(f) Verify alignment. Re-adjust as necessary.
(3) If the sliding door is low at the B-post;
(a) Remove access plug in the sliding door trim
panel.
(b) Open the door to mid-point of travel.
Fig. 19 Sliding Door Center Hinge
1 - ADJUSTING BOLT
2 - WELD NUT
RSDOORS - SLIDING23 - 171
SLIDING DOOR (Continued)
ProCarManuals.com

Page 2085 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual (c) Mark outline of lower roller arm bracket on
sliding door to assist in making adjustments.
(d) Loosen lower roller arm bracket bolts (Fig.
20).
(e) Move hinge downward to raise the door.
(f) Tighte

(c) Mark outline of lower roller arm bracket on
sliding door to assist in making adjustments.
(d) Loosen lower roller arm bracket bolts (Fig.
20).
(e) Move hinge downward to raise the door.
(f) Tighten lower roller arm bracket bolts.
(g) Verify alignment. Re-adjust as necessary.
(4) If the sliding door is low at the C-post;
(a) Open the door to mid-point of travel.
(b) Mark outline of center hinge on sliding door
to assist in making adjustments.
(c) Adjust the adjustment bolt up or down to
move the door position. (Fig. 19).
(d) Move hinge downward to raise the door.
(e) Tighten center hinge bolts.
(f) Verify alignment. Re-adjust as necessary.
(5) If the sliding door is high at the B-post;
(a) Remove access plug in the sliding door trim
panel.
(b) Open the door to mid-point of travel.
(c) Mark outline of lower roller arm bracket on
sliding door to assist in making adjustments.
(d) Loosen lower roller arm bracket bolts (Fig.
20).
(e) Move hinge upward to raise the door.
(f) Tighten lower roller arm bracket bolts.
(g) Verify alignment. Re-adjust as necessary.
DOOR SEAL COMPRESSION
(1) Check seal compression near the middle of the
door even with the latch assembly, using a Chatillon
Force Guage or equivilant. Seal load should not
exceed 120 N´m. Any reading under 120 N´m is
acceptable.
(2) Adjust seal compression at the top of the
B-post seal;(a) Open door to mid-point of travel.
(b) Mark outline of upper roller arm on bracket
to assist in making adjustments.
(c) Loosen bolts holding upper roller arm to
bracket (Fig. 21)
(d) Decrease the length of the upper roller arm
to increase seal compression.
(e) Increase the length of the upper roller arm to
decrease seal compression.
(f) Tighten all upper roller arm bolts.
(g) Verify door alignment. Re-adjust as neces-
sary.
(3) Adjust seal compression at the bottom of B-post
seal.
(a) Open door to mid-point of travel.
(b) Mark outline of lower roller arm on lower
roller arm bracket to assist in making adjustments
(Fig. 22).
(c) Loosen bolts holding lower roller arm to
lower roller arm bracket.
(d) Pivot lower roller arm toward center of vehi-
cle to decrease seal compression.
(e) Pivot lower roller arm outward to increase
seal compression.
(f) Tighten lower roller arm bolts.
(g) Verify alignment. Re-adjust as necessary.
NOTE: Adjusting seal compression at the B-post
can affect door flushness the C-post.
STABILIZER ADJUSTMENT
(1) Open sliding door.
(2) Loosen the bolts holding the male stabilizers to
the sliding door enough that the stabilizers can move
with some effort.
Fig. 20 Sliding Door Lower Roller Arm Bracket
1 - LOWER ROLLER ARM BRACKET
2 - SLIDING DOOR
Fig. 21 Sliding Door Upper Roller Arm
1 - SLIDING DOOR
2 - UPPER STOP
3 - UPPER ROLLER ARM
23 - 172 DOORS - SLIDINGRS
SLIDING DOOR (Continued)
ProCarManuals.com

Page 2086 of 2321

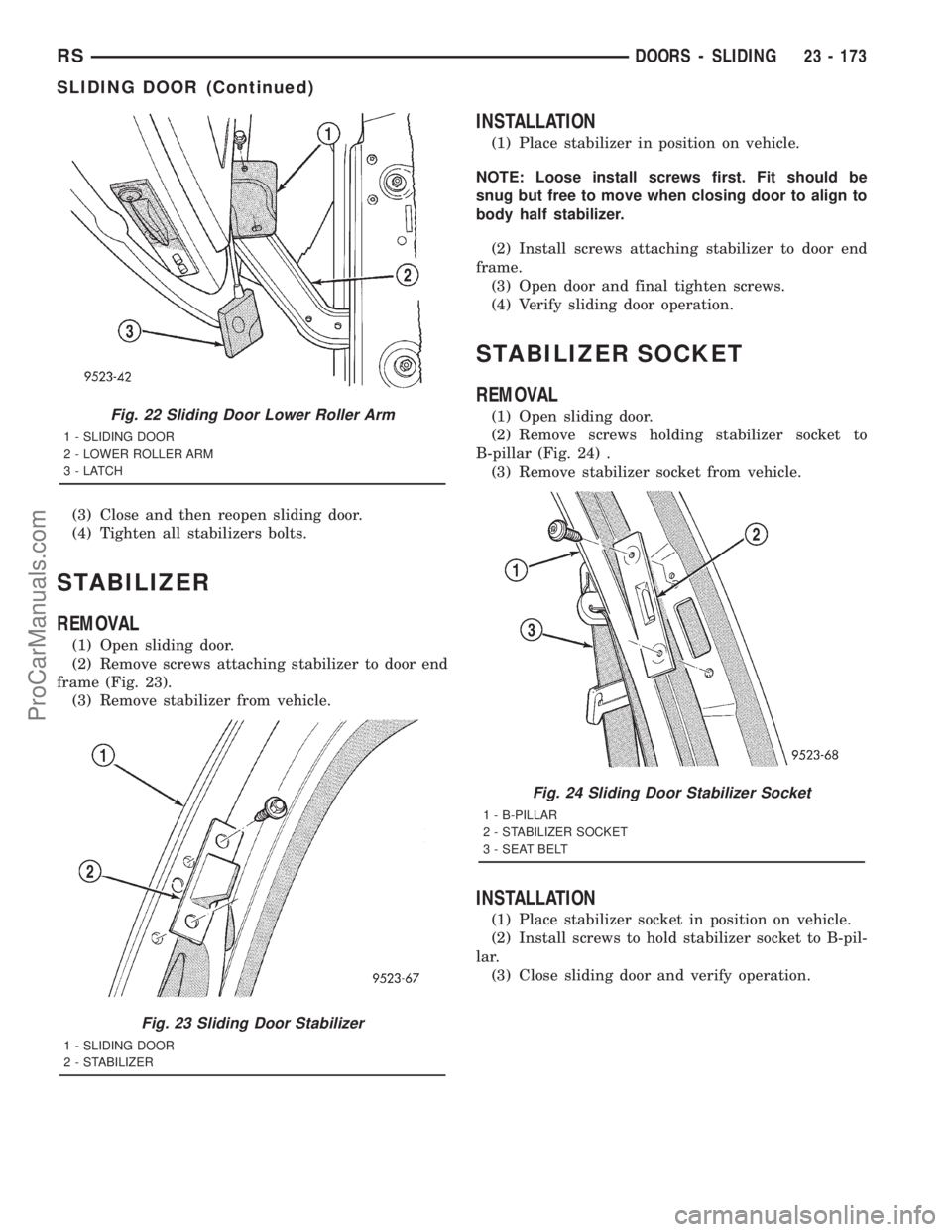

DODGE TOWN AND COUNTRY 2001 Service Manual (3) Close and then reopen sliding door.
(4) Tighten all stabilizers bolts.
STABILIZER
REMOVAL
(1) Open sliding door.
(2) Remove screws attaching stabilizer to door end
frame (Fig. 23).
(3) Remove stab

Page 2087 of 2321

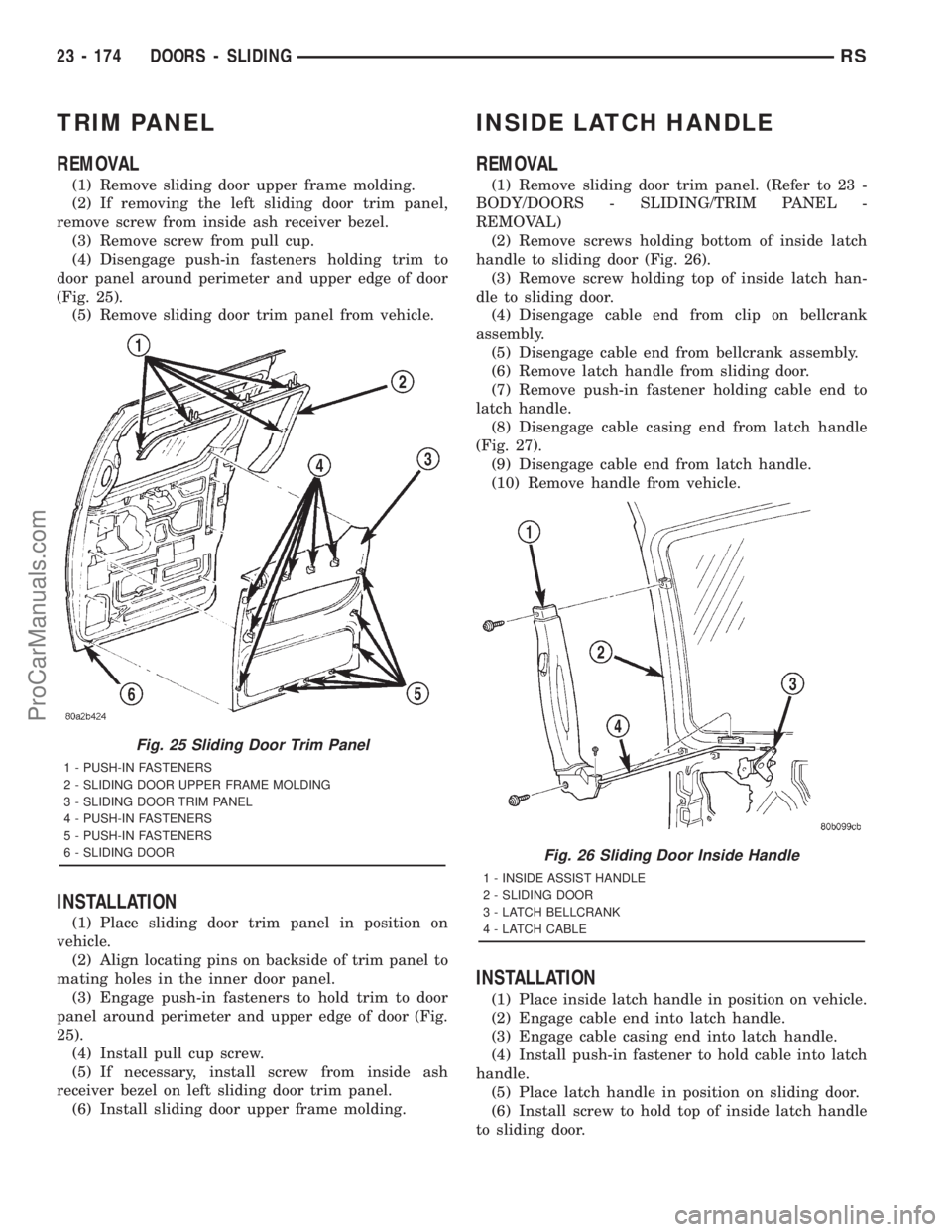

DODGE TOWN AND COUNTRY 2001 Service Manual TRIM PANEL
REMOVAL
(1) Remove sliding door upper frame molding.
(2) If removing the left sliding door trim panel,
remove screw from inside ash receiver bezel.
(3) Remove screw from pull cup.
(4) Disen

TRIM PANEL
REMOVAL
(1) Remove sliding door upper frame molding.
(2) If removing the left sliding door trim panel,
remove screw from inside ash receiver bezel.
(3) Remove screw from pull cup.
(4) Disengage push-in fasteners holding trim to
door panel around perimeter and upper edge of door
(Fig. 25).
(5) Remove sliding door trim panel from vehicle.
INSTALLATION
(1) Place sliding door trim panel in position on
vehicle.
(2) Align locating pins on backside of trim panel to
mating holes in the inner door panel.
(3) Engage push-in fasteners to hold trim to door
panel around perimeter and upper edge of door (Fig.
25).
(4) Install pull cup screw.
(5) If necessary, install screw from inside ash
receiver bezel on left sliding door trim panel.
(6) Install sliding door upper frame molding.
INSIDE LATCH HANDLE
REMOVAL
(1) Remove sliding door trim panel. (Refer to 23 -
BODY/DOORS - SLIDING/TRIM PANEL -
REMOVAL)
(2) Remove screws holding bottom of inside latch
handle to sliding door (Fig. 26).
(3) Remove screw holding top of inside latch han-
dle to sliding door.
(4) Disengage cable end from clip on bellcrank
assembly.
(5) Disengage cable end from bellcrank assembly.
(6) Remove latch handle from sliding door.
(7) Remove push-in fastener holding cable end to
latch handle.
(8) Disengage cable casing end from latch handle
(Fig. 27).
(9) Disengage cable end from latch handle.
(10) Remove handle from vehicle.
INSTALLATION
(1) Place inside latch handle in position on vehicle.
(2) Engage cable end into latch handle.
(3) Engage cable casing end into latch handle.
(4) Install push-in fastener to hold cable into latch
handle.
(5) Place latch handle in position on sliding door.
(6) Install screw to hold top of inside latch handle
to sliding door.
Fig. 25 Sliding Door Trim Panel
1 - PUSH-IN FASTENERS
2 - SLIDING DOOR UPPER FRAME MOLDING
3 - SLIDING DOOR TRIM PANEL
4 - PUSH-IN FASTENERS
5 - PUSH-IN FASTENERS
6 - SLIDING DOOR
Fig. 26 Sliding Door Inside Handle
1 - INSIDE ASSIST HANDLE
2 - SLIDING DOOR
3 - LATCH BELLCRANK
4 - LATCH CABLE
23 - 174 DOORS - SLIDINGRS
ProCarManuals.com

Page 2088 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual (7) Install screws to hold bottom of inside latch
handle to sliding door.
(8) Engage cable end into bellcrank assembly.
(9) Engage clip to hold cable end into bellcrank
assembly.
(10) Verify sliding d

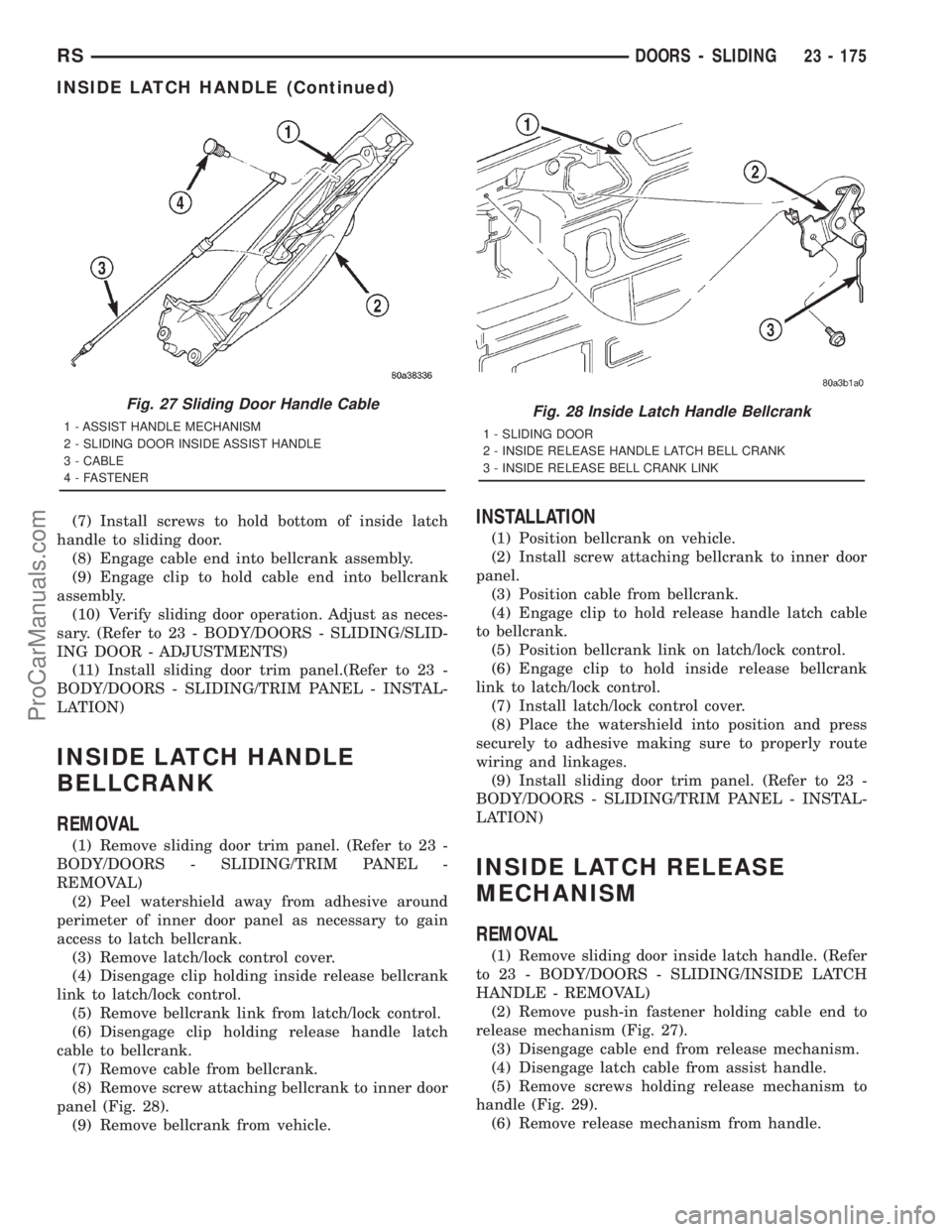

(7) Install screws to hold bottom of inside latch
handle to sliding door.
(8) Engage cable end into bellcrank assembly.
(9) Engage clip to hold cable end into bellcrank
assembly.
(10) Verify sliding door operation. Adjust as neces-
sary. (Refer to 23 - BODY/DOORS - SLIDING/SLID-
ING DOOR - ADJUSTMENTS)
(11) Install sliding door trim panel.(Refer to 23 -
BODY/DOORS - SLIDING/TRIM PANEL - INSTAL-
LATION)
INSIDE LATCH HANDLE
BELLCRANK
REMOVAL
(1) Remove sliding door trim panel. (Refer to 23 -
BODY/DOORS - SLIDING/TRIM PANEL -
REMOVAL)
(2) Peel watershield away from adhesive around
perimeter of inner door panel as necessary to gain
access to latch bellcrank.
(3) Remove latch/lock control cover.
(4) Disengage clip holding inside release bellcrank
link to latch/lock control.
(5) Remove bellcrank link from latch/lock control.
(6) Disengage clip holding release handle latch
cable to bellcrank.
(7) Remove cable from bellcrank.
(8) Remove screw attaching bellcrank to inner door
panel (Fig. 28).
(9) Remove bellcrank from vehicle.
INSTALLATION
(1) Position bellcrank on vehicle.
(2) Install screw attaching bellcrank to inner door
panel.
(3) Position cable from bellcrank.
(4) Engage clip to hold release handle latch cable
to bellcrank.
(5) Position bellcrank link on latch/lock control.
(6) Engage clip to hold inside release bellcrank
link to latch/lock control.
(7) Install latch/lock control cover.
(8) Place the watershield into position and press
securely to adhesive making sure to properly route
wiring and linkages.
(9) Install sliding door trim panel. (Refer to 23 -
BODY/DOORS - SLIDING/TRIM PANEL - INSTAL-
LATION)
INSIDE LATCH RELEASE
MECHANISM
REMOVAL
(1) Remove sliding door inside latch handle. (Refer
to 23 - BODY/DOORS - SLIDING/INSIDE LATCH
HANDLE - REMOVAL)
(2) Remove push-in fastener holding cable end to
release mechanism (Fig. 27).
(3) Disengage cable end from release mechanism.
(4) Disengage latch cable from assist handle.
(5) Remove screws holding release mechanism to
handle (Fig. 29).
(6) Remove release mechanism from handle.
Fig. 27 Sliding Door Handle Cable
1 - ASSIST HANDLE MECHANISM
2 - SLIDING DOOR INSIDE ASSIST HANDLE
3 - CABLE
4 - FASTENERFig. 28 Inside Latch Handle Bellcrank
1 - SLIDING DOOR
2 - INSIDE RELEASE HANDLE LATCH BELL CRANK
3 - INSIDE RELEASE BELL CRANK LINK
RSDOORS - SLIDING23 - 175
INSIDE LATCH HANDLE (Continued)
ProCarManuals.com

Load next 8 pages

Page: < prev 1-10 ... 2049-2056 2057-2064 2065-2072 2073-2080 2081-2088 2089-2096 2097-2104 2105-2112 2113-2120 ... 2328 next >

lumbar support bolt pattern winter tyres pairing phone manual radio set ESP
