Page 1577 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual (5) Back off front band adjusting screw 2ò turns.
(6) Hold adjuster screw in position and tighten
locknut to 47 N´m (35 ft. lbs.) torque.
(7) Install air cleaner assembly.
(8) Connect battery negati

Page 1578 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual OPERATION
To apply the clutch, pressure is applied between
the clutch retainer and piston. The fluid pressure is
provided by the oil pump, transferred through the
control valves and passageways, and e

Page 1579 of 2321

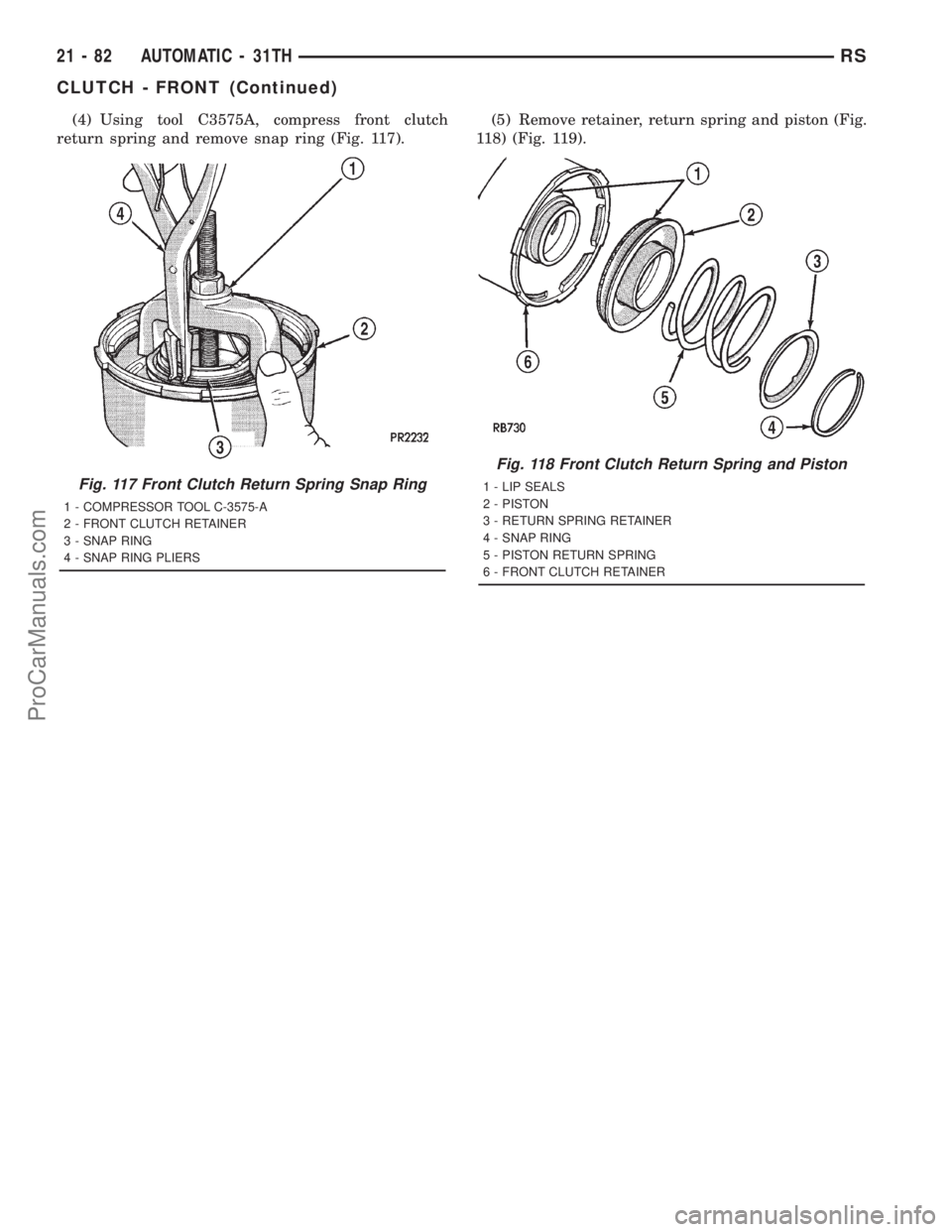

DODGE TOWN AND COUNTRY 2001 Service Manual (4) Using tool C3575A, compress front clutch
return spring and remove snap ring (Fig. 117).(5) Remove retainer, return spring and piston (Fig.
118) (Fig. 119).
Fig. 117 Front Clutch Return Spring Snap

Page 1580 of 2321

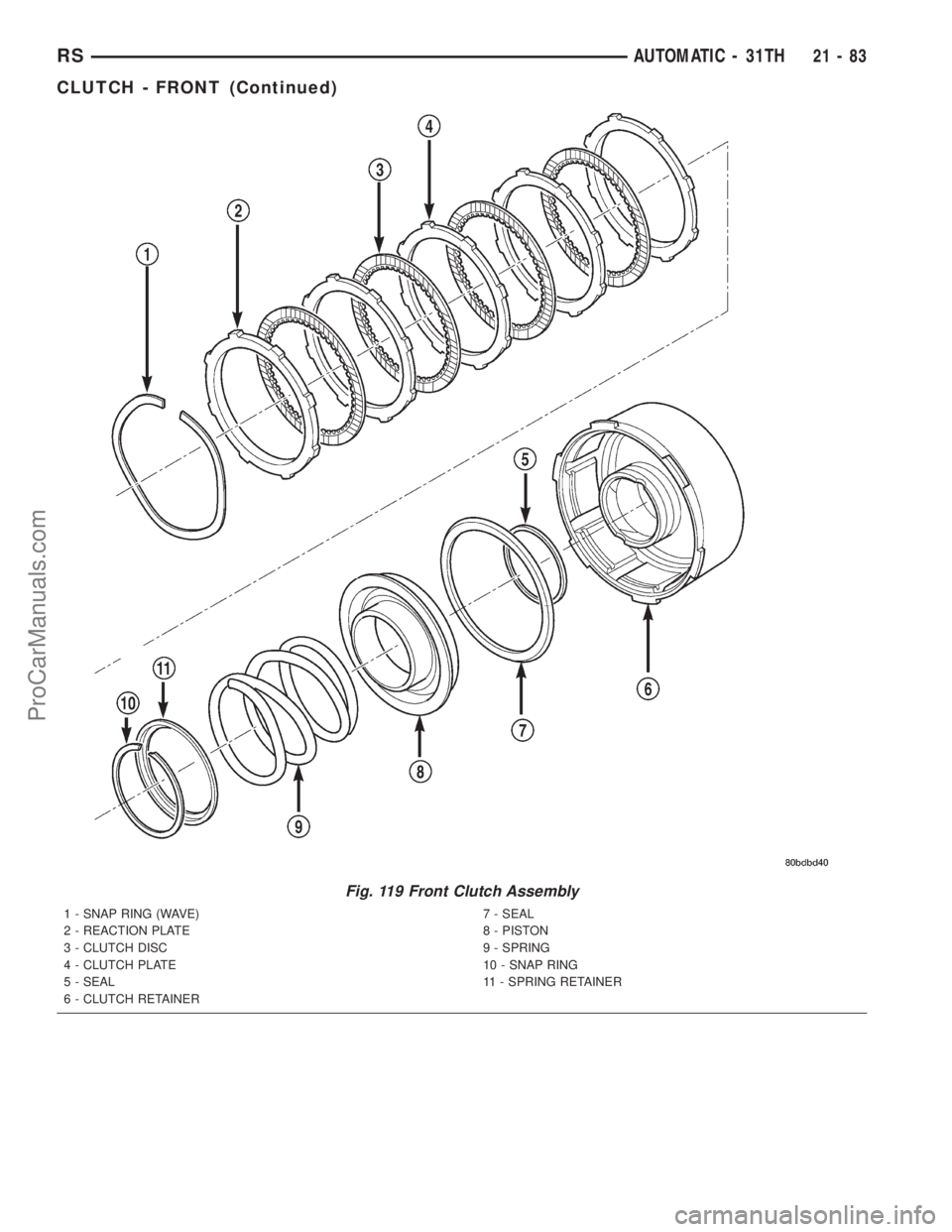

DODGE TOWN AND COUNTRY 2001 Service Manual Fig. 119 Front Clutch Assembly
1 - SNAP RING (WAVE)
2 - REACTION PLATE
3 - CLUTCH DISC
4 - CLUTCH PLATE
5 - SEAL
6 - CLUTCH RETAINER7 - SEAL
8 - PISTON
9 - SPRING
10 - SNAP RING
11 - SPRING RETAINER
R

Page 1581 of 2321

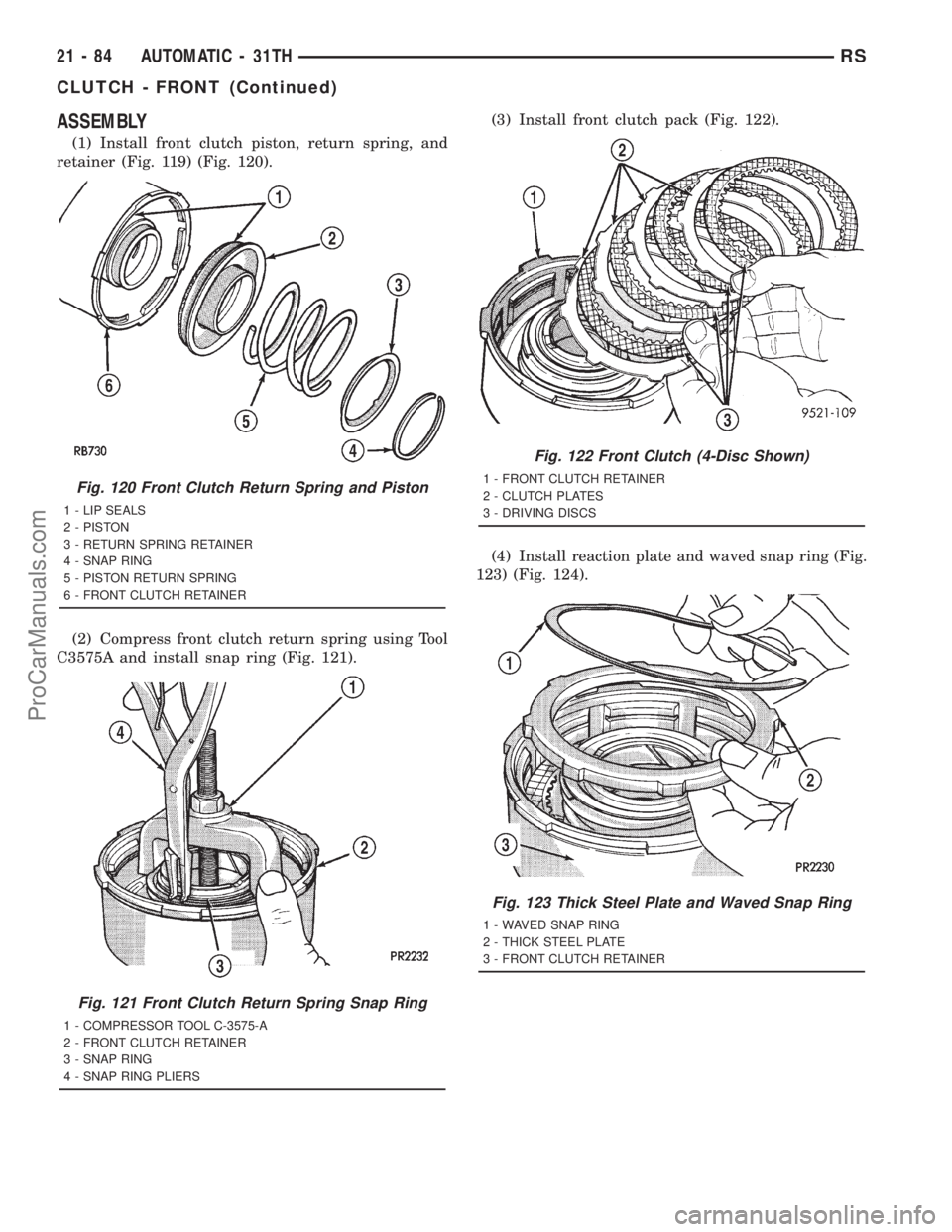

DODGE TOWN AND COUNTRY 2001 Service Manual ASSEMBLY
(1) Install front clutch piston, return spring, and
retainer (Fig. 119) (Fig. 120).
(2) Compress front clutch return spring using Tool
C3575A and install snap ring (Fig. 121).(3) Install fron

Page 1582 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual (5) Using feeler gauge, measure front clutch clear-
ance (Fig. 125).Front clutch clearance should be
within 1.27-2.79 mm (0.050-0.110 in.) and is not
adjustable.
CLUTCH - REAR
DESCRIPTION
The rear clu

(5) Using feeler gauge, measure front clutch clear-
ance (Fig. 125).Front clutch clearance should be
within 1.27-2.79 mm (0.050-0.110 in.) and is not
adjustable.
CLUTCH - REAR
DESCRIPTION
The rear clutch assembly (Fig. 132) is composed of
the input shaft, rear clutch retainer, pressure plate,
clutch plates, driving discs, piston, Belleville spring,
and snap-rings. The Belleville spring acts as a lever
to multiply the force applied on to it by the apply pis-
ton. The increased apply force on the rear clutch
pack, in comparison to the front clutch pack, is
needed to hold against the greater torque load
imposed onto the rear pack. The rear clutch is
directly behind the front clutch and is considered a
driving component.
NOTE: The number of discs and plates may vary
with each engine and vehicle combination.
OPERATION
To apply the clutch, pressure is applied between
the clutch retainer and piston. The fluid pressure is
provided by the oil pump, transferred through the
control valves and passageways, and enters the
clutch through the hub of the reaction shaft support.
With pressure applied between the clutch retainer
and piston, the piston moves away from the clutch
retainer and compresses the clutch pack. This action
applies the clutch pack, allowing torque to flow
through the input shaft into the driving discs, and
into the clutch plates and pressure plate that are
lugged to the clutch retainer. The waved snap-ring is
used to cushion the application of the clutch pack. In
some transmissions, the snap-ring is selective and
used to adjust clutch pack clearance.
When pressure is released from the piston, the
spring returns the piston to its fully released position
and disengages the clutch. The release spring also
helps to cushion the application of the clutch assem-
bly. When the clutch is in the process of being
released by the release spring, fluid flows through a
vent and one-way ball-check-valve located in the
clutch retainer. The check-valve is needed to elimi-
nate the possibility of plate drag caused by centrifu-
gal force acting on the residual fluid trapped in the
clutch piston retainer.
Fig. 124 Front Clutch Waved Snap Ring
1 - WAVED SNAP RING
2 - SCREWDRIVER
3 - FRONT CLUTCH ASSEMBLY
Fig. 125 Measuring Front Clutch Plate Clearance
1 - FEELER GAUGE
2 - FRONT CLUTCH ASSEMBLY
RSAUTOMATIC - 31TH21-85
CLUTCH - FRONT (Continued)
ProCarManuals.com

Page 1583 of 2321

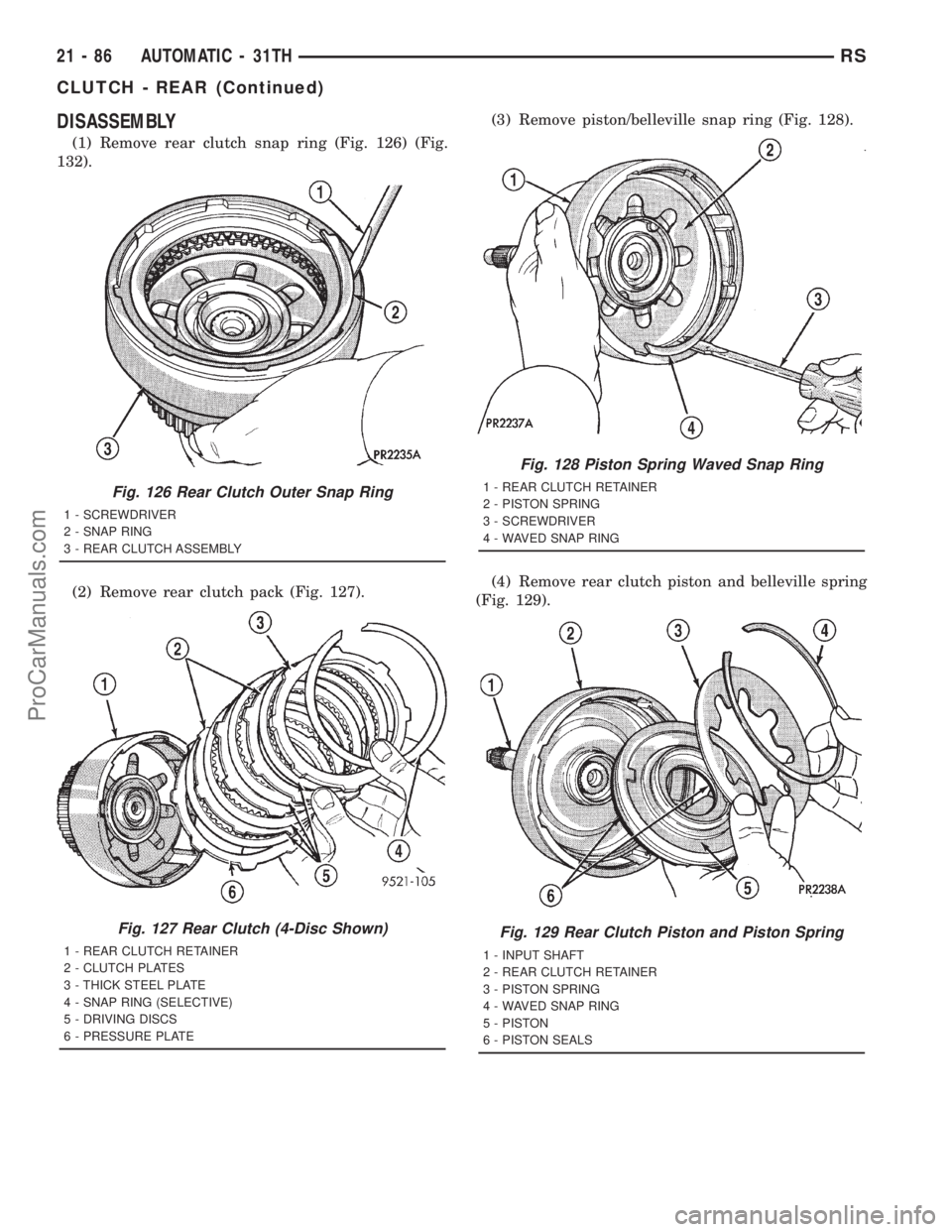

DODGE TOWN AND COUNTRY 2001 Service Manual DISASSEMBLY
(1) Remove rear clutch snap ring (Fig. 126) (Fig.
132).
(2) Remove rear clutch pack (Fig. 127).(3) Remove piston/belleville snap ring (Fig. 128).
(4) Remove rear clutch piston and bellevil

Page 1584 of 2321

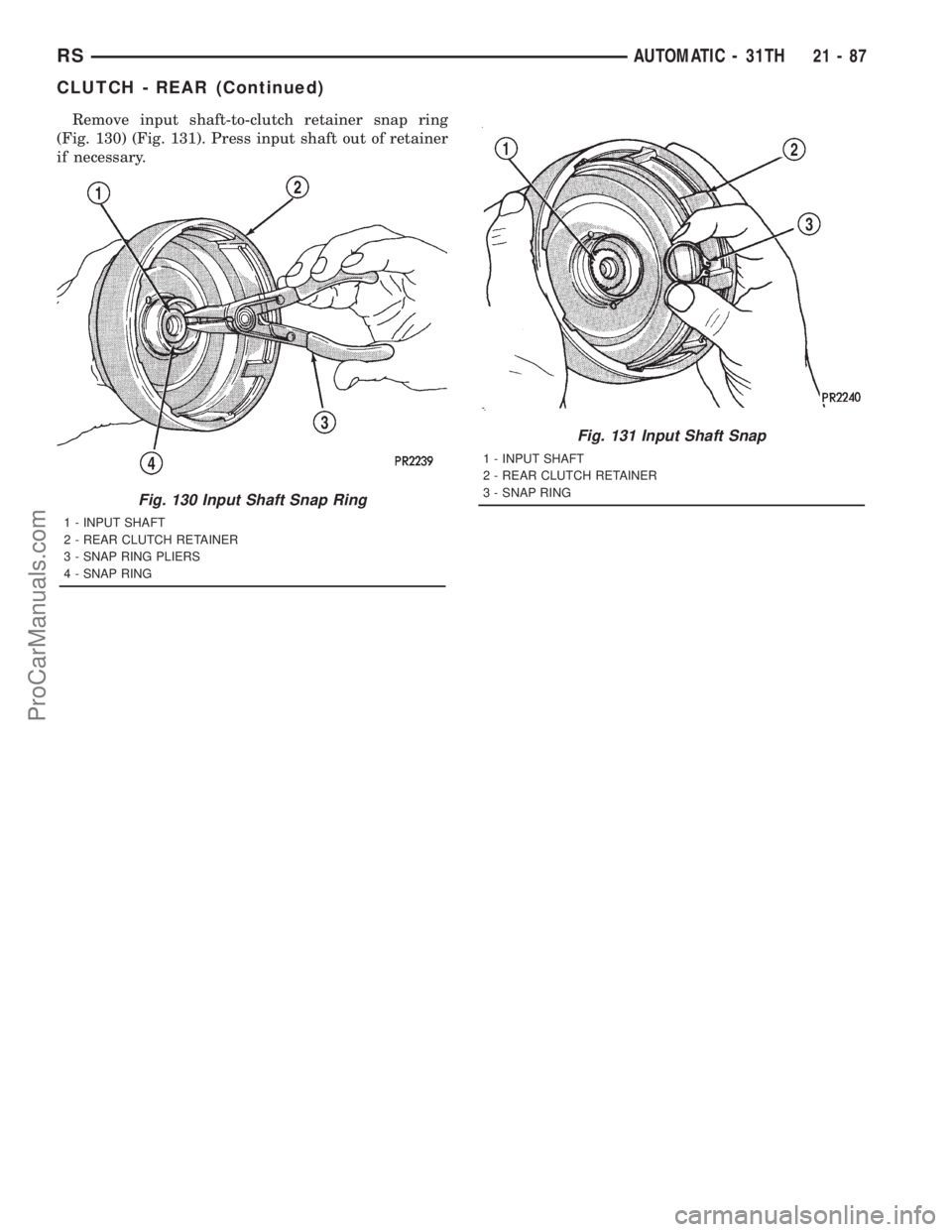

DODGE TOWN AND COUNTRY 2001 Service Manual Remove input shaft-to-clutch retainer snap ring
(Fig. 130) (Fig. 131). Press input shaft out of retainer
if necessary.
Fig. 130 Input Shaft Snap Ring
1 - INPUT SHAFT
2 - REAR CLUTCH RETAINER
3 - SNAP
