Page 1057 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual MASS AIR FLOW SENSOR (DIESEL) - ORANGE 5 WAY CAV CIRCUIT FUNCTION 1- - 2 K342 16BR/WT ECM/PCM RELAY OUTPUT 3 K957 20BK/OR MASS AIR FLOW SENSOR GROUND 4 F855 20PK/YL SENSOR REFERENCE VOLTAGE A 5 K55 20

Page 1058 of 2321

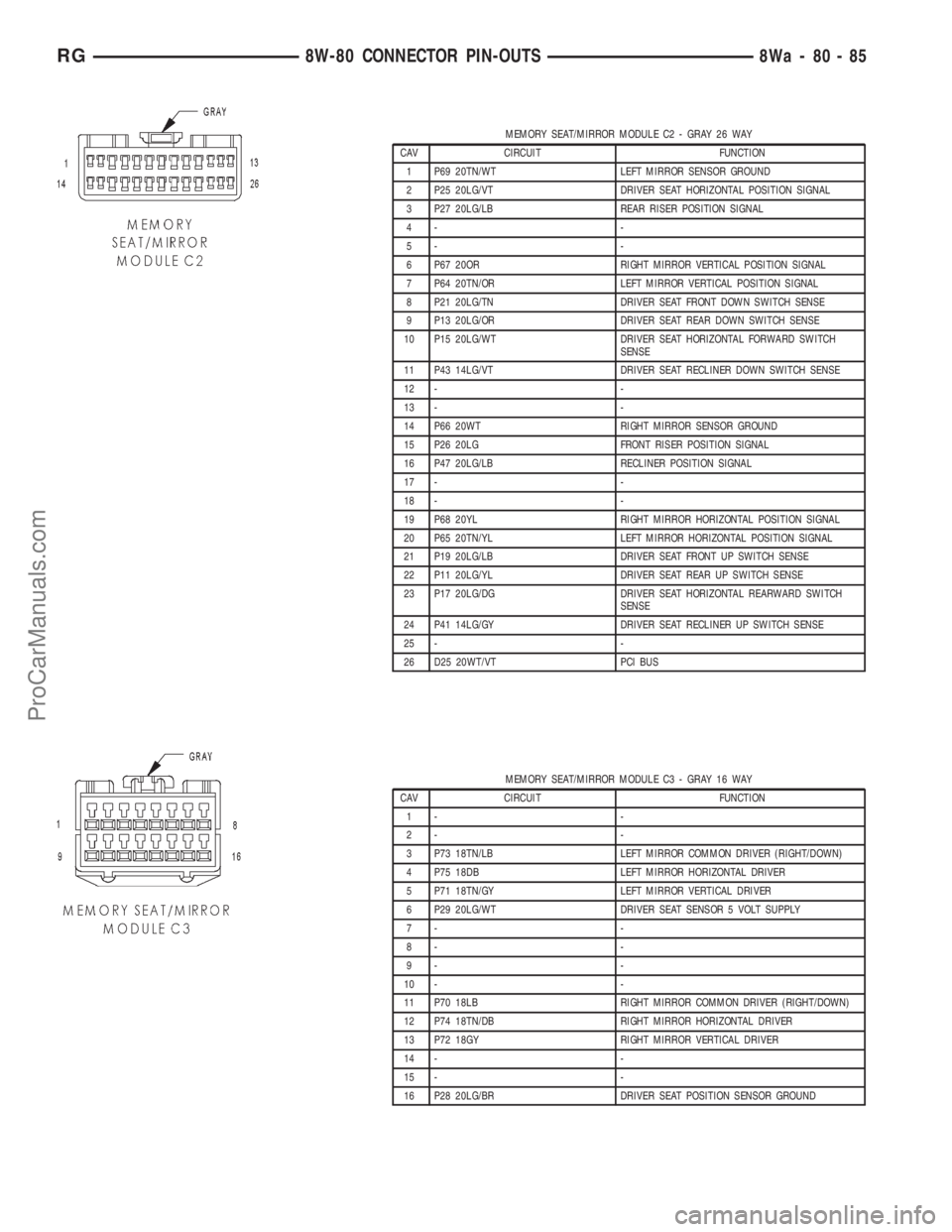

DODGE TOWN AND COUNTRY 2001 Service Manual MEMORY SEAT/MIRROR MODULE C2 - GRAY 26 WAY CAV CIRCUIT FUNCTION 1 P69 20TN/WT LEFT MIRROR SENSOR GROUND 2 P25 20LG/VT DRIVER SEAT HORIZONTAL POSITION SIGNAL 3 P27 20LG/LB REAR RISER POSITION SIGNAL 4-

Page 1059 of 2321

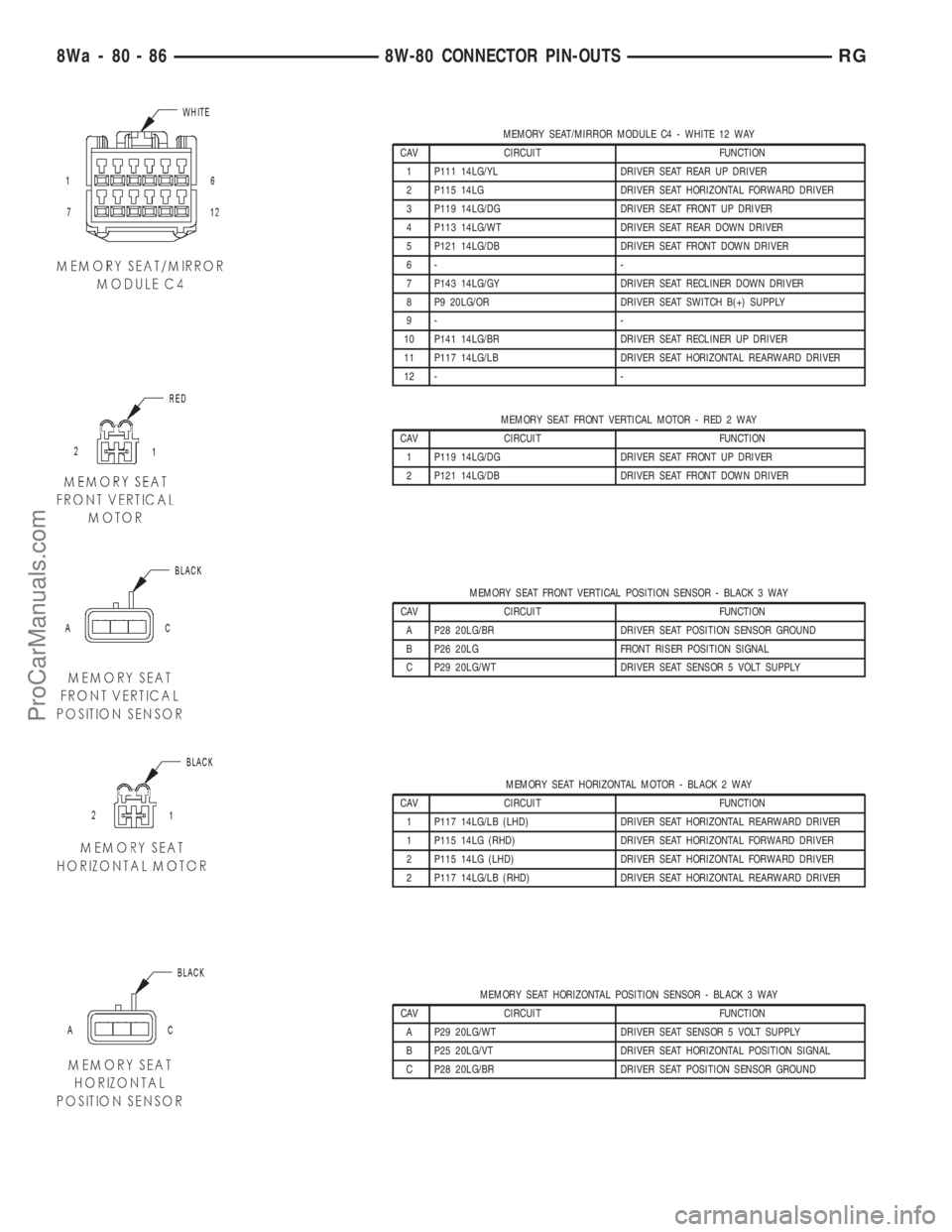

DODGE TOWN AND COUNTRY 2001 Service Manual MEMORY SEAT/MIRROR MODULE C4 - WHITE 12 WAY CAV CIRCUIT FUNCTION 1 P111 14LG/YL DRIVER SEAT REAR UP DRIVER 2 P115 14LG DRIVER SEAT HORIZONTAL FORWARD DRIVER 3 P119 14LG/DG DRIVER SEAT FRONT UP DRIVER

Page 1060 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual MEMORY SEAT REAR VERTICAL MOTOR - RED 2 WAY CAV CIRCUIT FUNCTION 1 P111 14LG/YL DRIVER SEAT REAR UP DRIVER 2 P113 14LG/WT DRIVER SEAT REAR DOWN DRIVER MEMORY SEAT REAR VERTICAL POSITION SENSOR - BLACK

Page 1061 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual MESSAGE CENTER (HIGH LINE) - WHITE 14 WAY CAV CIRCUIT FUNCTION 1 L160 20WT/TN (LHD) RIGHT TURN INDICATOR DRIVER 2 G3 20VT/LB (LHD) MALFUNCTION INDICATOR LAMP DRIVER 3 L134 20WT/GY (RHD) HIGH BEAM INDI

Page 1062 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual OCCUPANT RESTRAINT CONTROLLER - YELLOW/RED 23 WAY CAV CIRCUIT FUNCTION 1 R54 18LB/YL PASSENGER SEAT BELT TENSIONER LINE 2 2 R56 18LB/DG PASSENGER SEAT BELT TENSIONER LINE 1 3 R62 18LB/VT PASSENGER SQU

Page 1063 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual OXYGEN SENSOR 1/1 UPSTREAM (GAS) - BLACK 4 WAY CAV CIRCUIT FUNCTION 1 K99 18BR/LG OXYGEN SENSOR 1/1 HEATER CONTROL 2 K342 16BR/WT AUTOMATIC SHUTDOWN RELAY OUTPUT 3 K902 18BR/DG OXYGEN SENSOR 1/1 GROUN

Page 1064 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual PASSENGER BLEND DOOR ACTUATOR (MTC) - GRAY 2 WAY CAV CIRCUIT FUNCTION 1 C34 20DB/LB (LHD) COMMON DOOR DRIVER (B) 1 C33 20LB/BR (RHD) PASSENGER BLEND DOOR DRIVER (A) 2 C33 20LB/BR (LHD) PASSENGER BLEND
