Page 1833 of 2321

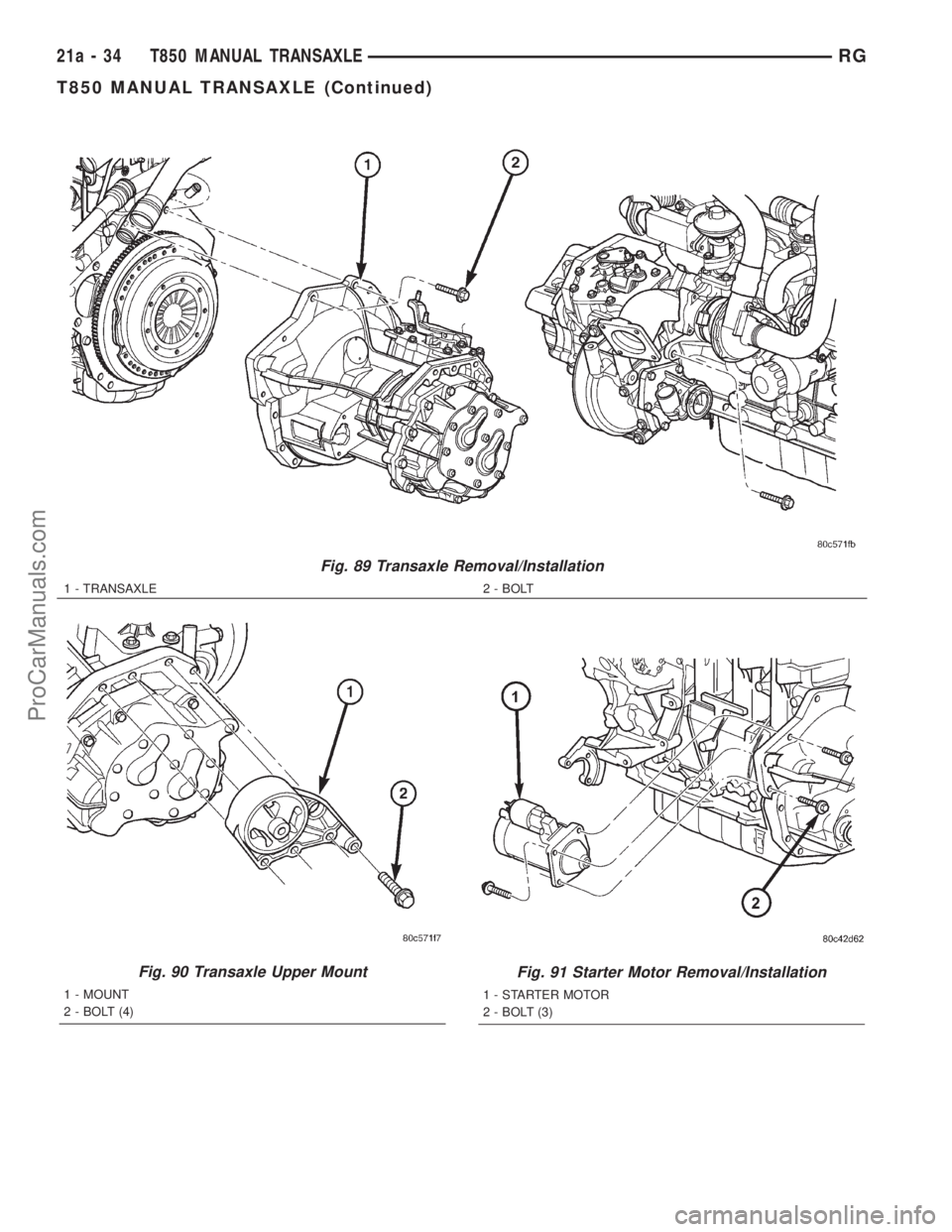

DODGE TOWN AND COUNTRY 2001 Service Manual Fig. 89 Transaxle Removal/Installation 1 - TRANSAXLE 2 - BOLT Fig. 90 Transaxle Upper Mount 1 - MOUNT 2 - BOLT (4) Fig. 91 Starter Motor Removal/Installation 1 - STARTER MOTOR 2 - BOLT (3) 21a - 34 T8

Page 1834 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual (8) Install engine front mount bracket. Install and torque bracket-to-transaxle bolts to 102 N´m (75 ft. lbs.). Install and torque bracket-to-engine bolts to 68 N´m (50 ft. lbs.). Torque through-bol

Page 1835 of 2321

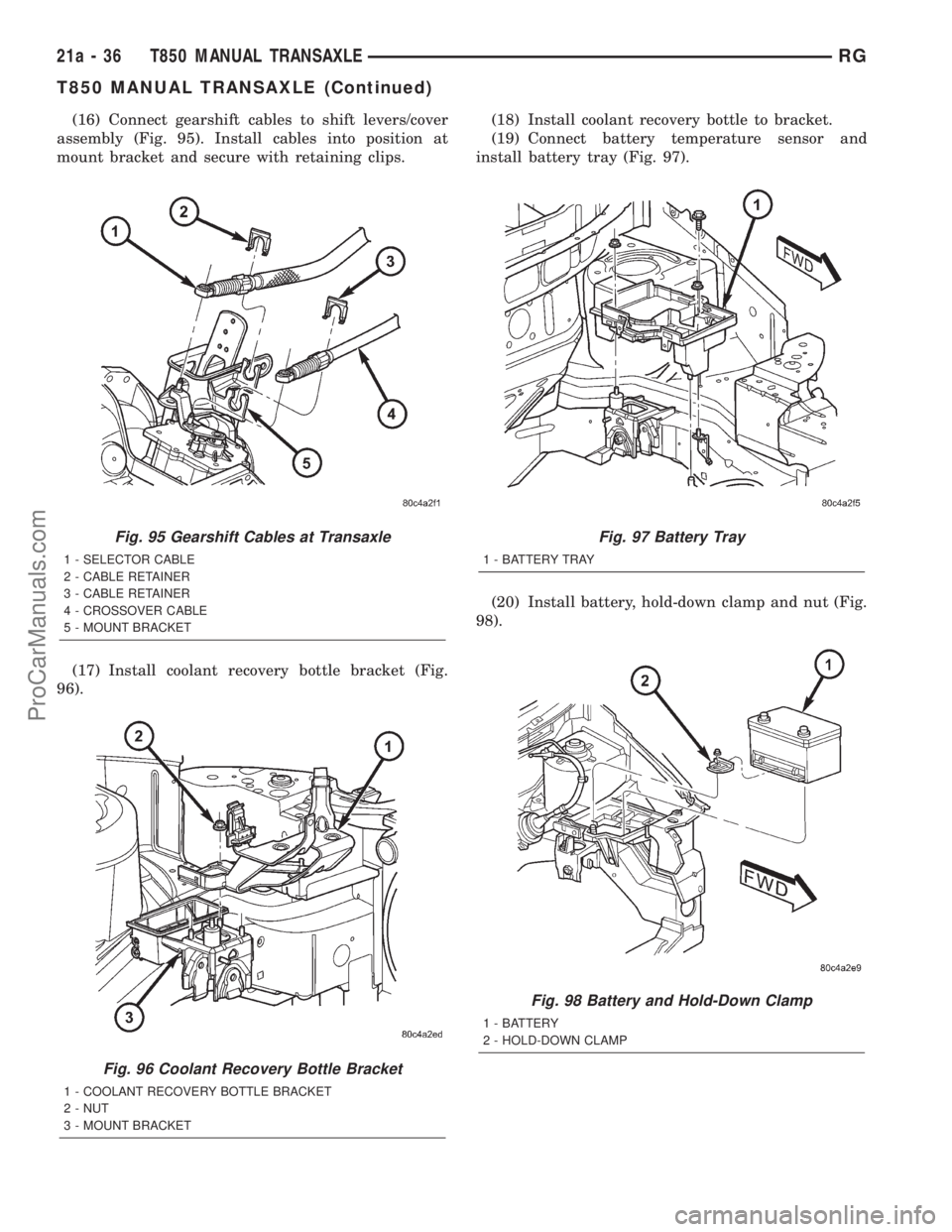

DODGE TOWN AND COUNTRY 2001 Service Manual (16) Connect gearshift cables to shift levers/cover assembly (Fig. 95). Install cables into position at mount bracket and secure with retaining clips. (17) Install coolant recovery bottle bracket (Fig

Page 1836 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual (21) Install battery thermal shield and clutch cable eyelet (LHD only) (Fig. 99). Verify proper clutch cable routing (LHD models). Cable should be routed over guide, through eyelet, and around coolant

Page 1837 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual INPUT SHAFT BLOCKER RING WEAR GAP 3rd Gear 0.856-1.539 mm (0.0338-0.0606 in.) 4th Gear 0.762-1.631 mm (0.030-0.064 in.) GEAR END PLAY 3rd Gear 0.099-0.505 mm (0.004-0.020 in.) 4th Gear 0.048-0.457 mm

Page 1838 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual SPECIAL TOOLS SPECIAL TOOLS - T850 TRANSAXLE Bearing Splitter, P-334 Slide Hammer, C-3752 Universal Handle, C-4171 Torque Tool, C-4995 Puller Set, 5048 Disconnect Tool, 6638A Remover/Installer, 6891 R

Page 1839 of 2321

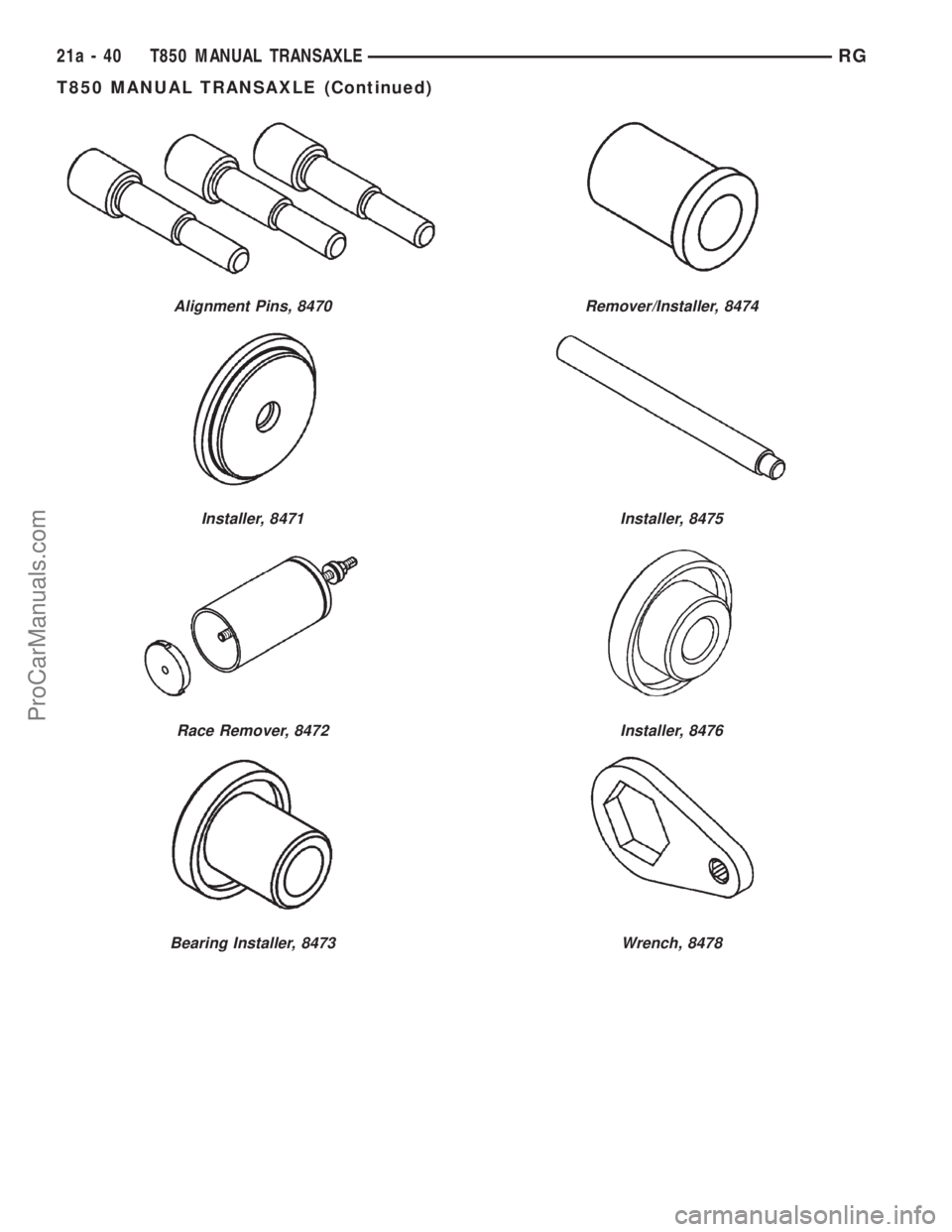

DODGE TOWN AND COUNTRY 2001 Service Manual Alignment Pins, 8470 Installer, 8471 Race Remover, 8472 Bearing Installer, 8473 Remover/Installer, 8474 Installer, 8475 Installer, 8476 Wrench, 8478 21a - 40 T850 MANUAL TRANSAXLERG T850 MANUAL TRANSA

Page 1840 of 2321

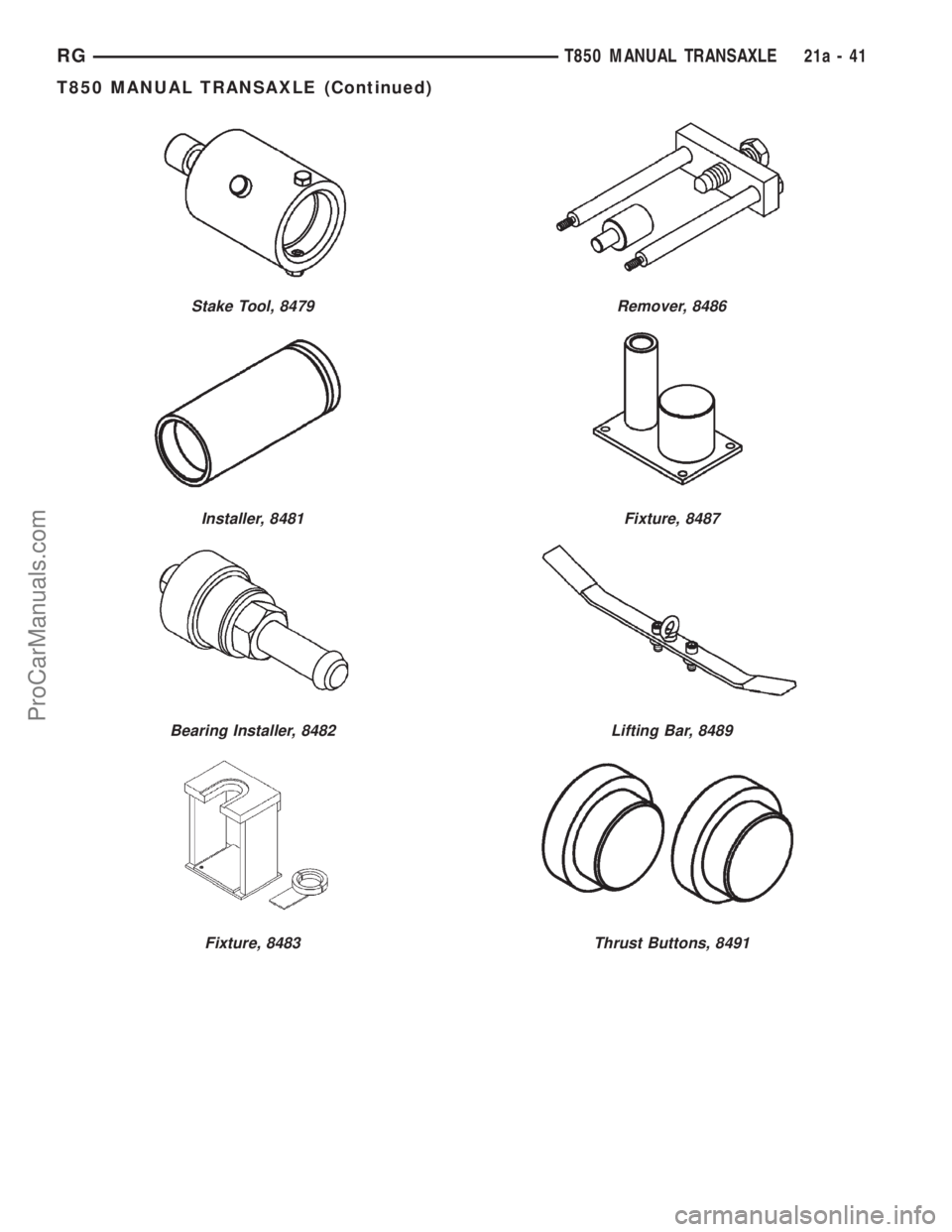

DODGE TOWN AND COUNTRY 2001 Service Manual Stake Tool, 8479 Installer, 8481 Bearing Installer, 8482 Fixture, 8483 Remover, 8486 Fixture, 8487 Lifting Bar, 8489 Thrust Buttons, 8491 RGT850 MANUAL TRANSAXLE21a-41 T850 MANUAL TRANSAXLE (Continued
