Page 1681 of 2321

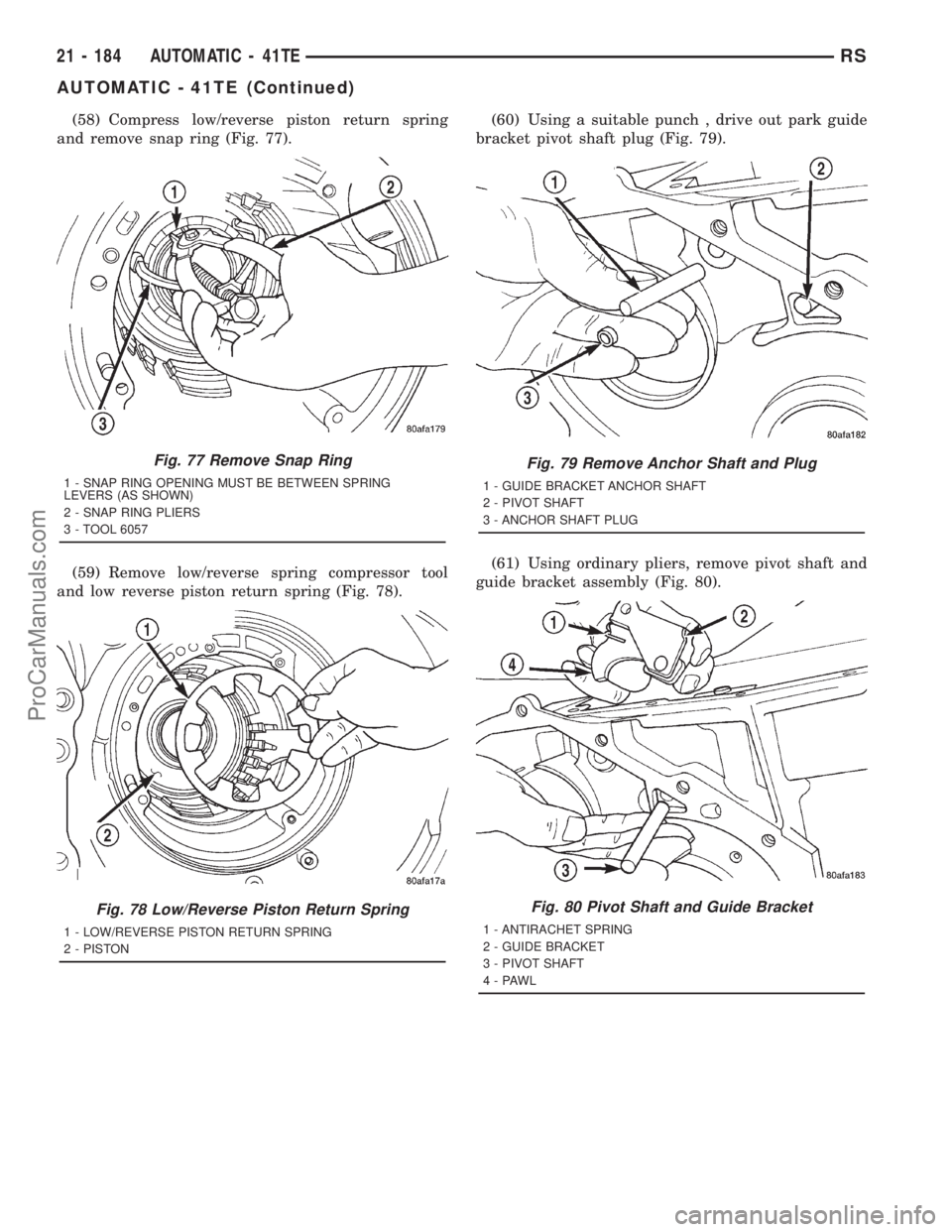

DODGE TOWN AND COUNTRY 2001 Service Manual (58) Compress low/reverse piston return spring and remove snap ring (Fig. 77). (59) Remove low/reverse spring compressor tool and low reverse piston return spring (Fig. 78).(60) Using a suitable punch

Page 1682 of 2321

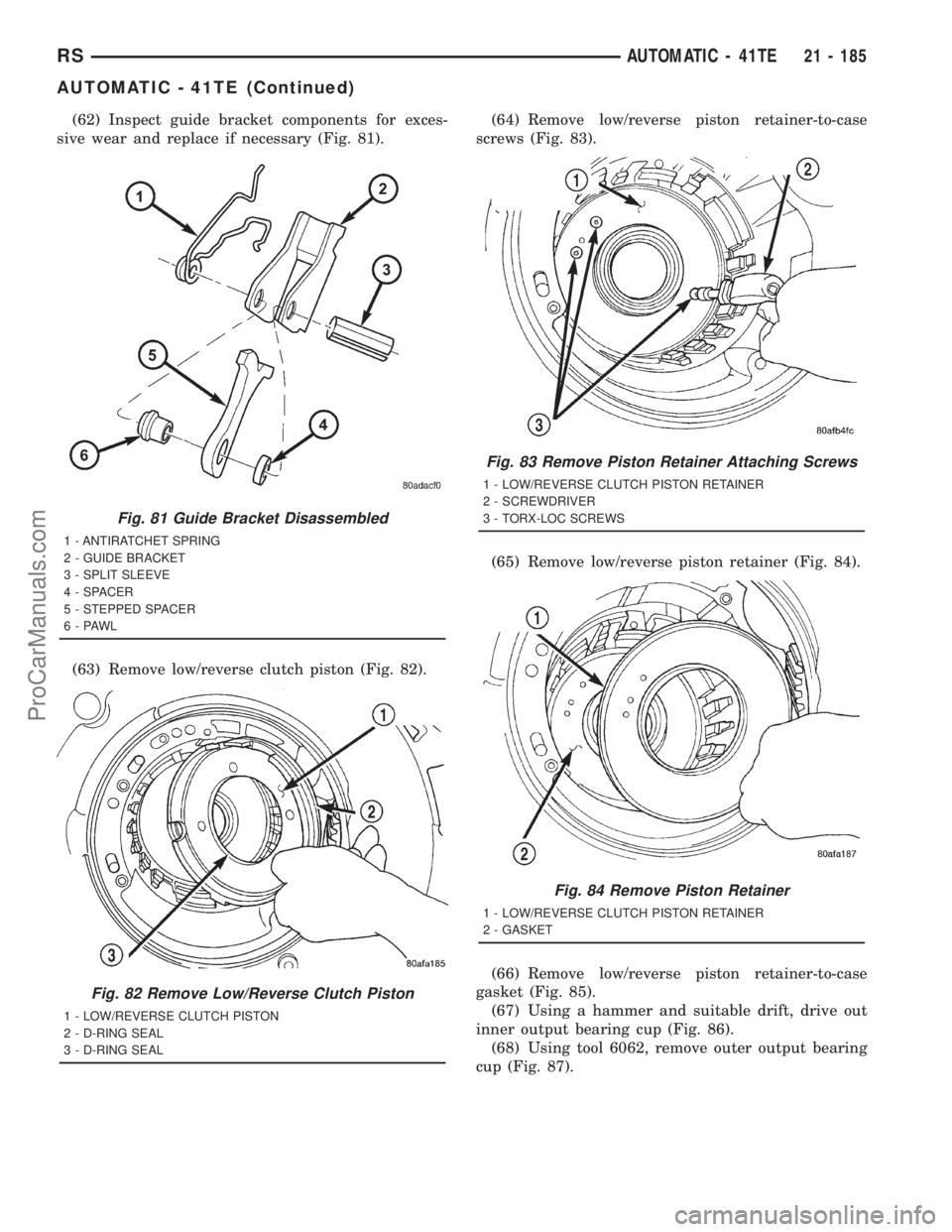

DODGE TOWN AND COUNTRY 2001 Service Manual (62) Inspect guide bracket components for exces- sive wear and replace if necessary (Fig. 81). (63) Remove low/reverse clutch piston (Fig. 82).(64) Remove low/reverse piston retainer-to-case screws (F

Page 1683 of 2321

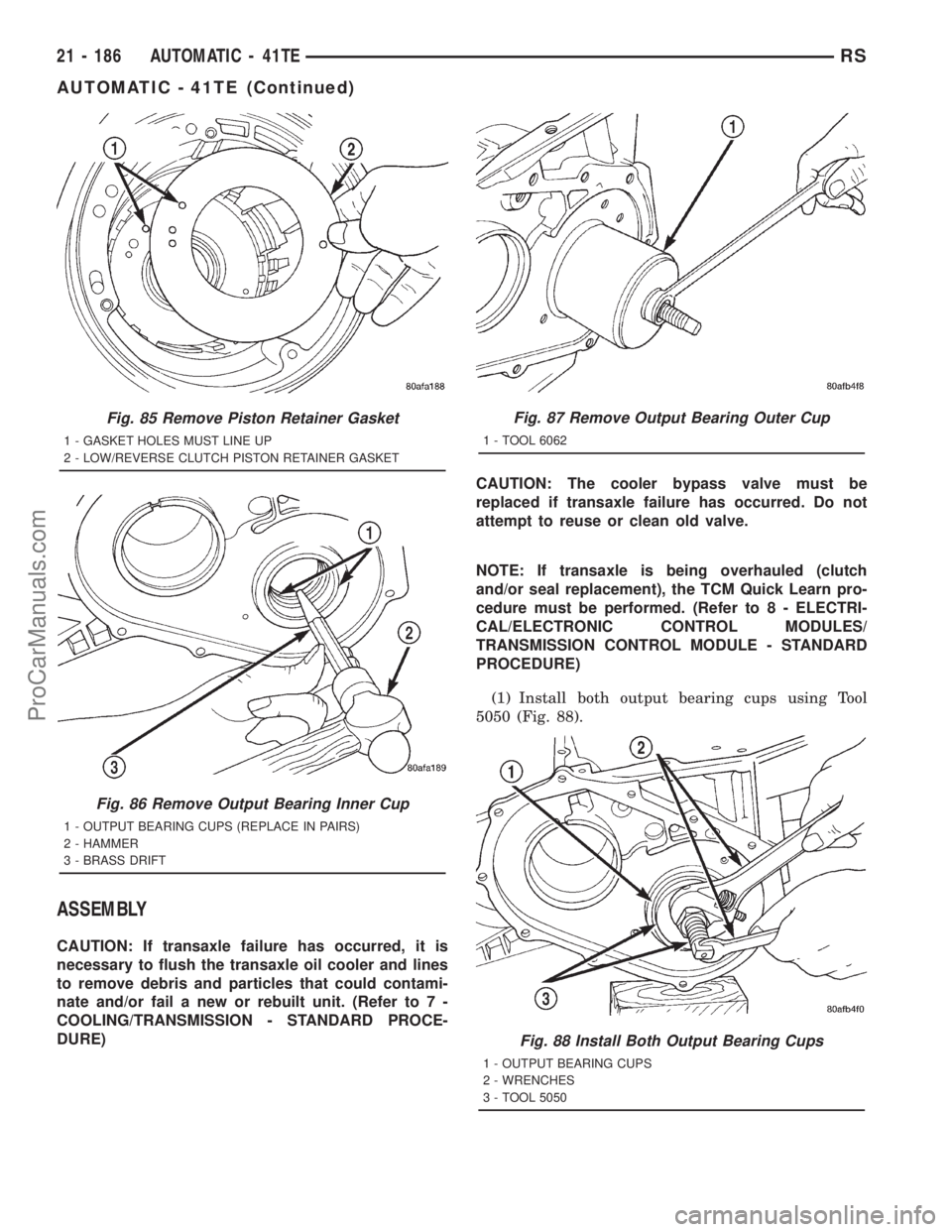

DODGE TOWN AND COUNTRY 2001 Service Manual ASSEMBLY CAUTION: If transaxle failure has occurred, it is necessary to flush the transaxle oil cooler and lines to remove debris and particles that could contami- nate and/or fail a new or rebuilt un

Page 1684 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual (2) Install low/reverse piston retainer gasket (Fig. 89). Make sure gasket holes line up with case. (3) Install low/reverse piston retainer (Fig. 90).(4) Install low/reverse piston retainer-to-case bo

Page 1685 of 2321

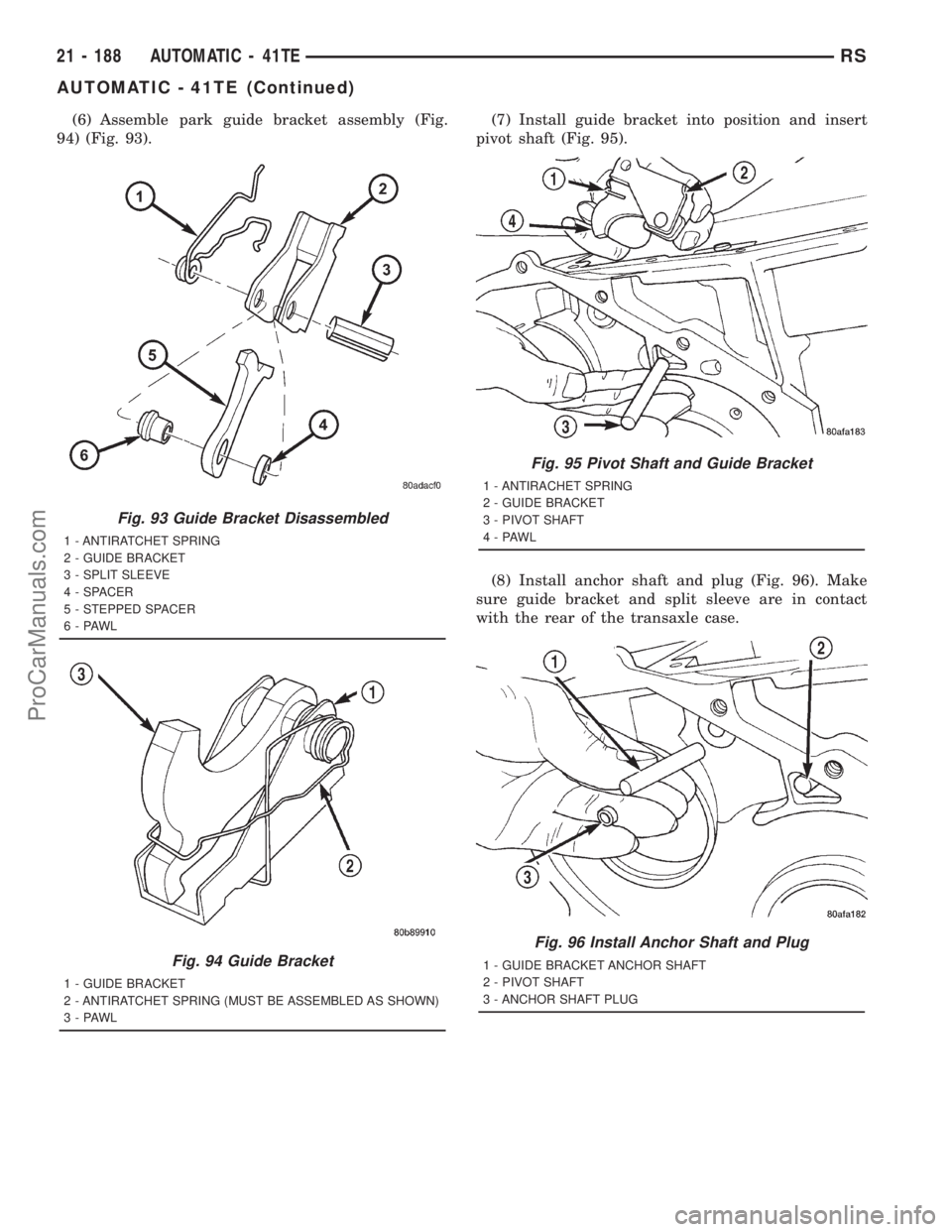

DODGE TOWN AND COUNTRY 2001 Service Manual (6) Assemble park guide bracket assembly (Fig. 94) (Fig. 93).(7) Install guide bracket into position and insert pivot shaft (Fig. 95). (8) Install anchor shaft and plug (Fig. 96). Make sure guide brac

Page 1686 of 2321

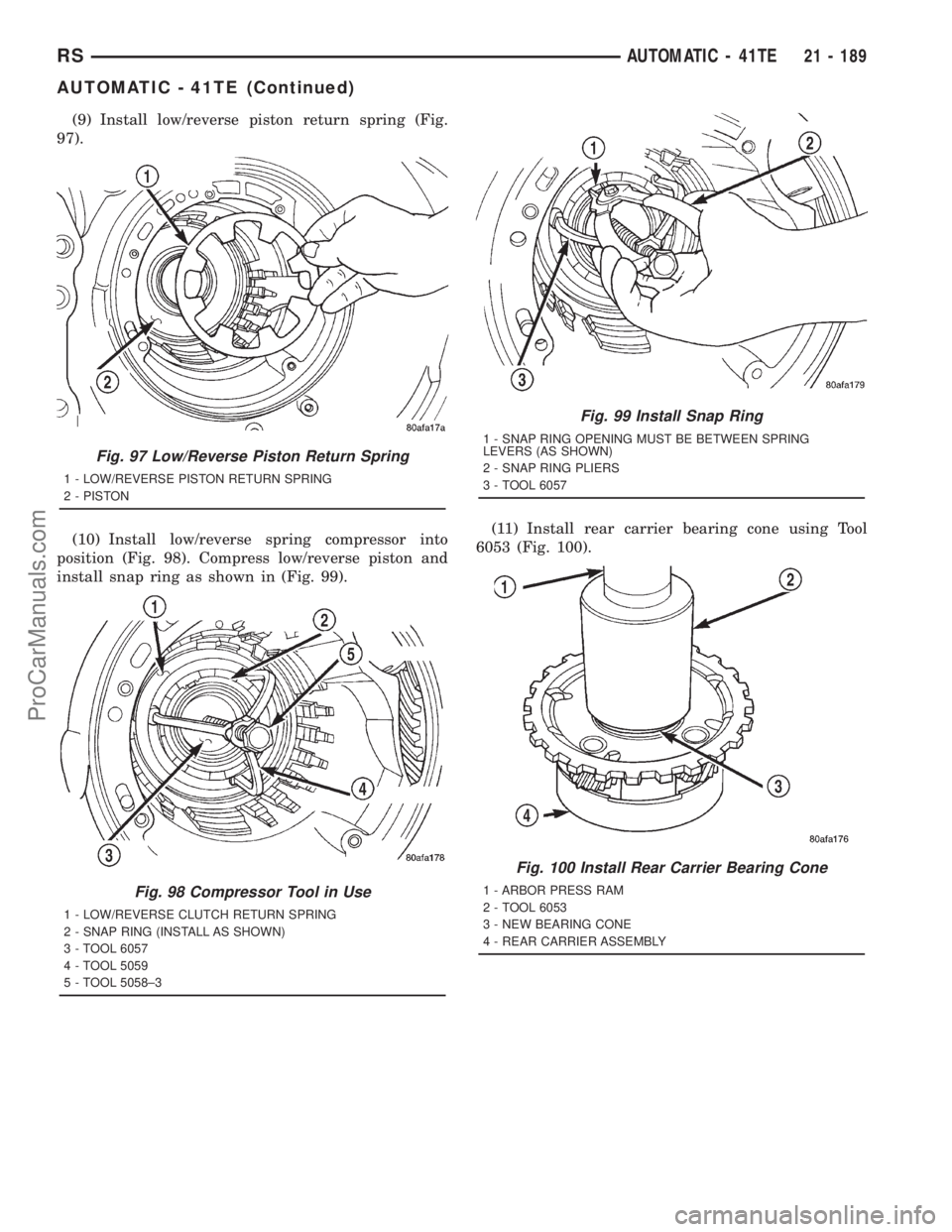

DODGE TOWN AND COUNTRY 2001 Service Manual (9) Install low/reverse piston return spring (Fig. 97). (10) Install low/reverse spring compressor into position (Fig. 98). Compress low/reverse piston and install snap ring as shown in (Fig. 99).(11)

Page 1687 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual (12) Install rear carrier assembly to transaxle case (Fig. 101). (13) Install output gear bearing cone using Tool 5052 (Fig. 102). (14)OUTPUT GEAR BEARING ADJUST- MENT: (a) With output gear removed, i

Page 1688 of 2321

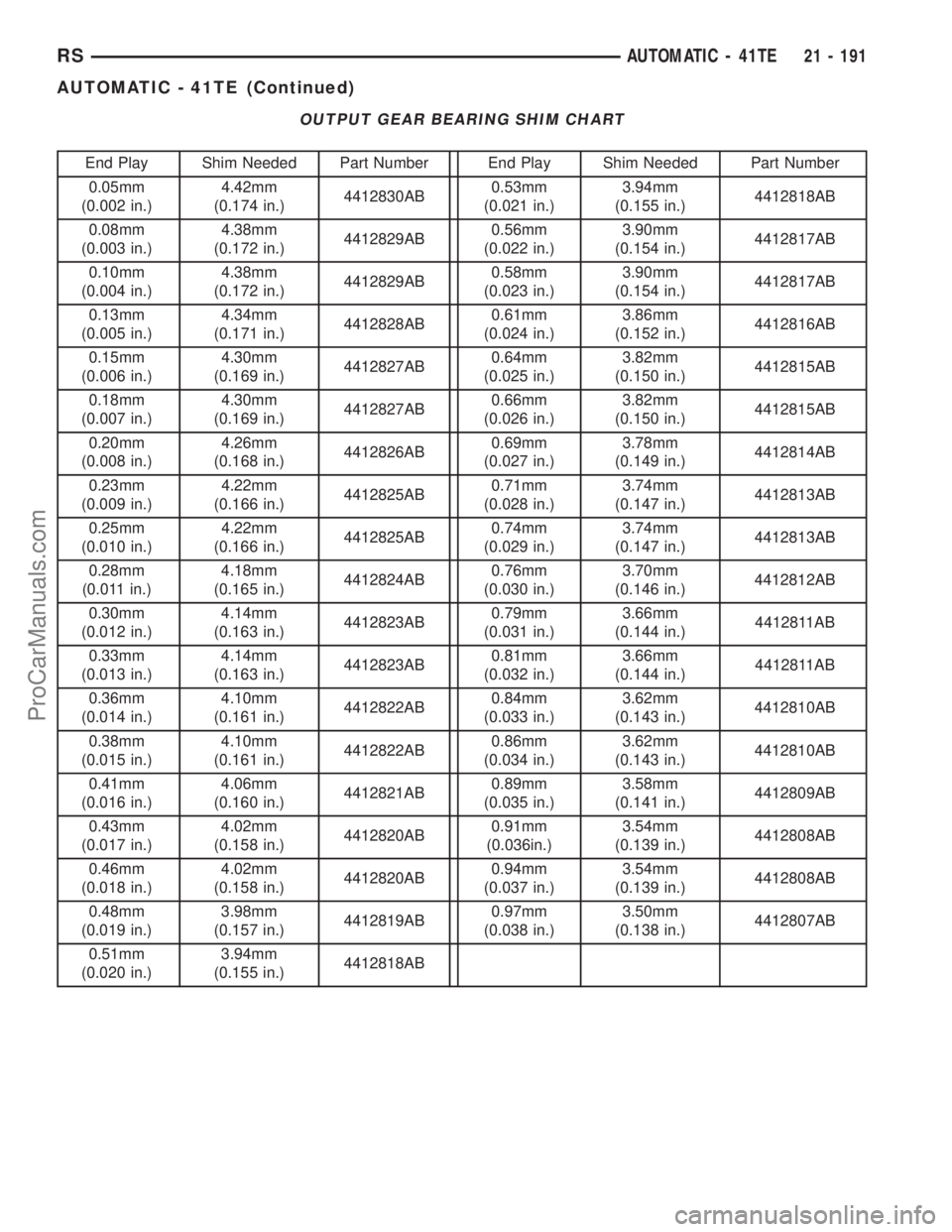

DODGE TOWN AND COUNTRY 2001 Service Manual OUTPUT GEAR BEARING SHIM CHART End Play Shim Needed Part Number End Play Shim Needed Part Number 0.05mm (0.002 in.)4.42mm (0.174 in.)4412830AB0.53mm (0.021 in.)3.94mm (0.155 in.)4412818AB 0.08mm (0.00
