DODGE TOWN AND COUNTRY 2001 Service Manual Fig. 27 LEFT SIDE BODY LHD 8Wa - 90 - 34 8W-90 CONNECTOR/GROUND LOCATIONS BUXRG CONNECTOR/GROUND LOCATIONS BUX (Continued) ProCarManuals.com

Page 1130 of 2321

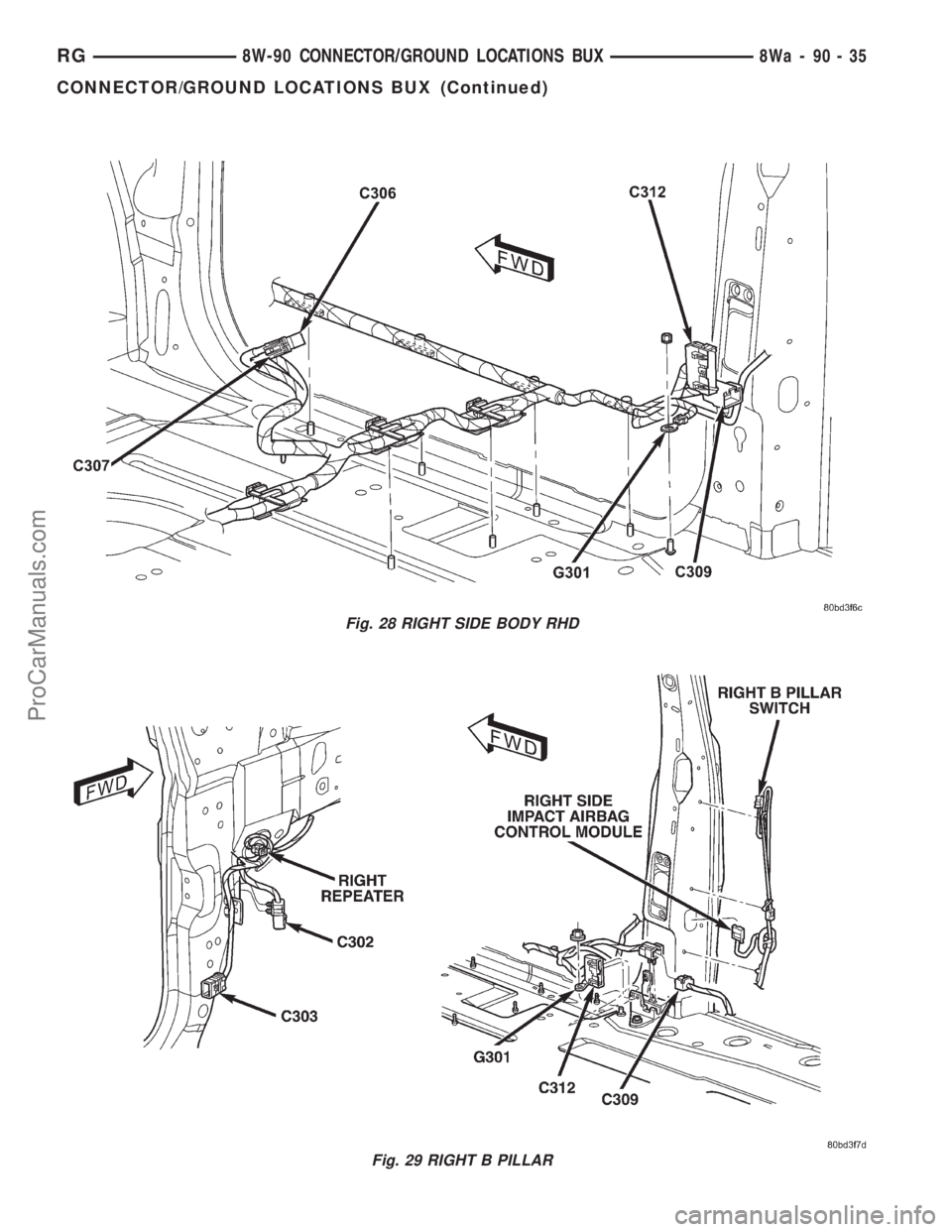

DODGE TOWN AND COUNTRY 2001 Service Manual Fig. 28 RIGHT SIDE BODY RHD Fig. 29 RIGHT B PILLAR RG8W-90 CONNECTOR/GROUND LOCATIONS BUX8Wa-90-35 CONNECTOR/GROUND LOCATIONS BUX (Continued) ProCarManuals.com

Page 1131 of 2321

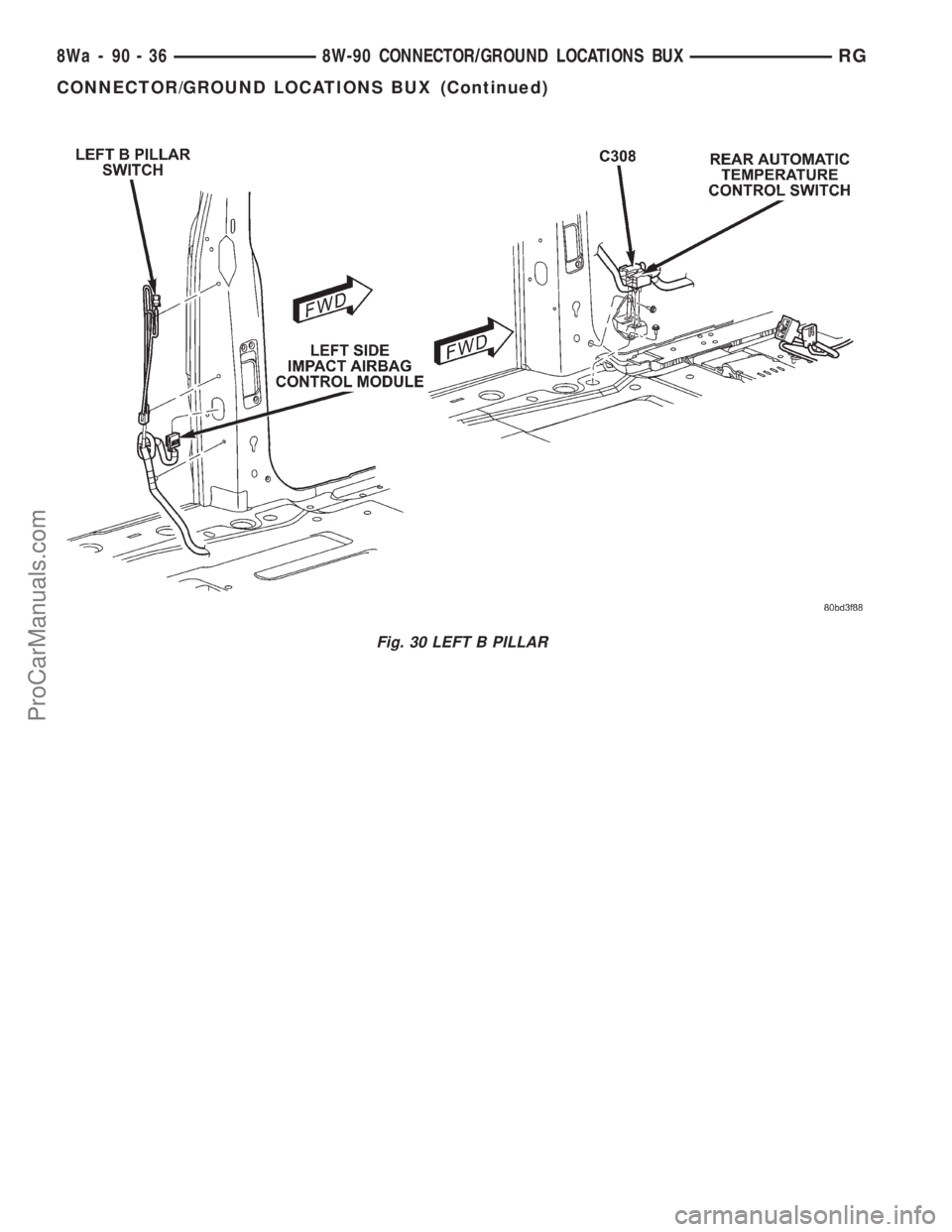

DODGE TOWN AND COUNTRY 2001 Service Manual Fig. 30 LEFT B PILLAR 8Wa - 90 - 36 8W-90 CONNECTOR/GROUND LOCATIONS BUXRG CONNECTOR/GROUND LOCATIONS BUX (Continued) ProCarManuals.com

Page 1132 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual Fig. 31 LEFT SIDE KICK PANEL LHD RG8W-90 CONNECTOR/GROUND LOCATIONS BUX8Wa-90-37 CONNECTOR/GROUND LOCATIONS BUX (Continued) ProCarManuals.com

Page 1133 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual Fig. 32 RIGHT SIDE KICK PANEL RHD 8Wa - 90 - 38 8W-90 CONNECTOR/GROUND LOCATIONS BUXRG CONNECTOR/GROUND LOCATIONS BUX (Continued) ProCarManuals.com

Page 1134 of 2321

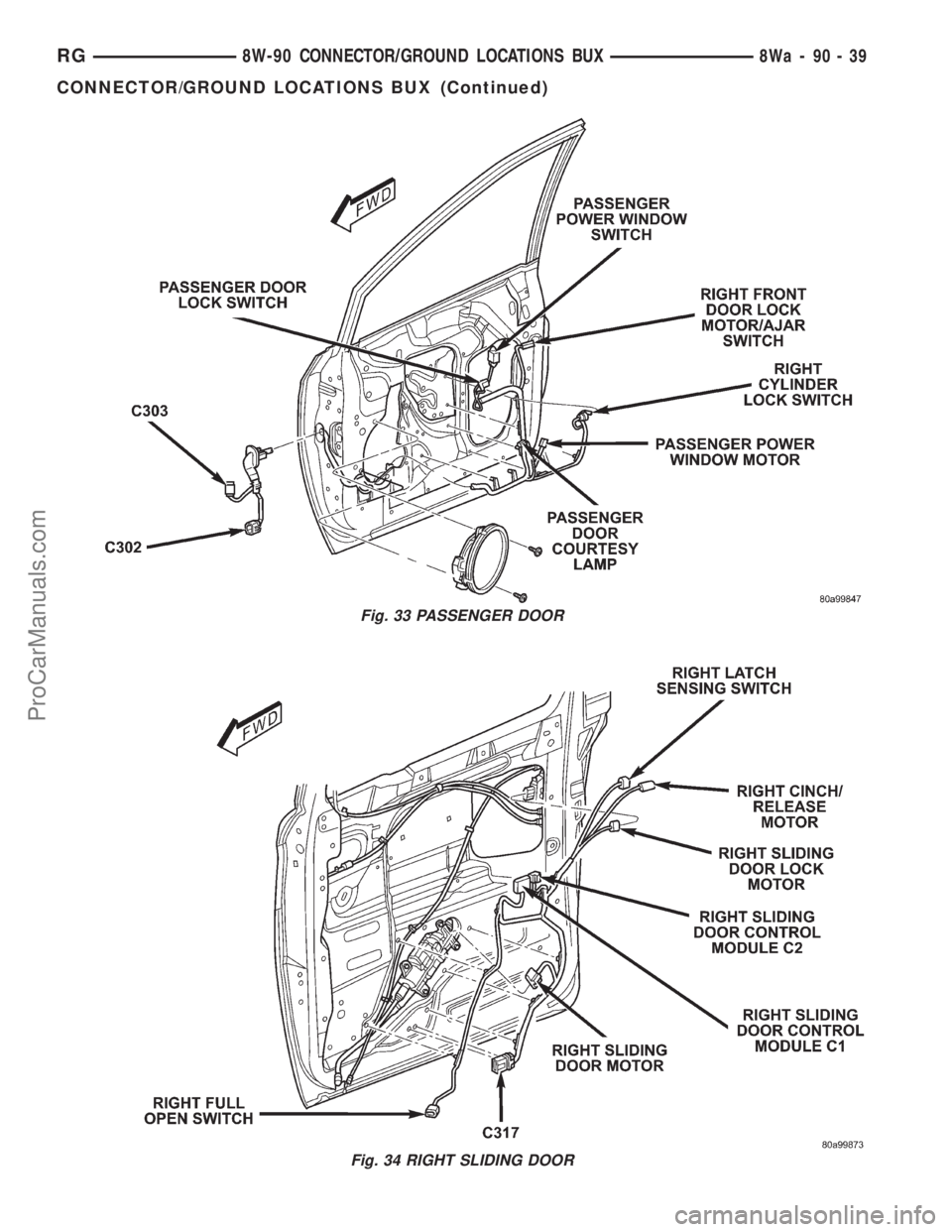

DODGE TOWN AND COUNTRY 2001 Service Manual Fig. 33 PASSENGER DOOR Fig. 34 RIGHT SLIDING DOOR RG8W-90 CONNECTOR/GROUND LOCATIONS BUX8Wa-90-39 CONNECTOR/GROUND LOCATIONS BUX (Continued) ProCarManuals.com

Page 1135 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual Fig. 35 LIFTGATE AND SLIDING DOOR MODULES 8Wa - 90 - 40 8W-90 CONNECTOR/GROUND LOCATIONS BUXRG CONNECTOR/GROUND LOCATIONS BUX (Continued) ProCarManuals.com

Page 1136 of 2321

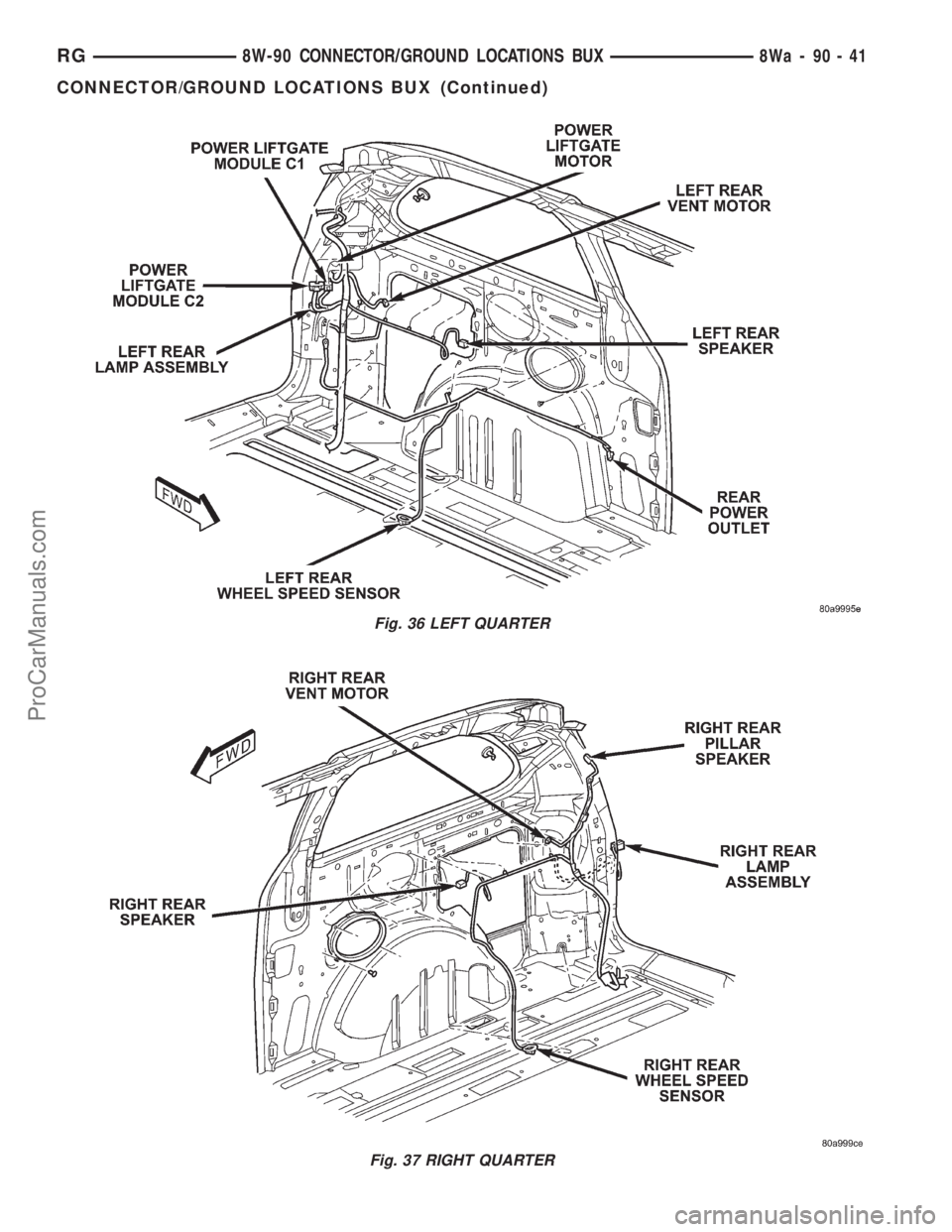

DODGE TOWN AND COUNTRY 2001 Service Manual Fig. 36 LEFT QUARTER Fig. 37 RIGHT QUARTER RG8W-90 CONNECTOR/GROUND LOCATIONS BUX8Wa-90-41 CONNECTOR/GROUND LOCATIONS BUX (Continued) ProCarManuals.com
