2001 DODGE TOWN AND COUNTRY Service Manual

fuse diagrambluetoothjacking pointswinter tyresdead batteryUSB
Popular search:
technical dataglove boxjump cableignitionoil pressuretorqueoil capacity
Previous
Next
Load previous 8 pages

Page 993 of 2321

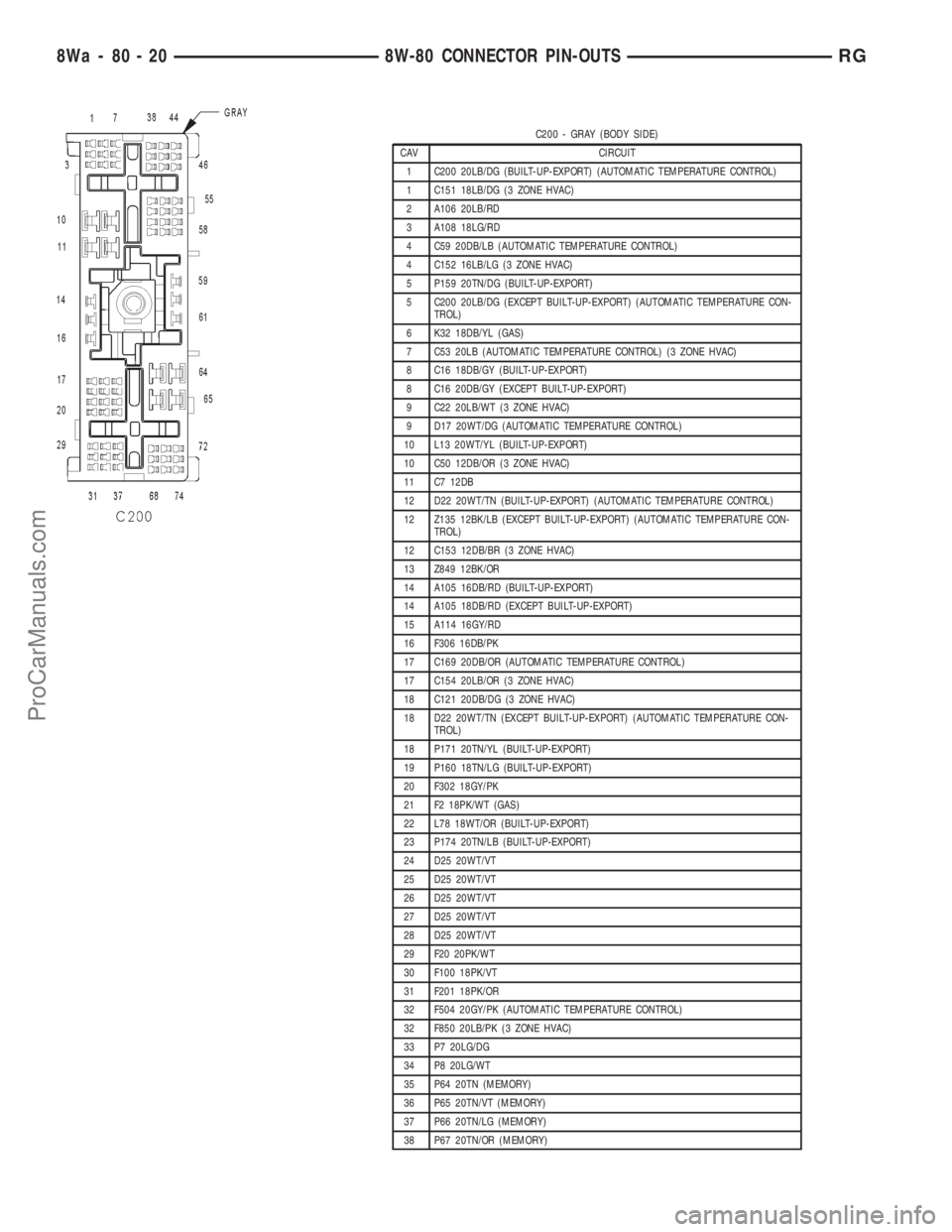

DODGE TOWN AND COUNTRY 2001 Service Manual C200 - GRAY (BODY SIDE) CAV CIRCUIT 1 C200 20LB/DG (BUILT-UP-EXPORT) (AUTOMATIC TEMPERATURE CONTROL) 1 C151 18LB/DG (3 ZONE HVAC) 2 A106 20LB/RD 3 A108 18LG/RD 4 C59 20DB/LB (AUTOMATIC TEMPERATURE CON

Page 994 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual C200 - GRAY (BODY SIDE) CAV CIRCUIT 39 P68 20TN/YL (MEMORY) 40 P69 20TN/WT (MEMORY) 41 P70 18TN/LB (MEMORY) 42 P71 18TN/GY (BUILT-UP-EXPORT) (MEMORY) 42 P71 18TN/DG (EXCEPT BUILT-UP-EXPORT) (MEMORY) 4

Page 995 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual C200 - GRAY (INSTRUMENT PANEL SIDE) CAV CIRCUIT 1 C200 20LB/DG (BUILT-UP-EXPORT) (AUTOMATIC TEMPERATURE CONTROL) 1 C151 18LB/DG (3 ZONE HVAC) 2 A106 20LB/RD 3 A108 18LG/RD 4 C59 20DB/LB (AUTOMATIC TEM

Page 996 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual C200 - GRAY (INSTRUMENT PANEL SIDE) CAV CIRCUIT 41 P70 18TN/LB (MEMORY) 42 P71 18TN/DG (MEMORY) 43 P72 18TN/GY (MEMORY) 44 P73 18TN/VT (MEMORY) 45 P74 18TN/DB (MEMORY) 46 P75 18TN/LG (MEMORY) 47 D23 2

Page 997 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual C201 - YELLOW (BODY SIDE) CAV CIRCUIT 1 R53 18LG/YL 2 R55 18LG/DG 3 R54 18LB/YL 4 R56 18LB/DG C202 - GRAY (INSTRUMENT PANEL SIDE) CAV CIRCUIT 1 Z134 12BK/OR (AUTOMATIC TEMPERA- TURE CONTROL) 2 C34 20D

Page 998 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual C203 (UNITED KINGDOM) - WHITE (BODY SIDE) CAV CIRCUIT 1 D97 18WT/OR 2 D96 18WT/LB 3 A600 18RD/LB 4 G944 18LB/BR C203 (UNITED KINGDOM) - WHITE (INSTRU- MENT PANEL SIDE) CAV CIRCUIT 1 D97 20WT/OR 2 D96

Page 999 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual C300 (RHD) - BLACK (LEFT DOOR SIDE) CAV CIRCUIT 1 G75 20VT 2 Z822 20BK/BR 3 X53 20DG 4 X55 20DG/BR 5 G161 20VT/DG 6 P1 20TN/LG 7 P3 20TN/WT 8 F304 12WT/PK 9- 10 - C300 (RHD) - BLACK (BODY SIDE) CAV CI

Page 1000 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual C301 - LT. GRAY (BODY SIDE) CAV CIRCUIT 1 M21 20YL/BR 2 X13 16DG/GY 3 X15 16GY/DG 4 X153 20DG/YL 5 X155 20DG/LB 6 G163 20VT/LB (POWER LOCKS) 7 G200 20VT/BR (LHD/MEMORY) 8 G920 20VT/YL (LHD/MEMORY) 9 Q
