Page 1113 of 2321

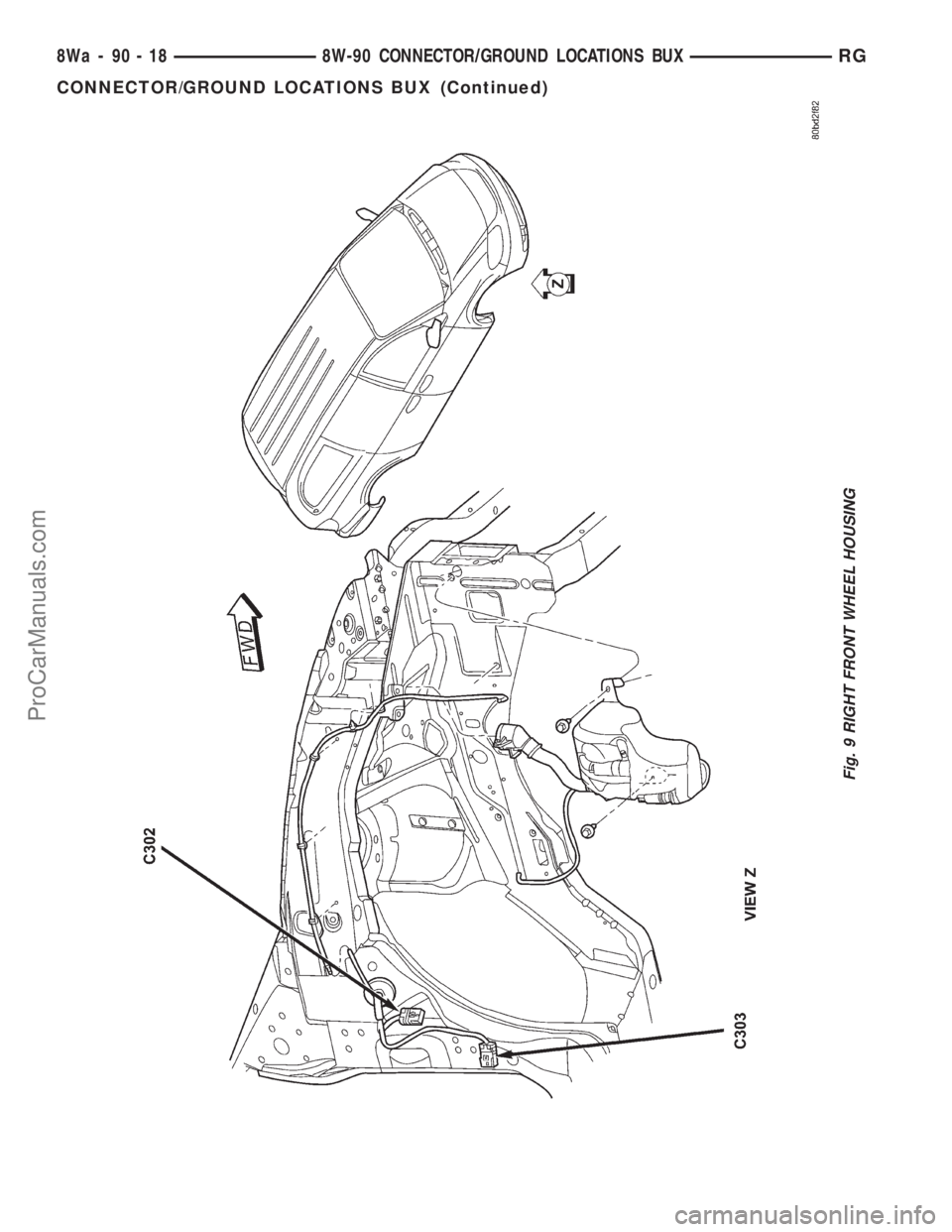

DODGE TOWN AND COUNTRY 2001 Service Manual Fig. 9 RIGHT FRONT WHEEL HOUSING 8Wa - 90 - 18 8W-90 CONNECTOR/GROUND LOCATIONS BUXRG CONNECTOR/GROUND LOCATIONS BUX (Continued) ProCarManuals.com

Page 1114 of 2321

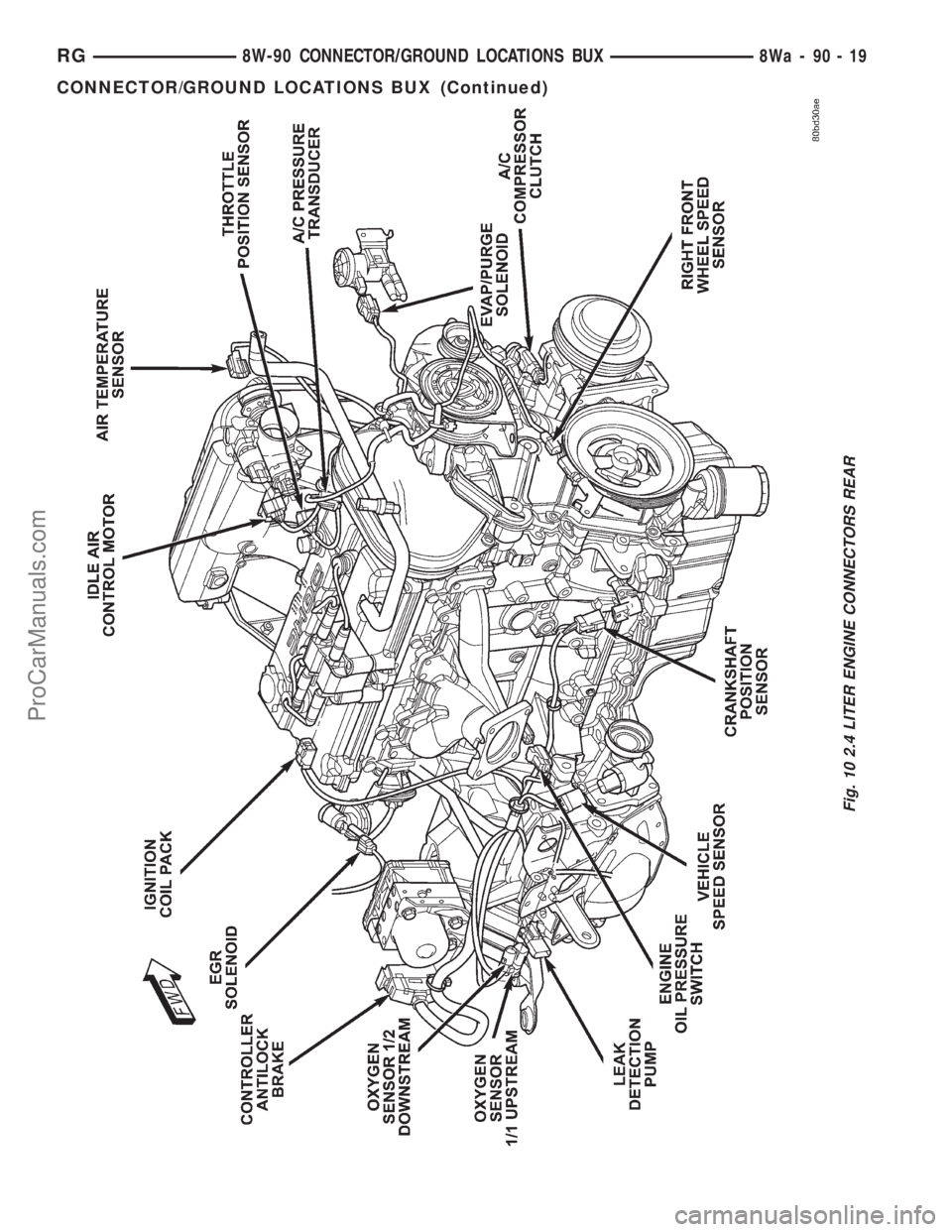

DODGE TOWN AND COUNTRY 2001 Service Manual Fig. 10 2.4 LITER ENGINE CONNECTORS REAR RG8W-90 CONNECTOR/GROUND LOCATIONS BUX8Wa-90-19 CONNECTOR/GROUND LOCATIONS BUX (Continued) ProCarManuals.com

Page 1115 of 2321

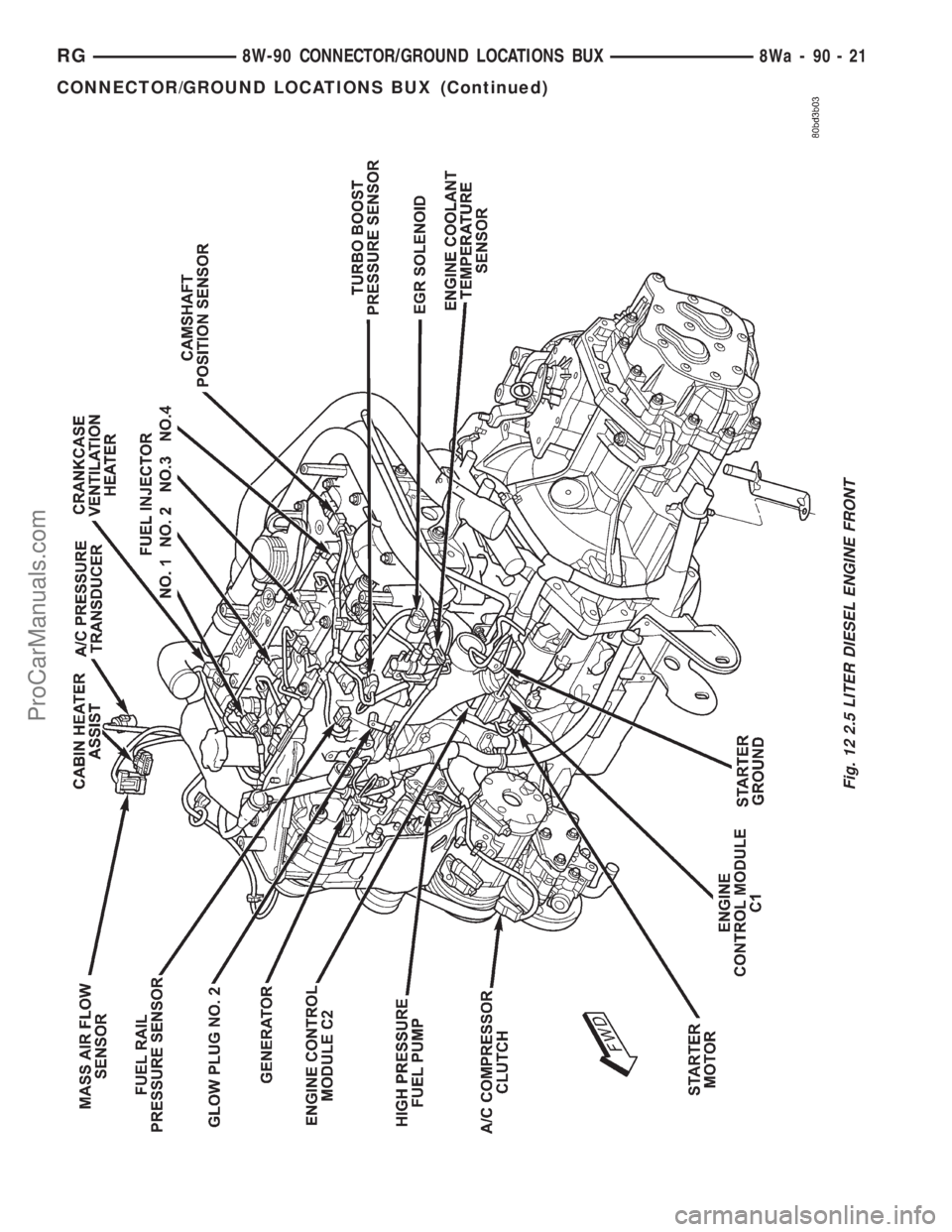

DODGE TOWN AND COUNTRY 2001 Service Manual Fig. 11 2.4 LITER ENGINE FRONT 8Wa - 90 - 20 8W-90 CONNECTOR/GROUND LOCATIONS BUXRG CONNECTOR/GROUND LOCATIONS BUX (Continued) ProCarManuals.com

Page 1116 of 2321

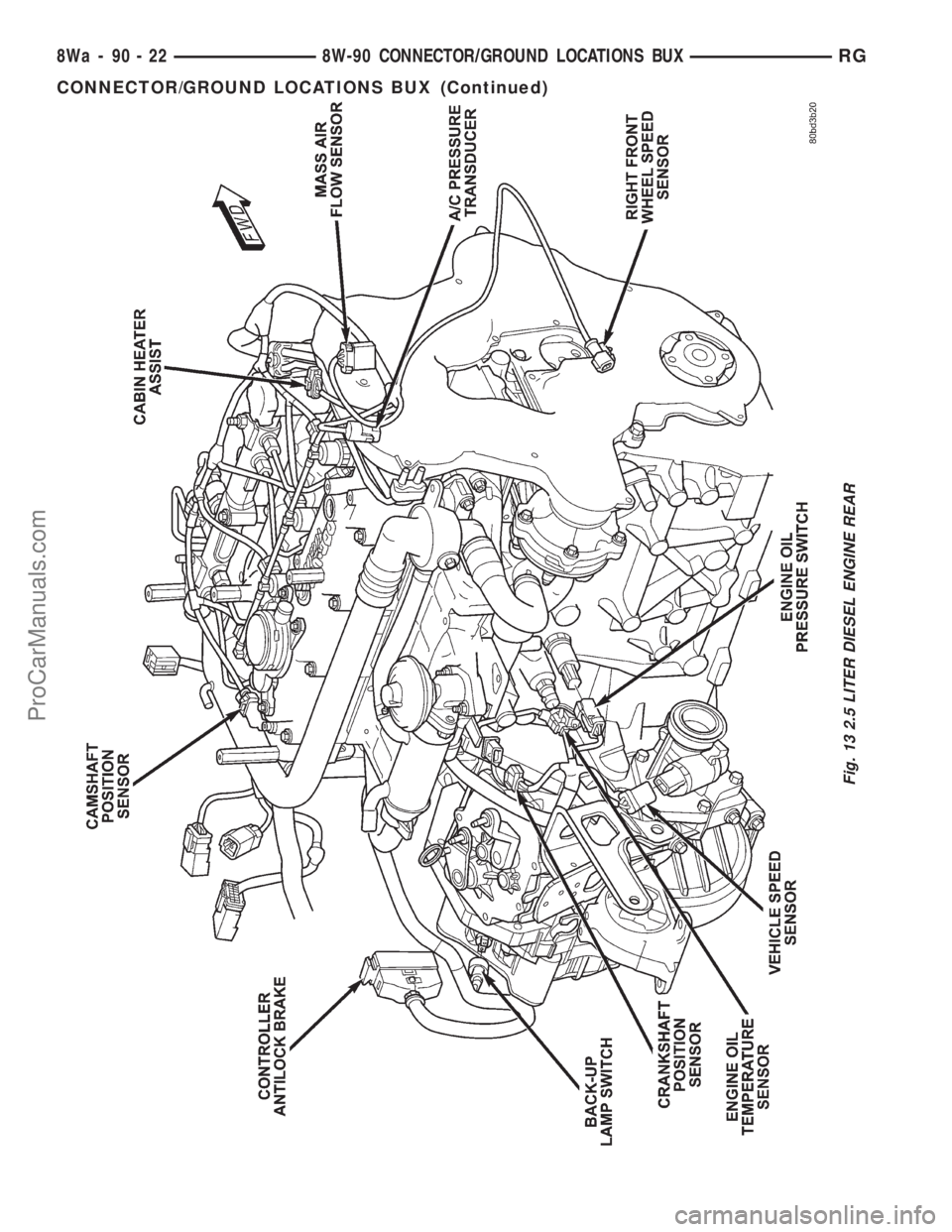

DODGE TOWN AND COUNTRY 2001 Service Manual Fig. 12 2.5 LITER DIESEL ENGINE FRONT RG8W-90 CONNECTOR/GROUND LOCATIONS BUX8Wa-90-21 CONNECTOR/GROUND LOCATIONS BUX (Continued) ProCarManuals.com

Page 1117 of 2321

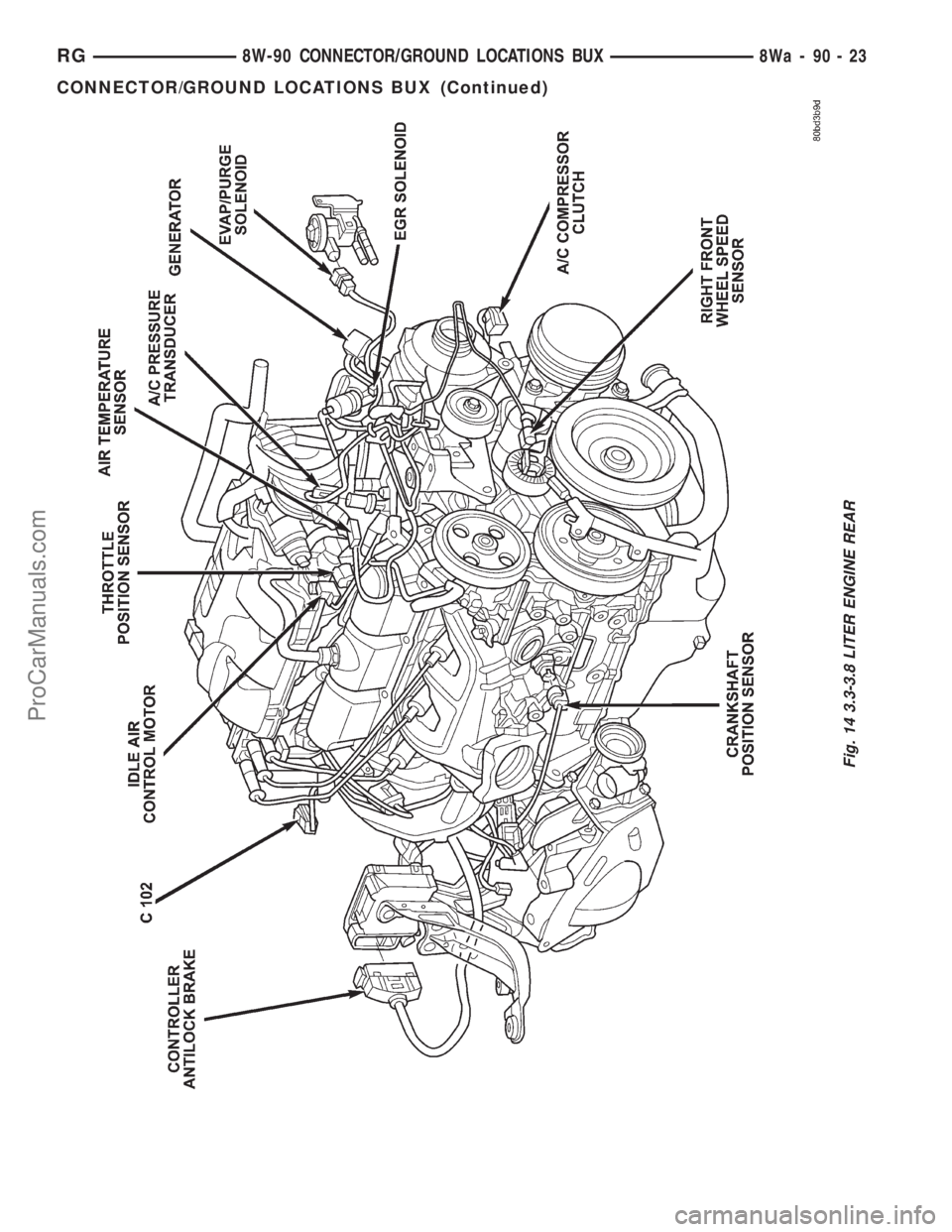

DODGE TOWN AND COUNTRY 2001 Service Manual Fig. 13 2.5 LITER DIESEL ENGINE REAR 8Wa - 90 - 22 8W-90 CONNECTOR/GROUND LOCATIONS BUXRG CONNECTOR/GROUND LOCATIONS BUX (Continued) ProCarManuals.com

Page 1118 of 2321

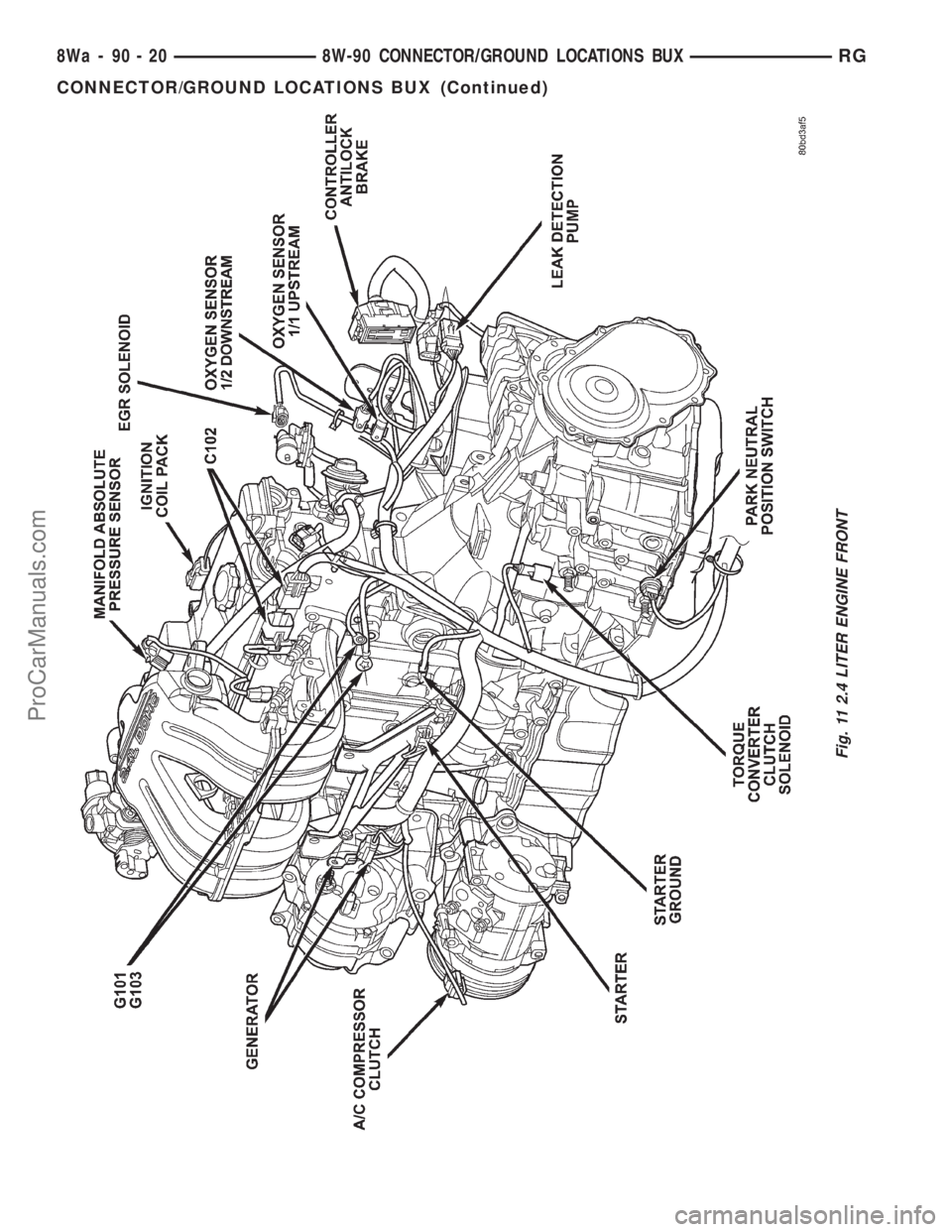

DODGE TOWN AND COUNTRY 2001 Service Manual Fig. 14 3.3-3.8 LITER ENGINE REAR RG8W-90 CONNECTOR/GROUND LOCATIONS BUX8Wa-90-23 CONNECTOR/GROUND LOCATIONS BUX (Continued) ProCarManuals.com

Page 1119 of 2321

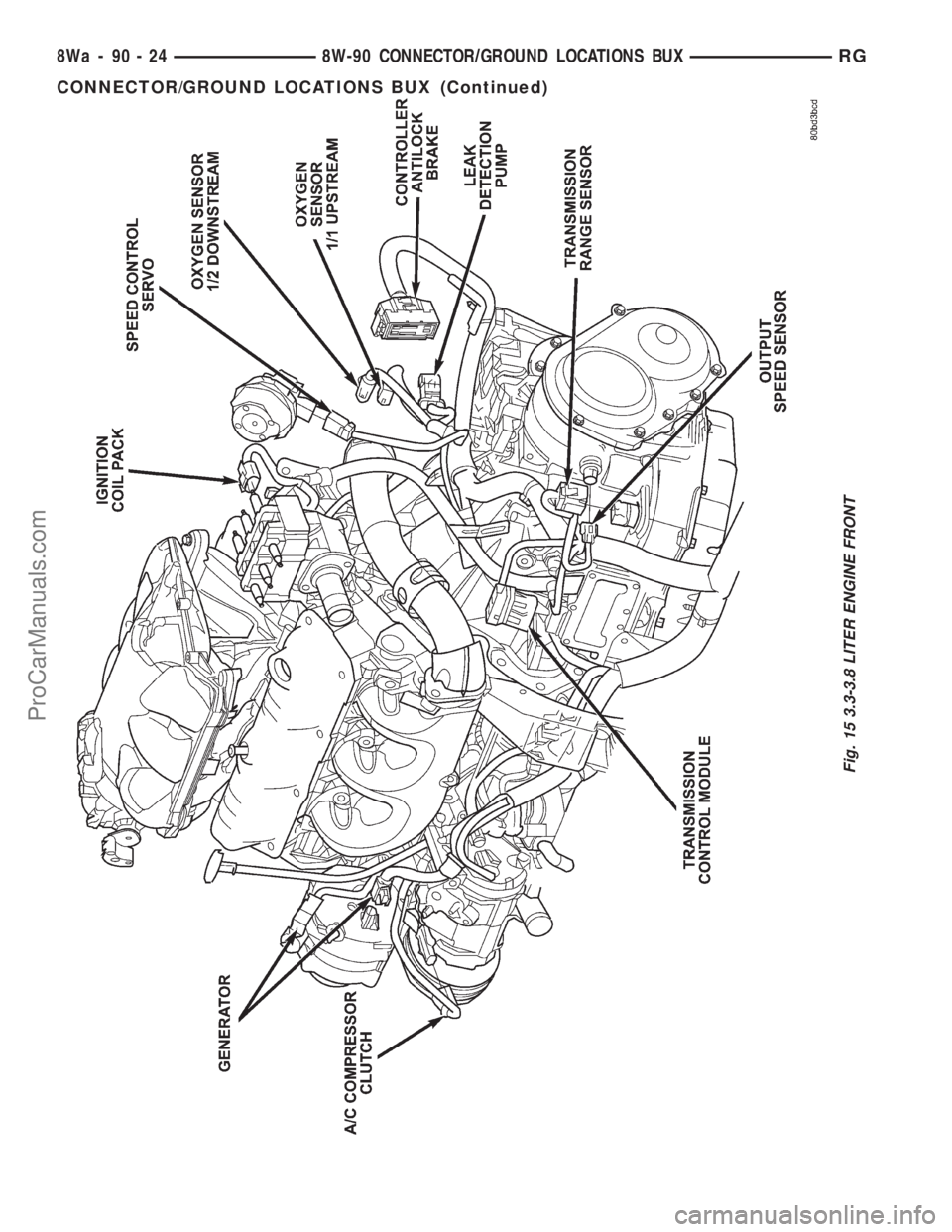

DODGE TOWN AND COUNTRY 2001 Service Manual Fig. 15 3.3-3.8 LITER ENGINE FRONT 8Wa - 90 - 24 8W-90 CONNECTOR/GROUND LOCATIONS BUXRG CONNECTOR/GROUND LOCATIONS BUX (Continued) ProCarManuals.com

Page 1120 of 2321

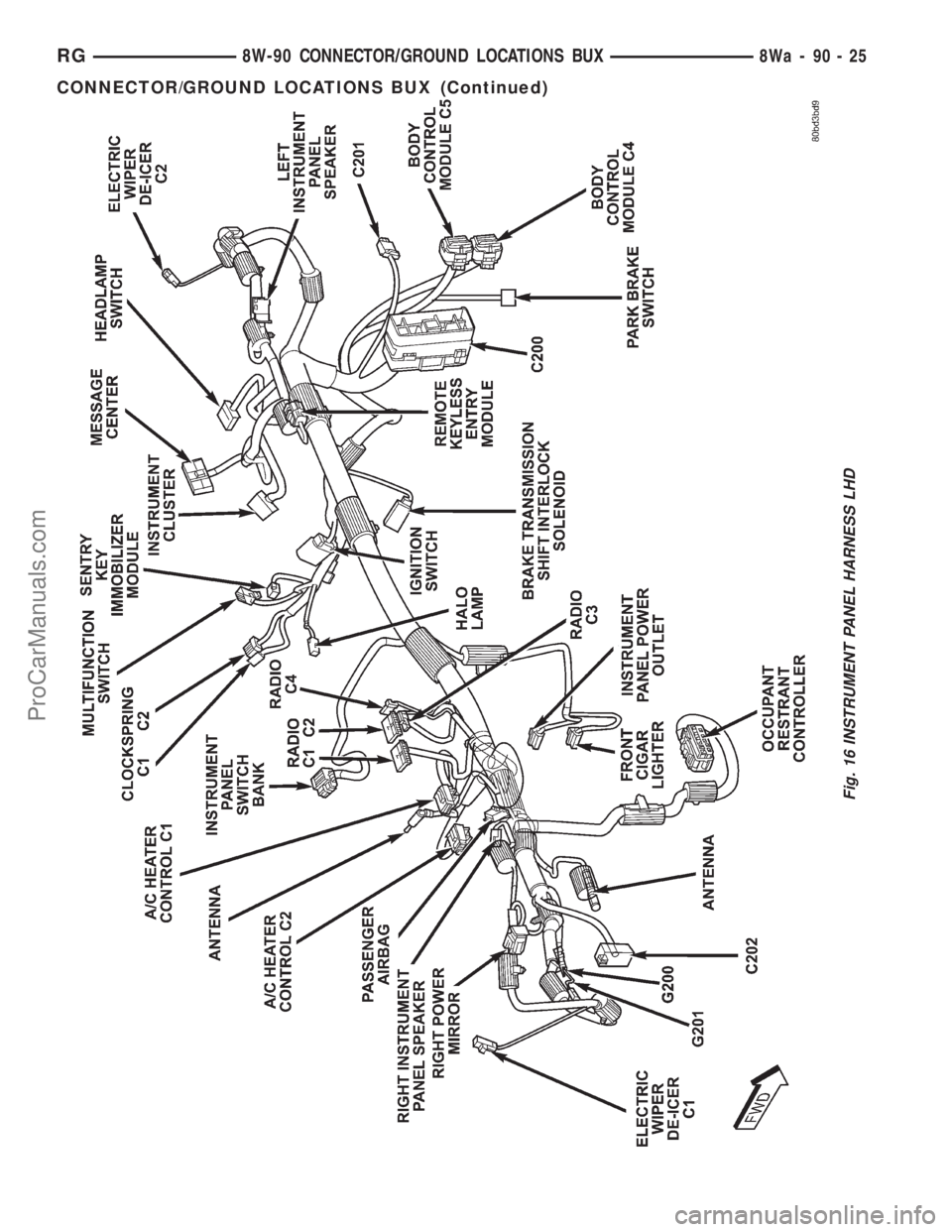

DODGE TOWN AND COUNTRY 2001 Service Manual Fig. 16 INSTRUMENT PANEL HARNESS LHD RG8W-90 CONNECTOR/GROUND LOCATIONS BUX8Wa-90-25 CONNECTOR/GROUND LOCATIONS BUX (Continued) ProCarManuals.com
