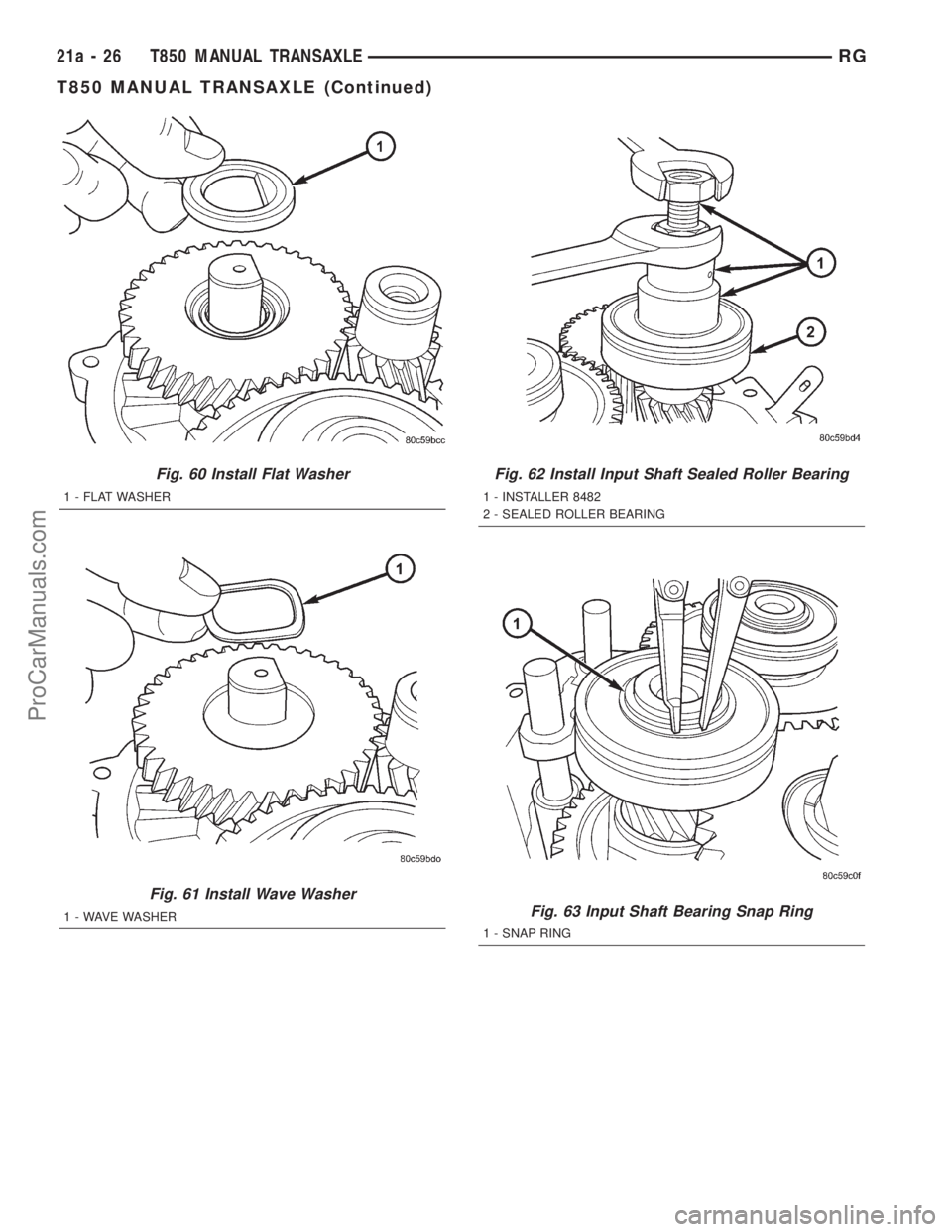

DODGE TOWN AND COUNTRY 2001  Service Manual Fig. 60 Install Flat Washer
1 - FLAT WASHER
Fig. 61 Install Wave Washer
1 - WAVE WASHER
Fig. 62 Install Input Shaft Sealed Roller Bearing
1 - INSTALLER 8482
2 - SEALED ROLLER BEARING
Fig. 63 Input Sha

Page 1826 of 2321

DODGE TOWN AND COUNTRY 2001  Service Manual (16) Install shift rail bushing to end cover using
installer 8475 (Fig. 64).
(17) Applya1mm(0.04 in.) bead of MopartGas-
ket Maker to transaxle end cover and install to
transaxle case (Fig. 65).While

Page 1827 of 2321

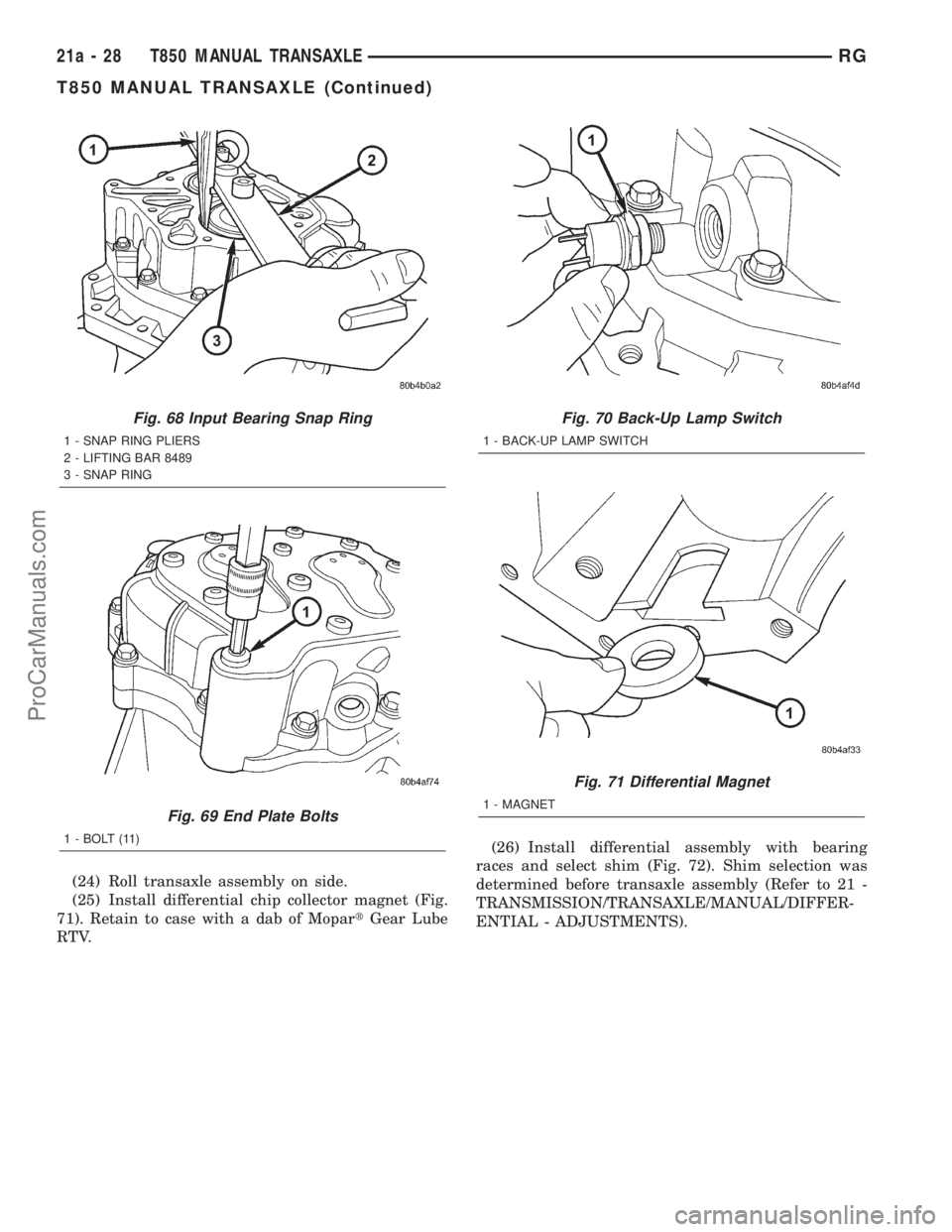

DODGE TOWN AND COUNTRY 2001  Service Manual (24) Roll transaxle assembly on side.
(25) Install differential chip collector magnet (Fig.
71). Retain to case with a dab of MopartGear Lube
RTV.(26) Install differential assembly with bearing
races

Page 1828 of 2321

DODGE TOWN AND COUNTRY 2001  Service Manual (27) Installa1mm(0.04 in.) bead of MopartGas-
ket Maker to differential cover and install to case.
Torque differential cover-to-case bolts to 54 N´m (40
ft. lbs.).
(28) Installa1mm(0.04 in.) bead of

Page 1829 of 2321

DODGE TOWN AND COUNTRY 2001  Service Manual (31) Install input shaft bearing retainer (Fig. 77).
Torque bolts to 12 N´m (105 in. lbs.).
(32) If previously removed, install clutch release
lever pivot ball(s) using slide hammer C-3752 and
remove

Page 1830 of 2321

DODGE TOWN AND COUNTRY 2001  Service Manual INSTALLATION
INSTALLATION - 2.4L GAS
(1) Install modular clutch assembly to transaxle.
Assemble transaxle to engine.
(2) Install and torque transaxle-to-engine bolts to
95 N´m (70 ft. lbs.).(3) Raise

Page 1831 of 2321

DODGE TOWN AND COUNTRY 2001  Service Manual (8) Install starter motor into position (Fig. 84).
Install and torque bolts to 54 N´m (40 ft. lbs.).
(9) Install engine front mount bracket. Install and
torque bracket-to-transaxle bolts to 102 N´m

Page 1832 of 2321

DODGE TOWN AND COUNTRY 2001  Service Manual (15) Install right mount bracket to transaxle (Fig.
87).
(16) Connect gearshift cables to shift levers/cover
assembly (Fig. 88). Install cables into position at
mount bracket and secure with retaining
