1969 FORD MUSTANG Volume One Chassis

03-02-13

Suspension

03-02-13

BALL JOINT BOLT HEAD

STABILIZER

F1370-A

FIG. 18 —Removing or Installing Front Spring

TURN TO COMPRESS

NUT
•

Tool T 63 P-53J0-A

SHAFT SCREW

Lower Adapter Plate

CAVITY
Upper Adapter Plate

T67P-5370-A

FIG. 79—Spring Tool Installation

through the lower arm. Install and

torque the nut to specification.

3.
Secure the lower end of the

shock absorber to the lower arm with

the two attaching bolts.

4.
Secure the strut and the rebound

bumper to the lower arm with the two
F
1492.
A

attaching bolts. Torque the bolts to

specification

5.
Connect the sway bar to the

lower arm with the attaching washer

and insulators as shown in Fig. 1.

Torque the nut to specification.

6. Check the front end alignment
and adjust it to the recommended

specifications if required.

COUGAR, FAIRLANE,

FALCON, MONTEGO,

MUSTANG

Removal

1.
Remove the shock absorber and

upper mounting bracket as an assem-

bly.

2.
Raise the vehicle on a hoist, in-

stall safety stands, and remove the

wheel cover or hub cap.

3.
Remove the grease cap from the

hub;
then, remove the cotter pin, nut

lock, adjusting nut and outer bearing

from the hub.

4.
Pull the wheel, tire and the hub

and drum off the spindle as an assem-

bly.

5.
Install the spring compressor

tool as shown in Figs. 19, 20 and 21.

6. Remove 2 upper arm-to-spring

tower attaching nuts and swing the

upper arm outboard from the spring

tower (Fig. 21).

7.
Release the spring compressor

tool and remove the tool from the

spring. Then, remove the spring from

the vehicle.

Installation

1.
Place the spring upper insulator

on the spring and secure in place with

tape.

2.
Position the spring in the spring

tower. Install the spring compressor,

(Fig. 19) and compress the spring.

3.
Swing the upper arm inboard

and insert the bolts through the holes

in the side of the spring tower. Then,

install the attaching nuts and torque

them to specification.

4.
Release the spring pressure and

guide the spring into the upper arm

spring seat. The end o! the spring

must seat against the tab on the

spring seat.

5. Remove the spring compressor

and position the wheel, tire, and hub

and drum on the spindle.

6. Install the bearing, washer, ad-

justing nut and lock nut. Adjust the

wheel bearing as outlined in Part 3-12

and install the cotter pin, grease cap,

and hub cap or wheel cover.

7.
Lower the vehicle and install the

shock absorber and upper mounting

bracket.

8. Check caster, camber, and toe-in

and adjust as necessary (Part 3-1).procarmanuals.com

03-02-14
Suspension

03-02-14

FRONT SPRING AND

LOWER ARM

LINCOLN CONTINENTAL

Removal

1.
Raise the vehicle. Place a sup-

port under each underbody side rail to

the rear of the lower arm in the lifting

pad area.

2.
Remove the wheel and tire from

the hub.

3.
Remove 2 bolts and washers that

attach the caliper to the spindle. Re-

move the caliper from the rotor and

wire it to the underbody to prevent

damage to the brake hose.

4.
Remove the hub and rotor from

the spindle.

5.
Loosen the splash shield to pro-

vide clearance at the end of the arm

when it is lowered.

6. Remove the shock absorber.

7.
Disconnect the stabilizing strut

(drag strut) from the lower arm.

8. Disconnect the stabilizer bar

from the suspension bar.

9. Remove the cotter pin from the

slotted nut attaching the lower ball

joint to the end of the spindle boss.

Loosen the nut one to two turns.

10.
Place a box wrench over the

lower end of the ball joint remover

tool, and position the tool as in Fig.

13.
The tool should seat firmly against

the ends of both studs, and not

against the lower stud nut.

11.
Turn the wrench until both

studs are under tension, then, tap the

spindle with a hammer near the lower

stud to loosen it from the spindle. Do

not loosen the stud with tool pressure

alone.

12.
Place a jack under the outer

end of the lower arm and raise the

arm several inches.

13.
Install the spring compressor

Tool 5310-A (Fig. 23) inside the

spring with the jaws of the tool

toward the center of the vehicle.

14.
Remove the nut from the ball

joint stud. Lower the jack until the

spindle and spring are free, and re-

move the spring and insulators.

15.
Remove the lower arm- to-

crossmember nut, bolt, washers, and

spacer, then remove the arm.

Installation

1.
Connect the inner end of the

lower arm to the underbody

crossmember. Do not tighten the at-

taching nut at this time. Refer to Fig.

22.
Basic Tool Adapter F 1288-B

FIG. 20—Spring Compressor Tool Installed—Upper View—Typical

DETAIL NO 3 T63P-5310-A DETAIL NO.4
DETAIL
NO.
I

21 —Compressing Spring—Lower View—Montego, Falcon

and Fairlaneprocarmanuals.com

03-02-15

Suspension

03-02-15

BUSHING

BUSHING

WASHER

BOLT
K5s»

LOCKWASHER

STRUT

NUT
;Y'0lT-£ii *

' N
WASHER
>*V ©"*

LOCKWASHER #

NUT
SHER/
©^—
SLOWER
ARM
ASSY.

«
^PLUG

INSULATOR

WASHER

NUT

NUT

F1221-B

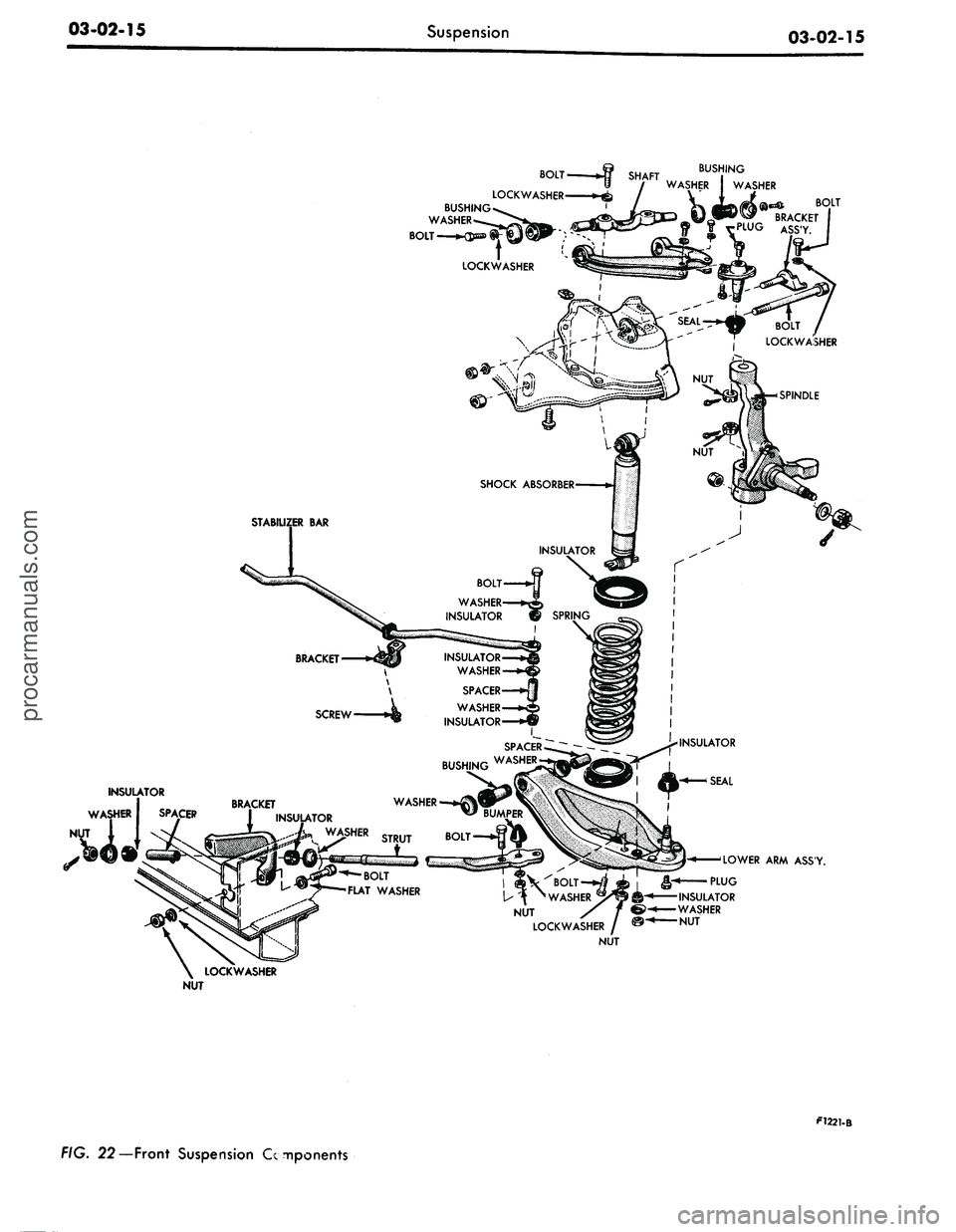

FIG. 22—Front Suspension Componentsprocarmanuals.com

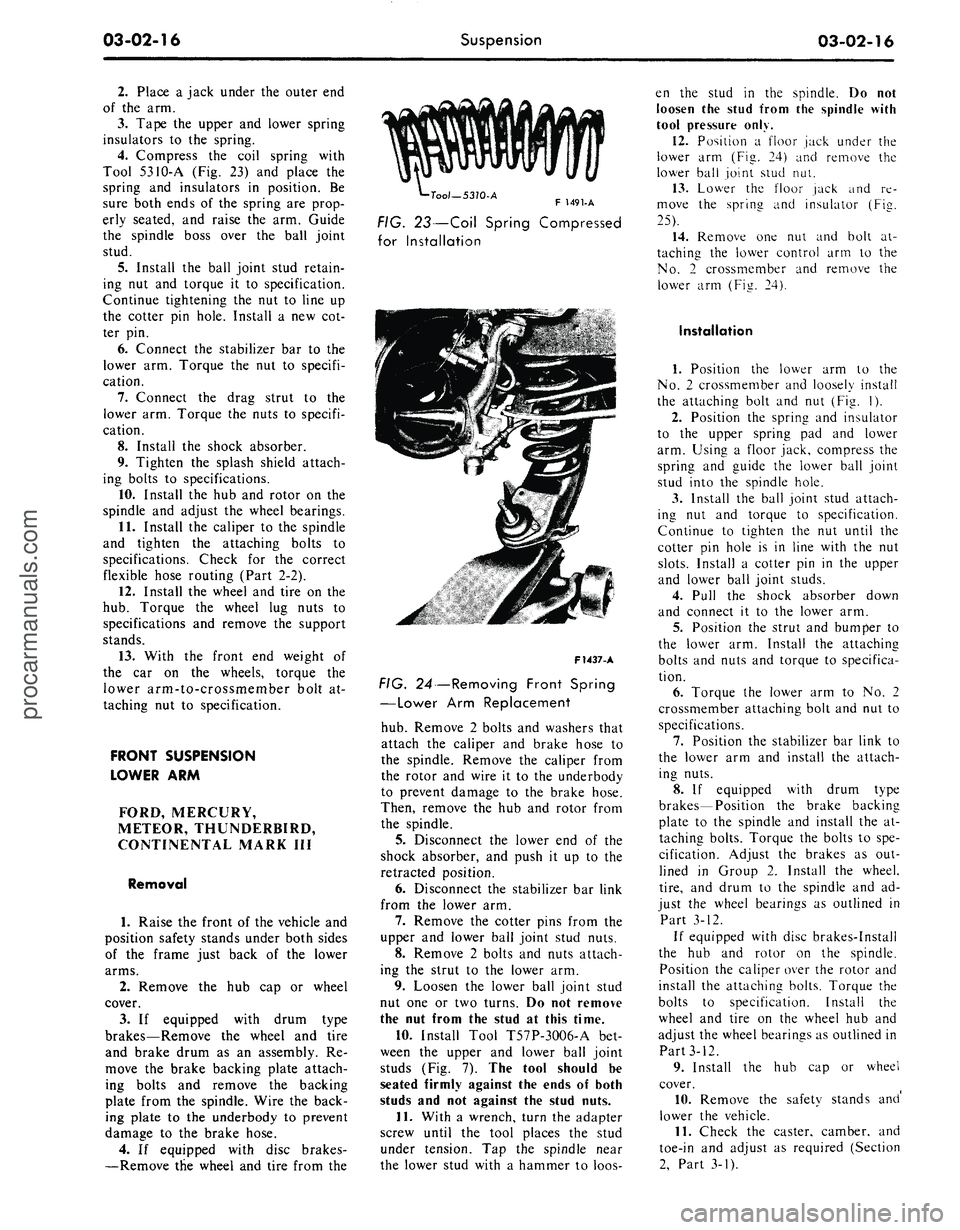

03-02-16
Suspension

03-02-16

2.
Place a jack under the outer end

of the arm.

3.
Tape the upper and lower spring

insulators to the spring.

4.
Compress the coil spring with

Tool 5310-A (Fig. 23) and place the

spring and insulators in position. Be

sure both ends of the spring are prop-

erly seated, and raise the arm. Guide

the spindle boss over the ball joint

stud.

5.
Install the ball joint stud retain-

ing nut and torque it to specification.

Continue tightening the nut to line up

the cotter pin hole. Install a new cot-

ter pin.

6. Connect the stabilizer bar to the

lower arm. Torque the nut to specifi-

cation.

7.
Connect the drag strut to the

lower arm. Torque the nuts to specifi-

cation.

8. Install the shock absorber.

9. Tighten the splash shield attach-

ing bolts to specifications.

10.
Install the hub and rotor on the

spindle and adjust the wheel bearings.

11.
Install the caliper to the spindle

and tighten the attaching bolts to

specifications. Check for the correct

flexible hose routing (Part 2-2).

12.
Install the wheel and tire on the

hub.
Torque the wheel lug nuts to

specifications and remove the support

stands.

13.
With the front end weight of

the car on the wheels, torque the

lower arm-to-crossmember bolt at-

taching nut to specification.

FRONT SUSPENSION

LOWER ARM

FORD, MERCURY,

METEOR, THUNDERBIRD,

CONTINENTAL MARK III

Removal

1.
Raise the front of the vehicle and

position safety stands under both sides

of the frame just back of the lower

arms.

2.
Remove the hub cap or wheel

cover.

3.
If equipped with drum type

brakes—Remove the wheel and tire

and brake drum as an assembly. Re-

move the brake backing plate attach-

ing bolts and remove the backing

plate from the spindle. Wire the back-

ing plate to the underbody to prevent

damage to the brake hose.

4.
If equipped with disc brakes-

—Remove the wheel and tire from the
•Tool—5310-A

F 1491-A

FIG. 23—Coil Spring Compressed

for Installation

F1437-A

FIG. 24—Removing Front Spring

—Lower Arm Replacement

hub.
Remove 2 bolts and washers that

attach the caliper and brake hose to

the spindle. Remove the caliper from

the rotor and wire it to the underbody

to prevent damage to the brake hose.

Then, remove the hub and rotor from

the spindle.

5.
Disconnect the lower end of the

shock absorber, and push it up to the

retracted position.

6. Disconnect the stabilizer bar link

from the lower arm.

7.
Remove the cotter pins from the

upper and lower ball joint stud nuts.

8. Remove 2 bolts and nuts attach-

ing the strut to the lower arm.

9. Loosen the lower ball joint stud

nut one or two turns. Do not remove

the nut from the stud at this time.

10.
Install Tool T57P-3OO6-A bet-

ween the upper and lower ball joint

studs (Fig. 7). The tool should be

seated firmly against the ends of both

studs and not against the stud nuts.

11.
With a wrench, turn the adapter

screw until the tool places the stud

under tension. Tap the spindle near

the lower stud with a hammer to loos-
en the stud in the spindle. Do not

loosen the stud from the spindle with

tool pressure only.

12.
Position a floor jack under the

lower arm (Fig. 24) and remove the

lower ball joint stud nut.

13.
Lower the floor jack and re-

move the sprina and insulator (Fie.

25).

14.
Remove one nut and bolt at-

taching the lower control arm to the

No.
2 crossmember and remove the

lower arm (Fig. 24).

Installation

1.
Position the lower arm to the

No.
2 crossmember and loosely install

the attaching bolt and nut (Fig. 1).

2.
Position the spring and insulator

to the upper spring pad and lower

arm. Using a floor jack, compress the

spring and guide the lower ball joint

stud into the spindle hole.

3.
Install the ball joint stud attach-

ing nut and torque to specification.

Continue to tighten the nut until the

cotter pin hole is in line with the nut

slots.
Install a cotter pin in the upper

and lower ball joint studs.

4.
Pull the shock absorber down

and connect it to the lower arm.

5.
Position the strut and bumper to

the lower arm. Install the attaching

bolts and nuts and torque to specifica-

tion.

6. Torque the lower arm to No. 2

crossmember attaching bolt and nut to

specifications.

7.
Position the stabilizer bar link to

the lower arm and install the attach-

ing nuts.

8. If equipped with drum type

brakes—Position the brake backing

plate to the spindle and install the at-

taching bolts. Torque the bolts to spe-

cification. Adjust the brakes as out-

lined in Group 2. Install the wheel,

tire,
and drum to the spindle and ad-

just the wheel bearings as outlined in

Part 3-12.

If equipped with disc brakes-Install

the hub and rotor on the spindle.

Position the caliper over the rotor and

install the attaching bolts. Torque the

bolts to specification. Install the

wheel and tire on the wheel hub and

adjust the wheel bearings as outlined in

Part 3-12.

9. Install the hub cap or wheel

cover.

10.
Remove the safety stands and'

lower the vehicle.

11.
Check the caster, camber, and

toe-in and adjust as required (Section

2,
Part 3-1).procarmanuals.com

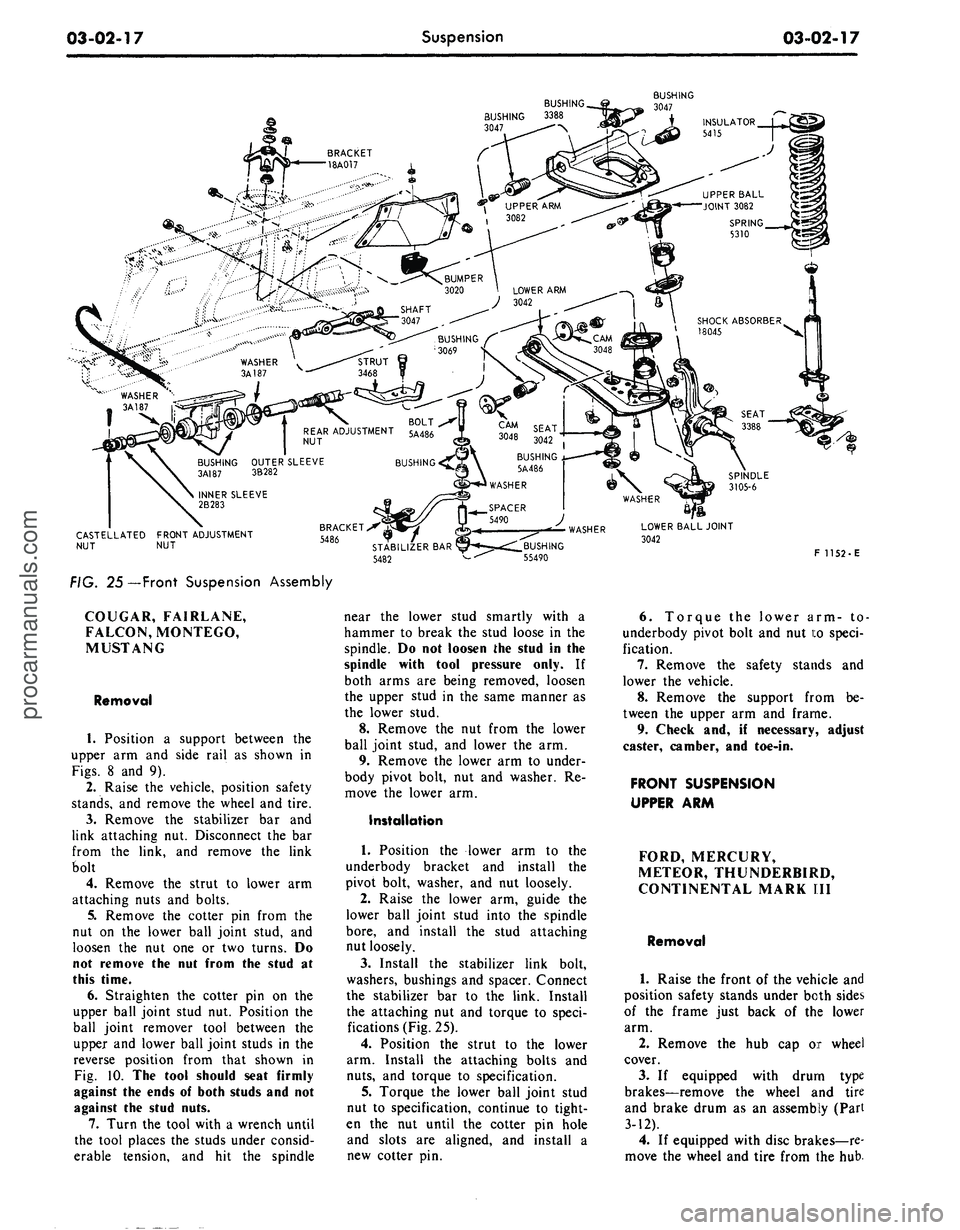

03-02-17
Suspension

03-02-17

BOLT

REAR
ADJUSTMENT
5A486

NUT

BUSHING
OUTER
SLEEVE

3A187 3B282

CASTELLATED
FRONT
ADJUSTMENT

NUT
NUT
LOWER BALL JOINT

3042

F
1152-
E

FIG.
25—
Front
Suspension Assembly

COUGAR, FAIRLANE,

FALCON, MONTEGO,

MUSTANG

Removal

1.
Position a support between the

upper arm and side rail as shown in

Figs.
8 and 9).

2.
Raise the vehicle, position safety

stands,
and remove the wheel and tire.

3.
Remove the stabilizer bar and

link attaching nut. Disconnect the bar

from the link, and remove the link

bolt

4.
Remove the strut to lower arm

attaching nuts and bolts.

5.
Remove the cotter pin from the

nut on the lower ball joint stud, and

loosen the nut one or two turns. Do

not
remove the nut from the stud at

this
time.

6.
Straighten the cotter pin on the

upper ball joint stud nut. Position the

ball joint remover tool between the

upper and lower ball joint studs in the

reverse position from that shown in

Fig.
10. The tool should seat firmly

against the ends of both studs and not

against the stud nuts.

7.
Turn the tool with a wrench until

the tool places the studs under consid-

erable tension, and hit the spindle
near the lower stud smartly with a

hammer to break the stud loose in the

spindle. Do not loosen the stud in the

spindle with tool pressure only. If

both arms are being removed, loosen

the upper stud in the same manner as

the lower stud.

8. Remove the nut from the lower

ball joint stud, and lower the arm.

9. Remove the lower arm to under-

body pivot bolt, nut and washer. Re-

move the lower arm.

Installation

1.
Position the lower arm to the

underbody bracket and install the

pivot bolt, washer, and nut loosely.

2.
Raise the lower arm, guide the

lower ball joint stud into the spindle

bore,
and install the stud attaching

nut loosely.

3.
Install the stabilizer link bolt,

washers,
bushings and spacer. Connect

the stabilizer bar to the link. Install

the attaching nut and torque to speci-

fications (Fig. 25).

4.
Position the strut to the lower

arm. Install the attaching bolts and

nuts,
and torque to specification.

5.
Torque the lower ball joint stud

nut to specification, continue to tight-

en the nut until the cotter pin hole

and slots are aligned, and install a

new cotter pin.
6. Torque the lower arm- to

underbody pivot bolt and nut to speci-

fication.

7.
Remove the safety stands and

lower the vehicle.

8. Remove the support from be-

tween the upper arm and frame.

9.
Check and, if necessary, adjust

caster, camber, and toe-in.

FRONT
SUSPENSION

UPPER
ARM

FORD,
MERCURY,

METEOR,
THUNDERBIRD,

CONTINENTAL
MARK III

Removal

1.
Raise the front of the vehicle and

position safety stands under both sides

of the frame just back of the lower

arm.

2.
Remove the hub cap or wheel

cover.

3.
If equipped with drum type

brakes—remove the wheel and tire

and brake drum as an assembly (Part

3-12).

4.
If equipped with disc brakes—re-

move the wheel and tire from the hub.procarmanuals.com

03-02-18
Suspension

03-02-18

5.
Remove the cotter pin from the

upper ball joint stud nut.

6. Loosen the upper ball joint stud

nut one or two turns. Do not remove

the nut from the stud at this time.

7.
Install tool T57P-3006-A be-

tween the upper and lower ball joint

studs with the adapter screw on top

(Fig. 13). The tool should be seated

firmly against the ends of both studs

and not against the nuts or lower stud

cotter pin.

8. With a wrench, turn the adapter

screw until the tool places the stua

under tension. Tap the spindle near

the upper stud with a hammer to loos-

en the stud in the spindle. Do not

loosen the stud from the spindle with

tool pressure only.

9. Remove the tool from between

the ball joint studs and place a floor

jack under the lower arm.

10.
Raise the floor jack to relieve

the pressure from the upper ball joint

stud nut and remove the nut.

11.
Remove the upper arm inner

shaft attaching bolts. Remove the

upper arm and inner shaft as an as-

sembly (Fig. 1).

12.
Remove the bumpei from the

upper arm.

Installation

1.
Position the bumper to the upper

arm and install the nut and washer.

Torque the nut to specifications.

2.
Position the upper arm inner

shaft to the frame side rail and install

the 2 attaching bolts and washers

snug.

3.
Connect the upper ball joint stud

to the spindle and install the attaching

nut. Torque the nut to specification

and continue to tighten the nut until

the cotter pin hole in the stud is in

line with the nut slots. Then, install

the cotter pin.

4.
If equipped with drum type bra-

kes—Adjust the brakes as outlined in

Part 2-2. Install the wheel, tire, and

drum to the spindle and adjust the

wheel bearings as outlined in Part

3-12.

5.
If equipped with disc brak-

es—Install the wheel and tire on the

hub and adjust the wheel bearings as

outlined in Part 3-12.

6. Install the hub cap or wheel

cover.

7.
Remove the safety stands and

lower the front of the vehicle.

8. Check caster, camber, and toe-in

and adjust as required (Section 2, Part

3-D.
COUGAR, FAIRLANE,

FALCON, MONTEGO,

MUSTANG

Removal

1.
Raise the front of the vehicle,

position safety stands under the

frame, and lower the vehicle slightly.

2.
Remove the wheel and tire.

3.
Remove the shock absorber

lower attaching nuts and washers.

4.
Remove the shock absorber

upper mounting bracket attaching

nuts,
and remove the shock absorber

and bracket as an assembly (Fig. 26).

On all 8-cylinder vehicles, remove

the air cleaner to obtain access for

tool installation.

5.
Install the spring compressor

tool and compress the spring (Figs.

19,
20 and 21).

6. Position a safety stand under the

lower arm.

7.
Remove the cotter pin from the

nut on the upper ball joint stud, and

loosen the nut one or two turns. Do

not remove the nut from the stud at

this time.

8. Position the ball joint remover

tool between the upper and lower ball

joint studs as shown in Fig. 10. The

tool should seat firmly against the

ends of both studs and not against the

stud nuts.

9. Turn the tool with a wrench until

the tool places the studs under consid-

erable tension; then, hit the spindle

smartly near the upper stud with a

hammer to break the stud loose in the

spindle. Do not loosen the stud in the

spindle with tool pressure only. If

both arms are being removed, loosen

the lower stud in the same manner as

the upper stud.

10.
Remove the nut from the upper

stud and lift the stud out of the

spindle.

11.
Remove the upper arm inner

shaft attaching nuts from the engine

compartment, and remove the upper

arm.

12.
Wipe off all loose dirt from the

upper arm parts. Do not wash the ball

joint with a solvent.

Installation

1.
Position the upper arm on the

underbody mounting bracket, and in-

stall the nuts and lock washers on the

two inner shaft attaching bolts. The

specified keystone-type lock washers

must be used. Torque the nuts to

soecification.
2.
Position the upper ball joint stud

in the top of the wheel spindle, and in-

stall the stud nut. Torque the nut to

specification, and continue to tighten

it until the cotter pin hole and slots

line up. Install a new cotter pin.

3.
Release the coil spring, remove

the tool, and install the front shock

absorber and the wheel and tire.

LINCOLN CONTINENTAL

Removal

1.
Place a jack under the outer end

of the suspension lower arm and raise

the arm. Refer to Fig. 22.

2.
Remove the wheel and tire.

3.
Remove the cotter pin from the

upper ball joint stud. Loosen the nut

one or two turns.

4.
Place a box wrench over the

lower end of the ball joint remover

tool, and position the tool as in Fig.

13.
The tool should seat firmly against

the ends of both studs, and not

against the upper stud nut.

5.
Turn the wrench until both studs

are under tension, and then, tap the

spindle with a hammer near the upper

stud to loosen it from the spindle. Do

not loosen the stud with tool pressure

alone. Remove the nut.

UPPER MOUNTING BRACKET

LOWER RETAINING BOLTS F 1490-A

FIG. 26—Removing or Installing

Front Shock Absorber—Typicalprocarmanuals.com

03-02-19

Suspension

03-02-19

6. Raise the upper arm to free the

ball joint stud from the spindle. Wire

the upper end of the spindle to the un-

derbody to prevent damage to the

brake hose.

7.
Mark the position of the upper

arm shaft on the underbody member

to facilitate making caster and camber

adjustments after installation of the

upper arm.

8. Remove the suspension upper

arm-to-underbody attaching bolts,

lock washers, and attaching nuts.

Then, remove the upper arm.

Installation

1.
Position the upper arm shaft on

the underbody member. Line up the

shaft with the marks made before re-

moval of the arm.

2.
Install the attaching bolts and

lock washers. FABRICATE A

TOOL, AS SHOWN IN Fig. 27, to

hold the nut in place while starting the

attaching bolt into the nut. Remove

the tool; then, tighten the attaching

bolts to specification.

3.
Guide the ball joint stud into the

spindle. Install the attaching nut and

torque it to specification. Continue

tightening the nut to line up the cotter

pin hole. Install a new cotter pin.

4.
Install the wheel and tire, and

torque the wheel lug nuts to specifica-

tion.

5.
With the front end weight of the

car on the wheels, torque the bolts at

the ends of the upper arm shaft to

specification if the bushings were re-

placed.

6. Check the front wheel alignment.

FRONT WHEEL SPINDLE

FORD, MERCURY,

METEOR, THUNDERBIRD,

CONTINENTAL MARK III

Removal

1.
Raise the vehicle until the front

wheel clears the floor, and place a

support under the frame.

2.
Remove the hub cap or wheel

cover.

3.
If equipped with drum type

brakes—remove the wheel and tire

and brake drum as an assembly (Part

3-12). Remove the brake backing

plate attaching bolts and remove the

backing plate from the spindle. Wire

the backing plate to the underbody to

prevent damage to the brake hose.
1/16" GAUGE
-*.

STEEL (REFERENCE)

—3/16'
3/8'

1/2" DIAMETER PLUG WELD

F 1501-A

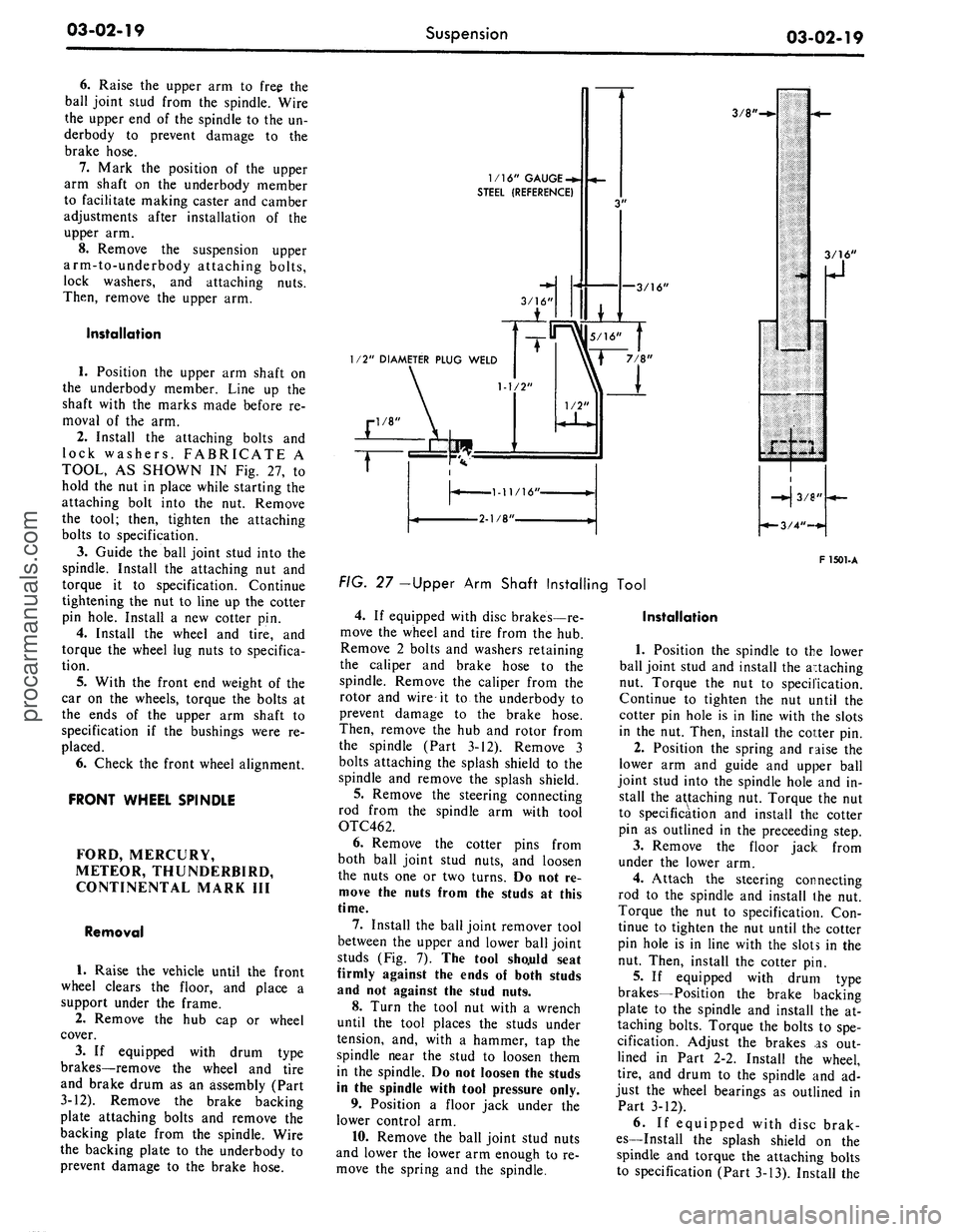

FIG. 27 -Upper Arm Shaft Installing Tool

4.
If equipped with disc brakes—re-

move the wheel and tire from the hub.

Remove 2 bolts and washers retaining

the caliper and brake hose to the

spindle. Remove the caliper from the

rotor and wire it to the underbody to

prevent damage to the brake hose.

Then, remove the hub and rotor from

the spindle (Part 3-12). Remove 3

bolts attaching the splash shield to the

spindle and remove the splash shield.

5.
Remove the steering connecting

rod from the spindle arm with tool

OTC462.

6. Remove the cotter pins from

both ball joint stud nuts, and loosen

the nuts one or two turns. Do not re-

move the nuts from the studs at this

time.

7.
Install the ball joint remover tool

between the upper and lower ball joint

studs (Fig. 7). The tool sho.uld seat

firmly against the ends of both studs

and not against the stud nuts.

8. Turn the tool nut with a wrench

until the tool places the studs under

tension, and, with a hammer, tap the

spindle near the stud to loosen them

in the spindle. Do not loosen the studs

in the spindle with tool pressure only.

9. Position a floor jack under the

lower control arm.

10.
Remove the ball joint stud nuts

and lower the lower arm enough to re-

move the spring and the spindle.
Installation

1.
Position the spindle to the lower

ball joint stud and install the attaching

nut. Torque the nut to specification.

Continue to tighten the nut until the

cotter pin hole is in line with the slots

in the nut. Then, install the cotter pin.

2.
Position the spring and raise the

lower arm and guide and upper ball

joint stud into the spindle hole and in-

stall the attaching nut. Torque the nut

to specification and install the cotter

pin as outlined in the preceeding step.

3.
Remove the floor jack from

under the lower arm.

4.
Attach the steering connecting

rod to the spindle and install the nut.

Torque the nut to specification. Con-

tinue to tighten the nut until the cotter

pin hole is in line with the slots in the

nut. Then, install the cotter pin.

5.
If equipped with drum type

brakes—Position the brake backing

plate to the spindle and install the at-

taching bolts. Torque the bolts to spe-

cification. Adjust the brakes as out-

lined in Part 2-2. Install the wheel,

tire,
and drum to the spindle and ad-

just the wheel bearings as outlined in

Part 3-12).

6. If equipped with disc brak-

es—Install the splash shield on the

spindle and torque the attaching bolts

to specification (Part 3-13). Install theprocarmanuals.com

03-02-20
Suspension

03-02-20

hub and rotor on the spindle. Position

the caliper over the rotor and install

the attaching bolts. Torque the bolts

to specification (Part 3-13). Install the

wheel and tire on the hub and adjust

the wheel bearings as outlined in Part

3-12 .

7.
Install the hub cap or wheel

cover. Then, remove the support stand

and lower the vehicle.

8. Check caster, camber, and toe-in

(Part 3-1) and adjust as necessary.

COUGAR, FAIRLANE,

FALCON, MONTEGO,

MUSTANG

Drum Brakes

Removal

1.
Position a support between the

upper arm and frame as shown in

Figs.
8 and 9; then, raise the vehicle

and position safety stands.

2.
Remove the hub cap or wheel

cover.

3.
Remove the grease cap from the

hub;
then, remove the adjusting nut,

washer, and outer bearing cone and

roller assembly.

4.
Pull the wheel, hub, and drum

assembly off the wheel spindle.

5.
Remove the brake backing plate

from the spindle. Support the plate to

prevent damage to the brake hose.

6. Disconnect the spindle connect-

ing rod end from the spindle arm

using Tool 3290-C.

7.
Remove the cotter pins from

both ball joint stud nuts, and loosen

the nuts one or two turns. Do not re-

move the nuts from the studs at this

time.

8. Position the ball joint remover

tool between the upper and lower ball

joint studs (Fig. 10). The tool should

seat firmly against the ends of both

studs and not against the stud nuts.

9. Turn the tool with a wrench until

the tool places the studs under consid-

erable tension, and, with a hammer,

hit the spindle smartly near the studs

to break them loose in the spindle. Do

not loosen the studs in the spindle

with tool pressure alone.

10.
Remove the stud nuts and re-

move the spindle from both studs.

Installation

1.
Position the spindle on the lower

ball joint stud and install the stud nut

(Fig. 25).
2.
Raise the lower suspension arm

and guide the upper ball joint stud

into the spindle. Install the stud nut.

3.
Torque the upper stud nut and

then the lower stud nut to specifica-

tion. Continue to tighten both nuts

until the cotter pin holes and slots line

up.
Install new cotter pins.

4.
Connect the spindle connecting

rod end to the spindle arm.

5.
Install the brake backing plate

on the spindle, and torque the bolts to

specification.

6. Install the wntel and drum and

adjust the wheel bearing (Part 3-12).

7.
Remove the safety stands, and

lower the vehicle.

8. Remove the support from be-

tween the upper arm and frame.

9. Check and, if necessary, adjust

caster, camber, and toe-in.

Disc Brakes

Removal

1.
Remove the hub cap or wheel

cover, and remove the wheel and tire

from the hub.

2.
Remove two bolts attaching the

caliper to the spindle. Remove the cal-

iper from the rotor and wire it to the

underbody to prevent damage to the

brake hose.

3.
Remove the grease cap from the

hub,
then, remove the adjusting nut,

washer, and outer bearing cone and

roller assembly.

4.
Pull the hub and rotor assembly

off the wheel spindle.

5.
Remove the three caliper shield

attaching bolts and remove the shield.

6. Disconnect the spindle connect-

ing rod end from the spindle arm

using Tool-3290-C.

7.
Remove the cotter pins from

both ball joint stud nuts, and loosen

the nuts one or two turns. Do not re-

move the nuts from the studs at this

time.

8. Position the ball joint remover

tool between the upper and lower ball

joint studs (Fig. 10). The tool should

seat firmly against the ends of both

studs and not against the stud nuts.

9. Turn the tool with a wrench until

the tool places the studs under consid-

erable tension, and, with a hammer,

hit the spindle smartly near the studs

to break them loose in the spindle. Do

not loosen the studs in the spindle

with tool pressure alone.

10.
Position a floor jack under the

lower suspension arm.
11.
Remove the upper and lower

ball joint stud nuts; lower the jack

and remove the spindle.

Installation

1.
Position the spindle on the lower

ball joint stud and install the stud nut

(Fig. 25). Torque the nut to specifica-

tion and install the cotter pin.

2.
Raise the lower suspension arm,

and guide the upper ball joint stud

into the spindle. Install the stud nut.

3.
Torque the nut to specifications

and install the cotter pin. Then, re-

move the floor jack.

4.
Connect the spindle connecting

rod end to the spindle arm and install

the attaching nut. Torque the nut to

specification and install the cotter pin.

5.
Position the caliper splash shield

to the spindle and install the attaching

bolts and nuts. Torque the nuts and

bolts to specification.

6. Install the hub and rotor on the

spindle.

7.
Position the caliper to the rotor

and spindle and install the attaching

bolts.
Torque the bolts to specification

and install the safety wire.

8. Install the wheel and tire on the

hub and adjust the wheel bearing

(Part 3-12).

9. Install the hub cap or wheel

cover.

10.
Before driving the vehicle,

pump the brake pedal several times to

obtain normal brake lining-to-rotor

clearance and restore normal brake

pedal travel.

LINCOLN CONTINENTAL

Removal

1.
Raise the vehicle. Place a sup-

port under each side rail to the rear of

the lower arm in the lifting pad area.

2.
Remove the wheel and tire from

the hub.

3.
Remove 2 bolts and washers that

attach the caliper to the spindle. Re-

move the caliper from the rotor and

wire it to the underbody to prevent

damage to the brake hose.

4.
Remove the hub and rotor from

the spindle.

5.
Remove the splash shield and

gasket from the spindle.

6. Disconnect the spindle arm con-

necting rod from the spindle arm with

Tool 3290-C. See Fig. 23.

7.
Remove the cotter pins from

both ball joint stud nuts. Loosen the

nuts one to two turns.procarmanuals.com
