1969 FORD MUSTANG Volume One Chassis

weight headrest catalytic converter remote start battery capacity pairing phone

Page 289 of 413

FORD MUSTANG 1969 Volume One Chassis
06-03-10

Ford Design Four-Speed Transmission

06-03-10

INPUT SHAFT

BEARING RETAINER

C2083-A

FIG. 79—Removing Input Shaft Seal

Tool-T57P-77047-A

OR
70256-6B

C1144-B

FIG. 20—Installing In

Page 290 of 413

FORD MUSTANG 1969 Volume One Chassis
06-04-01
Specifications

06-04-01

PART
6-4
Specifications

TRANSMISSION IDENTIFICATION 3-SPEED TRANSMISSION

Car Model

Ford,
Mercury, Meteor

Ford,
Meteor

Ford,
Meteor
Engine

390-2V-4V

24

06-04-01
Specifications

06-04-01

PART
6-4
Specifications

TRANSMISSION IDENTIFICATION 3-SPEED TRANSMISSION

Car Model

Ford,
Mercury, Meteor

Ford,
Meteor

Ford,
Meteor
Engine

390-2V-4V

240-1V

302-2V
Trans.

Model

RAT-A2

RAN-A2

RAT-SI
Gear Ratios

1st

2.42

2.99

2.99
2nd

1.61

1.75

1.75
Rev.

2.33

3.17

3.17

Car Model

Fairlane, Montego

Cougar

Falcon

Mustang

Fairlane, Montego

Falcon

Fairlane, Montego
Engine

390-4V

390-4V

170-1V

302-2V

250-IV

200-lV,

351-2V-4V
Trans.

Model

RAT-B2, RAT-C2

RAT-N2

RAN-AN

RAT-U1

RAN-AL

RAT-AJ
Gear Ratios

1st

2.42

3.41

2.99

2.42
2nd

1.61

1.86

1.75

1.61
Rev.

2.33

3.51

3.17

2.33
Car Model

Mustang

Fairlane, Montego

Falcon

Mustang, Cougar
Engine

200-lV, 250-IV

302-4V

351-2V-4V
Trans.

Model

RAN-AM

RAT-T

RAT-AM
Gear Ratios

1st

2.99

2.42
2nd

1.75

1.61
Rev.

3.17

2.33

4-SPEED TRANSMISSIONS

Car Model

Montego,

Fairlane, Ranchero

Montego, Fairlane,

Ranchero

Fairlane, Ranchero

Montego GT

Mustang, Cougar

Mustang, Cougar

Fairlane, Montego,

Ranchero

Fairlane, Montego,

Ranchero
Engine

390-2V-4V

351-2V-4V

390-4V

390-4V, GT

428-4V-CJ

428-4V-CJ

390-4V-GT
Trans.

Model

RUG-C2®

RUG-D2®

RUG-J2®

RUG-ADI

RUG-AE1®

RUG-AJ
®

RUG-AL
®
Gear Ratios

1st

2.32
2nd

1.69
3rd

1.29
Rev.

2.32
Car Model

Mustang, Cougar

Mustang, Cougar

Mustang, Cougar

Fairlane, Montego,

Ranchero

Fairlane, Montego,

Ranchero

Ford,
Meteor

Fairlane,

Montego
Engine

351-2V-4V

302-2V-4V

390-4VGT

351-2V-4V

302-4V

351-2V-4V

351-2V-4V

429-4V

428-4V-

6V
Trans.

Model

RUG-E3®

RUG-M3®

RUG-AG

RUG-AH
®

RUG-AK
®

RUG-V1

RUG-AF
Gear Ratios

1st

2.78

2.32
2nd

1.93

1.69
3rd

136

1.29
Rev.

2.78

2.32

® With 3.25:1 and lower axle ratios.
©
With 3.50:1 and higher axle ratios.

CLEARANCES(INCHES)

Countershaft Gear End PI ay-3-and 4-Speed Ford 0.004-0.018

Reverse Idler Gear End PI ay-3- and 4-Speed

Ford...:

.0.004-0.018
MANUAL TRANSMISSION REFILL CAPACITIES

Manual Transmission

3-Speed

4-Speed
Approximate Capacity

U.S.

Measure

3-1/2 pts.

4pts.
Imperial

Measure

3 pts.

3 pts.procarmanuals.com

Page 291 of 413

FORD MUSTANG 1969 Volume One Chassis
06-04-02

Specifications

06-04-02

TORQUE LIMITS(FT-LBS)

Extension Housing Bolts

Input Shaft Bearing Retainer-to-Transmission Case Bolts

Speedometer Cable Retainer-to-Transmission Extension

Tran

Page 292 of 413

FORD MUSTANG 1969 Volume One Chassis
07-01-01

07-01-01

*.v:;V*>
-"^g&ly-

y.y... -4^*:
GROUP

7

PART
7-1
PAGE

General Transmission Service
07-01-01

PART
7-2

C4 Automatic Transmission
07-02-01

PART
7-3

FMX Transmission

Page 293 of 413

FORD MUSTANG 1969 Volume One Chassis
07-01-02

General Transmission Service

07-01-02

COMPONENT INDEX

FLUID LEAKAGE CHECK

FLUID LEVEL CHECK

FRONT CLUTCH (Forward) INSPECTION

C4 Transmission

C6 Transmission

FMX Transmission

FRONT

07-01-02

General Transmission Service

07-01-02

COMPONENT INDEX

FLUID LEAKAGE CHECK

FLUID LEVEL CHECK

FRONT CLUTCH (Forward) INSPECTION

C4 Transmission

C6 Transmission

FMX Transmission

FRONT PUMP AND STATOR SUPPORT

Inspection

FRONT SERVO (Intermediate) INSPECTION

C4 Transmission

C6 Transmission

FMX Transmission

GOVERNOR INSPECTION

HYDRAULIC SYSTEM BENCH TESTS

(FMX)

Pressure Tests

Testing Tool Installation

MANUAL LINKAGE CHECKS

MANUAL SHIFT LINKAGE GROMMET

COLUMN SHIFT

Removal and Installation

NEUTRAL START SWITCH-COLUMN

SHIFT

Adjustment

Removal and Installation

OIL COOLER CLEANING

OIL COOLER TUBES

Removal and Installation

ONE-WAY CLUTCH INSPECTION

OUTPUT SHAFT AND PRIMARY SUN

GEAR

Shaft (FMX)

Inspection

PINION CARRIER, ONE-WAY CLUTCH

AND CENTER SUPPORT (FMX)

Inspection

PINION CARRIERS INSPECTION

C4 Transmission

C6 Transmission

PRESSURE REGULATOR (FMX)

Inspection

REAR CLUTCH (Reverse-High) INSPECTION

C4 Transmission

C6 Transmission

FMX Transmission

REAR SERVO (Low-Reverse) INSPECTION

C4 Transmission
MODEL APPLICATION
All
Models

01-03

01-03

01-16

01-17

01-04

01-11

01-08

01-17
Ford
01-16

01-16

01-16

01-17

01-17

01-17

01-08

01-07

01-11

01-09

01-10

01-12

01-15

01-15

01-15

01-17

01-16

01-16

01-16

01-17

01-17
Mercury
N/A

01-16

N/A

N/A

01-17

N/A

N/A

N/A

01-11

01-09

01-10

N/A

N/A

N/A

01-15

N/A

N/A

01-16

N/A

N/A

N/A
Meteor
01-16

01-16

01-16

01-17

01-17

01-17

01-08

01-07

01-11

01-09

01-10

01-12

01-15

01-15

01-15

01-17

01-16

01-16

01-16

01-17

01-17
Cougar
N/A

01-16

01-16

N/A

01-17

01-17

01-08

01-07

N/A

N/A

N/A

01-12

01-15

N/A

01-15

01-17

N/A

01-16

01-16

N/A

01-17
Fairlane
01-16

01-16

01-16

01-17

01-17

01-17

01-08

01-07

01-11

01-09

01-10

01-12

01-15

01-15

01-15

01-17

01-16

01-16

01-16

01-17

01-17
Falcon
01-16

N/A

N/A

01-17

N/A

N/A

N/A

N/A

01-11

01-09

01-10

N/A

N/A

01-15

N/A

N/A

01-16

N/A

N/A

01-17

N/A
Montego
01-16

01-16

01-16

01-17

01-17

01-17

01-08

01-07

01-11

01-09

01-10

01-12

01-15

01-15

01-15

01-17

01-16

01-16

01-16

01-17

01-17
Mustang
01-16

01-16

01-16

01-17

01-17

01-17

01-08

01-07

N/A

N/A

N/A

01-12

01-15

01-15

01-15

01-17

01-16

01-16

01-16

01-17

01-17
Lincoln-
Continental
N/A

01-16

N/A

N/A

01-17

N/A

N/A

N/A

01-11

01-09

01-10

N/A

N/A

N/A

01-15

N/A

N/A

01-16

N/A

N/A

N/A
Thunderbird
N/A

01-16

N/A

N/A

01-17

N/A

N/A

N/A

01-11

01-09

01-10

N/A

N/A

N/A

01-15

N/A

N/A

01-16

N/A

N/A

N/A
Continental-
Mark
III
N/A

01-16

N/A

N/A

01-17

N/A

N/A

N/A

01-11

01-09

01-10

N/A

N/A

N/A

01-15

N/A

N/A

01-16

N/A

N/A

N/A

A page number indicates that the item is for the vehicle listed at the head of the column.

N/A indicates that the item is not applicable to the vehicle listed.
procarmanuals.com

Page 294 of 413

FORD MUSTANG 1969 Volume One Chassis
07-01-03

General Transmission Service

07-01-03

COMPONENT INDEX

FMX Transmission

REAR SUPPORT (FMX)

Inspection

SHIFT POINT CHECKS

STATOR ONE-WAY CLUTCH CHECK

STATOR TO IMPELLOR INTERFERENCE

07-01-03

General Transmission Service

07-01-03

COMPONENT INDEX

FMX Transmission

REAR SUPPORT (FMX)

Inspection

SHIFT POINT CHECKS

STATOR ONE-WAY CLUTCH CHECK

STATOR TO IMPELLOR INTERFERENCE

CHECK

STATOR TO TURBINE INTERFERENCE

CHECK

TRANSMISSION CLEANING

TURBINE AND STATOR END PLAY

CHECK

VACUUM DIAPHRAGM ADJUSTMENT

Altitude Compensating Type

Non-Altitude Compensating Type

VACUUM UNIT CHECK

Altitude Compensating Type

Non-Altitude Compensating Type
MODEL APPLICATION
All
Models

01-06

01-12

01-12

01-12

01-11

01-12
Ford
01-17

01-16

N/A

01-08

N/A

01-05
Mercury
N/A

N/A

N/A

01-08

N/A

01-05
Meteor
01-17

01-16

N/A

01-08

N/A

01-05
Cougar
01-17

01-16

N/A

01-08

N/A

01-05
Fairlane
01-17

01-16

N/A

01-08

N/A

01-05
Falcon
N/A

N/A

N/A

01-08

N/A

01-05
Montego
01-17

01-16

N/A

01-08

N/A

01-05
Mustang
01-17

01-16

N/A

01-08

N/A

01-05
Lincoln-
Continental
N/A

N/A

01-09

N/A

01-06

N/A
Thunderbird
N/A

N/A

01-09

N/A

01-06

N/A
Continental-
Mark
III
N/A

N/A

01-09

N/A

01-06

N/A

A page number indicates that the item is for the vehicle listed at the head of the column.

N/A indicates that the item is not applicable to the vehicle listed.

Three different three-speed trans-

missions are used. The C4 Automatic,

C6 Automatic and the FMX Auto-

matic. Part 7-1 covers testing, com-
mon adjustments and repairs, and

cleaning and inspection for the three

types of transmissions. Where there
are differences in procedures or speci-

fications, the type of transmission af-

fected will be designated.

l
AUTOMATIC TRANSMISSION TESTS

When diagnosing transmission

problems, refer to the Ford Car and

Truck Diagnosis Manual for the de-

tailed information on the items that

could be causing the problem.

The following preliminary checks

should be made before proceeding

with other diagnosis checks.

TRANSMISSION FLUID LEVEL

CHECK

1.
Make sure that the vehicle is

standing level. Then firmly apply the

parking brake.

2.
Run the engine at normal idle

speed. If the transmission fluid is cold

run the engine at fast idle speed

(about 1200 rpm) until the fluid reach-

es its normal operating temperature.

When the fluid is warm, slow the en-

gine down to normal idle speed.

3.
On a vehicle equipped with a

vacuum brake release, disconnect the

release line and plug the end of the
line;
otherwise the parking brake will

not hold the transmission in any drive

position.

4.
Shift the selector lever through

all positions, and place the lever at P.

Do not turn off the engine during the

fluid level checks.

5.
Clean all dirt from the transmis-

sion fluid dipstick cap before remov-

ing the dipstick from the filler tube.

6. Pull the dipstick out of the tube,

wipe it clean, and push it all the way

back into the tube. Be sure it is prop-

erly seated.

7.
Pull the dipstick out of the tube

again, and check the fluid level. The

fluid level should be above the ADD

mark. If necessary, add enough fluid

to the transmission through the filler

tube to bring the level between the

ADD and FULL marks on the dip-

stick. Do not overfill the transmission.

Install the dipstick, making sure it is

fully seated in the tube.
8. Connect the vacuum brake re-

lease line if so equipped, and test it

for proper operation.

FLUID AERATION CHECK

A fluid level that is too high will

cause the fluid to become aerated:

Aerated fluid will cause low control

pressure, and the aerated fluid may be

forced out the vent.

Check the transmission fluid level.

Low fluid level can affect the opera-

tion of the transmission, and may in-

dicate fluid leaks that could cause

transmission damage.

TRANSMISSION FLUID

LEAKAGE CHECKS

Check the speedometer cable con-

nection at the transmission. Replace

the rubber seal if necessary.

Leakage at the oil pan gasket often

can be stopped by tightening the at-
procarmanuals.com

Page 295 of 413

FORD MUSTANG 1969 Volume One Chassis
07-01-04
General Transmission Service

07-01-04

taching bolts to the proper torque. If

necessary, replace the gasket.

Check the fluid filler tube connec-

tion at the transmission case or pan.

I

07-01-04
General Transmission Service

07-01-04

taching bolts to the proper torque. If

necessary, replace the gasket.

Check the fluid filler tube connec-

tion at the transmission case or pan.

If leakage is found here, install a new

O-ring or tighten the fitting to the

specified torque.

Check the fluid lines and fittings

between the transmission and the

cooler in the radiator tank for loose-

ness,
wear, or damage. If leakage can-

not be stopped by tightening a fitting,

replace the damaged parts.

Check the engine coolant in the ra-

diator. If transmission fluid is present

in the coolant, the cooler in the radia-

tor is probably leaking.

The cooler can be further checked

for leaks by disconnecting the lines

from the cooler fittings and applying

50-75 psi air pressure to the fittings.

Remove the radiator cap to relieve the

pressure build at the exterior of the oil

cooler tank. If the cooler is leaking

and will not hold this pressure the

cooler must be replaced. Cooler re-

placement is described in the Cooling

System Section of Group 11.

If leakage is found at either the

downshift control lever shaft or the

manual lever shaft, replace either or

both seals.

Inspect the pipe plug on the left

side of the transmission case at the

front. If the plug shows leakage, tor-

que the plug to specifications. If tight-

ening does not stop the leaks, replace

the plug. On a C6 transmission, a TV

pressure plug is also provided on the

right rear side of the case.

When converter drain plugs leak,

remove drain plugs with a six-point

wrench. Coat the threads with FoMo-

Co Perfect Seal Sealing Compound or

its equivalent, and install the plugs.

Torque the drain plugs to specifica-

tion. Fluid leakage from the converter

housing may be caused by engine oil

leaking past the rear main bearing or

from oil gallery plugs, or power steer-

ing oil leakage from steering system.

Be sure to determine the exact cause

of the leak before repair procedures

are started.

Oil-soluble aniline or fluorescent dyes

premixed at the rate of 1/2 teaspoon

of dye powder to 1/2 pint of transmis-

sion fluid have proved helpful in locat-

ing the source of the fluid leakage.

Such dyes may be used to determine

whether an engine oil or transmission

fluid leak is present or if the fluid in

the oil cooler leaks into the engine

coolant system. A black light, how-

ever, must be used with the fluorescent

dye solution.
DISHED OR

FLAT WASHER

" O.D.,
a" STEEL PLATE

5/8"X \W,

DRILL TO SUIT
HEX. HEAD SCREW

3/8"-24 X Vl

HEX. NUT W—
24

WELD

TOGETHER

WING
NUT

>/2"_13
THREAD

CHAIN,
10"
LONG
RUBBER PLUG

1
Vi" DIA. X 2"

LONG Vl"

HOLE THRU

APPROXIMATELY

40 DUROMETER
FLAT WASHER

Vs" O.D.

PLUG

VALVE
STANDARD BOLT

W-13
X 4Vl"

LONG SQUARE

THREAD
END

REMOVE HEAD

AND WELD
TO

WASHER

STANDARD 1/8" FITTING-87971-S FOR

RETAPPED DRAIN PLUG THREADS-USE

1/4" OVERSIZE FITTING-87973-S

D 1067-B
WELD TOGETHER

SECURELY—MUST

NOT LEAK

FIG. 2—Converter Leak Checking Tool

CONVERTER LEAKAGE

CHECK

If there are indications that the

welds on the torque converter are

leaking, the converter will have to be

removed and the following check

made before the unit is replaced.

A leak checking tool (Fig. 2) can be

made from standard parts. The tool

can be used to check all converters.

1.
Install the plug in the converter

(Fig. 3) and expand it by tightening

the wing nut. Attach the safety chains.

2.
Install the air valve in one of the

drain plug holes.

3.
Introduce air pressure into the

converter. Check the pressure with a

tire gauge and adjust it to 20 psi.

4.
Place the converter in a tank of

water. Observe the weld areas for

bubbles. If no bubbles are observed, it

may be assumed that the welds are

not leaking.

ENGINE IDLE SPEED CHECK

Check and, if necessary, adjust the

engine idle speed, using the procedure

given in Group 10.

If the idle speed is too low, the en-

gine will run roughly. An idle speed

that is too high will cause the vehicle

to creep, have harsh engagements and

harsh closed-throttle downshifts.
ANTI-STALL DASHPOT

CLEARANCE CHECK

After the engine idle speed has been

properly adjusted, check the anti-stall

dashpot clearance. Follow the proce-

dure given in Group 10 for checking

and adjusting this clearance.

MANUAL LINKAGE CHECKS

Correct manual linkage adjustment

is necessary to position the manual

valve for proper fluid pressure direc-

tion to the different transmission com-

ponents. Improperly adjusted manual

Tire Pressure Gauge

D1921-A

FIG. 3—Converter Leak Checking

Tool Installationprocarmanuals.com

Page 296 of 413

FORD MUSTANG 1969 Volume One Chassis

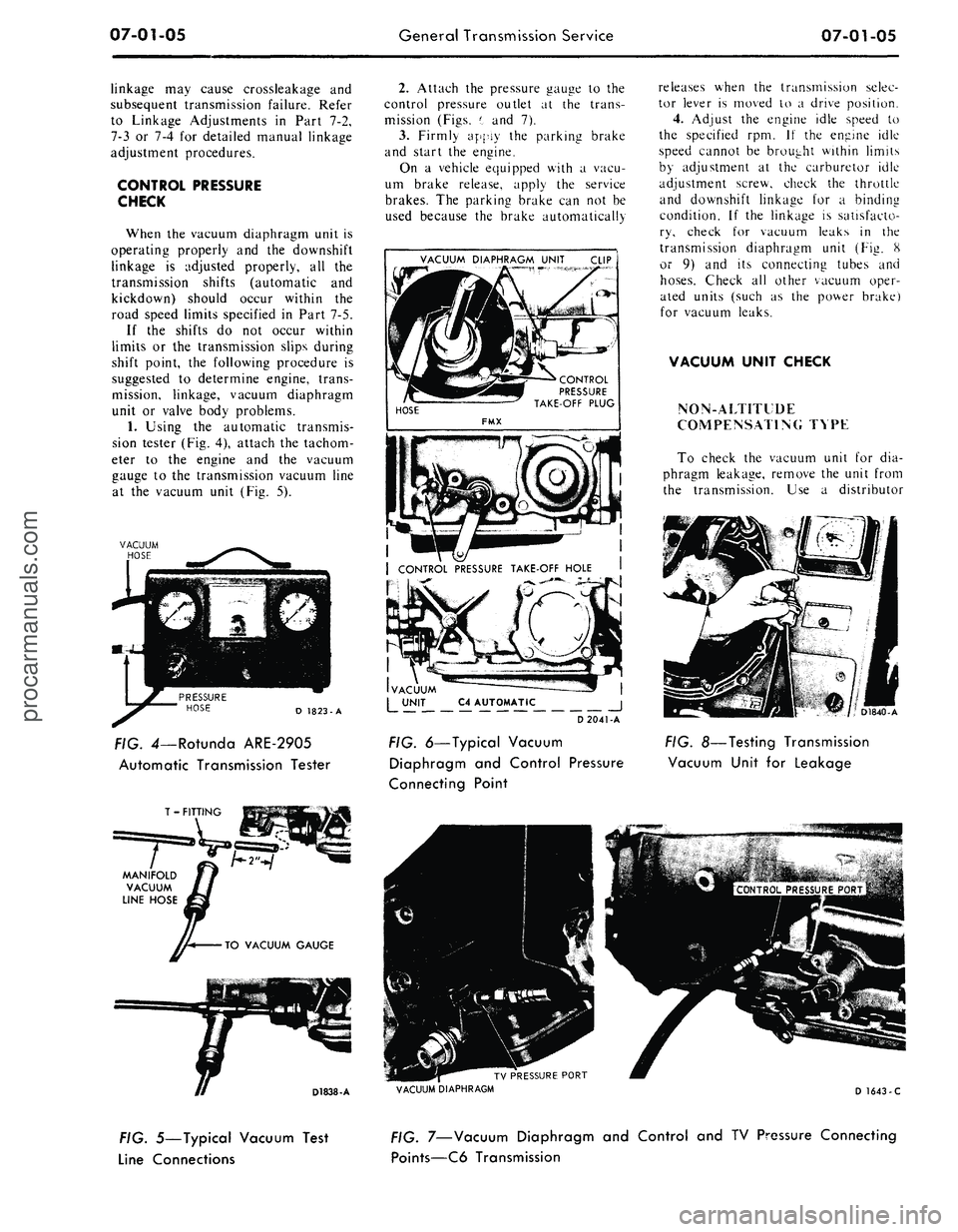

07-01-05
General Transmission Service

07-01-05

linkage may cause crossleakage and

subsequent transmission failure. Refer

to Linkage Adjustments in Part 7-2,

7-3 or 7-4 for detailed manual linka

07-01-05
General Transmission Service

07-01-05

linkage may cause crossleakage and

subsequent transmission failure. Refer

to Linkage Adjustments in Part 7-2,

7-3 or 7-4 for detailed manual linkage

adjustment procedures.

CONTROL PRESSURE

CHECK

When the vacuum diaphragm unit is

operating properly and the downshift

linkage is adjusted properly, all the

transmission shifts (automatic and

kickdown) should occur within the

road speed limits specified in Part 7-5.

If the shifts do not occur within

limits or the transmission slips during

shift point, the following procedure is

suggested to determine engine, trans-

mission, linkage, vacuum diaphragm

unit or valve body problems.

1.
Using the automatic transmis-

sion tester (Fig. 4), attach the tachom-

eter to the engine and the vacuum

gauge to the transmission vacuum line

at the vacuum unit (Fig. 5).

D 1823-A

. 4—Rotunda ARE-2905

Automatic Transmission Tester

T - FITTING
2.
Attach the pressure gauge to the

control pressure outlet at the trans-

mission (Figs. '., and 7).

3.
Firmly apply the parking brake

and start the engine.

On a vehicle equipped with a vacu-

um brake release, apply the service

brakes. The parking brake can not be

used because the brake automatically

VACUUM DIAPHRAGM UNIT

CLIP

I

| CONTROL PRESSURE TAKE-OFF HOLE

D2041-A

FIG. 6—Typical Vacuum

Diaphragm and Control Pressure

Connecting Point
releases when the transmission selec-

tor lever is moved to a drive position.

4.
Adjust the engine idle speed lo

the specified rpm. If the engine idle

speed cannot be brought within limits

by adjustment at the carburetor idle

adjustment screw, check the throttle

and downshift linkage for a binding

condition. If the linkage is satisfacto-

ry, check for vacuum leaks in the

transmission diaphragm unit (Fig. 8

or 9) and its connecting tubes and

hoses.
Check all other vacuum oper-

ated units (such as the power brake)

for vacuum leaks.

VACUUM UNIT CHECK

NON-ALTITIDE

COMPENSATING TYPE

To check the vacuum unit for dia-

phragm leakage, remove the unit from

the transmission. Use a distributor

D1840-A

FIG. 8—Testing Transmission

Vacuum Unit for Leakage

VACUUM DIAPHRAGM

D 1643 -C

FIG. 5—Typical Vacuum Test

Line Connections
FIG.
7—Vacuum
Diaphragm and Control and TV Pressure Connecting

Points—C6 Transmissionprocarmanuals.com
