1969 FORD MUSTANG Volume One Chassis

07-02-29

C4 Automatic Transmission

07-02-29

THRUST WASHER
NO. 9
PARKING GEAR

BOTTOM

OF CASE

FIG. 87—Number
9
Thrust

Washer Location

Tool-T65P-7B456-B

D1910-A

FIG. 88—Installing One-Way

Clutch Outer Race Attaching Bolts

REJURN
S
PAWL

PARKING

GEAR RETAINING
PIN
D1440-A

FIG. 89— Parking Pawl
and
Gear
THRUST

WASHER

NO.
10
D1911-A

FIG. 90—Number
10
Thrust

Washer Location

22.
On the
bench, install
the for-

ward clutch
in the
reverse-high clutch

by rotating
the
units
to
mesh
the

reverse-high clutch plates with
the

splines
of
the
forward clutch
(Fig. 95).

23.
Using
the end
play check read-

ing that
was
obtained during
the

transmission disassembly
to
determine

which
No.
2
steel backed thrustwasher

is required, proceed
as
follows:

a.
Position
the
stator support verti-

cally
on the
work bench
and
install

the correct
No. 2
thrustwasher
to

bring
the end
play within specifica-

tions.

RETAINS REVERSE RING GEAR
AND

HUB
TO
OUTPUT SHAFT

RETAINS GOVERNOR DISTRIBUTOR

TOOUTPUTSHAFT

D1549-A

FIG. 91—Governor
and
Reverse

Ring Hub-Retaining Snap Ring

Identification
b.
Install
the
reverse-high clutch

and
the
forward clutch
on the
stator

support.

c. Invert
the
complete unit making

sure that
the
intermediate brake drum

bushing
is
seated
on the
forward

clutch mating surface.

d.
Select
the
thickest fiber washer

(No.
1)
that
can be
inserted between

the stator support
and the
intermedi-

ate brake drum thrust surfaces
and

still maintain
a
slight clearance.
Do

not select
a
washer that must
be

forced between
the
stator support
and

intermediate brake drum.

e. Remove
the
intermediate brake

drum
and
forward clutch unit from

the stator support.

f.
Install
the
selected
Nos.
1 and 2

thrustwashers
on the
front pump
sta-

tor support
(Fig.
28)
using enough

vaseline
to
hold
the
thrust washers
in

position during
the
front pump instal-

lation.

24.
Install thrust washer
No.
3 on

the forward clutch
(Fig. 96).

25.
Install
the
forward clutch
hub

and ring
in the
forward clutch
by ro-

tating
the
units
to
mesh
the
forward

clutch plates with
the
splines
on the

forward clutch
hub (Fig. 97).

26.
Install thrust washer
No.
4 on

the front planet carrier
(Fig. 98).
In-

stall
the
front planet carrier into
the

forward clutch
hub and
ring gear.

Check
the
forward thrust bearing race

inside
the
planet carrier
for
proper

location against
the
thrust bearing.

Make sure
the
race
is
centered
for

alignment with
the sun
gear
on the

input shell
(Fig. 99).

27.
Install
the
input shell
and sun

gear
on
the
gear train
(Fig. 100). Ro-

tate
the
input shell
to
engage
the
drive

lugs
of the
reverse-high clutch.
If the

drive lugs will
not
engage,
the
outer

race inside
the
forward planet carrier

is
not
centered
to
engage
the end of

the
sun
gear inside
the
input shell.

Center
the
thrust bearing race
and
in-

stall
the
input shell.

28.
Hold
the
gear train together

and install
the
forward part
of the

gear train assembly
in the
case
(Fig.

33).

The input shell
sun
gear must mesh

with
the
reverse pinion gears.
The

front planet carrier internal splines

must mesh with
the
splines
on the out-

put shaft.

29.
A
new
band should
be
soaked

in transmission fluid
for
fifteen
min-

utes before
it is
installed. Install
the

intermediate band through
the
front
of

the case
(Fig. 31).

30.
Install
a
new
front pump gasket

on
the
case. Line
up
the
bolt holes
inprocarmanuals.com

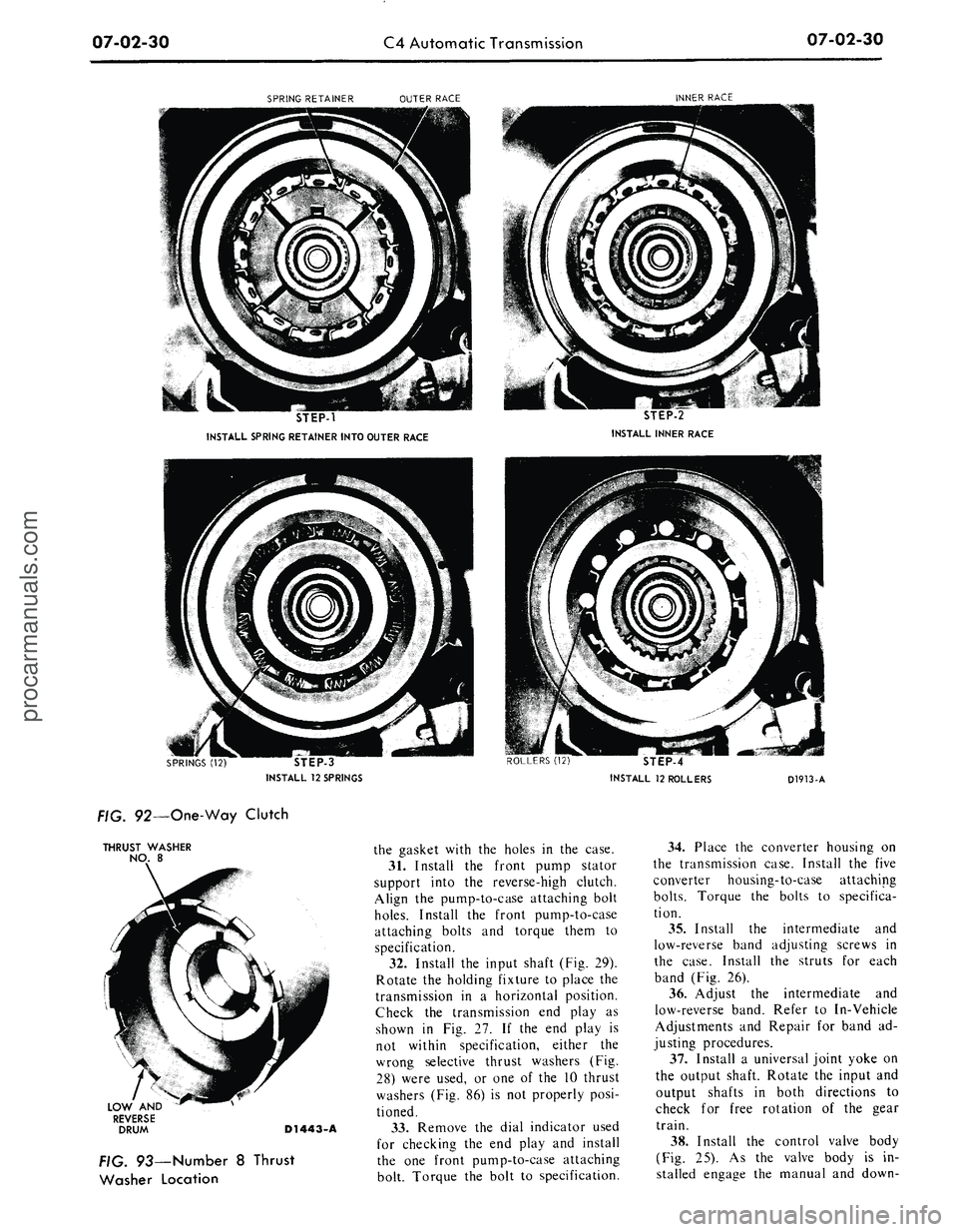

07-02-30
C4 Automatic Transmission
07-02-30

SPRING RETAINER
OUTER RACE
INNER RACE

STEP-1

INSTALL SPRING RETAINER INTO OUTER RACE
STEP-2

INSTALL INNER RACE

STEP-3

INSTALL
12
SPRINGS
ROLLERS
(12)

STEP-4

INSTALL
12
ROLLERS
D1913-A

FIG. 92—One-Way Clutch

THRUST
WASHER

NO.
8

LOW
AND

REVERSE

DRUM
D1443-A

FIG. 93—Number
8
Thrust

Washer Location
the gasket with
the
holes
in the
case.

31.
Install
the
front pump stator

support into
the
reverse-high clutch.

Align
the
pump-to-case attaching bolt

holes.
Install
the
front pump-to-case

attaching bolts
and
torque them
to

specification.

32.
Install
the
input shaft
(Fig.
29).

Rotate
the
holding fixture
to
place
the

transmission
in a
horizontal position.

Check
the
transmission
end
play
as

shown
in Fig. 27. If the end
play
is

not within specification, either
the

wrong selective thrust washers
(Fig.

28) were used,
or one of the 10
thrust

washers
(Fig.
86) is not
properly posi-

tioned.

33.
Remove
the
dial indicator used

for checking
the end
play
and
install

the
one
front pump-to-case attaching

bolt. Torque
the
bolt
to
specification.
34.
Place
the
converter housing
on

the transmission case. Install
the
five

converter housing-to-case attaching

bolts.
Torque
the
bolts
to
specifica-

tion.

35.
Install
the
intermediate
and

low-reverse band adjusting screws
in

the case. Install
the
struts
for
each

band
(Fig.
26).

36.
Adjust
the
intermediate
and

low-reverse band. Refer
to
In-Vehicle

Adjustments
and
Repair
for
band
ad-

justing procedures.

37.
Install
a
universal joint yoke
on

the output shaft. Rotate
the
input
and

output shafts
in
both directions
to

check
for
free rotation
of the
gear

train.

38.
Install
the
control valve body

(Fig.
25). As the
valve body
is in-

stalled engage
the
manual
and
down-procarmanuals.com

07-02-31

C4 Automatic Transmission

07-02-31

REVERSE PLANET CARRIER

THRUST WASHER NO. 7

THRUST WASHER NO. 6

FIG. 94 —Number 6 and 7 Thrust Washer Location
D1444-A

shift valves with the inner control le-

vers.
Torque the control valve body-

to-case attaching bolts to specifica-

tion.

39.
Place a new pan gasket on the

case and install the pan and pan-

to-case attaching bolts. Torque the at-

taching bolts to specification.

40.
Remove the transmission from

FORWARD CLUTCH HUB

AND RING GEAR
FORWARD

CLUTCH

REVERSE-HIGH

CLUTCH
FORWARD

CLUTCH

D1914-A

FIG. 95—Installing Clutch Units

THRUST WASHER NO. 3 FORWARD

CLUTCH CYLINDER

REVERSE-HIGH CLUTCH

D1446-A

D1915-A

FIG. 96—Number 3 Thrust

Washer Location
FIG. 97—Installing Forward

Clutch Hub and Ring Gear
THRUS

WASHER

NO.
4

D1916-A

FIG. 98—Number 4 Thrust

Washer Location

the holding fixture. Install the two ex-

tension housing-to-case attaching

bolts.
Torque the bolts to specifica-

tion.

41

valve
Install the primary throttle

in the transmission case (Fig.

23).

42.
Install the vacuum unit, gasket,

and control rod in the case. Using the

tools shown in Fig. 101, torque the

vacuum unit to 15-23 ft-lbs.

FRONT PLANET

CARRIER
FORWARD CLUTCH

HUB AND

GEAR

FORWARD

CLUTCH

REVERSE-HIGH CLUTCH

FIG. 99—Installing Front

Planet Carrier
D1917-Aprocarmanuals.com

07-02-32
C4 Automatic Transmission
07-02-32

INPUT SHELL

SUN GEAR

DRIVE
LUG

ENGAGEMENT
REVERSE-HIGH

CLUTCH

D1918-A

FIG. TOO—Installing Input Shell
43.
Make sure
the
input shaft
is

properly installed
in the
front pump

stator support
and
gear train. Install

the converter
in the
front pump
and

the
the
converter housing.
Tool-FCO-24

Reworked

D1919-A

FIG. 707—Installing Vacuum Unitprocarmanuals.com

07-03-01
FMX Transmission

07-03-01

PART
7-3 FMX
Transmission

SELECTOR

TRANSMISSION ENGINE LEVER

MODEL MODEL LOCATION

PHB-A 390-2V Column

PHB-C 351-2V Column

PHB-D 351-2V Console

PHB-E 351-2V Console

PHB-F 351-4V Column

PHB-G 351-4V Console

PHB-H 351-4V Console

PHD-A 240-1V Column

PHD-B 302-2V Column
MODEL APPLICATION
All
Models
Ford

X

X

X
Mercury
Meteor
X

X

X
Cougar
X

X
Fairlane
X

X

X

X
Falcon
Montego
X

X

X

X
Mustang
X

X
Lincoln-
Continental
Thunderbird
Continental-
Mark III

COMPONENT INDEX

ASSEMBLY
OF
TRANSMISSION

End Play Check

BAND ADJUSTMENTS

Front Band

Rear Band (Ford
and
Meteor)

Rear Band (Fairlane, Montego, Mustang
and

Cougar)

External Adjustment

Internal Adjustment

CENTER SUPPORT, ONE-WAY CLUTCH

AND PINION CARRIER

Assembly

Center Support With Chamfered Edge

Center Support
not
Chamfered

Inspection

CONTROL VALVE BODY

Assembly

Disassembly
and
Overhaul

Inspection

Removal
and
Installation

DESCRIPTION

DISASSEMBLY
AND
OVERHAUL
OF

TRANSMISSION

End Play Check

DOWNSHIFT LINKAGE

Adjustment

Parts Repair
or
Replacement

EXTENSION HOUSING

Assembly

Inspection

EXTENSION HOUSING BUSHING

Page
03-26

03-08

03-09

03-09

03-10

03-10

03-10

03-26

03-26

03-27

03-14

03-28

03-21

03-16

03-11

03-03

03-16

03-16

03-05

03-25

03-28

03-14
COMPONENT INDEX

Removal
and
Installation

EXTENSION HOUSING REAR SEAL

Removal
and
Installation

FLUID FILTER ASSEMBLY

FRONT CLUTCH

Assembly

Disassembly
and
Overhaul

Inspection

FRONT PUMP

Assembly

Disassembly
and
Overhaul

Inspection

FRONT SERVO

Assembly

Disassembly
and
Overhaul

Inspection

Removal
and
Installation

GOVERNOR

Assembly

Disassembly
and
Overhaul

Inspection

Removal
and
Installation

MANUAL LINKAGE

Adjustments

Parts Repair
or
Replacement

NEUTRAL START SWITCH-CONSOLE SHIFT

Adjustment

Removal
and
Installation

(Refer
to
Part 7-1
for
Column Shift

Adjustment
and
Removal
and
Installation

procedures)

1

Page
03-13

03-13

03-29

03-26

03-19

03-15

03-28

03-20

01-15

03-28

03-24

01-16

03-12

03-28

03-24

01-16

03-10

03-05

03-25

03-05

03-07
procarmanuals.com

07-03-02
FMX Transmission

07-03-02

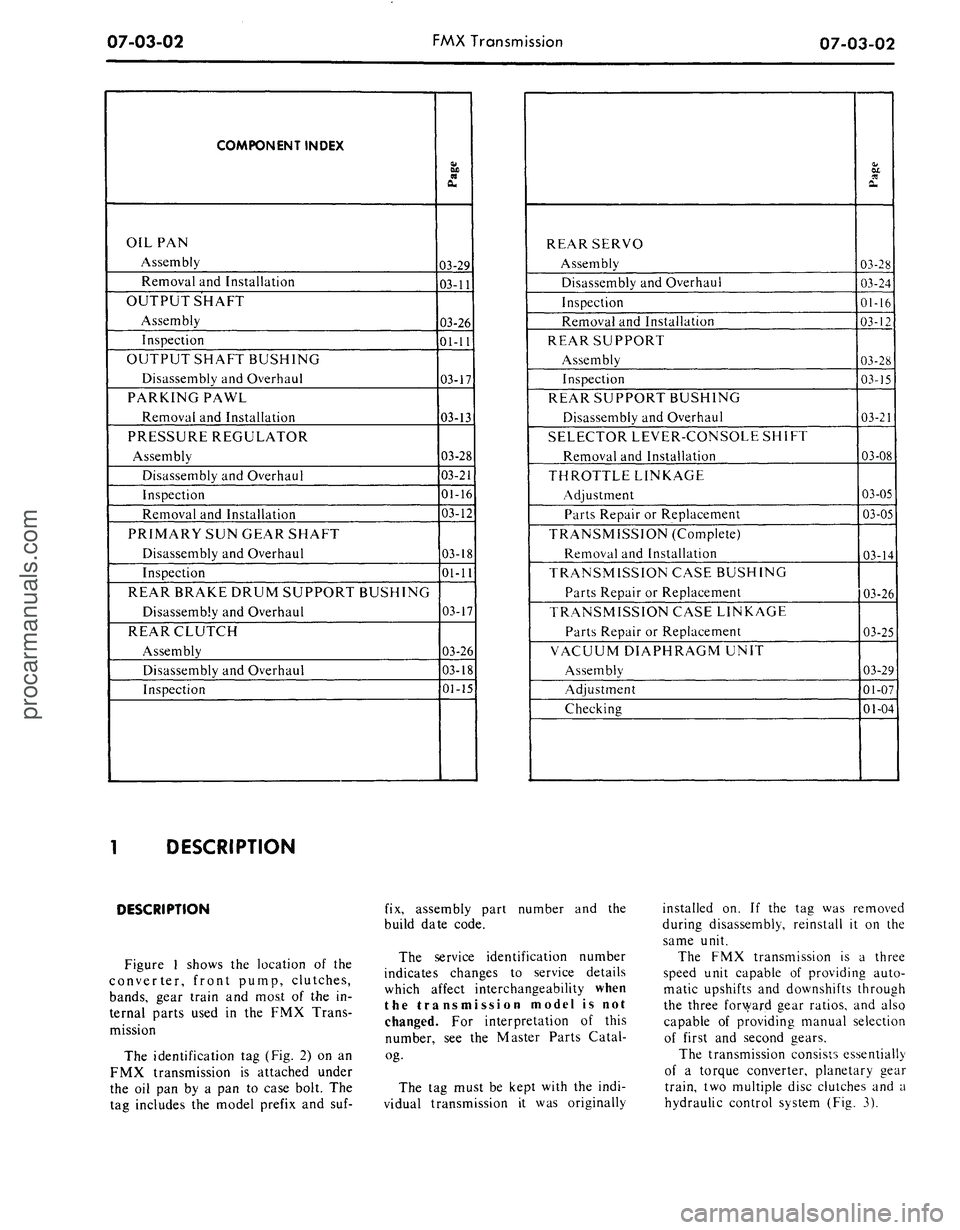

COMPONENT INDEX

OIL PAN

Assembly

Removal and Installation

OUTPUT SHAFT

Assembly

Inspection

OUTPUT SHAFT BUSHING

Disassembly and Overhaul

PARKING PAWL

Removal and Installation

PRESSURE REGULATOR

Assembly

Disassembly and Overhaul

Inspection

Removal and Installation

PRIMARY SUN GEAR SHAFT

Disassembly and Overhaul

Inspection

REAR BRAKE DRUM SUPPORT BUSHING

Disassembly and Overhaul

REAR CLUTCH

Assembly

Disassembly and Overhaul

Inspection
Page
03-29

03-11

03-26

01-11

03-17

03-13

03-28

03-21

01-16

03-12

03-18

01-11

03-17

03-26

03-18

01-15
REAR SERVO

Assembly

Disassembly and Overhaul

Inspection

Removal and Installation

REAR SUPPORT

Assembly

Inspection

REAR SUPPORT BUSHING

Disassembly and Overhaul

SELECTOR LEVER-CONSOLE SHIFT

Removal and Installation

THROTTLE LINKAGE

Adjustment

Parts Repair or Replacement

TRANSMISSION (Complete)

Removal and Installation

TRANSMISSION CASE BUSHING

Parts Repair or Replacement

TRANSMISSION CASE LINKAGE

Parts Repair or Replacement

VACUUM DIAPHRAGM UNIT

Assembly

Adjustment

Checking
Page
03-28

03-24

01-16

03-12

03-28

03-15

03-21

03-08

03-05

03-05

03-14

03-26

03-25

03-29

01-07

01-04

DESCRIPTION

DESCRIPTION

Figure 1 shows the location of the

converter, front pump, clutches,

bands,
gear train and most of the in-

ternal parts used in the FMX Trans-

mission

The identification tag (Fig. 2) on an

FMX transmission is attached under

the oil pan by a pan to case bolt. The

tag includes the model prefix and suf-
fix, assembly part number and the

build date code.

The service identification number

indicates changes to service details

which affect interchangeability when

the transmission model is not

changed. For interpretation of this

number, see the Master Parts Catal-

og-

The tag must be kept with the indi-

vidual transmission it was originally
installed on. If the tag was removed

during disassembly, reinstall it on the

same unit.

The FMX transmission is a three

speed unit capable of providing auto-

matic upshifts and downshifts through

the three forward gear ratios, and also

capable of providing manual selection

of first and second gears.

The transmission consists essentially

of a torque converter, planetary gear

train, two multiple disc clutches and a

hydraulic control system (Fig. 3).
procarmanuals.com

07-03-03
FMX Transmission

0703-03

PRIMARY DISTRIBUTOR SLEEVE EXTENSION HOUSING SEAL

SUN GEAR ! SPEEDOMETER DRIVE GEAR /

OIL SEAL ONE-WAY CLUTCH

FRONT FRONT

PUMP BAND

FRONT

CLUTCH

OUTPUT SHAFT

EXTENSION HOUSING

SPLINE SEAL

GOVERNOR

PRIMARY PINION

SECONDARY SUN GEAR

SECONDARY PINION

DIAPHRAGM

CONTROL VALVE BODY

OIL PAN

TURBINE SHAFT

FLYWHEEL
'REAR CLUTCH PISTON

REAR CLUTCH

REAR CLUTCH SPRING

FRONT CLUTCH PISTON

FRONT SERVO

PRESSURE REGULATOR BODY

STATOR SUPPORT

D 2045-A

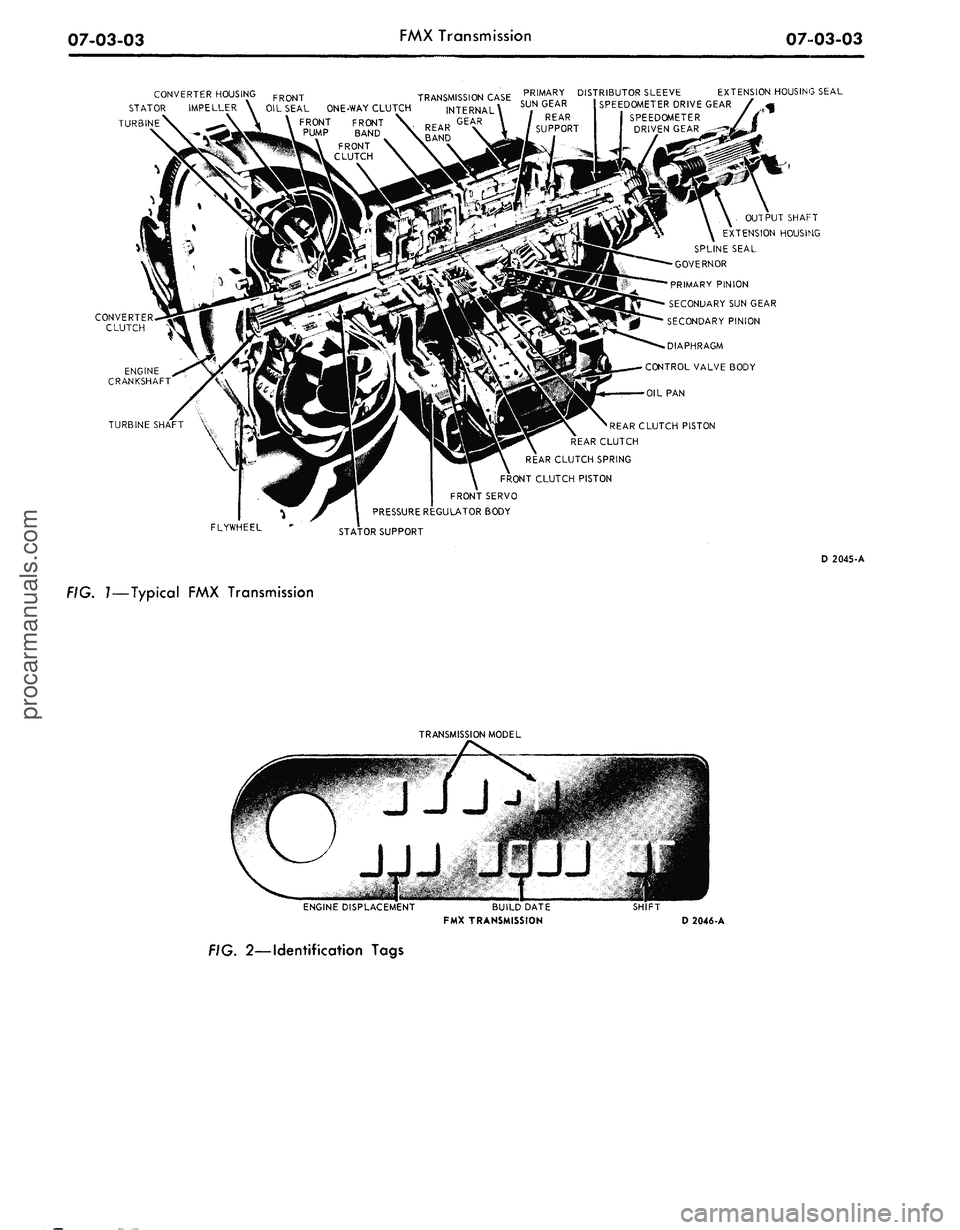

FIG. 7—Typical FMX Transmission

TRANSMISSION MODEL

ENGINE DISPLACEMENT
BUILD DATE

FMX TRANSMISSION
SHIFT

D 2046-A

FIG. 2—Identification Tagsprocarmanuals.com

07-03-04

FMX Transmission

07-03-04

FORWARD

CLUTCH
REVERSE-HIGH

CLUTCH
' INTERMEDIATE SERVO

3-2 KICKDOWN

CONTROL VALVE
RELEASE

APPLY
LOW REVERSE

SERVO

ORIFICE

LOW SERVO

LOCKOUT

VALVE
2-3 SHIFT VALVE

AND THROTTLE

REDUCING VALVE

1-2 SHIFT

ACCUMULATOR

VALVE
CHECK BALL

USED IN PHD

MODEL

TRANSMISSIONS

ONLY

LOW SERVO

MODULATOR

VALVE

GOVERNOR

CONTROL PRESSURE

REGULATOR VALVE

FRONT PUMP

THROTTLE

BOOST VALVE

OIL
SCREEN
CONVERTER

CONVERTER

PRESSURE

REGULATOR

VALVE

THROTTLE

BOOST VALVE

POLICE
AND
TAXI,

ONLY
COOLER RETURN

OIL CHECK

VALVE

REAR

LUBE
OIL

COOLER

X EXHAUST

D 2047-A

FIG.
3—Hydraulic
Control System—FMX Transmissionprocarmanuals.com
