Voice Activated Control Function Does Not OperateEKS00IBA
NOTE:
Even under the normal condition, Bluetooth voice guidance may not occur when pressing steering wheel
audio control switch.
BLUETOOTH VOICE GUIDANCE IS HEARD WHEN PRESSING STEERING WHEEL AUDIO
CONTROL SWITCH
1. CHECK HARNESS BETWEEN BLUETOOTH CONTROL UNIT AND BLUETOOTH MICROPHONE
1. Turn ignition switch OFF.
2. Disconnect Bluetooth control unit connector and Bluetooth microphone connector.
3. Check continuity between Bluetooth control unit connector B121
(A) and Bluetooth microphone connector R15 (B).
4. Check continuity between Bluetooth control unit harness con-
nector B121 and ground.
OK or NG
OK >> GO TO 2.
NG >> Repair harness or connector.
2. CHECK BLUETOOTH MICROPHONE POWER SUPPLY
1. Connect Bluetooth control unit connector and Bluetooth microphone connector.
2. Turn ignition switch ON.
3. Check voltage between Bluetooth microphone connector R15
terminal 5 and ground.
YES or NO
YES >> GO TO 3.
NO >> Replace Bluetooth control unit. Refer to AV- 6 3 , "
BLUE-
TOOTH CONTROL UNIT" .
Terminals
Continuity
Connector Terminal Connector Terminal
A: B1216
B: R156
Ye s 78
87
29 5
Te r m i n a l s
Continuity
Connector Terminal —
A: B1217
Ground No 8
29
LKIA0778E
5 - Ground : Approx. 5 V
LKIA0779E
Page 458 of 2896

TELEPHONE
AV-61
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: June 20062007 Versa
3. CHECK MIC. SIGNAL

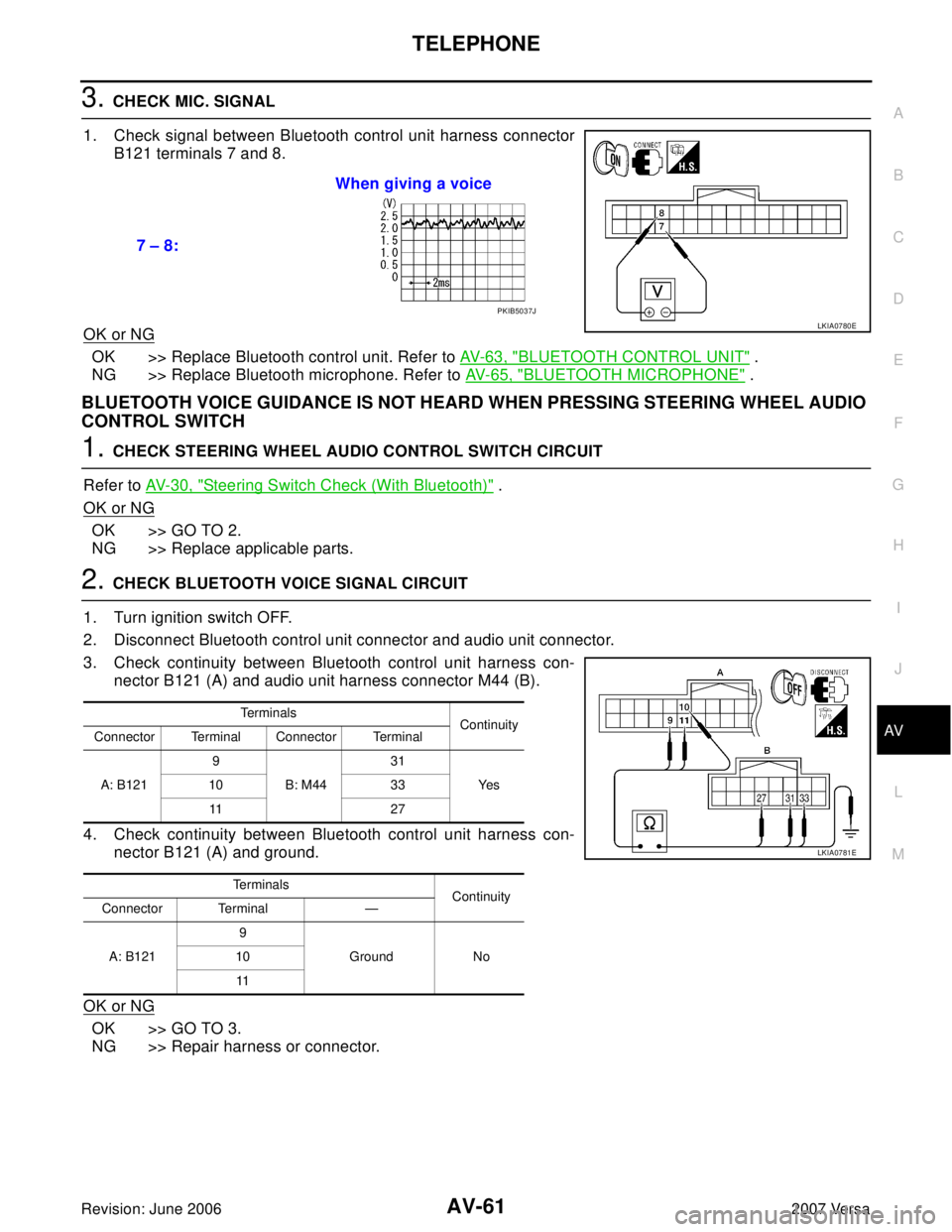

1. Check signal between Bluetooth control unit harness connector
B121 terminals 7 and 8.
OK or NG
OK >> Replace Bluetooth control unit. Refer to AV- 6 3 , "BLUETOOTH CONTROL UNIT" .
NG >> Replace Bluetooth microphone. Refer to AV-65, "
BLUETOOTH MICROPHONE" .
BLUETOOTH VOICE GUIDANCE IS NOT HEARD WHEN PRESSING STEERING WHEEL AUDIO
CONTROL SWITCH
1. CHECK STEERING WHEEL AUDIO CONTROL SWITCH CIRCUIT
Refer to AV-30, "
Steering Switch Check (With Bluetooth)" .
OK or NG
OK >> GO TO 2.
NG >> Replace applicable parts.
2. CHECK BLUETOOTH VOICE SIGNAL CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect Bluetooth control unit connector and audio unit connector.
3. Check continuity between Bluetooth control unit harness con-
nector B121 (A) and audio unit harness connector M44 (B).
4. Check continuity between Bluetooth control unit harness con-
nector B121 (A) and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.7 – 8:When giving a voice
LKIA0780EPKIB5037J
Te r m i n a l s
Continuity
Connector Terminal Connector Terminal
A: B1219
B: M4431
Ye s 10 33
11 2 7
Te r m i n a l s
Continuity
Connector Terminal —
A: B1219
Ground No 10
11
LKIA0781E
Page 459 of 2896
AV-62
TELEPHONE
Revision: June 20062007 Versa
3. CHECK MUTE SIGNAL
1. Connect Bluetooth control unit connector and audio unit connector.
2. Turn ignition switch ON.

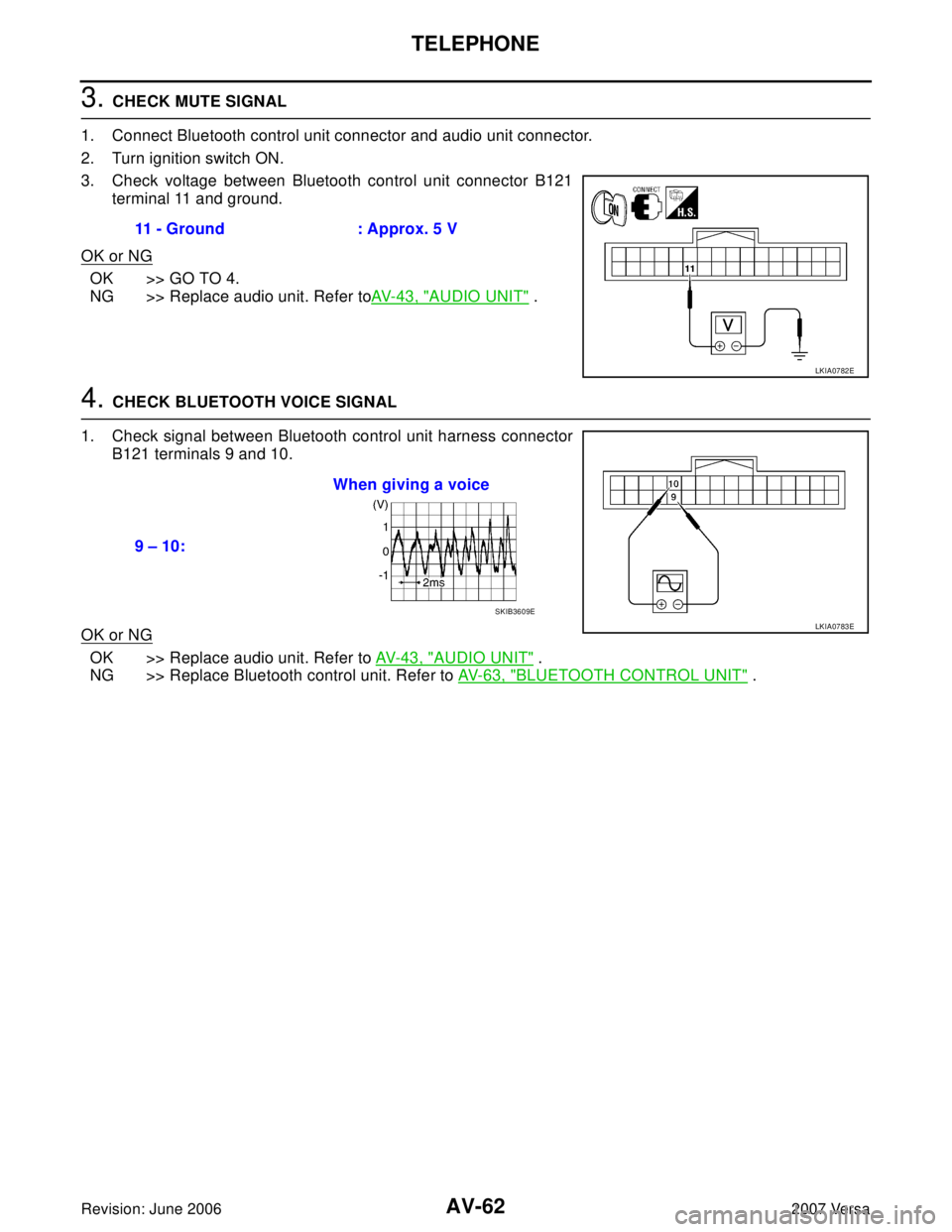

3. Check voltage between Bluetooth control unit connector B121
terminal 11 and ground.
OK or NG
OK >> GO TO 4.
NG >> Replace audio unit. Refer toAV- 4 3 , "
AUDIO UNIT" .
4. CHECK BLUETOOTH VOICE SIGNAL
1. Check signal between Bluetooth control unit harness connector
B121 terminals 9 and 10.
OK or NG
OK >> Replace audio unit. Refer to AV- 4 3 , "AUDIO UNIT" .
NG >> Replace Bluetooth control unit. Refer to AV-63, "
BLUETOOTH CONTROL UNIT" . 11 - Ground : Approx. 5 V
LKIA0782E
9 – 10:When giving a voice
LKIA0783ESKIB3609E
Page 460 of 2896
TELEPHONE
AV-63
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: June 20062007 Versa
Removal and InstallationEKS00I9M
BLUETOOTH CONTROL UNIT
Removal
1. Remove luggage side lower finish (RH). Refer to EI-42, "Removal and Installation" .
2. Disconnect Bluetooth antenna harness clip.
3. Disconnect Bluetooth antenna harness connector.
4. Disconnect Bluetooth control unit harness connector.
5. Remove Bluetooth control unit upper and lower bracket bolts.
6. Unhook the Bluetooth control unit upper and lower brackets and remove Bluetooth control unit.
7. Remove Bluetooth control unit bracket screws and remove the upper and lower brackets from unit.
Installation
Installation is in the reverse order of removal.

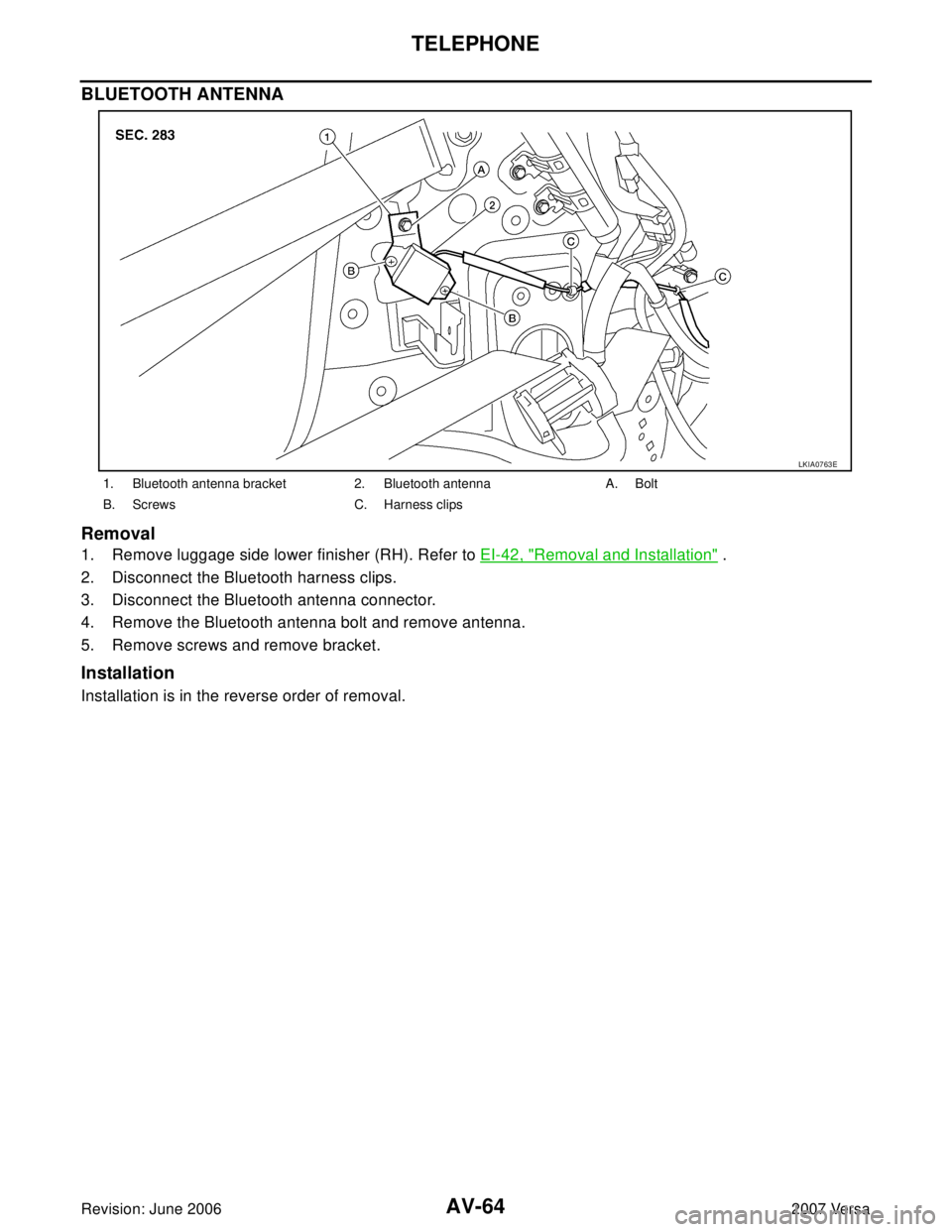

1. Bluetooth control unit bracket 2. Bluetooth control unit A. Bolt
B. Harness clip C. Bluetooth antenna harness connector D. Bluetooth control unit connector
E. screw⇐Front
LKIA0762E
Page 461 of 2896
AV-64
TELEPHONE
Revision: June 20062007 Versa
BLUETOOTH ANTENNA
Removal
1. Remove luggage side lower finisher (RH). Refer to EI-42, "Removal and Installation" .
2. Disconnect the Bluetooth harness clips.
3. Disconnect the Bluetooth antenna connector.
4. Remove the Bluetooth antenna bolt and remove antenna.
5. Remove screws and remove bracket.
Installation
Installation is in the reverse order of removal.
1. Bluetooth antenna bracket 2. Bluetooth antenna A. Bolt
B. Screws C. Harness clips
LKIA0763E
Page 462 of 2896
TELEPHONE
AV-65
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: June 20062007 Versa
BLUETOOTH MICROPHONE
Removal
1. Remove over-head console assembly, roof finisher. Refer to EI-39, "HEADLINING" .
2. Remove the Bluetooth microphone.
Installation
Installation is in the reverse order of removal.
