NISSAN LATIO 2007 Service Repair Manual BL-56
REMOTE KEYLESS ENTRY SYSTEM
Revision: June 20062007 Versa
OPERATED PROCEDURE
Power Door Lock Operation
BCM receives a LOCK signal from keyfob. BCM locks all doors with input of LOCK signal from

BL-56
REMOTE KEYLESS ENTRY SYSTEM
Revision: June 20062007 Versa
OPERATED PROCEDURE
Power Door Lock Operation
BCM receives a LOCK signal from keyfob. BCM locks all doors with input of LOCK signal from keyfob.
BCM receives a UNLOCK signal from keyfob. BCM unlocks all doors with input of UNLOCK signal from key-
fob.
Hazard and Horn Reminder
When the doors are locked or unlocked by keyfob, power is supplied to sound horns and flash hazard warning
lamps as follows
LOCK operation: 3 or 4 mode (lamps flash twice)
UNLOCK operation: 2 or 4 mode (lamps flash once)
Horns sound once with LOCK function when this feature is set ON.
The hazard reminder has modes 1, 2, 3 or 4. The horn reminder can be turned ON/OFF with any LOCK mode.
Operating function of hazard reminder
Hazard and horn reminders do not operate if any door switch is ON (any door is OPEN).
How to change hazard and horn reminder modes
With CONSULT-II
Hazard reminder can be changed using “HAZARD LAMP SET” mode in “WORK SUPPORT”.
Horn reminder can be changed using “HORN CHIRP SET” mode in “WORK SUPPORT”.
Refer to BL-61, "
Work Support" .
Without CONSULT-II
Refer to Owner's Manual for instructions.
Auto Door Lock Operation
Auto lock function signal is sent for operation when any of the following signals are not sent within 1 minute
after the unlock signal is sent from the keyfob:
when door switch is turned ON for open.
when the key switch is turned ON.
when the lock signal is sent from the keyfob.
Auto door lock mode can be changed using “AUTO LOCK SET” mode in “WORK SUPPORT”.
Refer to BL-61, "
Work Support" .
Panic Alarm Operation
When key switch is OFF (when ignition key is not inserted in key cylinder), BCM turns on and off horn intermit-
tently with input of PANIC ALARM signal from keyfob.
BCM outputs to IPDM E/R for panic alarm signal (horn signal) as DATA LINE (CAN H line and CAN L line).
The alarm automatically turns off after 25 seconds or when BCM receives any signal from keyfob.
Panic alarm operation mode can be changed using “PANIC ALARM SET” mode in “WORK SUPPORT”.
Refer to BL-61, "
Work Support" .
Interior Lamp Operation
When the following conditions come:
condition of interior lamp switch is in the DOOR position;
door switch OFF (when all the doors are closed);
Remote keyless entry system turns on interior lamp (for 30 seconds) with input of UNLOCK signal from key-
fob. For detailed description, refer to LT- 9 1 , "
INTERIOR ROOM LAMP" .
CAN Communication System DescriptionEIS0091B
Refer to LAN-4, "SYSTEM DESCRIPTION" .
Mode 1 Mode 2 Mode 3 Mode 4
Keyfob operation Lock Unlock Lock Unlock Lock Unlock Lock Unlock
Hazard warning lamp
flash— — — Twice Once — Once Twice
Horns sound (ON/OFF) ON: once — ON: once — ON: once — ON: once —

Page 546 of 2896

NISSAN LATIO 2007 Service Repair Manual REMOTE KEYLESS ENTRY SYSTEM
BL-57
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa
SchematicEIS0091C
WIWA1961E

Page 547 of 2896

NISSAN LATIO 2007 Service Repair Manual BL-58
REMOTE KEYLESS ENTRY SYSTEM
Revision: June 20062007 Versa

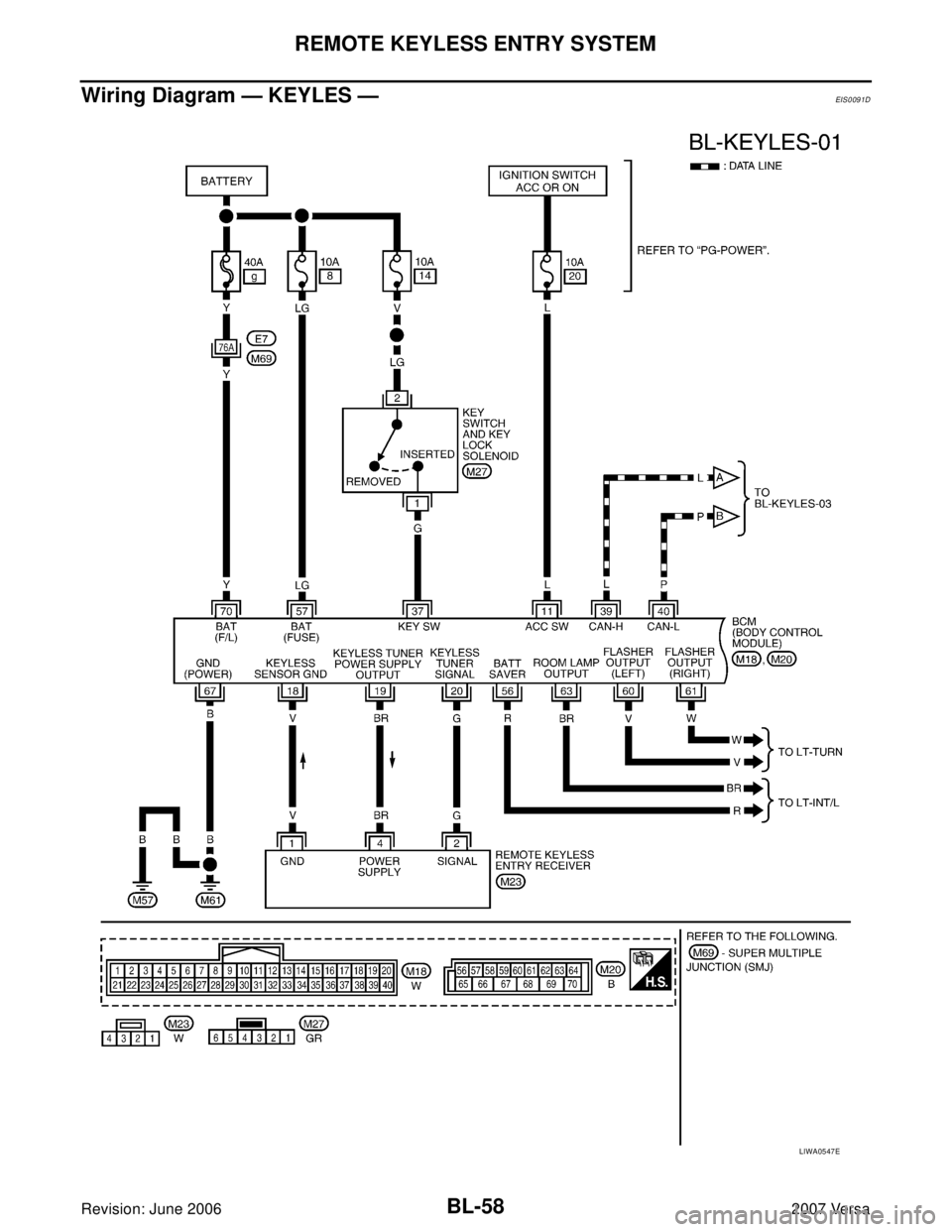

Wiring Diagram — KEYLES —EIS0091D
LIWA0547E

Page 548 of 2896

NISSAN LATIO 2007 Service Repair Manual REMOTE KEYLESS ENTRY SYSTEM
BL-59
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa

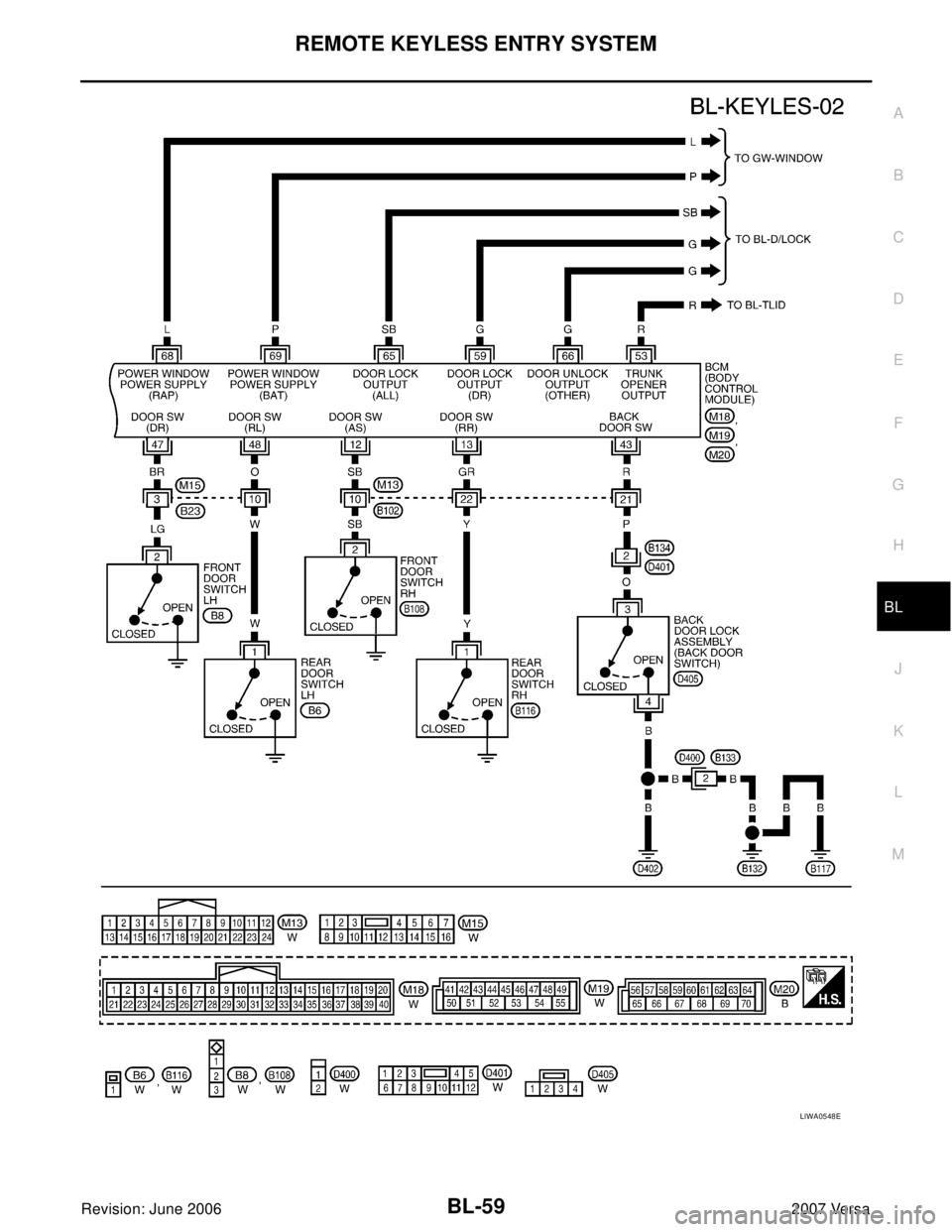

LIWA0548E

Page 549 of 2896

NISSAN LATIO 2007 Service Repair Manual BL-60
REMOTE KEYLESS ENTRY SYSTEM
Revision: June 20062007 Versa

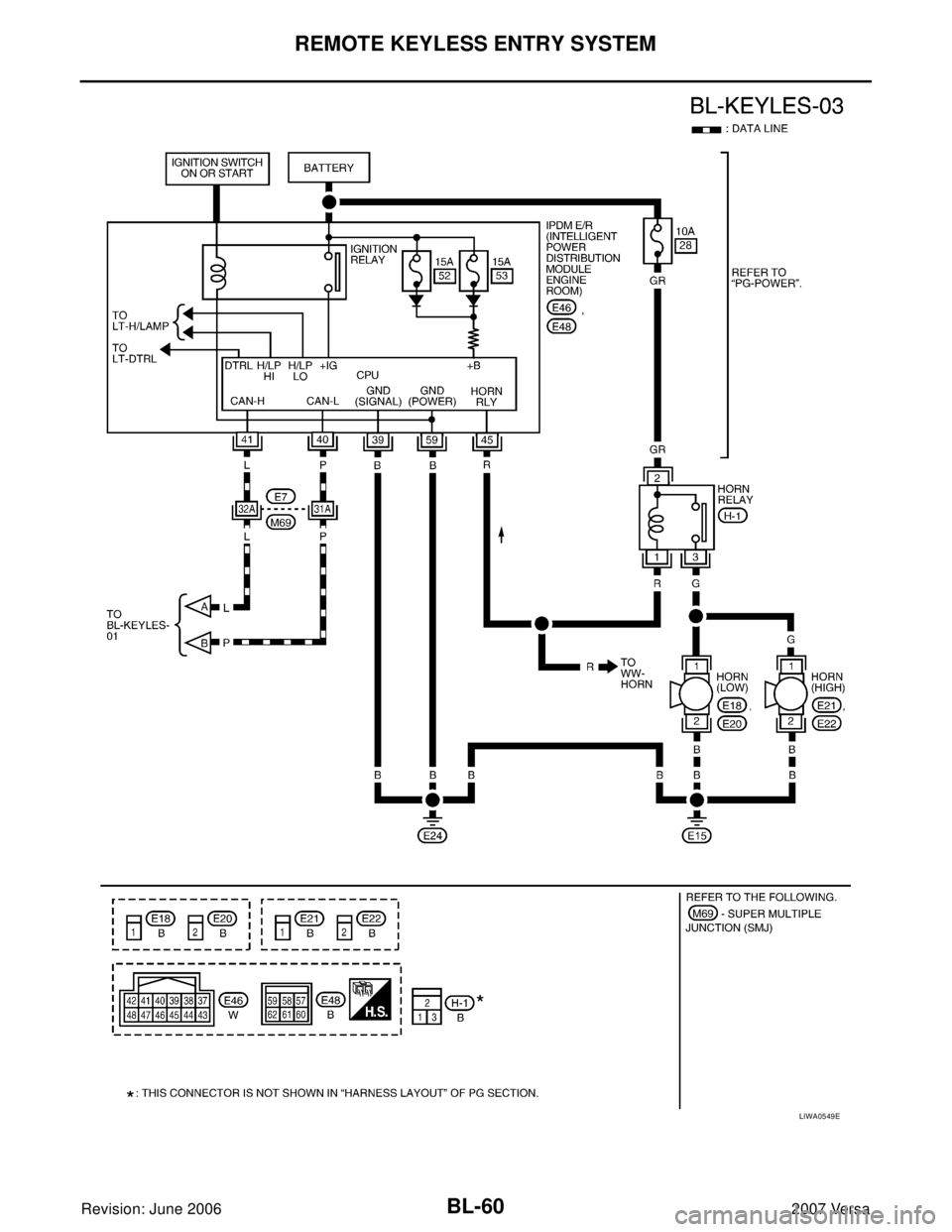

LIWA0549E

Page 550 of 2896

NISSAN LATIO 2007 Service Repair Manual REMOTE KEYLESS ENTRY SYSTEM
BL-61
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa
Terminals and Reference Values for BCMEIS0091E
Refer to BCS-12, "Terminals and Reference Values for BCM" .
How

REMOTE KEYLESS ENTRY SYSTEM
BL-61
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa
Terminals and Reference Values for BCMEIS0091E
Refer to BCS-12, "Terminals and Reference Values for BCM" .
How to Perform Trouble DiagnosesEIS00A3F
1. Confirm the symptom or customer complaint.
2. Understand operation, description and function description. Refer to BL-55, "
System Description" .
3. Perform the Preliminary Check. Refer to LT- 1 2 , "
Preliminary Check" .
4. Check symptom and repair or replace the component.
5. Does the remote keyless entry system operate normally? If YES, GO TO 6. If NO, GO TO 4.
6. INSPECTION END
Preliminary CheckEIS00A3G
CHECK BCM CONFIGURATION
1. CHECK BCM CONFIGURATION
Confirm BCM configuration for "KEYLESS ENTRY" is set to "WITH". Refer to BCS-19, "
READ CONFIGURA-
TION PROCEDURE" .
OK or NG
OK >> Refer to BL-64, "Work Flow" .
NG >> Change BCM configuration for "KEYLESS ENTRY" to "WITH". Refer to BCS-21, "
WRITE CON-
FIGURATION PROCEDURE" .
CONSULT-II Function (BCM)EIS0091F
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II START PROCEDURE
Refer to GI-38, "CONSULT-II Start Procedure" .
CONSULT-II APPLICATION ITEMS
Work Support
BCM
diagnostic test itemDiagnostic mode Description
Inspection by partWORK SUPPORTSupports inspections and adjustments. Commands are transmitted to the
BCM for setting the status suitable for required operation, input/output sig-
nals are received from the BCM and received date is displayed.
DATA MONITOR Displays BCM input/output data in real time.
ACTIVE TESTOperation of electrical loads can be checked by sending drive signal to
them.
SELF-DIAG RESULTS Displays BCM self-diagnosis results.
CAN DIAG SUPPORT MNTRThe result of transmit/receive diagnosis of CAN communication can be
read.
ECU PART NUMBER BCM part number can be read.
CONFIGURATION Performs BCM configuration read/write functions.
Test Item Description
REMO CONT ID REGIST Keyfob ID code can be registered.
REMO CONT ID ERASER Keyfob ID code can be erased.
REMO CONT ID CONFIR It can be checked whether keyfob ID code is registered or not in this mode.
PANIC ALRM SETPanic alarm operation mode can be changed in this mode. The operation mode will be
changed when “CURRENT SETTING” on CONSULT-II screen is touched.
HAZARD LAMP SETHazard reminder mode can be changed in this mode. The hazard reminder mode will be
changed when “CURRENT SETTING” on CONSULT-II screen is touched.

Page 551 of 2896

NISSAN LATIO 2007 Service Repair Manual BL-62
REMOTE KEYLESS ENTRY SYSTEM
Revision: June 20062007 Versa
PANIC ALARM SET
HAZARD LAMP BACK SET
AUTO LOCK SET
TRUNK OPEN
Data Monitor
Active Test
AUTO LOCK SETAuto locking function mode can be ch

BL-62
REMOTE KEYLESS ENTRY SYSTEM
Revision: June 20062007 Versa
PANIC ALARM SET
HAZARD LAMP BACK SET
AUTO LOCK SET
TRUNK OPEN
Data Monitor
Active Test
AUTO LOCK SETAuto locking function mode can be changed in this mode. The function mode will be
changed when “CURRENT SETTING” on CONSULT-II screen is touched.
TRUNK OPENKeyless trunk open operation mode can be changed in this mode. The operation mode will
be changed when “CURRENT SETTING” on CONSULT-II screen is touched. Test Item Description
MODE 1 MODE 2 MODE 3
Keyfob operation 0.5 seconds Nothing 1.5 seconds
MODE 1 MODE 2 MODE 3 MODE 4
Hazard lamp operation mode Nothing Unlock only Lock only Lock and Unlock
MODE 1 MODE 2 MODE 3
Auto locking function 30 seconds Nothing 1 minutes
MODE 1 MODE 2 MODE 3
Keyfob operation 0.5 seconds Nothing 1.5 seconds
Monitored Item Description
IGN ON SW Indicates [ON/OFF] condition of ignition switch in ON position.
KEY ON SW Indicates [ON/OFF] condition of key switch.
ACC ON SW Indicates [ON/OFF] condition of ignition switch in ACC position.
KEYLESS LOCK Indicates [ON/OFF] condition of lock signal from keyfob.
KEYLWSS UNLOCK Indicates [ON/OFF] condition of unlock signal from keyfob.
KYLS TRNK/HAT This is displayed even when it is not equipped.
KEYLESS PSD This is displayed even when it is not equipped.
DOOR SW-DR Indicates [ON/OFF] condition of front door switch driver side.
DOOR SW-AS Indicates [ON/OFF] condition of front door switch passenger side.
DOOR SW-RR Indicates [ON/OFF] condition of rear door switch RH.
DOOR SW-RL Indicates [ON/OFF] condition of rear door switch LH.
BACK DOOR SW This is displayed even when it is not equipped.
TRNK/HAT MNTR Indicates [ON/OFF] condition of trunk room lamp switch.
CDL LOCK SW Indicates [ON/OFF] condition of lock signal from door lock and unlock switch.
CDL UNLOCK SW Indicates [ON/OFF] condition of unlock signal from door lock and unlock switch.
KEYLESS PANIC Indicates [ON/OFF] condition of panic alarm signal from keyfob.
Test Item Description
INT LAMPThis test is able to check interior room lamp operation.
The interior room lamp turns on when “ON” on CONSULT-II screen is touched.
FLASHERThis test is able to check right hazard reminder operation.
The right hazard lamp turns on when “ON” on CONSULT-II screen is touched.
DOOR LOCKThis test is able to check door lock actuator operation.
The all door lock actuator are locked when “ALL LOCK” on CONSULT-II screen is touched.
The all door lock actuator are unlocked when “ALL UNLOCK” on CONSULT-II screen is touched.

Page 552 of 2896

NISSAN LATIO 2007 Service Repair Manual REMOTE KEYLESS ENTRY SYSTEM
BL-63
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa
TRUNK/BACK DOOR This is displayed even when it is not equipped.
POWER SLIDE DOOR This is displayed even when i
