COMBINATION METERS
DI-5
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: June 20062007 Versa
COMBINATION METERSPFP:24814
Component Parts and Harness Connector LocationEKS00IAP
System DescriptionEKS00I05
UNIFIED METER CONTROL UNIT
Speedometer, odo/trip meter, tachometer and fuel gauge are controlled by the unified meter control unit,
which is built into the combination meter.
Warning and indicator lamps are controlled by signals drawn from the CAN communication system, BCM
(body control module), and components connected directly to the combination meter.
Odo/trip meter and A/T indicator (with A/T) or CVT indicator (with CVT) segments can be checked in self-
diagnosis mode.
Meters/gauges can be checked in self-diagnosis mode.
POWER SUPPLY AND GROUND CIRCUIT
Power is supplied at all times
through 10A fuse [No. 13, located in the fuse block (J/B)]
to combination meter terminal 27.
With the ignition switch in the ON or START position, power is supplied
through 10A fuse [No. 14, located in the fuse block (J/B)]
to combination meter terminal 28.
Ground is supplied
to combination meter terminals 21, 22 and 23
1. Combination meter M24 2. ECM E16 3. ABS actuator and electric unit (con-
trol unit) E33
4. Fuel level sensor unit and fuel pump
(fuel level sensor) B100 (view with
rear seat and inspection hole cover
removed)
(⇐: Front)5. Vehicle speed sensor F41 (A/T
shown, M/T similar)6. TCM E31 (view with instrument
lower finisher removed)
WKIA5450E
Page 1115 of 2896

DI-6
COMBINATION METERS
Revision: June 20062007 Versa
through grounds M57 and M61.
SPEEDOMETER
With ABS
The ABS actuator and electric unit (control unit) provides a vehicle speed signal to the combination meter via
CAN communication lines.
Without ABS or CVT
The vehicle speed sensor provides a vehicle speed signal to the combination meter for speedometer indica-
tion.
With CVT, Without ABS
The TCM provides a vehicle speed signal to the combination meter via CAN communication lines.
TACHOMETER
The tachometer indicates engine speed in revolutions per minute (rpm). The ECM provides an engine speed
signal to combination meter via CAN communication lines.
FUEL GAUGE
The fuel gauge indicates the approximate fuel level in the fuel tank.
The fuel gauge is regulated by the unified meter control unit and a variable resistor signal supplied
to combination meter terminal 24
through fuel level sensor unit and fuel pump terminal 5
through fuel level sensor unit and fuel pump terminal 2
from combination meter terminal 6.
ODO/TRIP METER
The vehicle speed signal and the memory signals from the meter memory circuit are processed by the combi-
nation meter and the mileage is displayed.
How to Change the Display
Refer to Owner's Manual for odo/trip meter operating instructions.
CAN COMMUNICATION SYSTEM DESCRIPTION
Refer to LAN-4, "SYSTEM DESCRIPTION" .
WKIA5370E
SKIB6904E
Page 1116 of 2896
COMBINATION METERS
DI-7
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: June 20062007 Versa
Arrangement of Combination MeterEKS00I07
WKIA5451E
Page 1117 of 2896
DI-8
COMBINATION METERS
Revision: June 20062007 Versa

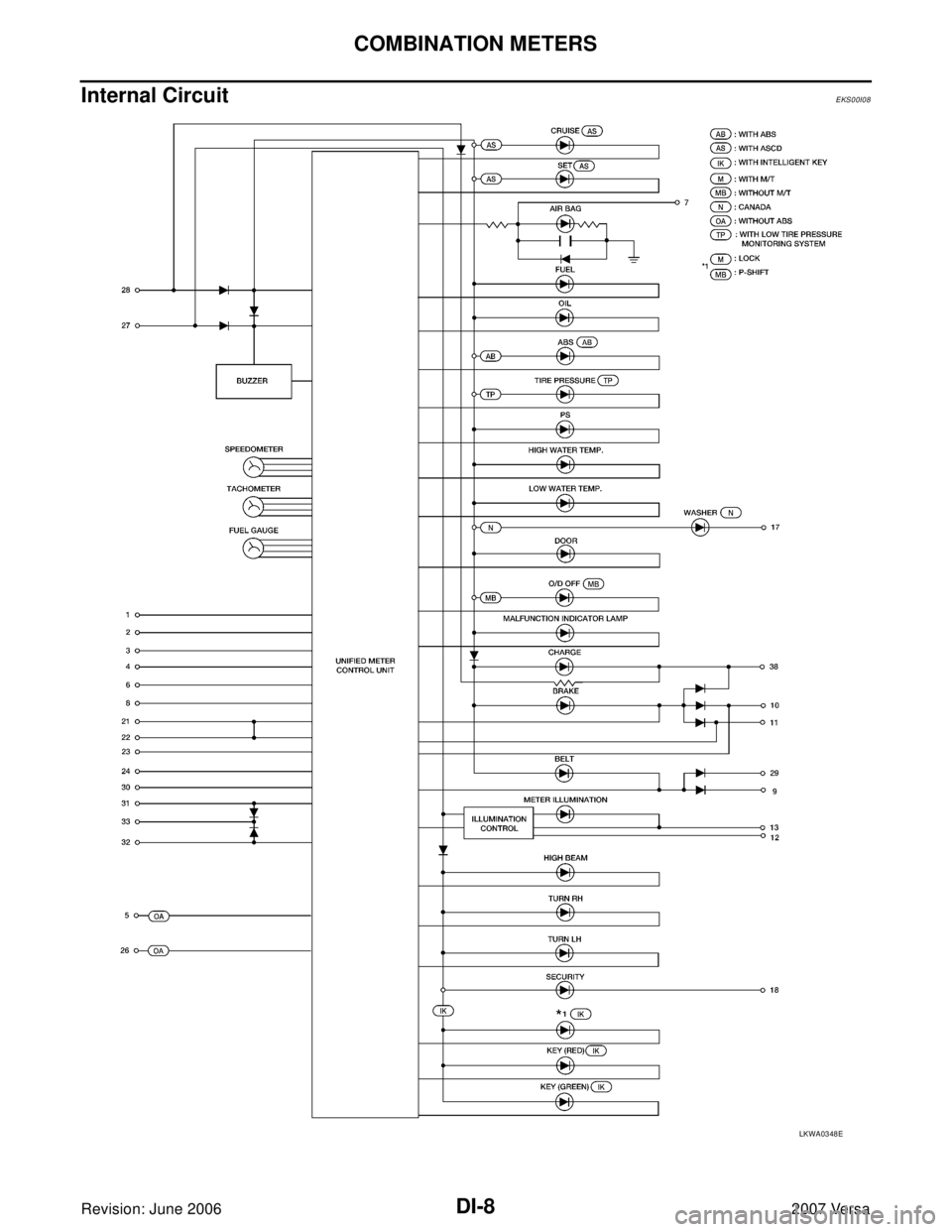

Internal CircuitEKS00I08
LKWA0348E
Page 1118 of 2896
COMBINATION METERS
DI-9
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: June 20062007 Versa

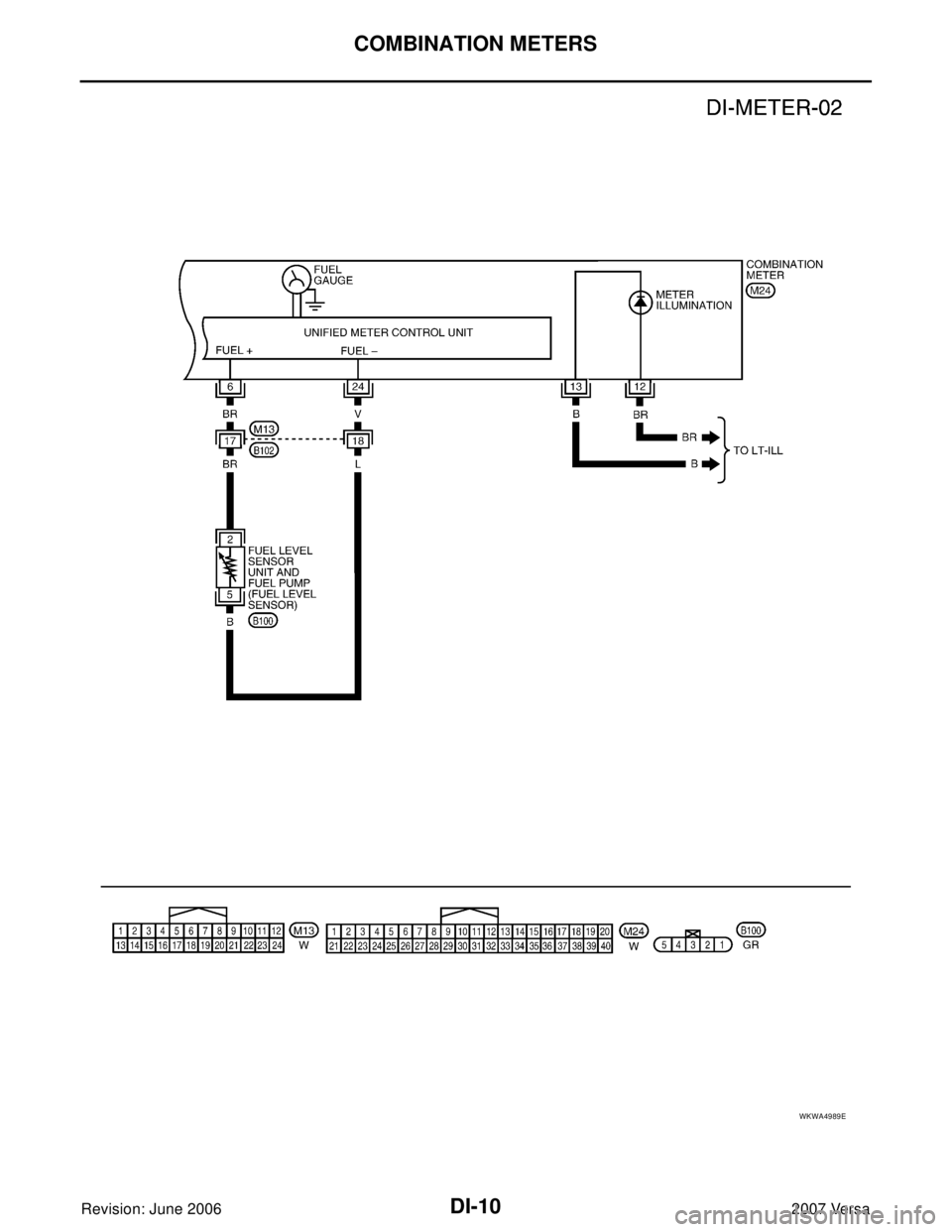

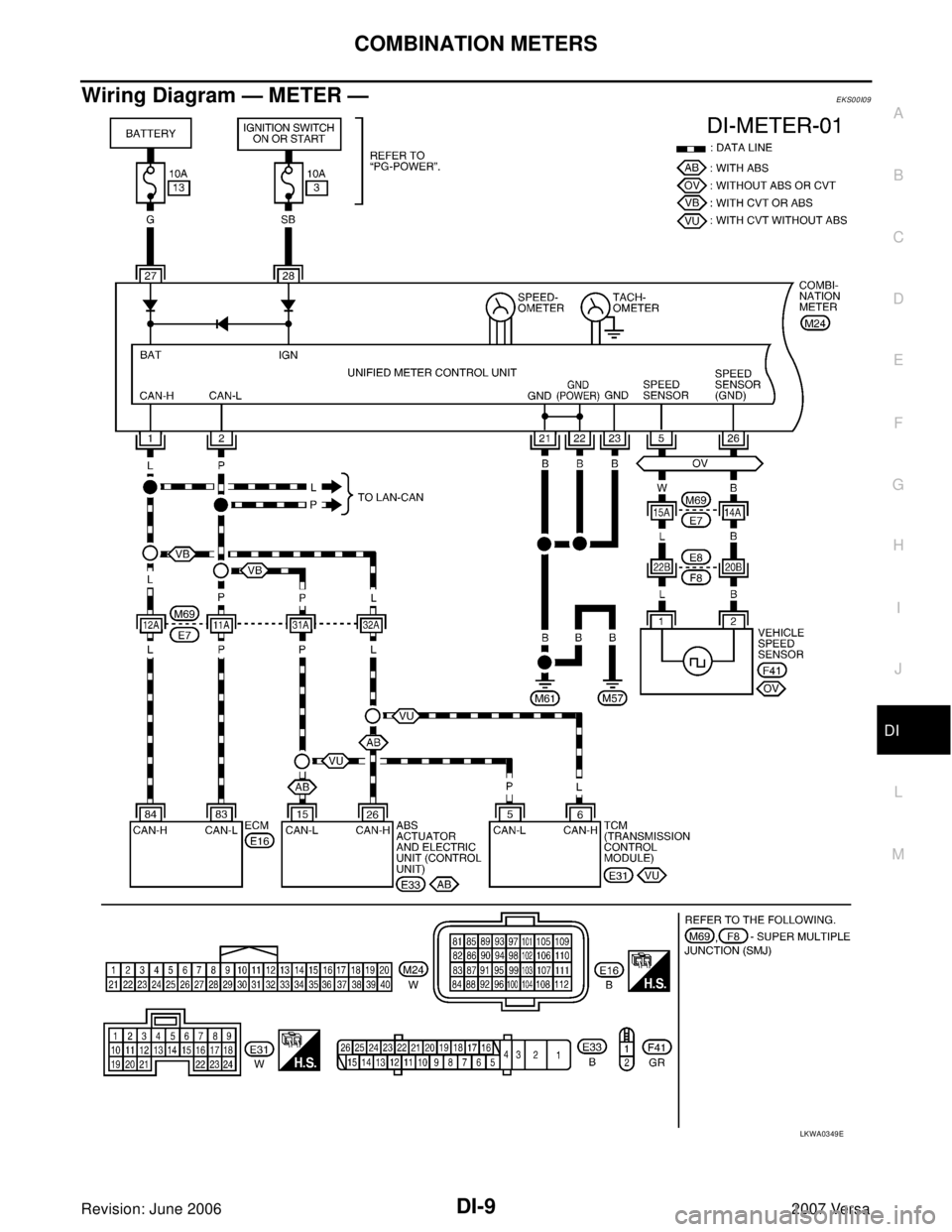

Wiring Diagram — METER —EKS00I09
LKWA0349E
Page 1119 of 2896
DI-10
COMBINATION METERS
Revision: June 20062007 Versa
WKWA4989E
Page 1120 of 2896

COMBINATION METERS
DI-11
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: June 20062007 Versa
Combination Meter Harness Connector Terminal LayoutEKS00IAQ
Terminals and Reference Value for Combination MeterEKS00I0A
LKIA0698E
Te r -
minal
No.Wire
colorItemCondition
Reference value (V)
(Approx.) Ignition
switchOperation or condition
1 L CAN-H — — —
2 P CAN-L — — —
3GVehicle speed signal output
(2-pulse)ONSpeedometer operated
[When vehicle speed is approx.
40 km/h (25 MPH)] NOTE:
Maximum voltage may be 5 V due to
specifications (connected units).
4SBVehicle speed signal output
(8-pulse)ONSpeedometer operated
[When vehicle speed is approx.
40 km/h (25 MPH)]NOTE:
Maximum voltage may be 12 V due to
specifications (connected units).
5WVehicle speed signal (without
ABS or CVT)ONSpeedometer operated
[When vehicle speed is approx.
20 km/h (12 MPH)]240 Hz
6 BR Fuel level sensor signal (+) — —Refer to DI-23, "
FUEL LEVEL SENSOR
UNIT CHECK" .
8 P O/D OFF switch ONO/D OFF switch pressed 0
O/D OFF switch released Battery voltage
9 Y Seat belt buckle switch LH ONUnfastened (ON) 0
Fastened (OFF) Battery voltage
10 SB Parking Brake switch ONParking brake applied 0
Parking brake released Battery voltage
11 LG Brake fluid level switch ONBrake fluid level low 0
Brake fluid level normal Battery voltage
12 BR Illumination control switch (+) — —Refer to LT-108, "
ILLUMINATION
OPERATION BY LIGHTING SWITCH" .
PKIC0642E
PKIC0643E
