RECOMMENDED FLUIDS AND LUBRICANTSPFP:00000
Fluids and LubricantsELS001YG
*1: For further details, see “SAE Viscosity Number”.
*2: DEXRONTM III / MERCONTM , or equivalent may also be used. Outside the continental United States and Alaska contact a NISSAN
dealership for more information regarding suitable fluids, including recommended brand(s) of DEXRONTM III / MERCONTM Automatic
Transmission Fluid.
*3: Using transaxle fluid other than Genuine NISSAN CVT Fluid NS-2 will damage the CVT, which is not covered by the NISSAN
new vehicle limited warranty.
*4: Available in mainland U.S.A. through your NISSAN dealer.
*5: For further details, see “Air conditioner specification label”.DescriptionCapacity (Approximate)
Recommended Fluids/Lubricants
Liter US measure Imp measure
Fuel 50.0 13 1/4 gal 11 galUnleaded gasoline with an octane rating of
at least 87 AKI (RON 91)
Engine oil
Drain and refillWith oil filter
change3.9 4 1/8 qt 3 3/8 qt
API Certification Mark *2 *3
API grade SH, SJ, SL or SM, Energy
Conserving *2 *3
ILSAC grade GF-2, GF-3 & GF-4 *2 *3 Without oil fil-
ter change3.7 3 7/8 qt 3 1/4 qt
Dry engine (engine overhaul) 4.9 5 1/8 qt 4 3/8 qt
Cooling system
(with reservoir at max level)6.8 7 1/4 qt 6 qtGenuine NISSAN Long Life Anti-freeze
Coolant or equivalent
Manual transaxle fluid (MTF) 2.0 4 1/4 pt 3 1/2 ptELF XT4447 M+ 75W-80 or API GL-4, Vis-
cosity SAE 75W-80
Automatic transaxle fluid (ATF) 7.9 8 3/8 qt 7 qtGenuine NISSAN Matic “D” ATF (Conti-
nental U.S. and Alaska) or Canada NIS-
SAN Automatic Transmission Fluid *2
CVT fluid 8.3 8 3/4 qt 7 1/4 qt Genuine NISSAN CVT Fluid NS-2 *3
Brake and clutch fluid — — —Genuine NISSAN Super Heavy Duty
Brake Fluid*4 or equivalent DOT 3 (US
FMVSS No. 116)
Multi-purpose grease — — — NLGI No. 2 (Lithium soap base)
Windshield washer fluid 4.5 4 3/4 qt 4 qtGenuine NISSAN Windshield Washer
Concentrate Cleaner & Anti-Freeze or
equivalent
Air conditioning system refrigerant 0.45 ± 0.05 kg 0.99 ± 0.11 lb 0.99 ± 0.11 lb HFC-134a (R-134a) *5
Air conditioning
system oilType 1
120 m4.1 fl oz 4.2 fl ozNISSAN A/C System Lubricant Type R or
equivalent *5
Type 2
100 m3.4 fl oz 3.5 fl ozNISSAN A/C System Lubricant Type S or
equivalent *5
Page 2346 of 2896

MA-12
RECOMMENDED FLUIDS AND LUBRICANTS
Revision: June 20062007 Versa
SAE Viscosity NumberELS001YH
SAE 5W-30 viscosity oil is preferred for all temperatures. SAE 10W-
30 and 10W-40 viscosity oil may be used if the ambient temperature
is above −18°C (0°F).
NOTE:
Use of 5W-30 viscosity oil will increase fuel economy.
Anti-freeze Coolant Mixture RatioELS001YI
The engine cooling system is filled at the factory with a high-quality, long life, year-round, anti-freeze coolant
solution. The anti-freeze solution contains rust and corrosion inhibitors. Therefore, additional cooling system
additives are not necessary.
CAUTION:
When adding or replacing coolant, be sure to use only a Genuine NISSAN Long Life Anti-Freeze
coolant or equivalent with the proper mixture ratio.
The use of other types of coolant solutions may damage the engine cooling system.
MMA117AA
Maximum outside temperature Genuine NISSAN Anti-freeze
Coolant or equivalentDemineralized water or distilled
water
°C°F
-35 -30 50% 50%
Page 2347 of 2896

ENGINE MAINTENANCE
MA-13
C
D
E
F
G
H
I
J
K
MA
B
MA
Revision: June 20062007 Versa
ENGINE MAINTENANCE PFP:00100
Drive BeltsELS001XU
Checking Drive BeltsELS001XV
WA RN ING:
Be sure to perform this step when the engine is stopped.
Make sure that the indicator (notch on fixed side) of drive belt auto-tensioner is within the possible use
range (A).
NOTE:
Check the drive belt auto-tensioner indication when the engine is cold.
When new drive belt is installed, the indicator (notch on fixed side) should be within the range (B) in the
figure.
Visually check entire drive belt for wear, damage or cracks.
If the indicator (notch on fixed side) is out of the possible use range or belt is damaged, replace drive belt.
Tension AdjustmentELS001XW
Belt tension is not necessary, as it is automatically adjusted by drive belt auto-tensioner.
Changing Engine CoolantELS001XX
WA RN ING:
To avoid being scalded, do not change engine coolant when engine is hot.
Wrap a thick cloth around radiator cap and carefully remove the cap. First, turn the cap a quarter
of a turn to release built-up pressure. Then turn the cap all the way.
Be careful not to allow engine coolant to contact drive belt.
DRAINING ENGINE COOLANT
1. Open radiator drain plug (1) at the bottom of radiator, and then
remove radiator cap.
Vehicle front
When drain all of engine coolant in the system, open water
drain plug on cylinder block. Refer to EM-77, "
CYLINDER
BLOCK" .
CAUTION:
Perform this step when engine is cold.
Do not spill engine coolant on drive belt.
2. Remove reservoir tank as necessary, and drain engine coolant and clean reservoir tank before installing.
Refer to CO-11, "
RADIATOR" .
3. Check drained engine coolant for contaminants such as rust, corrosion or discoloration.
1. Alternator 2. Drive belt auto–tensioner 3. Crankshaft pulley
4.A/C compressor (models with A/C)
Idler pulley (models without A/C)5. Water pump 6. Drive belt
A. Possible use range B. Range when new drive belt is installed C. Indicator
PBIC3137J
PBIC3799E
Page 2348 of 2896

MA-14
ENGINE MAINTENANCE
Revision: June 20062007 Versa
If contaminated, flush the engine cooling system. Refer to MA-15, "FLUSHING COOLING SYSTEM" .
REFILLING ENGINE COOLANT
1. Install reservoir tank if removed. Refer to CO-11, "RADIATOR" .
2. Install radiator drain plug.
If water drain plug on cylinder block is removed, close and tighten it. Refer to EM-77, "CYLIN-
DER BLOCK" .
CAUTION:
Be sure to clean radiator drain plug and install with new O-ring. Refer to CO-11, "
Components" .
3. Make sure that each hose clamp has been firmly tightened.
4. Remove air duct assembly. Refer to EM-16, "
AIR CLEANER AND AIR DUCT" .
5. Disconnect heater hose (1) at position ( ) as shown.
Front
Enhance heater hose as high as possible.
6. Fill radiator and reservoir tank to specified level.
Pour engine coolant through engine coolant filler neck
slowly of less than 2 (2 1/8 US qt, 1-3/4 lmp qt) a minute
to allow air in system to escape.
Use NISSAN Genuine Engine Coolant or equivalent
mixed with water (distilled or demineralized). Fill cooling
system to specification. Refer to MA-11, "
RECOM-
MENDED FLUIDS AND LUBRICANTS".
When engine coolant overflows disconnected heater hose,
connect heater hose, and continue filling the engine coolant, if
heater hose is disconnected.
7. Install radiator cap.
8. Install air duct assembly. Refer to EM-16, "
AIR CLEANER AND AIR DUCT" .
9. Warm up until opening thermostat. Standard for warming-up time is approximately 10 minutes at 3,000
rpm.
Make sure thermostat opening condition by touching radiator hose (lower) to see a flow of warm water.
CAUTION:
Watch water temperature gauge so as not to overheat the engine.
10. Stop engine and cool down to less than approximately 50°C (122°F).
Cool down using fan to reduce the time.
If necessary, refill radiator up to filler neck with engine coolant.
11. Refill reservoir tank to “MAX” level line with engine coolant.
12. Repeat steps 6 through 10 two or more times with radiator cap installed until engine coolant level no
longer drops.
13. Check cooling system for leaks with engine running.
14. Warm up engine, and check for sound of engine coolant flow while running engine from idle up to 3,000
rpm with heater temperature controller set at several position between “COOL” and “WARM”.
Sound may be noticeable at heater unit.
15. Repeat step 14 three times.
16. If sound is heard, bleed air from cooling system by repeating steps 6 through 10 until engine coolant level
no longer drops.
PBIC3802E
SM A18 2B
Page 2349 of 2896

ENGINE MAINTENANCE
MA-15
C
D
E
F
G
H
I
J
K
MA
B
MA
Revision: June 20062007 Versa
FLUSHING COOLING SYSTEM
1. Install reservoir tank if removed. Refer to CO-11, "RADIATOR" .
2. Install radiator drain plug.
If water drain plug on cylinder block is removed, close and tighten it. Refer to EM-77, "CYLIN-
DER BLOCK" .
CAUTION:
Be sure to clean radiator drain plug and install with new O-ring. Refer to CO-11, "
Components" .
3. Fill radiator and reservoir tank with water and reinstall radiator cap.
4. Run engine and warm it up to normal operating temperature.
5. Rev engine two or three times under no-load.
6. Stop engine and wait until it cools down.
7. Drain water from the cooling system. Refer to MA-13, "
DRAINING ENGINE COOLANT" .
8. Repeat steps 1 through 7 until clear water begins to drain from radiator.
InspectionELS0020L
LEVEL CHECK
Check if the reservoir tank engine coolant level is within the
“MIN” to “MAX” range when engine is cool.
Adjust the engine coolant level as necessary.
CHECKING COOLING SYSTEM FOR LEAKS
To check for leaks, apply pressure to the cooling system using Tool.
WA RN ING:
Never remove the radiator cap when the engine is hot. Serious
burns could occur from high pressure coolant escaping from
the radiator.
CAUTION:
Higher pressure than specified may cause radiator damage.
Checking Fuel LinesELS001XZ
Inspect fuel lines, fuel filler cap and fuel tank for improper attach-
ment, leaks, cracks, damage, loose connections, chafing or deterio-
ration.
If necessary, repair or replace damaged parts.
SM A41 2B
Tool number : EG17650301 (J-33984-A)
Testing pressure
: 157 kPa (1.6 kg/cm
2 , 23 psi)
WBIA0568E
SM A80 3A
Page 2350 of 2896
MA-16
ENGINE MAINTENANCE
Revision: June 20062007 Versa
Changing Air Cleaner FilterELS001Y0
REMOVAL
1. Push the tabs (A) of both ends of the air cleaner cover (1) into
the inside (B).
2. Pull up the air cleaner cover forward (C) and remove it.
3. Remove the air cleaner filter (1) and holder (2) assembly from
the air cleaner case.
4. Remove the air cleaner filter from the holder.
INSPECTION AFTER REMOVAL
It is necessary to clean air cleaner filter or replace it at the recommended intervals, more often under dusty
driving conditions. Refer to MA-7, "
PERIODIC MAINTENANCE" .
Blow air into the back side of air cleaner filter until no any object
sprays out.
INSTALLATION
Note the following, and install in the reverse order of removal.
Install the air cleaner cover (1) in the direction shown in the fig-
ure.
Air cleaner filter (2)
Holder (3)
Changing Engine OilELS0020M
WAR NIN G:
Be careful not to burn yourself, as engine oil may be hot.
PBIC3557J
PBIC3558J
SM A38 4C
PBIC3559J
Page 2351 of 2896

ENGINE MAINTENANCE
MA-17
C
D
E
F
G
H
I
J
K
MA
B
MA
Revision: June 20062007 Versa
Prolonged and repeated contact with used engine oil may cause skin cancer; try to avoid direct
skin contact with used engine oil. If skin contact is made, wash thoroughly with soap or hand
cleaner as soon as possible.
1. Warm up engine, park vehicle on a level surface and check for engine oil leakage from engine compo-
nents. Refer to LU-5, "
ENGINE OIL LEAKAGE" .
2. Stop engine and wait for 10 minutes.

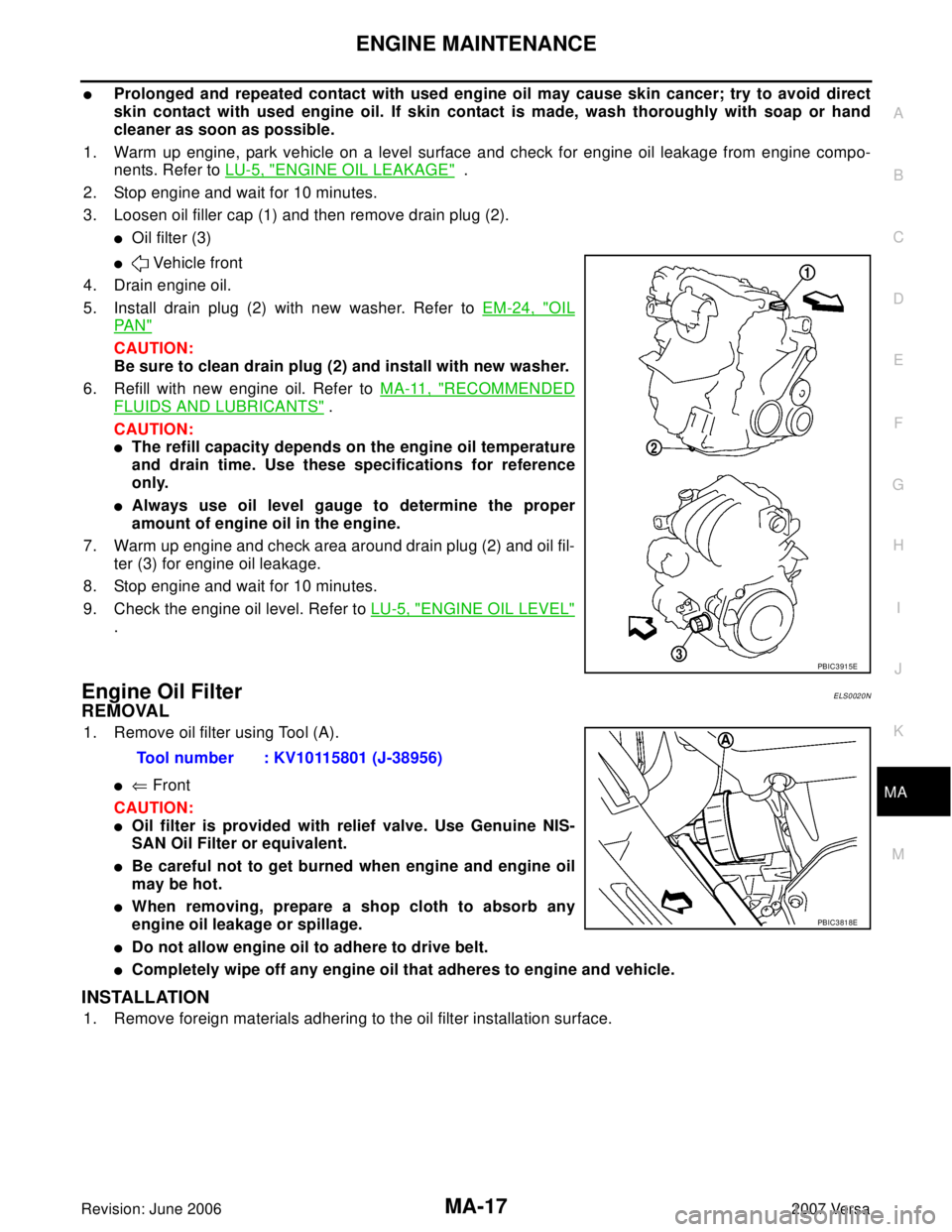

3. Loosen oil filler cap (1) and then remove drain plug (2).
Oil filter (3)
Vehicle front
4. Drain engine oil.
5. Install drain plug (2) with new washer. Refer to EM-24, "
OIL
PA N"
CAUTION:
Be sure to clean drain plug (2) and install with new washer.
6. Refill with new engine oil. Refer to MA-11, "
RECOMMENDED
FLUIDS AND LUBRICANTS" .
CAUTION:
The refill capacity depends on the engine oil temperature
and drain time. Use these specifications for reference
only.
Always use oil level gauge to determine the proper
amount of engine oil in the engine.
7. Warm up engine and check area around drain plug (2) and oil fil-
ter (3) for engine oil leakage.
8. Stop engine and wait for 10 minutes.
9. Check the engine oil level. Refer to LU-5, "
ENGINE OIL LEVEL"
.

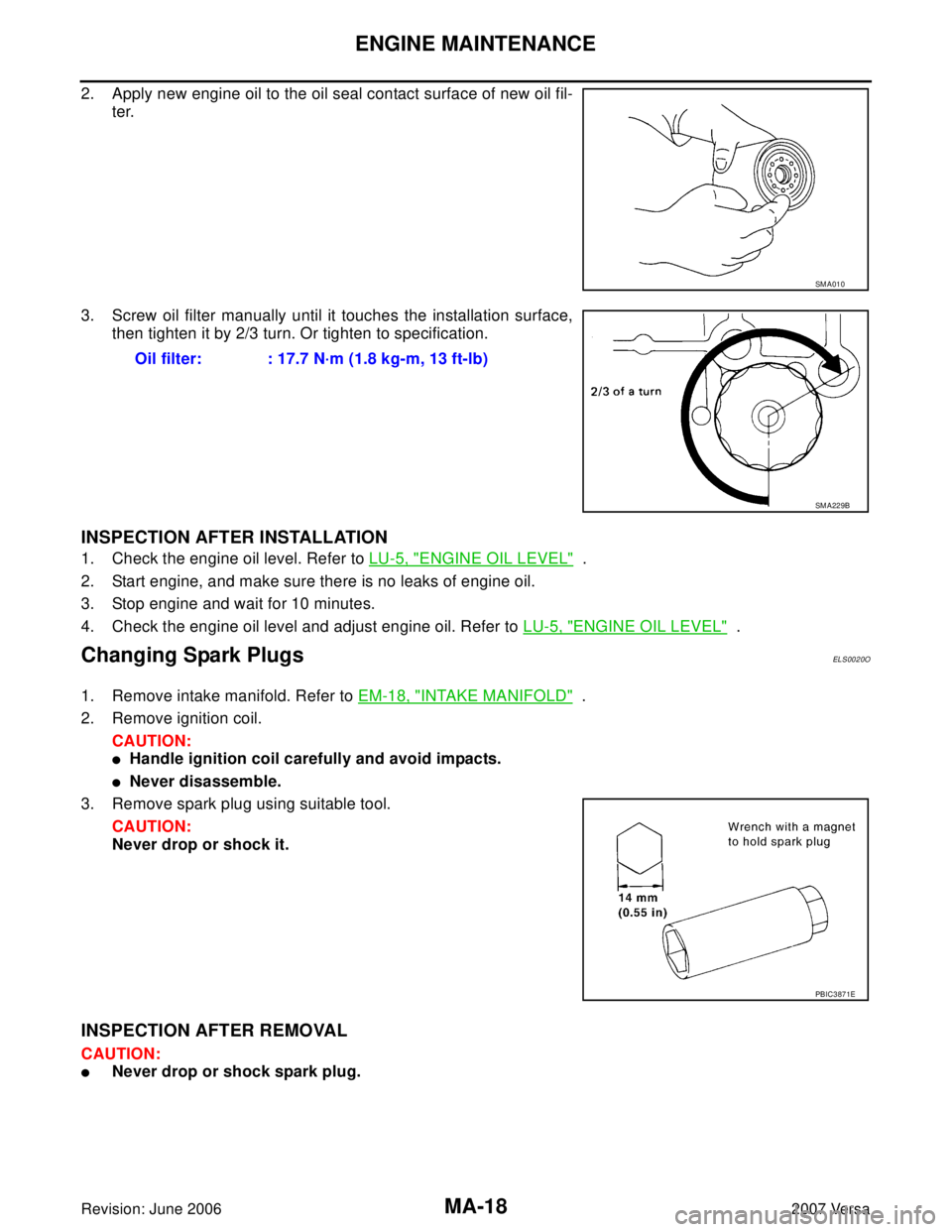

Engine Oil FilterELS0020N
REMOVAL
1. Remove oil filter using Tool (A).
⇐ Front
CAUTION:
Oil filter is provided with relief valve. Use Genuine NIS-
SAN Oil Filter or equivalent.
Be careful not to get burned when engine and engine oil
may be hot.
When removing, prepare a shop cloth to absorb any
engine oil leakage or spillage.
Do not allow engine oil to adhere to drive belt.
Completely wipe off any engine oil that adheres to engine and vehicle.
INSTALLATION
1. Remove foreign materials adhering to the oil filter installation surface.
PBIC3915E
Tool number : KV10115801 (J-38956)
PBIC3818E
Page 2352 of 2896
MA-18
ENGINE MAINTENANCE
Revision: June 20062007 Versa
2. Apply new engine oil to the oil seal contact surface of new oil fil-
ter.
3. Screw oil filter manually until it touches the installation surface,
then tighten it by 2/3 turn. Or tighten to specification.
INSPECTION AFTER INSTALLATION
1. Check the engine oil level. Refer to LU-5, "ENGINE OIL LEVEL" .
2. Start engine, and make sure there is no leaks of engine oil.
3. Stop engine and wait for 10 minutes.
4. Check the engine oil level and adjust engine oil. Refer to LU-5, "
ENGINE OIL LEVEL" .
Changing Spark PlugsELS0020O
1. Remove intake manifold. Refer to EM-18, "INTAKE MANIFOLD" .
2. Remove ignition coil.
CAUTION:
Handle ignition coil carefully and avoid impacts.
Never disassemble.
3. Remove spark plug using suitable tool.
CAUTION:
Never drop or shock it.
INSPECTION AFTER REMOVAL
CAUTION:
Never drop or shock spark plug.
SM A01 0
Oil filter: : 17.7 N·m (1.8 kg-m, 13 ft-lb)
SM A22 9B
PBIC3871E
