Page 729 of 2896

NISSAN LATIO 2007 Service Repair Manual BL-240 BODY REPAIR Revision: June 20062007 Versa Body SealingEIS009AJ DESCRIPTION The following figure shows the areas which are sealed at the factory. Sealant which has been applied to these areas sh

Page 730 of 2896

NISSAN LATIO 2007 Service Repair Manual BODY REPAIR BL-241 C D E F G H J K L MA B BL Revision: June 20062007 Versa LIIA2546E

Page 731 of 2896

NISSAN LATIO 2007 Service Repair Manual BL-242 BODY REPAIR Revision: June 20062007 Versa LIIA2547E

Page 732 of 2896

NISSAN LATIO 2007 Service Repair Manual BODY REPAIR BL-243 C D E F G H J K L MA B BL Revision: June 20062007 Versa Body ConstructionEIS009AK BODY CONSTRUCTION LIIA2548E

Page 733 of 2896

NISSAN LATIO 2007 Service Repair Manual BL-244 BODY REPAIR Revision: June 20062007 Versa Body AlignmentEIS00944 BODY CENTER MARKS A mark has been placed on each part of the body to indicate the vehicle center. When repairing parts dam- aged

Page 734 of 2896

NISSAN LATIO 2007 Service Repair Manual BODY REPAIR BL-245 C D E F G H J K L MA B BL Revision: June 20062007 Versa PANEL PARTS MATCHING MARKS A mark has been placed on each body panel to indicate the parts matching positions. When repairing

Page 735 of 2896

NISSAN LATIO 2007 Service Repair Manual BL-246 BODY REPAIR Revision: June 20062007 Versa When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge itself to make sure there is no free play. When

Page 736 of 2896

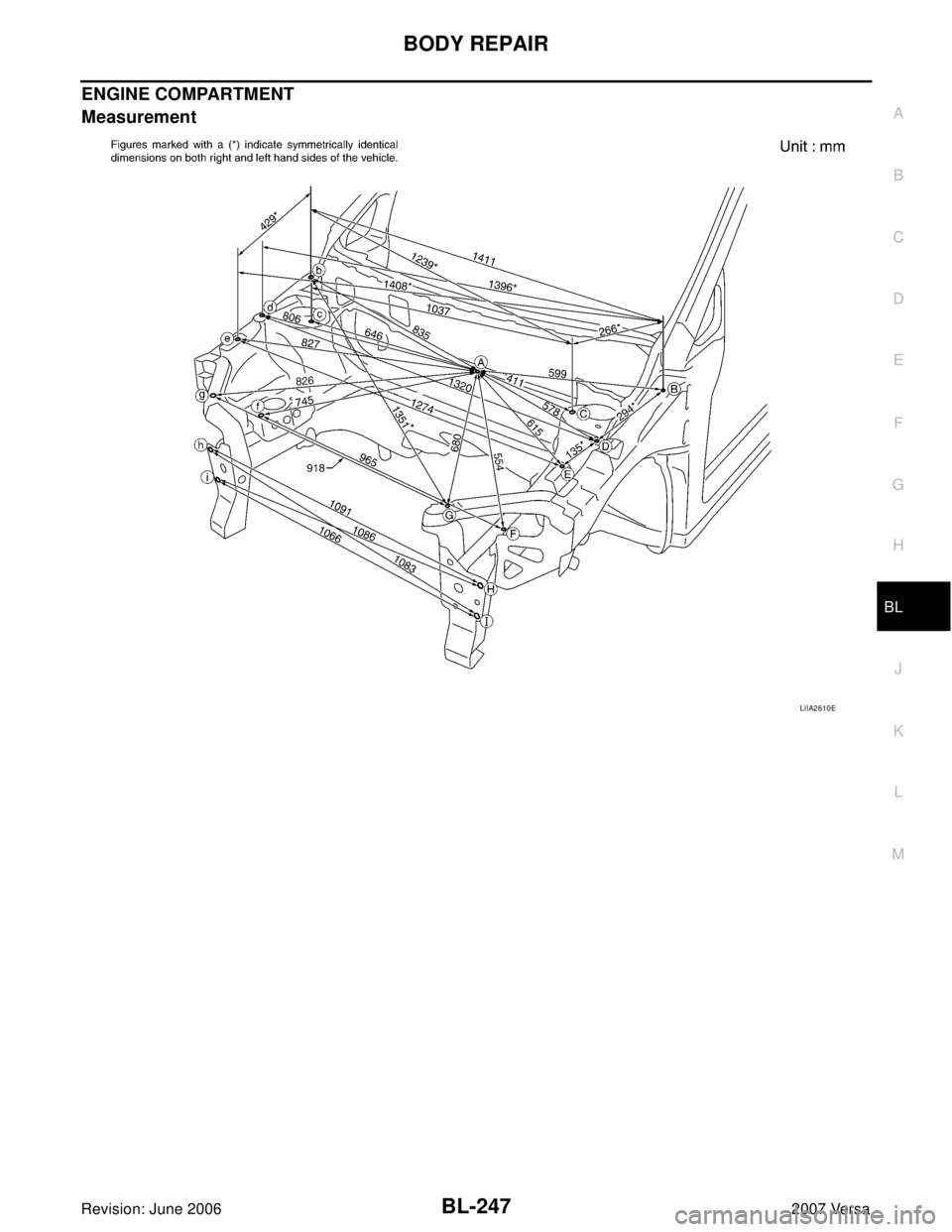

NISSAN LATIO 2007 Service Repair Manual BODY REPAIR BL-247 C D E F G H J K L MA B BL Revision: June 20062007 Versa ENGINE COMPARTMENT Measurement LIIA2610E
