Page 945 of 2896

NISSAN LATIO 2007 Service Repair Manual CVT-48
TROUBLE DIAGNOSIS
Revision: June 20062007 Versa

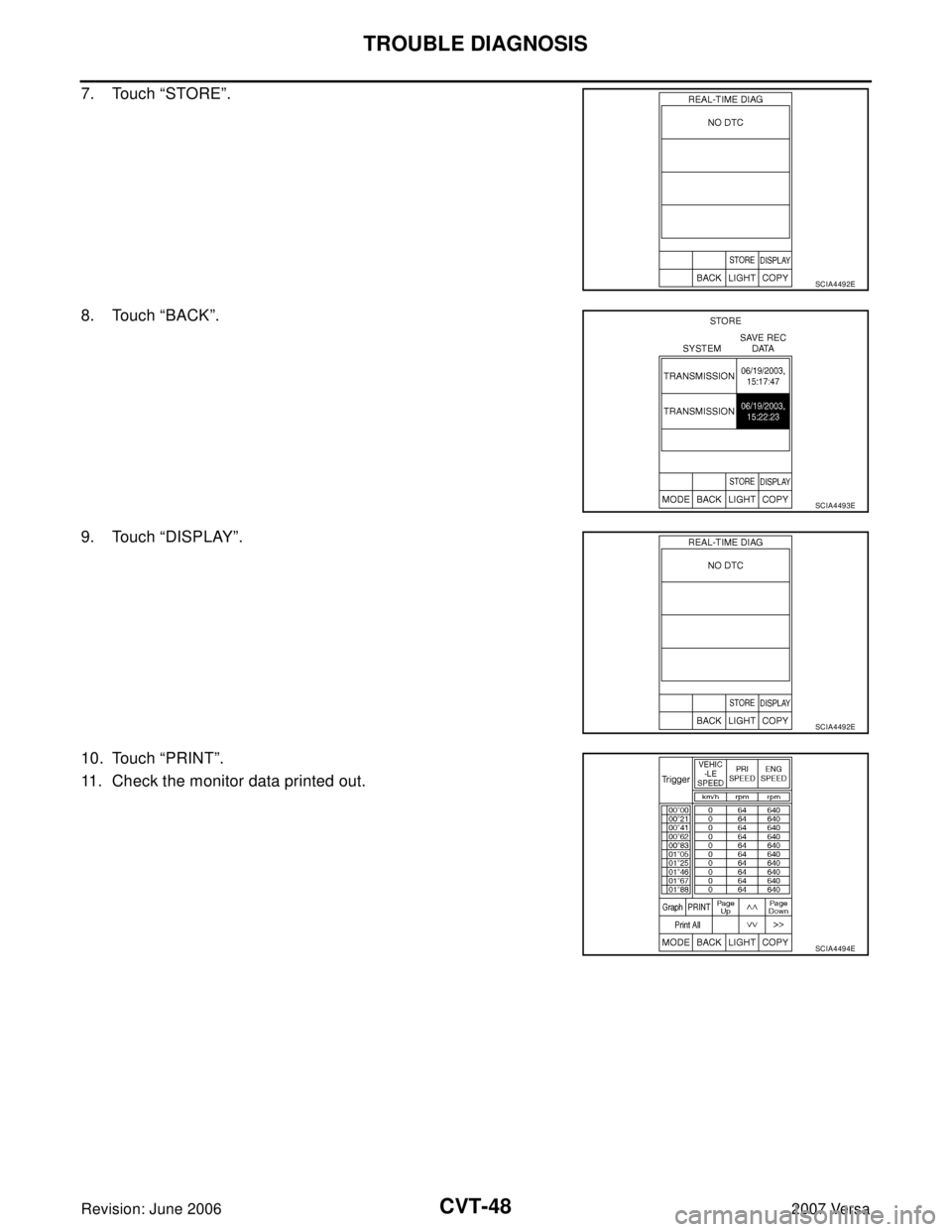

7. Touch “STORE”.
8. Touch “BACK”.
9. Touch “DISPLAY”.
10. Touch “PRINT”.
11. Check the monitor data printed out.
SCIA4492E
SCIA4

Page 946 of 2896

NISSAN LATIO 2007 Service Repair Manual TROUBLE DIAGNOSIS
CVT-49
D
E
F
G
H
I
J
K
L
MA
B
CVT
Revision: June 20062007 Versa
Check before Engine Is StartedUCS005YD
1. CHECK O/D OFF INDICATOR LAMP
1. Park vehicle on flat surface.
2. Move select

Page 947 of 2896

NISSAN LATIO 2007 Service Repair Manual CVT-50
TROUBLE DIAGNOSIS
Revision: June 20062007 Versa

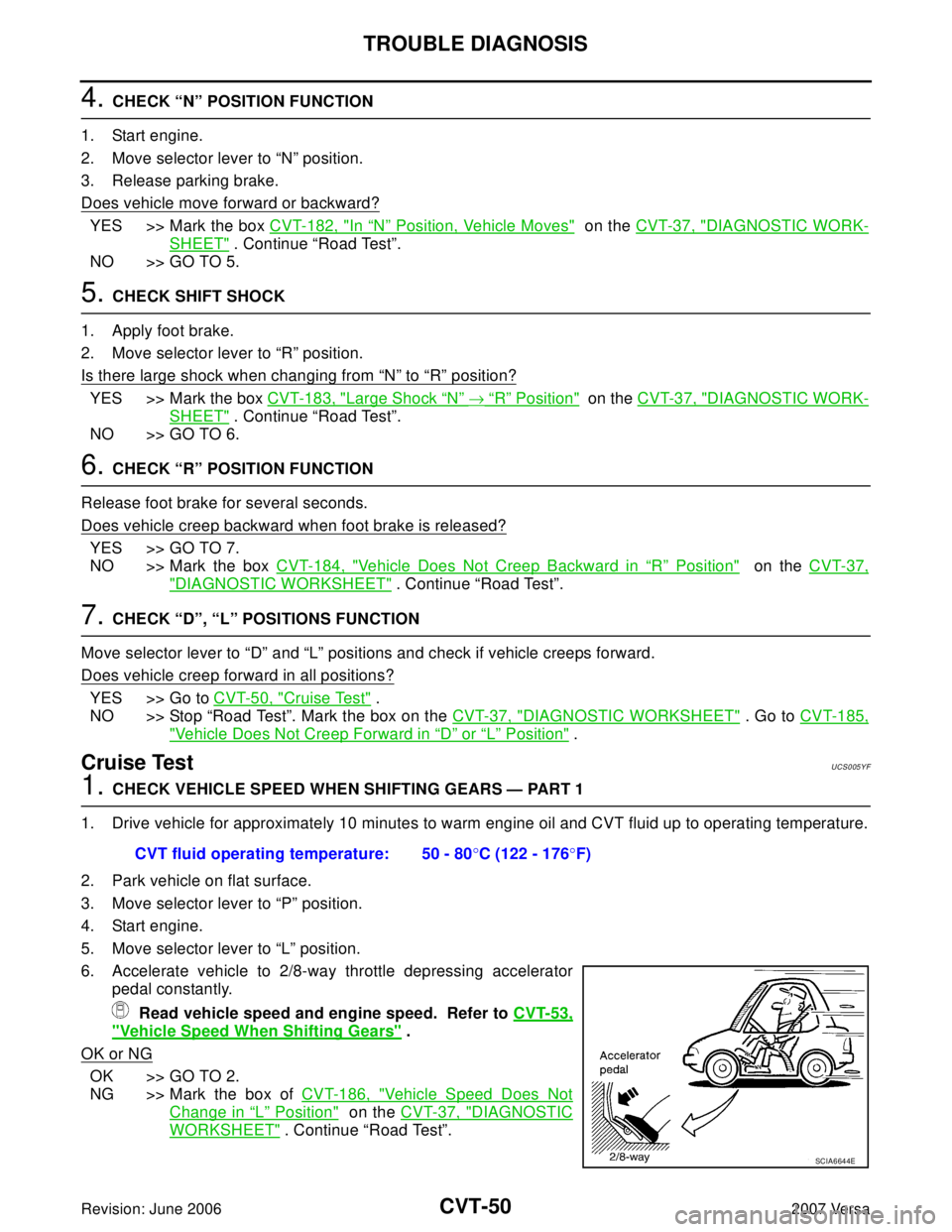

4. CHECK “N” POSITION FUNCTION
1. Start engine.
2. Move selector lever to “N” position.
3. Release parking brake.
Does vehicle move forwa

CVT-50
TROUBLE DIAGNOSIS
Revision: June 20062007 Versa
4. CHECK “N” POSITION FUNCTION
1. Start engine.
2. Move selector lever to “N” position.
3. Release parking brake.
Does vehicle move forward or backward?
YES >> Mark the box CVT-182, "In “N” Position, Vehicle Moves" on the CVT-37, "DIAGNOSTIC WORK-
SHEET" . Continue “Road Test”.
NO >> GO TO 5.
5. CHECK SHIFT SHOCK
1. Apply foot brake.
2. Move selector lever to “R” position.
Is there large shock when changing from
“N” to “R” position?
YES >> Mark the box CVT-183, "Large Shock “N” → “R” Position" on the CVT-37, "DIAGNOSTIC WORK-
SHEET" . Continue “Road Test”.
NO >> GO TO 6.
6. CHECK “R” POSITION FUNCTION
Release foot brake for several seconds.
Does vehicle creep backward when foot brake is released?
YES >> GO TO 7.
NO >> Mark the box CVT-184, "
Vehicle Does Not Creep Backward in “R” Position" on the CVT-37,
"DIAGNOSTIC WORKSHEET" . Continue “Road Test”.
7. CHECK “D”, “L” POSITIONS FUNCTION
Move selector lever to “D” and “L” positions and check if vehicle creeps forward.
Does vehicle creep forward in all positions?
YES >> Go to CVT-50, "Cruise Test" .
NO >> Stop “Road Test”. Mark the box on the CVT-37, "
DIAGNOSTIC WORKSHEET" . Go to CVT-185,
"Vehicle Does Not Creep Forward in “D” or “L” Position" .
Cruise TestUCS005YF
1. CHECK VEHICLE SPEED WHEN SHIFTING GEARS — PART 1
1. Drive vehicle for approximately 10 minutes to warm engine oil and CVT fluid up to operating temperature.
2. Park vehicle on flat surface.
3. Move selector lever to “P” position.
4. Start engine.
5. Move selector lever to “L” position.
6. Accelerate vehicle to 2/8-way throttle depressing accelerator
pedal constantly.
Read vehicle speed and engine speed. Refer to CVT-53,
"Vehicle Speed When Shifting Gears" .
OK or NG
OK >> GO TO 2.
NG >> Mark the box of CVT-186, "
Vehicle Speed Does Not
Change in “L” Position" on the CVT-37, "DIAGNOSTIC
WORKSHEET" . Continue “Road Test”. CVT fluid operating temperature: 50 - 80°C (122 - 176°F)
SCIA6644E

Page 948 of 2896

NISSAN LATIO 2007 Service Repair Manual TROUBLE DIAGNOSIS
CVT-51
D
E
F
G
H
I
J
K
L
MA
B
CVT
Revision: June 20062007 Versa

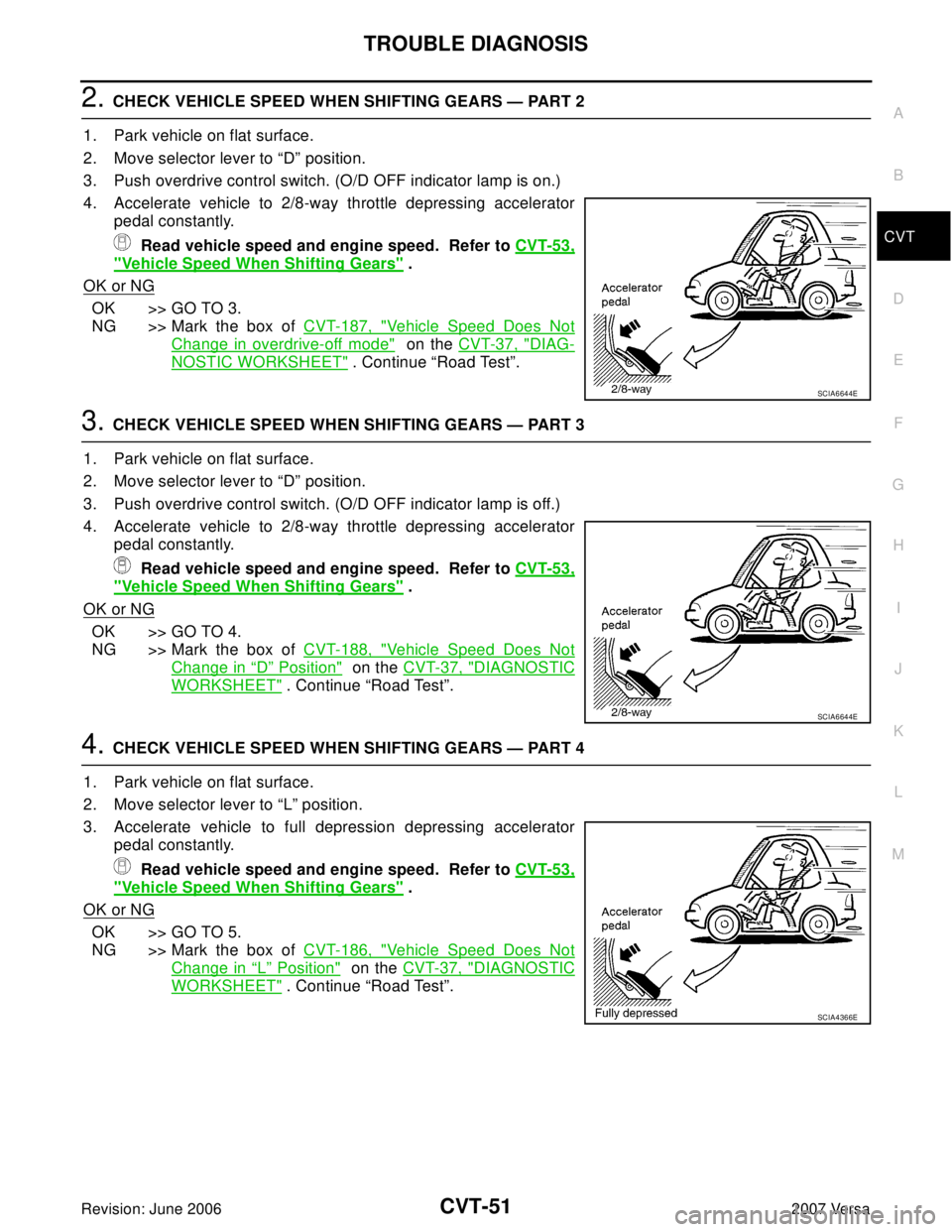

2. CHECK VEHICLE SPEED WHEN SHIFTING GEARS — PART 2
1. Park vehicle on flat surface.
2. Move selector lever to “D

Page 949 of 2896

NISSAN LATIO 2007 Service Repair Manual CVT-52
TROUBLE DIAGNOSIS
Revision: June 20062007 Versa

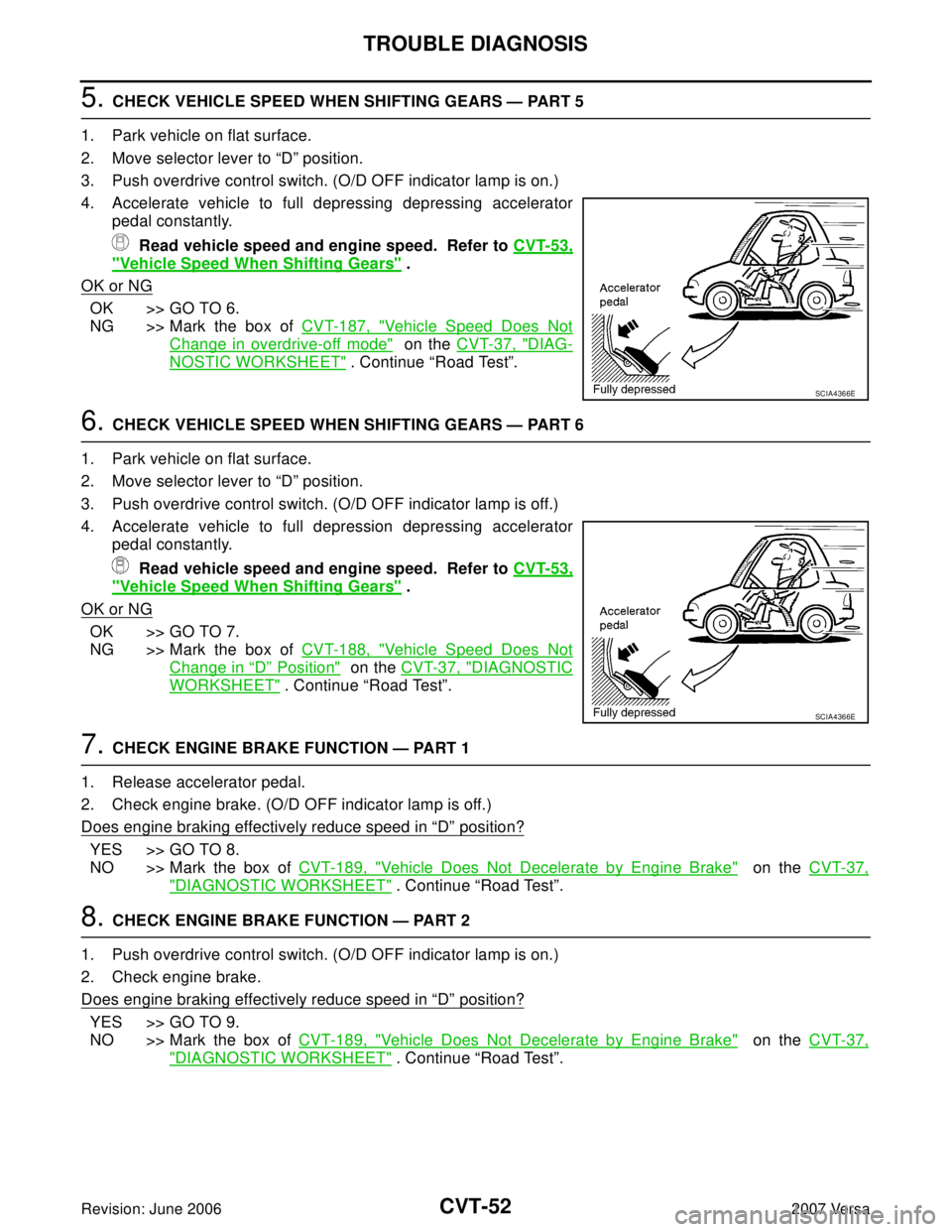

5. CHECK VEHICLE SPEED WHEN SHIFTING GEARS — PART 5
1. Park vehicle on flat surface.
2. Move selector lever to “D” position.
3. Push overd

Page 950 of 2896

NISSAN LATIO 2007 Service Repair Manual TROUBLE DIAGNOSIS
CVT-53
D
E
F
G
H
I
J
K
L
MA
B
CVT
Revision: June 20062007 Versa
9. CHECK ENGINE BRAKE FUNCTION — PART 3
1. Move selector lever to “L” position.
2. Check engine brake.
Does engi

Page 951 of 2896

NISSAN LATIO 2007 Service Repair Manual CVT-54
TROUBLE DIAGNOSIS
Revision: June 20062007 Versa

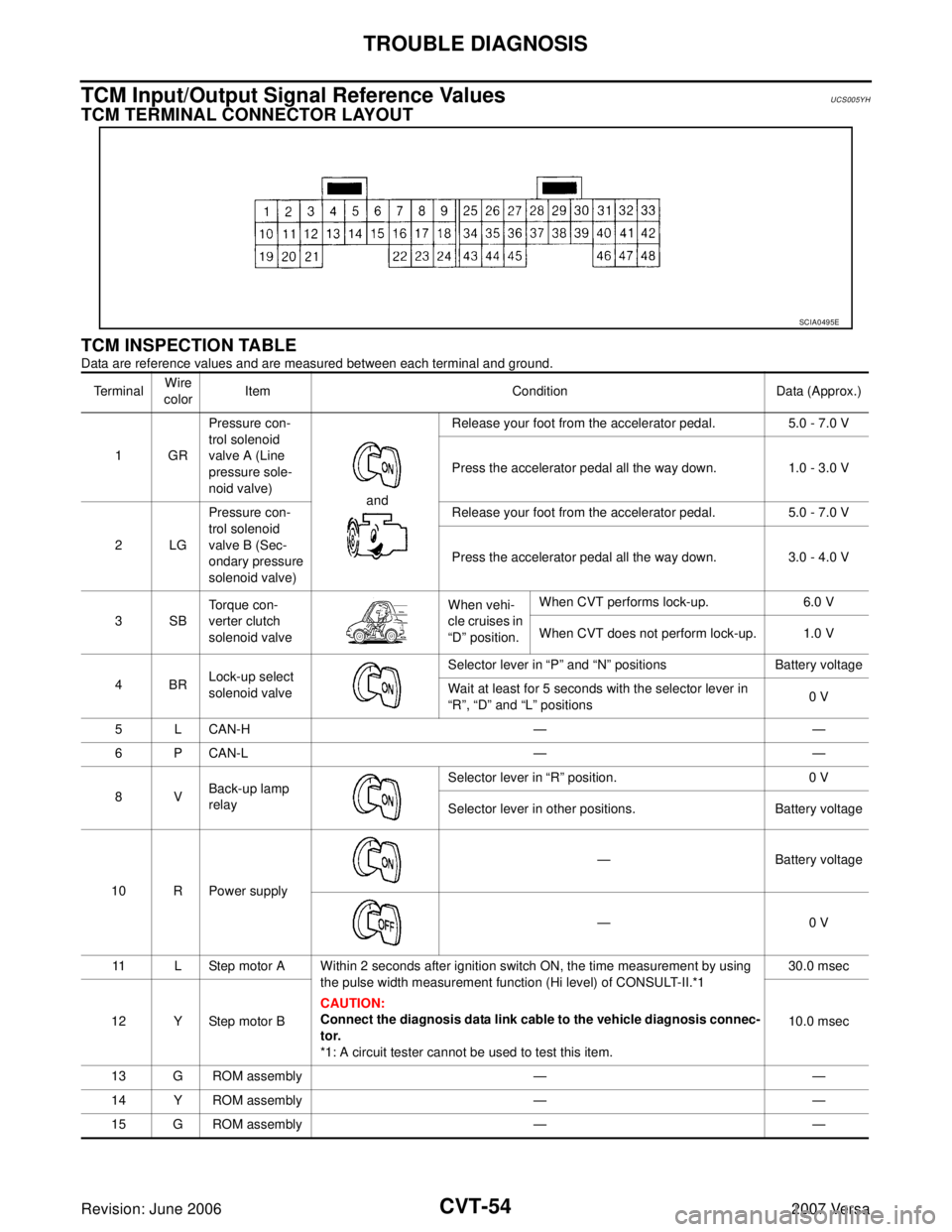

TCM Input/Output Signal Reference ValuesUCS005YH
TCM TERMINAL CONNECTOR LAYOUT
TCM INSPECTION TABLE
Data are reference values and are measured b

Page 952 of 2896

NISSAN LATIO 2007 Service Repair Manual TROUBLE DIAGNOSIS
CVT-55
D
E
F
G
H
I
J
K
L
MA
B
CVT
Revision: June 20062007 Versa
19 R Power supply— Battery voltage
—0 V
20 W Step motor C Within 2 seconds after ignition switch ON, the time meas
