NISSAN LATIO 2007 Service Repair Manual EC-440Revision: June 2006
DTC P0850 PNP SWITCH
2007 Versa

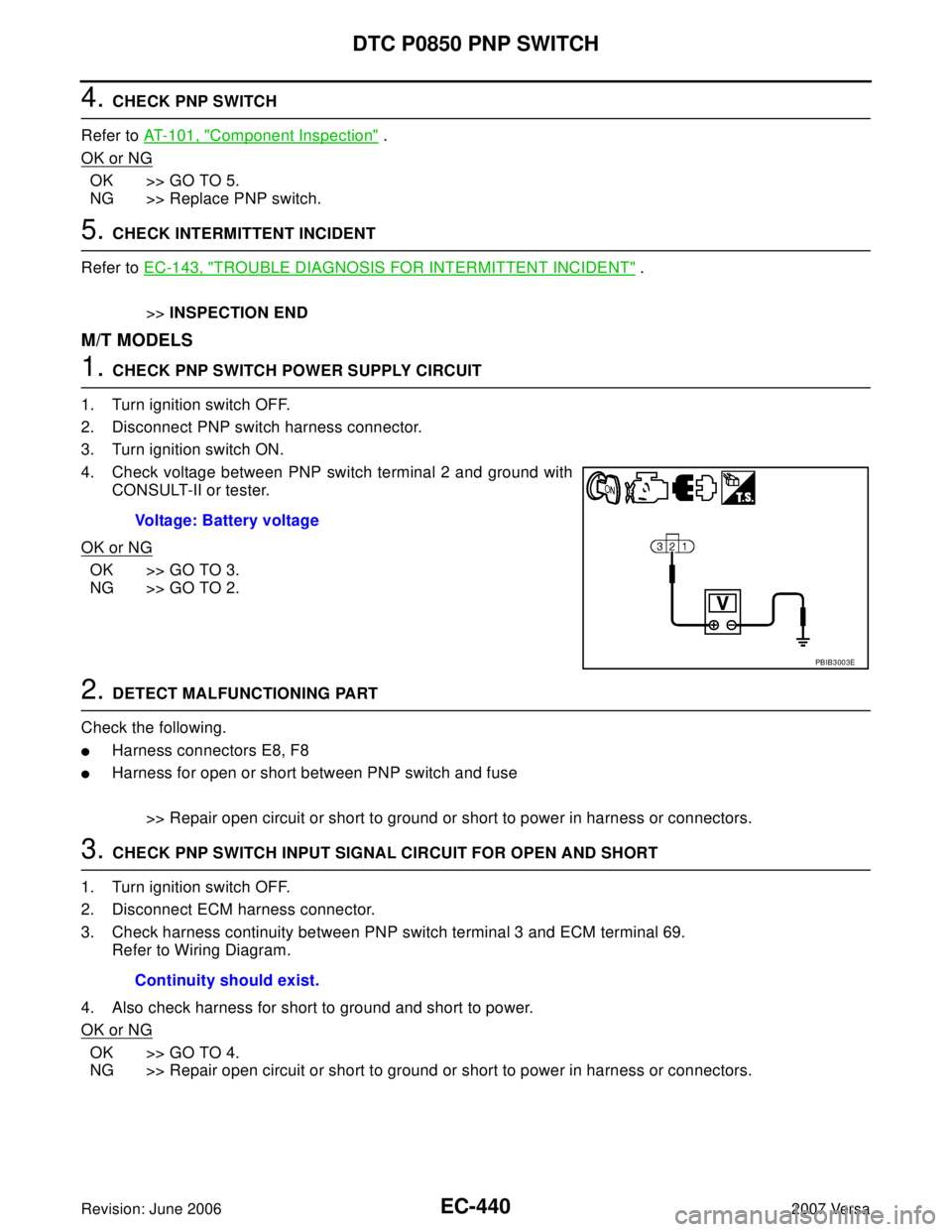

4. CHECK PNP SWITCH
Refer to AT-101, "
Component Inspection" .
OK or NG
OK >> GO TO 5.
NG >> Replace PNP switch.
5. CHECK INTERMITTENT INCIDEN

Page 1610 of 2896

NISSAN LATIO 2007 Service Repair Manual DTC P0850 PNP SWITCH
EC-441
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: June 20062007 Versa
4. CHECK PNP SWITCH
Refer to MT-11, "
POSITION SWITCH" .
OK or NG
OK >> GO TO 5.
NG >> Replace PNP switch.
5. CHECK

Page 1611 of 2896

NISSAN LATIO 2007 Service Repair Manual EC-442Revision: June 2006
DTC P1148 CLOSED LOOP CONTROL
2007 Versa
DTC P1148 CLOSED LOOP CONTROLPFP:22690
On Board Diagnosis LogicUBS00QKS
This self-diagnosis has the one trip detection logic.
NOTE:
D

Page 1612 of 2896

NISSAN LATIO 2007 Service Repair Manual DTC P1217 ENGINE OVER TEMPERATURE
EC-443
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: June 20062007 Versa

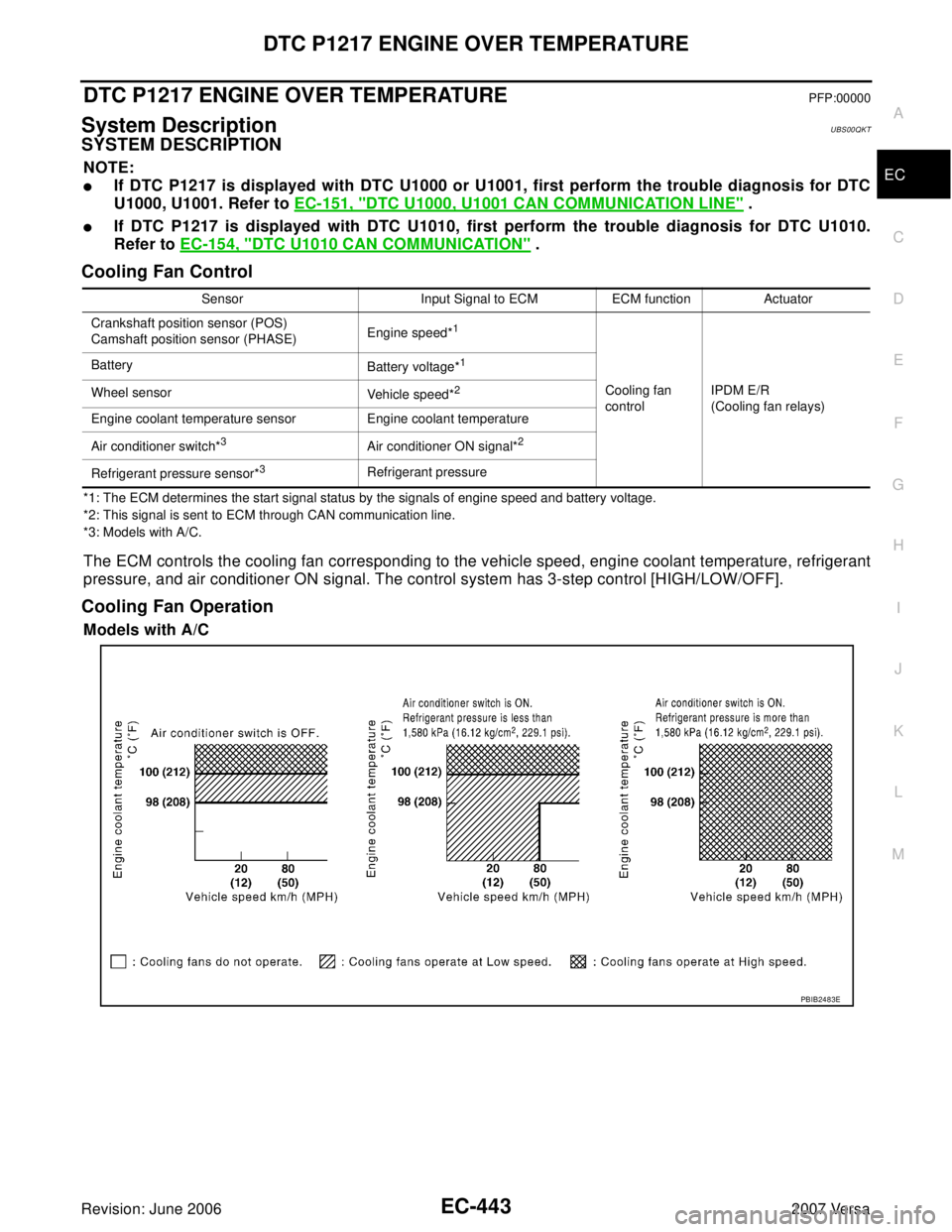

DTC P1217 ENGINE OVER TEMPERATUREPFP:00000
System DescriptionUBS00QKT
SYSTEM DESCRIPTION
NOTE:
If DTC

Page 1613 of 2896

NISSAN LATIO 2007 Service Repair Manual EC-444Revision: June 2006
DTC P1217 ENGINE OVER TEMPERATURE
2007 Versa

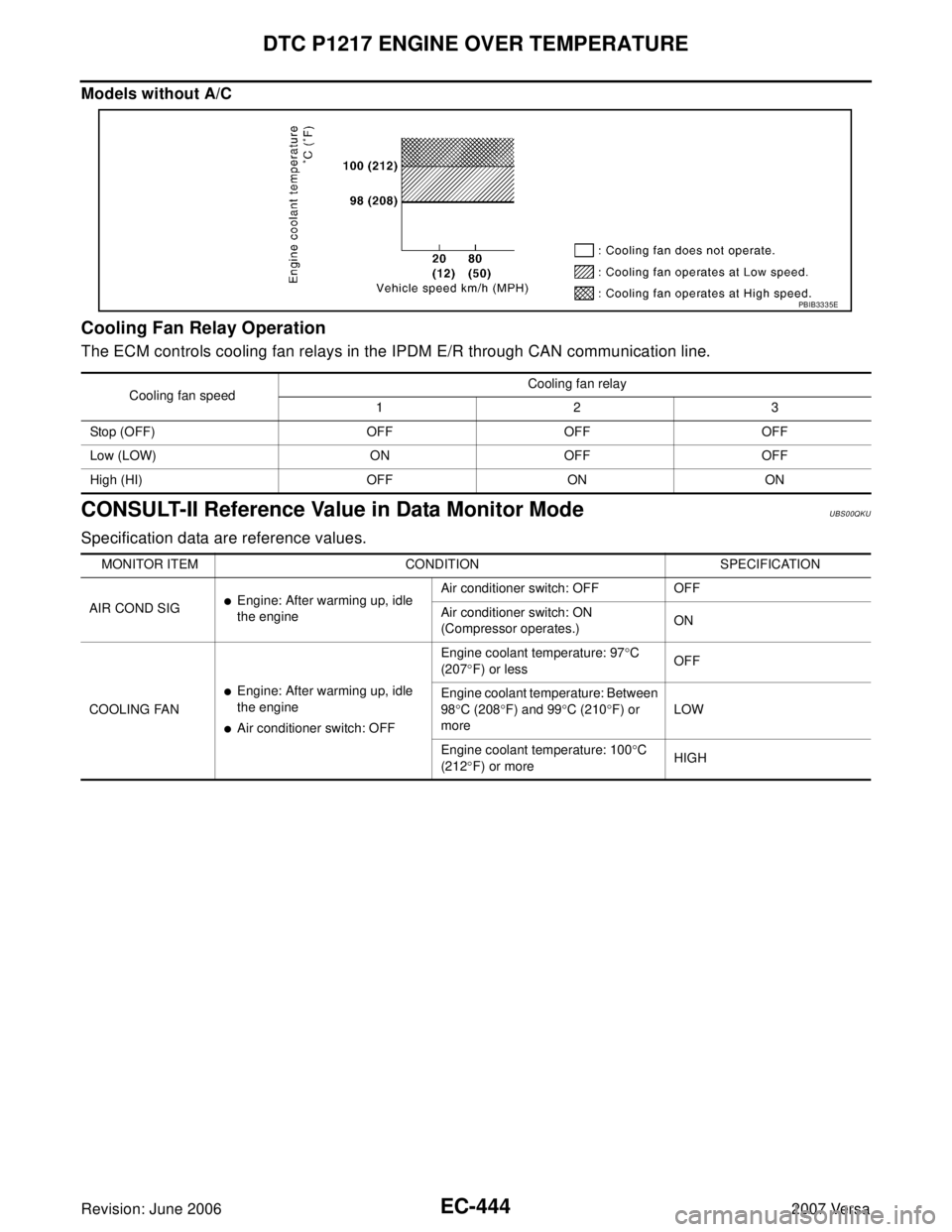

Models without A/C
Cooling Fan Relay Operation
The ECM controls cooling fan relays in the IPDM E/R through CAN communication line

Page 1614 of 2896

NISSAN LATIO 2007 Service Repair Manual DTC P1217 ENGINE OVER TEMPERATURE
EC-445
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: June 20062007 Versa
On Board Diagnosis LogicUBS00QKV
If the cooling fan or another component in the cooling system malfunct

DTC P1217 ENGINE OVER TEMPERATURE
EC-445
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: June 20062007 Versa

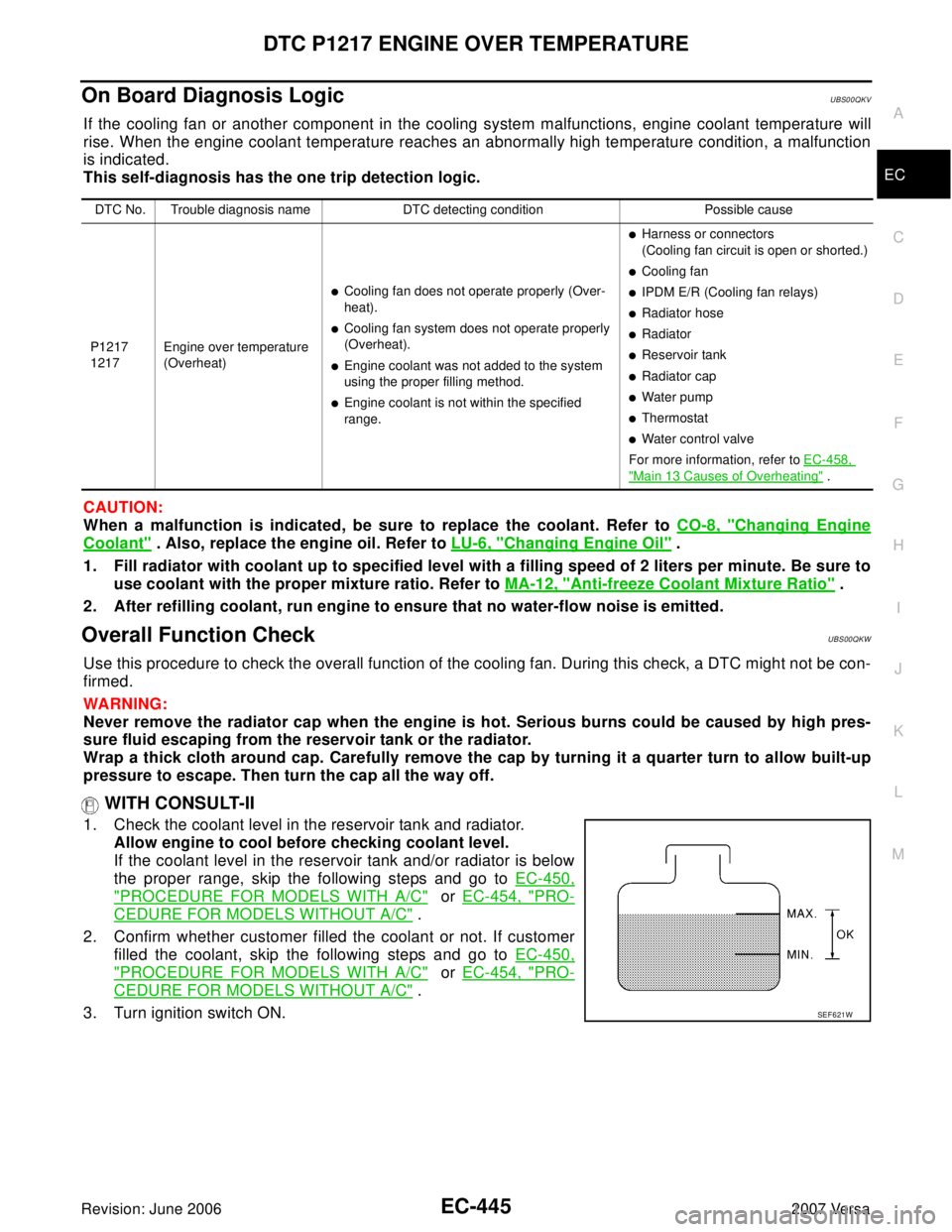

On Board Diagnosis LogicUBS00QKV
If the cooling fan or another component in the cooling system malfunctions, engine coolant temperature will
rise. When the engine coolant temperature reaches an abnormally high temperature condition, a malfunction
is indicated.
This self-diagnosis has the one trip detection logic.
CAUTION:
When a malfunction is indicated, be sure to replace the coolant. Refer to CO-8, "
Changing Engine
Coolant" . Also, replace the engine oil. Refer to LU-6, "Changing Engine Oil" .
1. Fill radiator with coolant up to specified level with a filling speed of 2 liters per minute. Be sure to
use coolant with the proper mixture ratio. Refer to MA-12, "
Anti-freeze Coolant Mixture Ratio" .
2. After refilling coolant, run engine to ensure that no water-flow noise is emitted.
Overall Function CheckUBS00QKW
Use this procedure to check the overall function of the cooling fan. During this check, a DTC might not be con-
firmed.
WA RN ING:
Never remove the radiator cap when the engine is hot. Serious burns could be caused by high pres-
sure fluid escaping from the reservoir tank or the radiator.
Wrap a thick cloth around cap. Carefully remove the cap by turning it a quarter turn to allow built-up
pressure to escape. Then turn the cap all the way off.
WITH CONSULT-II
1. Check the coolant level in the reservoir tank and radiator.
Allow engine to cool before checking coolant level.
If the coolant level in the reservoir tank and/or radiator is below
the proper range, skip the following steps and go to EC-450,
"PROCEDURE FOR MODELS WITH A/C" or EC-454, "PRO-
CEDURE FOR MODELS WITHOUT A/C" .
2. Confirm whether customer filled the coolant or not. If customer
filled the coolant, skip the following steps and go to EC-450,
"PROCEDURE FOR MODELS WITH A/C" or EC-454, "PRO-
CEDURE FOR MODELS WITHOUT A/C" .
3. Turn ignition switch ON.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1217
1217Engine over temperature
(Overheat)
Cooling fan does not operate properly (Over-
heat).
Cooling fan system does not operate properly
(Overheat).
Engine coolant was not added to the system
using the proper filling method.
Engine coolant is not within the specified
range.
Harness or connectors
(Cooling fan circuit is open or shorted.)
Cooling fan
IPDM E/R (Cooling fan relays)
Radiator hose
Radiator
Reservoir tank
Radiator cap
Water pump
Thermostat
Water control valve
For more information, refer to EC-458,
"Main 13 Causes of Overheating" .
SEF 6 21 W

Page 1615 of 2896

NISSAN LATIO 2007 Service Repair Manual EC-446Revision: June 2006
DTC P1217 ENGINE OVER TEMPERATURE
2007 Versa

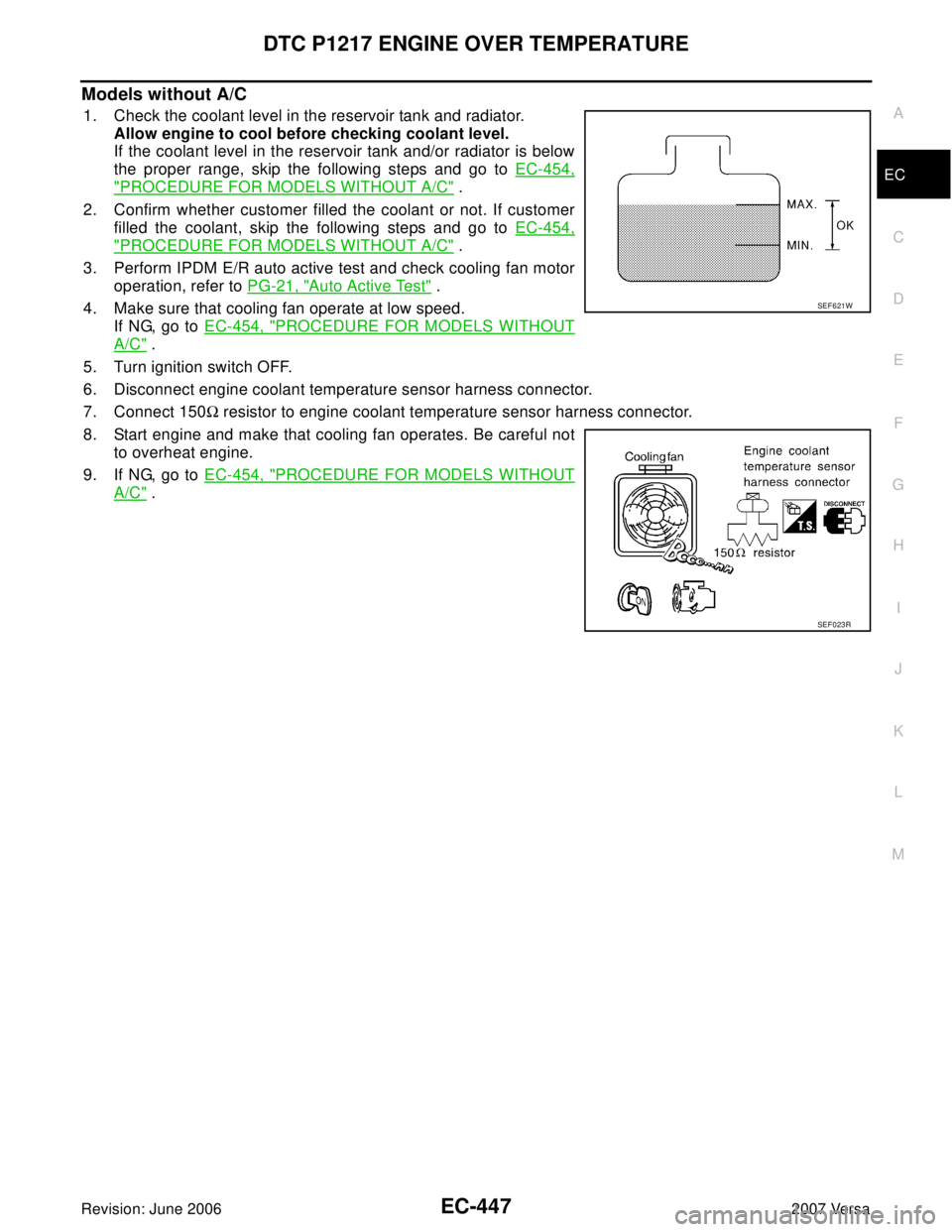

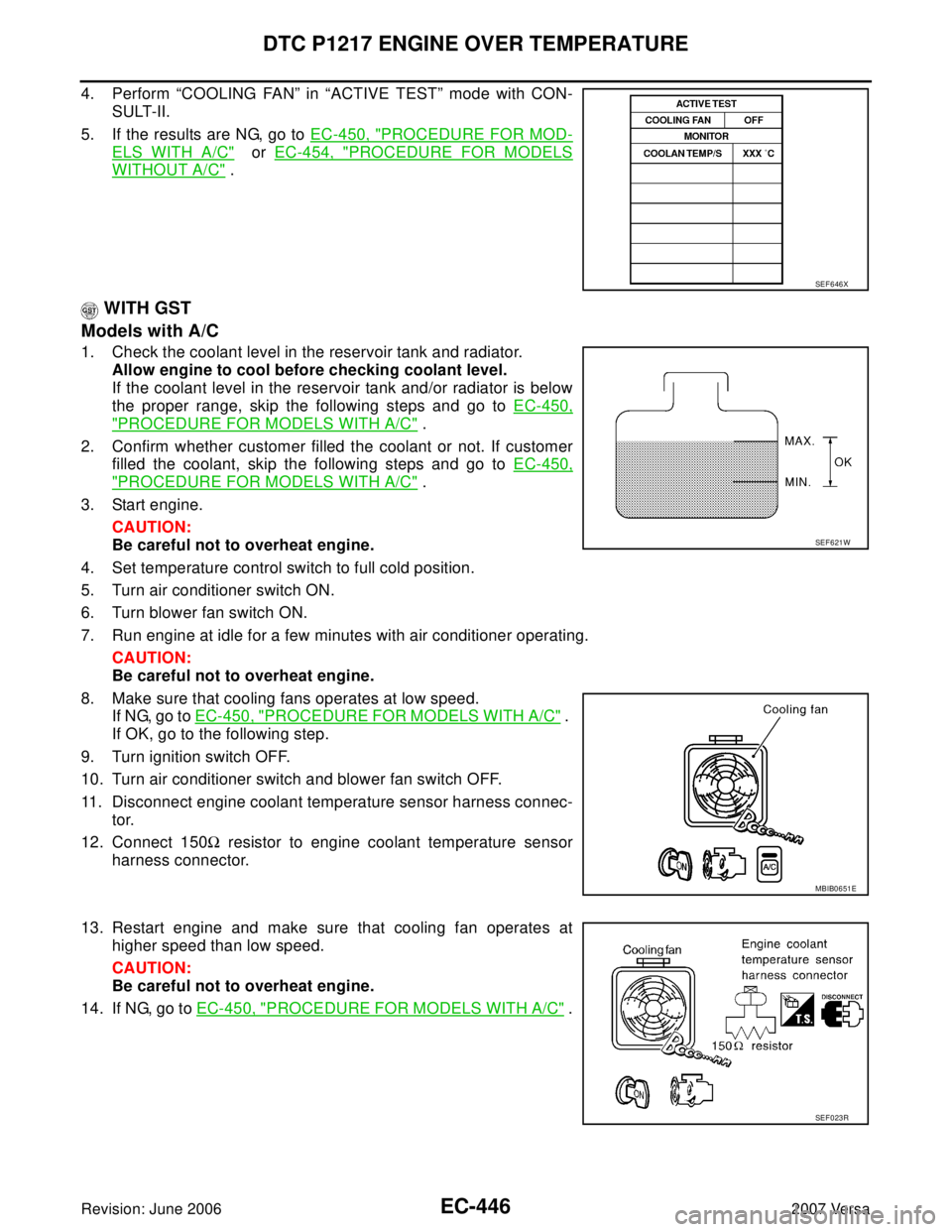

4. Perform “COOLING FAN” in “ACTIVE TEST” mode with CON-
SULT-II.
5. If the results are NG, go to EC-450, "
PROCEDURE FOR

Page 1616 of 2896

NISSAN LATIO 2007 Service Repair Manual DTC P1217 ENGINE OVER TEMPERATURE
EC-447
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: June 20062007 Versa
Models without A/C
1. Check the coolant level in the reservoir tank and radiator.
Allow engine to cool
