Page 2273 of 2896
LIGHTING AND TURN SIGNAL SWITCH
LT-65
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: June 20062007 Versa
LIGHTING AND TURN SIGNAL SWITCHPFP:25540
Removal and InstallationEKS00HYH
REMOVAL
1. Remove steering column cover. Refer to IP-10, "INSTRUMENT PANEL ASSEMBLY" .
2. While pressing pawls (A) in direction as shown, pull lighting and
turn signal switch (1) toward LH door and disconnect from the
base.
INSTALLATION
Installation is in the reverse order of removal.
PKIC1018E
Page 2274 of 2896
LT-66
HAZARD SWITCH
Revision: June 20062007 Versa
HAZARD SWITCHPFP:25290
Removal and InstallationEKS00HYI
REMOVAL
1. Remove cluster lid C. Refer to IP-10, "INSTRUMENT PANEL ASSEMBLY" .
2. Disconnect hazard switch connector.
3. Press pawl (A) on reverse side and remove the hazard switch
(1).
INSTALLATION
Installation is in the reverse order of removal.
WKIA5421E
Page 2275 of 2896
COMBINATION SWITCH
LT-67
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: June 20062007 Versa
COMBINATION SWITCHPFP:25567

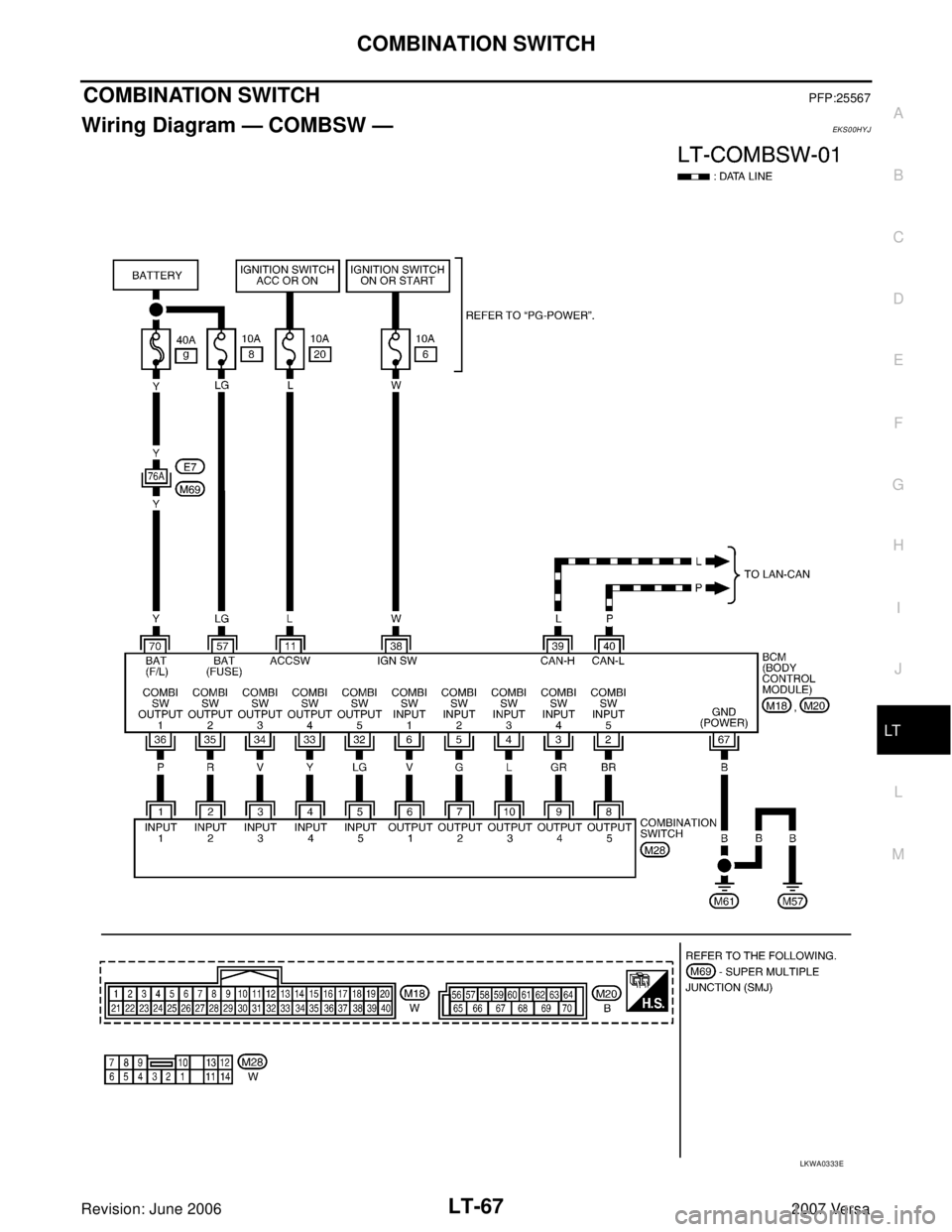

Wiring Diagram — COMBSW —EKS00HYJ
LKWA0333E
Page 2276 of 2896

LT-68
COMBINATION SWITCH
Revision: June 20062007 Versa
Combination Switch Reading FunctionEKS00HYK
For details, refer to BCS-3, "COMBINATION SWITCH READING FUNCTION" .
Terminals and Reference Values for BCMEKS00HYL
Refer to BCS-12, "Terminals and Reference Values for BCM" .
CONSULT-II Function (BCM)EKS00HYN
Refer to LT- 1 2 , "CONSULT-II Function (BCM)" .
Combination Switch InspectionEKS00HYO
1. SYSTEM CHECK
Referring to table below, check which system malfunctioning switch belongs to.
>> Check the system to which the switch belongs, and GO TO 2.
2. SYSTEM CHECK
With CONSULT-II
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.
1. Connect CONSULT-II, and select “COMB SW” on “SELECT
TEST ITEM” screen.
2. Select “DATA MONITOR”.
3. Select “START”, and confirm that other switches in the system
operate normally.
Example: When turn signal LH is inoperative, confirm that
PASSING, HEAD LAMP 2 or FRONT FOG (if equipped) turn
ON-OFF normally.
Without CONSULT-II
Operating combination switch, and confirm that other switches in the system operate normally.
Example: When a turn signal switch is inoperative, confirm that FRONT WIPER LO or FRONT WIPER INT
turn ON-OFF normally.
Check results
Other switches in the system operate normally.>>Replace lighting switch or wiper switch.
Other switches in the system do not operate normally.>>GO TO 3.
System 1 System 2 System 3 System 4 System 5
— FRONT WASHER FRONT WIPER LO TURN LH TURN RH
FRONT WIPER HI — FRONT WIPER INT PASSING HEAD LAMP 1
INT VOLUME 1 — — HEAD LAMP 2 HI BEAM
— INT VOLUME 3 — — LIGHT SW 1ST
INT VOLUME 2 — — FRONT FOG —
PKIA7602E
Page 2277 of 2896
COMBINATION SWITCH
LT-69
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: June 20062007 Versa
3. HARNESS INSPECTION
1. Turn ignition switch OFF.
2. Disconnect BCM connector and combination switch connector.
3. Check for continuity between BCM harness connector of the suspect system and the corresponding com-
bination switch harness connector.
4. Check for continuity between of BCM harness connector in suspect system and ground.
OK or NG
OK >> GO TO 4.
NG >> Check harness between BCM and combination switch for open or short circuit.
Suspect
systemAB
Continuity
Connector Terminal Connector Terminal
1
M18Input 1 6
M286
Ye s Output 1 36 1
2Input 2 5 7
Output 2 35 2
3Input 3 4 10
Output 3 34 3
4Input 4 3 9
Output 4 33 4
5Input 5 2 8
Output 5 32 5
Suspect
systemBCM
Continuity
Connector Terminal
1
M18Input 1 6
Ground No Output 1 36
2Input 2 5
Output 2 35
3Input 3 4
Output 3 34
4Input 4 3
Output 4 33
5Input 5 2
Output 5 32
WKIA5497E
WKIA5500E
Page 2278 of 2896

LT-70
COMBINATION SWITCH
Revision: June 20062007 Versa
4. CHECK BCM OUTPUT TERMINAL
1. Connect BCM and combination switch connectors.
2. Turn ignition switch ON.
3. Turn lighting switch and wiper switch to OFF position.
4. Set wiper dial position 4.
5. Check BCM output terminal voltage waveform of suspect sys-
tem.
OK or NG
OK >> Open circuit in combination switch, GO TO 5.
NG >> Replace BCM. Refer to BCS-25, "
Removal and Installation of BCM" .
5. COMBINATION SWITCH INSPECTION
Referring to table below, perform combination switch inspection.
>> INSPECTION END
Removal and InstallationEKS00HYP
Refer to LT- 6 5 , "LIGHTING AND TURN SIGNAL SWITCH" .
Suspect
systemTe r m i n a l
Reference value (+)
(−) Combination
switch
connectorTe r m i n a l
1
M281
Ground1.2V 22
33
44
55
1.2V
PKIC1020E
PKIB4958J
PKIB8643J
Procedure
12 3 4 5 6 7
Replace
lighting
switchConfirm
check
resultsOK INSPECTION END Confirm
check
resultsOK INSPECTION END Confirm
check
resultsOK INSPECTION END
NG Replace wiper switch NG Replace switch base NG Confirm symptom again
Page 2279 of 2896
STOP LAMP
LT-71
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: June 20062007 Versa
STOP LAMPPFP:26550

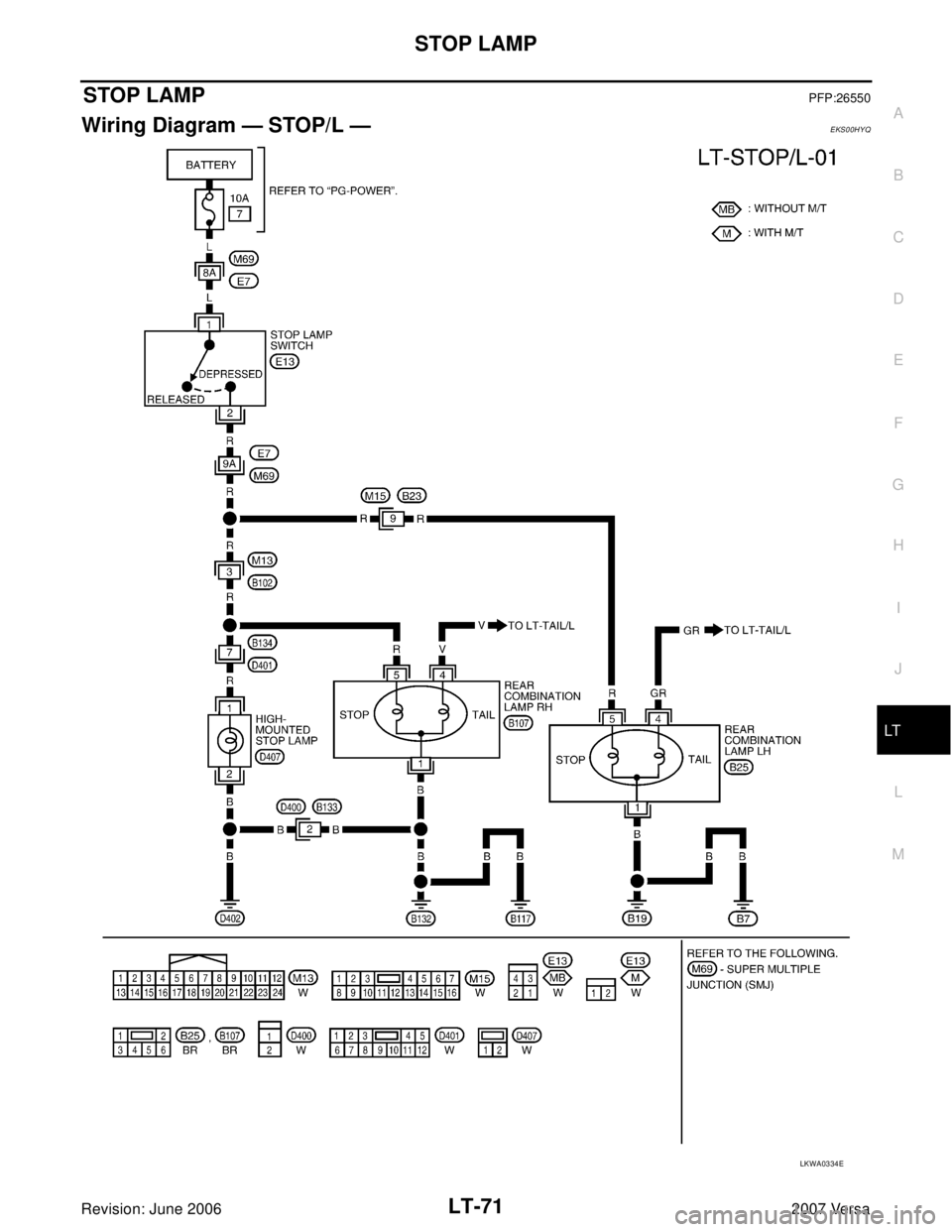

Wiring Diagram — STOP/L —EKS00HYQ
LKWA0334E
Page 2280 of 2896
LT-72
STOP LAMP
Revision: June 20062007 Versa
Bulb Replacement of High-Mounted Stop LampEKS00HYR
Refer to LT- 7 2 , "Removal and Installation of High-Mounted Stop Lamp" .
Bulb Replacement of Rear Combination Lamp for Stop LampEKS00HYS
Refer to LT- 8 7 , "Bulb Replacement" .
Removal and Installation of High-Mounted Stop LampEKS00HYT
REMOVAL
1. Remove rear hatch finish panel. Refer to EI-42, "LUGGAGE FLOOR TRIM" .
2. Disconnect the high-mounted stop lamp connector.
3. Remove nuts and remove high-mounted stop lamp from rear hatch.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
Properly seal the high-mounted stop lamp base to the rear hatch to prevent water leaks.
Removal and Installation of Rear Combination Lamp for Stop LampEKS00HYU
Refer to LT- 8 7 , "Removal and Installation" .
