Page 665 of 2896

NISSAN LATIO 2007 Service Repair Manual BL-176
BACK DOOR LOCK
Revision: June 20062007 Versa
System DescriptionEIS0 09 DL
Power is supplied at all times
through 40A fusible link (letter g, located in fuse and fusible link box)
to BCM term

Page 666 of 2896

NISSAN LATIO 2007 Service Repair Manual BACK DOOR LOCK
BL-177
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa

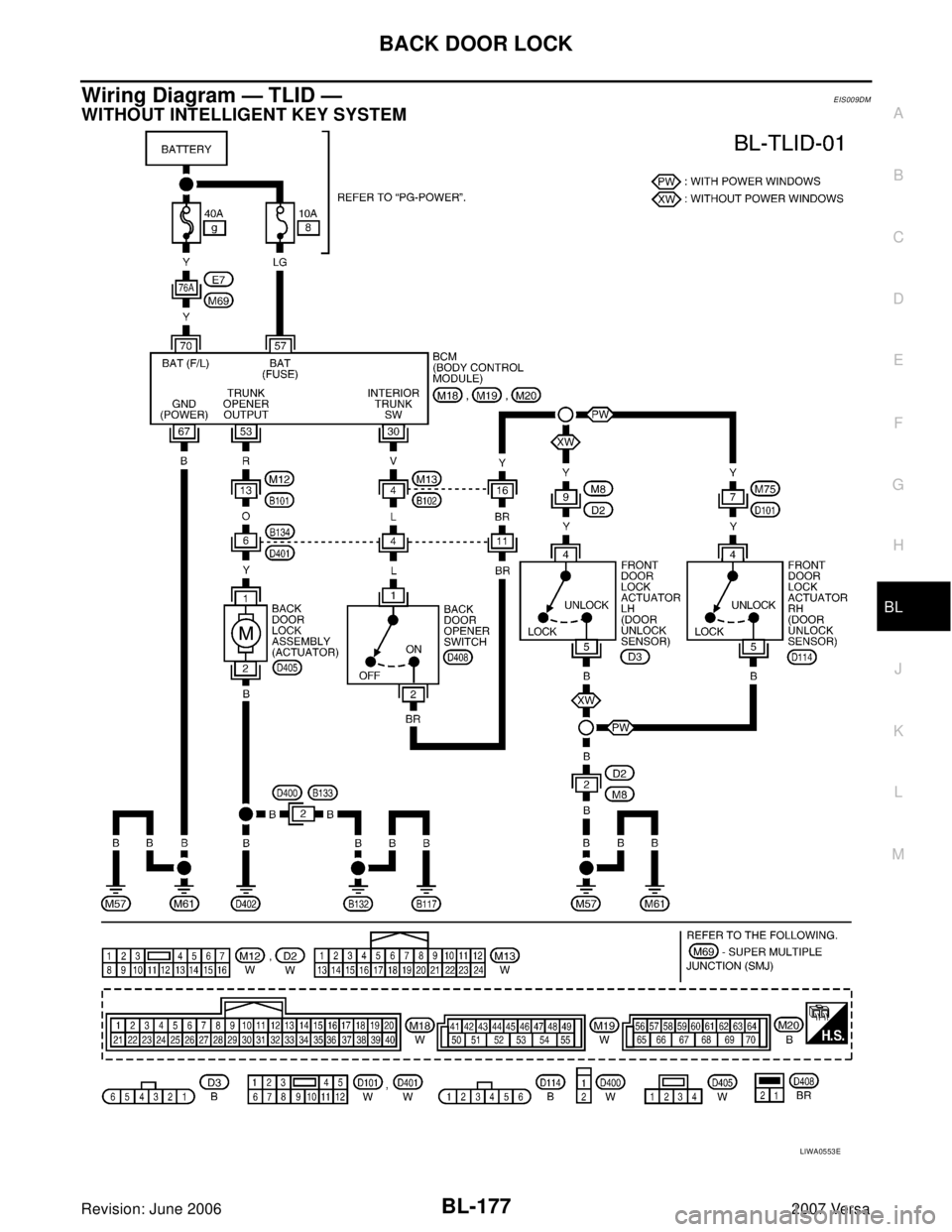

Wiring Diagram — TLID —EIS009DM
WITHOUT INTELLIGENT KEY SYSTEM
LIWA0553E

Page 667 of 2896

NISSAN LATIO 2007 Service Repair Manual BL-178
BACK DOOR LOCK
Revision: June 20062007 Versa

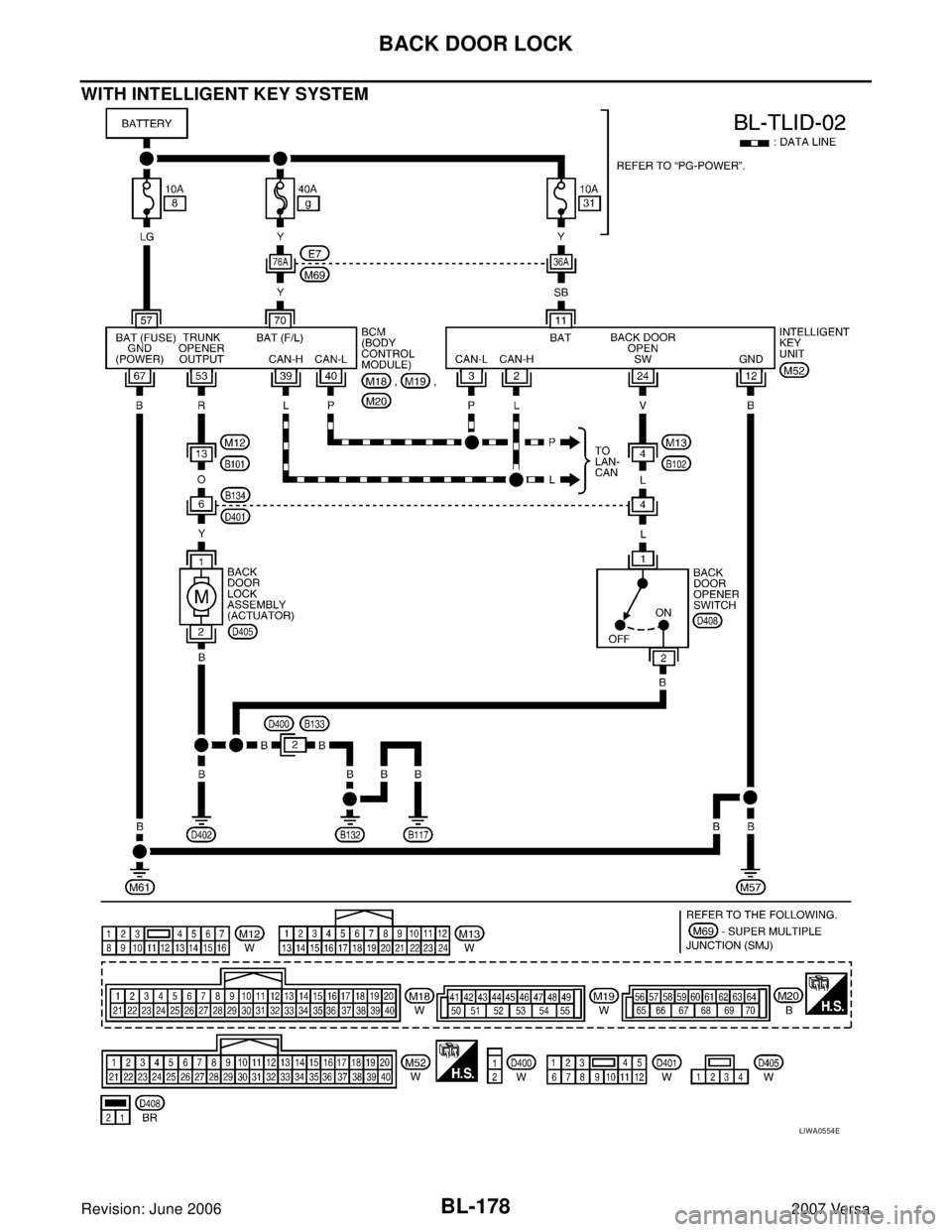

WITH INTELLIGENT KEY SYSTEM
LIWA0554E

Page 668 of 2896

NISSAN LATIO 2007 Service Repair Manual BACK DOOR LOCK
BL-179
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa
Terminals and Reference Values for BCMEIS009DN
Refer to BCS-12, "Terminals and Reference Values for BCM" .
Terminals and R

Page 669 of 2896

NISSAN LATIO 2007 Service Repair Manual BL-180
BACK DOOR LOCK
Revision: June 20062007 Versa
CONSULT-II APPLICATION ITEMS
Data Monitor
* : With Intelligent Key system
** : Without Intelligent Key system
Active Test
Work FlowEIS009DP
1. Check

BL-180
BACK DOOR LOCK
Revision: June 20062007 Versa
CONSULT-II APPLICATION ITEMS
Data Monitor
* : With Intelligent Key system
** : Without Intelligent Key system
Active Test
Work FlowEIS009DP
1. Check the symptom and customer's requests.
2. Understand the outline of system. Refer to BL-176, "
System Description" .
3. Repair or replace any malfunctioning parts. Refer to BL-180, "
Trouble Diagnosis Chart by Symptom" .
4. Does back door opener operate normally? If Yes, GO TO 5. If No, GO TO 3.
5. INSPECTION END
Trouble Diagnosis Chart by SymptomEIS009DQ
BCM Power Supply and Ground CircuitEIS009DR
Refer to BCS-16, "BCM Power Supply and Ground Circuit Check" .
Monitor item Content
IGN ON SW Indicates [ON/OFF] condition of ignition switch.
KEYLESS TRUNK** This is displayed even when it is not equipped.
I-KEY TRUNK* Momentarily indicates [ON/OFF] condition of back door open signal from back door opener switch.
TRNK OPNR SW** Indicates [ON/OFF] condition of back door open signal from back door opener switch.
VEHICLE SPEED This is displayed even when it is not equipped.
Test item Content
TRUNK/BACK DOORThis test is able to check back door lock assembly (actuator) unlock operation.
Actuator opens back door lock assembly when “OPEN” on CONSULT-II screen is touched.
Symptom Diagnoses/service procedureReference
page
Back door opener does not operate.
(Without Intelligent Key or power windows)1. Check BCM power supply and ground circuit.BCS-16
2. Check back door opener switch circuit.BL-181
3. Check back door lock assembly (actuator) circuit.BL-189
4. Replace BCM.BCS-25
Back door opener does not operate.
(Without Intelligent Key, with power windows)1. Check BCM power supply and ground circuit.BCS-162. Check back door opener switch circuit.BL-184
3. Check back door lock assembly (actuator) circuit.BL-189
4. Replace BCM.BCS-25
Back door opener does not operate.
(With Intelligent Key)1. Check BCM power supply and ground circuit.BCS-16
2.Check Intelligent Key power supply and ground cir-
cuit.BL-123
3. Check back door opener switch circuit.BL-187
4. Check back door lock assembly (actuator) circuit.BL-189
5. Replace BCM.BCS-25

Page 670 of 2896

NISSAN LATIO 2007 Service Repair Manual BACK DOOR LOCK
BL-181
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa
Check Back Door Opener Switch Circuit (Without Intelligent Key or Power Win-
dows)
EIS009DS
1. CHECK BACK DOOR OPENER SWIT

Page 671 of 2896

NISSAN LATIO 2007 Service Repair Manual BL-182
BACK DOOR LOCK
Revision: June 20062007 Versa
3. CHECK BACK DOOR OPENER SWITCH
Check continuity between back door opener switch terminals 1 and 2.
OK or NG
OK >> GO TO 4.
NG >> Replace back doo

Page 672 of 2896

NISSAN LATIO 2007 Service Repair Manual BACK DOOR LOCK
BL-183
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa
6. CHECK UNLOCK SENSOR FUNCTION
1. Connect front door lock actuator LH (door unlock sensor) connector.
2. Check continuity
