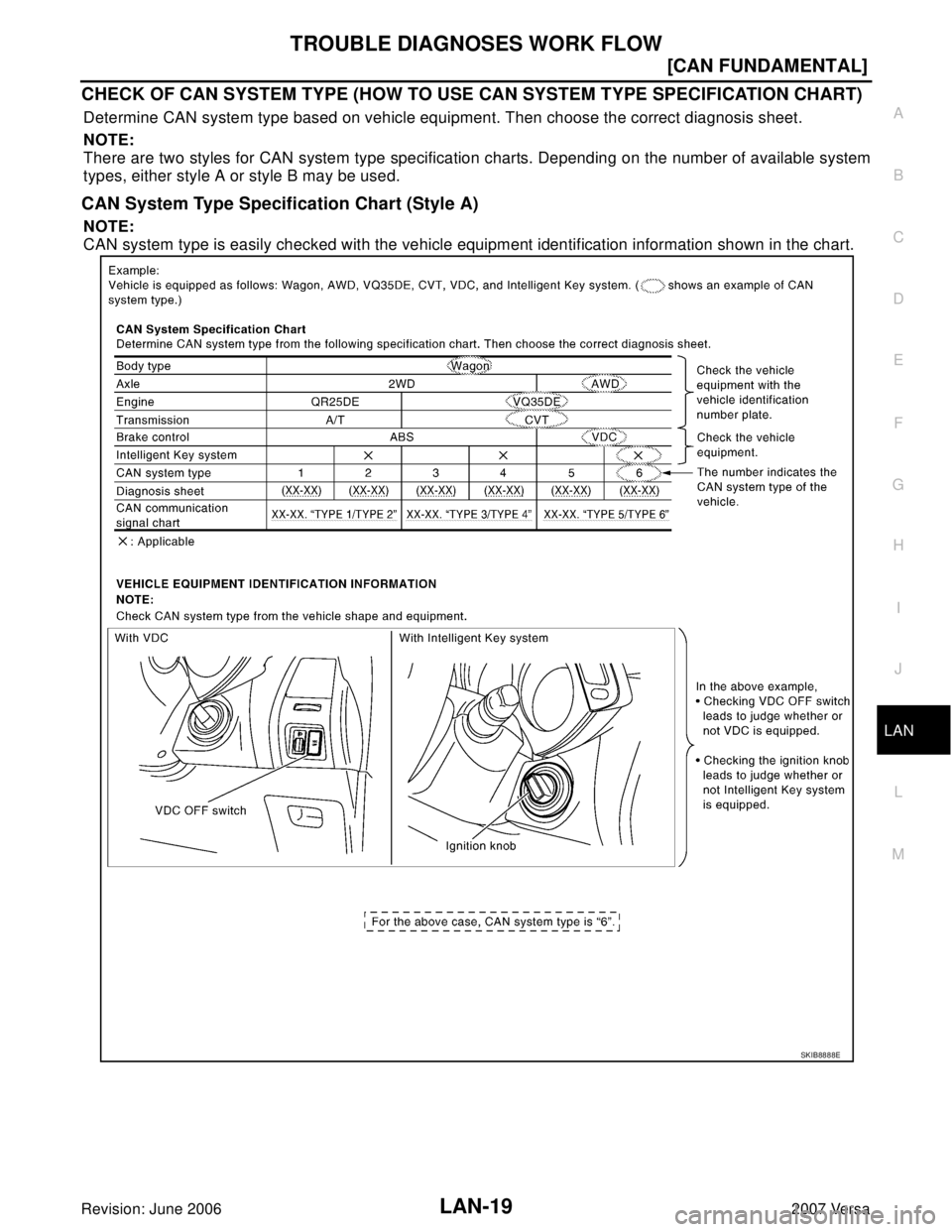

NISSAN LATIO 2007 Service Repair Manual TROUBLE DIAGNOSES WORK FLOW LAN-19 [CAN FUNDAMENTAL] C D E F G H I J L MA B LAN Revision: June 20062007 Versa CHECK OF CAN SYSTEM TYPE (HOW TO USE CAN SYSTEM TYPE SPECIFICATION CHART) Determine CAN sy

Page 2146 of 2896

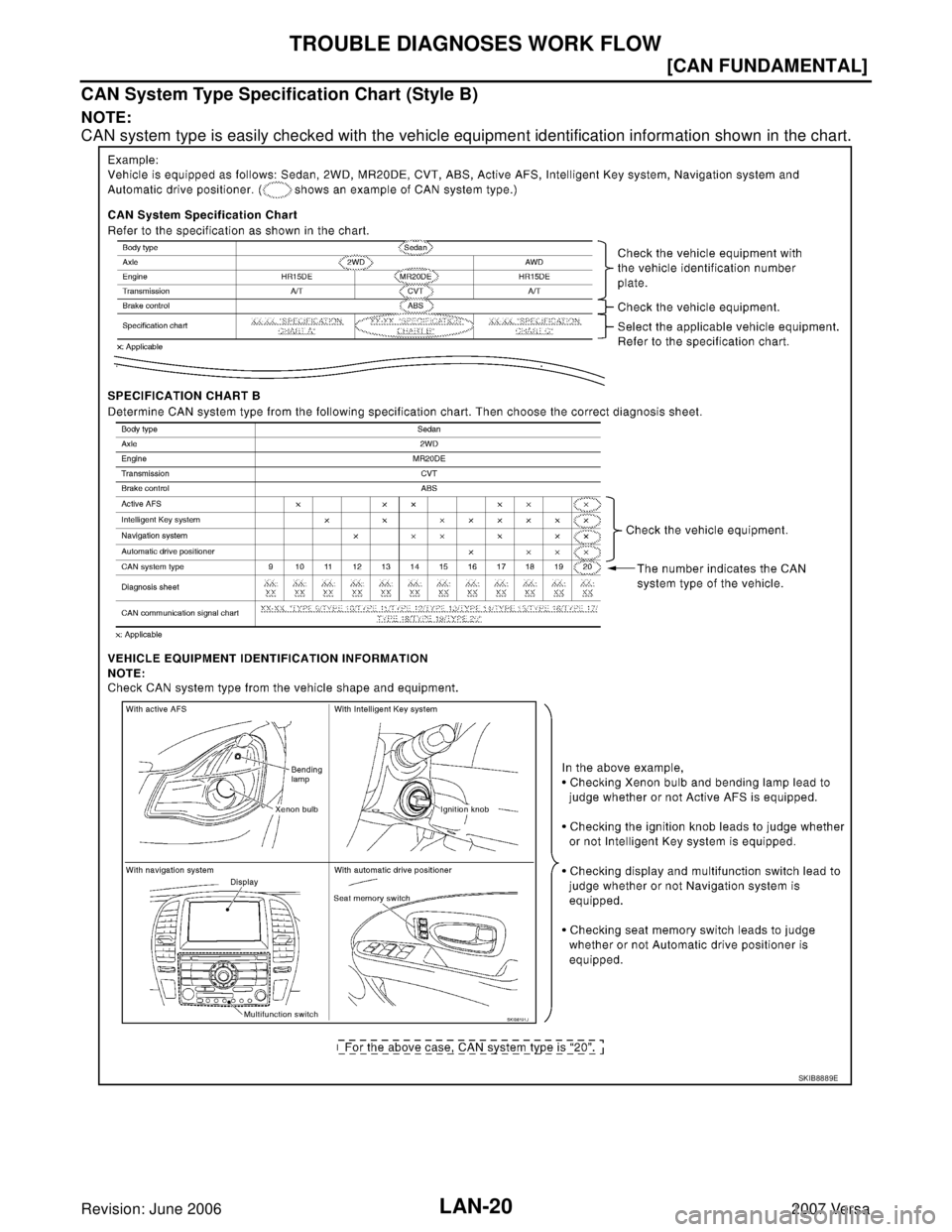

NISSAN LATIO 2007 Service Repair Manual LAN-20 [CAN FUNDAMENTAL] TROUBLE DIAGNOSES WORK FLOW Revision: June 20062007 Versa CAN System Type Specification Chart (Style B) NOTE: CAN system type is easily checked with the vehicle equipment iden

Page 2147 of 2896

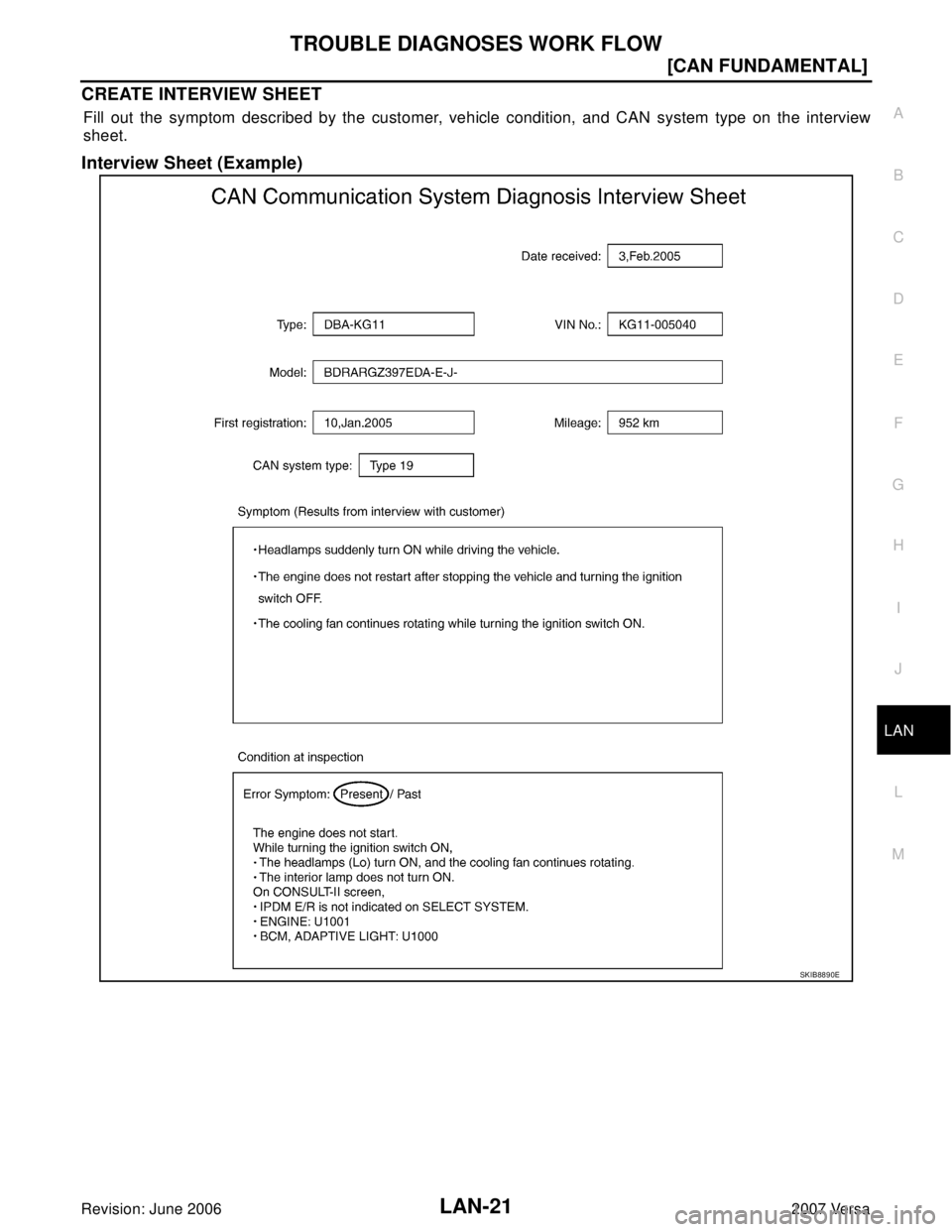

NISSAN LATIO 2007 Service Repair Manual TROUBLE DIAGNOSES WORK FLOW LAN-21 [CAN FUNDAMENTAL] C D E F G H I J L MA B LAN Revision: June 20062007 Versa CREATE INTERVIEW SHEET Fill out the symptom described by the customer, vehicle condition,

Page 2148 of 2896

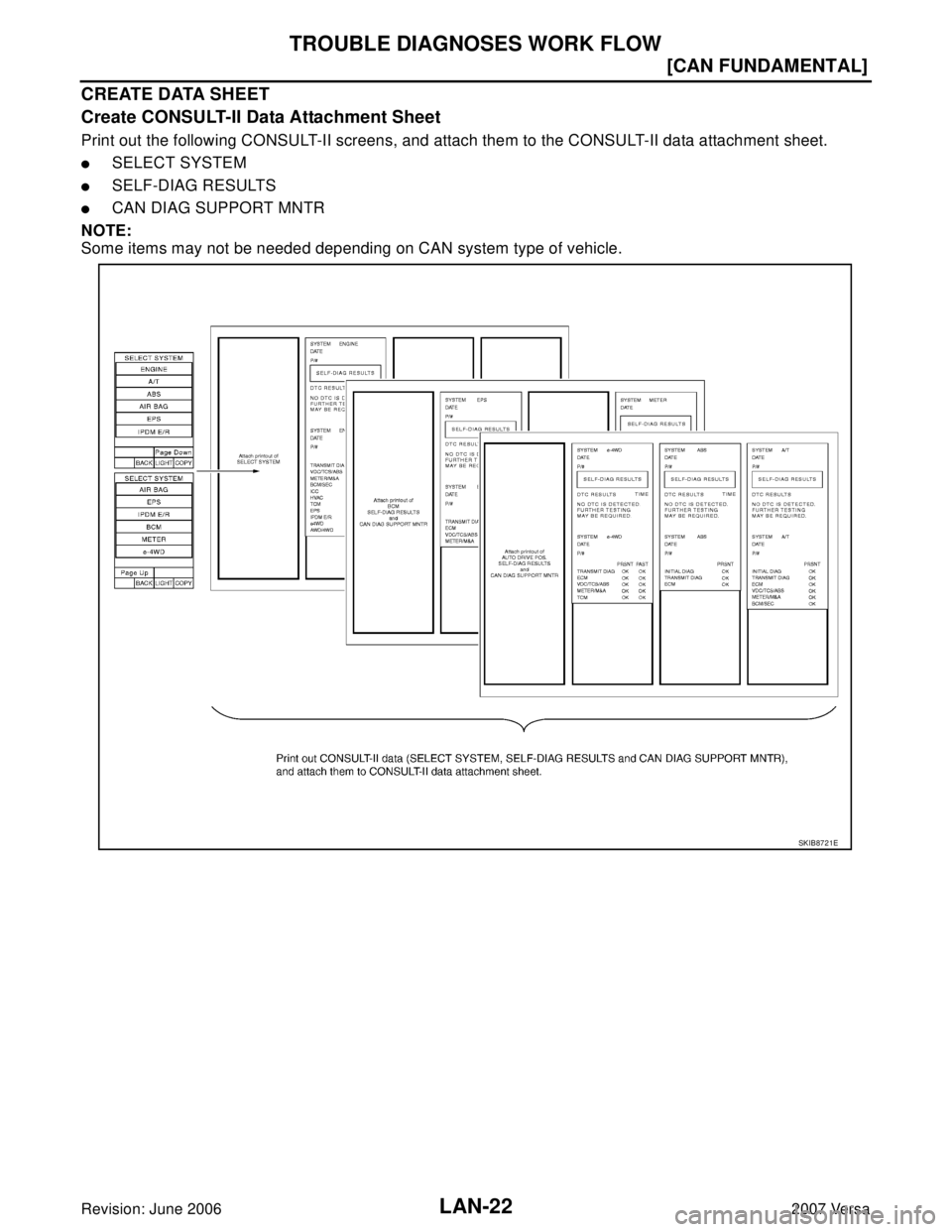

NISSAN LATIO 2007 Service Repair Manual LAN-22 [CAN FUNDAMENTAL] TROUBLE DIAGNOSES WORK FLOW Revision: June 20062007 Versa CREATE DATA SHEET Create CONSULT-II Data Attachment Sheet Print out the following CONSULT-II screens, and attach them

Page 2149 of 2896

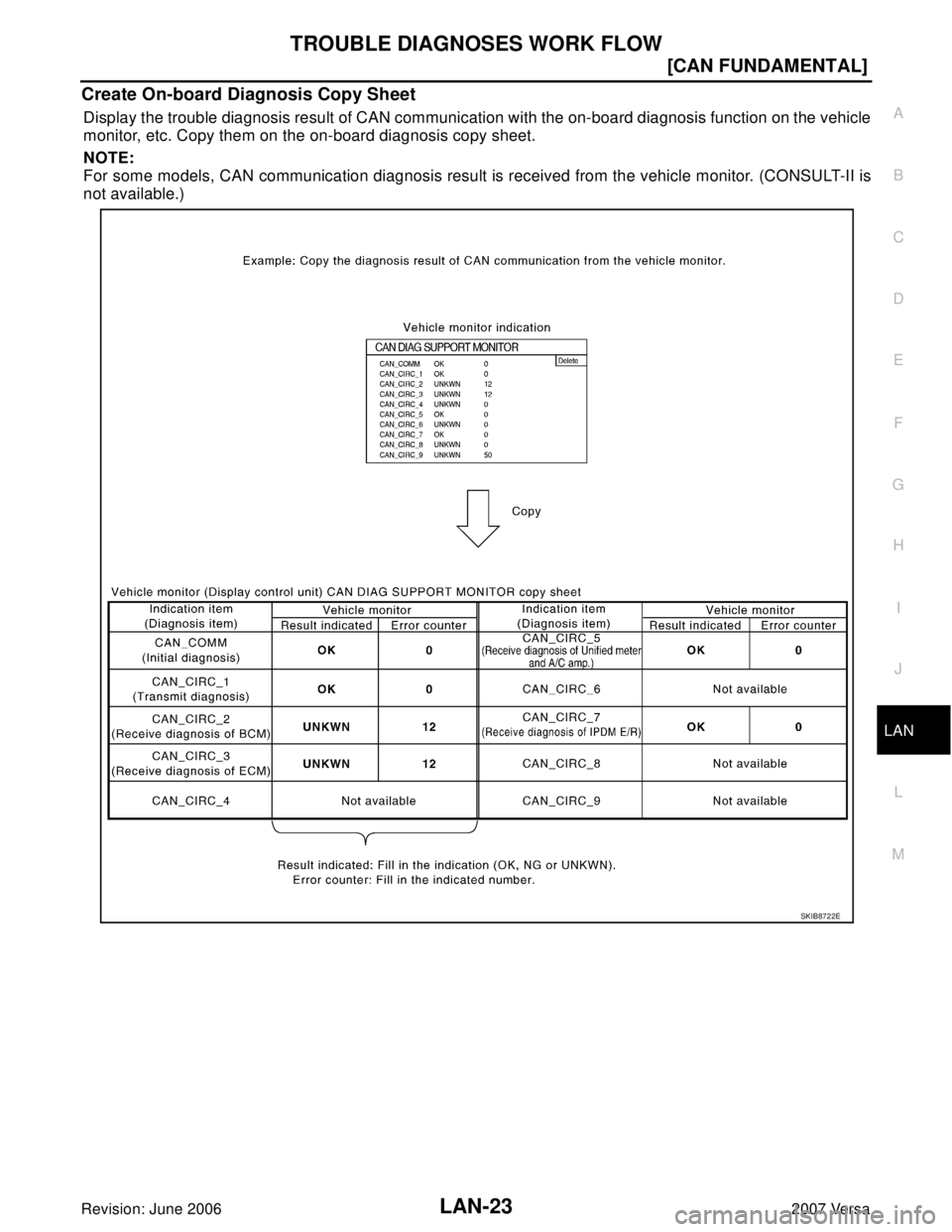

NISSAN LATIO 2007 Service Repair Manual TROUBLE DIAGNOSES WORK FLOW LAN-23 [CAN FUNDAMENTAL] C D E F G H I J L MA B LAN Revision: June 20062007 Versa Create On-board Diagnosis Copy Sheet Display the trouble diagnosis result of CAN communica

Page 2150 of 2896

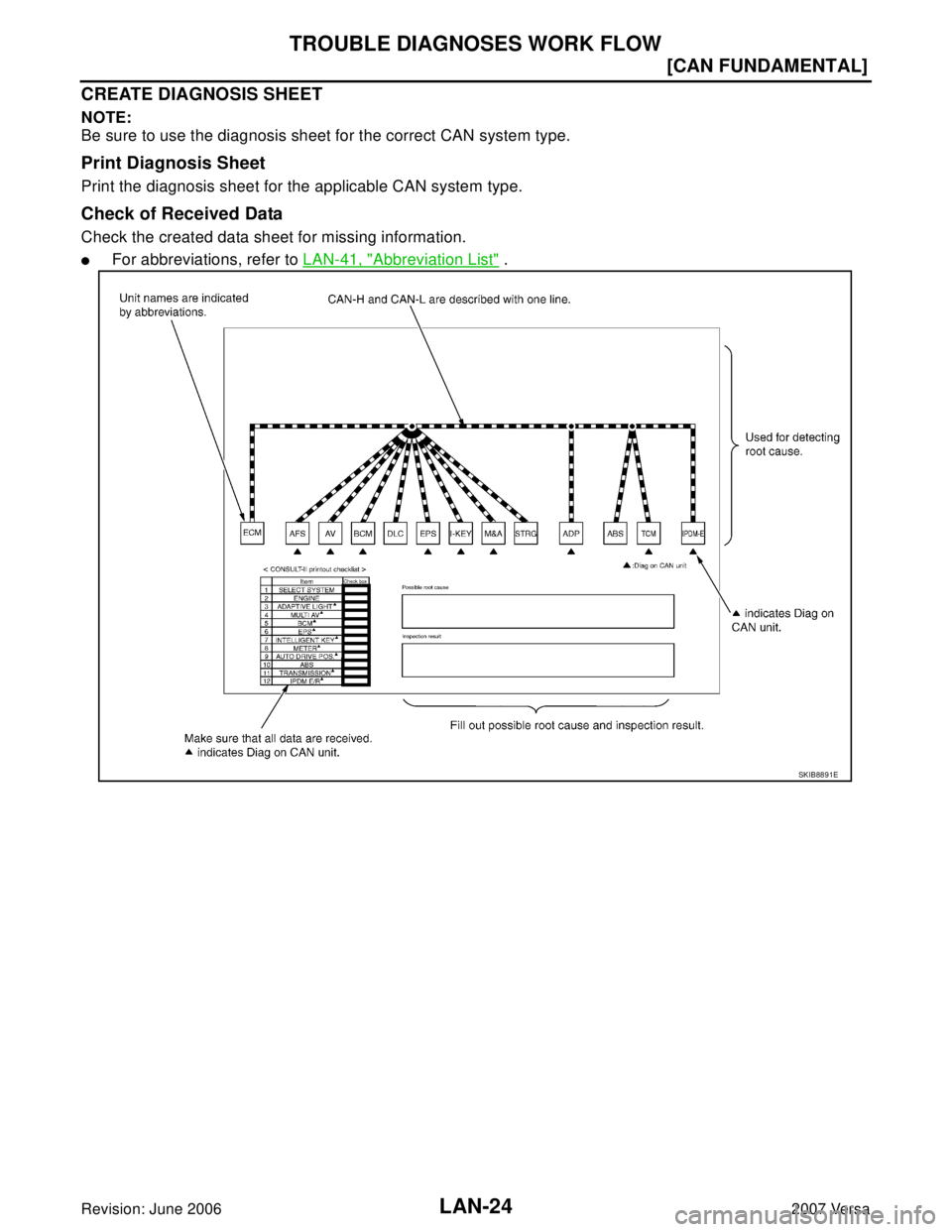

NISSAN LATIO 2007 Service Repair Manual LAN-24 [CAN FUNDAMENTAL] TROUBLE DIAGNOSES WORK FLOW Revision: June 20062007 Versa CREATE DIAGNOSIS SHEET NOTE: Be sure to use the diagnosis sheet for the correct CAN system type. Print Diagnosis Shee

Page 2151 of 2896

NISSAN LATIO 2007 Service Repair Manual TROUBLE DIAGNOSES WORK FLOW LAN-25 [CAN FUNDAMENTAL] C D E F G H I J L MA B LAN Revision: June 20062007 Versa DETECT THE ROOT CAUSE Identify the root cause using the created diagnosis sheet. Identifyi

Page 2152 of 2896

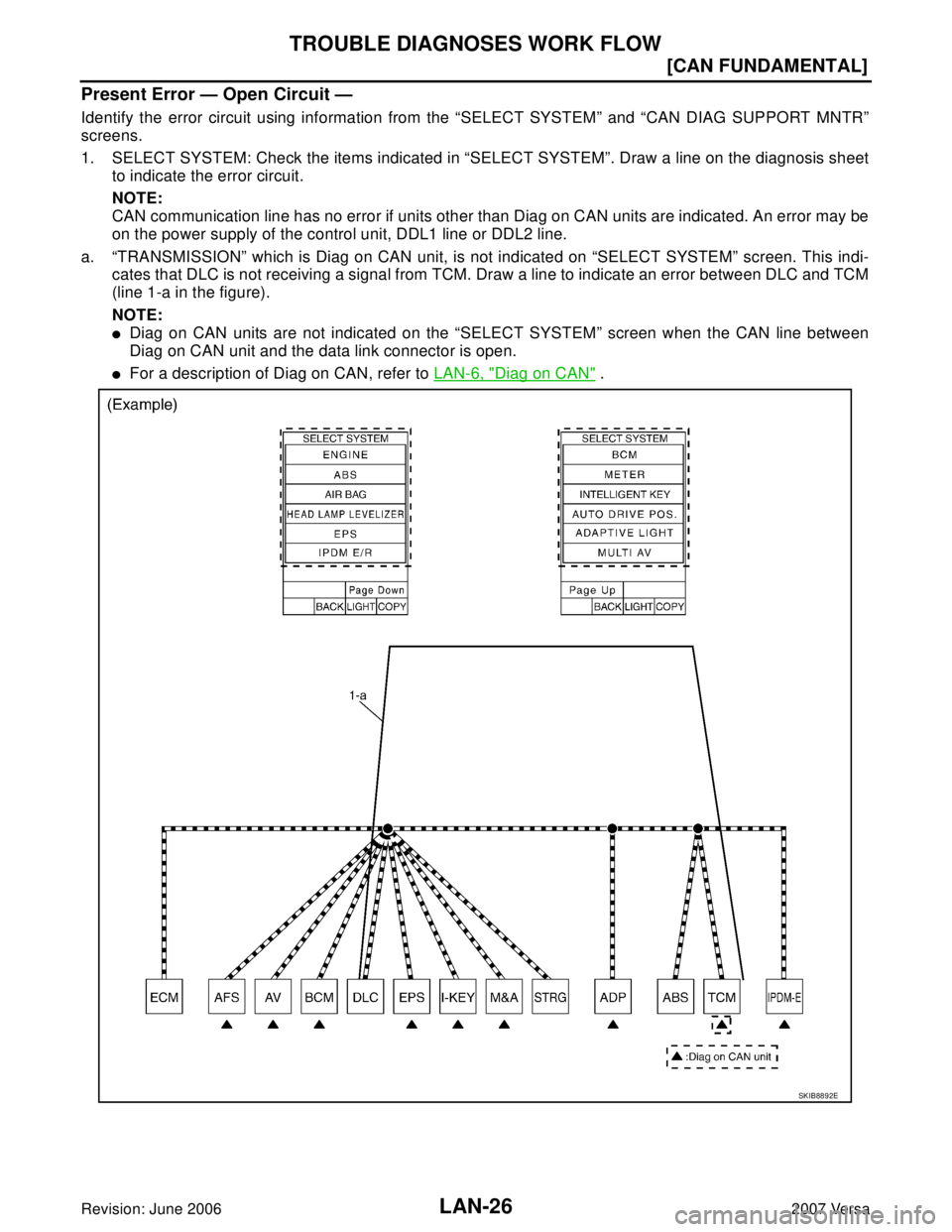

NISSAN LATIO 2007 Service Repair Manual LAN-26 [CAN FUNDAMENTAL] TROUBLE DIAGNOSES WORK FLOW Revision: June 20062007 Versa Present Error — Open Circuit — Identify the error circuit using information from the “SELECT SYSTEM” and “C
