FRONT FOG LAMP
LT-41
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: June 20062007 Versa
FRONT FOG LAMPPFP:26150
Component Parts and Harness Connector LocationEKS00HX5
System DescriptionEKS00HX6
The front fog lamps are controlled by lighting switch inputs to the BCM (body control module). The lighting
switch must be in the 1ST or 2ND position with the high beams OFF before the BCM will request the IPDM E/
R (intelligent power distribution module engine room) to turn the front fog lamps on. The BCM requests the
front fog lamps over the CAN communication lines to the IPDM E/R. The CPU (central processing unit) of the
IPDM E/R controls the front fog lamp relay coil ground. When energized, the relay directs power to the front
fog lamps.
OUTLINE
Power is supplied at all times:
to front fog lamp relay (located in IPDM E/R),
to ignition relay (located in IPDM E/R),
through 15A fuse (No. 52, located in IPDM E/R) and
through 20A fuse (No. 53, located in IPDM E/R)
to CPU located in IPDM E/R,
through 40A fusible link (letter g , located in the fuse and fusible link box)
to BCM terminal 70,
through 10A fuse [No. 8, located in fuse block (J/B)]
to BCM terminal 57,
through 10A fuse [No. 13, located in fuse block (J/B)]
to combination meter terminal 27.
With the ignition switch in the ON or START position, power is supplied:
to ignition relay (located in IPDM E/R),
through 10A fuse [No. 6, located in fuse block (J/B)]
to BCM terminal 38.
With the ignition switch in the ACC or ON position, power is supplied
through 10A fuse [No. 20, located in fuse block (J/B)]
to BCM terminal 11.
Ground is supplied
to BCM terminal 67
through grounds M57 and M61,
to IPDM E/R terminals 39 and 59
through grounds E15 and E24.
1. IPDM E/R E46, E47 and E48 2. BCM M18 and M20 (viewed with
glove box removed)3. Combination switch (lighting switch)
M28
WKIA5554E
Page 2250 of 2896

LT-42
FRONT FOG LAMP
Revision: June 20062007 Versa
FOG LAMP OPERATION
The front fog lamp switch is built into the lighting switch. The lighting switch must be in 1ST position or 2ND
position and front fog lamp switch must be ON position for front fog lamp operation. The fog lamp will not oper-
ate with the high beam headlamps ON.
When the front fog lamp switch is in the ON position, the BCM sends a request, via the CAN communication
lines, to the CPU of the IPDM E/R to ground the coil side of the front fog lamp relay. The front fog lamp relay
then directs power
through 15A fuse (No. 56, located in IPDM E/R)
through IPDM E/R terminal 50
to front fog lamp LH terminal 1, and
through IPDM E/R terminal 51
to front fog lamp RH terminal 1.
Ground is supplied
to front fog lamp terminal 2,
through grounds E15 and E24.
With power and grounds supplied, front fog lamps illuminate.
COMBINATION SWITCH READING FUNCTION
Refer to BCS-3, "COMBINATION SWITCH READING FUNCTION" .
EXTERIOR LAMP BATTERY SAVER CONTROL
Refer to LT- 7 6 , "EXTERIOR LAMP BATTERY SAVER CONTROL" .
CAN Communication System DescriptionEKS00HX7
Refer to LAN-4, "CAN Communication System" .
Page 2251 of 2896
FRONT FOG LAMP
LT-43
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: June 20062007 Versa

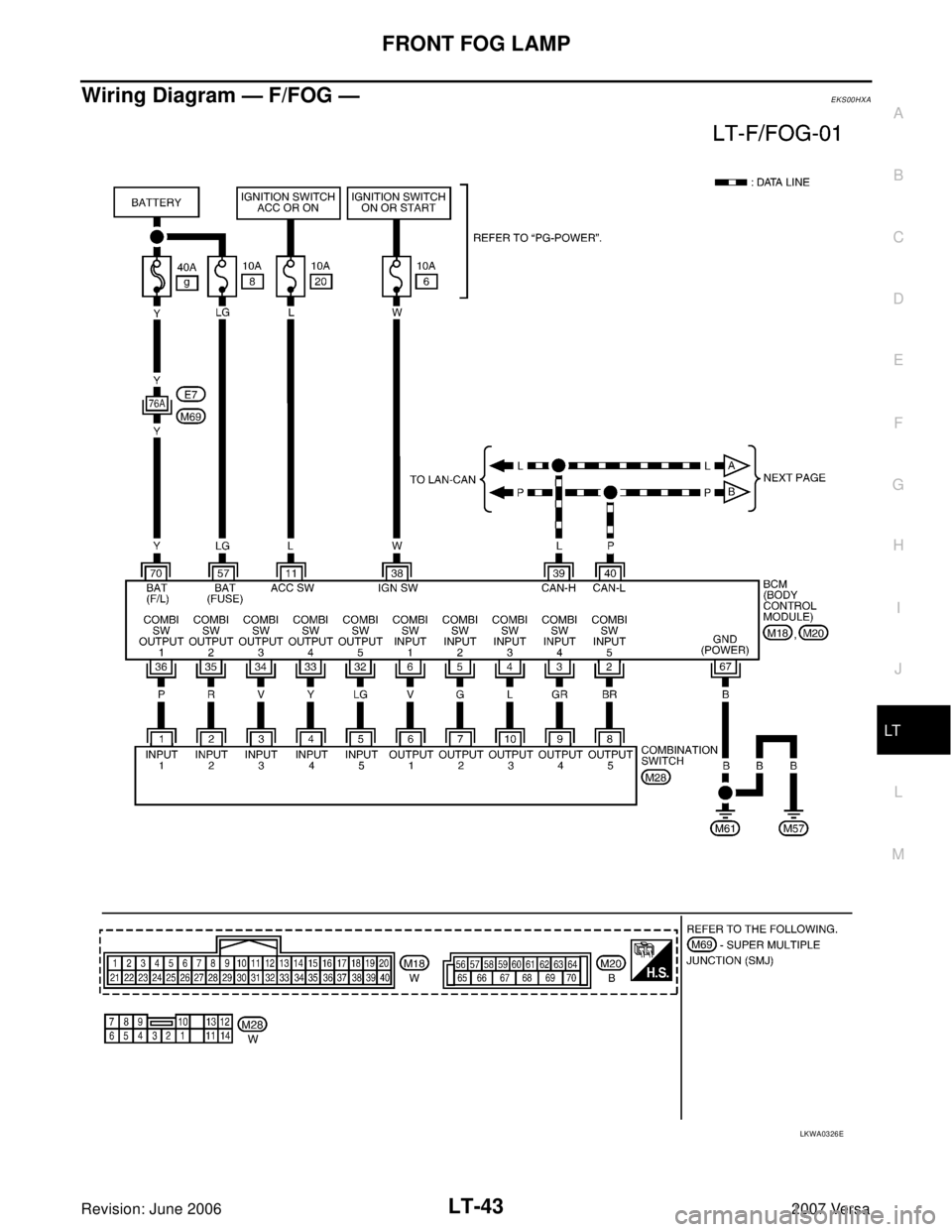

Wiring Diagram — F/FOG —EKS00HXA
LKWA0326E
Page 2252 of 2896
LT-44
FRONT FOG LAMP
Revision: June 20062007 Versa

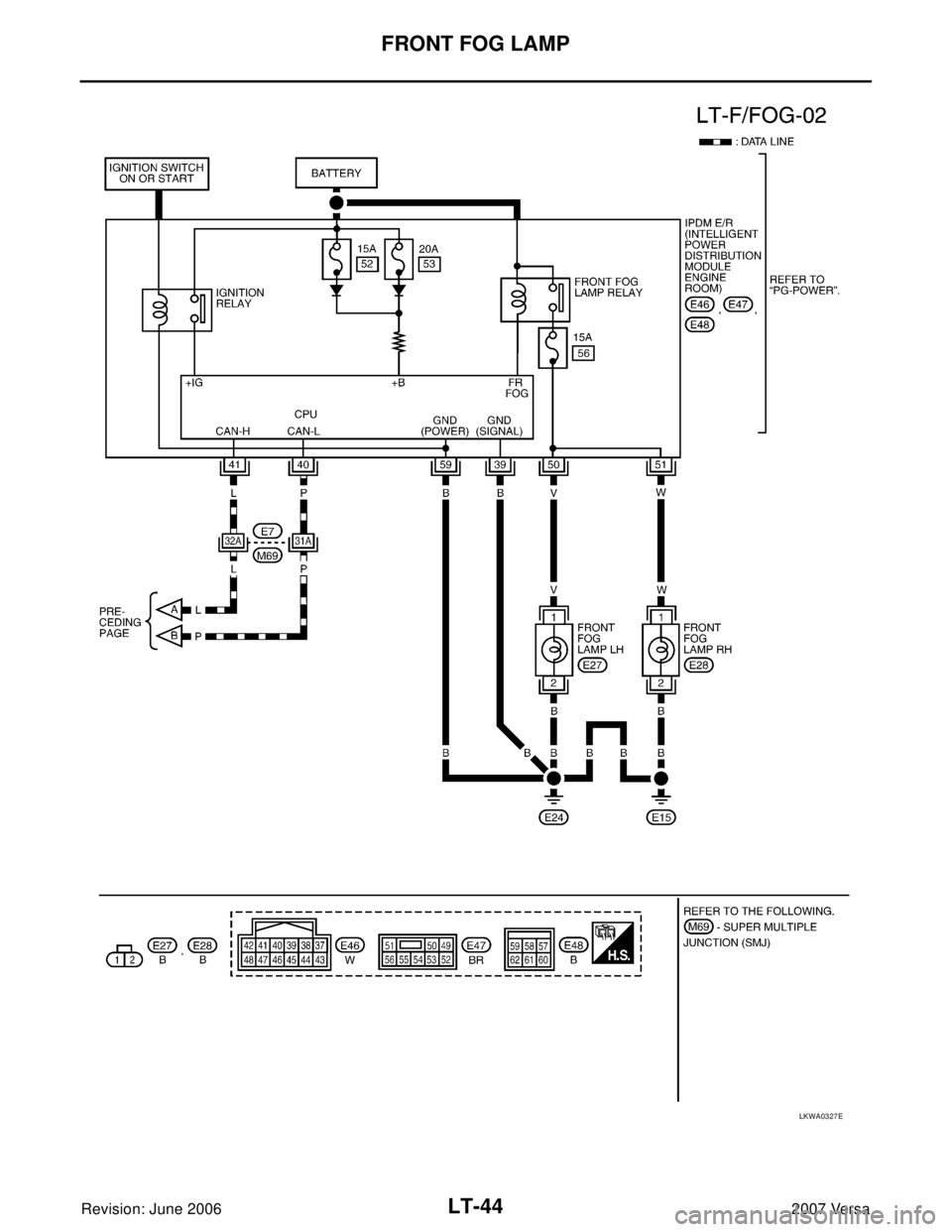

LKWA0327E
Page 2253 of 2896

FRONT FOG LAMP
LT-45
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: June 20062007 Versa
Terminals and Reference Values for BCMEKS00HXB
Refer to BCS-12, "Terminals and Reference Values for BCM" .
Terminals and Reference Values for IPDM E/REKS00HXC
Refer to PG-25, "Terminals and Reference Values for IPDM E/R" .
How to Proceed With Trouble DiagnosisEKS00HXD
1. Confirm the symptom or customer complaint.
2. Understand operation description and function description. Refer to LT- 4 1 , "
System Description" .
3. Perform the Preliminary Check. Refer to LT- 4 5 , "
Preliminary Check" .
4. Check symptom and repair or replace the component.
5. Do the front fog lamps operate normally? If YES, GO TO 6. If NO, GO TO 4.
6. INSPECTION END.
Preliminary CheckEKS00HXE
CHECK POWER SUPPLY AND GROUND CIRCUIT FOR BCM
Refer to BCS-16, "BCM Power Supply and Ground Circuit Check" .
CHECK POWER SUPPLY AND GROUND CIRCUIT FOR IPDM E/R
Refer to PG-28, "IPDM E/R Power/Ground Circuit Inspection" .
CONSULT-II Function (BCM)EKS00HXF
Refer to BCS-17, "CONSULT-II Function (BCM)" .
CONSULT-II Function (IPDM E/R)EKS00HXG
Refer to PG-19, "CONSULT-II Function (IPDM E/R)" .
Front Fog lamps Do Not Illuminate (Both Sides)EKS00HXH
1. INSPECT FOG LAMP FUSE
Inspect fog lamp 15A fuse No. 56 in IPDM E/R.
OK or NG
OK >> GO TO 2.
NG >> Repair harness.
2. CHECK COMBINATION SWITCH INPUT SIGNAL
1. Select “BCM” on CONSULT-II. Select “HEAD LAMP” on
“SELECT TEST ITEM” screen.
2. Select “DATA MONITOR” on “SELECT DIAG MODE” screen.
Make sure that “FR FOG SW” turns ON-OFF linked with opera-
tion of fog lamp switch.
With CONSULT-II
Select “BCM” on CONSULT-II. With “HEAD LAMP” data monitor,
make sure “FR FOG SW” turns ON-OFF linked with operation of
front fog lamp switch.
Without CONSULT-II
Refer to LT- 6 8 , "
Combination Switch Inspection" .
OK or NG
OK >> GO TO 3.
NG >> Check combination switch (lighting switch). Refer to LT-68, "
Combination Switch Inspection" . When fog lamp switch is ON : FR FOG SW ON
PKIA7598E
Page 2254 of 2896
LT-46
FRONT FOG LAMP
Revision: June 20062007 Versa
3. FOG LAMP ACTIVE TEST
With CONSULT-II
1. Select “IPDM E/R” on CONSULT-II. Select “ACTIVE TEST” on
“SELECT DIAG MODE” screen.
2. Select “EXTERNAL LAMPS” on “SELECT TEST ITEM” screen.
3. Touch “FOG” screen.
4. Make sure front fog lamp operates.
Without CONSULT-II
1. Start auto active test. Refer to PG-21, "
Auto Active Test" .
2. Make sure front fog lamp operates.
OK or NG
OK >> GO TO 4.
NG >> GO TO 5.
4. CHECK IPDM E/R
1. Select “IPDM E/R” on CONSULT-II. Select “DATA MONITOR”
on “SELECT DIAG MODE” screen.
2. Make sure “FR FOG REQ” turns ON when front fog lamp switch
is in ON position.
OK or NG
OK >> Replace IPDM E/R. Refer to PG-29, "Removal and
Installation of IPDM E/R" .
NG >> Replace BCM. Refer toBCS-25, "
Removal and Installa-
tion of BCM" . Front fog lamp should operate.
Front fog lamp should operate.
PKIC0936E
When front fog lamp switch
is ON position: FR FOG REQ ON
SKIA5898E
Page 2255 of 2896

FRONT FOG LAMP
LT-47
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: June 20062007 Versa
5. CHECK FOG LAMP INPUT SIGNAL
With CONSULT-II
1. Turn ignition switch OFF.
2. Disconnect front fog lamp connector.
3. Select “IPDM E/R” on CONSULT-II, and select “ACTIVE TEST” on “SELECT DIAG MODE” screen.
4. Select “EXTERNAL LAMPS” on “SELECT TEST ITEM” screen.
5. Touch “FOG” screen.
6. When front fog lamp relay is operating, check voltage between
front fog lamp harness connector and ground.
Without CONSULT-II
1. Turn ignition switch OFF.
2. Disconnect front fog lamp connector.
3. Start auto active test. Refer to PG-21, "
Auto Active Test" .
4. When front fog lamp relay is operating, check voltage between front fog lamp harness connector and
ground.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6. CHECK FOG LAMP CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector.
3. Check continuity between IPDM E/R harness connector (A) and
front fog lamp harness connector (B).
OK or NG
OK >> Replace IPDM E/R. Refer to PG-29, "Removal and
Installation of IPDM E/R" .
NG >> Repair harness or connector.
(+)
(−)Voltage
Front fog lamp connector Terminal
RH E28
1 Ground Battery voltage
LH E27
(+)
(−)Voltage
Front fog lamp connector Terminal
RH E28
1 Ground Battery voltage
LH E27
PKIA6276E
CircuitAB
Continuity
Connector Terminal Connector Terminal
RH
E4751 E28
1Yes
LH 50 E27
WKIA4408E
Page 2256 of 2896

LT-48
FRONT FOG LAMP
Revision: June 20062007 Versa
7. CHECK FOG LAMP GROUND
1. Check continuity between front fog lamp harness connector and
ground.
OK or NG
OK >> Check front fog lamp bulbs.
NG >> Repair harness or connector.
Front Fog Lamp Does Not Illuminate (One Side)EKS00HXI
1. CHECK BULB
Check bulb of lamp which does not illuminate.
OK or NG
OK >> GO TO 2.
NG >> Replace front fog lamp bulb.
2. CHECK FOG LAMP CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector and front fog lamp connector.
3. Check continuity between IPDM E/R harness connector (A) and
front fog lamp harness connector (B).
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
3. CHECK FOG LAMP GROUND
1. Check continuity between front fog lamp harness connector and
ground.
OK or NG
OK >> Replace IPDM E/R. Refer to PG-29, "Removal and
Installation of IPDM E/R" .
NG >> Repair harness or connector.
Front fog lamp connector Terminal
Ground Continuity
RH E28
2Yes
LH E27
PKIA6277E
CircuitAB
Continuity
Connector Terminal Connector Terminal
RH
E4751 E28
1Yes
LH 50 E27
WKIA4408E
Front fog lamp connector Terminal
Ground Continuity
RH E28
2Yes
LH E27
PKIA6277E
