FUEL SYSTEM
2007 Versa
FUEL SYSTEMPFP:17503
Checking Fuel LinesEBS00TSF
Inspect fuel lines, fuel filler cap and fuel tank for improper attach-
ment, leaks, cracks, damage, loose connections, chafing or deterio-
ration.
If necessary, repair or replace damaged parts.
General PrecautionsEBS00TSG
WAR NIN G:
When replacing fuel line parts, be sure to observe the following.
Put a “CAUTION: FLAMMABLE” sign in the work area.
Be sure to work in a well ventilated area and have a CO2 fire extinguisher.
Do not smoke while working on the fuel system. Keep open flames and sparks away from the work
area.
Put drained fuel in an explosion-proof container and put the lid on securely. Keep the container in
safe area.
CAUTION:
Use gasoline required by the regulations for octane number. Refer to GI-6, "Precautions for Fuel
(Unleaded Regular Gasoline Recommended)" .
Before removing fuel line parts, perform the following procedures:
–Release fuel pressure from the fuel lines. Refer to EC-81, "FUEL PRESSURE RELEASE" .
–Disconnect the battery ground cable.
Always replace O-rings and clamps with new ones.
Do not kink or twist tubes when they are being installed.
Perform work on level surface.
Do not tighten hose clamps excessively to avoid damaging hoses.
After connecting fuel tube quick connectors, make sure quick connectors are secure.
Ensure that connector and resin tube do not contact any adjacent parts.
After installing tubes, make sure there is no fuel leakage at connections in the following steps.
–Apply fuel pressure to fuel lines by turning ignition switch ON (without starting the engine). Then
check for fuel leaks at the fuel tube connections.
–Start engine and rev it up and check for fuel leaks at connections.
Use only a genuine NISSAN fuel filler cap as a replacement. If an incorrect fuel filler cap is used,
the MIL may come on.
For servicing “Evaporative Emission System” parts, refer to EC-31, "EVAPORATIVE EMISSION
SYSTEM" .
For servicing "On Board Refueling Vapor Recovery (ORVR)" parts, refer to EC-38, "ON BOARD
REFUELING VAPOR RECOVERY (ORVR)" .
SM A80 3A
Page 1962 of 2896

FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY
FL-5
C
D
E
F
G
H
I
J
K
L
MA
FL
Revision: June 20062007 Versa
FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLYPFP:17042
ComponentsEBS00TSH
Removal and InstallationEBS00TSI
REMOVAL
WA RN ING:
Be sure to read “General Precautions” before working on the fuel system. Refer to FL-4, "
General Pre-
cautions" .
1. Check fuel level with the vehicle on a level surface. If the fuel
gauge indicates more than the level as shown (7/8 full), drain
fuel from the fuel tank until the fuel gauge indicates level as
shown (7/8 full).
NOTE:
Fuel will be spilled when removing fuel pump assembly if fuel
level is above the fuel pump assembly installation surface.
As a guide, fuel level is at the level as shown or below when
approximately 12 (3 1/8 US gal, 2 5/8 Imp gal) of fuel is
drained from a full fuel tank.
In case fuel pump does not operate, perform the following
procedure.
a. Insert fuel tubing of less than 25 mm (0.98 in) in diameter into fuel filler tube through fuel filler opening to
drain fuel from fuel filler tube.
b. Disconnect fuel filler hose from fuel filler tube. Refer to FL-9, "
FUEL TANK" .
c. Insert fuel tubing into fuel tank through fuel filler hose to drain fuel from fuel tank.
2. Open fuel door and unscrew the fuel filler cap to release the pressure inside the fuel tank.
3. Release the fuel pressure from the fuel lines. Refer to EC-81, "
FUEL PRESSURE RELEASE" .
4. Remove rear seat bottom. Refer to SE-14, "
REAR SEAT" .
5. Turn the four retainers 90° in a clockwise direction and remove the fuel pump inspection hole cover.
1. Lock ring 2. Fuel level sensor unit, fuel filter and fuel pump assembly 3. O-ring
4. Fuel tank
WCIA0590E
KBIA3505J
Page 1963 of 2896

FL-6Revision: June 2006
FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY
2007 Versa
6. Disconnect electrical connector (A) and fuel feed hose quick
connector (B).
Fuel feed hose (1)
⇐ : Vehicle front
Disconnect the quick connector using the following procedure.
–Hold the sides of the connector, push in tabs and pull out the
tube.
–If quick connector and tube on fuel pump assembly are stuck,
push and pull several times until they move. Disconnect them
by pulling.
CAUTION:
The tube can be removed when the tabs are completely
depressed. Do not twist it more than necessary.
Do not use any tools to remove the quick connector.
Keep resin tube away from heat. Be especially careful
when welding near the resin tube.
Prevent acid liquid such as battery electrolyte, from getting on resin tube.
Do not bend or twist resin tube during installation and removal.
To keep the connecting portion clean, free of foreign
materials and to avoid damage, cover them completely
with plastic bags or something similar.
Do not insert plug to prevent damage to O-ring in quick
connector.

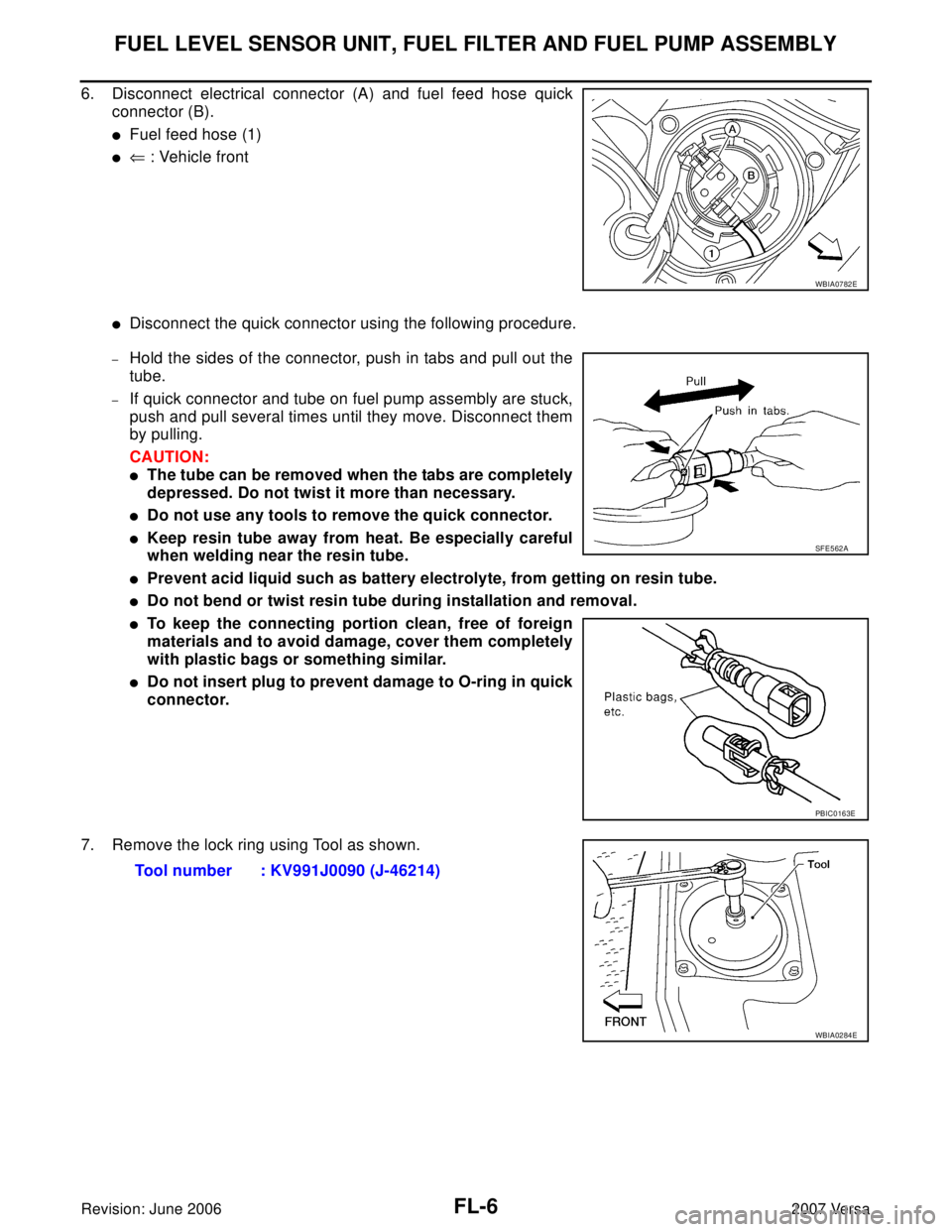

7. Remove the lock ring using Tool as shown.
WBIA0782E
SF E5 62 A
PBIC0163E
Tool number : KV991J0090 (J-46214)
WBIA0284E
Page 1964 of 2896

FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY
FL-7
C
D
E
F
G
H
I
J
K
L
MA
FL
Revision: June 20062007 Versa
8. Remove fuel level sensor unit, fuel filter and fuel pump assembly
(1).
CAUTION:
Do not bend float arm during removal.
Do not allow foreign materials to fall into fuel tank. Use a
lint free cloth when handling components.
Avoid impacts such as dropping when handling compo-
nents.
INSPECTION AFTER REMOVAL
Make sure that the fuel level sensor unit, fuel filter and fuel pump is free from defects and foreign materials.
INSTALLATION
Installation is in the reverse order of removal.
Fuel Level Sensor Unit, Fuel Filter and Fuel Pump Assembly
1. Install O-ring to fuel tank without twisting.
2. Install fuel level sensor unit with aligning mating marks (A) on
fuel tank and fuel level sensor unit as shown.
Turn the lock ring (1) until the lock ring is fully rotated into the
fuel tank lock tabs (A) as shown.
Quick Connector
Connect fuel feed tube quick connector using the following procedure.
1. Check the connection for damage or any foreign materials.
2. Align the connector with the tube, then insert the connector straight into the tube until a “click” sound is
heard.
3. After connecting, make sure that the connection is secure using the following procedure.
Visually confirm that the two retainer tabs are secured to the connector.
PBIC3780E
: Vehicle front
PBIC4732E
WBIA0783E
Page 1965 of 2896
FL-8Revision: June 2006
FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY
2007 Versa
Pull the tube and the connector to make sure they are
securely connected.
4. Connect electrical harness connector.
Inspection Hole Cover
Before installing inspection hole cover, confirm that there are no fuel leaks. Refer to FL-8, "INSPECTION
AFTER INSTALLATION" .
1. Install inspection hole cover with the front mark (arrow) facing front of vehicle.
2. Lock clips by turning counterclockwise.
INSPECTION AFTER INSTALLATION
Use the following procedure to check for fuel leaks.
1. Turn ignition switch “ON” (without starting the engine), to check the connections for fuel leaks with the
electric fuel pump applying pressure to the fuel piping.
2. Start the engine and let it idle to check that there are no fuel leaks at the fuel system connections.
PBIC1653E
Page 1966 of 2896

FUEL TANK
FL-9
C
D
E
F
G
H
I
J
K
L
MA
FL
Revision: June 20062007 Versa
FUEL TANKPFP:17202
ComponentsEBS00TSL
Removal and InstallationEBS00TSM
REMOVAL
WA RN ING:
Be sure to read “General Precautions” when working on the fuel system. Refer to FL-4, "
General Pre-
cautions" .
1. Drain fuel from fuel tank if necessary. Refer to FL-5, "
REMOVAL" .
CAUTION:
Because fuel tank becomes unstable when installing/removing, fuel should be drained if the
level exceeds specification FL-5, "
Removal and Installation" .
Situate vehicle on a flat and solid surface.
2. Open fuel door and unscrew the fuel filler cap to release the pressure inside the fuel tank.
3. Release the fuel pressure from the fuel lines. Refer to EC-81, "
FUEL PRESSURE RELEASE" .
4. Remove rear seat bottom. Refer to SE-14, "
REAR SEAT" .
5. Turn the three retainers 90° in a clockwise direction and remove the fuel pump inspection hole cover.

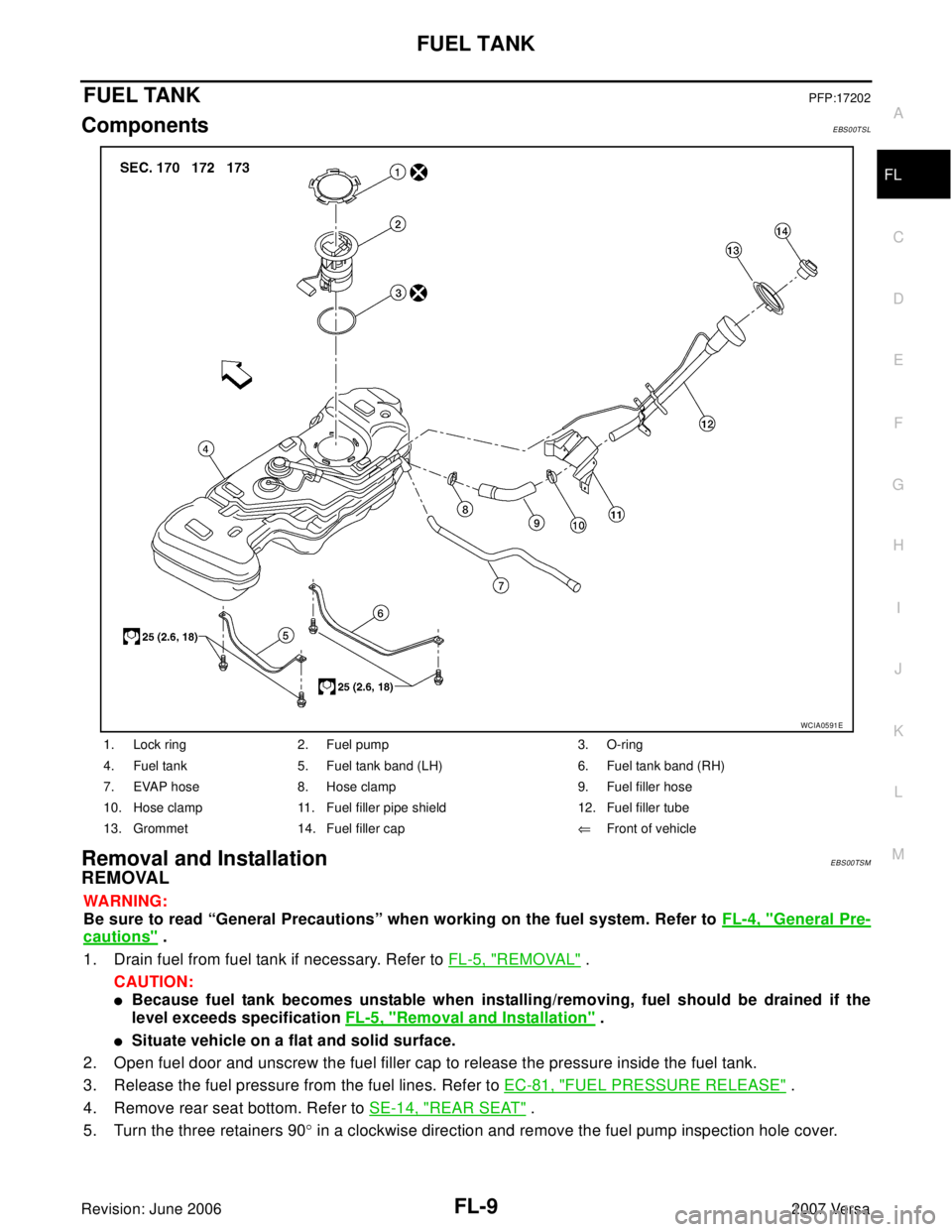

1. Lock ring 2. Fuel pump 3. O-ring
4. Fuel tank 5. Fuel tank band (LH) 6. Fuel tank band (RH)
7. EVAP hose 8. Hose clamp 9. Fuel filler hose
10. Hose clamp 11. Fuel filler pipe shield 12. Fuel filler tube
13. Grommet 14. Fuel filler cap⇐Front of vehicle
WCIA0591E
Page 1967 of 2896

FL-10Revision: June 2006
FUEL TANK
2007 Versa
Disconnect electrical connector (A) and fuel feed hose quick connec-
tor (B).
Fuel feed hose (1)
⇐ : Vehicle front
Disconnect the quick connector using the following procedure.
–Hold the sides of the connector, push in tabs and pull out the
tube.
–If quick connector and tube on fuel pump assembly are stuck,
push and pull several times until they move. Disconnect them by
pulling.
CAUTION:
The tube can be removed when the tabs are completely
depressed. Do not twist it more than necessary.
Do not use any tools to remove the quick connector.
Keep resin tube away from heat. Be especially careful
when welding near the resin tube.
Prevent acid liquid such as battery electrolyte, from getting on resin tube.
Do not bend or twist resin tube during installation and removal.
To keep the connecting portion clean, free of foreign
materials and to avoid damage, cover them completely
with plastic bags or something similar.
Do not insert plug to prevent damage to O-ring in quick
connector.
6. Remove center exhaust tube. Refer to EX-3, "
EXHAUST SYSTEM" .
7. Remove exhaust heat shields.
8. Disconnect parking brake cables (1) from the lower surface of
fuel tank and axle and position the parking brake cables (1) out
of the way.
WBIA0782E
SF E5 62 A
PBIC0163E
PBIC3786E
Page 1968 of 2896

FUEL TANK
FL-11
C
D
E
F
G
H
I
J
K
L
MA
FL
Revision: June 20062007 Versa
9. Remove brake tube protector (1) from rear axle (2).
10. Loosen fuel filler hose clamp (3) and remove fuel filler hose (1)
from fuel tank (2).
CAUTION:
Do not remove fuel filler hose (1) from fuel filler tube. Do not
allow contact with the suspension during installation. When
removing fuel filler hose (1) at the fuel filler tube, mark com-
ponents for alignment.
11. Remove vent hose (1) and EVAP hose (2) at rear of fuel tank.
Disconnect vent hose and EVAP hose quick connectors using
the following procedures.
a. Pinch retaining tabs (A) of vent hose quick connector and
remove vent hose (1).
b. Slide sleeve (B) of EVAP hose quick connector and remove
EVAP hose (2).
If hoses are stuck, push and pull several times until they move
freely, and disconnect.
CAUTION:
The tube can be removed when the tabs are completely depressed. Do not twist it more than
necessary.
Do not use any tools to remove the quick connector.
Keep the resin tube away from heat. Be especially careful when welding near the tube.
Prevent acid liquid such as battery electrolyte, from getting on the resin tube.
Do not bend or twist the tube during installation and removal.
Do not insert plug that may cause damage to O-ring in quick connector.
To keep the connecting portion clean and to avoid dam-
age and foreign materials, cover them completely with
plastic bags or something similar.
WBIA0764E
WBIA0765E
WBIA0766E
PBIC0163E
