Page 2113 of 2896

INSTRUMENT PANEL ASSEMBLY
IP-13
C
D
E
F
G
H
J
K
L
MA
B
IP
Revision: June 20062007 Versa

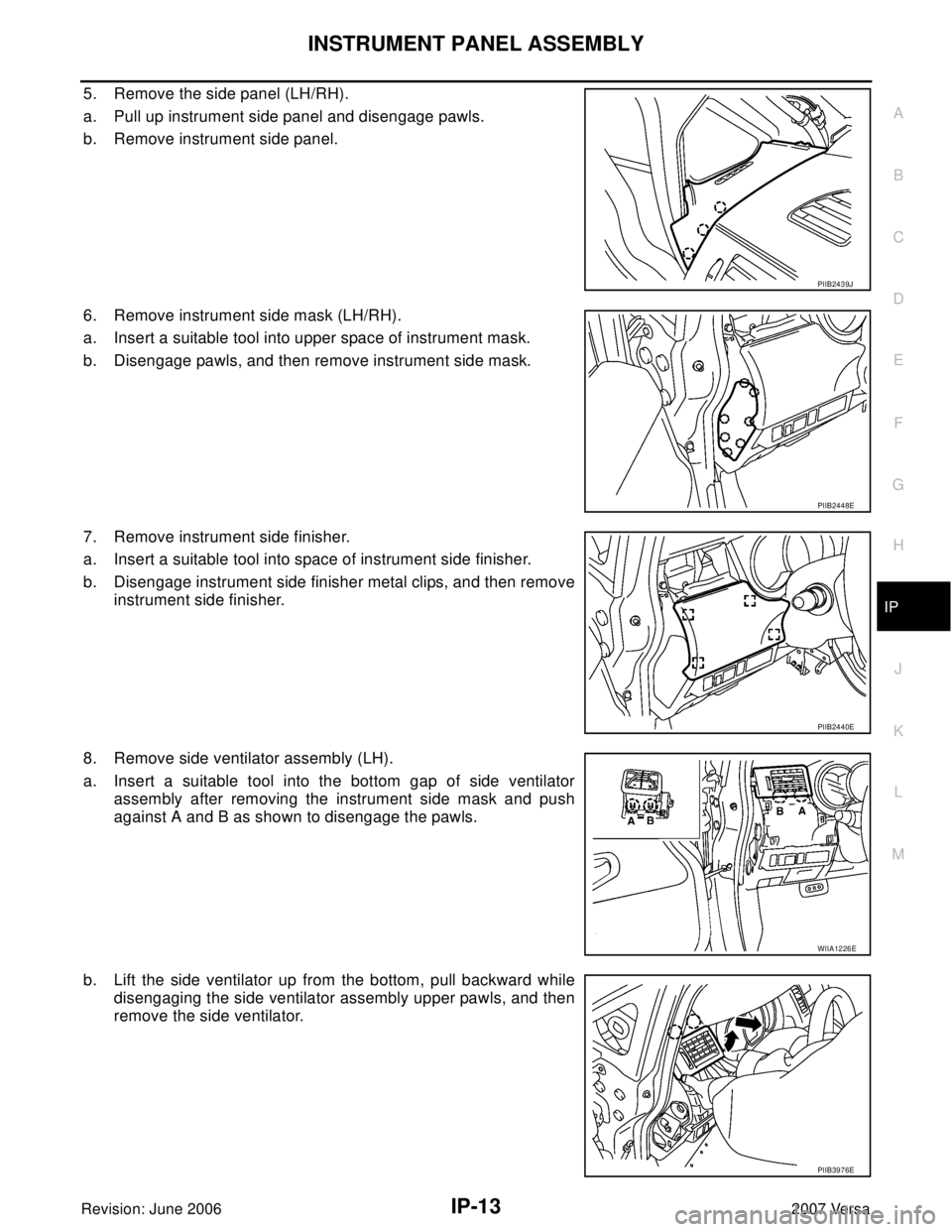

5. Remove the side panel (LH/RH).
a. Pull up instrument side panel and disengage pawls.
b. Remove instrument side panel.
6. Remove instrument side mask (LH/RH).
a. Insert a suitable tool into upper space of instrument mask.
b. Disengage pawls, and then remove instrument side mask.
7. Remove instrument side finisher.
a. Insert a suitable tool into space of instrument side finisher.
b. Disengage instrument side finisher metal clips, and then remove
instrument side finisher.
8. Remove side ventilator assembly (LH).
a. Insert a suitable tool into the bottom gap of side ventilator
assembly after removing the instrument side mask and push
against A and B as shown to disengage the pawls.
b. Lift the side ventilator up from the bottom, pull backward while
disengaging the side ventilator assembly upper pawls, and then
remove the side ventilator.
PIIB2439J
PIIB2448E
PIIB2440E
WIIA1226E
PIIB3976E
Page 2114 of 2896

IP-14
INSTRUMENT PANEL ASSEMBLY
Revision: June 20062007 Versa

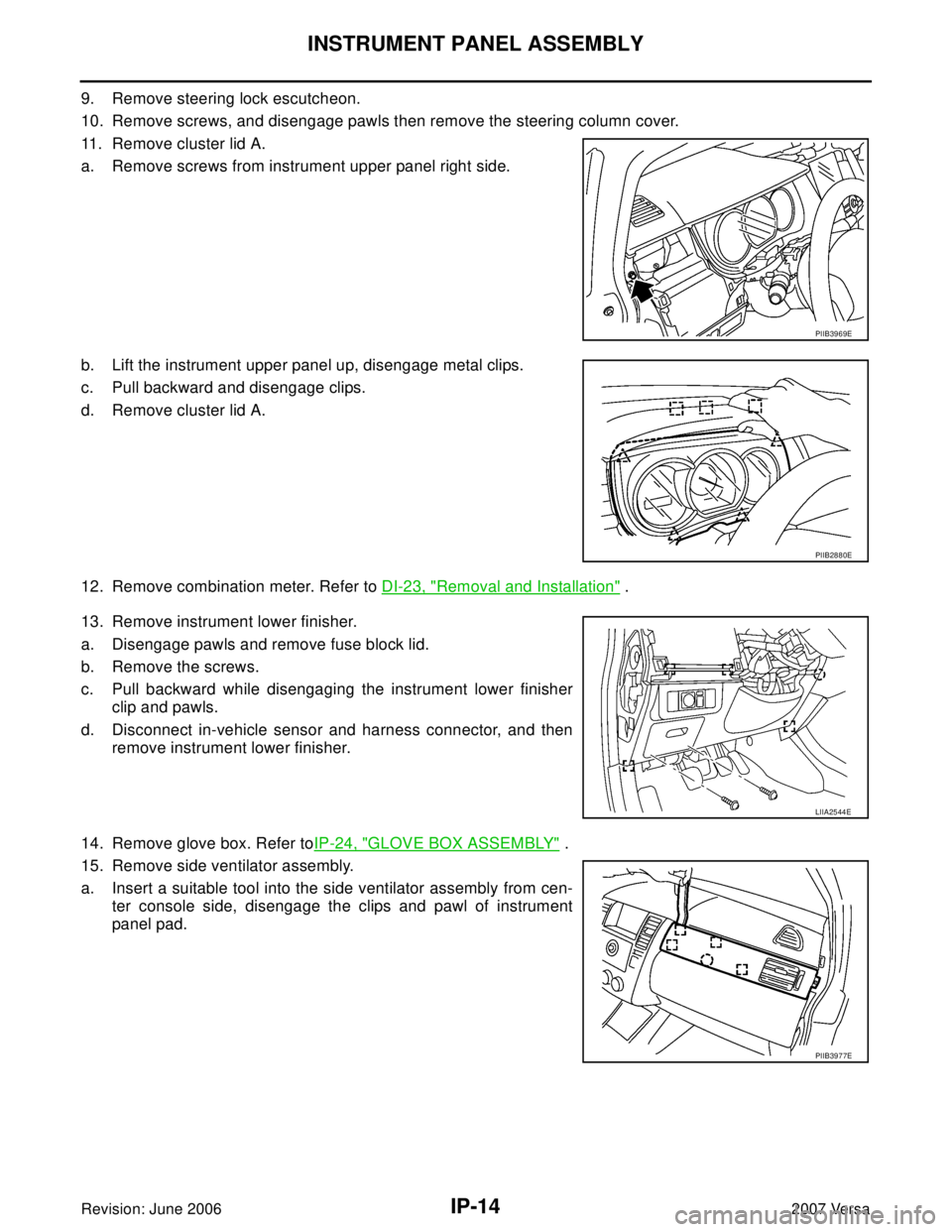

9. Remove steering lock escutcheon.
10. Remove screws, and disengage pawls then remove the steering column cover.
11. Remove cluster lid A.
a. Remove screws from instrument upper panel right side.
b. Lift the instrument upper panel up, disengage metal clips.
c. Pull backward and disengage clips.
d. Remove cluster lid A.
12. Remove combination meter. Refer to DI-23, "
Removal and Installation" .
13. Remove instrument lower finisher.
a. Disengage pawls and remove fuse block lid.
b. Remove the screws.
c. Pull backward while disengaging the instrument lower finisher
clip and pawls.
d. Disconnect in-vehicle sensor and harness connector, and then
remove instrument lower finisher.
14. Remove glove box. Refer toIP-24, "
GLOVE BOX ASSEMBLY" .
15. Remove side ventilator assembly.
a. Insert a suitable tool into the side ventilator assembly from cen-
ter console side, disengage the clips and pawl of instrument
panel pad.
PIIB3969E
PIIB2880E
LIIA2544E
PIIB3977E
Page 2115 of 2896

INSTRUMENT PANEL ASSEMBLY
IP-15
C
D
E
F
G
H
J
K
L
MA
B
IP
Revision: June 20062007 Versa

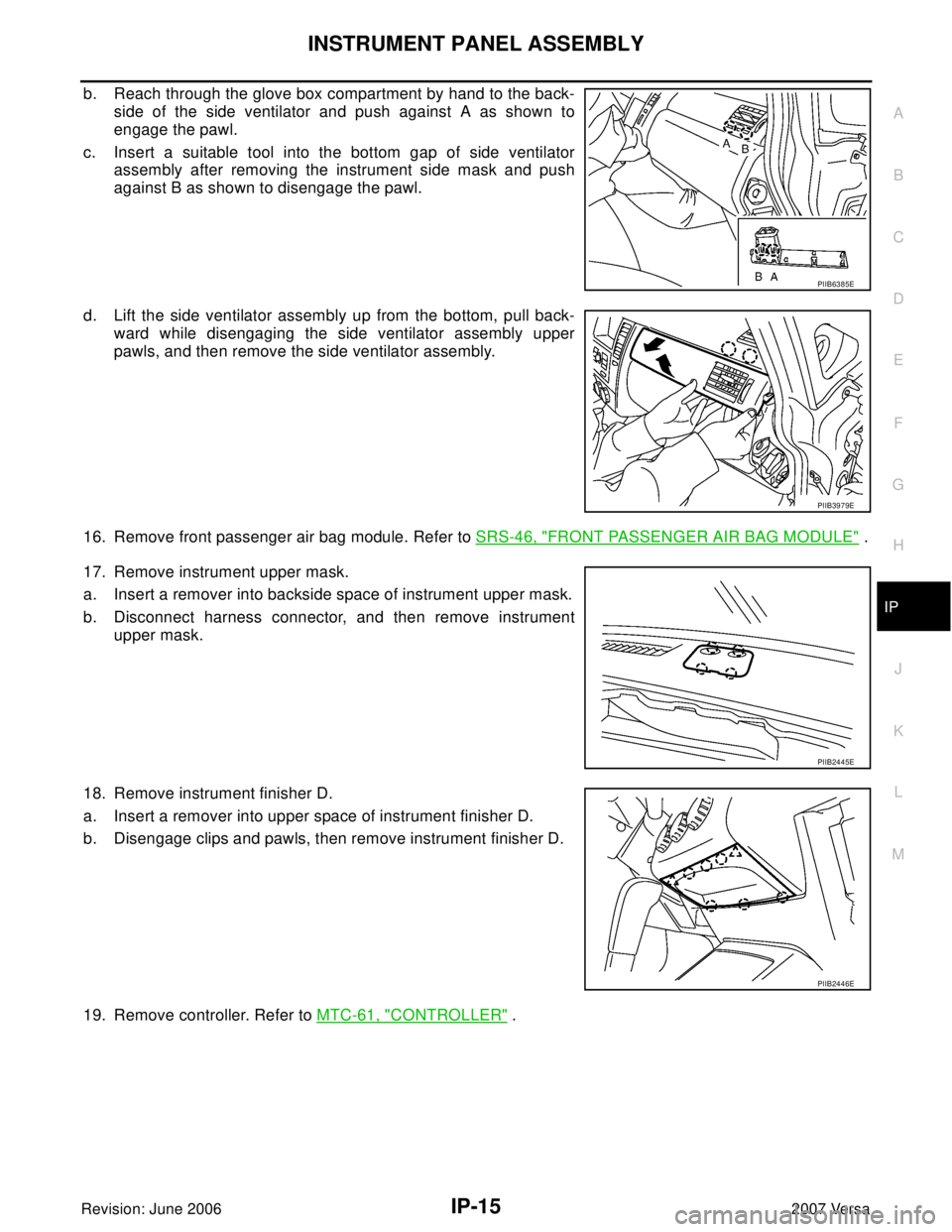

b. Reach through the glove box compartment by hand to the back-
side of the side ventilator and push against A as shown to
engage the pawl.
c. Insert a suitable tool into the bottom gap of side ventilator
assembly after removing the instrument side mask and push
against B as shown to disengage the pawl.
d. Lift the side ventilator assembly up from the bottom, pull back-
ward while disengaging the side ventilator assembly upper
pawls, and then remove the side ventilator assembly.
16. Remove front passenger air bag module. Refer to SRS-46, "
FRONT PASSENGER AIR BAG MODULE" .
17. Remove instrument upper mask.
a. Insert a remover into backside space of instrument upper mask.
b. Disconnect harness connector, and then remove instrument
upper mask.
18. Remove instrument finisher D.
a. Insert a remover into upper space of instrument finisher D.
b. Disengage clips and pawls, then remove instrument finisher D.
19. Remove controller. Refer to MTC-61, "
CONTROLLER" .
PIIB6385E
PIIB3979E
PIIB2445E
PIIB2446E
Page 2116 of 2896

IP-16
INSTRUMENT PANEL ASSEMBLY
Revision: June 20062007 Versa

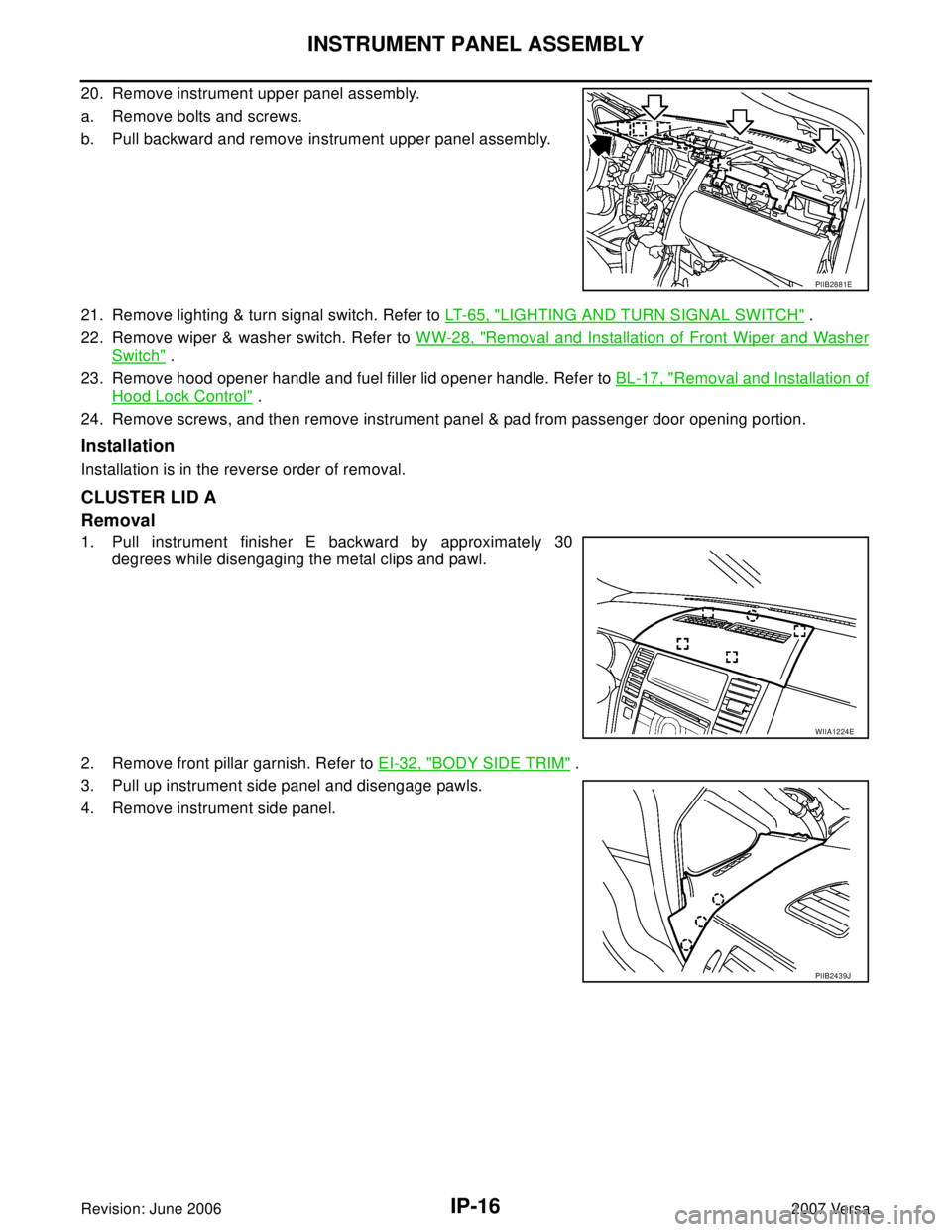

20. Remove instrument upper panel assembly.
a. Remove bolts and screws.
b. Pull backward and remove instrument upper panel assembly.
21. Remove lighting & turn signal switch. Refer to LT-65, "
LIGHTING AND TURN SIGNAL SWITCH" .
22. Remove wiper & washer switch. Refer to WW-28, "
Removal and Installation of Front Wiper and Washer
Switch" .
23. Remove hood opener handle and fuel filler lid opener handle. Refer to BL-17, "
Removal and Installation of
Hood Lock Control" .
24. Remove screws, and then remove instrument panel & pad from passenger door opening portion.
Installation
Installation is in the reverse order of removal.
CLUSTER LID A
Removal
1. Pull instrument finisher E backward by approximately 30
degrees while disengaging the metal clips and pawl.
2. Remove front pillar garnish. Refer to EI-32, "
BODY SIDE TRIM" .
3. Pull up instrument side panel and disengage pawls.
4. Remove instrument side panel.
PIIB2881E
WIIA1224E
PIIB2439J
Page 2117 of 2896
INSTRUMENT PANEL ASSEMBLY
IP-17
C
D
E
F
G
H
J
K
L
MA
B
IP
Revision: June 20062007 Versa

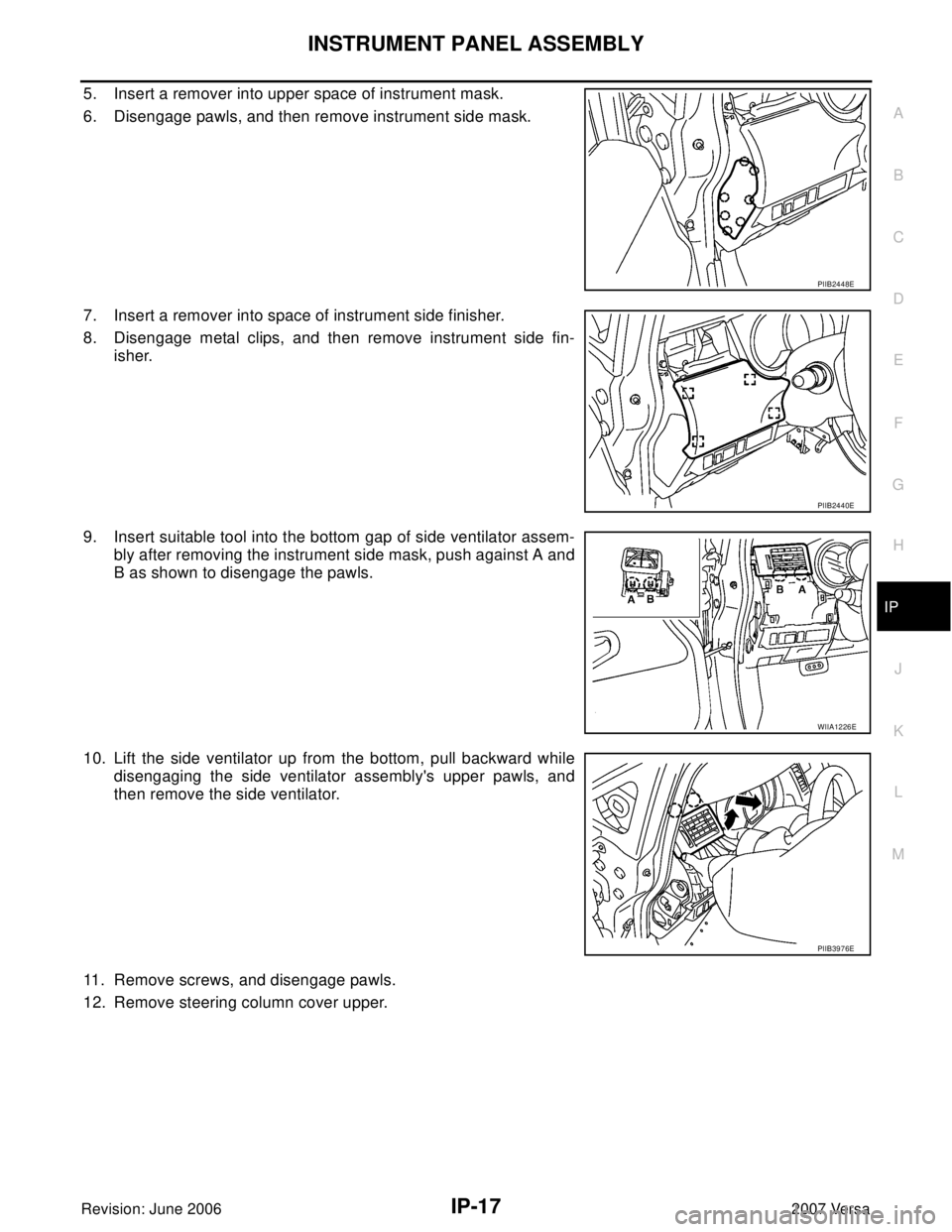

5. Insert a remover into upper space of instrument mask.
6. Disengage pawls, and then remove instrument side mask.
7. Insert a remover into space of instrument side finisher.
8. Disengage metal clips, and then remove instrument side fin-
isher.
9. Insert suitable tool into the bottom gap of side ventilator assem-
bly after removing the instrument side mask, push against A and
B as shown to disengage the pawls.
10. Lift the side ventilator up from the bottom, pull backward while
disengaging the side ventilator assembly's upper pawls, and
then remove the side ventilator.
11. Remove screws, and disengage pawls.
12. Remove steering column cover upper.
PIIB2448E
PIIB2440E
WIIA1226E
PIIB3976E
Page 2118 of 2896
IP-18
INSTRUMENT PANEL ASSEMBLY
Revision: June 20062007 Versa

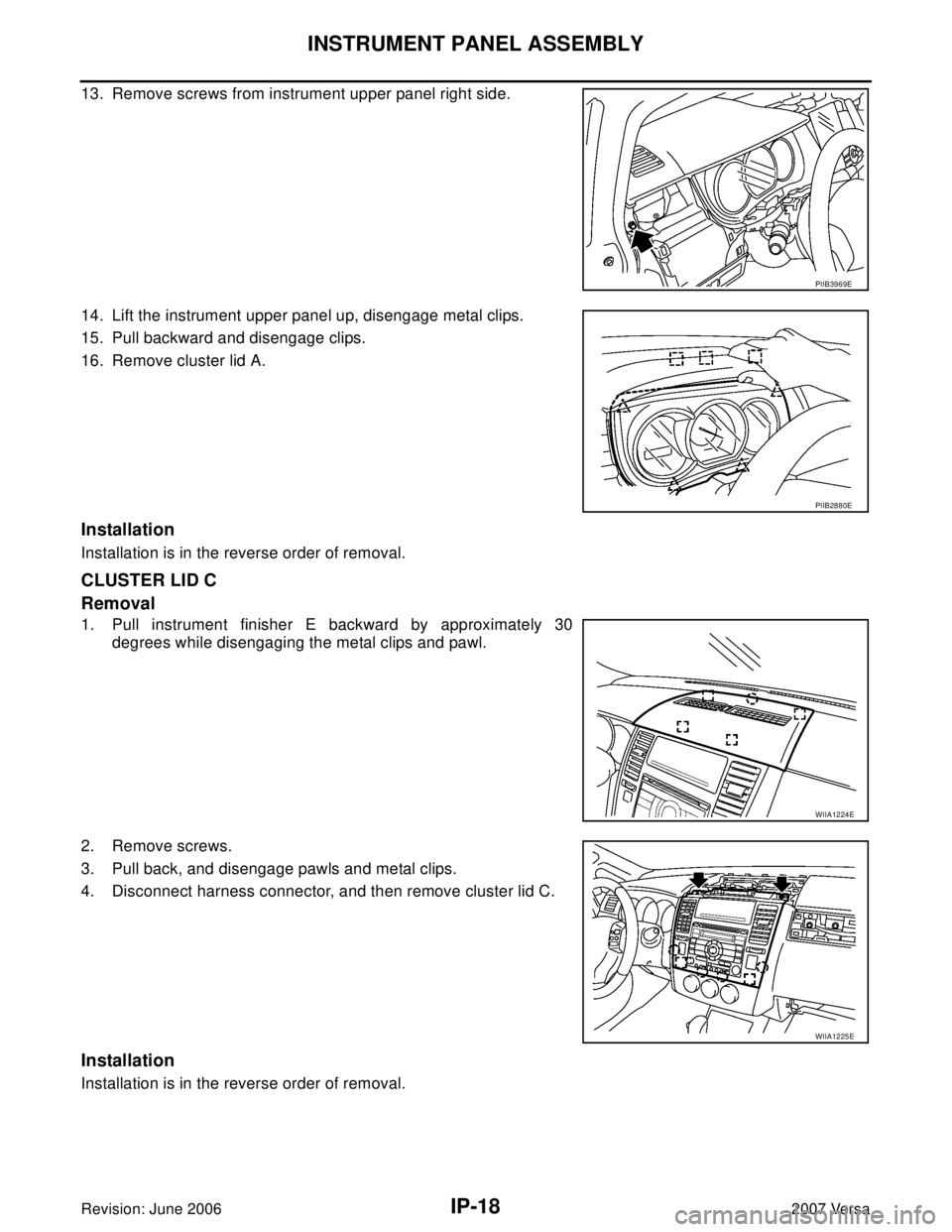

13. Remove screws from instrument upper panel right side.
14. Lift the instrument upper panel up, disengage metal clips.
15. Pull backward and disengage clips.
16. Remove cluster lid A.
Installation
Installation is in the reverse order of removal.
CLUSTER LID C
Removal
1. Pull instrument finisher E backward by approximately 30
degrees while disengaging the metal clips and pawl.
2. Remove screws.
3. Pull back, and disengage pawls and metal clips.
4. Disconnect harness connector, and then remove cluster lid C.
Installation
Installation is in the reverse order of removal.
PIIB3969E
PIIB2880E
WIIA1224E
WIIA1225E
Page 2119 of 2896
INSTRUMENT PANEL ASSEMBLY
IP-19
C
D
E
F
G
H
J
K
L
MA
B
IP
Revision: June 20062007 Versa
COMBINATION METER
Removal
1. Pull instrument finisher E backward by approximately 30
degrees while disengaging the metal clips and pawl.
2. Remove front pillar garnish. Refer to EI-32, "
BODY SIDE TRIM" .
3. Pull up instrument side panel and disengage pawls.
4. Remove instrument side panel.
5. Insert a remover into upper space of instrument mask.
6. Disengage pawls, and then remove instrument side mask.
7. Insert a remover into space of instrument side finisher.
8. Disengage metal clips, and then remove instrument side fin-
isher.
WIIA1224E
PIIB2439J
PIIB2448E
PIIB2440E
Page 2120 of 2896
IP-20
INSTRUMENT PANEL ASSEMBLY
Revision: June 20062007 Versa
9. Insert suitable tool into the bottom gap of side ventilator assem-
bly after removing the instrument side mask, push against A and
B as shown to disengage the pawls.
10. Lift the side ventilator up from the bottom, pull backward while
disengaging the side ventilator assembly's upper pawls, and
then remove the side ventilator.
11. Remove screws, and disengage pawls.
12. Remove steering column cover upper.
13. Remove screws from instrument upper panel right side.
14. Lift the instrument upper panel up, disengage metal clips.
15. Pull backward and disengage clips.
16. Remove cluster lid A.
WIIA1226E
PIIB3976E
PIIB3969E
PIIB2880E
