Page 857 of 2896
BRC-38
[ABS]
ACTUATOR AND ELECTRIC UNIT (ASSEMBLY)
Revision: June 20062007 Versa
Page 858 of 2896

CL-1
CLUTCH
C TRANSMISSION/TRANSAXLE
CONTENTS
D
E
F
G
H
I
J
K
L
M
SECTION CL
A
B
CL
Revision: June 20062007 Versa PRECAUTIONS .......................................................... 2
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 2
Service Notice or Precautions .................................. 2
PREPARATION ........................................................... 3
Special Service Tools ............................................... 3
Commercial Service Tools ........................................ 3
NOISE, VIBRATION AND HARSHNESS (NVH)
TROUBLESHOOTING ................................................ 4
NVH Troubleshooting Chart ..................................... 4
CLUTCH PEDAL ........................................................ 5
On-vehicle Inspection and Adjustment ..................... 5
Removal and Installation .......................................... 7
COMPONENTS .................................................... 7
REMOVAL ............................................................. 7
INSPECTION AFTER REMOVAL ......................... 7
INSTALLATION ..................................................... 7
CLUTCH FLUID .......................................................... 8
Air Bleeding Procedure ............................................ 8
CLUTCH MASTER CYLINDER .................................. 9
Removal and Installation .......................................... 9
REMOVAL ............................................................. 9
INSTALLATION ..................................................... 9CSC (CONCENTRIC SLAVE CYLINDER) ................ 11
Removal and Installation ........................................ 11
REMOVAL ........................................................... 11
INSTALLATION ................................................... 11
CLUTCH PIPING ....................................................... 12
Removal and Installation ........................................ 12
REMOVAL ........................................................... 12
INSTALLATION ................................................... 12
CLUTCH DISC, CLUTCH COVER AND FLYWHEEL ... 13
Removal and Installation ........................................ 13
COMPONENTS ................................................... 13
REMOVAL ........................................................... 13
INSPECTION AND ADJUSTMENT AFTER
REMOVAL ........................................................... 13
INSTALLATION ................................................... 14
SERVICE DATA AND SPECIFICATIONS (SDS) ...... 16
Clutch Control System ............................................ 16
Clutch Pedal ........................................................... 16
Clutch Disc ............................................................. 16
Clutch Cover ........................................................... 16
Page 859 of 2896

CL-2
PRECAUTIONS
Revision: June 20062007 Versa
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
ECS00GVW
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WAR NIN G:
To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Service Notice or PrecautionsECS00FST
Use recommended brake fluid when adding fluid to the clutch reservoir tank. Refer to MA-11,
"RECOMMENDED FLUIDS AND LUBRICANTS".
Never reuse fluid drained from clutch system.
Be careful not to splash brake fluid on painted areas.
Use new brake fluid to clean or wash all parts of master cylinder and operating cylinder.
Never use mineral oils such as gasoline or kerosene. It will ruin the rubber parts of the hydraulic
system.
If transaxle assembly is removed from the vehicle, always replace CSC (Concentric slave cylin-
der). Return CSC to original position to remove transaxle assembly. Dust on clutch disc sliding
parts may damage CSC seal and may cause clutch fluid leakage.
Do not disassemble clutch master cylinder and CSC.
WAR NIN G:
After cleaning clutch disc, clean it with a dust collector. Do not use compressed air.
Page 860 of 2896
PREPARATION
CL-3
D
E
F
G
H
I
J
K
L
MA
B
CL
Revision: June 20062007 Versa
PREPARATIONPFP:00002
Special Service ToolsECS00FSU
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
Commercial Service ToolsECS00G57
Tool number
(Kent-Moore No.)
Tool nameDescription
ST20050240
(—)
Diaphragm spring adjusting wrenchAdjusting unevenness of diaphragm spring of
clutch cover
KV30101000
(—)
Clutch aligning barInstalling clutch cover and clutch disc
a: 15.9 mm (0.626 in) dia.
b: 19.8 mm (0.780 in) dia.
ZZA0508D
ZZA1178D
Tool nameDescription
Power toolLoosening bolts and nuts
PBIC0190E
Page 861 of 2896

CL-4
NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING
Revision: June 20062007 Versa
NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTINGPFP:00003
NVH Troubleshooting ChartECS00FSV
Use the chart below to help you find the cause of the symptom. The numbers indicate the order of the inspec-
tion. If necessary, repair or replace these parts.
Reference pageCL-5CL-8EM-73CL-11CL-13EM-103
SUSPECTED PARTS (Possible cause)
CLUTCH PEDAL (Inspection and adjustment)
CLUTCH LINE (Air in line)
ENGINE MOUNTING (Loose)
CSC (Concentric slave cylinder) (Worn, dirty or damaged)
CLUTCH DISC (Out of true)
CLUTCH DISC (Runout is excessive)
CLUTCH DISC (Lining broken)
CLUTCH DISC (Dirty or burned)
CLUTCH DISC (Oily)
CLUTCH DISC (Worn out)
CLUTCH DISC (Hardened)
CLUTCH DISC (Lack of spline grease)
DIAPHRAGM SPRING (Damaged)
DIAPHRAGM SPRING (Out of tip alignment)
PRESSURE PLATE (Distortion)
FLYWHEEL (Distortion)
SymptomClutch grabs/chatters 1 2 2 2 2 2
Clutch pedal spongy 1
Clutch noisy 1
Clutch slips 1 2 2 3 4 5
Clutch does not disengage 1 2 5 5 5 5 5 5 6 6 7
Page 862 of 2896

CLUTCH PEDAL
CL-5
D
E
F
G
H
I
J
K
L
MA
B
CL
Revision: June 20062007 Versa
CLUTCH PEDALPFP:46540
On-vehicle Inspection and Adjustment ECS00GVX
1. Check to see if the master cylinder rod end floats freely. It
should not be bound by the clutch pedal.
a. If the rod end is not free, check that the ASCD switch is not
applying pressure to the clutch pedal causing the rod end to
bind. To adjust, disconnect the ASCD switch electrical connector
and turn the ASCD switch.
b. Connect the ASCD switch electrical connector.
c. Verify that the master cylinder rod end floats freely. It should not
be bound by the clutch pedal.
d. If the rod end is still not free, remove the rod end and check for
deformation or damage. Leave the rod end removed for step 2.
2. Check the clutch pedal stroke for free range of movement.
a. With the master cylinder rod end removed, manually move the pedal up and down to determine if it moves
freely.
b. If any sticking is noted, replace the clutch pedal assembly. Re-verify that the master cylinder rod end floats
freely.
3. Adjust clutch interlock switch (1) position so that clearance
between clutch pedal (2) and thread end of clutch interlock
switch (1), with clutch pedal fully depressed, is within specifica-
tion (C).
Clearance C : 0.74 - 1.96 mm (0.0291 - 0.0772 in)
PCIB1491E
WCIA0594E
Page 863 of 2896
CL-6
CLUTCH PEDAL
Revision: June 20062007 Versa
4. Adjust ASCD clutch switch (1) position so that clearance
between clutch pedal (2) and thread end of ASCD clutch switch
(1), with clutch pedal fully released, is within specification (A).
5. Check the clutch hydraulic system components (clutch master cylinder, clutch operating cylinder, clutch
withdrawal lever and clutch release bearing) for sticking or binding.
a. If any sticking or binding is noted, repair or replace the related parts as necessary.
b. If any hydraulic system repair was necessary, bleed the clutch hydraulic system. Refer to CL-8, "
Air
Bleeding Procedure" .
NOTE:
Do not use a vacuum assist or any other type of power bleeder on this system. Use of a vacuum assist or
power bleeder will not purge all of the air from the system.Clearance A : 0.74 - 1.96 mm (0.0291 - 0.0772 in)
WCIA0595E
Page 864 of 2896
CLUTCH PEDAL
CL-7
D
E
F
G
H
I
J
K
L
MA
B
CL
Revision: June 20062007 Versa

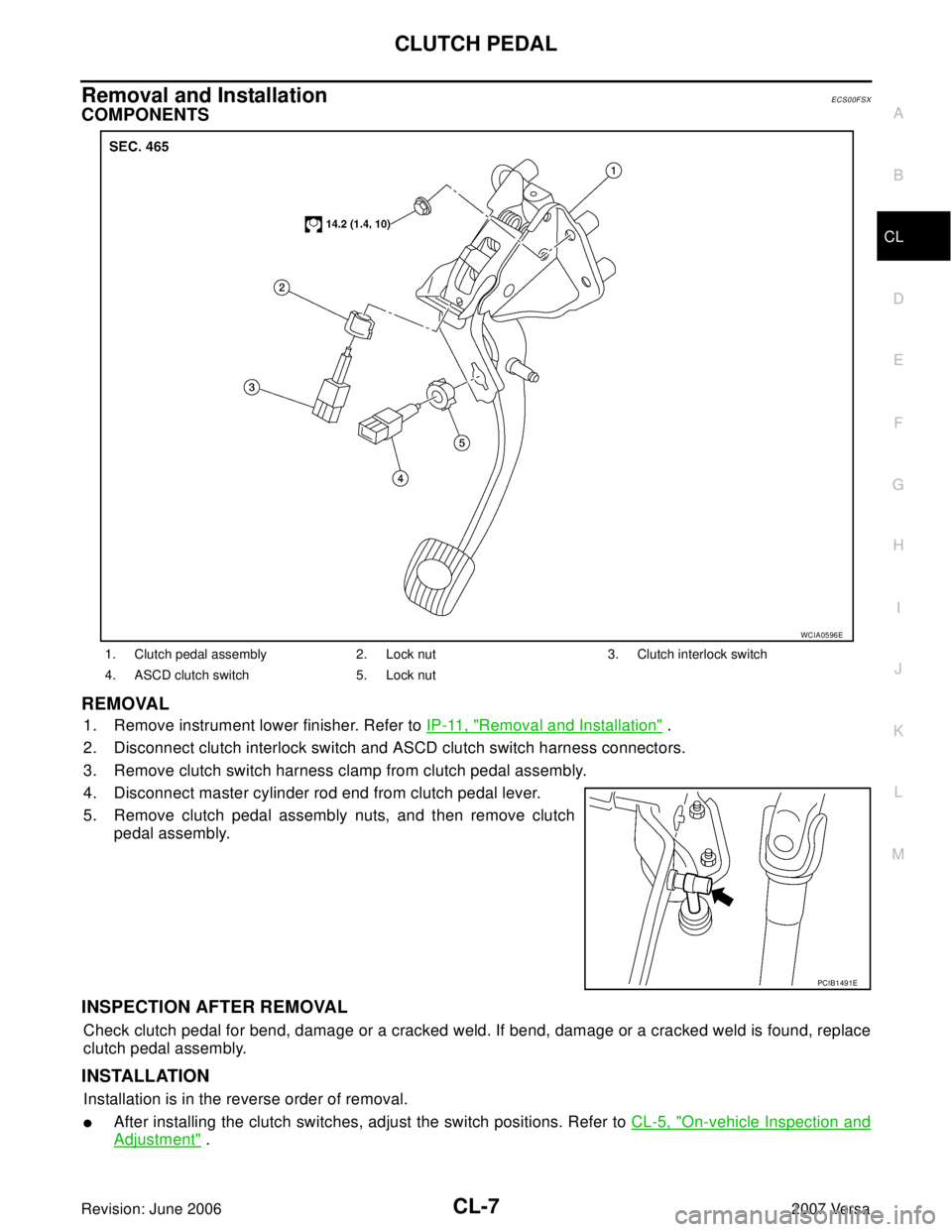

Removal and InstallationECS00FSX
COMPONENTS
REMOVAL
1. Remove instrument lower finisher. Refer to IP-11, "Removal and Installation" .
2. Disconnect clutch interlock switch and ASCD clutch switch harness connectors.
3. Remove clutch switch harness clamp from clutch pedal assembly.
4. Disconnect master cylinder rod end from clutch pedal lever.
5. Remove clutch pedal assembly nuts, and then remove clutch
pedal assembly.
INSPECTION AFTER REMOVAL
Check clutch pedal for bend, damage or a cracked weld. If bend, damage or a cracked weld is found, replace
clutch pedal assembly.
INSTALLATION
Installation is in the reverse order of removal.
After installing the clutch switches, adjust the switch positions. Refer to CL-5, "On-vehicle Inspection and
Adjustment" .
1. Clutch pedal assembly 2. Lock nut 3. Clutch interlock switch
4. ASCD clutch switch 5. Lock nut
WCIA0596E
PCIB1491E
