NISSAN LATIO 2007 Service Repair Manual EC-32Revision: June 2006
EVAPORATIVE EMISSION SYSTEM
2007 Versa
EVAPORATIVE EMISSION LINE DRAWING
NOTE: Do not use soapy water or any type of solvent while installing vacuum hose or purge hoses.
:Veh

Page 1202 of 2896

NISSAN LATIO 2007 Service Repair Manual EVAPORATIVE EMISSION SYSTEM
EC-33
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: June 20062007 Versa
:To previous page
1. EVAP control system pressure sensor
(This illustration is a view from under
vehicle)2.

Page 1203 of 2896

NISSAN LATIO 2007 Service Repair Manual EC-34Revision: June 2006
EVAPORATIVE EMISSION SYSTEM
2007 Versa

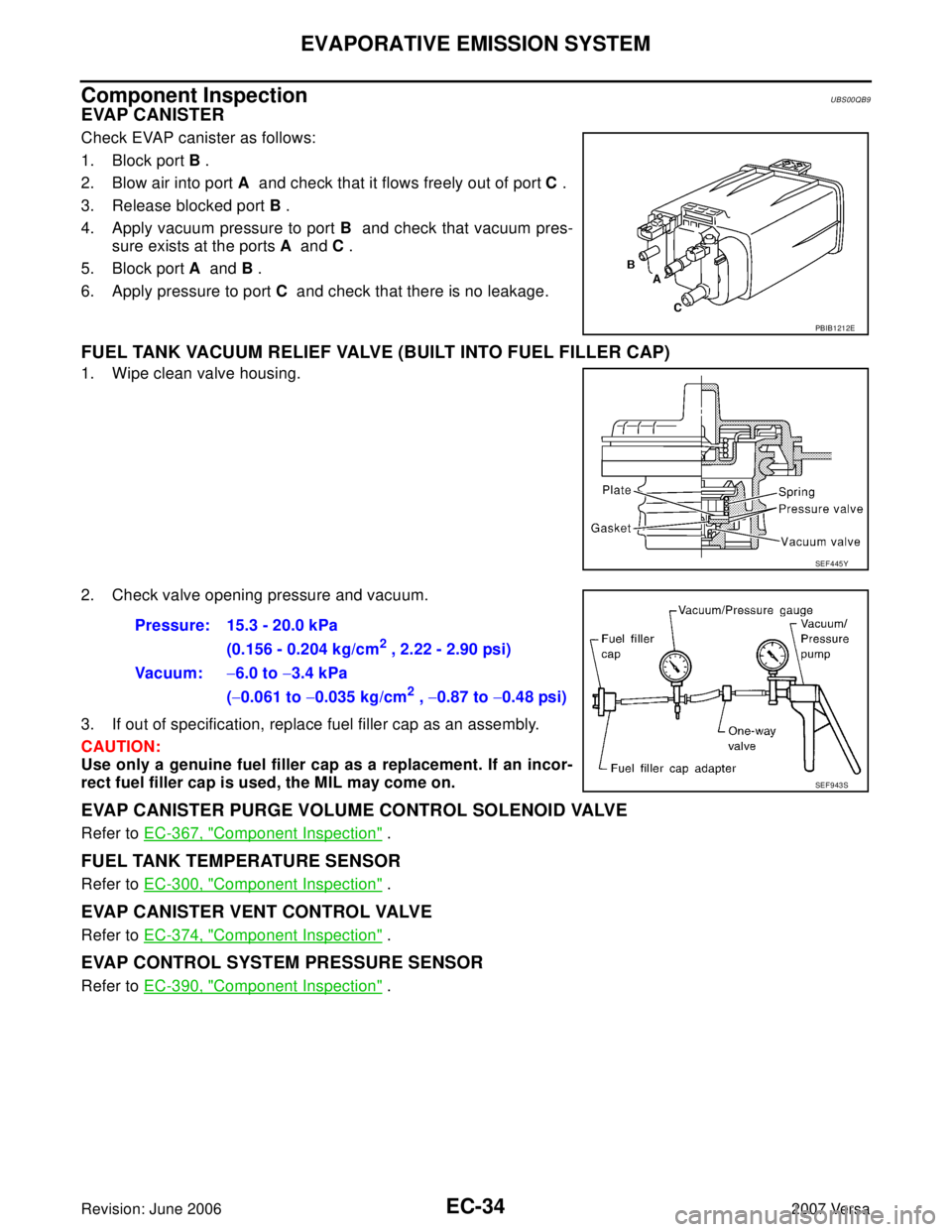

Component InspectionUBS00QB9
EVAP CANISTER
Check EVAP canister as follows:
1. Block port B .
2. Blow air into port A and check that it

Page 1204 of 2896

NISSAN LATIO 2007 Service Repair Manual EVAPORATIVE EMISSION SYSTEM
EC-35
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: June 20062007 Versa
EVAP SERVICE PORT
Positive pressure is delivered to the EVAP system through the EVAP
service port. If fuel vap

Page 1205 of 2896

NISSAN LATIO 2007 Service Repair Manual EC-36Revision: June 2006
EVAPORATIVE EMISSION SYSTEM
2007 Versa
WITH CONSULT-II
1. Attach the EVAP service port adapter securely to the EVAP service port.
2. Also attach the pressure pump and hose to

Page 1206 of 2896

NISSAN LATIO 2007 Service Repair Manual EVAPORATIVE EMISSION SYSTEM
EC-37
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: June 20062007 Versa
3. Apply battery voltage to the terminal of EVAP canister vent con-
trol valve (3) to make a closed EVAP syste

Page 1207 of 2896

NISSAN LATIO 2007 Service Repair Manual EC-38Revision: June 2006
ON BOARD REFUELING VAPOR RECOVERY (ORVR)
2007 Versa
ON BOARD REFUELING VAPOR RECOVERY (ORVR)PFP:00032

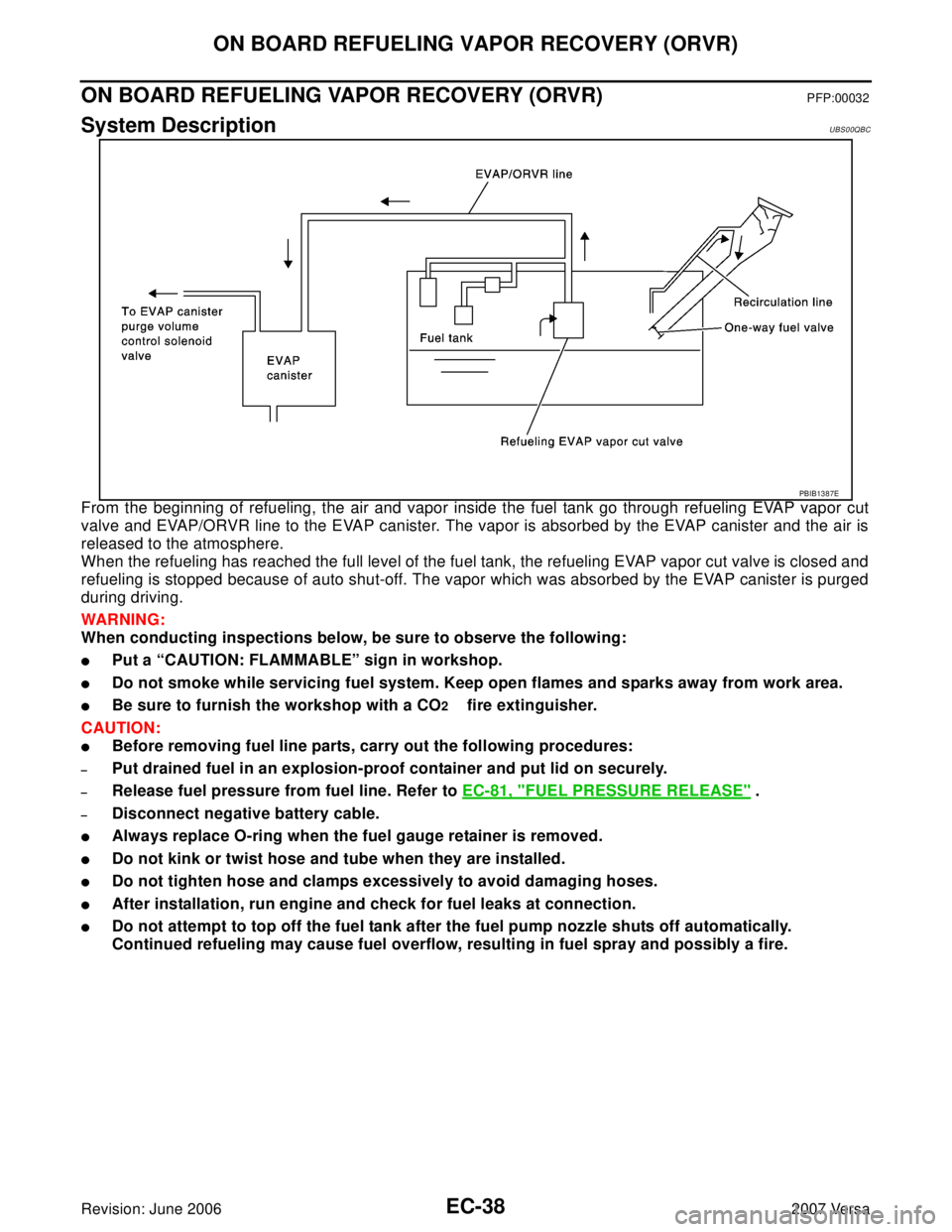

System DescriptionUBS00QBC
From the beginning of refueling, the air and v

Page 1208 of 2896

NISSAN LATIO 2007 Service Repair Manual ON BOARD REFUELING VAPOR RECOVERY (ORVR)
EC-39
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: June 20062007 Versa
Diagnostic ProcedureUBS00QBD
SYMPTOM: FUEL ODOR FROM EVAP CANISTER IS STRONG.
1. CHECK EVAP CANIS
