OIL PAN
2007 Versa
OIL PANP F P : 1111 0
ComponentsEBS00U7G
Removal and InstallationEBS00U7H
REMOVAL
WAR NIN G:
Be careful not to burn yourself, as the engine oil is hot.
Prolonged and repeated contact with used engine oil may cause skin cancer; try to avoid direct
skin contact with used oil. If skin contact is made, wash thoroughly with soap or hand cleaner as
soon as possible.

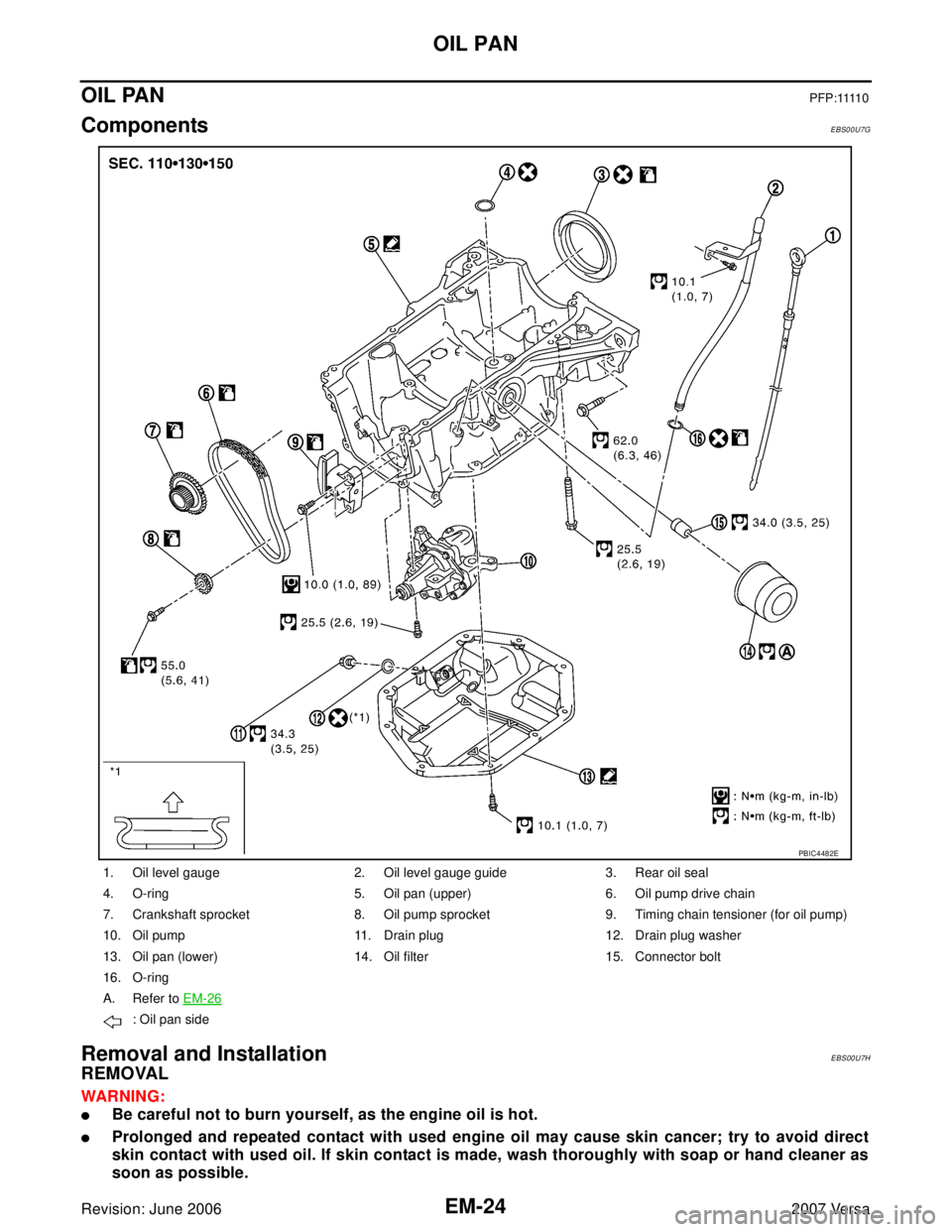

1. Oil level gauge 2. Oil level gauge guide 3. Rear oil seal
4. O-ring 5. Oil pan (upper) 6. Oil pump drive chain
7. Crankshaft sprocket 8. Oil pump sprocket 9. Timing chain tensioner (for oil pump)
10. Oil pump 11. Drain plug 12. Drain plug washer
13. Oil pan (lower) 14. Oil filter 15. Connector bolt
16. O-ring
A. Refer to EM-26
: Oil pan side
PBIC4482E
Page 1834 of 2896

OIL PAN
EM-25
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: June 20062007 Versa
1. Drain engine oil. Refer to LU-5, "ENGINE OIL" .
2. Remove engine and transaxle assembly. Refer to EM-73
.
3. Remove oil filter using Tool.
CAUTION:
When removing, prepare a shop cloth to absorb any engine oil leakage or spillage.

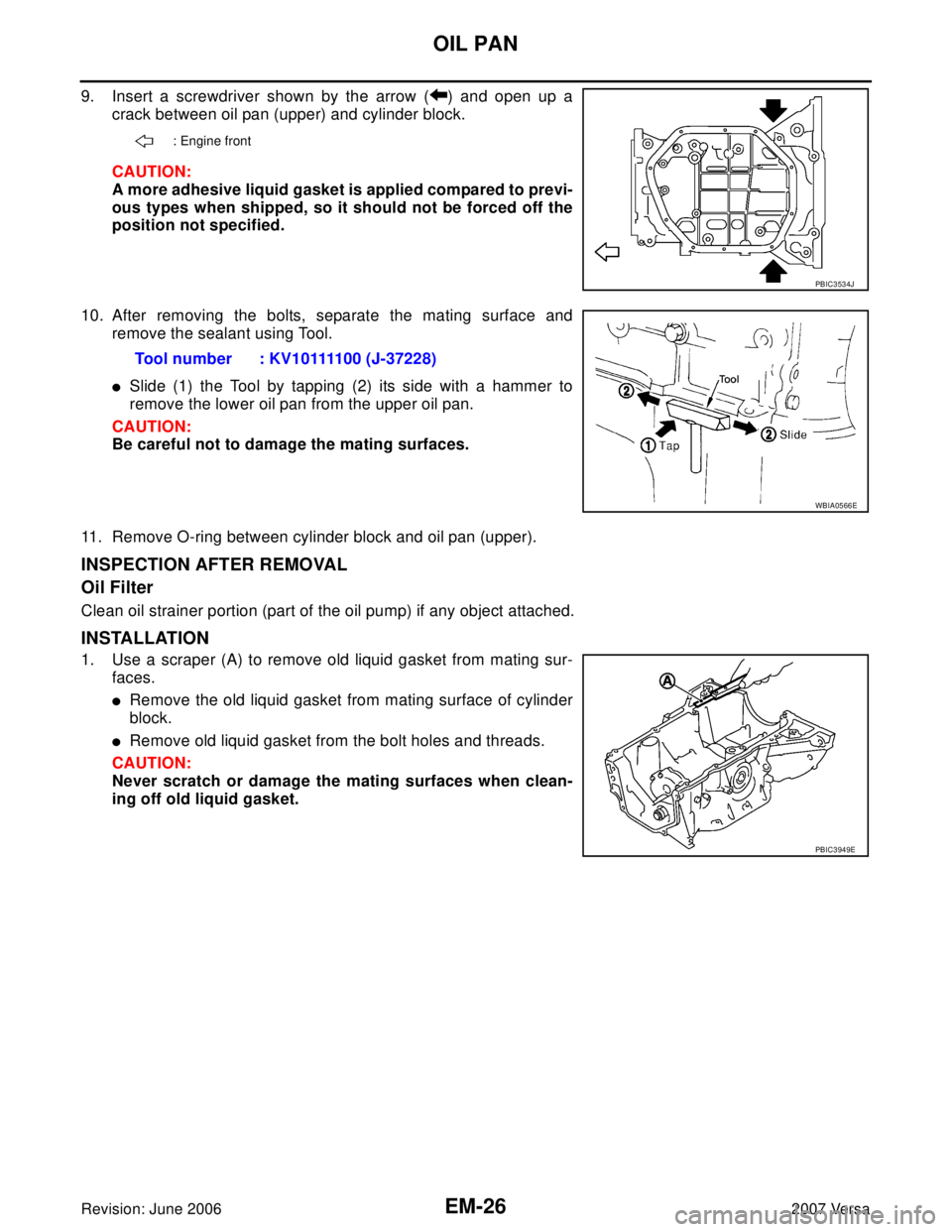

4. Remove oil pan (lower) bolts in reverse order as shown.
5. After removing the bolts and nuts, separate the mating surface
and remove the sealant using Tool.
CAUTION:
Be careful not to damage the mating surfaces.
6. Remove the following parts:
Flywheel (M/T models) or drive plate (A/T or CVT models); Refer to EM-77, "CYLINDER BLOCK" .
Front cover, timing chain, oil pump drive chain; Refer to EM-37, "TIMING CHAIN" .
7. Remove oil pump.
Loosen bolts in reverse order as shown.
8. Remove oil pan (lower) bolts in reverse order as shown.Tool number : KV10115801 ( — )
: Engine front
PBIC3146J
Tool number : KV10111100 (J-37228)
WBIA0566E
1 : Oil pump
2 : Oil pan (upper)
: Engine front
PBIC3532J
: Engine front
PBIC3533J
Page 1835 of 2896

EM-26Revision: June 2006
OIL PAN
2007 Versa
9. Insert a screwdriver shown by the arrow ( ) and open up a
crack between oil pan (upper) and cylinder block.
CAUTION:
A more adhesive liquid gasket is applied compared to previ-
ous types when shipped, so it should not be forced off the
position not specified.
10. After removing the bolts, separate the mating surface and
remove the sealant using Tool.
Slide (1) the Tool by tapping (2) its side with a hammer to
remove the lower oil pan from the upper oil pan.
CAUTION:
Be careful not to damage the mating surfaces.
11. Remove O-ring between cylinder block and oil pan (upper).
INSPECTION AFTER REMOVAL
Oil Filter
Clean oil strainer portion (part of the oil pump) if any object attached.
INSTALLATION

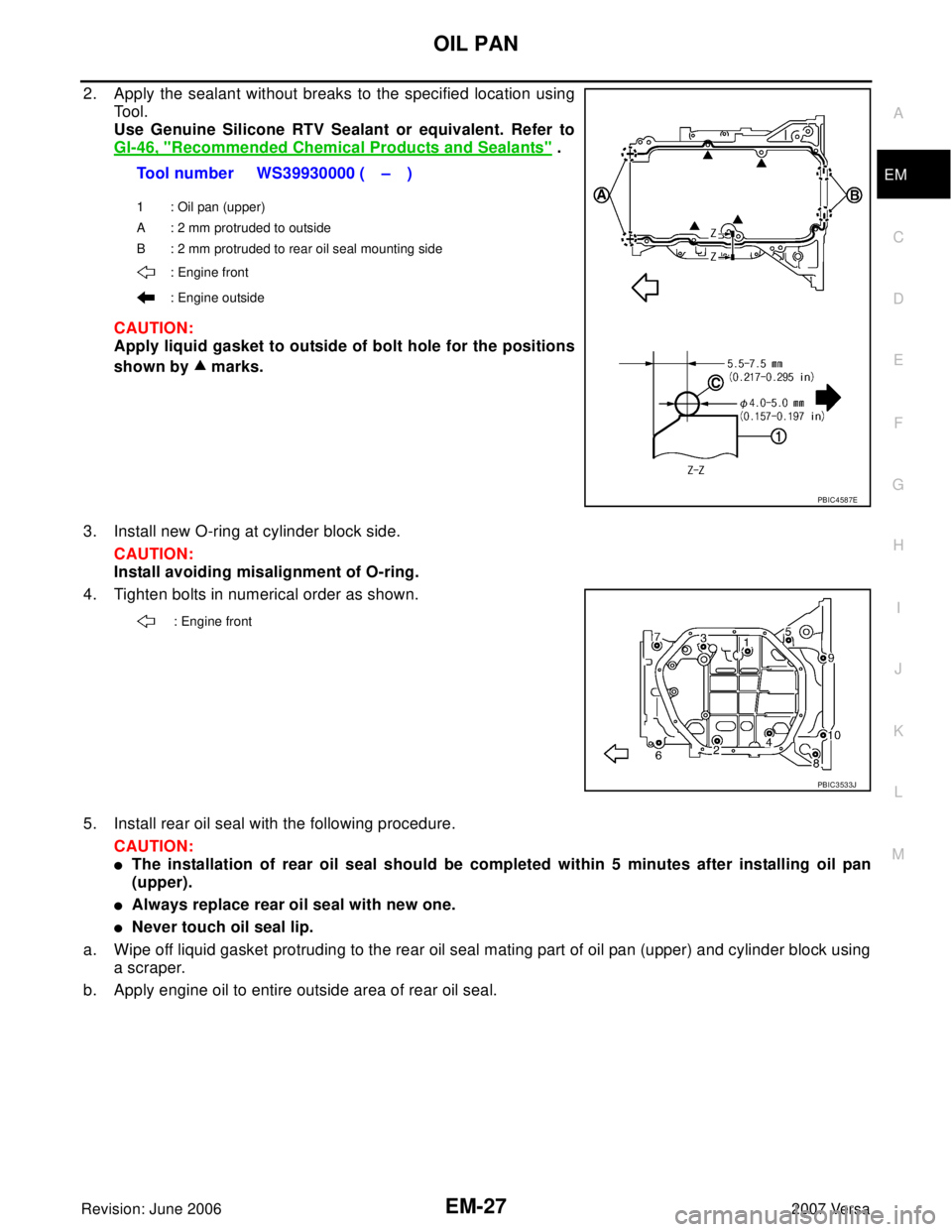

1. Use a scraper (A) to remove old liquid gasket from mating sur-
faces.
Remove the old liquid gasket from mating surface of cylinder
block.
Remove old liquid gasket from the bolt holes and threads.
CAUTION:
Never scratch or damage the mating surfaces when clean-
ing off old liquid gasket.
: Engine front
PBIC3534J
Tool number : KV10111100 (J-37228)
WBIA0566E
PBIC3949E
Page 1836 of 2896

OIL PAN
EM-27
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: June 20062007 Versa
2. Apply the sealant without breaks to the specified location using
Tool.
Use Genuine Silicone RTV Sealant or equivalent. Refer to
GI-46, "
Recommended Chemical Products and Sealants" .
CAUTION:
Apply liquid gasket to outside of bolt hole for the positions
shown by marks.
3. Install new O-ring at cylinder block side.
CAUTION:
Install avoiding misalignment of O-ring.
4. Tighten bolts in numerical order as shown.
5. Install rear oil seal with the following procedure.
CAUTION:
The installation of rear oil seal should be completed within 5 minutes after installing oil pan
(upper).
Always replace rear oil seal with new one.
Never touch oil seal lip.
a. Wipe off liquid gasket protruding to the rear oil seal mating part of oil pan (upper) and cylinder block using
a scraper.
b. Apply engine oil to entire outside area of rear oil seal.Tool number WS39930000 ( – )
1 : Oil pan (upper)
A : 2 mm protruded to outside
B : 2 mm protruded to rear oil seal mounting side
: Engine front
: Engine outside
PBIC4587E
: Engine front
PBIC3533J
Page 1837 of 2896

EM-28Revision: June 2006
OIL PAN
2007 Versa

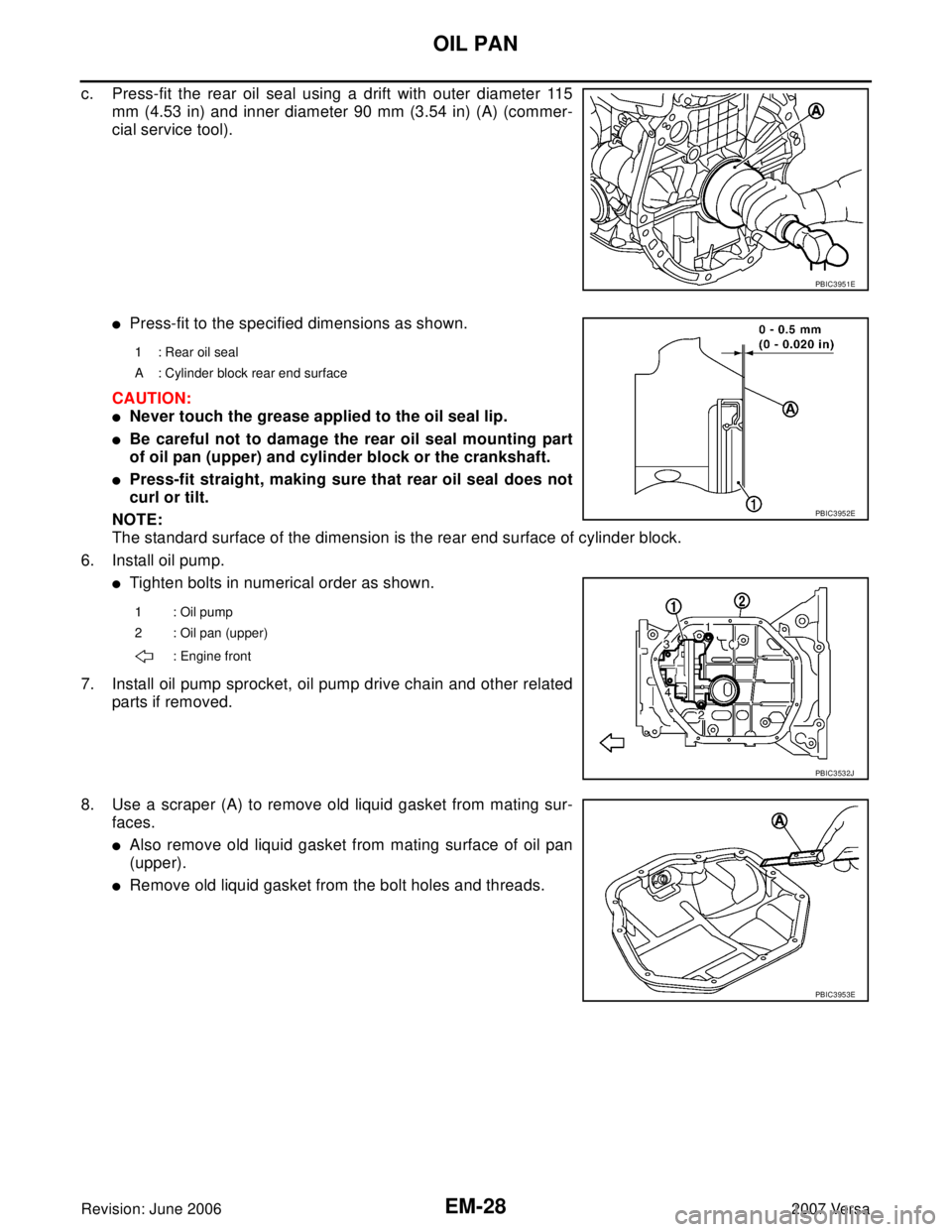

c. Press-fit the rear oil seal using a drift with outer diameter 115
mm (4.53 in) and inner diameter 90 mm (3.54 in) (A) (commer-
cial service tool).
Press-fit to the specified dimensions as shown.
CAUTION:
Never touch the grease applied to the oil seal lip.
Be careful not to damage the rear oil seal mounting part
of oil pan (upper) and cylinder block or the crankshaft.
Press-fit straight, making sure that rear oil seal does not
curl or tilt.
NOTE:
The standard surface of the dimension is the rear end surface of cylinder block.
6. Install oil pump.
Tighten bolts in numerical order as shown.
7. Install oil pump sprocket, oil pump drive chain and other related
parts if removed.
8. Use a scraper (A) to remove old liquid gasket from mating sur-
faces.
Also remove old liquid gasket from mating surface of oil pan
(upper).
Remove old liquid gasket from the bolt holes and threads.
PBIC3951E
1 : Rear oil seal
A : Cylinder block rear end surface
1 : Oil pump
2 : Oil pan (upper)
: Engine front
PBIC3952E
PBIC3532J
PBIC3953E
Page 1838 of 2896
OIL PAN
EM-29
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: June 20062007 Versa
9. Apply the sealant without breaks to the specified location using
Tool.
Use Genuine Silicone RTV Sealant or equivalent. Refer to
GI-46, "
Recommended Chemical Products and Sealants" .
10. Tighten bolts in numerical order as shown.
11. Install oil filter with the following procedure:
a. Remove foreign materials adhering to the oil filter installation
surface.
b. Apply new engine oil to the oil seal contact surface of new oil fil-
ter.
c. Screw oil filter manually until it touches the installation surface,
then tighten it by 2/3 turn. Or tighten to specification.
12. Installation of the remaining components is in the reverse order of removal.Tool number WS39930000 ( – )
1 : Oil pan (lower)
: Engine outside
PBIC4590E
: Engine front
PBIC3146J
Oil filter: : 17.7 N·m (1.8 kg-m, 13 ft-lb)
SM A22 9B
Page 1839 of 2896
EM-30Revision: June 2006
IGNITION COIL, SPARK PLUG AND ROCKER COVER
2007 Versa
IGNITION COIL, SPARK PLUG AND ROCKER COVERPFP:22448
ComponentsEBS00U7I
Removal and InstallationEBS00U7J
REMOVAL
1. Remove intake manifold. Refer to EM-18, "INTAKE MANIFOLD" .
2. Remove ignition coil.
CAUTION:
Handle it carefully and avoid impacts.
Never disassemble.
3. Remove spark plug using suitable tool.
CAUTION:
Never drop or shock it.

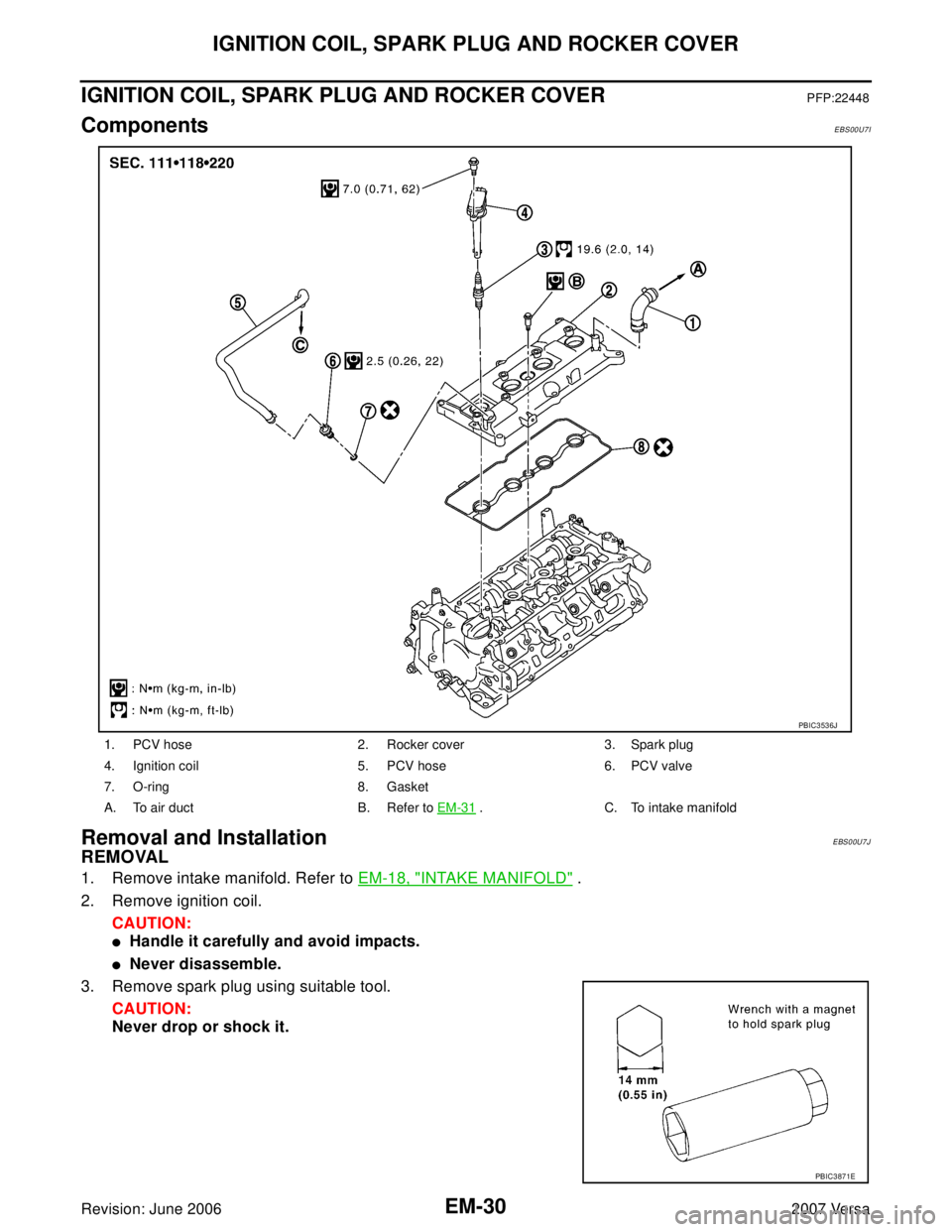

1. PCV hose 2. Rocker cover 3. Spark plug
4. Ignition coil 5. PCV hose 6. PCV valve
7. O-ring 8. Gasket
A. To air duct B. Refer to EM-31
. C. To intake manifold
PBIC3536J
PBIC3871E
Page 1840 of 2896
IGNITION COIL, SPARK PLUG AND ROCKER COVER
EM-31
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: June 20062007 Versa
4. Remove rocker cover.
Loosen bolts in reverse order as shown.
Engine front
INSPECTION AFTER REMOVAL
CAUTION:
Never drop or shock spark plug.
Checking and adjusting spark plug gap is not required
between change intervals.
If spark plug tip is covered with carbon, a spark plug cleaner may be used.
Never use wire brush for cleaning spark plug.

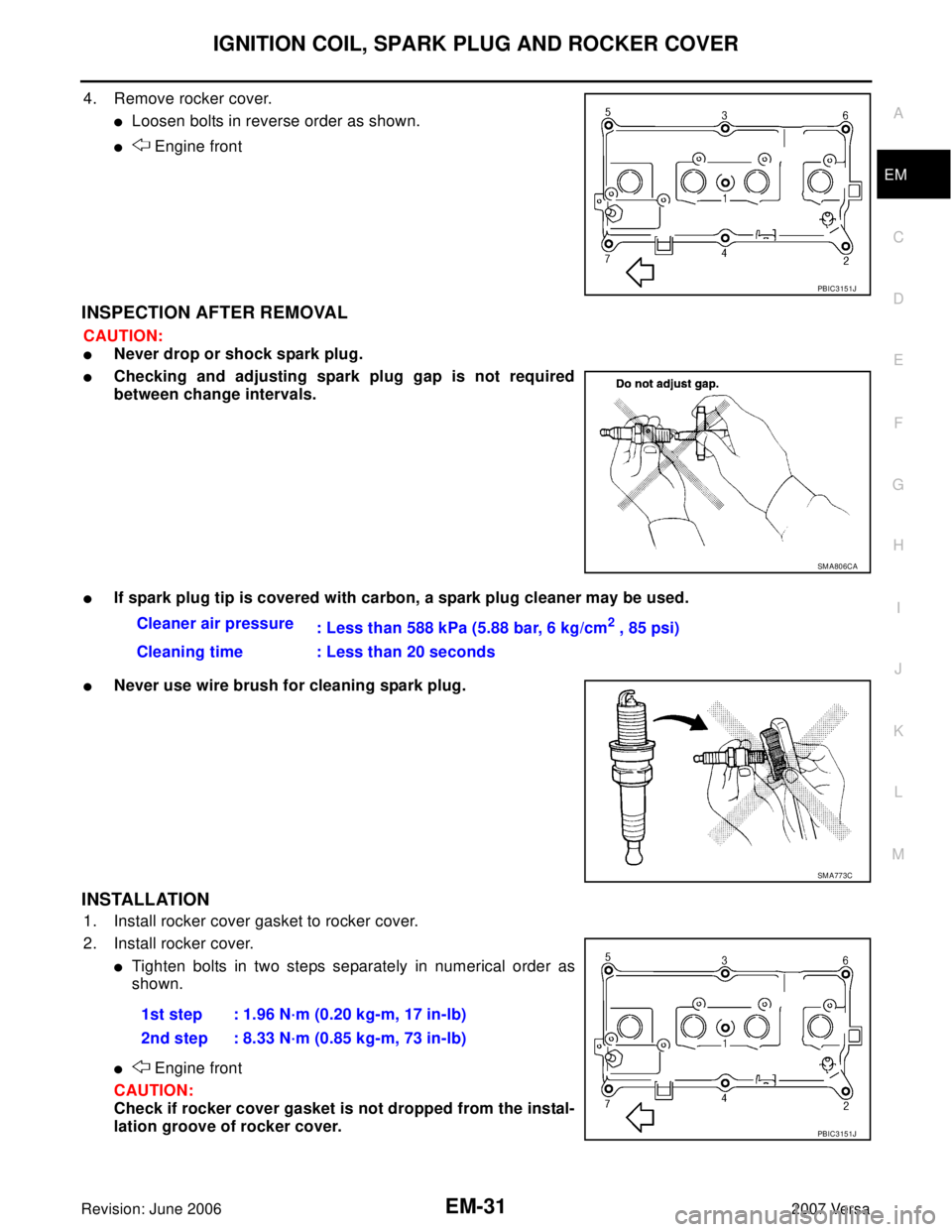

INSTALLATION
1. Install rocker cover gasket to rocker cover.
2. Install rocker cover.
Tighten bolts in two steps separately in numerical order as
shown.
Engine front
CAUTION:
Check if rocker cover gasket is not dropped from the instal-
lation groove of rocker cover.
PBIC3151J
SM A80 6CA
Cleaner air pressure
: Less than 588 kPa (5.88 bar, 6 kg/cm2 , 85 psi)
Cleaning time : Less than 20 seconds
SM A77 3C
1st step : 1.96 N·m (0.20 kg-m, 17 in-lb)
2nd step : 8.33 N·m (0.85 kg-m, 73 in-lb)
PBIC3151J
