Page 993 of 2896
CVT-96
DTC P0720 VEHICLE SPEED SENSOR CVT (SECONDARY SPEED SENSOR)
Revision: June 20062007 Versa

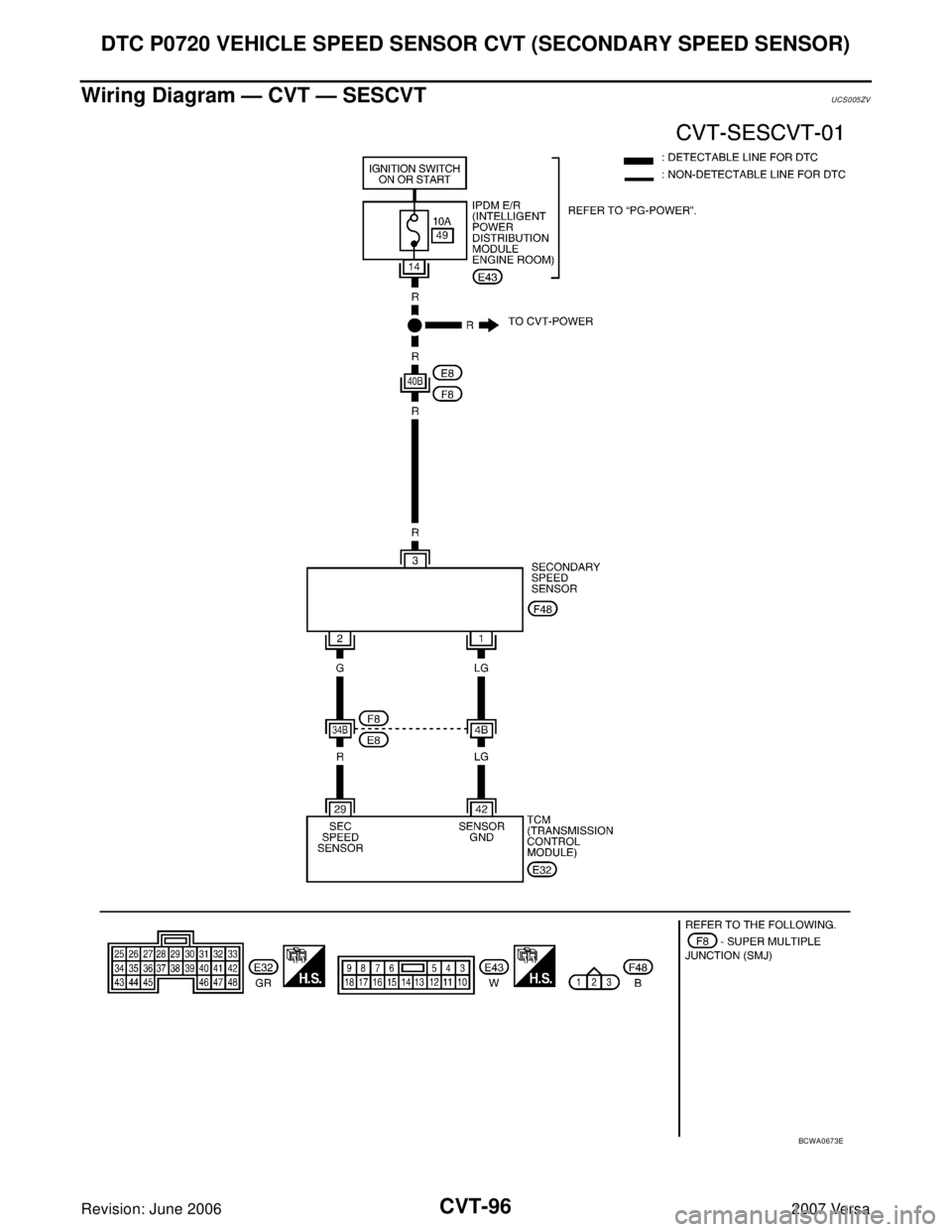

Wiring Diagram — CVT — SESCVTUCS005ZV
BCWA0673E
Page 994 of 2896

DTC P0720 VEHICLE SPEED SENSOR CVT (SECONDARY SPEED SENSOR)
CVT-97
D
E
F
G
H
I
J
K
L
MA
B
CVT
Revision: June 20062007 Versa
TCM terminal data are reference values, measured between each terminal and ground.
Diagnostic ProcedureUCS005ZW
1. CHECK INPUT SIGNAL
With CONSULT-II
1. Start engine.
2. Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
3. Start vehicle and read out the value of “VSP SENSOR”.
OK or NG
OK >> GO TO 8.
NG >> GO TO 2.
2. CHECK SECONDARY SPEED SENSOR
With CONSULT-II
1. Start engine.
2. Check power supply to output speed sensor (secondary speed sensor) by voltage between TCM connec-
tor terminals 10, 19 and 42. Refer to CVT-42, "
Circuit Diagram" .
3. If OK, check the pulse when vehicle cruises.
OK or NG
OK >> GO TO 8.
NG >> GO TO 3.
Terminal Wire color Item Condition Data (Approx.)
29 ROutput speed
sensor (Second-
ary speed sen-
sor)When driving [“D” position, 20 km/h
(12 MPH)].570 Hz
42 LG Sensor ground Always 0 V
Item name Condition Display value
VSP SENSOR During drivingApproximately matches
the speedometer reading.
SCIA2279E
Item Connector Terminal Data (Approx.)
TCM E31, E3210 - 42
Battery voltage
19 - 42
Name Condition
Output speed sen-
sor (Secondary
speed sensor)When running at 20 km/h (12 MPH) in “D” position, use the
CONSULT-II pulse frequency measuring function.
CAUTION:
Connect the data link connector to the vehicle-side diag-
nosis connector.
Item Connector Terminal NameData
(Approx.)
TCM E32 29Output speed sensor (Sec-
ondary speed sensor)570 Hz
SCIA2344E
Page 995 of 2896

CVT-98
DTC P0720 VEHICLE SPEED SENSOR CVT (SECONDARY SPEED SENSOR)
Revision: June 20062007 Versa
3. CHECK POWER AND SENSOR GROUND
1. Turn ignition switch OFF.
2. Disconnect the output speed sensor (secondary speed sensor) harness connector.
3. Turn ignition switch ON.
4. Check voltage between output speed sensor (secondary speed
sensor) harness connector terminals.
5. Check voltage between output speed sensor (secondary speed
sensor) harness connector terminal and ground.
6. If OK, check harness for short to ground and short to power.
7. Reinstall any part removed.
OK or NG
OK >> GO TO 4.
NG - 1 >> Battery voltage is not supplied between terminals 1 and 3, terminals 1 and ground.: GO TO 6.
NG - 2 >> Battery voltage is not supplied between terminals 1 and 3 only.: GO TO 7.
4. CHECK HARNESS BETWEEN TCM AND OUTPUT SPEED SENSOR (SECONDARY SPEED SEN-
SOR)
1. Turn ignition switch OFF.
2. Disconnect TCM connector and output speed sensor (secondary speed sensor) harness connector.
3. Check continuity between TCM connector terminal and output
speed sensor (secondary speed sensor) harness connector ter-
minal.
4. If OK, check harness for short to ground and short to power.
5. Reinstall any part removed.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
Item Connector TerminalData
(Approx.)
Output speed sensor (Sec-
ondary speed sensor)F48 3 - 1 Battery volt-
age
SCIA2345E
Item Connector TerminalData
(Approx.)
Output speed sensor (Sec-
ondary speed sensor)F48 3 - groundBattery volt-
age
SCIA2346E
Item Connector Terminal Continuity
TCM E32 29
Ye s
Output speed sensor (Sec-
ondary speed sensor)F48 2
SCIA1967E
Page 996 of 2896

DTC P0720 VEHICLE SPEED SENSOR CVT (SECONDARY SPEED SENSOR)
CVT-99
D
E
F
G
H
I
J
K
L
MA
B
CVT
Revision: June 20062007 Versa
5. CHECK THE TCM SHORT
Replace same type TCM, perform self-diagnosis check. Erase self-diagnostic results and them drive the vehi-
cle [more than 40 km/h (25 MPH)], perform self-diagnosis check. Refer to CVT-95, "
DTC Confirmation Proce-
dure" .
Is
“P0720 VEH SPD SEN/CIR AT” detected again?
YES >> Replace the transaxle assembly. Refer to CVT-207, "Removal and Installation" .
NO >> Replace TCM. Refer to CVT-9, "
Service After Replacing TCM and Transaxle Assembly" .
6. CHECK HARNESS BETWEEN TCM AND OUTPUT SPEED SENSOR (SECONDARY SPEED SEN-
SOR) (POWER)
1. Turn ignition switch OFF.
2. Disconnect TCM connector and output speed sensor (secondary speed sensor) harness connector.
3. Check continuity between TCM connector terminals and output
speed sensor (secondary speed sensor) harness connector ter-
minal. Refer to CVT-42, "
Circuit Diagram" .
4. If OK, check harness for short to ground and short to power.
5. Reinstall any part removed.
OK or NG
OK >> 10 A fuse (No. 49, located in the IPDM E/R) or ignition switch are malfunctioning.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK HARNESS BETWEEN TCM AND OUTPUT SPEED SENSOR (SECONDARY SPEED SEN-
SOR) (SENSOR GROUND)
1. Turn ignition switch OFF.
2. Disconnect TCM connector and output speed sensor (secondary speed sensor) harness connector.
3. Check continuity between TCM connector terminal and output
speed sensor (secondary speed sensor) harness connector ter-
minal.
4. If OK, check harness for short to ground and short to power.
5. Reinstall any part removed.
OK or NG
OK >> GO TO 8.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
8. CHECK DTC
Perform CVT-95, "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 9.
Item Connector Terminal Continuity
TCM E31 10
Ye s
Output speed sensor (Sec-
ondary speed sensor)F48 3
TCM E31 19
Ye s
Output speed sensor (Sec-
ondary speed sensor)F48 3
SCIA2369E
Item Connector Terminal Continuity
TCM E32 42
Ye s
Output speed sensor (Sec-
ondary speed sensor)F48 1
SCIA2347E
Page 997 of 2896
CVT-100
DTC P0720 VEHICLE SPEED SENSOR CVT (SECONDARY SPEED SENSOR)
Revision: June 20062007 Versa
9. CHECK TCM
1. Check TCM input/output signals. Refer to CVT-54, "
TCM Input/Output Signal Reference Values" .
2. If NG, re-check TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
Page 998 of 2896

DTC P0725 ENGINE SPEED SIGNAL
CVT-101
D
E
F
G
H
I
J
K
L
MA
B
CVT
Revision: June 20062007 Versa
DTC P0725 ENGINE SPEED SIGNALPFP:24825
DescriptionUCS005ZX
The engine speed signal is sent from the ECM to the TCM.
CONSULT-II Reference ValueUCS005ZY
Remarks: Specification data are reference values.
On Board Diagnosis LogicUCS005ZZ
This is not an OBD-II self-diagnostic item.
Diagnostic trouble code “P0725 ENGINE SPEED SIG” with CONSULT-II is detected when TCM does not
receive the engine speed signal (input by CAN communication) from ECM.
Possible CauseUCS00600
Harness or connectors
(The ECM to the TCM circuit is open or shorted.)
DTC Confirmation ProcedureUCS00601
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, touch “ERASE” on “SELF-DIAG RESULTS” and then perform the following procedure to con-
firm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
2. Start engine and maintain the following conditions for at least 10
consecutive seconds.
PRI SPEED SEN: More than 1000 rpm
3. If DTC is detected, go to CVT-101, "
Diagnostic Procedure" .
Diagnostic ProcedureUCS00602
1. CHECK DTC WITH ECM
With CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “SELF-DIAG RESULTS” mode for “ENGINE” with CONSULT-II. Refer to EC-116, "
SELF-DIAG
RESULTS MODE" .
OK or NG
OK >> GO TO 2.
NG >> Check the DTC detected item. Refer to EC-116, "
SELF-DIAG RESULTS MODE" .
Item name Condition Display value
ENG SPEED SIG Engine running Closely matches the tachometer reading.
ACC PEDAL OPENReleased accelerator pedal - Fully depressed accel-
erator pedal0.0/8 - 8.0/8
BCIA0031E
Page 999 of 2896

CVT-102
DTC P0725 ENGINE SPEED SIGNAL
Revision: June 20062007 Versa

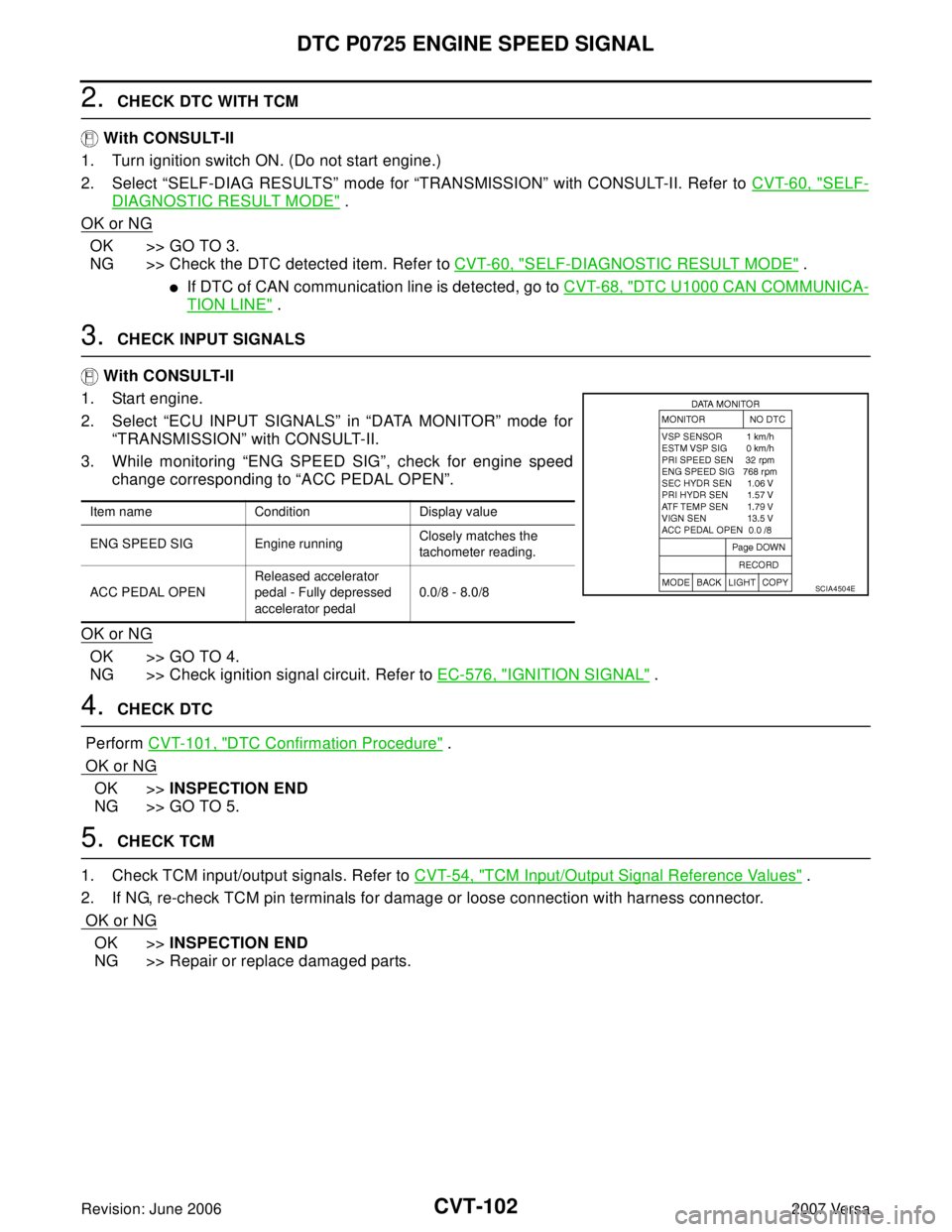

2. CHECK DTC WITH TCM
With CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “SELF-DIAG RESULTS” mode for “TRANSMISSION” with CONSULT-II. Refer to CVT-60, "
SELF-
DIAGNOSTIC RESULT MODE" .
OK or NG
OK >> GO TO 3.
NG >> Check the DTC detected item. Refer to CVT-60, "
SELF-DIAGNOSTIC RESULT MODE" .
If DTC of CAN communication line is detected, go to CVT-68, "DTC U1000 CAN COMMUNICA-
TION LINE" .
3. CHECK INPUT SIGNALS
With CONSULT-II
1. Start engine.
2. Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
3. While monitoring “ENG SPEED SIG”, check for engine speed
change corresponding to “ACC PEDAL OPEN”.
OK or NG
OK >> GO TO 4.
NG >> Check ignition signal circuit. Refer to EC-576, "
IGNITION SIGNAL" .
4. CHECK DTC
Perform CVT-101, "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 5.
5. CHECK TCM
1. Check TCM input/output signals. Refer to CVT-54, "
TCM Input/Output Signal Reference Values" .
2. If NG, re-check TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
Item name Condition Display value
ENG SPEED SIG Engine runningClosely matches the
tachometer reading.
ACC PEDAL OPENReleased accelerator
pedal - Fully depressed
accelerator pedal0.0/8 - 8.0/8
SCIA4504E
Page 1000 of 2896

DTC P0730 BELT DAMAGE
CVT-103
D
E
F
G
H
I
J
K
L
MA
B
CVT
Revision: June 20062007 Versa

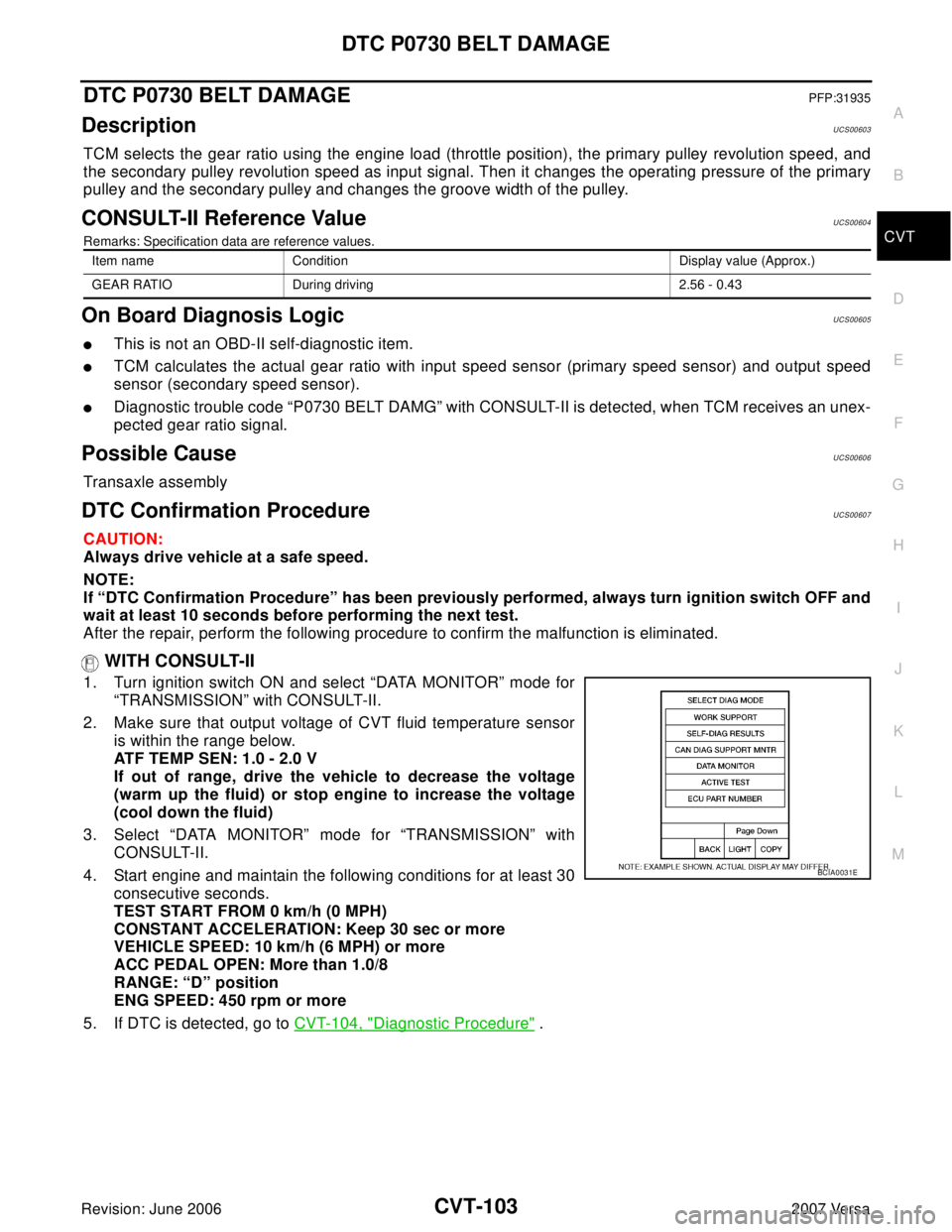

DTC P0730 BELT DAMAGEPFP:31935
DescriptionUCS00603
TCM selects the gear ratio using the engine load (throttle position), the primary pulley revolution speed, and
the secondary pulley revolution speed as input signal. Then it changes the operating pressure of the primary
pulley and the secondary pulley and changes the groove width of the pulley.
CONSULT-II Reference ValueUCS00604
Remarks: Specification data are reference values.
On Board Diagnosis LogicUCS00605
This is not an OBD-II self-diagnostic item.
TCM calculates the actual gear ratio with input speed sensor (primary speed sensor) and output speed
sensor (secondary speed sensor).
Diagnostic trouble code “P0730 BELT DAMG” with CONSULT-II is detected, when TCM receives an unex-
pected gear ratio signal.
Possible CauseUCS00606
Transaxle assembly
DTC Confirmation ProcedureUCS00607
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
2. Make sure that output voltage of CVT fluid temperature sensor
is within the range below.
ATF TEMP SEN: 1.0 - 2.0 V
If out of range, drive the vehicle to decrease the voltage
(warm up the fluid) or stop engine to increase the voltage
(cool down the fluid)
3. Select “DATA MONITOR” mode for “TRANSMISSION” with
CONSULT-II.
4. Start engine and maintain the following conditions for at least 30
consecutive seconds.
TEST START FROM 0 km/h (0 MPH)
CONSTANT ACCELERATION: Keep 30 sec or more
VEHICLE SPEED: 10 km/h (6 MPH) or more
ACC PEDAL OPEN: More than 1.0/8
RANGE: “D” position
ENG SPEED: 450 rpm or more
5. If DTC is detected, go to CVT-104, "
Diagnostic Procedure" .
Item name Condition Display value (Approx.)
GEAR RATIO During driving 2.56 - 0.43
BCIA0031E
