TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: June 20062007 Versa
TROUBLE DIAGNOSIS FOR SYMPTOMSPFP:00007

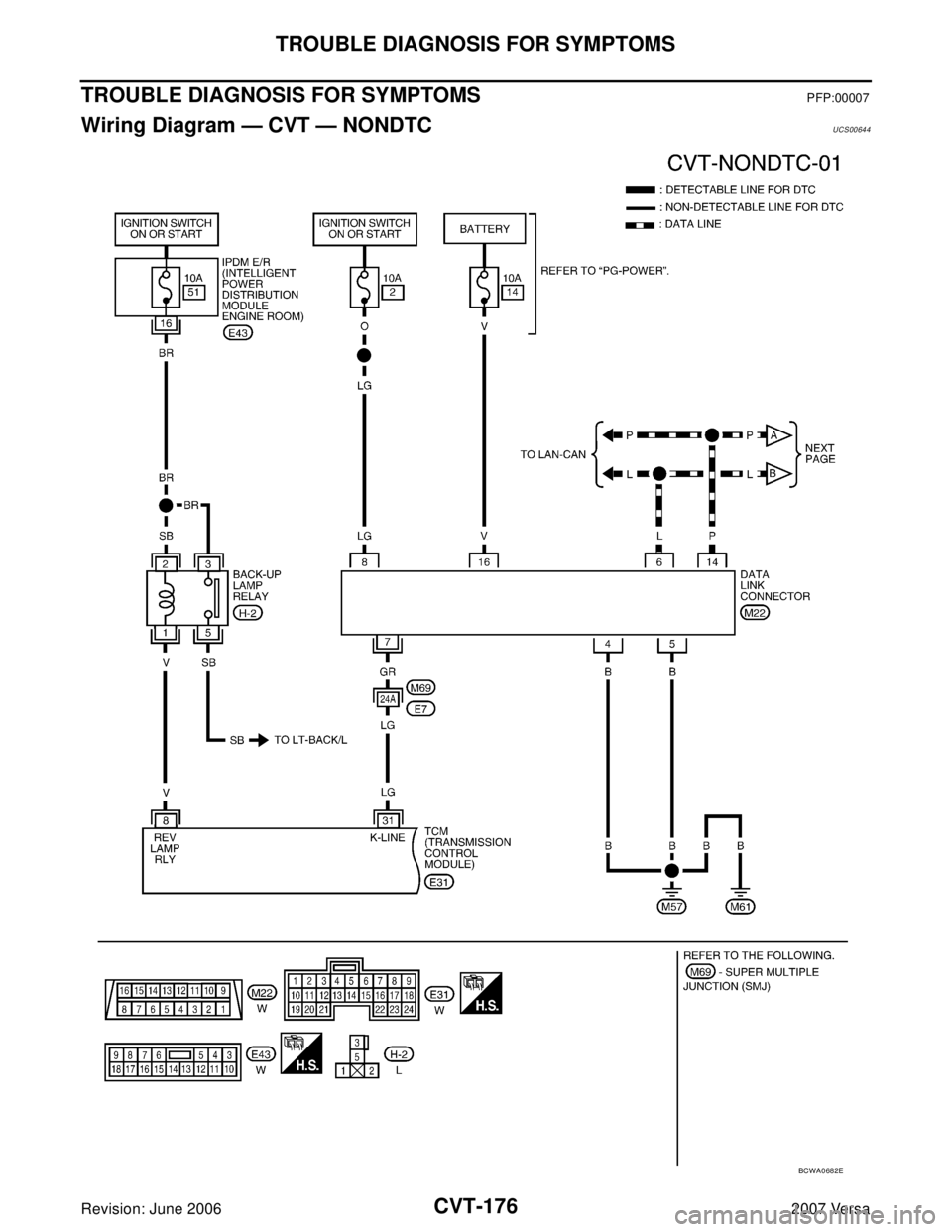

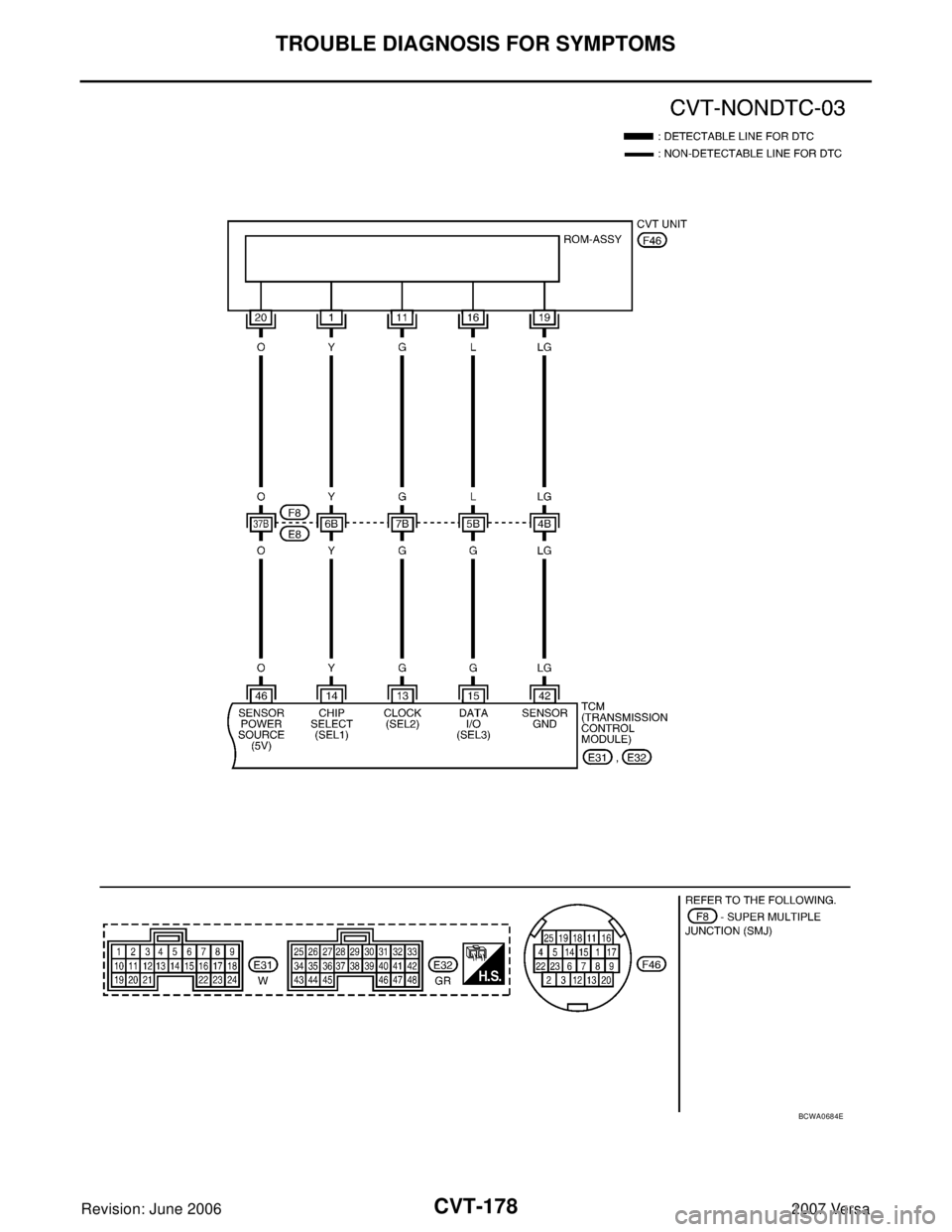

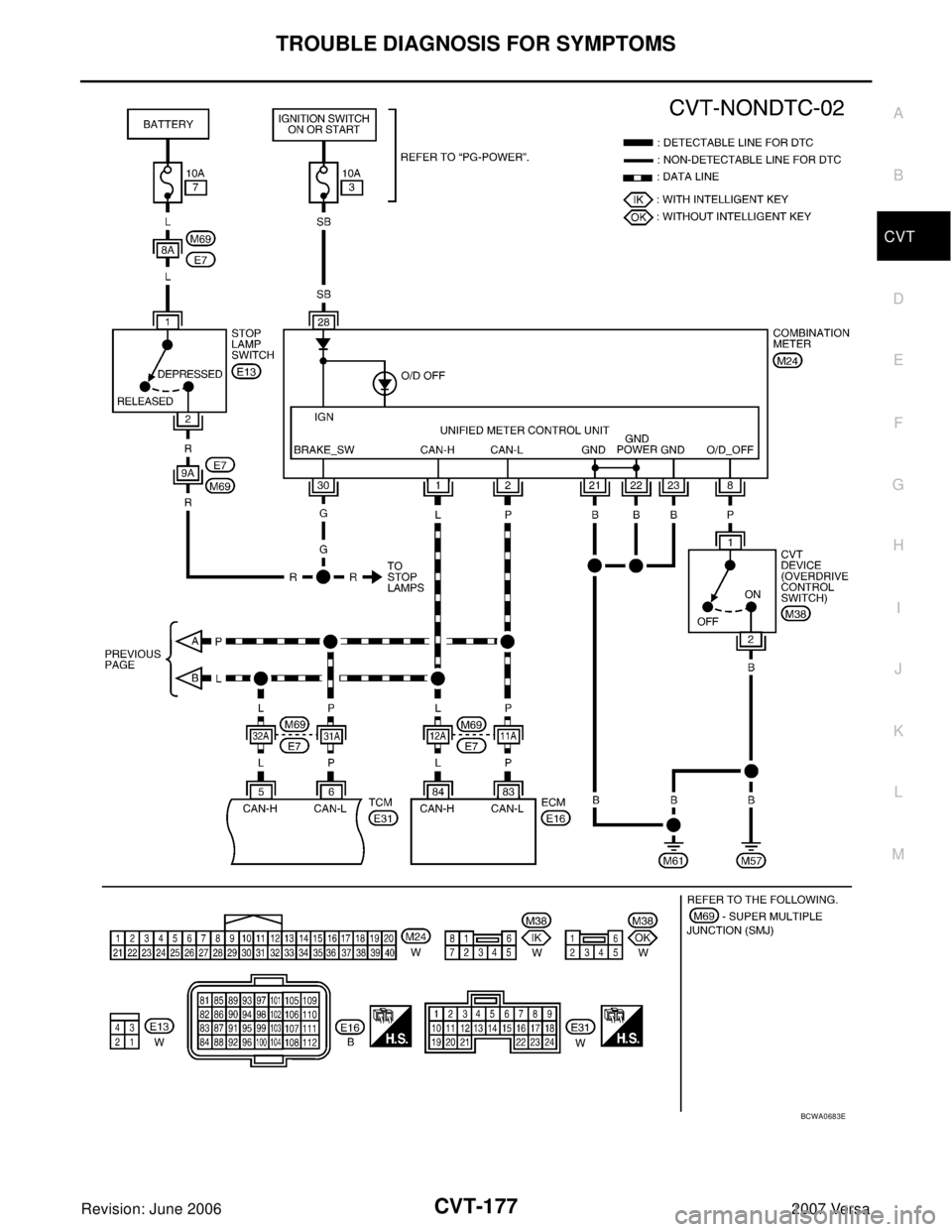

Wiring Diagram — CVT — NONDTCUCS00644
BCWA0682E

Page 1074 of 2896

NISSAN LATIO 2007  Service Repair Manual TROUBLE DIAGNOSIS FOR SYMPTOMS
CVT-177
D
E
F
G
H
I
J
K
L
MA
B
CVT
Revision: June 20062007 Versa
BCWA0683E

Page 1075 of 2896

NISSAN LATIO 2007  Service Repair Manual CVT-178
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: June 20062007 Versa
BCWA0684E

Page 1076 of 2896

NISSAN LATIO 2007  Service Repair Manual TROUBLE DIAGNOSIS FOR SYMPTOMS
CVT-179
D
E
F
G
H
I
J
K
L
MA
B
CVT
Revision: June 20062007 Versa
TCM terminal data are reference values, measured between each terminal and ground.
Te r m i n a lWire
c

Page 1077 of 2896

NISSAN LATIO 2007  Service Repair Manual CVT-180
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: June 20062007 Versa
O/D OFF Indicator Lamp Does Not Come OnUCS00645
SYMPTOM:
O/D OFF indicator lamp does not come on for about 2 seconds when turning i

Page 1078 of 2896

NISSAN LATIO 2007  Service Repair Manual TROUBLE DIAGNOSIS FOR SYMPTOMS
CVT-181
D
E
F
G
H
I
J
K
L
MA
B
CVT
Revision: June 20062007 Versa
5. DETECT MALFUNCTIONING ITEM
Check the following.
Harness and fuse for short or open between ignition

Page 1079 of 2896

NISSAN LATIO 2007  Service Repair Manual CVT-182
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: June 20062007 Versa
In “P” Position, Vehicle Moves Forward or Backward When PushedUCS00647
SYMPTOM:
Vehicle moves when it is pushed forward or back

Page 1080 of 2896

NISSAN LATIO 2007  Service Repair Manual TROUBLE DIAGNOSIS FOR SYMPTOMS
CVT-183
D
E
F
G
H
I
J
K
L
MA
B
CVT
Revision: June 20062007 Versa
5. CHECK TCM
1. Check TCM input/output signals. Refer to CVT-54, "
TCM Input/Output Signal Reference Val
