POWER DOOR LOCK SYSTEM
Revision: June 20062007 Versa
System DescriptionEIS0090V
Power is supplied at all times
through 40A fusible link (letter g , located in the fuse and fusible link box)
to BCM terminal 70
through 10A fuse [No. 8, located in the fuse block (J/B)]
to BCM terminal 57
through 10A fuse [No. 14, located in the fuse block (J/B)]
to key switch terminal 2 (without Intelligent Key system)
through 10A fuse [No. 31, located in the fuse block (J/B)]
to key switch and ignition knob switch terminals 2 and 4 (with Intelligent Key system).
When key switch is ON (key is inserted in ignition key cylinder), power is supplied
through key switch terminal 1 (without Intelligent Key system) or key switch and ignition knob terminal 1
(with Intelligent Key system)
to BCM terminal 37.
Ground is supplied
to BCM terminal 67
through body grounds M57 and M61.
LOCK OPERATION
When the door is locked with main power window and door lock/unlock switch, ground is supplied
to BCM terminal 45
through main power window and door lock and unlock switch terminals 17 and 18
through body grounds M57 and M61.
When the door is locked with power window and door lock/unlock switch RH, ground is supplied
to BCM terminal 45
through power window and door lock and unlock switch RH terminals 1 and 3
through body grounds M57 and M61.
When the door is locked with front door key cylinder switch LH, ground is supplied
to BCM terminal 8
through front door key cylinder switch LH terminals 1 and 2
through body grounds M57 and M61.
UNLOCK OPERATION
When the door is unlocked with main power window and door lock/unlock switch, ground is supplied
to BCM terminal 46
through main power window and door lock/unlock switch terminals 6 and 17
through body grounds M57 and M61.
When the door is unlocked with power window and door lock/unlock switch RH, ground is supplied
to BCM terminal 46
through power window and door lock and unlock switch RH terminals 2 and 3
through body grounds M57 and M61.
When the door is unlocked with front door key cylinder switch LH, ground is supplied
to BCM terminal 7
through front door key cylinder switch LH terminals 2 and 3
through body grounds M57 and M61.
When the front door switch LH is ON (door is OPEN), ground is supplied
to BCM terminal 47
through front door switch LH terminal 2
through front door switch LH case ground.
Page 514 of 2896

POWER DOOR LOCK SYSTEM
BL-25
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa
When the front door switch RH is ON (door is OPEN), ground is supplied
to BCM terminal 12
through front door switch RH terminal 2
through front door switch RH case ground.
When the rear door switch LH is ON (door is OPEN), ground is supplied
to BCM terminal 48
through rear door switch LH terminal 1
through rear door switch LH case ground.
When the rear door switch RH is ON (door is OPEN), ground is supplied
to BCM terminal 13
through rear door switch RH terminal 1
through rear door switch RH case ground.
When the back door switch is ON (back door is OPEN), ground is supplied
to BCM terminal 43
through back door switch terminals 3 and 4
through body grounds B117, B132 and D402.
OUTLINE
Functions available by operating the inside door lock and unlock switches
Interlocked with the locking operation of door lock and unlock switch, door lock actuators of all doors are
locked.
Interlocked with the unlocking operation of door lock and unlock switch, door lock actuators of all doors
are unlocked.
Functions available by operating the front door key cylinder switch LH
Interlocked with the locking operation of front door key cylinder switch LH, door lock actuators of all doors
are locked.
When front door key cylinder switch LH is unlocked, front door lock actuator LH is unlocked.
When front door key cylinder switch LH is unlocked for the second time within 5 seconds after the first
operation, door lock actuators on all doors are unlocked.
Key reminder door system
When door lock and unlock switch is operated to lock doors with ignition key inserted in key cylinder and any
door open, all door lock actuators are locked and then unlocked.
CAN Communication System DescriptionEIS0090W
Refer to LAN-4, "SYSTEM DESCRIPTION" .
Page 515 of 2896
BL-26
POWER DOOR LOCK SYSTEM
Revision: June 20062007 Versa

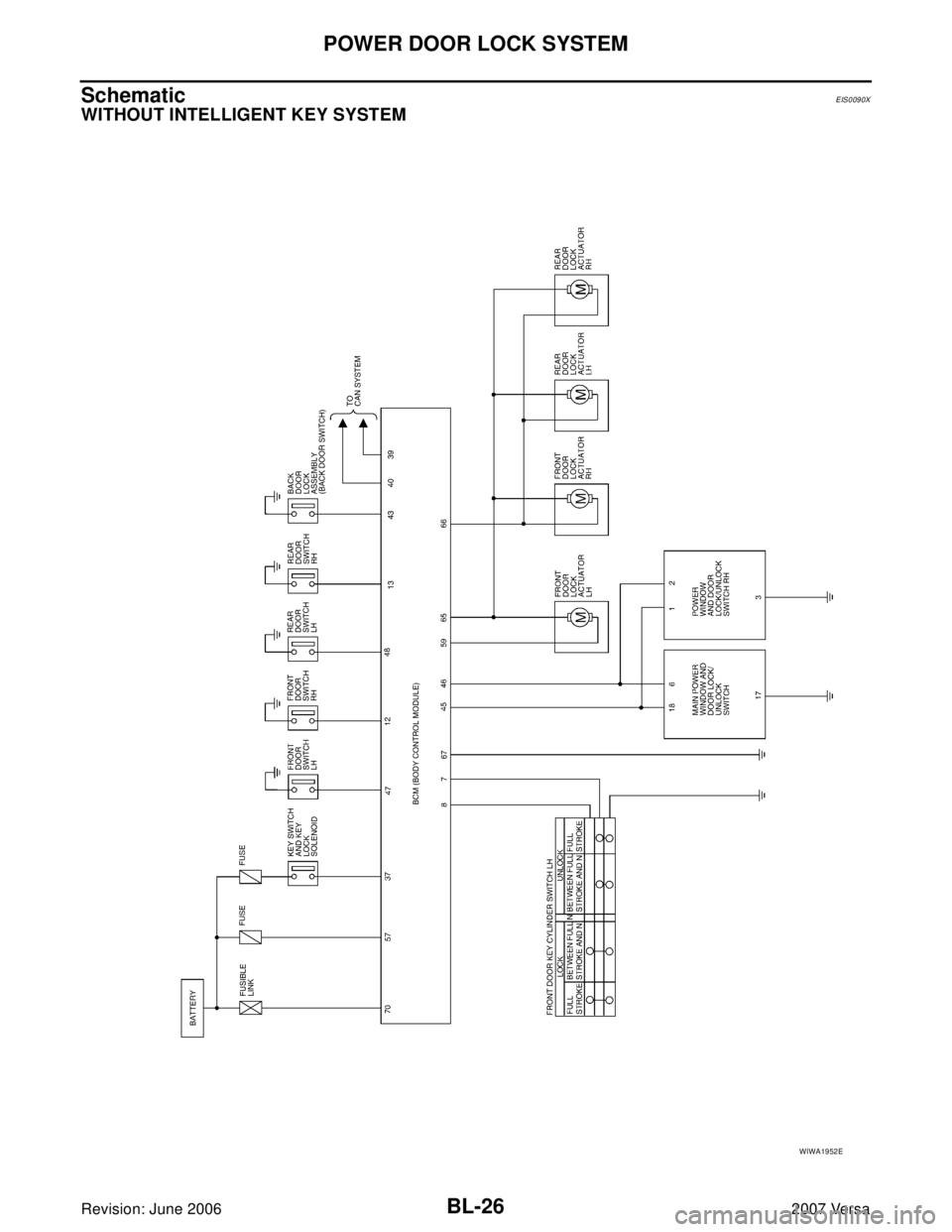

SchematicEIS0090X
WITHOUT INTELLIGENT KEY SYSTEM
WIWA1952E
Page 516 of 2896
POWER DOOR LOCK SYSTEM
BL-27
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa

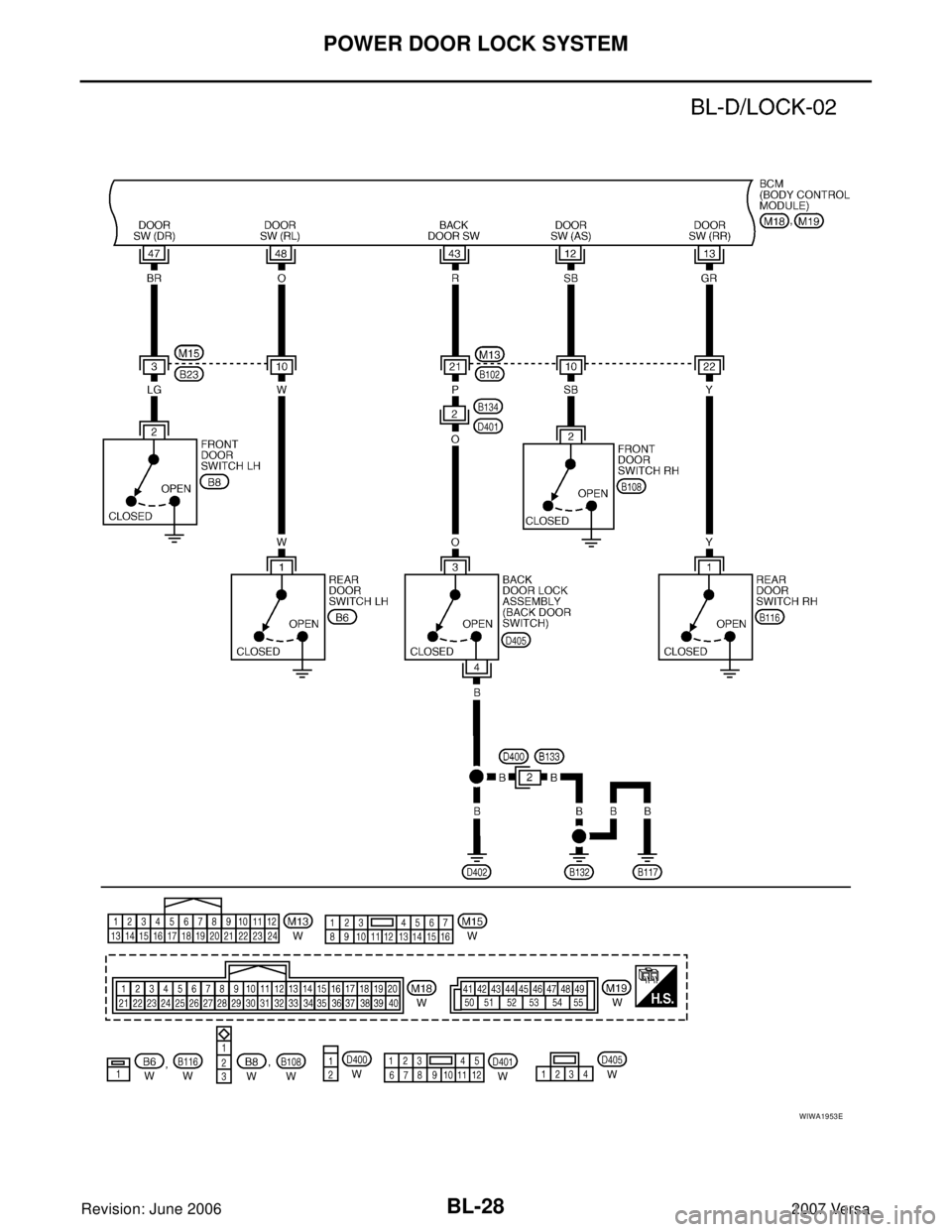

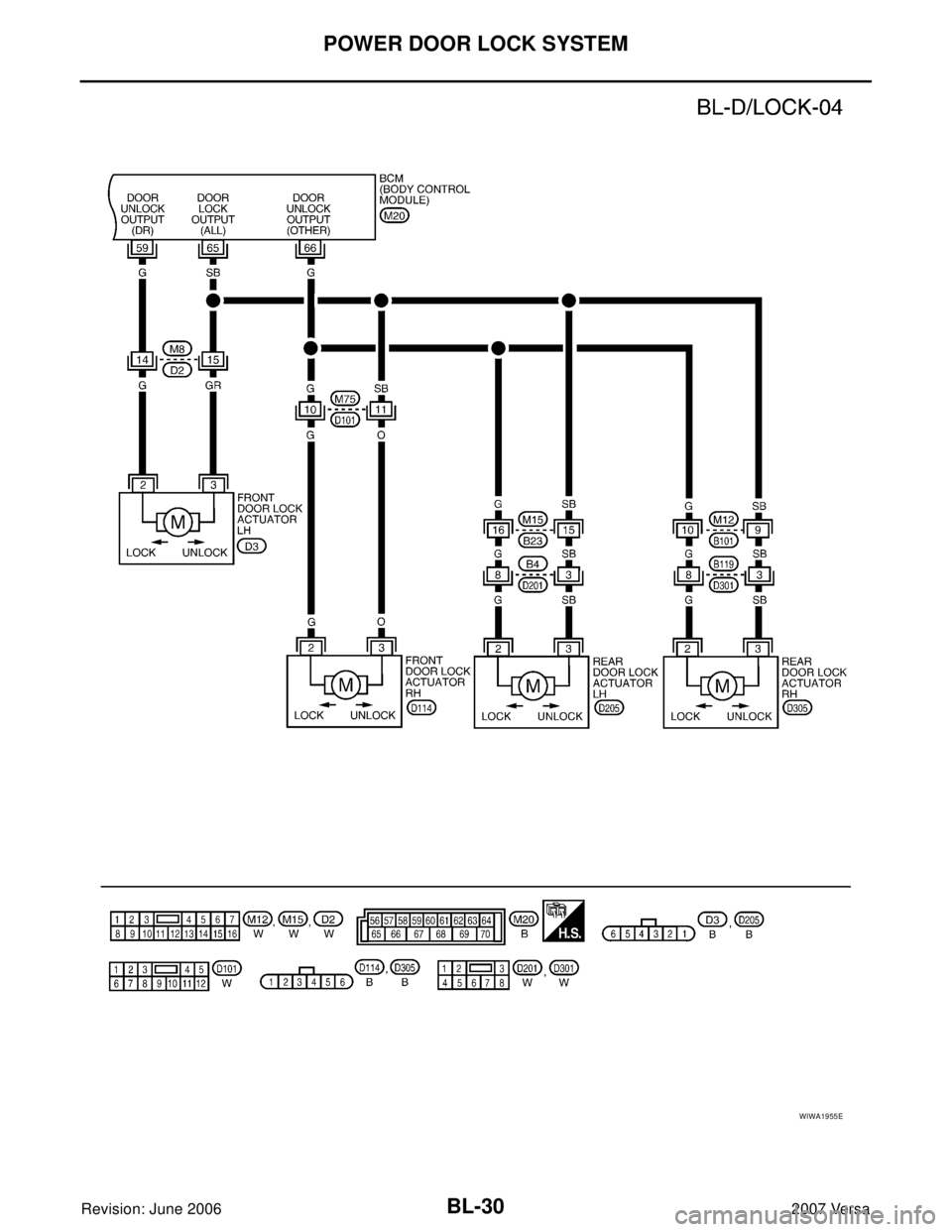

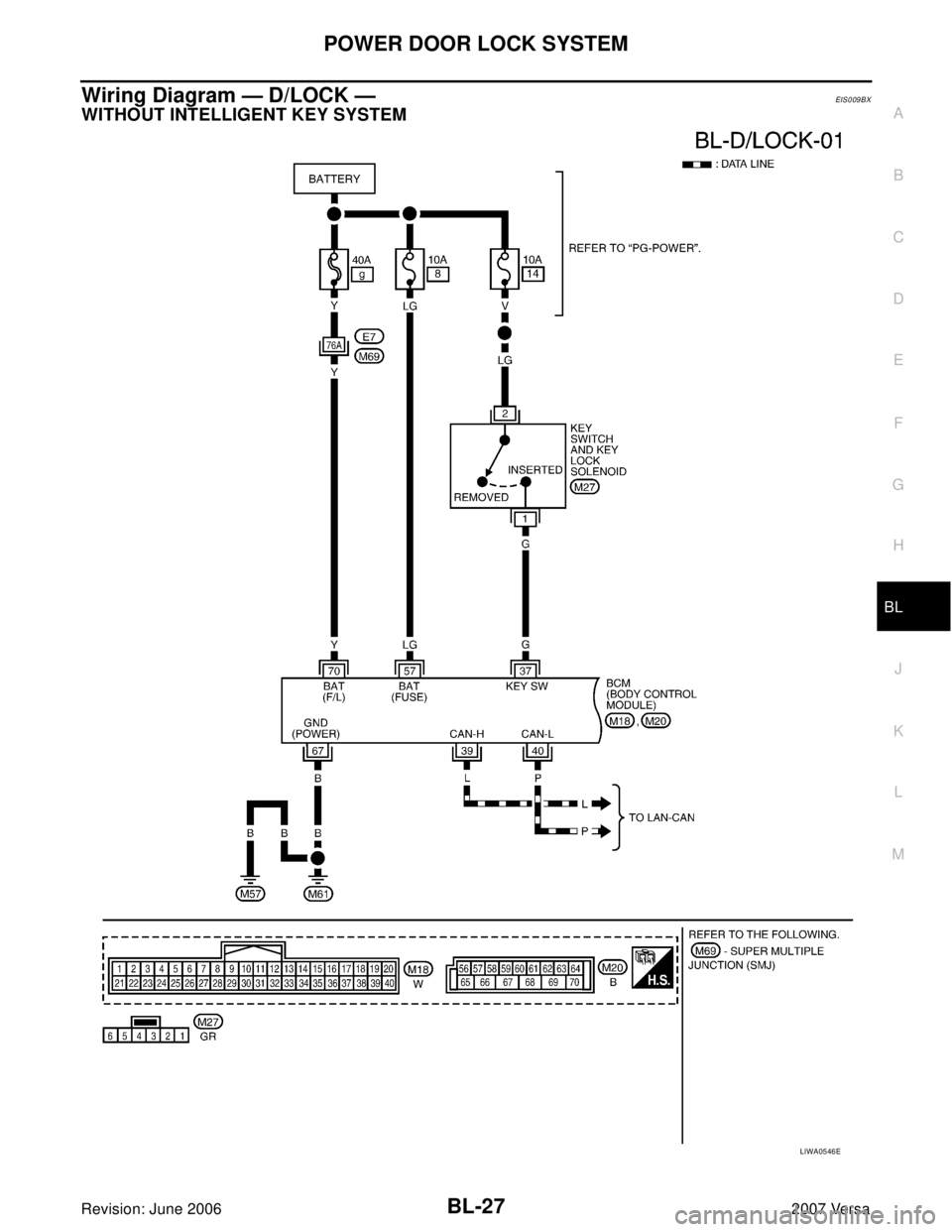

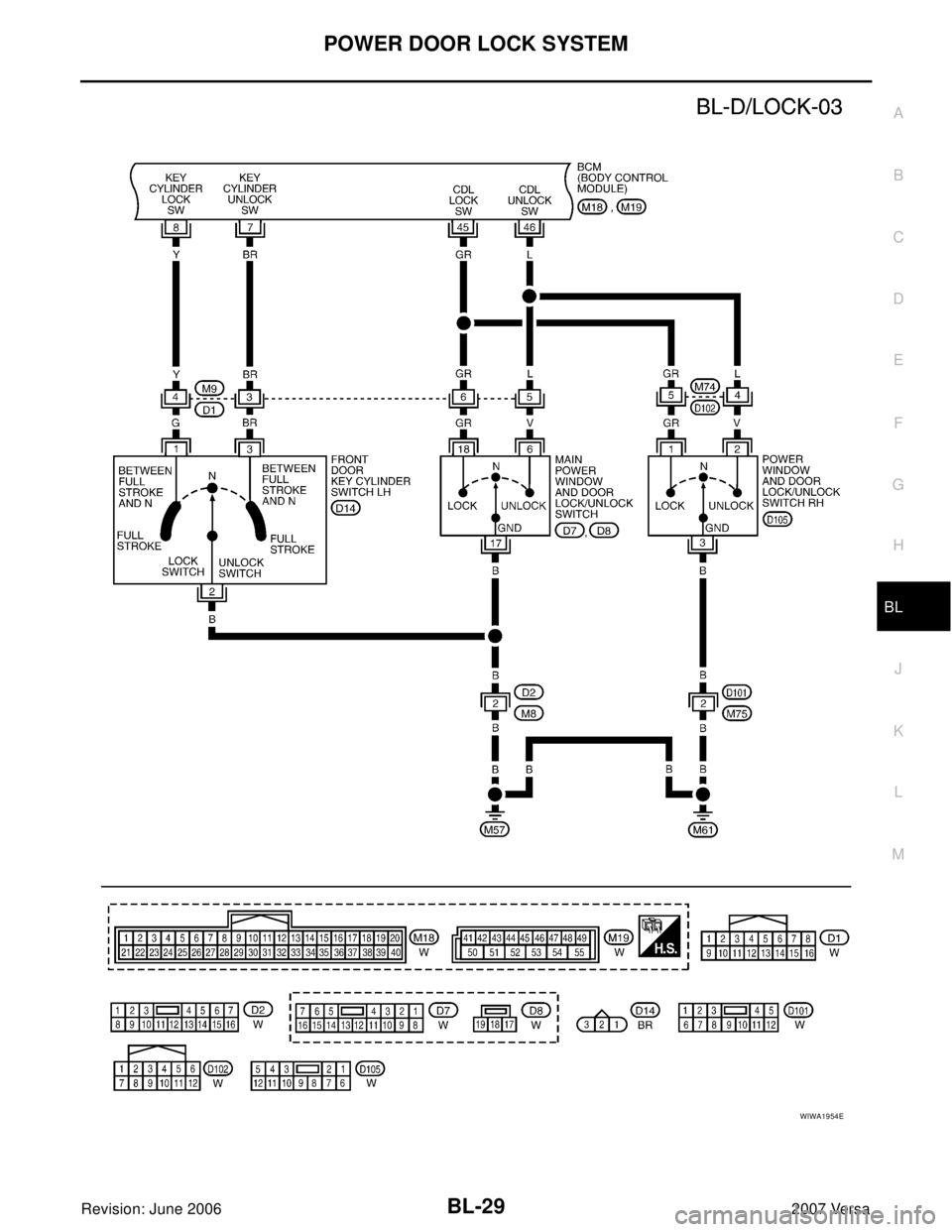

Wiring Diagram — D/LOCK —EIS009BX
WITHOUT INTELLIGENT KEY SYSTEM
LIWA0546E
Page 517 of 2896
BL-28
POWER DOOR LOCK SYSTEM
Revision: June 20062007 Versa
WIWA1953E
Page 518 of 2896
POWER DOOR LOCK SYSTEM
BL-29
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa
WIWA1954E
Page 519 of 2896
BL-30
POWER DOOR LOCK SYSTEM
Revision: June 20062007 Versa
WIWA1955E
Page 520 of 2896
POWER DOOR LOCK SYSTEM
BL-31
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa

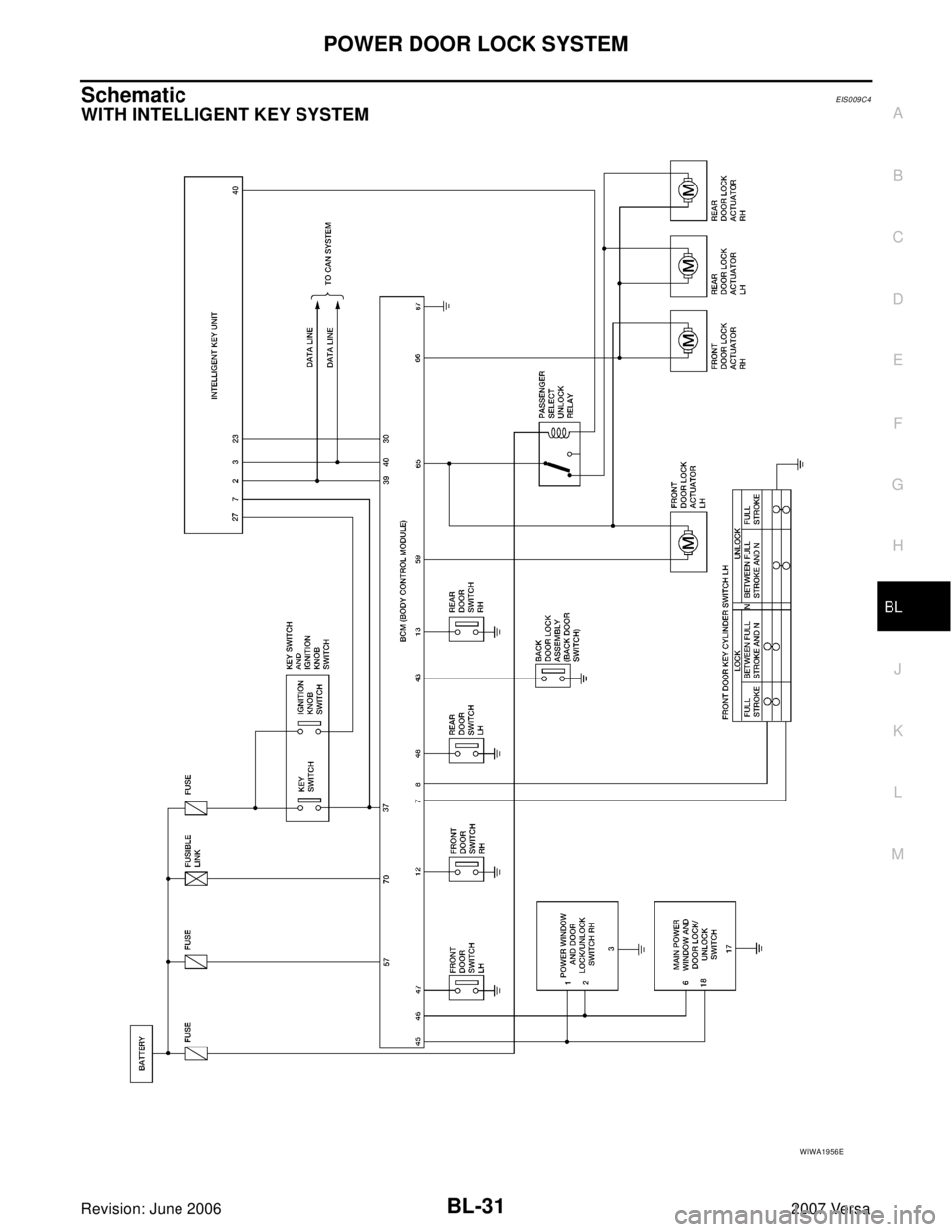

SchematicEIS009C4
