Page 2257 of 2896

NISSAN LATIO 2007 Service Repair Manual FRONT FOG LAMP
LT-49
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: June 20062007 Versa
Aiming AdjustmentEKS00HXJ
The front fog lamp is a semi-sealed beam type which uses a replaceable halogen bulb. Before perfo

Page 2258 of 2896

NISSAN LATIO 2007 Service Repair Manual LT-50
FRONT FOG LAMP
Revision: June 20062007 Versa
Removal and InstallationEKS00HXL
REMOVAL
1. Turn over the fender protector and undercover to obtain work space between the fender protector and
fende

Page 2259 of 2896

NISSAN LATIO 2007 Service Repair Manual TURN SIGNAL AND HAZARD WARNING LAMPS
LT-51
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: June 20062007 Versa
TURN SIGNAL AND HAZARD WARNING LAMPSPFP:26120
Component Parts and Harness Connector LocationEKS00HXZ

Page 2260 of 2896

NISSAN LATIO 2007 Service Repair Manual LT-52
TURN SIGNAL AND HAZARD WARNING LAMPS
Revision: June 20062007 Versa
Ground is supplied
to front combination lamp LH terminal 5
through grounds E15 and E24,
to rear combination lamp LH termina

LT-52
TURN SIGNAL AND HAZARD WARNING LAMPS
Revision: June 20062007 Versa
Ground is supplied
to front combination lamp LH terminal 5
through grounds E15 and E24,
to rear combination lamp LH terminal 1
through grounds B7 and B19.
The BCM also sends a request, via the CAN communication lines, to the combination meter to flash the left
turn signal indicator. The unified meter control unit in the combination meter supplies ground to the left turn
signal indicator lamp and activates the audible turn signal indicator.
With power, ground and input supplied, the BCM controls the flashing of the turn signal lamps.
RH Turn Signal Lamp
When turn signal switch is moved to the right turn position, the BCM receives an input signal requesting right
turn signals to flash. The BCM then supplies power
through BCM terminal 61
to front combination lamp RH terminal 4 and
to rear combination lamp RH terminal 6.
Ground is supplied
to front combination lamp RH terminal 5
through grounds E15 and E24,
to rear combination lamp RH terminal 1
through grounds B117, B132 and B402.
The BCM also sends a request, via the CAN communication lines, to the combination meter to flash the right
turn signal indicator. The unified meter control unit in the combination meter supplies ground to the right turn
signal indicator lamp and activates the audible turn signal indicator.
With power, ground and input supplied, the BCM controls the flashing of the turn signal lamps.
HAZARD LAMP OPERATION
Power is supplied at all times
through 40A fusible link (letter g , located in fuse, fusible link and relay box)
to BCM terminal 70,
through 10A fuse [No. 8, located in fuse block (J/B)]
to BCM terminal 57,
through 10A fuse [No. 13, located in fuse block (J/B)]
to combination meter terminal 27.
Ground is supplied
to hazard switch terminal 1,
to BCM terminal 67, and
to combination meter terminals 21, 22 and 23
through grounds M57 and M61.
When hazard switch is depressed, ground is supplied
through hazard switch terminal 2
to BCM terminal 29.
BCM then supplies power
to front combination lamp LH terminal 4 and
to rear combination lamp LH terminal 6
through BCM terminal 60,
to front combination lamp RH terminal 4 and
to rear combination lamp RH terminal 6
through BCM terminal 61.
Ground is supplied
to front combination lamp LH and RH terminal 5
through grounds E15 and E24,

Page 2261 of 2896

NISSAN LATIO 2007 Service Repair Manual TURN SIGNAL AND HAZARD WARNING LAMPS
LT-53
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: June 20062007 Versa
to rear combination lamp LH terminal 1
through grounds B7 and B19,
to rear combination lamp RH te

TURN SIGNAL AND HAZARD WARNING LAMPS
LT-53
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: June 20062007 Versa
to rear combination lamp LH terminal 1
through grounds B7 and B19,
to rear combination lamp RH terminal 1
through grounds B117, B132 and D402.
The BCM also supplies input to combination meter across the CAN communication lines. This input is pro-
cessed by unified meter control unit in combination meter, which in turn supplies ground to the left and right
turn signal indicator lamps.
With power and input supplied, BCM controls flashing of hazard warning lamps.
REMOTE KEYLESS ENTRY SYSTEM OPERATION
Power is supplied at all times
through 40A fusible link (letter g , located in fuse, fusible link and relay box)
to BCM terminal 70,
through 10A fuse [No. 13, located in fuse block (J/B)]
to combination meter terminal 27.
Ground is supplied
to BCM terminal 67 and
to combination meter terminals 21, 22 and 23
through grounds M57 and M61.
When the remote keyless entry system is triggered by input from the keyfob, the BCM supplies power
through BCM terminal 60
to front combination lamp LH terminal 4 and
to rear combination lamp LH terminal 6,
through BCM terminal 61
to front turn signal lamp RH terminal 4 and
to rear combination lamp RH terminal 6.
Ground is supplied
to front combination lamp LH and RH terminals 5
through grounds E15 and E24,
to rear combination lamp LH terminal 1
through grounds B7 and B19,
to rear combination lamp RH terminal 1
through grounds B117, B132 and D402.
The BCM also supplies input to combination meter via the CAN communication lines. This input is processed
by the unified meter control unit in combination meter, which in turn supplies ground to the left and right turn
signal indicator lamps.
With power and ground supplied, BCM controls flashing of hazard warning lamps when keyfob is used to acti-
vate remote keyless entry system.
COMBINATION SWITCH READING FUNCTION
Refer toBCS-3, "COMBINATION SWITCH READING FUNCTION" .
CAN Communication System DescriptionEKS00HY1
Refer to LAN-4, "CAN Communication System" .

Page 2262 of 2896

NISSAN LATIO 2007 Service Repair Manual LT-54
TURN SIGNAL AND HAZARD WARNING LAMPS
Revision: June 20062007 Versa

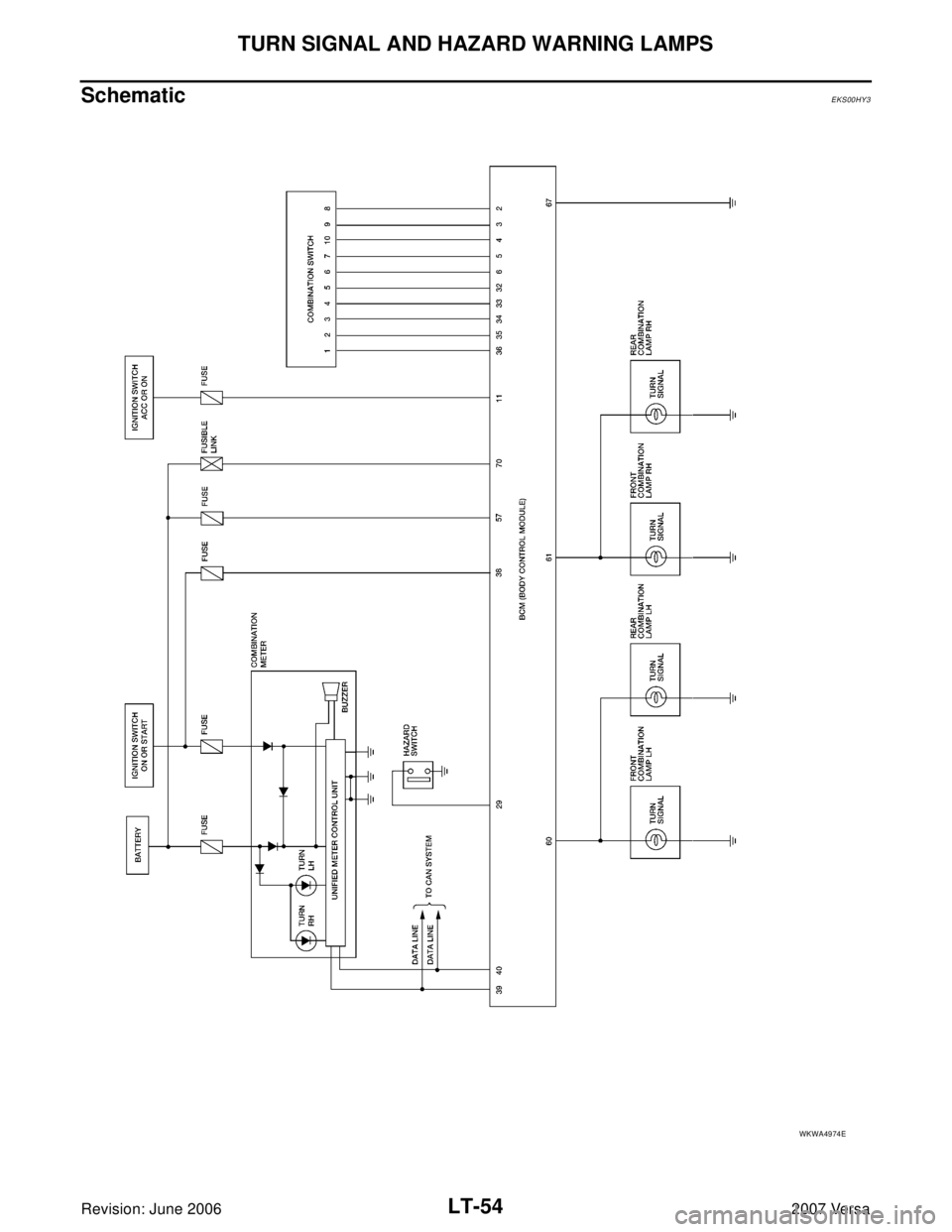

SchematicEKS00HY3
WKWA4974E

Page 2263 of 2896

NISSAN LATIO 2007 Service Repair Manual TURN SIGNAL AND HAZARD WARNING LAMPS
LT-55
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: June 20062007 Versa

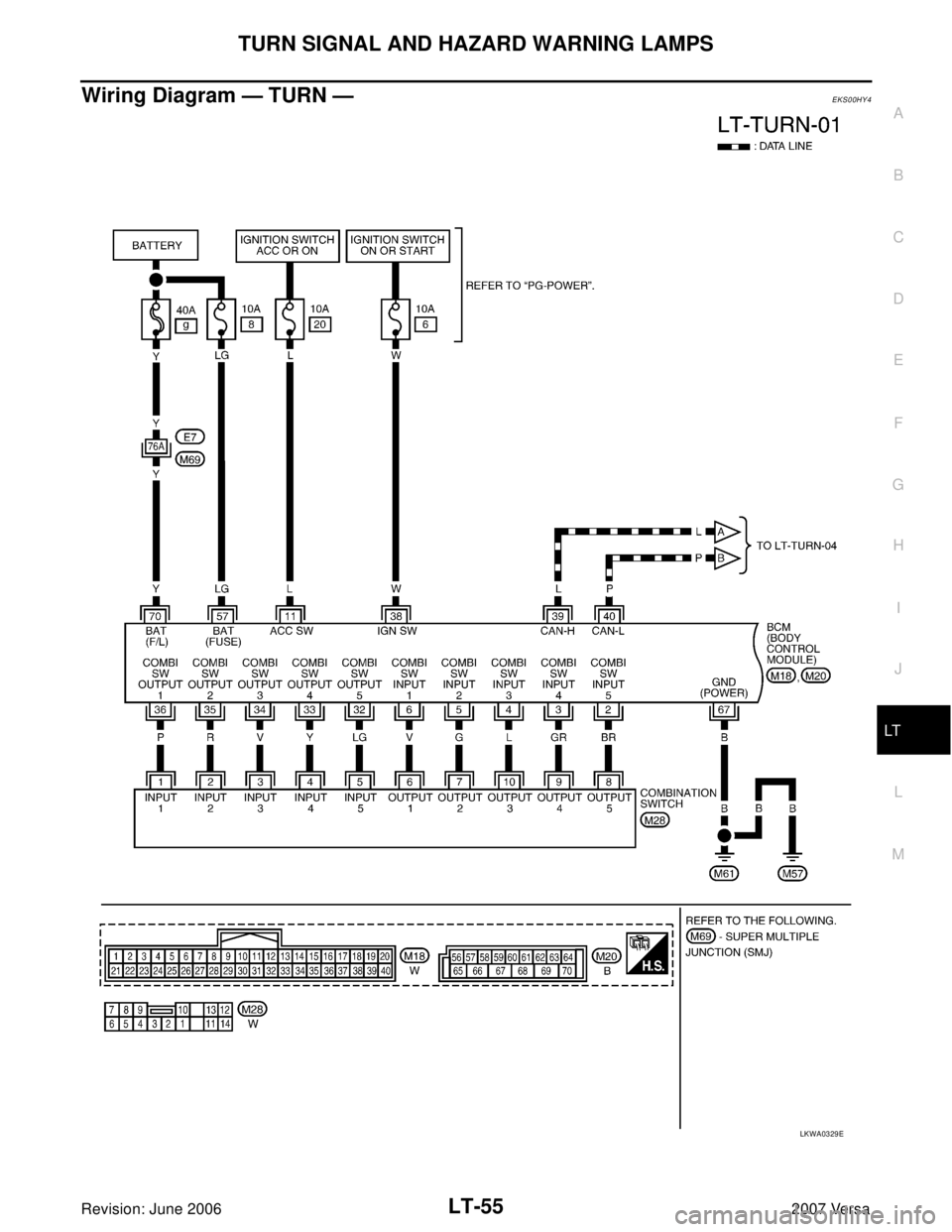

Wiring Diagram — TURN —EKS00HY4
LKWA0329E

Page 2264 of 2896

NISSAN LATIO 2007 Service Repair Manual LT-56
TURN SIGNAL AND HAZARD WARNING LAMPS
Revision: June 20062007 Versa

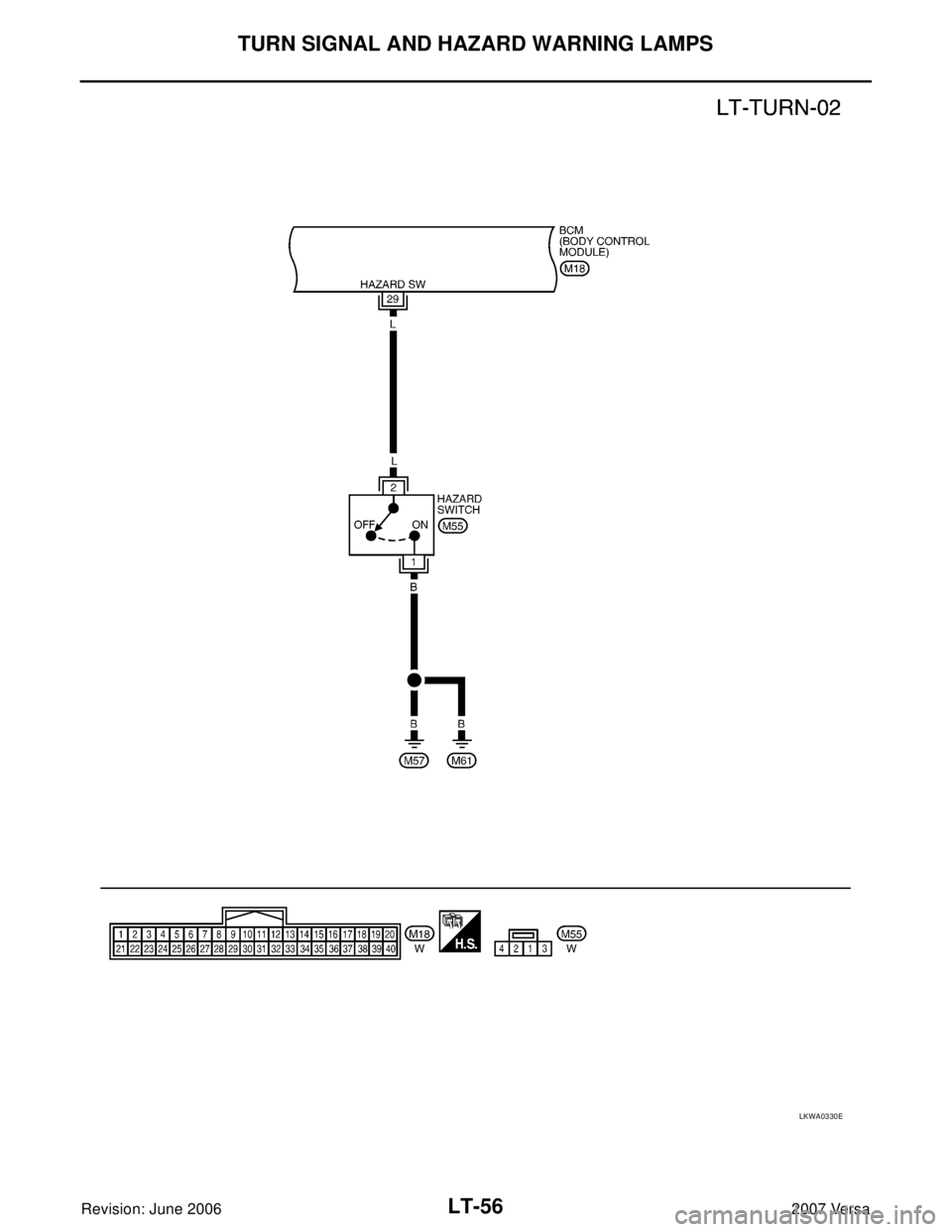

LKWA0330E
