FORD MONDEO 1993  Service Repair Manual 12•32 Wiring diagrams

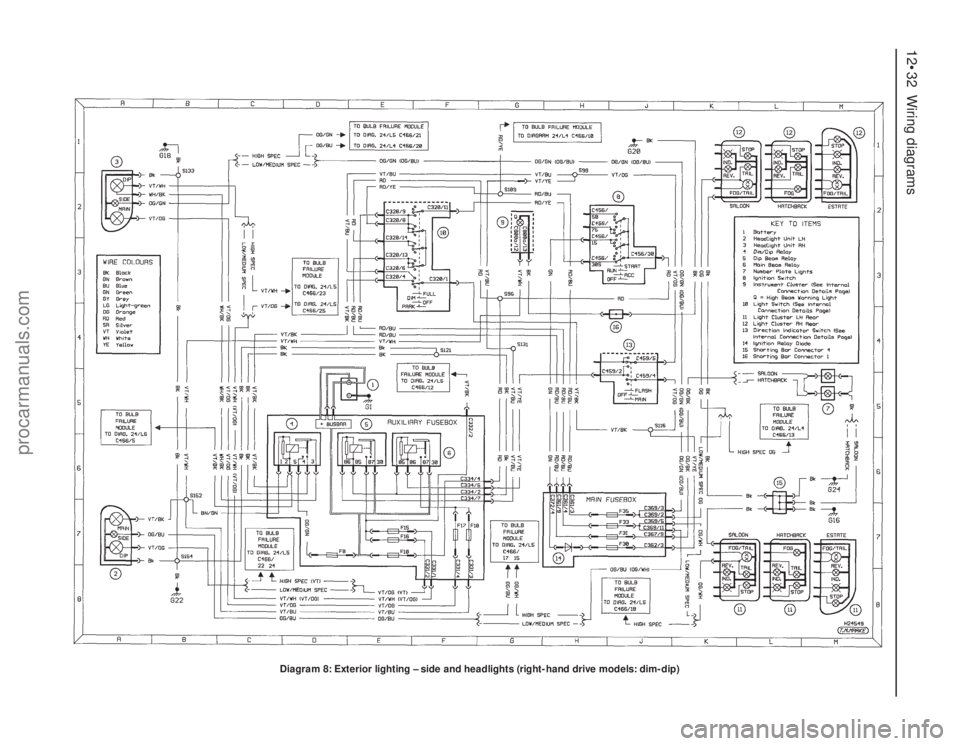

Diagram 8: Exterior lighting – side and headlights (right-hand drive models: dim-dip)
procarmanuals.com

Page 234 of 279

FORD MONDEO 1993  Service Repair Manual Wiring diagrams  12•33
12

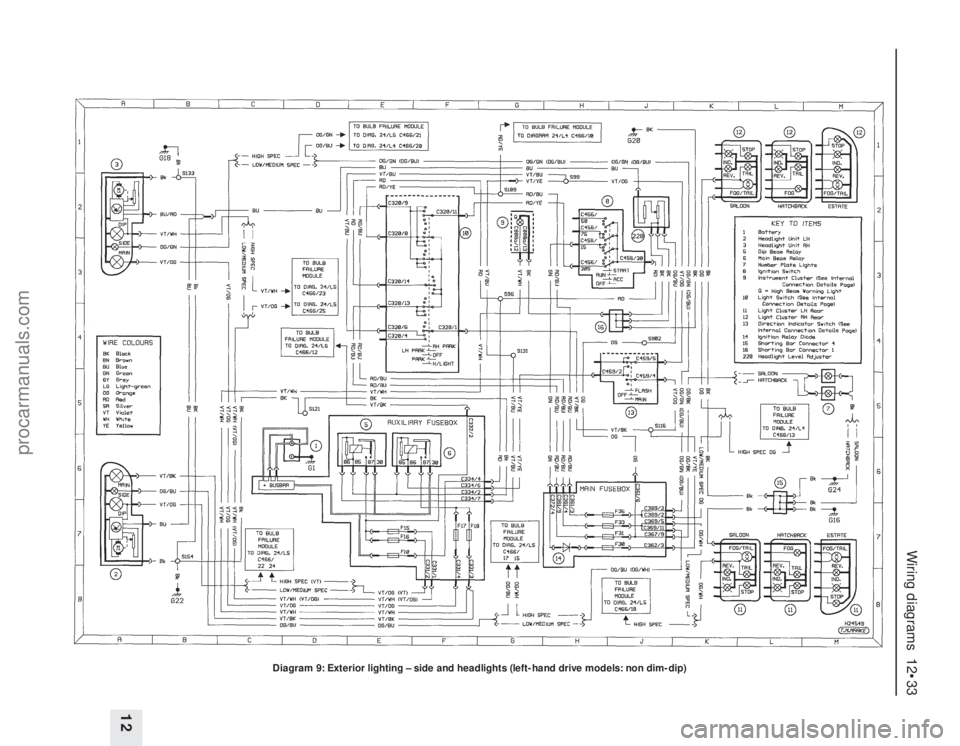

Diagram 9: Exterior lighting – side and headlights (left-hand drive models: non dim-dip)
procarmanuals.com

Page 235 of 279

FORD MONDEO 1993  Service Repair Manual 12•34 Wiring diagrams

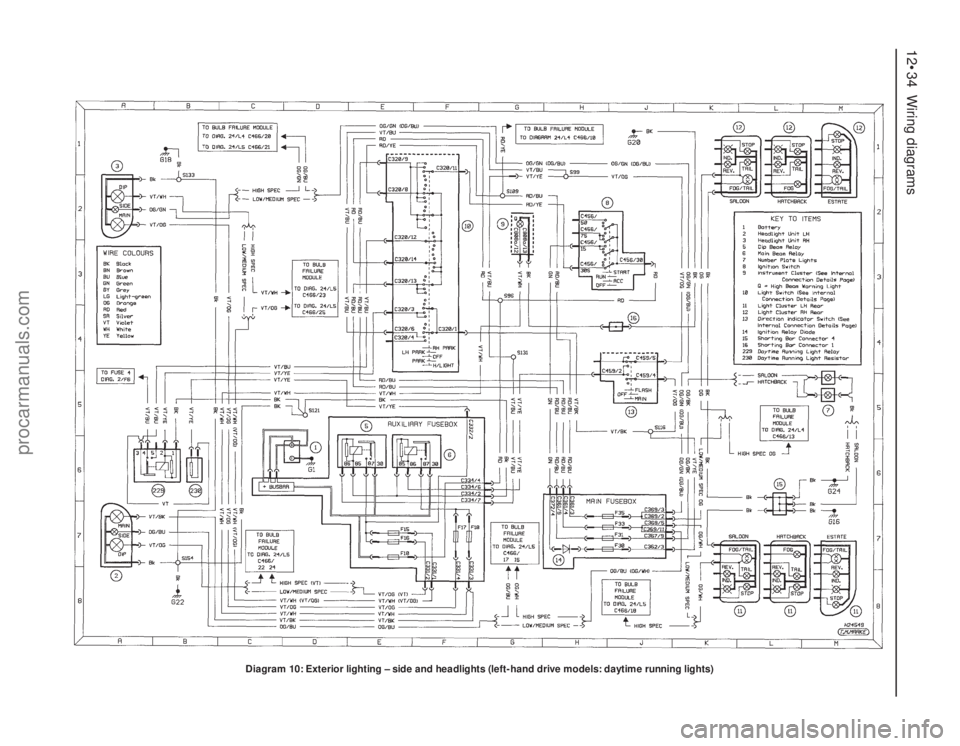

Diagram 10: Exterior lighting – side and headlights (left-hand drive models: daytime running lights)
procarmanuals.com

Page 236 of 279

FORD MONDEO 1993  Service Repair Manual Wiring diagrams  12•35
12
Diagram 11: Exterior lighting – hazard flasher and direction indicators
procarmanuals.com

Page 237 of 279

FORD MONDEO 1993  Service Repair Manual 12•36 Wiring diagrams

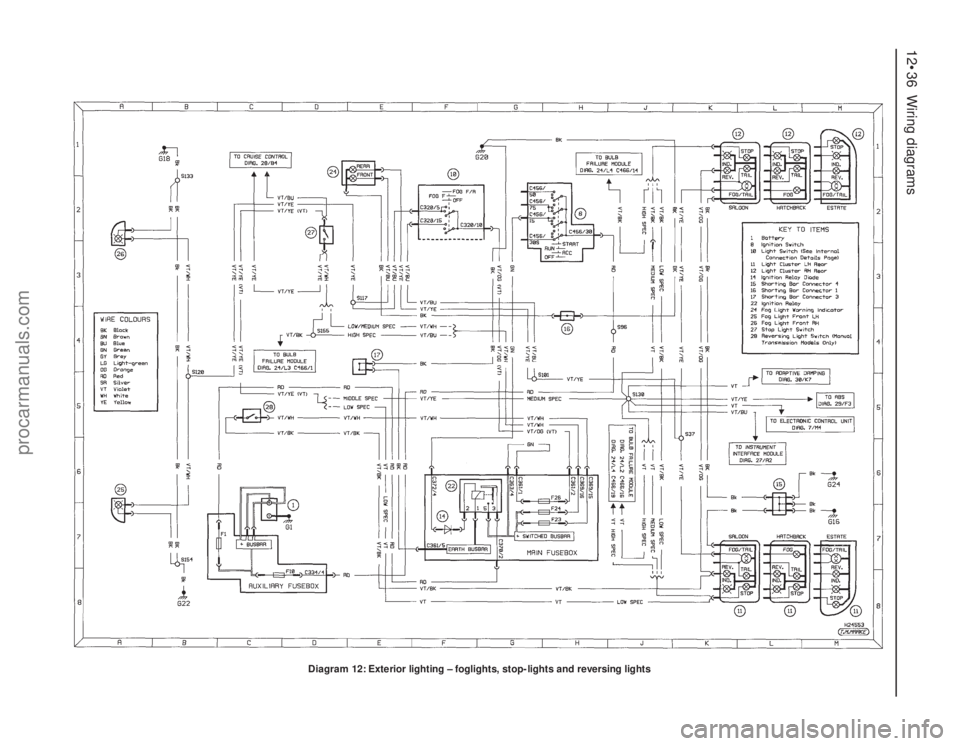

Diagram 12: Exterior lighting – foglights, stop-lights and reversing lights
procarmanuals.com

Page 238 of 279

FORD MONDEO 1993  Service Repair Manual Wiring diagrams  12•37
12

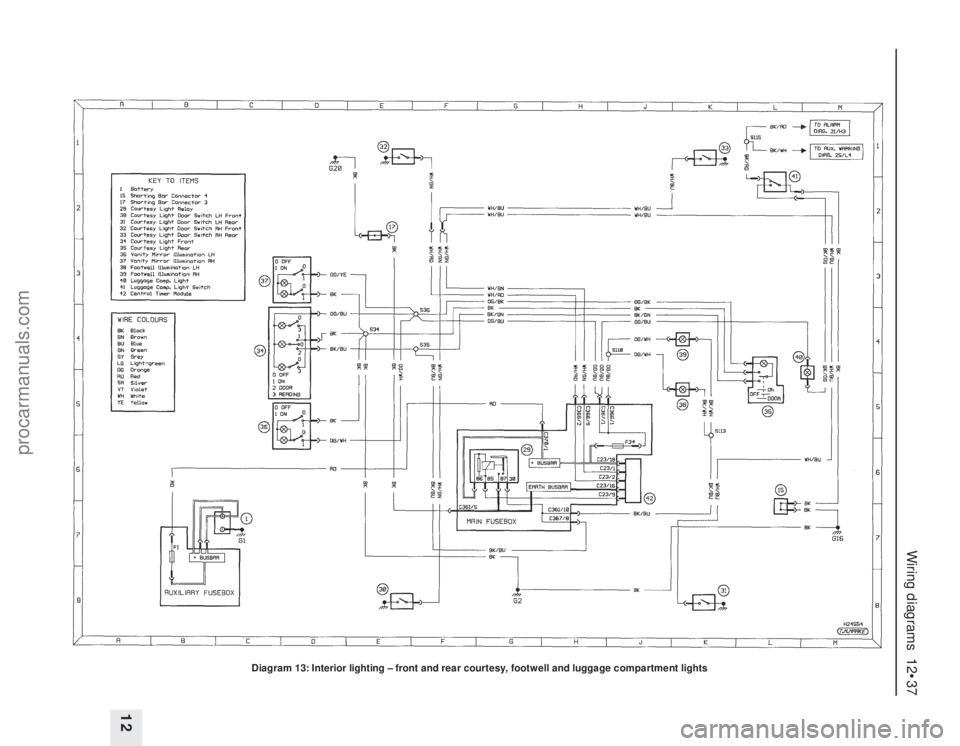

Diagram 13: Interior lighting – front and rear courtesy, footwell and luggage compartment lights
procarmanuals.com

Page 239 of 279

FORD MONDEO 1993  Service Repair Manual 12•38 Wiring diagrams

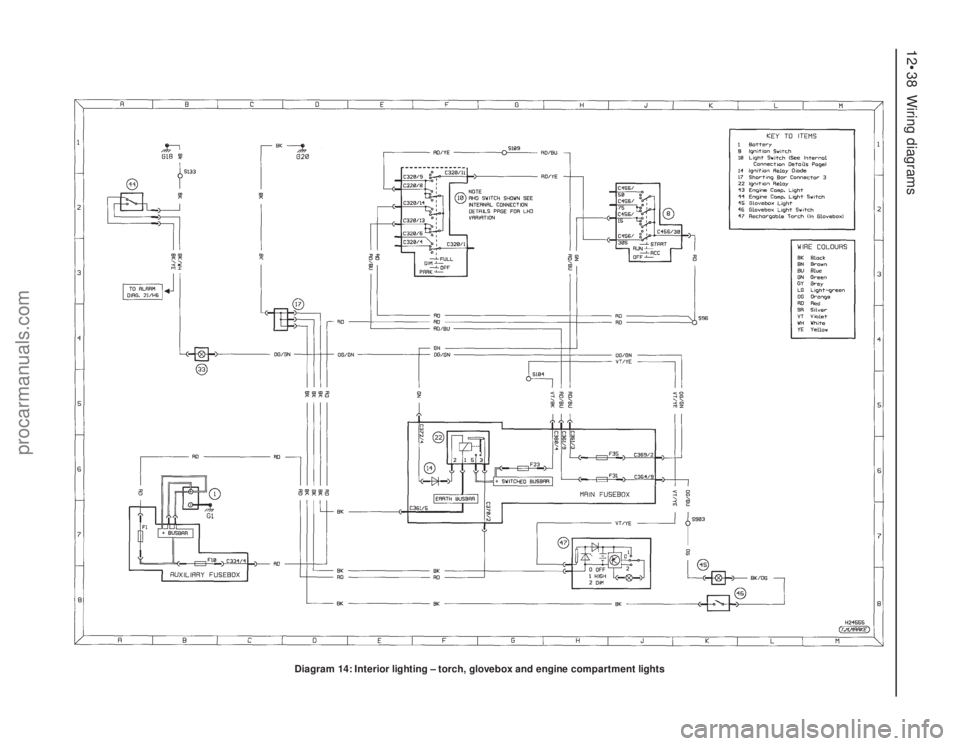

Diagram 14: Interior lighting – torch, glovebox and engine compartment lights
procarmanuals.com

Page 240 of 279

FORD MONDEO 1993  Service Repair Manual Wiring diagrams  12•39
12
Diagram 15: Interior illumination
