1993 FORD MONDEO Service Repair Manual

Page 241 of 279

FORD MONDEO 1993  Service Repair Manual 12•40 Wiring diagrams
Diagram 16: Wash/wipe and heated washer jets
procarmanuals.com

Page 242 of 279

FORD MONDEO 1993  Service Repair Manual Wiring diagrams  12•41
12

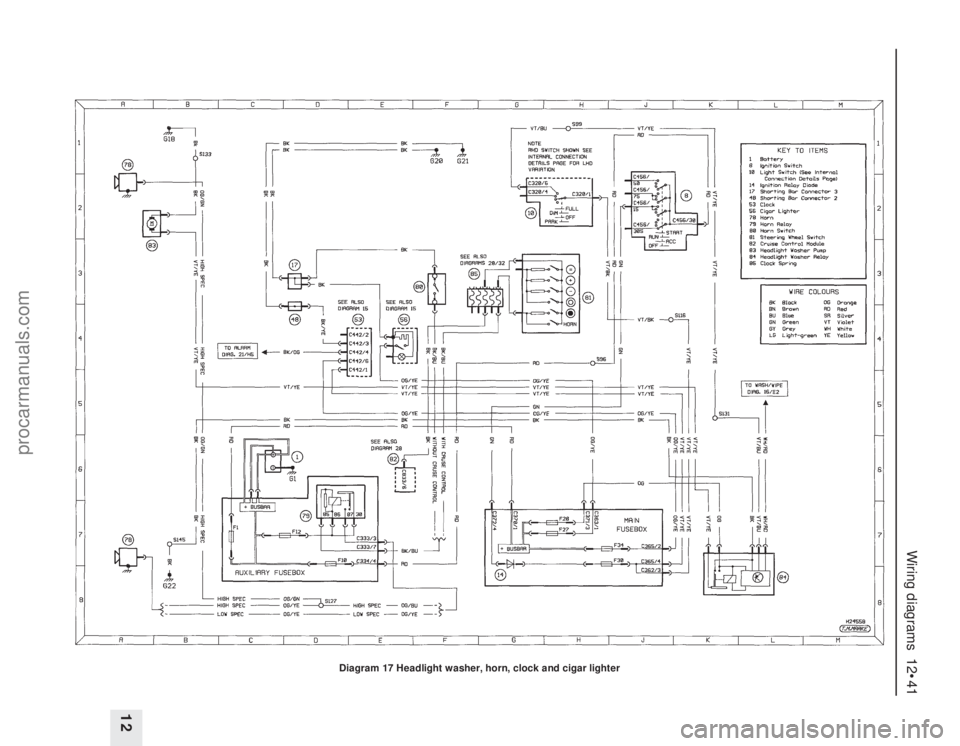

Diagram 17 Headlight washer, horn, clock and cigar lighter
procarmanuals.com

Page 243 of 279

FORD MONDEO 1993  Service Repair Manual 12•42 Wiring diagrams

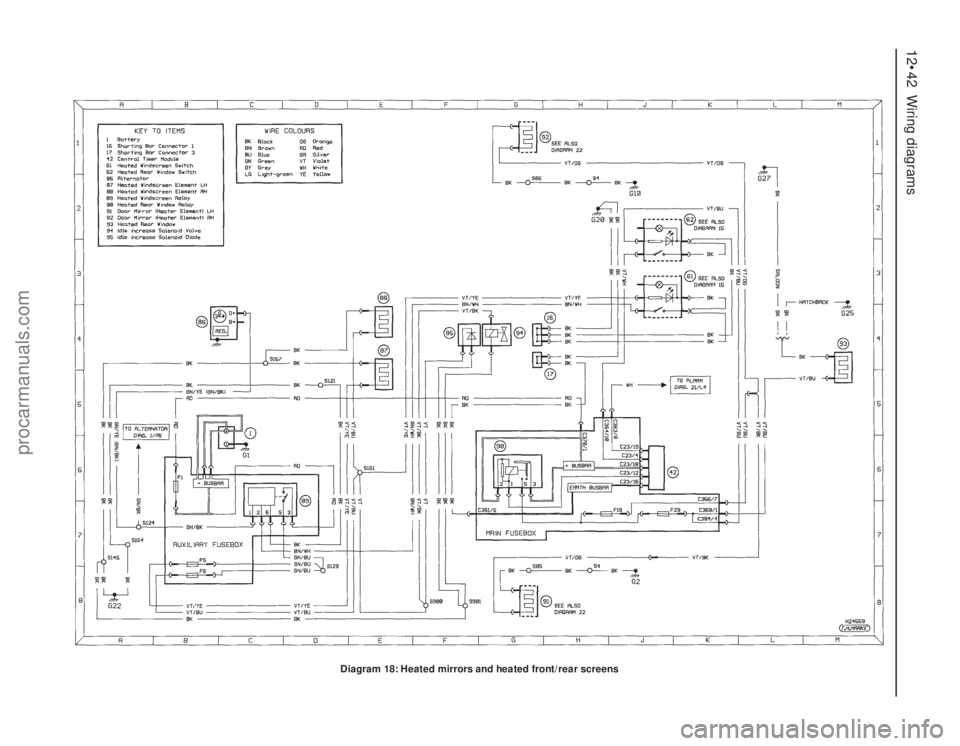

Diagram 18: Heated mirrors and heated front/rear screens
procarmanuals.com

Page 244 of 279

FORD MONDEO 1993  Service Repair Manual Wiring diagrams  12•43
12

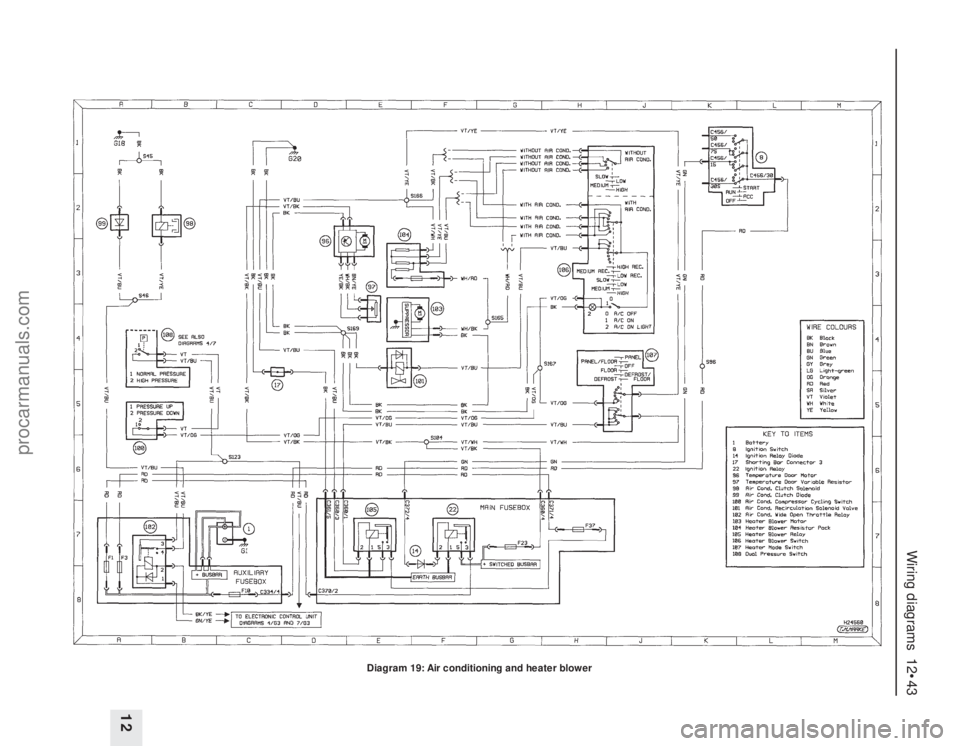

Diagram 19: Air conditioning and heater blower
procarmanuals.com

Page 245 of 279

FORD MONDEO 1993  Service Repair Manual 12•44 Wiring diagrams
Diagram 20: Central door locking (with double locking)
procarmanuals.com

Page 246 of 279

FORD MONDEO 1993  Service Repair Manual Wiring diagrams  12•45
12

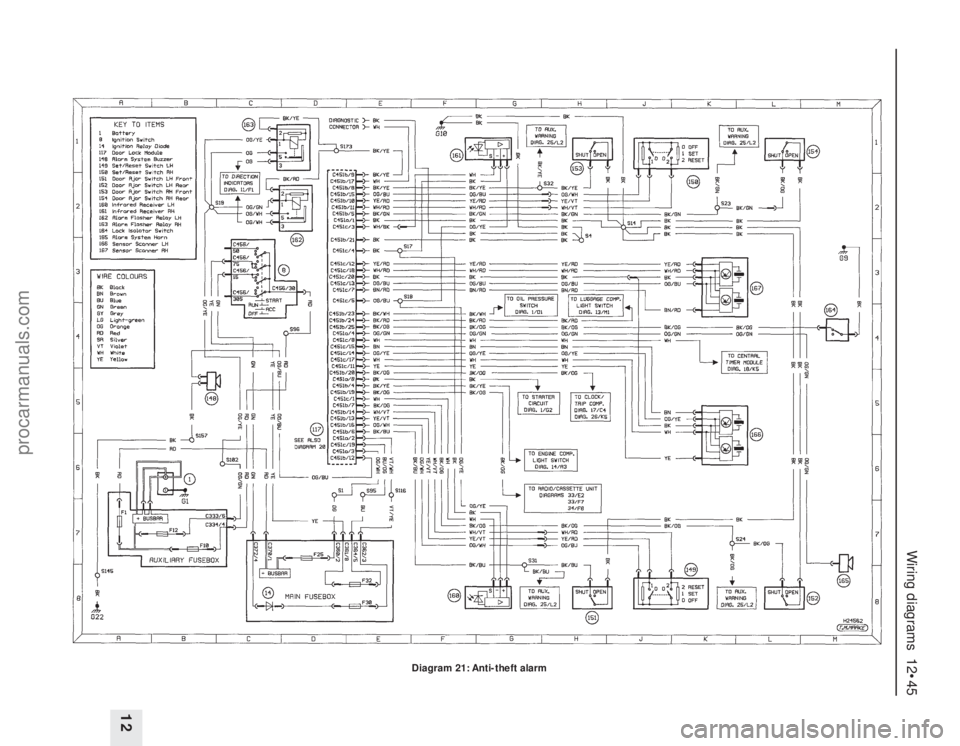

Diagram 21: Anti-theft alarm
procarmanuals.com

Page 247 of 279

FORD MONDEO 1993  Service Repair Manual 12•46 Wiring diagrams

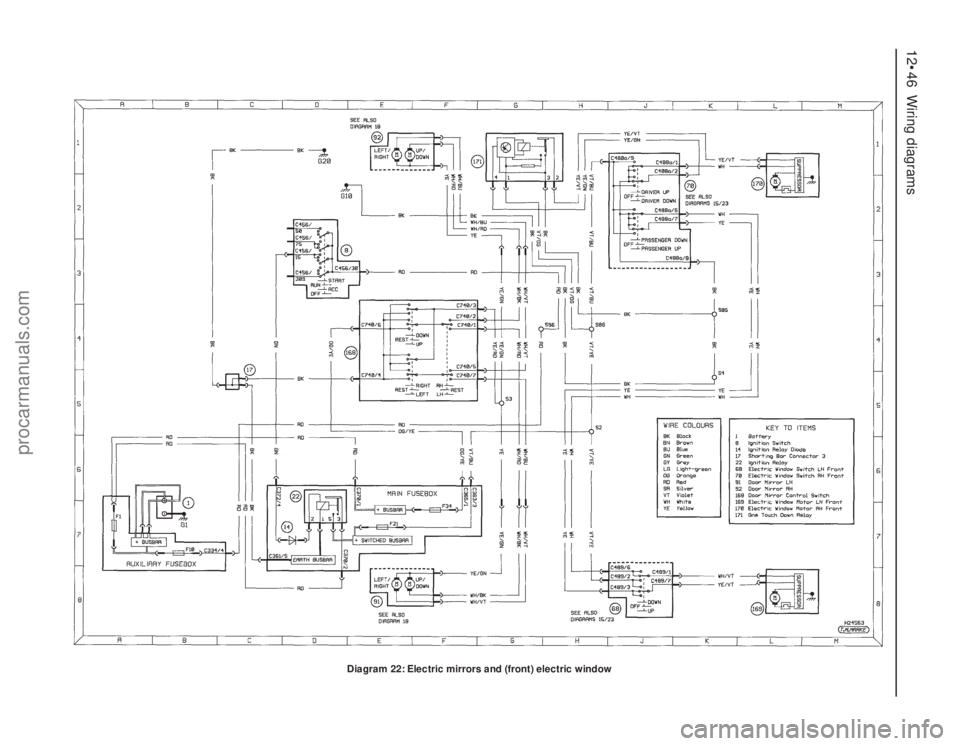

Diagram 22: Electric mirrors and (front) electric window
procarmanuals.com

Page 248 of 279

FORD MONDEO 1993  Service Repair Manual Wiring diagrams  12•47
12

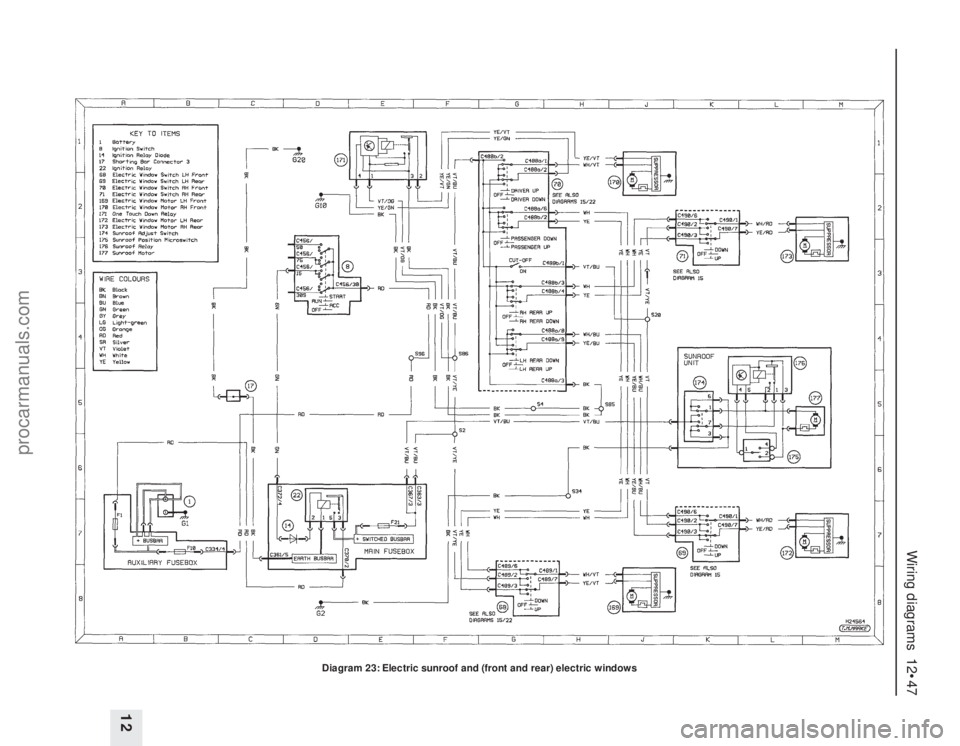

Diagram 23: Electric sunroof and (front and rear) electric windows
procarmanuals.com
